Moroccan Data Lake Healthcare Analytics for Covid-19

Mohamed Cherradi, Anass El Haddadi and Hayat Routaib

Data science and competitive intelligence (DSCI), Applied Sciences Laboratory ENSAH/UAE, Al Hoceima, Morocco

Keywords: Data Lake, Metadata management, Big Data, Ontology, Covid-19.

Abstract: The coronavirus pandemic has radically changed the way we live. It has had a major impact on all areas.

Researchers around the world are redoubling their efforts to explore solutions to this pandemic. In this context,

many researchers attest to the driving role of technologies in the management and resolution of this global

health crisis. To allow specialists in the field to better understand the key factors that influence the rapid

spread of this epidemic, the establishment of a data lake information system is a major challenge for analyzing

heterogeneous data to make effective decisions. This study aims to take advantage of the power of this massive

amount of heterogeneous data to construct a data lake system as one of the expected information systems for

many organizations. To meet this need, this paper proposes a new approach for data lakes based on dynamic

ontologies to manage different data types regardless of their format. In addition to this, we have designed a

friendly interface for the digitalization of hospital operations and a dashboard for visualization of the statistics

of the covid19.

1 INTRODUCTION

Data Lake is one of the new concepts provided with

the appearance of megadata. The original idea of data

lakes came mainly from the business field rather than

the academic field (Khine and Wang 2018). To

confront the threats of big data and the shortcomings

of data warehouses, James (Dixon 2010) gives birth

to a new concept called data lake (DL). In this

context, he said: “If you consider a Data Mart as a

store of bottled water structured, cleaned, and

packaged for easy consumption. The data lake is a

large body of water in a more natural state”. This

explanation proves the power of data lakes. But

should not be examined as an approved definition.

Data Lake is a nearly novel concept. Even though

people consider it to be a marketing concept or

strongly associate it with Apache Hadoop, which is

not valid. There is no standard definition or

architecture for data lakes; often, it depends on a use

case (Ravat and Zhao 2019a).

Data lakes appeared as an adequate explanation to

the problem of getting knowledge from a massive

amount of diversified data sources (Diamantini et al,

2018). One of the good answers to this requirement is

data lakes (Madera and Laurent 2016). A data lake is

a central repository covering a vast amount of raw

data in raw formats, separately from a data

warehouse, a data lake based on a plane architecture.

However, the management of the data stored in the

lakes is assured by the presence of a well-maintained

metadata layer. This allows us to understand,

navigate, and extract knowledge in the end to make

effective decisions.

The management of data lakes desires the

definition of new techniques different from that

adopted by conventional solutions, such as data

warehouses (Diamantini et al, 2018). Most of these

techniques are based on the idea of exploiting

metadata which performs at its core and presents the

essential tools granted to be a very aggressive plan in

the big data era. Indeed, the data lake principles for

each raw data need to be connected with a set of

descriptive metadata. This represents the fundamental

rule in data lake architecture because they make data

possible actionable. For this purpose, the discovery of

new models of metadata management depicts an open

research issue in the data lake domain.

Automatic metadata extraction from different data

sources is one of the significant challenges addressed

in metadata management for data lakes. This consists

of building an automatic metadata extraction process.

Because the raw material of our approach is metadata,

it's vital for data querying and navigation. Without

any metadata management, the data lake appeared

useless. In this context, we thought to automate this

process via the development of a rest API.

232

Cherradi, M., El Haddadi, A. and Routaib, H.

Moroccan Data Lake Healthcare Analytics for Covid-19.

DOI: 10.5220/0010731700003101

In Proceedings of the 2nd International Conference on Big Data, Modelling and Machine Learning (BML 2021), pages 232-238

ISBN: 978-989-758-559-3

There are several approaches and techniques in

the literature to manage semi-structured and

structured data ((Bhroithe et al. 2020), (Alloghani et

al. 2019), (Aftab et al. 2020), (Ouaret et al. 2019)).

However, it only focuses on two formats (structured

and semi-structured) but does not examine

unstructured data. In addition to that, most of the

approaches that deal with unstructured data focus

only on textual data (Yafooz and Fahad 2018).

The goal of this paper is formed as follows:

Firstly, we take a look at the state of art and present a

comprehensive vision of DL concepts. Secondly, we

introduce a new method for structuring unstructured

data. Especially in the health field, because in this

field, we often find data in different formats. Thirdly,

the construction of our ontology which represents our

Moroccan data lake.

The remainder of this paper is structured like this:

in Section 2, we parse the related literature. In Section

3, we present the formalization and data lake

architectures adopted by our approach. Then we offer

a procedure to partly structuring unstructured data

sources. In Section 4, we describe our data lake

ontology-based model to enrich the representation of

unstructured data sources. In Section 5, we give an

example case of covid-19. In Section 6, we present

the evaluation technique and describe a critical

discussion of our approach. Finally, in Section 7, we

conclude our paper.

2 RELATED LITERATURE

2.1 State of the Art

Data lake relatively is a recent concept, introduced by

James Dixon as an alternative to data marts; storing

data into silos (Alserafi et al. 2016), to prevent them

from being transformed into a data swamp must be

accompanied by metadata (Sawadogo et al. 2019).

The data lake model demands that any raw data be

combined with a set of metadata. This represents a

crucial competitive differentiator for any data lake

architecture. Following (Farrugia et al. 2016), they

proposed an approach to managing data lakes based

on the extraction of metadata from an open-source

data warehouse system named hive. To achieve their

target, it applies Social Network Analysis techniques.

In the literature, various metadata classifications

have been introduced. Thereby, various metadata

models are used to design metadata classification.

Among these models we find RDF. The power of this

model is of course its semantic richness. However, its

weakness is its complexity. Indeed, cannot maintain

fast processing and analysis of the heterogeneous

data.

A metadata model proposed by Oram is well-

suited for data lakes (Oram 2016). There is also the

model approved by Zaloni (Ben Sharma 2018),

considered as one of the business managers in the data

lake domain. Yet, Zaloni adopts a trinomial

classification of metadata, namely operational,

technical, and business metadata.

2.2 Data Lake Definition

A data lake is represented as an extensive system or

repository that stores heterogeneous raw data; the

diversification of concepts poses a significant issue.

There is robust compliance in the literature on the

definition of data lakes. Still, all existing definitions

share the same vision about the definition of data

lakes, respecting the idea that a data lake is a central

repository of raw data stored in a natural format. For

example, (Hai et al. 2016) defines data lakes as “a

megadata repository that stores data in its native

format and provides on-demand ingestion

functionality using metadata description”.

(Terrizzano et al. 2015) uses a definition of a data lake

provided by (Madera and Laurent 2016) and asserts

that “a data lake is a central repository containing

enormous amounts of raw data described by

metadata”. Thus, we ascertain that there is a strong

agreement concerning the definition of data lakes. In

the situation of big data analytics, user needs are not

established during the primary draft. A data lake is an

answer that came with the appearance of big data,

ingests raw data from different sources, and stocks

source data in a natural format. Enables data to be

processed conforming to diverse specifications.

Indeed, empowers access to ready data for various

needs, and supervises data to ensure data governance.

3 FORMALIZATION

In this section, we will describe our network model to

manage the data lake, which will be used in our paper.

Our network model shows data lake as being a set

of data sources, like this:

DL = {DS

, DS

, … , DS

/ DS = Data Source} (1)

It is important to note that each data source DS

arranged with a set of metadata commented by M

We denote by M

the set of metadata repositories for

heterogeneous data sources stored in the lake.

Moroccan Data Lake Healthcare Analytics for Covid-19

233

= {M

, M

… , M

/ M = metadata} (2)

3.1 Typologie of Metadata

However, data comes from distinct sources, and

various schemas are gathered together. It appears

clearly that the metadata is essential to carry track of

these data, playing a differentiator role in promoting

the assistance of confusing data sources. This role is

known as a vital interest in the promotion of data

lakes; it is the only way to ensure effective

management of data lakes so that they are

transformed into data swamps in the absence of

attribution of any scheme. Thereby, details on how to

manage a metadata system are not provided. It

remains an open research question. Each researcher

can design their approach to build an efficient

metadata management system that meets big data lake

requirements.

Following what is said by (Oram 2016), metadata

can be classified into three classes, i.e. Business

metadata, which comprises business orders and gives

data meaning in the context of the organization;

Operational metadata, which contains the details of

processing and accessing of data; Technical metadata,

which includes information on the format and

structure of the data, we often talk about data schema.

Based on this argument, M

can be expressed like the

union of three sets, as you can see in figure 1.

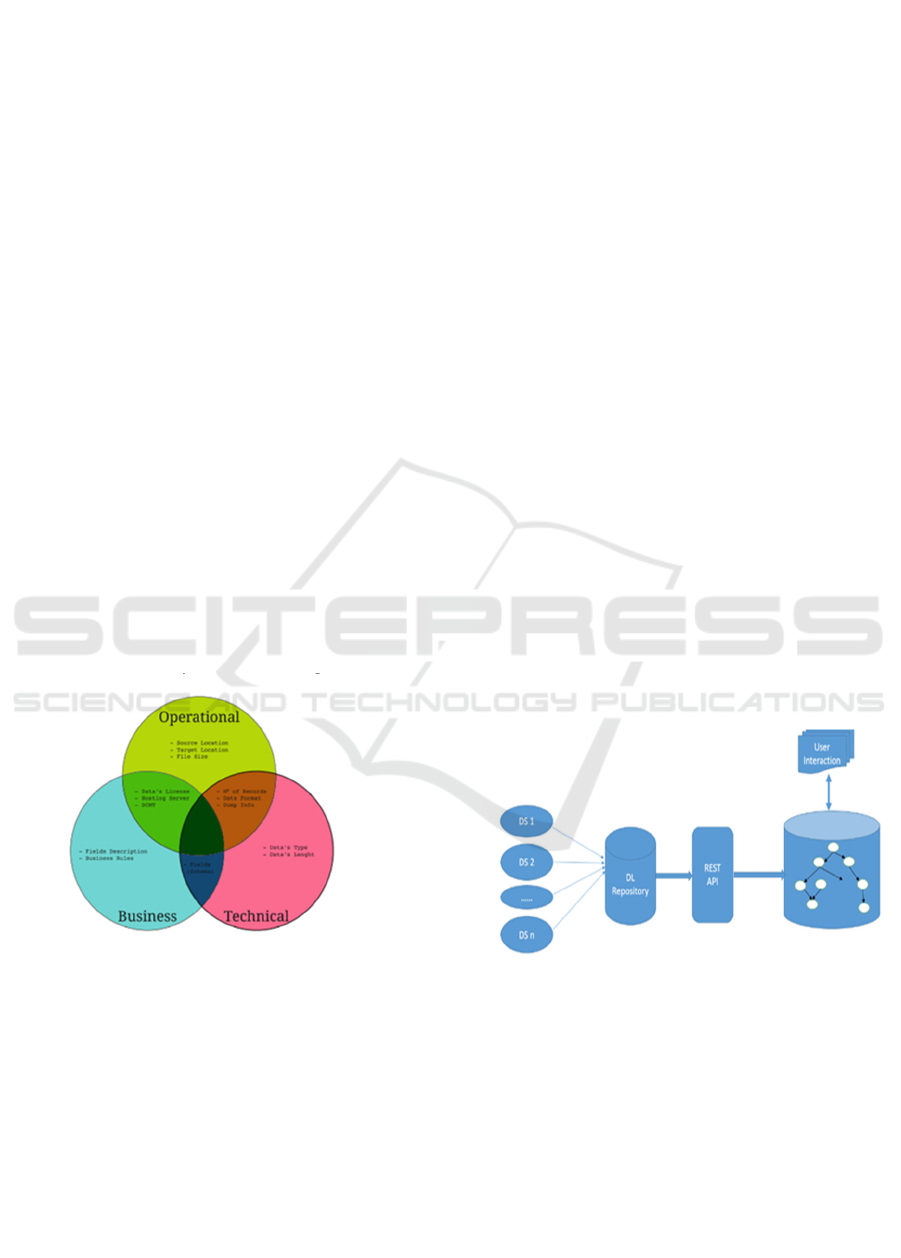

Figure 1: Metadata classification (Diamantini et al. 2018).

Our network model is based on JSON, XML RDF,

and many other semi-structured notations to represent

metadata. Conforming to this notation, we designed

our model, which is based on ontologies.

= < N

> (3)

With N

, signify the node which represents a concept

in ontology, identified by a URI, and A

indicates an

arc that represents the relation between the set of

concepts belonging to the ontology.

3.2 Defining the Structure for

Unstructured Data

Based on an extensible and generic ontology

representation, our network model is fully matched

for managing different types of data. The most

significant difficulty concerns unstructured data, but

the data lake often remains the leader for this type of

requirement (Diamantini et al, 2018). A data lake is a

powerful storage space with a large extent of raw data

in native format. Thereby, for example, schema

ingestion for unstructured data has no predefined

schema, often we rely on metadata extraction to

manage this type of data.

Our approach aims to contribute to this context.

In particular, it proposes a REST API, able to

automate the extraction of metadata from different

data sources. Our methodology depends on using

ontologies to represent all the data sources stored in

the data lake utilizing an appropriate ontology.

Indeed, ontologies represent one of the very flexible

and on-demand solutions, often allowing the

modeling of all use cases. In this article, we adopt

networks to manage unstructured data, which is

characterized by a frequently changing pattern.

Moreover, we propose a technique for structuring

unstructured data from keywords extracted from

descriptive metadata. This is a fundamental task that

represents a substantial asset because it facilitates the

efficient management of non-structured data through

our network model.

Figure 2: The architecture adopted by our model to

structure unstructured data.

4 ONTOLOGY DATA LAKE

ARCHITECTURE

There are two distinct models for data storage: the first

one is a data warehouse, and the second one is a data

lake. The question that arises is why data lake recently

gained so much attention. In contrast, the storage

market already has data warehouses for analyzing

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

234

business needs. Table 1 describes the contrasts

between a data lake and a data warehouse.

Nevertheless, if a Data Lake is a sandbox, it is still

essential to give it an architecture. Otherwise, one day

it ends up in the trash, and the data lake turns into a

dark swamp made up of data that is forever

inaccessible. In this context, data governance appears

as one of the significant challenges of the proper

functioning of a data lake (Panwar and Bhatnagar

2020). Furthermore, if we want to define what data

governance is, we can say that it is the set of processes

ensuring the management of corporate data sets.

Allows us to apply policies, standards, practices, and

strategies to manage data and to create value, trust.

Governance ensures that trust data and that those

responsible can be easily identified in the event of a

problem. Poor governance is the source of many

failures.

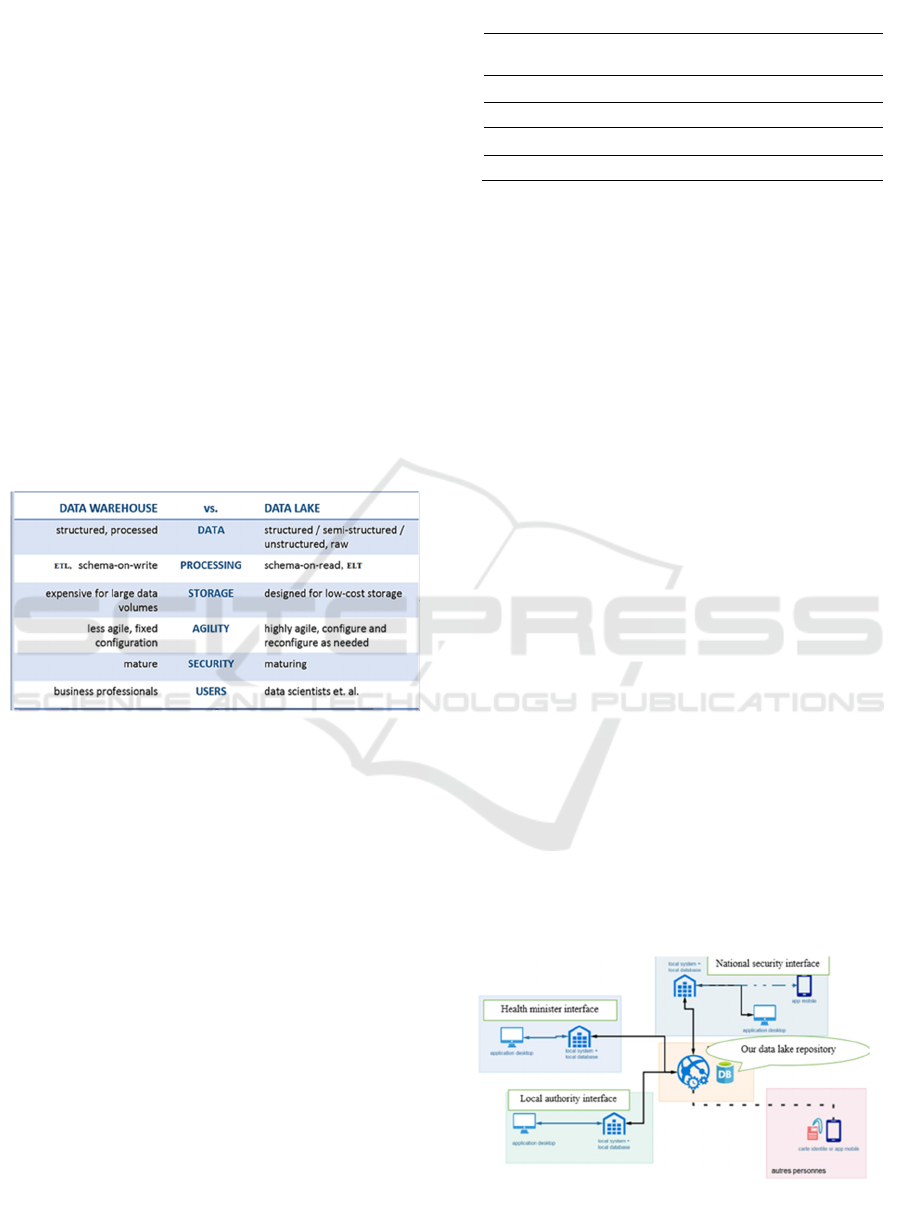

Table 1: Comparison between data lake and data warehouse

(Simon Späti, 2018).

Data governance is a skilful blend of several skills:

technologies, data science, digital marketing, and

project management (Panwar and Bhatnagar 2020).

Moreover, to sum up, data lake tends to meet the

following challenges: not only data storage and

processing. But also related skills such as

visualization, data science, data governance, and real-

time processing capacities.

As data lakes use a flat architecture, there are no

processing tasks accomplished to accustom the

structure to an enterprise schema. Each data source

belonging to the data lake repository has a particular

identifier and metadata properties to describe the data

(as you see in table 2). However, data lakes don’t

need to follow the strict structure for controlling

different types and aspects of data (Miloslavskaya

and Tolstoy 2016).

Table 2: Data lake overview.

Data

Sources

Identifier Metadata

Description

... …. ….

For data lake architecture, the diversification of

concepts proves a significant issue. Indeed, the

architecture we have proposed in this paper (See

Figure 2) forms planning of the management and

storage data. It will optimize the information capacity

of monitoring. It comprises various information

pools, supporting an assortment of examination and

mix instruments tools.

5 CASE STUDIES:

HEALTHCARE ANALYTICS

FOR COVID-19 IN MOROCCO

This section proposes an example case study to show

the different stages of our approach based on

ontology networks. Whose objective is to build a

dedicated data lake for each hospital to follow the

evolution of covid-19.

5.1 Digitalization of Hospital

Operations

To follow the evolutions of covid-19 and to provide

an interactive dashboard capable of representing and

knowing the current state of our pay. In this context,

it appears the digitalization of the hospital is a

necessity of building a central data lake capable of

storing and processing any type of data, and in

particular in the case of the hospital, often we find

heterogeneous data of different kinds are

encountered.

Figure 3: the citizen data collection process and their covid-

19 tracking.

Moroccan Data Lake Healthcare Analytics for Covid-19

235

To make this evolution of citizens and to provide

interactive visualizations. We have developed an

interactive interface (see Figure 4), which allows the

median to do CRUD operations. It allows to add,

modify, delete in case of error and consult the citizens

who carry the covid-19 virus.

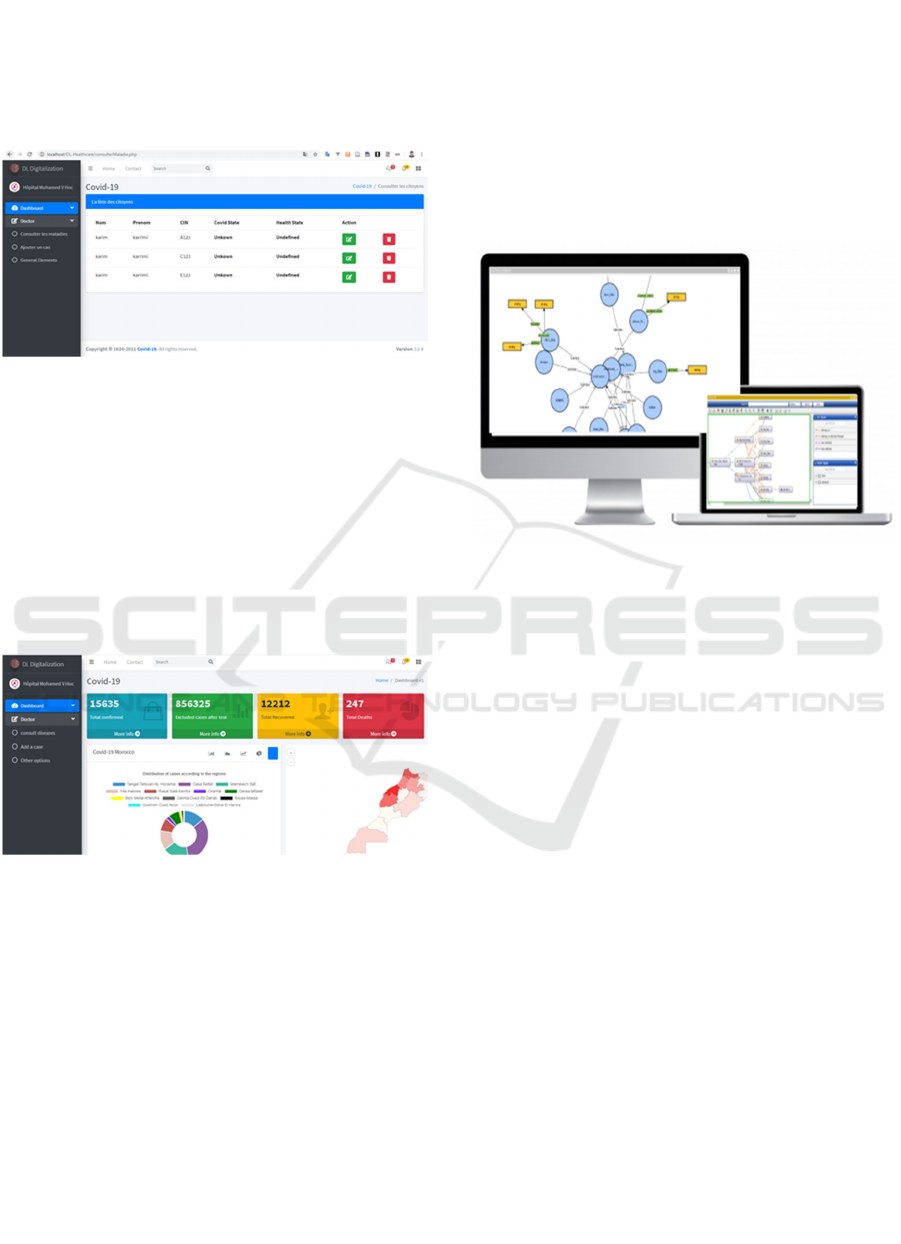

Figure 4: digitization operations interface

To improve decision-making, data visualization

appears to be an effective solution, plays a significant

role in governance and activity management; they

allow managers of each service to identify

correlations between objectives, performance and

identify risk at a glance. In this context, we develop

an interactive dashboard (see figure 5) about the

citizens who carry the viruses. Via this dashboard, we

can perform statistics in real-time on the situation of

covid-19 in our country.

Figure 5: Dashboard visualization of covid-19.

5.2 An Example Case of Structuring

Unstructured Data based Ontology

This section shows an example case study intended to

explain the different stages of our network model. To

realize our use cases, we designed our data lake with

four unstructured data sources (i.e., two pdfs and two

videos). All these sources store data about the health

situation, such as the illness situation, the number of

illnesses, the type of drugs being taken, etc.

Our approach follows the following steps to

structure unstructured data in the lake, as we specified

in Section 3.2. It is composed of two phases:

Metadata Extraction and ontology representation. By

applying the methodology referenced in Section 3.2,

we attain the identical representations in our network-

based model, shown in Figs. 6.

To visualize our ontology, we use the OntoGraph

tool (resp. VOWL), which automatically generates

our network model. And supports interactive

navigation in the relationships of our ontology.

OntoGraph and VOWL aim for an intuitive and

complete representation that is understandable for

users less familiar with ontologies.

Figure 6: The ontology network corresponding to the data

source.

6 DISCUSSION

This section is intended for a critical examination of

our proposal based on several facets. It contains two

sections. Firstly, we perform a comparison between

our approach and the associated approaches.

Secondly, we assess the performance of our approach.

6.1 Comparison between Our

Approach and the Related Ones

If we start from the idea that we are going to use

metadata to manage data lakes. In this section, we can

classify three main categories of approaches most

closely related to our own. These approaches aim

more precisely to:

(i) Automate the extraction of metadata based on

efficient solutions

(ii) Structure unstructured data

(iii) Extract knowledge from heterogeneous data

Regarding the first category, the corresponding

approaches share the same objective with ours, i.e.

automatic metadata extraction. However, most of the

techniques that exist to automate the metadata

extraction process (such as, for example, Metadata

Extractor tool, Cermine, GROBID, Etc.) focus on a

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

236

well-specified data format. However, our technique is

based on a rest API developed with Flask capable of

extracting metadata from different data sources,

whatever its structure, and this represents a

competitive advantage compared to other techniques

in this context.

The analogous methods manifest some

similarities for the second category, but they contain

some differences from ours. In particular, both start

from the idea of exploiting metadata. However, most

approaches only focus on textual data, while our

approach maintains data sources with different

formats.

For the third category, they extract knowledge

from heterogeneous data sources. For example, the

approach of (Lo Giudice et al. 2019) aims to query

heterogeneous data collected in the lake. This

approach has several distinctions from ours. Indeed,

it is essentially based on the identity of the keywords

extracted from the metadata for querying a data lake.

However, our approach is based on semantic web

techniques.

6.2 The Evaluation Criteria of Our

Approach

The criteria for evaluating the achievement of our

method to structure unorganized data consists of

ascertaining in which sense can measure the

connection between the concepts conforming to the

keywords frequently applied to describe unstructured

data. Given a network model similar to ours, an

analytical technique of measuring performance is

based on exploiting specific criteria generally

approved in network analysis to measure the height

of structuring. These measures are availability,

relevance, consistency, update, and semantic

precision.

In order to structure the unstructured data, our

approach is based roughly on metadata. So in this

context, to assess the performance of our approach,

we must first measure the efficiency of metadata, as

illustrated in Figure 7. All of them belong to the

interval [0,1]; the more the value is close to 1, the

structuration of data is perfect, and therefore, the

model is magnificent in terms of structuring

unstructured data.

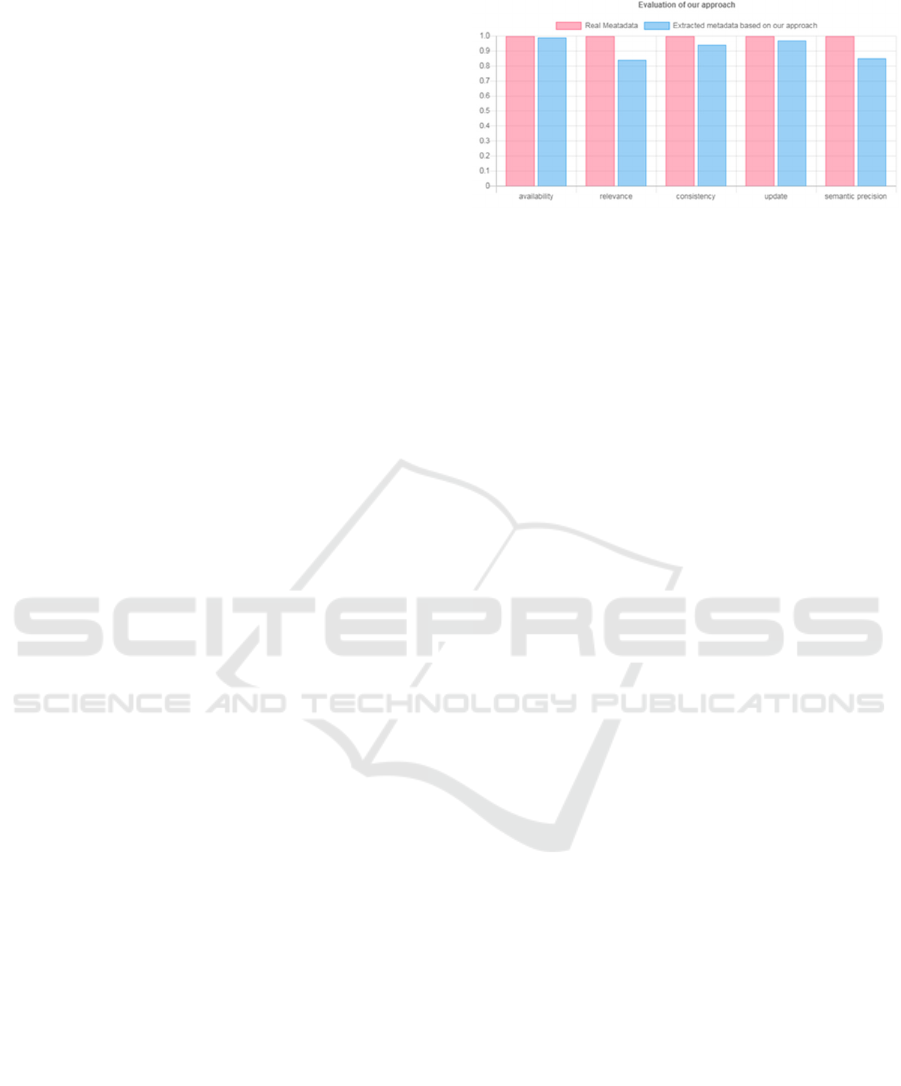

Figure 7: measures to assess our approach

7 CONCLUSION

In this article, we have proposed a novel network

model to effectively manage the data sources stored

in the lake and avoid the famous dilemma of data

lakes, which is known as data swamp. In addition to

that, we defined a novel technique to extract complex

knowledge from the data sources that exist in the lake

based on dynamic ontologies. Finally, we measure the

achievement of our approach to see the ability to

structure unstructured data.

This paper should not be interpreted as

finalized, but it should be seen as the starting point for

a new set of efficient big data management

techniques. Specially designed to manage

heterogeneous data in the lake.

REFERENCES

Aftab Z, Iqbal W, Almustafa KM, Bukhari F, Abdullah M

(2020) Automatic NoSQL to Relational Database

Transformation with Dynamic Schema Mapping. In:

Sci. Program. Accessed 5 FEB 2021

https://www.hindawi.com/journals/sp/2020/8813350/.

Alloghani M, Al-Jumeily D, Hussain A, Aljaaf A,

Mustafina J, Khalaf M, Tan SY (2019) The XML and

Semantic Web: A Systematic Review On Technologies.

pp 92–102

Alqaryouti O, Khwileh H, Farouk TA, Nabhan A, Shaalan

K (2018) Graph-Based Keyword Extraction. In: Studies

in Computational Intelligence. pp 159–172

Alserafi A, Abelló A, Romero O, Calders T (2016) Towards

Information Profiling: Data Lake Content Metadata

Management. In: 2016 IEEE 16th International

Conference on Data Mining Workshops (ICDMW).

Ben Sharma (2018) Architecting Data Lakes, 2nd Edition -

Ben Sharma - Google Livres.

https://books.google.co.ma/books/about/Architecting_

Data_Lakes_2nd_Edition.html?id=phFJzQEACAAJ&

redir_esc=y. Accessed 10 Feb 2021

Bhróithe A, Heiden F, Schemmert A, Phan D, Hung L,

Freiheit J, Fuchs-Kittowski F (2020) A Generic

Moroccan Data Lake Healthcare Analytics for Covid-19

237

Approach to Schema Evolution in Live Relational

Databases. pp 105–118

Diamantini C, Lo Giudice P, Musarella L, Potena D, Storti

E, Ursino D (2018) A New Metadata Model to

Uniformly Handle Heterogeneous Data Lake Sources:

ADBIS 2018 Short Papers and Workshops, AI*QA,

BIGPMED, CSACDB, M2U, BigDataMAPS,

ISTREND, DC, Budapest, Hungary, September, 2-5,

2018, Proceedings. pp 165–177

Dixon J (2010) Pentaho, Hadoop, and Data Lakes | James

Dixon’s Blog.

https://jamesdixon.wordpress.com/2010/10/14/pentaho

-hadoop-and-data-lakes/. Accessed 10 Feb 2021

Farrugia A, Claxton R, Thompson S (2016) Towards social

network analytics for understanding and managing

enterprise data lakes. In: 2016 IEEE/ACM International

Conference on Advances in Social Networks Analysis

and Mining (ASONAM). pp 1213–1220

Hai R, Geisler S, Quix C (2016) Constance: An Intelligent

Data Lake System. pp 2097–2100

Khine PP, Wang ZS (2018) Data lake: a new ideology in

big data era. ITM Web Conf 17:03025.

https://doi.org/10.1051/itmconf/20181703025

Lo Giudice P, Musarella L, Sofo G, Ursino D (2019) An

approach to extracting complex knowledge patterns

among concepts belonging to structured, semi-

structured and unstructured sources in a data lake. Inf

Sci 478:606–626.

https://doi.org/10.1016/j.ins.2018.11.052

Madera C, Laurent A (2016) The next information

architecture evolution: the data lake wave. pp 174–180

Miloslavskaya N, Tolstoy A (2016) Application of Big

Data, Fast Data and Data Lake Concepts to Information

Security Issues

Oram A (2016) Managing the Data Lake - Managing the

Data Lake [Book].

https://www.oreilly.com/library/view/managing-the-

data/9781492049876/titlepage01.html. Accessed 5 Feb

2021

Ouaret Z, Boukraâ D, Boussaid O, Chalal R (2019)

AuMixDw: Towards an automated hybrid approach for

building XML data warehouses. Data Knowl Eng 120.

https://doi.org/10.1016/j.datak.2019.01.004

Panwar A, Bhatnagar V (2020) Data Lake Architecture: A

New Repository for Data Engineer. Int J Organ Collect

Intell 10:63–75.

https://doi.org/10.4018/IJOCI.2020010104

Ravat F, Zhao Y (2019a) Data Lakes: Trends and

Perspectives. In: Hartmann S, Küng J, Chakravarthy S,

Anderst-Kotsis G, Tjoa AM, Khalil I (eds) Database

and Expert Systems Applications. Springer

International Publishing, Cham, pp 304–313

Ravat F, Zhao Y (2019b) Data Lakes: Trends and

Perspectives

Sawadogo PN, Scholly É, Favre C, Ferey É, Loudcher S,

Darmont J (2019) Metadata Systems for Data Lakes:

Models and Features. In: Welzer T, Eder J, Podgorelec

V, Wrembel R, Ivanović M, Gamper J, Morzy M,

Tzouramanis T, Darmont J, Kamišalić Latifić A (eds)

New Trends in Databases and Information Systems.

Springer International Publishing, Cham, pp 440–451

Terrizzano IG, Schwarz P, Roth M, Colino JE (2015) Data

Wrangling: The Challenging Journey from the Wild to

the Lake. In: CIDR

Yafooz W, Fahad S (2018) Managing Unstructured Textual

Data. 2:26–33

BML 2021 - INTERNATIONAL CONFERENCE ON BIG DATA, MODELLING AND MACHINE LEARNING (BML’21)

238
