A Vehicle Braking System based on 3D Camera

Sonki Prasetya

1,2

, Hasvienda M. Ridlwan

, Idrus Assagaf

, Muslimin

, Mohammad Adhitya

Danardono A. Sumarsono

Mechanical Engineering Department of Politeknik Negeri Jakarta

Mechanical Engineering Department, Engineering Faculty of Universitas Indonesia

Keywords: Braking, 3D Camera, object classification.

Abstract: One of important feature in a vehicle is the braking system. It is made for a safety device during driving this

also included for operation of a heavy vehicle namely a forklift. However, forklift accident has a higher

annually. The human factor is considered the main cause of the accident due to the unconsciousness

condition while driving. This investigation emphases on applying an intelligent device that can classify

objects as well as measure distances in front of an object to decide the braking action. The method of this

study process pictures derived from a stereo camera that employed a neural network algorithm. A mini-

computer is implanted with the algorithm can classify the objects in front of vehicles. Later on, the two sets

of camera position that capture images that can be used to calculate the distance of objects from the camera.

Furthermore, process of decelerating signal depends on the distance. The categorization and the distance

measurement needs around 300 ms. Moreover, braking action is decided upon the intensity. The higher

value means hard stopping meanwhile lower value represents the slow stopping.

1 INTRODUCTION

One of an important human inventions is a

vehicle particularly a car in the 19

century. This

invention is used for moving a human from one to

another place. People also use vehicle for

transporting heavy objects during their work

especially in a factory.

However, accident can happen during the work.

The data shows that more than 20,000 forklift

accidents happened annually (Industries, 2019). The

most common cause of the accident is the operator

inattention (California, 2018). This can happen due

to fatigues, distractions and carelessness.

Artificial intelligent methods are now common to

be used in any area of human activities. Camera

utilizations for helping human work to represent the

eye of machines are widely applied (Fleming,

Allison, Yan, Lot, & Stanton, 2019; García, Prioletti,

Cerri, & Broggi, 2018; Nguyen & Brilakis, 2018).

Studies of the camera application in heavy

equipment vehicle have been done by several

researchers. A forklift with the visual guidance is

researched by Seelinger in 2006 (Seelinger & Yoder,

2006). Other work done by Bellomo equipped the

forklift with a camera to estimate the pallet position

using camera and LIDAR (Bellomo et al., 2009).

Moreover, a study done by Irawan (Irawan et al.,

2018) added camera for alignment. However,

forklift researches normally focuses on pallet

carrying.

Therefore, a device to assist a forklift operator to

improve the safety during driving is the objective of

this study. The purpose of the investigation is to

implement the stereo (3D) camera to detect and

measure the distance of the objects. Thus, it can

produce the braking action.

This paper describes the usage of artificial

intelligent for generating a braking intensity by

means of an electrical signal to drive the braking

actuator. As an additional, this intelligent braking

assistance for forklift driver can be further

implemented to an autonomous vehicle.

2 METHODOLOGY

There are two main stages to achieve the

objective of the investigation. The first is to detect

an object by the camera (categorizing and measuring

distance). The second is to generate braking

intensity. The beginning of the step is detecting an

Prasetya, S., Ridlwan, H., Assagaf, I., Muslimin, ., Adhitya, M. and Sumarsono, D.

A Vehicle Braking System based on 3D Camera.

DOI: 10.5220/0009871600002905

In Proceedings of the 8th Annual Southeast Asian International Seminar (ASAIS 2019), pages 38-41

ISBN: 978-989-758-468-8

object. Utilizing a stereo camera requires focal

length, point coordinates, radial and tangential

distortion factor. Kinect (type of the camera) is an

apparatus produced by Microsoft that provides two

cameras incorporated into one module. It is normally

use for gaming purposes on video game or Microsoft

Windows PC. However, this also utilized for serious

purpose applications such as in educational (Xu et

al., 2019) and medical sciences (Oh, Kuenze,

Jacopetti, Signorile, & Eltoukhy, 2018).

The method of identifying an object is obtained

by Convolutional Neural Network (CNN). This

Neural Network method follows the human brain

works. There are variants of CNN implemented.

However, a type of feed forward is employed for

this investigation. This technique requires several

layer (Huang et al., 2018; Jalali, Mallipeddi, & Lee,

2017) namely Convolution layer, Rectified Linear

Unit (ReLU), Pooling and Fully Connected layer.

Numbers of layer follow the rule:

(1)

where 

,

is k

row and l

column of the pixel,

 is the function, 

,

is the filter position weight,



,

is the pixel of point k and l of input image, and



is bias filter respectively. The PxQ is the size of

the kernel (smallest matrix of an image). The

learning and optimization process generate values of



,

and



The method of stereo camera has been used for

several application areas (Boldt, Williams, Rooper,

Towler, & Gauthier, 2018; Chi, Yu, & Pan, 2018;

Murmu, Chakraborty, & Nandi, 2019; Williams,

Rooper, De Robertis, Levine, & Towler, 2018) . In

order to obtain the estimated depth between an

object with the camera, it uses a triangular formula.

The calculation of the depth (D) is described as

follow (Hu, Lamosa, & Uchimura, 2005)

(2)

where,





is the focal length of the camera, 



the base of triangle, 



is disparity respectively. The

base is a distance between the left 



and the right 



with respect to the x coordinate of the camera as

shown in the formula 2.

(2)

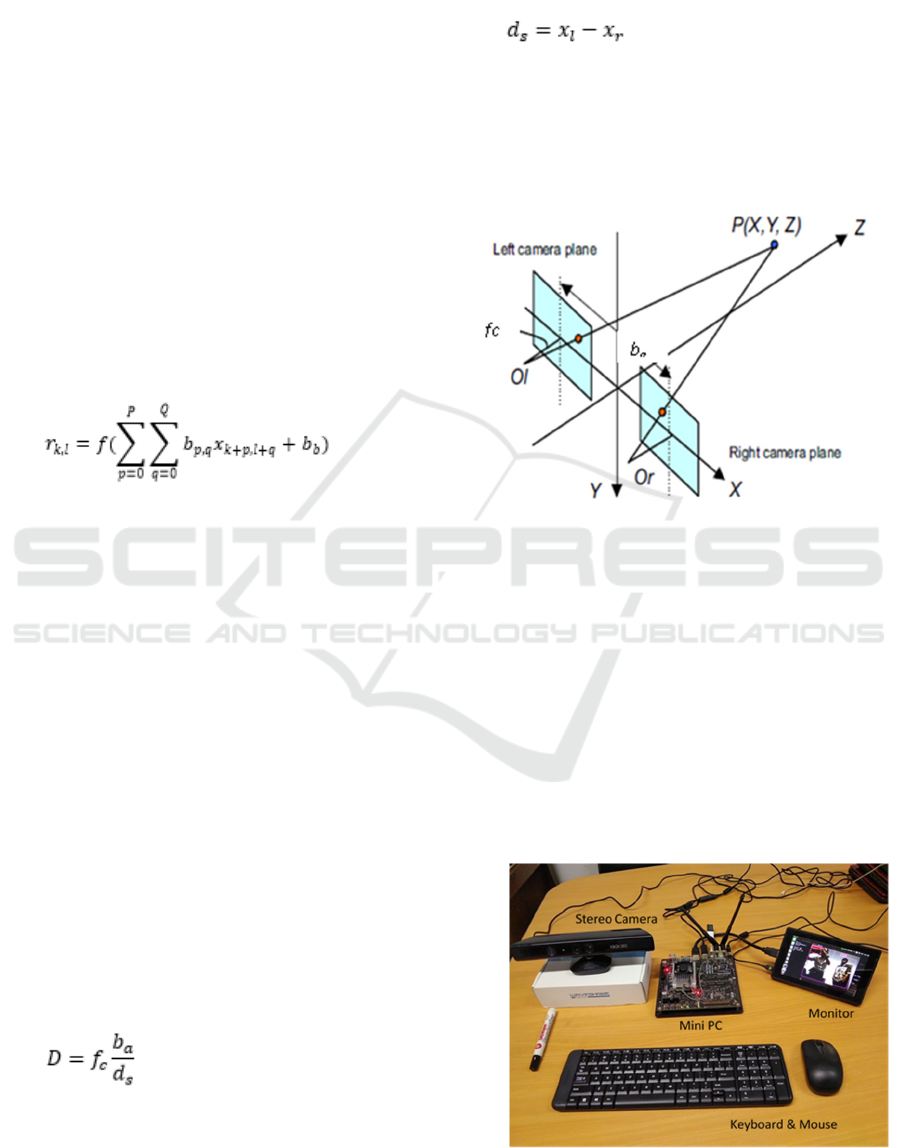

Figure 2.1 describes the technique of the stereo

camera organization set.

Figure 2.1. Stereo Camera arrangement (Hu, et al., 2005)

3 RESULT AND DISCUSSION

Figure 3.1 is the set of experiment system. It consists

the stereo camera that connected to the mini PC.

This PC uses Operating System (OS) open source

Linux with Python programming. It is also equipped

with the CUDA core for the parallel computation to

process an image as the Graphical Processing Unit

(GPU). In order to display the result a small monitor

is used. The screen of the monitor shows the video

from the camera.

Figure 3.1. System object detection

A Vehicle Braking System based on 3D Camera

Using more than 70 objects for the learning

procedure via sample pictures, the result will be

compared with an object taken from the camera.

Furthermore, after the classification of objects,

the result of is shown by presenting a frame box

surrounding of the object with the note of the

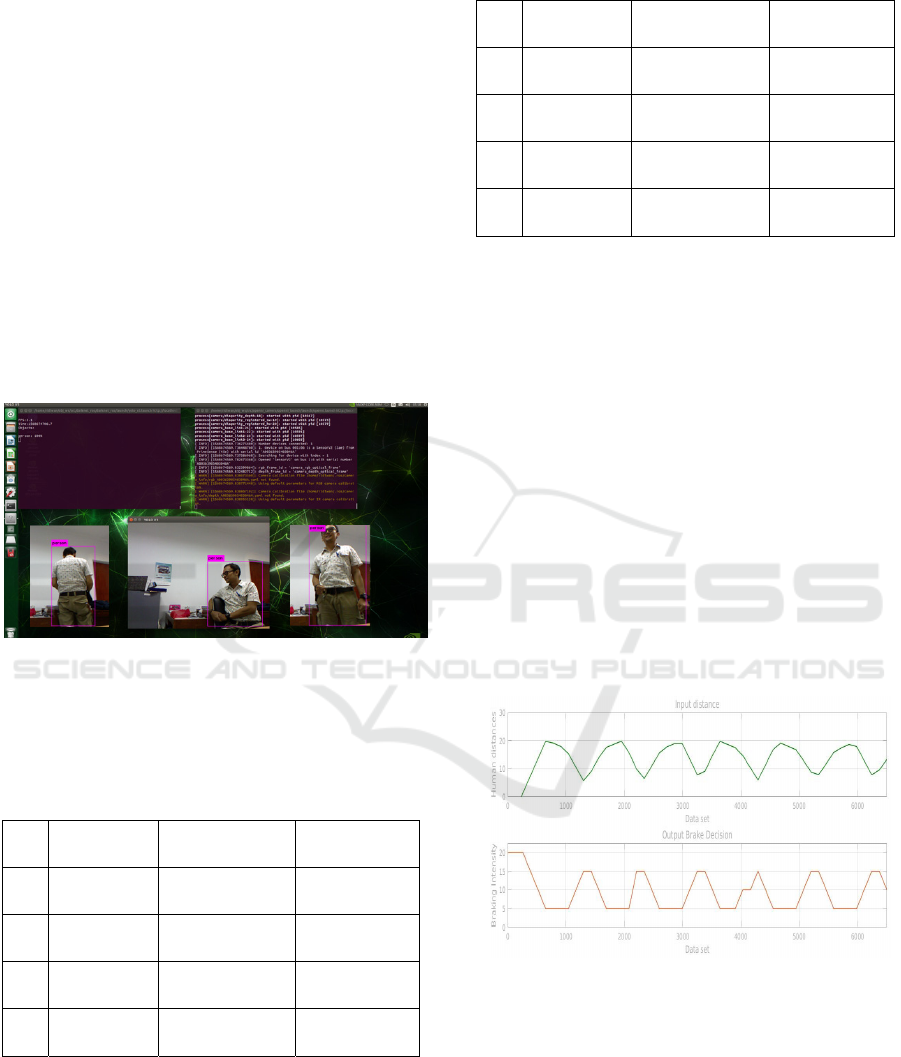

classified object. The image of Figure 3.2 depicts

the stage of object categorization. For this study

purposes, the objective is concentrated only for a

human. Therefore, a person as an object is observed

for the categorization. The accuracy is the target.

Higher accuracy (in percentage) means that the

object is assured. Thus, it can be prioritized to

enable the deceleration.

The vehicle deceleration depends on the distance

of an object with respect to the camera. Longer the

distance will not activate the braking signal,

meanwhile closer means slowing the vehicle.

Figure 3.2. Monitor display during detection

The detection of the object requires a period. The

duration for object grouping process needs more

than 97% as seen on Tabel 3.1.

Table 3.1. Object detection data

No Object

Accuracy

(%)

Duration

(ms)

Person

pose 1

97 320

Person

pose 2

96 310

Person

pose 3

99 330

Person

pose 4

98 325

Moreover, the distance is also presented in the

table 3.2. This table compares the distance between

the actual and the camera measurement

Table 3.2. Distance measurement of an object

No Object

Distance

reference(m)

Distance

detected(m)

1 Person

pose 1

2.50 2.45

2 Person

pose 2

2.10 2.05

3 Person

pose 3

1.80 1.86

4 Person

pose 4

2.20 2.17

The result shows that the difference between the

predicted and real value is close. It is calculated that

the maximum error of the measurement is around

3%. This indicates that the system is suitable for the

application in a vehicle particularly with the slow

speed. It is also fit for heavy equipment vehicles

such as the fork lifts or loaders.

The decision signal is then sent to the braking

system by the value of intensity. Higher value

represents the higher deceleration meanwhile the

lower value denotes the lower intensity of slowing

down.

Further test is carried out using object movement

back and forth to test the braking decision. The

object particularly a person movement is saved into

a dataset. This data set is then processed into the

Matlab software to generate the function of braking

decision as shown in the Figure 3.3.

Figure 3.3. Object distance with braking decision

The x-coordinate represents the data taken. The

green curve at the top is the input (person

movement) represented in a distance (m) with

respect to the camera. The lower red curve represent

the braking intensity resulted from the input. It is

represented in a maximum intensity in a value of 20

when a human is closer than 5 m. Thus, hard stop is

denoted by 20. Meanwhile lowest value 0 means no

braking action.

ASAIS 2019 - Annual Southeast Asian International Seminar

4 CONCLUSIONS

The summary of the study are:

 The detection of an object requires period of

around 300 ms with more than 90% accuracy.

 The measurement of an object using 3D

camera has an error with the number of

maximum of 3%.

 Braking action is taken by giving value as the

intensity shows that the electric signal is

higher when object distance is closer than 5

ACKNOWLEDGEMENTS

The writers would like to thanks the Penelitian

Unggulan Program Studi (PUPS) Program for

financing the research work.

REFERENCES

Bellomo, N., Marcuzzi, E., Baglivo, L., Pertile, M.,

Bertolazzi, E., & De Cecco, M. (2009). Pallet Pose

Estimation with LIDAR and Vision for Autonomous

Forklifts. IFAC Proceedings Volumes, 42(4), 612-617.

doi: https://doi.org/10.3182/20090603-3-RU-

2001.0540

Boldt, J. L., Williams, K., Rooper, C. N., Towler, R. H., &

Gauthier, S. (2018). Development of stereo camera

methodologies to improve pelagic fish biomass

estimates and inform ecosystem management in

marine waters. Fisheries Research, 198, 66-77. doi:

https://doi.org/10.1016/j.fishres.2017.10.013

California. (2018). Forklift Accident Statistics. safety

numbers in ca.

Chi, Y., Yu, L., & Pan, B. (2018). Low-cost, portable,

robust and high-resolution single-camera stereo-DIC

system and its application in high-temperature

deformation measurements. Optics and Lasers in

Engineering, 104, 141-148. doi:

https://doi.org/10.1016/j.optlaseng.2017.09.020

Fleming, J. M., Allison, C. K., Yan, X., Lot, R., &

Stanton, N. A. (2019). Adaptive driver modelling in

ADAS to improve user acceptance: A study using

naturalistic data. Safety Science, 119, 76-83. doi:

https://doi.org/10.1016/j.ssci.2018.08.023

García, F., Prioletti, A., Cerri, P., & Broggi, A. (2018).

PHD filter for vehicle tracking based on a monocular

camera. Expert Systems with Applications, 91, 472-

479. doi: https://doi.org/10.1016/j.eswa.2017.09.018

Hu, Z., Lamosa, F., & Uchimura, K. (2005). A Compete

U-V-Disparity Study for Stereovision Based 3D

Driving Environment Analysis. Paper presented at the

The fifth International Conference on 3-D Digital

Imaging and Modeling.

Huang, N., He, J., Zhu, N., Xuan, X., Liu, G., & Chang, C.

(2018). Identification of the source camera of images

based on convolutional neural network. Digital

Investigation, 26, 72-80. doi:

https://doi.org/10.1016/j.diin.2018.08.001

Industries, C. (2019). 6 Common Forklift Accidents and

How to Prevent Them Retrieved Aug 19, 2019

Irawan, A., Yaacob, M. A., Azman, F. A., Daud, M. R.,

Razali, A. R., & Ali, S. N. S. (2018, 27-28 Aug.

2018). Vision-based Alignment Control for Mini

Forklift System in Confine Area Operation. Paper

presented at the 2018 International Symposium on

Agent, Multi-Agent Systems and Robotics (ISAMSR).

Jalali, A., Mallipeddi, R., & Lee, M. (2017). Sensitive

deep convolutional neural network for face recognition

at large standoffs with small dataset. Expert Systems

with Applications, 87, 304-315. doi:

https://doi.org/10.1016/j.eswa.2017.06.025

Murmu, N., Chakraborty, B., & Nandi, D. (2019). Relative

velocity measurement using low cost single camera-

based stereo vision system. Measurement, 141, 1-11.

doi:

https://doi.org/10.1016/j.measurement.2019.04.006

Nguyen, B., & Brilakis, I. (2018). Real-time validation of

vision-based over-height vehicle detection system.

Advanced Engineering Informatics, 38, 67-80. doi:

https://doi.org/10.1016/j.aei.2018.06.002

Oh, J., Kuenze, C., Jacopetti, M., Signorile, J. F., &

Eltoukhy, M. (2018). Validity of the Microsoft

Kinect™ in assessing spatiotemporal and lower

extremity kinematics during stair ascent and descent in

healthy young individuals. Medical Engineering &

Physics, 60, 70-76. doi:

https://doi.org/10.1016/j.medengphy.2018.07.011

Seelinger, M., & Yoder, J.-D. (2006). Automatic visual

guidance of a forklift engaging a pallet. Robotics and

Autonomous Systems, 54(12), 1026-1038. doi:

https://doi.org/10.1016/j.robot.2005.10.009

Williams, K., Rooper, C. N., De Robertis, A., Levine, M.,

& Towler, R. (2018). A method for computing

volumetric fish density using stereo cameras. Journal

of Experimental Marine Biology and Ecology, 508,

21-26. doi:

https://doi.org/10.1016/j.jembe.2018.08.001

Xu, M., Zhai, Y., Guo, Y., Lv, P., Li, Y., Wang, M., &

Zhou, B. (2019). Personalized training through Kinect-

based games for physical education. Journal of Visual

Communication and Image Representation, 62, 394-

401. doi: https://doi.org/10.1016/j.jvcir.2019.05.007

A Vehicle Braking System based on 3D Camera
