Real-time Image Registration with Region Matching

Charles Beumier and Xavier Neyt

Signal and Image Centre, Royal Military Academy, Avenue de la Renaissance 30, 1000 Brussels, Belgium

Keywords: Image Registration, Region Segmentation, Connected Component Labeling, Region Descriptors.

Abstract: Image registration, the task of aligning two images, is a fundamental operation for applications like image

stitching or image comparison. In our project in surveillance for route clearance operations, a drone will be

used to detect suspicious people and vehicles. This paper presents an approach for real-time image

alignment of video images acquired by a moving camera. The high correlation between successive images

allows for relatively simple algorithms. We considered region segmentation as an alternative to the more

classical corner or interest point detectors and evaluated the appropriateness of connected component

labeling with a connectivity defined by the gray-level similarity between neighboring pixels. Real-time

processing is intended thanks to a very fast segment-based (as opposed to pixel-based) connected

component labeling. The regions, even if not always pleasing the human eye, proved stable enough to be

linked across images by trivial features such as the area and the centroid. The vector shifts between

matching regions were filtered and modeled by an affine transform. The paper discusses the execution time

obtained by this feasibility study for all the steps needed for image registration and indicates the planned

improvements to achieve real-time.

1 INTRODUCTION

Image registration, a very important field of image

processing and computer vision, is the task of

aligning pictures, a fundamental step for applications

like image stitching, medical image alignment or

camera motion compensation.

Images are usually registered by intensity-based

matching or feature-based pairing (Zitova and

Flusser, 2003; Goshtasby, 2005). The common

intensity-based matching consists in image patch

cross-correlation to find corresponding areas in both

images, a time consuming process due to the large

space of search (image dimension and transform

parameters). The feature-based approach consists in

extracting in both images remarkable points, lines or

contours and in pairing them. The small memory

need and computational load of the latter approaches

have given rise to many successful and efficient

methods like SIFT (Lowe, 2004) and ORB (Rublee

et al., 2011).

We are currently active in a European Defence

Agency project of the Research and Technology

programme IEDDET for countering Improvised

Explosive Devices (EDA, 2017). It addresses the

topic of future route clearance operations for which

an early warning phase is in charge of pre-screening

the area to highlight any suspicious presence of

people or vehicles. To realize this, a test area will be

flown over by an Unmanned Aerial Vehicle

equipped with visible and thermal infra-red cameras.

The thermal camera has been selected for its

capacity to detect individuals and vehicles thanks to

its temperature sensitivity while the visible camera is

more appropriate for image registration.

For image registration, we propose to match

uniform regions as an alternative to the more

classical corners or interest points. Due to the

similarity of images taken from a sequence, regions

can provide for several simple and robust features,

obtained with little development and for small

computational effort. They can bring geometrical

and radiometric information or mix local (contour)

and regional characteristics. They also represent a

useful description for object tracking, after image

registration.

Real-time responses in the context of security or

rapid processing in the case of automatic detection

in hours of video footage impose fast algorithms.

For the sake of estimating local shift between

images to be registered, most fast approaches detect

interest points and match them across images (Lowe,

Beumier, C. and Neyt, X.

Real-time Image Registration with Region Matching.

DOI: 10.5220/0006655304390445

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 4: VISAPP, pages

439-445

ISBN: 978-989-758-290-5

439

2004; Rublee et al., 2011). Many works preferred to

optimize the image intensity comparison of local

areas (blocks). For instance (Puglisi and Battiato,

2011) relied on efficient integral projections while

(Kim et al., 2008) limited the number of blocks and

sub-blocks to be analyzed, and estimated the best

correlation from the number of matching edge points

in sub-blocks. A more recent trend for acceleration

consists in exploiting parallel computing from the

central or graphics processing unit (Zhi et al., 2016;

Shamonin et al., 2014). In this work we planned to

explore the region approach in terms of speed,

registration potential and code simplicity.

The rest of the paper first outlines the

methodology in section 2, then details how images

are segmented into regions in section 3, and how

these are matched in order to model the image

transform for registration, subject of section 4.

Registration results are presented in Section 5 and

time figures are discussed for this feasibility study

and for the planned developments with the suggested

improvements. Section 6 draws conclusions and

outlines our future work.

2 METHODOLOGY

We were motivated to show that for image

registration, region extraction and matching is a valid

alternative to the traditional feature-based approaches

in terms of speed and precision, and this for a

software implementation easy to code and control.

Our development is based on the segmentation of

images into regions thanks to a very fast detection of

connected components. Instead of considering pixel

connectivity, horizontal segments are first detected

thanks to a fast horizontal connectivity check. Then

the vertical connectivity is used to link segments.

The representation of regions exploits directly the

segments and is coded as a list of segment leftmost

and rightmost x coordinates. This representation

allows for memory compactness and very fast

computation of classical geometrical features.

With such a speed for region segmentation, the

difficulty for choosing a threshold can be alleviated

by testing several threshold values for the reference

image (done once) and for the images to be

registered. The number of regions can be used as

selection criterion but some applications may prefer

to use all detected regions (for all thresholds tested).

In this feasibility study, only one threshold was

necessary, due to the high correlation of images

taken from a short sequence.

The regions extracted in images are matched by

features so that provisional shift vectors (Dx,Dy) are

collected all over the image. These vectors are

filtered and modeled by an affine transform. This

image transform made of 6 coefficients is used to

align the image to the reference so that image

differencing can highlight objects in motion.

3 IMAGE SEGMENTATION

The segmentation of images follows the approach of

connected component labeling, with a connectivity

rule based on the gray-level difference of

neighboring pixels. The implementation employs an

efficient representation of regions by segments to

offer speed and to optimize memory accesses and

size.

3.1 Connected Component Labeling

Connected Component Labeling, the process of

assigning a unique label to each group of connected

pixels, is usually applied to binary images. Refer to

(Grana et al., 2010) and (Lacassagne and

Zavidovique, 2011) for a detailed review of

pioneering and recent approaches.

Most algorithms use a 2-pass procedure that first

finds connected pixels and marks them with a

provisional label, storing possible equivalence of

labels when branches with different labels meet.

They then scan the image a second time to give a

final label, result of equivalence resolution.

The improvements brought to this general

approach concern the way the equivalence of labels

is resolved, how memory accesses are optimized to

reduce memory cache misses and how much

conditional statements are minimized to avoid

stalling the processing pipeline in RISC computers.

One of the fastest published methods on RISC

architectures is called LSL (Light Speed Labeling,

Lacassagne and Zavidovique, 2011) and consists in

the storage of foreground regions (in a binary image)

as run length codes (RLC) and not as an image. It is

exactly the way we improved our pixel-based

segmentation by connected component. The very

good results and thorough evaluation of LSL make

us confident that once our development for segment-

based (RLC) image segmentation will be finalized, it

will offer a fast and valid solution, as preliminary

tests already showed.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

440

3.2 Pixel Connectivity

Two pixels are considered connected if they touch

(in 4- or 8-Neighbor connectivity) and if their gray-

level difference complies to some rule. We adopted

a constant threshold. This definition for connectivity

allows regions to climb or descend hills of limited

slopes to form large areas that are bordered by edges

with a minimum contrast.

The choice for the threshold is crucial to avoid a

myriad of useless small regions or a reduced set of

very large areas. For speed reasons, we did not

choose for an adaptive solution with varying

threshold, such as the Maximally Stable Extremal

Regions (Matas et al., 2002). Region growing

methods usually perform non-contiguous memory

accesses that may result in cache misses. Instead, we

observed that 256-level images are well segmented

with a fixed threshold value between 2 to 8,

depending on the edge strengths. Values 3 or 4 are

often appropriate values.

One good threshold value can be obtained

automatically from a rough estimation of the

gradient histogram. Alternatively our fast

segmentation algorithm can be run several times to

select the best threshold when matching two images,

or even to use all obtained regions (for all

thresholds) if more candidates are needed. Mention

that the images in the sequences are captured within

a short time interval and from a similar point of

view. A threshold good for one image is likely to be

fine for the others.

3.3 Region Detection

As soon as two pixels are connected horizontally, a

segment is initiated by storing the first x position

into the array of segments xT. The x position of the

last horizontally connected pixel of this segment is

stored in the next value of xT. The array xT is filled

progressively during the image scan from top to

bottom. Thanks to the increasing addresses of the

accesses to the image and xT, memory cache misses

are minimized.

At the beginning of each row during the scan

process, the index of the first free value in xT is

stored in a small table yT that contains h (image

height) elements. This table offers a simple way to

access the segments of any image line and in

particular the line preceding the currently processed

one. yT also gives a compact and inexpensive way

to keep the y position of a segment without

explicitly storing y values for each segment.

3.4 Region Labeling

Subsection 3.3 explained horizontal connectivity.

The vertical connectivity is checked with stored

segments (xT) of the previous image line. Again,

memory accesses are efficient as xT values of the

previous line are probably still in the cache. As

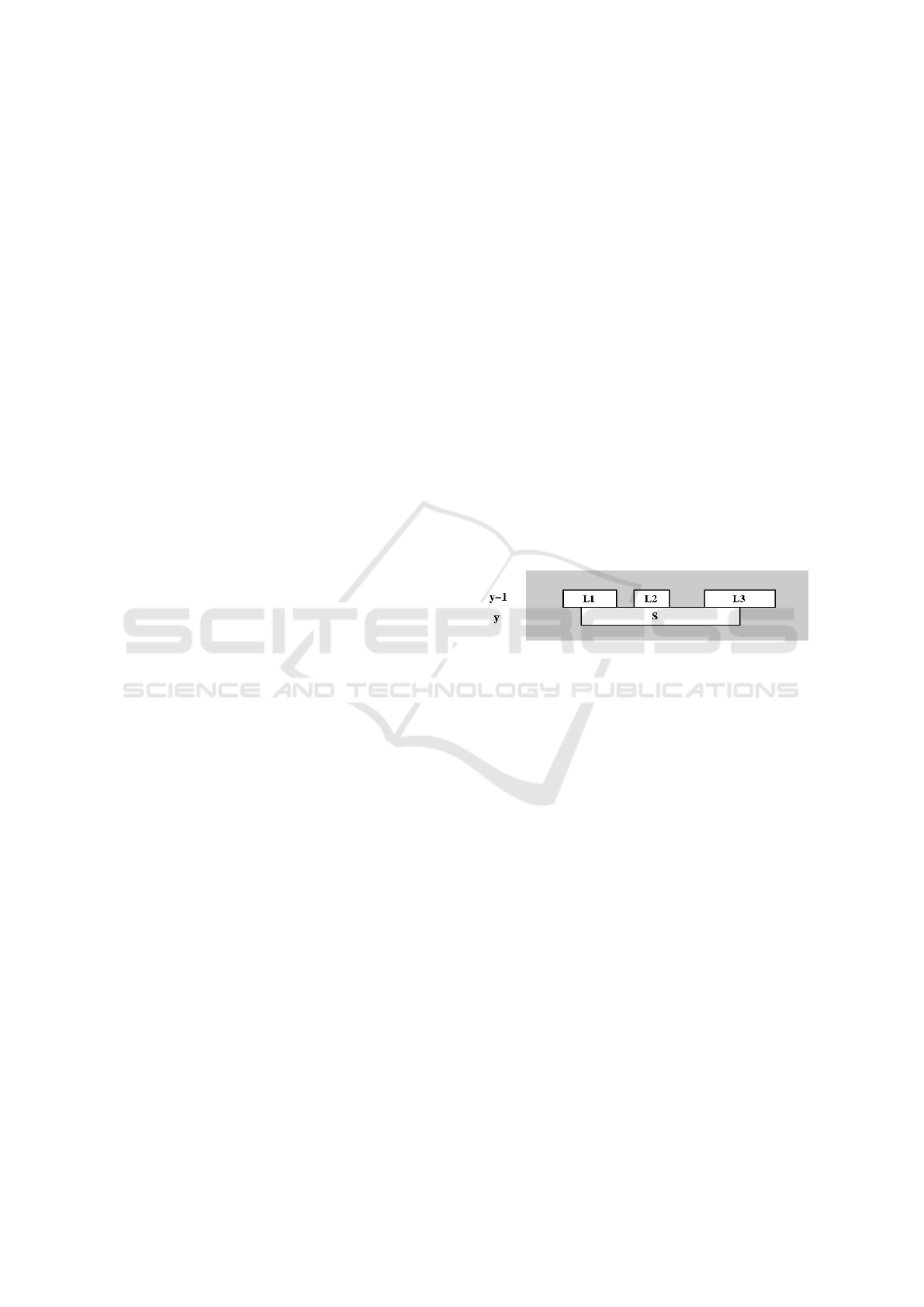

shown in Figure 1, a new segment S may link

segments with different labels Li, when for instance

two or more branches get connected. This calls for

label equivalence and its resolution.

All segments of the first image line receive a

unique label assigned in increasing order. From the

second line, a comparison is made between segment

ends of the current line and the previous one to see if

a label can be propagated. Since xT values are

increasing along each image line, the comparison

between segments of two consecutive lines is done

efficiently. For a label to be propagated from

segment L on line y-1 to segment S freshly detected

on line y, there must exist at least one pixel from L

touching one pixel of S, with a gray-level difference

under the threshold.

Figure 1: Segment labeling for new segment S with

equivalences for L1, L2 and L3.

Several label propagation cases may happen. If

there is no segment L touching S, a new (increasing)

label is given to S. If there is just one, its label is

assigned to S. If there are several segments L, all the

corresponding labels Li have to be connected in an

equivalence table.

The equivalence table contains the provisional

final label (called parent) for each label. Each table

entry (label) is initialized with its table index. Once

equivalences are found, the minimum value (so, the

oldest assigned one) of the parent labels of all labels

connected by segment S is used as new parent label

for all connected labels.

At the end of the image scan, all segments are

found and compactly stored in the xT array and

easily accessed line by line thanks to the yT array. A

label array called labT (indexed by simplicity the

same way as xT, or half its index to gain some

memory) contains the segment provisional label

values. To resolve equivalences, the table values are

replaced by their parent label and compacted since

non-parent labels become useless. labT values are

updated accordingly so that at the end, the remaining

Real-time Image Registration with Region Matching

441

regions have the minimum number of labels from 1

(0 is reserved for no_region) to the number of

regions, by order of appearance when scanning the

image.

Figure 3 shows the result of image segmentation

into regions for two images of the sequence

separated by 4 seconds of Figure 2.

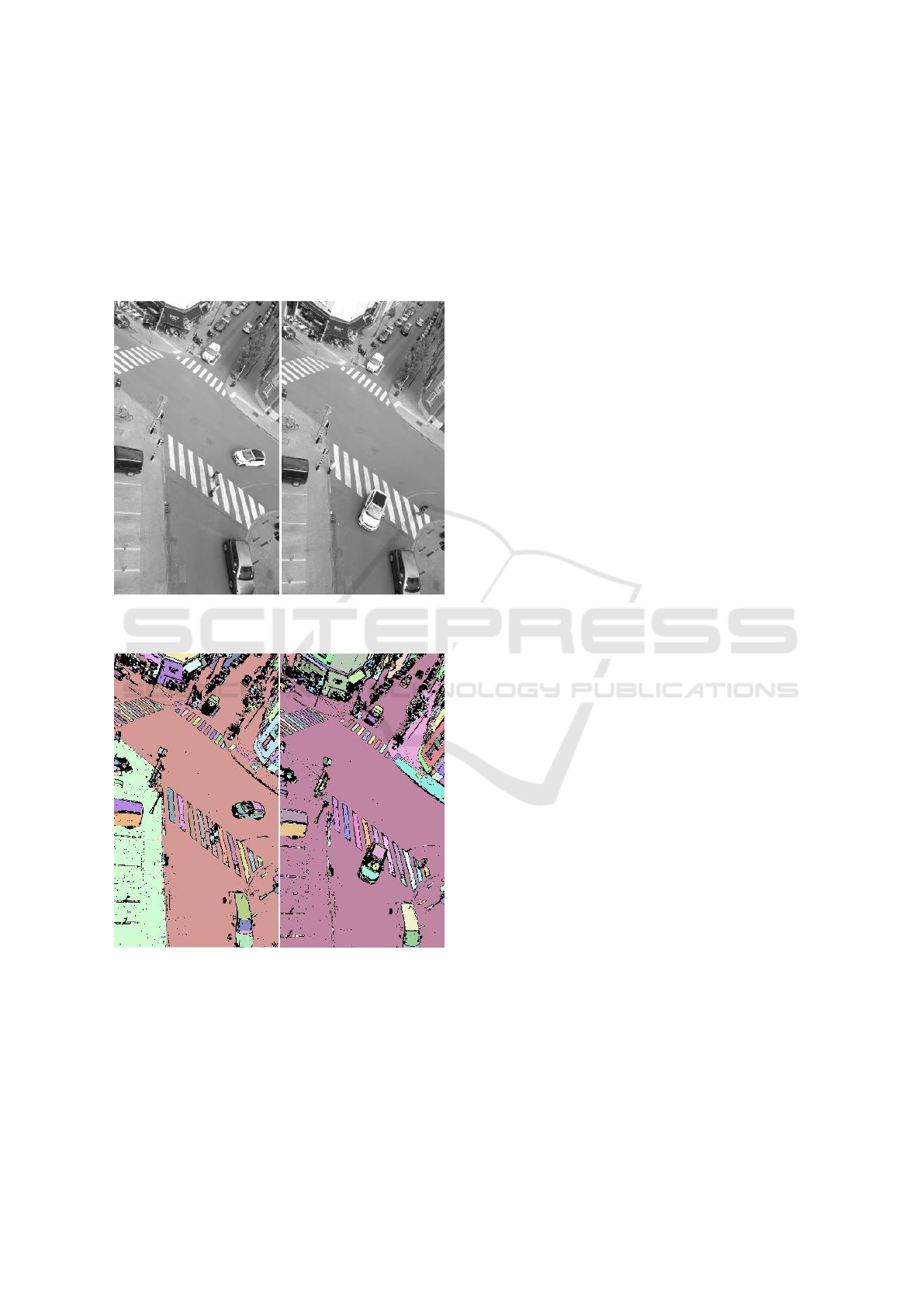

Figure 2: Two images of a sequence separated by 4

seconds.

Figure 3: Region extraction and labeling for the reference

image and the image to register.

4 IMAGE REGISTRATION

Image registration is realized by a 4-step procedure.

First, features are extracted for the regions detected

during image segmentation. Secondly, region

features of an image pair are compared to identify

possible matches. Each match defines a shift vector

(Dx,Dy), probable displacement of a region. Thirdly,

shift values are used to fit an affine transform

modeling the local shift all over the image. Finally,

the image to register is warped by the affine

transform to be aligned to the reference.

4.1 Region Features

Several region features are easily and efficiently

extracted from the way regions are stored as a

collection of segments. The most direct feature is the

area in pixels, computed very quickly for all regions

by scanning once xT, and summing the segment

lengths for each region. Region x and y value

averages, also accelerated by the segment-oriented

representation with xT and yT, give the centroid

coordinates Cx, Cy and offer a robust localization

for regions.

Like the first order moment Cx and Cy, the 2

order moments Mxx, Mxy, Myy, physically related

to inertia, can be efficiently computed. They also

directly lead to the maximum and minimum inertia

axes, and give a hint to the region orientation. Other

easy geometrical features are the bounding box and

the region contour, with possible corner detection.

These last features should be included when regions

are not numerous or when the centroids are not

sufficiently precise, usually for medium or large size

regions.

Aside from these geometrical characteristics,

some obvious radiometric values can be rapidly

evaluated (e.g. minimal and maximal gray values,

average, standard deviation).

4.2 Region Matching

In this feasibility study, we implemented feature

matching by a direct comparison of only two

features (area, centroid position) with quite a large

tolerance. The first image of a sequence is taken as

reference to register any of the following images,

one at a time.

Two regions of similar area (up to 10%

difference) constitute a matching pair if their

centroid lies within a distance D, by default set to

1/10 of the image largest dimension.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

442

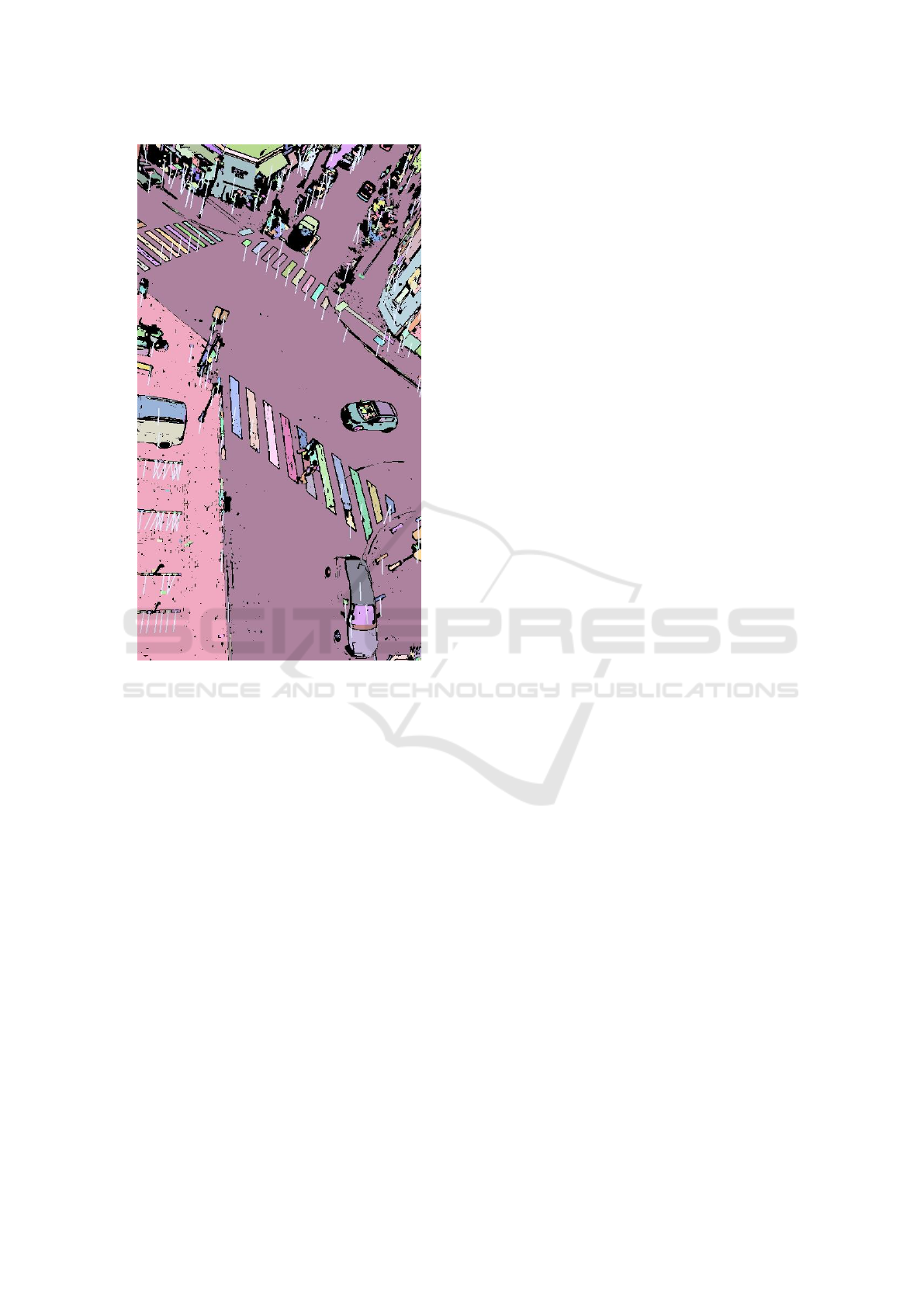

Figure 4: Selected shift vectors.

The shift vectors (Dx,Dy) between matching

regions centroids are collected to later derive a

motion vector field. Even with the current

elementary region matching with two features, a

dominant peak clearly appears in the 2-D histogram

of (Dx,Dy). The distribution around this peak

corresponds to the dependence of the local shift

values with image position since the camera

movement may induce a perspective transformation

or rotation. In our tests, the false candidates due to

wrong matches were distributed sparsely in the

histogram and did not challenge the dominant peak.

The selected shift vectors after histogram peak

selection are shown in Figure 4. A majority of

vectors are coherent in size and direction.

We will have to evaluate in practice, for limited

movements corresponding to fast frame rates (10 or

25 Hz), and depending on drone motion patterns, if

we need to consider multiple peaks, for instance for

the case of a strong rotation. One possible

implementation then consists in dividing the frames

into tiles in which the local apparent motion is closer

to a translation, resulting in a dominant peak if there

are enough matching regions in the tile and few

moving objects.

If the precision of Dx or Dy from the centroids is

not sufficient, other points may be searched for,

either from the region contours, or from the gradient

peaks near region borders.

4.3 Shift Modeling

The candidate list of (Dx,Dy) values was restricted

in the previous subsection to the histogram peak

since the area feature (and the maximal centroid

distance D) was not constraining enough to filter out

most of the false matches. To further fight against

erroneous shift estimations but also to compensate

for the possible lack of shift values in some image

area and to capture the dependence of shift values

with image position, a global model for (Dx,Dy) is

looked for in terms of the image coordinates. We

opted for an affine transform:

X = Ax+By+C

(1)

Y = Dx+Ey+F

(2)

where x,y are the coordinates of the image to be

registered and X,Y are the reference image

coordinates.

The coefficients of (1) and (2) are currently

estimated by least mean squares with the function

getAffineTransform from the openCV library. As

this function is called from our C program with a

process launching Python, shift modeling represents

a slow step in the current implementation of this

feasibility study.

4.4 Image Warping

An image warping operation is applied to register an

image of the sequence to the reference image. This

operation typically scans the result frame to write

the bilinear interpolation of 4 pixels from the source

surrounding the coordinates projected by the inverse

transformation of equations (1) and (2).

Although easy in concept, this operation is slow

(40 msec for a 2 Mpixel image) since all image

pixels are considered.

5 RESULTS AND DISCUSSION

The main goal of the presented research is to offer

camera motion compensation. Figure 5 shows the

difference between a registered image and the

reference. We see that the correction is globally fine.

Real-time Image Registration with Region Matching

443

A residual error of 2 or 3 pixels exists in some areas.

This is mainly due to the approximated localization

of regions by their centroid. An approach based on

region contours would be more precise but is not

necessarily needed as for the detection of large and

fast moving objects.

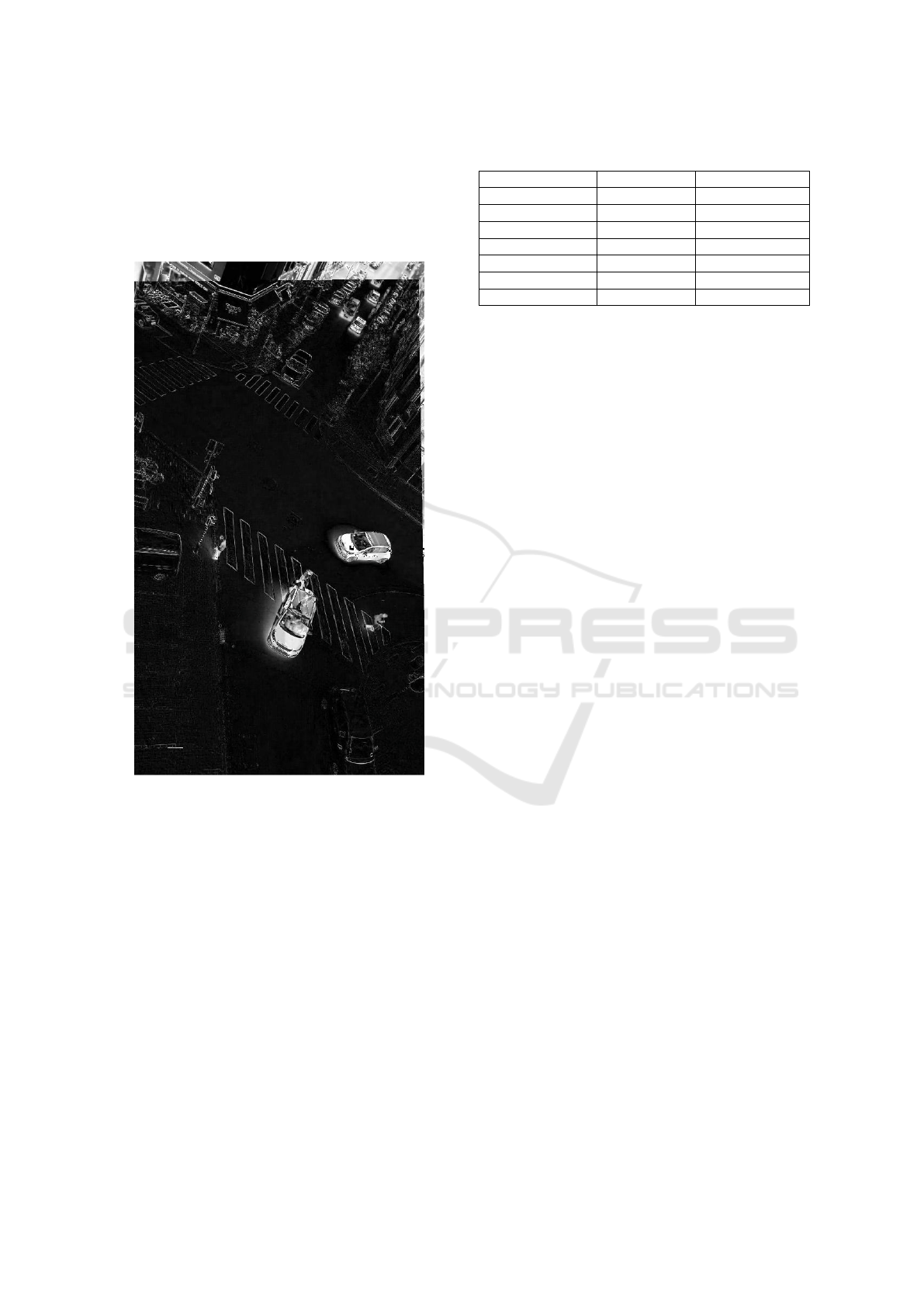

Figure 5: Difference between the reference and the

registered images.

A second objective of our development is to

offer fast processing. We intend to analyze the video

flow in real-time or to process stored sequences as

fast as possible. This is less of a challenge with

nowadays computers, but the standard image

resolution has increased.

For this feasibility study we recorded sequences

with a Samsung A5 (2016) in the MPEG 1080p

format. Each image has 1920 x 1080 pixels (2

Mpixel). The given execution times were obtained

by a computer equipped with an Intel i5-4590 at 3.3

GHz (27 Gb of RAM), using a single core.

Table 1 gives an overview of the current and

prospected execution time for the different steps of

the proposed registration approach in the case of 2

Mpixel images.

Table 1: Timing figures for a 2 Mpixel image.

Processing

Current [ms]

Prospected [ms]

(Pre-processing)

(20)

Segmentation

140

Region Features

Region Matching

Shift Modeling

100

Image Warping

Total

283 (+20)

60 (+20)

Some pre-processing might be needed, for

instance in the case of noisy images. We have

indicated an optional time of 20 ms to account for

simple low-pass filtering or equivalent processing.

Our implementation for this feasibility study

used a pixel-based region segmentation that runs in

about 140 ms. The segment-based version, not yet

finalized, currently detect similar regions in less than

15 ms. This impressive timing is comparable to

published works about connected component

labeling from binary images (Grana et al., 2010),

considering that gray-level comparison needs extra

work. Only the regions with a pixel count in the

range of 50 to 5000 pixels were kept. For the

considered sequence, this represents more than 500

regions.

The computation of features used in section 4

(area and centroid) is really fast (less than 1 ms)

thanks to the storage of regions as a list of segments.

We will explore additional features to increase the

region discriminative power. Some extra time has

been foreseen in Table 1 for possibly more

computationally demanding features.

Feature matching is also very fast (about 2 ms in

our tests). About 3000 matching candidates were

reduced to roughly 200 ones by the histogram peak

selection. The impact on time for increasing the

number of features is quite difficult to estimate since

more discrimination will speedup histogram

processing.

The estimation of the affine transform is a

bottleneck in the current implementation because it

relies on a Python library called as a separate

process from a C program. About 100 ms are

required to find the model coefficients thanks to

roughly 200 vectors (Dx,Dy), from which about half

will be rejected during refinement. Due to the large

proportion of valid region pairs, the solution can

benefit in execution time from a RANSAC

procedure (Fischler and Bolles, 1981). From

preliminary tests we believe in a 10 times speedup

compared to the current implementation.

The current warping operation by the affine

transform is also a heavy step (about 40 ms), since

all pixels are processed and require the access of 4

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

444

neighbors for bilinear interpolation. A possible

speedup for motion detection applications consists in

warping first at a lower resolution, and/or with the

nearest neighbor pixel, and to apply warping at full

resolution only where differences with the reference

are significant at low resolution.

According to Table 1, if we target an application

with 2 Mpixel image sequences, 60 ms (or 80 with

pre-processing) are likely to be needed for all the

processing steps. At a rate of 10 images per second,

40 ms (or 20) are left to handle moving object

detection and tracking, a task possibly helped by the

available regions extracted for image registration.

6 CONCLUSIONS

We presented a feasibility study for real-time image

registration that exploits fast image segmentation

into regions based on pixel connectivity along and

across horizontal segments. These segments form a

compact representation of the regions, appropriate

for the fast extraction of classical features such as

the area, the centroids and the 2

order moments.

According to preliminary tests, video sequences

of 2 Mpixel images can be registered at 3 Hz. Based

on the discussion about identified slow operations,

the same sequences are likely to be registered and

analyzed for object tracking at 10 Hz.

Some refinements and improvements mentioned

in the discussion of section 5 are our future concern.

We will first finalize the segment-based region

extraction algorithm. We will then analyze the

potential of additional region features and adapt

region matching accordingly. We will look for

another model fitting algorithm, directly callable

from C. And finally, we will test other sequences,

and evaluate the influence of parameters.

ACKNOWLEDGEMENTS

We would like to thank the Belgian MoD and in

particular the Royal Higher Institute for Defence for

supporting this research.

REFERENCES

Zitova, B., and Flusser, J. (2003). Image registration

methods: a survey. Image Vision Computing 21, pages

977-1000.

Goshtasby, A. (2005). 2-D and 3-D Image Registration,

for Medical, Remote Sensing and Industrial

Applications. Wiley Press.

Lowe, D. (2004). Distinctive Image Features from Scale-

Invariant Keypoints. International Journal of

Computer Vision, 60 (2):91-110.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). ORB: an efficient alternative to SIFT or

SURF. In IEEE International Conference on

Computer Vision (ICCV), pages 2564-2571.

EDA, (2017). EDA programme launched to improve IED

Detection. https://www.eda.europa.eu/info-hub/press-

centre/latest-news/2017/01/12.

Puglisi, G., and Battiato, S. (2011). A Robust Image

Alignment Algorithm for Video Stabilization

Purposes. IEEE Transactions on Circuits and Systems

for Video Technology, 21 (10):1390-1400.

Kim, N.-J., Lee, H.-J., and Lee, J.-B. (2008). Probabilistic

Global Motion Estimation Based on Laplcian Two-Bit

Plane Matching for Fast Digital Image Stabilization.

EURASIP Journal on Advances in Signal Processing,

Volume 2008, pages 1-10.

Zhi, X., Yan, J., Hang, Y., and Wang, S. (2016).

Realization of CUDA-based real-time registration and

target localization for high-resolution video images.

Journal of Real-Time Image Processing, May 2016,

pages 1-12.

Shamonin, D., Bron, E., Lelieveldt, B., Smits, M., Klein,

S., and Staring, M. (2014). Fast parallel image

registration on CPU and GPU for diagnostic

classification of Alzheimer’s disease. Frontiers in

Neuroinformatics, Vol 7.

Grana, C., Borghesani, D., and Cucchiara, R. (2010).

Optimized Block-based Connected Components

Labeling with Decision Trees. IEEE Transactions on

Image Processing, 19(6):1596-1609.

Lacassagne, L., and Zavidovique, B., (2011). Light Speed

Labeling. Journal of Real-Time Image Processing,

6(2):117-135.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2002).

Robust wide baseline stereo from maximally stable

extremal regions. In British Machine Vision

Conference 2002, pages 384-393.

Fischler, M., and Bolles, R. (1981). Random sample

consensus: a paradigm for model fitting with

applications to image analysis and automated

cartography. Communications of the ACM, 24(6):381-

395.

33545395.395.

Real-time Image Registration with Region Matching

445
