Exploring the Decision Tree Method for Detecting Cognitive States of

Operators

Hélène Unrein

, Benjamin Chateau

and Jean-Marc André

IMS – Cognitique UMR 5218, ENSC-Bordeaux INP, Université de Bordeaux, Talence, France

Centre Aquitain des Technologies de l’Informations et Electroniques, Talence, France

Keywords: Cognitive States, Engagement in the Driving Task, Hypovigilance, Cognitive Fatigue, Eye-tracking, CARt.

Abstract: This study aims to validate a construction methodology of a device able to estimate the cognitive state of an

operator in real time.

The SUaaVE project (SUpporting acceptance of automated VEhicle) studies the integration of an intelligent

assistant in a level 4 autonomous car. The aim of our work is to model the cognitive state of the driver in real

time and for all situations. The cognitive state is a natural state that alters or preserves the operator's ability to

process information and to act.

Based on a literature review we identified the cognitive functions used by the driver and the factors influencing

them. Different cognitive components emerged from this synthesis: engagement (Witmer & Singer, 1998),

fatigue (Marcora and al. 2009) and vigilance (Picot, 2009).

Eye-tracking is a technique used to determine the orientation of the gaze in a visual scene. According to the

literature the general dynamics of a visual behavior is characterized by metrics: number of fixations, duration

of fixation, gaze dispersion... These dynamics are altered unconsciously due to fatigue (Faber, Maurits, &

Lorist, 2012) or hypovigilance (De Gennaro et al., 2000, Bodala et al., 2016); and consciously due to

engagement in driving (Freydier et al., 2014; Neboit, 1982).

We carry out a phase of experimentation in a naturalistic situation (driving simulator) in order to collect data

for each cognitive state. Realistic scenarios are constructed to induce cognitive states. The model’s estimation

is compared to the real cognitive state of the driver measured by behavioral monitoring (eye-tracking).

The model is a CARt (Breiman & Ihaka, 1984) decision tree: Classification And Regression Trees. The CARt

aims at building a predictor. The interest is to facilitate the design of the tool as well as its future

implementation in real time. We illustrate the construction methodology with an example the results obtained.

1 RESEARCH PROBLEM

The SUaaVE project studies the integration of an

intelligent assistant in a level 4 autonomous car. This

assistant will provide a set of services to enhance the

user experience in the vehicle, based on of an

assessment of the driver state. In this context, the aim

of our work is to model the cognitive state of the

driver in real time and for all situations.

2 OUTLINE OF OBJECTIVES

This study aims to validate a device (ALFRED) able

to estimate the cognitive state of an operator.

The cognitive model we propose informs

ALFRED of the operator's state in real time. The

cognitive state is a natural state that alters or preserves

the operator's ability to process information and to

act. In real time and in a car cockpit, cognitive states

are difficult to observe. Their measurement/detection

is done in a dynamic, uncontrolled environment

(changing luminosity) which is limiting the use of

certain sensors. These constraints lead us to choose a

specific sensor and tolerant to the effect of the

environment: occulometry sensor.

The cognitive model we propose is based on

different dimensions: engagement (interest for the

road situation, Witmer & Singer, 1998),

hypovigilance (Picot, 2009), fatigue (Marcora et al.,

2009). Each dimension is discriminated by specific

210

Unrein, H., Chateau, B. and André, J.

Exploring the Decision Tree Method for Detecting Cognitive States of Operators.

DOI: 10.5220/0010712300003060

In Proceedings of the 5th International Conference on Computer-Human Interaction Research and Applications (CHIRA 2021), pages 210-218

ISBN: 978-989-758-538-8; ISSN: 2184-3244

ocular behaviors, measurable with an eye-tracker

(fixations and saccades).

Each behavior must be coded and integrated into

the ALFRED cognitive module. To do so, it is

necessary to validate the instrumental efficiency of

the eye-tracking data processing for each of the 3

selected dimensions. The results will allow the

selection of the most interesting dimension(s) and

will guide the development of a real time data

processing solution.

3 BACKGROUND

3.1 Definition

A cognitive state is a psycho-physiological state that

alters or not the cognitive capacities of the operator.

A cognitive state is composed of a set of cognitive

dimensions: cognitive load, physical fatigue,

expertise in the task, attention, etc. Each cognitive

dimension has its own characteristics:

- Role: alert, maintenance, information collection.

- Mechanisms: different levels or phases

throughout the day/week/month; regulation by

positive or negative feedback, by reaction.

- Effects on the operator's cognitive capacities:

induced failures, maintained capacities.

In addition, the cognitive dimensions have

interactions between them. There are as many

cognitive states as there are possible crossings

between the different levels of the cognitive

dimensions.

3.2 Constraints

All sensors are not necessarily operational in our

context. Indeed, we are confronted with several

constraints :

- Tolerance to "noise": ability of an instrument to

provide a measurement resistant to undesirable

parameters (lighting variations...)

- Portability: ability to be easily transported

- Acceptability: degree of user's acceptance to wear

or use the measurement device.

- Ease of implementation: cost, complexity of

implementation.

According to the constraints, the sensor must be

portable, non-intrusive and noise tolerant. The

measurements of the dimensions are behavioral.

These measurements must have a sufficient level of

acceptability (non-intrusive) and noise tolerance. The

operator must not be interrupted.

All these constraints have reduced the field of

possibilities. The following cognitive dimensions

satisfy these constraints.

3.3 Cognitive Dimensions

Three cognitive states were identified in a literature

review:

Engagement in the driving task is a psychological

state. It is the consequence of focusing our energy and

attention on a coherent set of stimuli and related

events (Witmer & Singer, 1998).

Hypovigilance corresponds to the transition

between alertness and sleep during which the

organism's observation and analysis faculties are

reduced (Picot, 2009): decreased attention, increased

information processing and decision making time,

etc.

Cognitive fatigue is a psychological condition

caused by prolonged periods of demanding cognitive

activity (Marcora et al., 2009). Cognitive fatigue

decreases the individual's ability to perform a task by

altering states of alertness and focused attention

(Thiffault & Bergeron, 2003).

3.4 Ocular Behavior

Eye-tracking trajectories are composed of fixations

and saccades. When a human being focuses on a point

of interest, the gaze moves around this area (see

Figure 1). The eyes are always moving in our visual

environ-ment in order to allow an active vision of the

reality around us. This is why a fixation, when we

analyze an element, never has a single position of the

gaze.

Between two fixations, we make quick

movements called saccades. They allow us to position

our gaze on the object of interest.

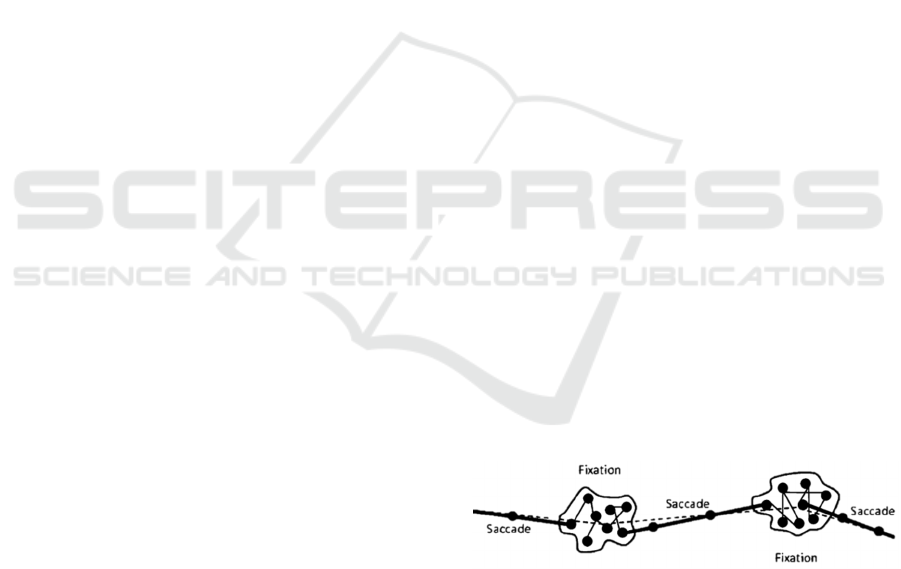

Figure 1: Representations of gaze positions according to the

type of ocular event.

3.5 Eye-tracking

 Interest of eye-tracking

Eye-tracking is a technique used to determine the

orientation of the gaze in a visual scene. According to

the literature the general dynamics of a visual

behavior is characterized by the following metrics:

number of fixations, duration of fixation, gaze

Exploring the Decision Tree Method for Detecting Cognitive States of Operators

211

dispersion, distance between two saccades, saccade

speed, saccade amplitude, and eye deflection angle.

These dynamics are altered unconsciously due to

fatigue (Faber, Maurits, & Lorist, 2012) or

hypovigilance (De Gennaro et al., 2000, Bodala et al.,

2016); and consciously due to engagement in driving

(Freydier et al., 2014; Neboit, 1982).

 Area of Interest (AOI)

Eye-tracking allows us to identify the elements and

areas that the driver looks at. The areas of interest

(AOI) represent the regular fixation points of a driver

(Neboit, 1982 and Freydier, 2014) (Cf Figure 2):

- Interior and exterior mirrors - 3 AOI: "Left

mirror", "Right mirror", "Center mirror" ;

- Vehicle Controls - 2 AOI: "GPS", "Steering

Wheel" ;

- Speedometer - 1AOI: "Speedometer".

The fixations in the far forward area represent an

attention disengagement fixation area: 1 AOI -

"Horizon.

Figure 2: Spatial representation of the areas of interest on

the reference image of the participants' full visual field.

The cockpit areas do not change location despite

the movement of the vehicle. Their static position

allows for automated image processing to identify the

position of the gaze throughout the experiment. This

automated processing requires a reference image (see

Figure 2) where all the areas of interest are indicated.

4 METHODOLOGY

The instrumental validation regarding the detection of

the cognitive state is based on induction and

observation: induction of the operator's cognitive

state by the experimental conditions, observation of

the ocular behavior. The study of the cognitive model

is based on different realistic scenarios constructed to

induce cognitive states which will be detailed.

The induction was operationalized on the basis of

3 test scenarios of driving an autonomous vehicle in

a simulator, one scenario per induced cognitive

dimension: engagement, hypovigilance, fatigue. This

induction is based on the information provided by the

literature and the adapted environment.

The data associated with the cognitive states are

collected during experimental tests in simulation with

the objective of collecting oculometric data. The

objective is to associate each cognitive state of

interest with a typical visual behavior detectable by

the oculometric data.

4.1 Participants

40 participants were recruited. Thirty-three

participants completed the entire experiment.

Recruitment was done mostly by email via the

campus lists of the University of Talence at the

following institutions: IMS Laboratory, Bordeaux-

INP, INRIA, University of Bordeaux. All of the

volunteers were offered a 20 € gift card to participate

in this experiment. All gave free and informed

consent.

The inclusion criteria for the panel (see A.1)

targeted experienced participants, preferably with

regular driving experience. The native language must

be French to avoid bias in the understanding of the

questionnaires. The exclusion criteria (cf. A.2)

exclude participants with potential problems of

immersion in a virtual reality: epileptic,

claustrophobic, cybersickness, etc.

The initial sample included an equitable

distribution of gender and age. However, senior

adults are more susceptible to simulator sickness (a

syndrome closely related to motion sickness), making

recruitment more difficult. Table 1 shows the

complete study sample.

Table 1: Characteristics (age and gender) of participants.

Age / Sexe Man Woman Total

- 45 years old 21 8 29

+ 45 years old 3 1 4

Total 24 9 33

Our population is 27% female and 73% male,

with 88% 45 years old and 12% over 45. Our

population is essentially made of men under 45 years

old with a proportion of 64% against 9% of men over

45 years old; 24% of women under 45 years old and

3% of women over 45 years old.

CHIRA 2021 - 5th International Conference on Computer-Human Interaction Research and Applications

212

4.2 Material

4.2.1 Simulator

- A neutral and silent experiment room (about 8m²),

- Driving seat: ATGP Playseat,

- Logitech G27 driver's station with steering wheel,

pedals and gear shift lift,

- Computer with simulation software,

- Simulation software: A.V. Simulation (formerly

Oktal) SCANeR Studio™, version 1.8,

- Three high-resolution 32-inch screens (2560 x

1440 pixels). These screens have been aligned to

offer an immersion adapted to the 3D scene of the

simulation (alignment of lines crossing several

screens), and thus reduce the risk of

cybersickness.

4.2.2 Sensor

The eye-tracker used is a Tobii Pro Glasses 2

(200Hz): eye-tracker worn binocular. These eye-

trackers is worn by the operators as glasses. The

binocular eye-trackers is equipped with three

cameras: 2 cameras capture the images of the eyes

and one camera, called scene camera, captures the

visual field of the operator. The scene camera records

the video of the environment on which the fixations

will be affixed in order to visualize the visual

behavior. The horizontal field of view of the scene

camera is 60◦.

The glasses are connected to a recording unit via

a cable in Micro USB. With an autonomy of 105

minutes the storage media is equipped with an SD

card. The unit is connected to the local network via an

Ethernet cable.

4.3 Measurement

4.3.1 Independent Variables - Controlled

Cognitive states were considered known and

indicated in the data by the variable

"Characterization": a categorical variable with three

levels, 1 for engagement, 2 for hypovigilance and 3

for fatigue.

4.3.2 Dependent Variables – Observed

The values of the visual metrics depending on the

cognitive state are unknown. These are the dependent

variables of the model.

Each metric is represented by a numerical variable.

They are calculated thanks to the eye-tracker data:

position of the gaze in the experimental environment.

Eleven metrics have been identified through a

literature search (table 2). A metric is calculated over

a 20 second window. This window is sliding of one

second which makes 11 data per second.

Table 2: List of dependent variables calculated according to

the associated cognitive state.

Engagement

Hypovigilance² Fatigue

Fixation

frequency in AOI

Fixation

frequency in the

horizon

Fixation duration

in AOI

Gaze dispersion

in AOI

Distance

between two

saccades

Saccade speed

Fixation frequency

Fixation duration

Eye deflection angle

Saccade speed

Saccade amplitude

Freydier and al., 2014; Neboit, 1982

² De Gennaro and al., 2000, Bodala and al., 2016

Silvagni and al., 2020; Yonggang Wang and Ma, 2018;

Hjälmdahl and al., 2017

4.3.3 Link between Test and Model

The final cognitive model can be written in the form

𝑌 ~ 𝛽



+𝛽



.𝑥



+⋯+𝛽



.𝑥



+𝜀.

The oculometric data or visual metrics are the

dependent variables of the experimental tests:

observed variables. In the final model they are the

input data: explicative variables 𝑥 explicatives,

independent variable of the model.

The known cognitive state is the independent

variable of the experimental tests: controlled variable.

In the final model it is the output data: explained

variable Y, dependent variable of the model.

4.4 Procedure

After a presentation of the study and a first

cybersickness questionnaire, the participant is

installed at the driving station. The experimenter

presents the controls and indicators of the dashboard,

then installs and calibrates the eyetracker. Then the

participant carries out the 4 driving scenarios: 1

familiarization scenario in autonomous and manual

mode, 3 tests in 100% autonomous. After each

scenario, the participant answers questionnaire

relating to the cybersickness (Kennedy et al. 1993). If

the cybersickness score is suitable (score below 8)

then the participant may continue. Before launching

the next scenario, the experimenter suggests taking a

break. Finally, the participant fills in the socio-

demographic questionnaire before being thanked.

Exploring the Decision Tree Method for Detecting Cognitive States of Operators

213

4.5 Scenario Setup

The participants' cognitive states are induced by the

experimental conditions: environment and cognitive

task. 4 test scenarios were constructed: (1)

Familiarization with the simulator and autonomous

mode; (2) Engagement phase; (3) Hypovigilance

phase; (4) Fatigue phase.

 Familiarization with the simulator and

autonomous mode

This phase is necessary to avoid learning bias by

familiarizing the participant with the automatic car

controls and the virtual environment. It is carried out

before the experimental scenarios.

After explanations on how the simulator works,

the participants performes a driving task lasting

approximately 15 minutes. In this scenario, the

participants drive on all three types of roads for 5

minutes each: city, outskirts and motorway. On the

outskirts and the motorway participants are asked to

switch on/off the autonomous mode. Using the

manual mode allows the user to familiarize himself

with the simulator by transposing his driving

automatisms.

At the end of the training phase, the participant is

able to control the vehicle correctly. Getting back in

control, checking the deviation from the axis and

checking the indicators remains the usual three points

of difficulty.

 Engagement phase

This phase has been designed to record the driver's

reference eye behavior while engaged in 100%

autonomous driving. The scenario presents a variety

of road situations and events: other cars, more or less

steep country roads, varied landscapes, etc.

 Hypovigilance phase

Hypovigilance is characterized by a loss of attention

to elements of the situation. It is induced here by a

monotonous driving situation (McBain, 1970;

Wertheim, 1991), in which the user's attention is little

solicited by new events. This scenario is

characterized by the following parameters:

- A repetitive environment (Thiffault & Bergeron,

2003): flat terrain; the pines on each side of the

road at a frequency of 2 per second, at a speed of

80 km/h; the pines are visible up to the horizon.

- A 15-minute driving task poor in event. The driver

has to follow a lane at a constant speed (80 km/h),

without changing gears, changing lanes and

without using car features (e.g. turn signals,

mirrors).

- Few variations in road infrastructure (Larue et al.,

2011): no red lights, no stopping, little traffic; no

T or perpendicular bends, the road is essentially

straight with few curves.

 Fatigue phase

The driving scenario is similar to that of the

engagement phase. The objective is not to observe

hypovigilance but a state of fatigue despite an

engaging environment. A constant cognitive load for

more than 10 minutes causes cognitive fatigue

(Borragán et al., 2016). Cognitive fatigue is induced

by performing a difficult n-back task for 15 minutes.

Once the 15 minutes of mental effort are passed, the

driver checks the trajectory of the car during the

remaining 5 minutes, as in the previous stage. This

makes it possible to collect ocular data on fatigue.

5 BEHAVIOUR PROCESSING

ALGORITHMS

5.1 Pre-Processing of Raw Data

Each cognitive dimension is discriminated by a set of

visual metrics calculated from the raw data. The

metrics are associated with areas of interest in the

environment. To calculate these metrics, several

processes are necessary. The first one consists in a

filter to detect fixations and saccades, the second one

in a mapping to detect events in the areas of interest.

The visual metrics are calculated on these mapped

data.

5.1.1 Raw Data

The output data of an eye-tracker is presented in an

Excel sheet with 200 observations per second. In

general, each observation is composed of:

- a timestamp: time in millisecond;

- the direction in x, y and z of the right and left eyes;

- the validity of the detection of the eyes position of

the gaze in x and y;

- the frame index of the closest video.

5.1.2 Filtered Data

The offline processing of the raw data is done by the

software associated with the eye-tracker: Tobii Pro

Lab. The processing is a classification filter for the

type of event associated with the gaze position:

fixation or saccade. The filter settings are the

following:

CHIRA 2021 - 5th International Conference on Computer-Human Interaction Research and Applications

214

Table 3: Value of the settings of the filter for the detection

of fixations and saccades.

Fixation-Saccade detection filter

settin

Parameter values

Max

len

(

)

150

Noise reduction moving median,

window size

(

sam

les

)

Velocity calculator - window length

(

)

I-VT classifie

- Threshol

(

°/s

)

Merge adjacent fixation

- max time between fixations (ms)

- max angle

etween fixation (°)

true

0.25

Discard short fixation - Minimum

fixation duration

(

)

200

The output data is called filtered data and is

associated with an image from the scene camera

video. The gaze position is superposed on this video

providing a clear replay of the participant's visual

trajectories. The filtered data are composed of :

- The position of the gaze: x,y;

- The index of the closest video frame;

- The type of event: fixation, saccade, unclassified;

- The duration of the event in milliseconds;

- The index of the type of eye movement: represents

the order in which an eye movement was

recorded. The index is an auto-incrementing

number starting with 1 for each eye event type.

5.1.3 Mapped Data

Offline processing of the filtered data is also done by

the Tobii Pro Lab software. The processing is a

mapping detecting the areas of interest in the video

images. The objective is to identify the events in the

areas of interest. The mapping is performed on a

reference image (see Figure 2). This reference image

includes all the areas of interest unlike the scene

camera which does not have a sufficient field of

view. The result of this processing is gaze data

mapped on this reference image. The mapped data is

composed of:

- The presence of the gaze or not in an area of

interest: 0 (absence) or 1 (presence). One

variable per area of interest;

- The coordinates of the eye position, x,y on the

reference image;

- Confidence score of the mapping: validity score

of the mapped gaze points;

- The type of event: fixation, saccade,

unclassified;

- The duration of the event in milliseconds;

- The index of the type of eye movement.

A selection of mapped data is applied including a

removal of bad mapped events and a removal of

outliers. The quality of the mapping is indicated by a

confidence score. If the confidence score is less than

0.4, the data is deleted. Beyond this threshold, the loss

of data is more than 20%. This adjustment is coherent

with respect to the literature (Lemercier and al., 2015;

Winn, Wendt, Koelewijn, & Kuchinsky, 2018).

Saccades not surrounded by fixation and far from the

mean visual field are suppressed. No interpolation

was done to avoid adding non-existent information

and altering the calculation of metrics.

5.2 Visual Metrics Calculation

Visual behavior metrics are calculated from the

mapped and corrected data. Our hypothesis is that the

metrics vary with the participant's cognitive state.

The calculated metrics are the dependent variables of

the experimental tests. They will be the inputs to our

detection model. Eleven metrics were identified as

markers of specific cognitive states (Table 2) :

 Engagement: 3 discrete variables in the integer

space

1. Frequency of fixation in areas of interest;

2. Fixation frequency at the horizon.

The frequencies are the sum of the number of

fixations in the areas of interest over a 20 second

window.

3. Fixation duration in the areas of interest: average

duration of fixations in the areas of interest over a 20-

second window.

 Hypovigilance: 4 continuous variables in the

space of positive reals

1. Dispersion of the gaze in the visual field;

2. Gaze dispersion in the areas of interest.

Dispersions are the average Q3-Q1 interquartile

range of the spatial distance between each gaze point

(in the AOI) and the median gaze point over a 20-

second window. 50% of the observations are

concentrated between Q1 and Q3.

4. Distance between two saccades: average of the

distances between the end of one saccade and the

beginning of another over a 20 second window.

5. Saccade speed: average speed of saccades over a

20-second window.

 Cognitive fatigue: 5 variables

1. Fixation frequency: sum of the number of fixations

over a 20 second window; discrete variable in an

integer space.

Exploring the Decision Tree Method for Detecting Cognitive States of Operators

215

2. Fixation duration: average duration of fixations

over a 20-second window; discrete variable in an

integer space.

3. Eye deflection angle: average of the angle between

two vectors formed by the X and Y directions of the

eyes over a 20 second window; continuous variable

in positive real space.

4. Saccade speed: average speed of saccades over a

20-second window; continuous variable in positive

real space.

5. Saccade amplitude: average of the distances

between the beginning and the end of the same

saccade over a 20 second window; continuous

variable in the space of positive reals.

All metrics were calculated over the three phases

of the scenario: engagement, hypovigilance and

fatigue. Each metric is calculated over a 20-second

window. This 20 second window slides by one second

which makes 11 observations per second per phase

per participant.

It is necessary to know the behavior of the metric

on all phases to characterize differences between

phases.

6 FIRST RESULTS

The model is a CARt decision tree built on the data

set. The set of independent variables of an individual

classifies him in a cognitive state.

6.1 Method of Analysis

The Classification And Regression Trees - CARt

(Breiman & Ihaka, 1984) are supervised learning

methods. The tree tries to solve a classification

problem. Mathematically speaking, the method

performs a binary recursive partitioning by local

maximization of the heterogeneity decrease.

The CARt aims at building a predictor: predicting

the values taken by our dependent variable Y

(cognitive state) as a function of the independent

variables X (visual metrics).

This prediction is based on a tree where each node

corresponds to a decision about the Y value. This

decision is made according to the value of one of the

Xs. At each node, the tree splits the data of the current

node into two child nodes. The individuals are

divided into the two most homogeneous subsets (Gini

diversity index) possible in terms of Y. The first

nodes use the most important variables. Not all

metrics are necessarily used in the construction of the

tree. A significant variable is not used if another is

highly correlated with it. The terminal leaves give the

predictions of Y.

The independent and dependent variables can be

quantitative or qualitative. Here the independent

variables are quantitative. The dependent variable is

categorical at three levels: 1 for engagement, 2 for

hypovigilance and 3 for fatigue.

6.2 Dataset

3 recordings corresponding to the 3 tests scenarios are

associated with each participant. The scenarios are

divided into two periods. The first provokes the

desired cognitive state, which is observed during the

second. The first period provokes a cognitive state

that is under-adjusted due to the chosen

environmental conditions. The second period is the

moment when the participant is actually in the desired

cognitive state. The learning phase is not included in

these two periods. The periods of interest occur at

different times (minutes) depending on the scenario:

- Scenario 1: observation of an engaged

participant during the next 3 minutes of the

scenario.

- Scenario 2: induction of hypovigilance during

the first 15 minutes of the scenario; observation

of a hypovigilant participant during the next 3

minutes of the scenario.

- Scenario 3: Induction of fatigue during the first

15 minutes of the scenario; observation of a tired

participant during the next 3 minutes of the

scenario.

Metrics calculation are done on the second

periods of the scenarios. A data is composed of the

value of the 11 metrics for one second for a

participant. This makes a total of 17,820 data: 33

participants, 3 test scenarios, 180 seconds. The data

does not have to be normalized. All these data are the

dataset for the construction of the CARt.

6.3 Decisional Tree

The decision tree (Figure 3) was built with the rpart

package. First, the tree was built on all the data with

the tree building function rpart() of the package. We

keep the default parameters. The learning error is

48%.

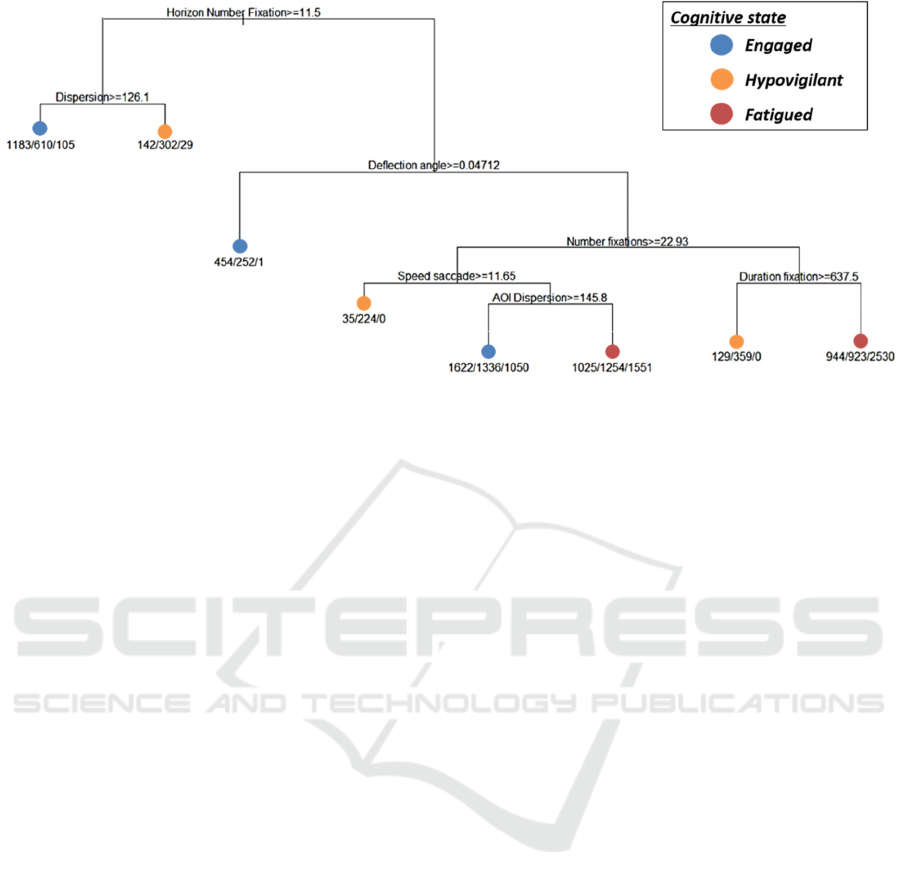

In figure 3, we can read the tree as follows. At the

root of the tree there is a node that splits into two

branches: branch 1 on the left and branch 2 on the

right. Branch 1 corresponds to the participants' data

such that the “number of fixations on the horizon”

exceeds the threshold of 11.5 fixations / 20 seconds.

CHIRA 2021 - 5th International Conference on Computer-Human Interaction Research and Applications

216

Figure 3: First version of the CARt for the detection of the cognitive state of the operator, construction of the data set.

Branch 1 splits into two end leaves: leaf 1 on the

left and leaf 2 on the right. Leaf 1 corresponds to the

data of participants such that the "gaze dispersion"

exceeds the threshold of 126.1 pixels / 20 seconds. In

this leaf 1 the cognitive state detected is engagement.

The 3 indicators under the end leaf indicate the

distribution of the participants' data classified in this

leaf according to their actual cognitive state: engaged/

hypovigilant / tired.

1183 data from engaged participants are classified

as engaged; 610 data from hypovigilant participants

are classified as engaged; 105 data from tired

participants are classified as engaged. Here the

number of correct classifications prevails by 62%.

Leaf 2 corresponds to the data from participants

such that the gaze dispersion does not exceed the

threshold of 126.1 pixels / 20 seconds. In this leaf 2

the cognitive state detected is hypovigilance. 142 data

from engaged participants were classified as

hypovigilant; 302 data from hypovigilant participants

are correctly classified as hypovigilant; 29 data from

fatigued participants are classified as hypovigilant.

The number of correct classifications prevailed by

63%.

The determination of the operator's cognitive state

stops when the reading of the model results in a

terminal leaf. The model always determines an

output. If the operator is not in one of these three

states the model returns the closest cognitive state.

6.4 Predictive Quality Validation

The cross-validation method (Mosteller & Tukey,

1968) partitions the data into 3 subsets. Each subset

is successively used as a test sample, the rest as a

learning sample: 2/3 for learning and 1/3 for testing.

The tree, our estimator, is computed on the training

data. The prediction error is calculated on the test

data. At the end of the procedure, we obtain 3

performance scores: percentage of error. The mean

and the standard deviation of the 3 scores respectively

estimate the percentage of error and the variance of

the validation performance.

The three performance scores obtained are: 65%,

67% and 67%. This makes an average of 66% and a

standard deviation of 0.0011. We find that, as it

stands, the model does not perform well enough to

accurately predict the values of the cognitive state

variable Y.

In order to improve our model, as we explain in

paragraph 7, a descriptive study of the data is in

progress. Our objective is to identify possible outliers

that would decrease the performance of the model.

7 EXPECTED OUTCOME

The objective of our approach is the construction of

an efficient detector tree with a test error of about

20%.

Analyses are in progress and will allow the

realization of a satisfactory predictive tree. New data

sets are built from existing data such as the

exploration of the variations of visual metrics. The

variations are calculated in points and in percentages

for each individual. If the percentage variations are

significant, the intra-individual difference is

important. The realization of a single tree per operator

is considered.

Automatic classification of a group of individuals

for each cognitive state is planned. The objective is to

Exploring the Decision Tree Method for Detecting Cognitive States of Operators

217

identify groups of individuals and operator profiles.

The hypothesis is that the inter-individual difference

is too important for the realization of a general model

for all operators.

A sub-model of fatigue will be developed to

enable the concomitance of several cognitive states to

be addressed.

8 CONCLUSION

Our research aims at defining a method to design a

predictor of the cognitive state of operators based on

their visual behavior. The interest is to facilitate the

design of the tool as well as its future implementation

in real time. In this paper, we present the

methodology for the conception of the predictor and

illustrate with an example the results obtained. Our

objective is twofold. The first one is the development

of a performant predictor; the second one is the

application of this method on future eye-tracking

data. In the second case, it will allow the

improvement of the predictor by the integration of

new data for the detection of other cognitive states:

physical fatigue, mental load, attention.

REFERENCES

Bodala, I. P., Li, J., Thakor, N. V., & Al-Nashash, H.

(2016). EEG and eye tracking demonstrate vigilance

enhancement with challenge integration. Frontiers in

human neuroscience, 10, 273.

Borragán, G., Slama, H., Destrebecqz, A., & Peigneux, P.

(2016). Cognitive fatigue facilitates procedural sequence

learning. Frontiers in human neuroscience, 10, 86.

Breiman, L., & Ihaka, R. (1984). Nonlinear discriminant

analysis via scaling and ACE. Department of Statistics,

University of California.

De Gennaro, L., Ferrara, M., Urbani, L., & Bertini, M.

(2000). Oculomotor impairment after 1 night of total

sleep deprivation : A dissociation between measures of

speed and accuracy. Clinical Neurophysiology,

111(10), 1771-1778.

Faber, L. G., Maurits, N. M., & Lorist, M. M. (2012).

Mental Fatigue Affects Visual Selective Attention.

PLOS ONE, 7(10), e48073. https://doi.org/10.1371/

journal.pone.0048073

Freydier, C., Berthelon, C., Bastien-Toniazzo, M., &

Gineyt, G. (2014). Divided attention in young drivers

under the influence of alcohol. Journal of safety

research, 49, 13. e1-18.

Kennedy, R. S., Lane, N. E., Berbaum, K. S., & Lilienthal,

M. G. (1993). Simulator sickness questionnaire : An

enhanced method for quantifying simulator sickness.

The international journal of aviation psychology, 3(3),

203-220.

Larue, G. S., Rakotonirainy, A., & Pettitt, A. N. (2011).

Driving performance impairments due to hypovigilance

on monotonous roads. Accident Analysis & Prevention,

43(6), 2037-2046. https://doi.org/10.1016/j.aap.20

11.05.023

Lemercier, A., Guillot, G., Courcoux, P., Garrel, C.,

Baccino, T., & Schlich, P. (2014). Pupillometry of

taste : Methodological guide–from acquisition to data

processing-and toolbox for MATLAB. Quantitative

Methods for Psychology, 10(2), 179-195.

Marcora, S. M., Staiano, W., & Manning, V. (2009). Mental

fatigue impairs physical performance in humans. J.

Appl. Physiol.

McBain, W. N. (1970). Arousal, monotony, and accidents

in line driving. Journal of Applied Psychology, 54(6),

509.

Mosteller, F., & Tukey, J. W. (1968). Data analysis,

including statistics. Handbook of social psychology, 2,

80-203.

Neboit, M. (1982). L’exploration visuelle du conducteur :

Rôle de l’apprentissage et de l’expérience. CAH ETUD

ONSER, 56.

Picot, A. (2009). Détection d’hypovigilance chez le

conducteur par fusion d’informations physiologiques et

vidéo. Institut National Polytechnique de Grenoble-

INPG.

Thiffault, P., & Bergeron, J. (2003). Monotony of road

environment and driver fatigue : A simulator study.

Accident Analysis & Prevention, 35(3), 381-391.

https://doi.org/10.1016/S0001-4575(02)00014-3

Wertheim, A. H. (1991). Highway hypnosis : A theoretical

analysis. Vision In Vehicles--Iii/Edited By Ag Gale; Co-

Edited By Id Brown... Et Al..--.

Winn, M. B., Wendt, D., Koelewijn, T., & Kuchinsky, S. E.

(2018). Best practices and advice for using

pupillometry to measure listening effort : An

introduction for those who want to get started. Trends

in hearing, 22, 2331216518800869.

Witmer, B. G., & Singer, M. J. (1998). Measuring presence

in virtual environments : A presence questionnaire.

Presence, 7(3), 225-240.

APPENDIX

A.1 The Inclusion Criteria Were:

- Possession of a driver's license for at least 2 years

and 2500 km driven.

- Regular driving preferred

- Native French speaker

- Normal vision, or corrected by lenses (not corrected

by glasses)

A.2 The Exclusion Criteria Were:

- Heart problems, people with epilepsy/

photosensitivity/ claustrophobia/ balance problems,

history of neurological or psychological problems

- Taking medication or drugs that affect the sleep-

wake cycle.

CHIRA 2021 - 5th International Conference on Computer-Human Interaction Research and Applications

218
