Crowd Simulation on a Graphics Processing Unit based

on a Least Effort Model

Sankha B. Dutta and Robert D. McLeod

Department of Electrical and Computer Engineering, University of Manitoba, Winnipeg, Canada

Keywords: Pedestrian Simulation, Agent based Modelling, Graphics Processing Unit (GPU), CUDA.

Abstract: Large crowd simulation is becoming a very important field of study for many researchers. In this paper we

endeavour to study large crowds and their interactions with each other and the environment. The interaction

is based on a very simple Least Effort Model inspired from a real world pedestrian modelling scenario. The

simulation of the crowd is computationally very expensive and GPU modelling and simulation is a viable

alternative computational means to accelerate the simulation process. Compute Unified Device Architecture

or CUDA is used for GPU implementation.

1 INTRODUCTION

Simulation of crowd movement is very important in

the areas of traffic and pedestrian interaction, game

design, animation and within crowd management

industries. Pedestrian crowds are ubiquitous and can

be observed in many different scenarios such as

crosswalks, streets, sporting and other mass

gathering events, etc. When crowd densities become

very large the situation can become vulnerable to

unpredictable behaviour with a chance for disaster

and so it is very important to obtain knowledge of

this type of situation. As it is not possible to emulate

this situation in the real world, simulation is possibly

the only solution for understanding behaviour of

large crowds. Crisis situations such as building

evacuation (Pelechano and Badler, 2006) are also

very important areas of study with added difficulty

due to the potential of panic. Researchers are finding

simulation of pedestrian movement to be very

promising and as such, there are several models to

simulate the movement of pedestrians in routine

and/or emergency situations. There are several

pedestrian models such as, cellular automata (Blue

and Alder, 2001; Weifeng and Hai, 2007), social

force models (Helbing, 1991; Helbing et al., 2002)

and agent based models (Cherif and Chighoub,

2010) each having their own advantages and

disadvantages.

While modelling the movement of pedestrians

there are several things that are important to keep in

mind. Pedestrians in their movement typically have

a goal towards which they move but at the same

time they try to avoid collisions with other

pedestrians. Taking these factors into account

pedestrians often try to make least effort decisions to

reach their goals or destinations. In this manner

pedestrians are able to have a somewhat optimized

path to their destination.

In our model the environment is divided into

regular cell grids and each agent or pedestrian

occupies a cell grid. The model is based on Least

Effort Model (LEM) (Sarmady et al., 2009). The

agents move by minimizing deviation along an

optimal path to their goal. In our model there are

minor modifications to this basic model that are

implemented.

Modelling pedestrian movement is

computationally expensive and the computation time

increases with the number of agents. To gain an

advantage in computation, a Graphics Processing

Unit (GPU) (Sanders and Kandrot, 2010; Kirk and

Hwu, 2010) is often used. GPU were developed for

graphics purposes and take advantage of many

processing cores. The introduction of Compute

Unified Device Architecture or CUDA (NVIDIA,

2012) by NVIDIA opened avenues for general

purpose GPU (GPGPU) parallel programming.

GPGPU programming is becoming a viable

alternative in fields which are very computationally

expensive. Modelling of crowds is one of those

applications well suited to GPUs. This work

addresses modelling difficulties and accelerated

369

B. Dutta S. and D. McLeod R..

Crowd Simulation on a Graphics Processing Unit based on a Least Effort Model.

DOI: 10.5220/0004488903690376

In Proceedings of the 3rd International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2013),

pages 369-376

ISBN: 978-989-8565-69-3

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

crowd behaviour modelling using a GPU.

Considerable emphasis is placed on attempting to

make CPU and GPU ABMs match (Wilensky and

Rand, 2007).

The paper is organized as follows, in section 2 a

discussion about the LEM is provided, in section 3

there is a brief discussion about GPU and CUDA, in

section 4 the detailed GPU implementation of the

crowd model is given. Section 5 contains the

speedup obtained using GPU and section 6 contains

the simulation results.

2 LEAST EFFORT ALGORITHM

AND MODEL DESCRIPTION

In our model, the environment is divided into a

lattice of rigid regular cells. Pedestrians or agents

(Hayes, 1999) are placed in the environment and

occupy a single cell. For simplicity all agents are of

same size. At the beginning of a simulation the

agents have an initial position and also a target or

goal. They move in the environment and try to reach

their goal or destination using a least effort model

(LEM).

A situation is emulated where the agents are on one

side of the environment and they are trying to reach

the other side of the environment. Agents

(pedestrians) have 8 neighbour cells as shown in

Figure 1.

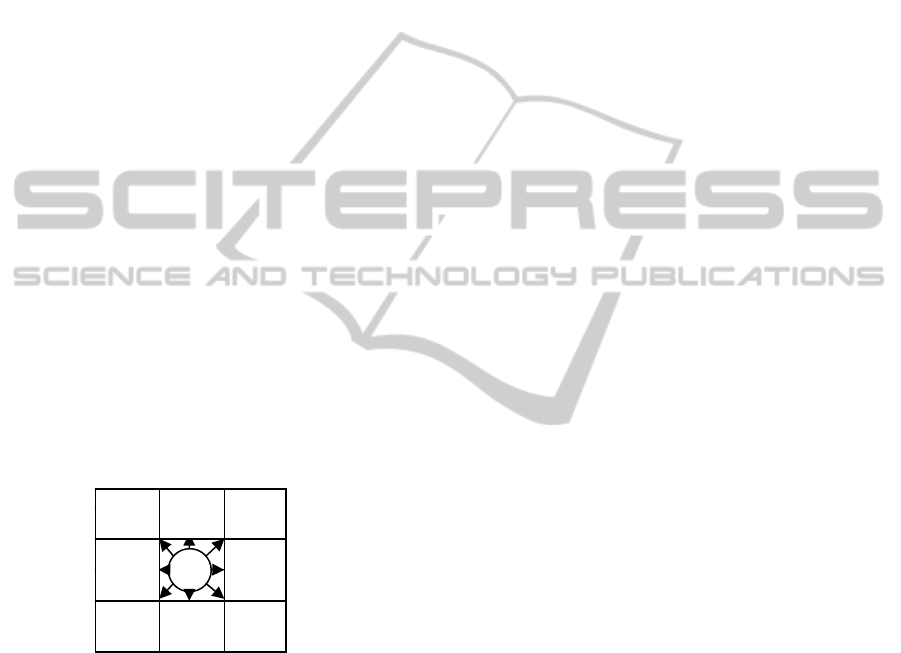

Figure 1: Pedestrian agent with 8 neighbourhoods.

The movement of the pedestrian is dependent on

distance of the cell which is nearest to the target.

The cell which is nearest to the target has the highest

probability of becoming occupied and the cell which

is farthest will have the lowest probability of next

becoming occupied by the pedestrian. This is the

basic mechanism that makes the agent move along a

path which would take the least effort. In reality

pedestrians are free to take a path which is not

necessarily nearest to the target and so

randomization is incorporated in the model.

Prior to making a decision each pedestrian

determines the distance of each unoccupied adjacent

cell from the target and then ranks them according to

their distance. The lowest rank denotes the adjacent

cell which is nearest to the target and the highest

rank is the adjacent cell which is farthest from the

target. After that a random number is generated to

decide which cell to select. The agent then moves to

the cell chosen.

= (1- n

){D

min

}

(1)

min =

Min(D

), n {0,1}, D

≠ 0

In equation (1) D

is the distance of all the

neighbouring 8 cells from the target and D

min

is the

minimum D

value. This distance only gets

calculated for those cells which are empty as n

becomes 1 occupied cells and C

evaluates to zero.

So, essentially C

gets calculated for the cells which

are empty but becomes 0 for the occupied cells.

Then all the calculated C

are ranked according to

their distances in ascending order. A random number

is generated for each of the agent to select a C

. In

order to generate a random number, a normal

distribution is used with a mean value of 0 and a

standard deviation of 3. By using the above

configuration numbers from 0 to 7 are generated.

Before calculating the C

s, a check is performed to

determine whether the agent is already lying in the

target column and if the cell in the next row is

empty. If it is empty then there is no further

checking is done and agent makes move forward

towards their target.

As mentioned earlier, in this model the pedestrians

are placed on one side of the environment and try to

move to the other side of the environment. In this

scenario, the pedestrians have the goal to reach the

other side of the environment only. So to achieve

this goal the traditional LEM is modified and the

target is simply the opposite side. As such, whenever

they are in a certain column that column is their

target column.

3 OVERVIEW OF GPU

ARCHITECTURE AND CUDA

PROGRAMMING MODEL

NVIDIA® introduced the first GPU in 1999. But

endeavours to exploit the GPU for non-graphical

purposes started in earnest from 2003. With the

introduction of Compute Unified Device

Architecture (CUDA) in 2007 NVIDIA® broadened

their scope of general purpose GPU computing.

GPUs are now used for many computationally

intensive tasks. In this section we briefly discuss the

C1 C2 C3

C7 C6 C5

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

370

GPU features and CUDA architecture. Figure 2

shows a modern CUDA capable GPU architecture.

GPUs are mainly based on Single Instruction

Multiple Data (SIMD) architecture massive numbers

of threads for data level parallelism can be launched.

GPUs are organized into highly threaded streaming

multiprocessors (SMs) which are the building blocks

of the device.

The number of SMs varies from one GPU to

another. This project is based on the FERMI™

architecture (GEFORCE™ 560ti). This particular

card consists of 14 multiprocessing units, each

consisting of 32 cores for a total of 448 cores. Each

of these SIMD cores is capable of carrying out large

data parallel applications.

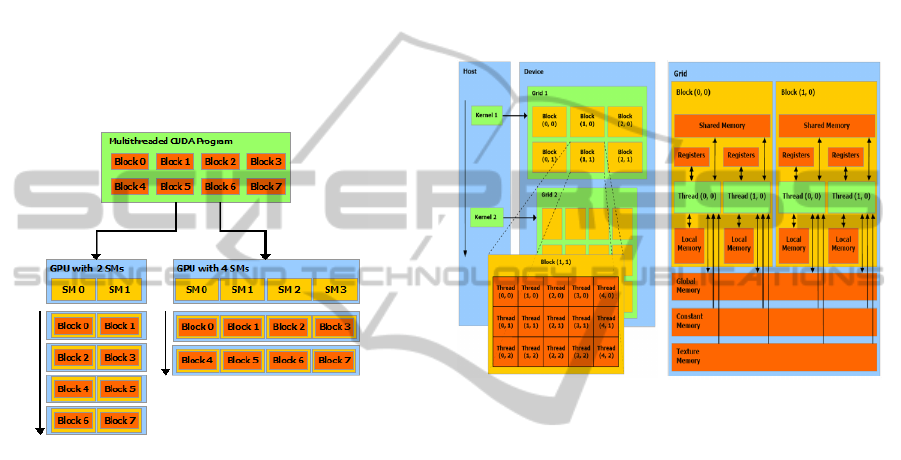

Figure 2: CUDA scalable GPU architecture (NVIDIA

2012).

Inside the GPU there is a 2 gigabytes of graphics

double data rate (GDDR) DRAM memory which is

an off chip memory also known as device or global

memory. Apart from device memory there is other

memory like shared memory which is much faster.

This memory behaves like L1 cache on-chip

memory and it is shared among the SIMD cores.

Each multiprocessor has a fixed number of registers.

There are also other memory like constant memory

and texture memory used for specific applications.

3.1 CUDA Programming Model

Figure 3 shows the CUDA programming model.

CUDA is basically a C/C++ program with GPU

extensions. The programming model of CUDA

offers the GPU as data-parallel co-processor to the

CPU. In the CUDA context, the GPU is called the

device, whereas the CPU is called host. At first the

data is copied to the global memory of the device

and then kernel functions are launched from the host

program and get executed on the GPU. The threads

of the CUDA application are arranged into 3D

blocks and the blocks are arranged into 3D grids.

Each thread has their unique identity and they can be

accessed based on their block identity and size. Each

of these thread blocks is computed in one of the

multiprocessors and multiple thread blocks can be

executed on same multiprocessor. However, there is

a limit to the maximum number of threads that can

be launched. Threads in a thread block are arranged

in a group of 32 threads which is known as warp.

This is the smallest unit in which the threads are

scheduled and executed on a multiprocessor.

Figure 3: CUDA programming/memory model (iXBT

Labs 2008).

4 GPU IMPLEMENTATION

OF LEAST EFFORT MODEL

In our model the agents are placed on the sides of

the environment and each tries to reach the opposite

side of the environment. The whole environment is

made up of rigid cells of the same size, dividing the

whole environment into rows and columns. We have

considered an environment which is square of size

500x500 and the environment is divided into cells

each of unit size. Each of agents is considered to

occupy a space of 1 unit. Two cases are considered

for simulation. In the first instance, the agents are

placed on two opposite sides and in the second

instance; the agents are placed on four opposite sides

of the environment. In this section we briefly discuss

the first case only as the basic implementation

method remains same.

4.1 Implementation Details

At first the agents are placed in the environment in a

random fashion up to a maximum number of rows.

CrowdSimulationonaGraphicsProcessingUnitbasedonaLeastEffortModel

371

Then the agents are updated with their target. For an

agent placed in the bottom of the environment the

initial target is the top row. In the CUDA program

each agent is considered to be a single thread. The

total number of threads launched is equal to total

number of agents present in the environment. First,

it is required to ensure that enough threads can be

launched to cover all the agents present in the

environment. Then the threads are arranged into

grids and blocks. In each of the simulation steps a

kernel function is launched which carries out the

agent movement.

Inside the kernel function, before carrying out

the LEM algorithm, an agent checks whether it is

placed in the target column. If true, then it verifies

whether the immediate cell in the forward direction

is empty or not. If empty then no further calculation

is performed and the agent proceeds forward.

Otherwise, a cell gets selected using LEM. The

pseudo code is shown below:

if(target_col == present column &&

forward_cell == 0)

move one cell forward

else

Calculate LEM.

No movement is observed when all neighbouring

cells are occupied.

4.1.1 Challenges in Implementation

The primary motivation of the implementation of the

model on the GPU was to gain speed in the

simulation while emulating the situation where the

pedestrians are capable of decision making.

Decisions of each agent are considered to be

independent of the other. The biggest challenge in

implementation of the algorithm was to keep the

total number of agents same, without any loss. As

mentioned, each of the agents is launched as single

thread and all of them are executed in parallel. So a

situation could arise when two agents try to access

the same environment position at the same time and

a loss of agent could occur. To avoid this kind of

scenario, atomic features of CUDA are used.

In the atomic operations when one of the threads

is performing an operation on a particular memory

location, residing either in global or shared memory,

then it does not get interfered with by operations of

other threads. An atomic function performs a read-

modify-write operation on 32 or 64 bit word which

is residing in global or shared memory. Inside the

kernel function, the agent first finds out the number

of neighbouring empty cells, calculates the distance

of the empty cell from the target and arranges them

in the ascending order. After that a random number

is generated which decides the cell number to be

selected. Once the cell is chosen, the movement of

the agent is achieved by calling the atomicExch()

function. In this way the numbers of agents are kept

intact in every simulation step and no agent

(memory) gets overwritten throughout the operation.

4.1.2 Generation of Random Numbers

Inside the kernel function, after the agents calculates

the distance of the available neighbouring empty

cells to the target and arranging them in the

ascending order, a random number is generated.

Random numbers are generated from a normal

distribution. A separate random number is obtained

for each agent. This is obtained by using cuRAND

library of which comes with the CUDA SDK.

Before the start of the simulation, a setup kernel is

launched once for the total number of pedestrians

present in the environment. Inside this setup kernel

there is the cuRAND application programming

interface (api) curand_init(). This kernel function is

essentially responsible to generate a seed which is

later fed to the main random number generator. The

random number from the normal distribution is

generated by using the curand_normal() api. This

normal distribution api is responsible for generating

a random number having a mean of 0 and standard

deviation of 1. But the result is multiplied by 3 to

obtain the desired standard deviation.

5 SPEEDUP

Simulation of the LEM for a large number of agents

is very computationally intensive. The primary

motivation of using GPU for the implementation of

the LEM algorithm is to accelerate the simulation

process. The time for the simulation process is

measured for both the CPU and GPU

implementations. The time is only measured for the

simulation and not for any memory transaction in

case of the GPU. As mentioned, the GPU used is

NVIDIA® GEFORCE™ 560ti and CPU used is

CPU is Intel Xeon E3-1280 (server grade).

For the GPU, time for the simulation process is

measured by using cudaevent functions. The

computation time both for CPU and GPU is given in

the Figure 4a and the speedup for the simulation is

provided in the Figure 4b. In Figure 4a the time is

measured in seconds along the Y-axis with the the

number of agents along the X-axis. This speedup is

measured using two groups of agents only (bi-

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

372

directional movement). The measurement of the

computation speed is initalized with 1,000 agents

and it is measured up to 100,000 agents with an

increment of 1,000 agents in each comparison.

In Figure 4b illustrates the speedup graph. When the

number of agents is 1000 the speedup is 1x. A

speedup of 10x is achieved when the number of

agents is 7000. The typical speedup is approximately

8x as the agent population increases further.

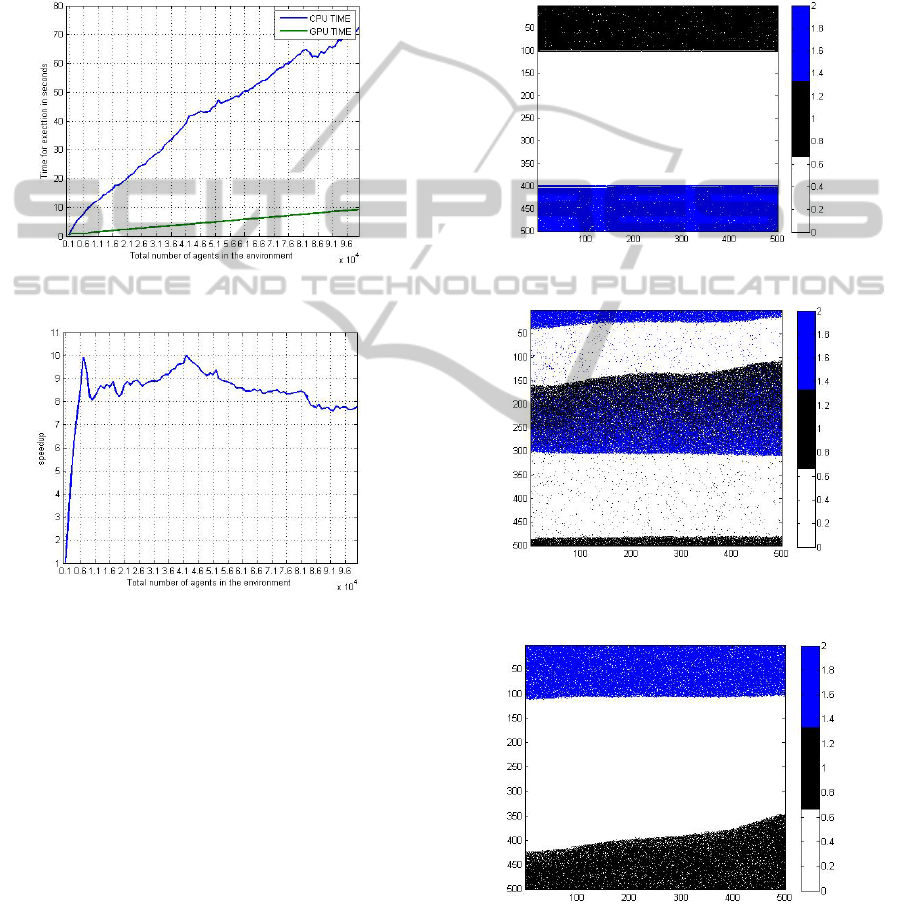

Figure 4a: Time computation of CPU and GPU.

Figure 4b: Speedup graph.

6 SIMULATION AND RESULTS

In this section, a brief discussion of the simulation is

provided followed by a discussion about the results.

6.1 Simulation

The visualization of the simulation is performed

using MATLAB™. In Figure 5a the scenario depicts

the initial situation of agents placed at opposite ends

of the environment. In this instance, the total number

of agents in the environment is 100,000. The

objective of black agents is to move to the bottom

and blues objective is to do the opposite. Figure 5b

and c depicts the simulation in the time step of 3,000

and 6,000 respectively.

The asymmetry seen is somewhat disconcerting

as similar results were not apparent from simulations

when run on the CPU. At this time suspicions are on

synchronization issues associated with each agent

being run as a thread. Although difficult to debug on

the GPU it may also be implementation of the next

cell that is providing a directional bias.

Figure 5a: Initial placement of 100, 000 agents.

Figure 5b: Simulation of 100,000 agents in time step

3,000.

Figure 5c: Simulation of 100,000 agents in time step

6,000.

More interesting dynamics are shown in Figures

6a, 6b and 6c when agents are placed on 4 sides of

CrowdSimulationonaGraphicsProcessingUnitbasedonaLeastEffortModel

373

the environment. Figure 6a is the initial position of

the agents; Figure 6b and 6c are the simulation of

agents in time step of 3,000 and 6,000 respectively.

The total number of agents placed on 4 sides of the

environment in this scenario is 160,796. The

asymmetry of the flow is apparent resulting from the

asymmetry of the initial conditions as well as from

the underlying model implementation.

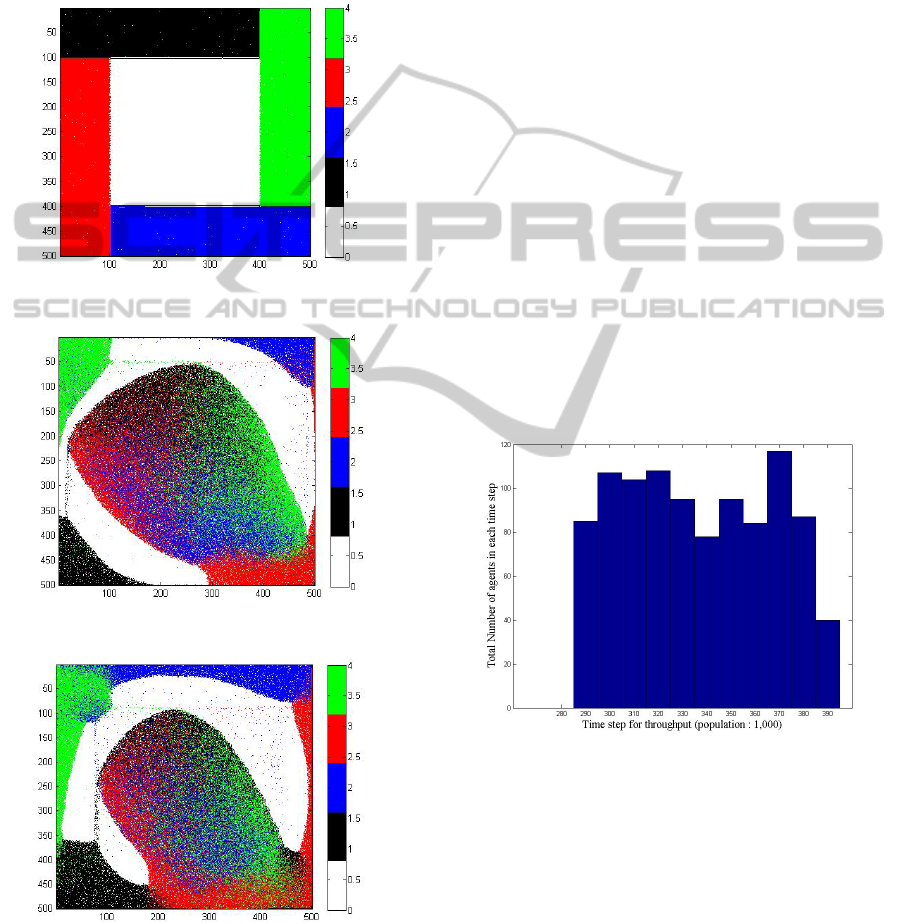

Figure 6a: Initial placement of 160,796 agents.

Figure 6b: Simulation step 3,000.

Figure 6c: Simulation step 6,000.

6.2 Results

In this section a brief discussion of throughput of the

agents is provided. The throughput is measured by

considering only two groups of pedestrians at

opposite sides. The number of rows up to which the

agents would occupy the environment initially is

kept fixed. The time required for the throughput i.e.

the agents to cross the other side of the environment

is measured. The total number of time steps is also

kept fixed at a maximum of 6000. Initially the

throughput results are obtained for only 1000 agents

(500 agents on each side). Then the next result is

carried out for 2000 agents (1000 agents on each

side) so on and so forth until the number of agents

reaches to 100,000. Figure 7a depicts the throughput

when the number of agents is 1000.

In Figure 7a, when the number of agents is 1000

the distribution seems to be almost uniform. All the

agents are seen to cross the environment between

time steps of 290 to 390. In Figure 7b, c, d and e the

number of agents are 25,000, 50,000, 75,000 and

100,000 respectively.

In Figure 7b, when the number of agents is 25,

000 a peak is observed between the time steps of

935 and 945 with a maximum throughput of

approximately 1,100. When the number of agents

increased to 50,000 the peak is observed between the

time steps of 2020 and 2030 with a maximum

throughput of approximately 1,250.

Figure 7a: Throughput of 1000 agents.

From Figure 7e, when the number of agents

increased to 100,000 the throughput takes an almost

a steady rise with the peek at the time step of 3,990

and then a sudden fall. There are 918 agents who are

not able to cross the environment within the given

time step of 6,000.

Figure 8a shows the mean of the throughput of

the agents. The x-axis on the graph is the increase in

the number of agents starting from 1,000 up to

100,000 with an increment of 1,000 in each step and

y-axis the average time taken. Figure 8b shows a

390

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

374

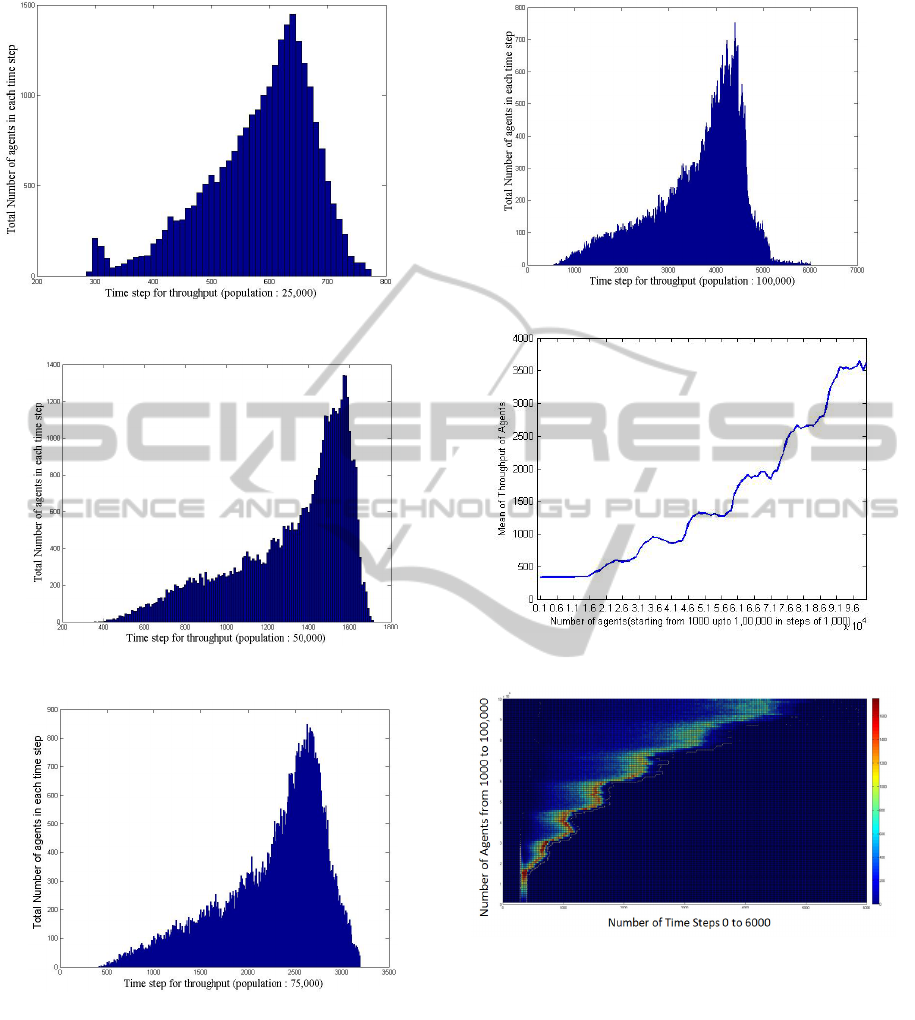

Figure 7b: Throughput of 25,000 agents.

Figure 7c: Throughput of 50,000 agents.

Figure 7d: Throughput of 75,000 agents.

heat map surface plot. From the surface plot, the

mean plot of Figure 8a is clearly seen. From the top

view it is clear that when the density is low then the

throughput of the agents is concentrated in a small

region which spreads in a non-Gaussian manner as

the density increases.

The periodic behaviour of the throughput is

believed to be an artefact of the computation on the

GPU. The cause of these phenomena is still being

Figure 7e: Throughput of 100,000 agents.

Figure 8a: Mean of throughput time for all agents.

Figure 8b: Top view of the 3D surface plot.

investigated. From Figure 8b it is observed that the

distribution spreads along x-axis, with the increase

in the number of agents. This spread however is

heavily skewed. With the increase of the number of

agents (measured along y-axis) the peak throughput

values in some cases occurs at lower time (measure

on the x-axis). This causes the graph of Figures 8a

and 8b to take an unexpected and artificial periodic

shape. One of such instance is shown in Figure 9. In

Figure 9 peak of the throughput of 43,000 agents is

less than that of 35,000 agents illustrating the

periodic nature of Figure 8a and 8b.

800

1800

3500

7000

CrowdSimulationonaGraphicsProcessingUnitbasedonaLeastEffortModel

375

These anomalies are systematic computation

artefacts and would not seem to be real phenomena

associated with crowd movement. We are again

attempting to resolve this issue. Even in light of the

anomalies and model discrepancies agent based

modelling of pedestrians appears to be well suited to

GPGPUs.

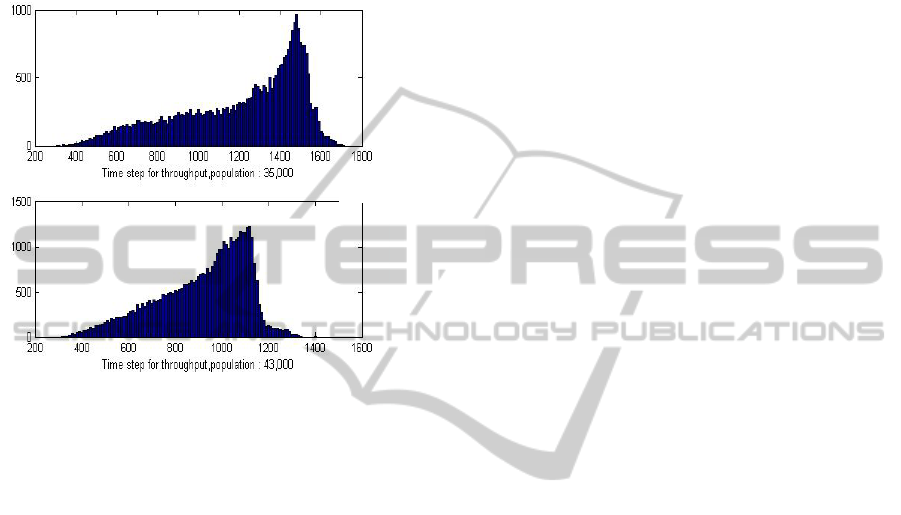

Figure 9: Comparing throughput of 35,000 and 43,000

agents

7 FUTURE WORK

In future work, in addition to concentrating on

model matching and validation, it would be

desirable to incorporate some psychological state in

each agent to achieve a more realistic world

scenario. There would also be some changes in the

implementation of the CPU where we would utilize

all the cores available on the CPU. The latest release

of CUDA 5 also has dynamic parallelism that can be

implemented on the KEPLER architecture. The GPU

that has been used here has the FERMI architecture.

As such, there are plans to use a GPU card with the

KEPLER architecture. In addition, the obvious

asymmetries in the simulations require further

investigation.

REFERENCES

Blue, V. J., Alder, J. L., March 2001. Cellular Automata

Microsimulation for Modeling Bi-Directional

Pedestrian Walkways. Journal of Transportation

Research Part B: Methodological, Vol. 35, Issue: 3,

pp. 293 -312.

Cherif, F., Chighoub, R., April 2010, Crowd Simulation

Influenced by Agent’s Socio-Psychological State.

Journal of Computing, Vol. 2, Issue: 4.

Hayes, C., Jan. – Feb. 1999. Agents in a Nutshell- A Very

Brief Introduction. IEEE Transaction on Knowledge

and Data Engineering, Vol. 11, Issue: 1, pp. 127 -132.

Helbing, D. October 1991. A Mathematical Model for the

Behavior of Pedestrians. Behavioral Science, Vol. 36,

Issue: 4, pp. 298 -310.

Helbing, D., Farkas, I., Molnar, P., Vicsek, T., Simulation

of Pedestrian Crowds in Normal and Evacuation

Situations. Pedestrian and Evacuation

Dynamics,Springer 2002, pp. 21 -58.

iXBT Labs, October 2008, Cuda programming model,

http://ixbtlabs.com/articles3/video/cuda-1-p5.html

Kirk, D., Hwu, W., February 2010. Programming

Massively Parallel Processors: A Hands-On

Approach. Morgan Kaufmann; 1

edition.

NVIDIA, October 2012. CUDA C Programming Guide.

http://docs.nvidia.com/cuda/pdf/CUDA_C_Programmi

ng_Guide.pdf.

Pelechano, N., Badler N. I., Nov.-Dec. 2006. Modelling

Crowd and Trained Leader Behaviour during Building

Evacuation. IEEE Magazine of Computer Graphics

and Application, Vol. 26, Issue: 6, pp. 80-86.

Sanders, J., Kandrot, E., July 2010. CUDA by Example:

An Introduction to General-Purpose GPU

Programming. Addison-Wesley Professional, 1

edition.

Sarmady, S., Haron F., Talib A., May 2009. Modeling

Groups of Pedestrians in Least Effort Crowd

Movements Using Cellular Automata. IEEE Third

Asia International Conference on Modelling and

Simulation, pp. 520 -525.

Weifeng, Y., Hai, T. K., June 2007. A novel algorithm of

simulating multi-velocity evacuation based on cellular

automata modelling and tenability condition. Physica

A: Statistical Mechanics and its Applications, Vol.

379, Issue: 1, pp. 250 -262.

Wilensky, U., Rand, W., 2007. Making Models Match:

Replicating an Agent-Based Model. Journal of

Artificial Societies and Social Simulation 10(4)2

<http://jasss.soc.surrey.ac.uk/10/4/2.html>.

1800

SIMULTECH2013-3rdInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

376
