Model-Driven ERP Implementation

Philippe Dugerdil, Gil Gaillard

Information Systems Department, Haute école de gestion,

University of Aplied Sciences, 7 rte de Drize, CH-1227 Geneva, Switzerland

Abstract. Enterprise Resource Planning (ERP) implementations are very com-

plex. To obtain a fair level of understanding of the system, it is then necessary

to model the supported business processes. However, the problem is the accu-

racy of the mapping between this model and the actual technical implementa-

tion. A solution is to make use of the OMG’s Model-Driven Architecture

(MDA) framework. In fact, this framework lets the developer model his system

at a high abstraction level and allows the MDA tool to generate the implemen-

tation details. This paper presents our results in applying the MDA framework

to ERP implementation based on a high level model of the business processes.

Then, we show how our prototype is structured and implemented in the

IBM/Rational

XDE

environment

1 Introduction

Due to the increasing pressure on IT cost and standardization, a growing number of

companies have turned to Enterprise Resource Planning (ERP) systems to build their

core IT system. Formerly limited to big companies, the phenomenon also reached the

Small and Medium Industries (SMI) [21]. It is now widely accepted that ERP systems

provide a viable alternative to custom application development for the standard in-

formation management needs and that it is often superior in terms of quality of the

implemented business process [8]. If ERP systems have become a true alternative to

custom-made IT systems, managers are concerned about the excessive dependency it

may leads to the ERP vendor. Seen from the outside, an ERP implementation is over-

whelmingly complex. Also, it is seldom the case that the IT team of a customer com-

pany masters all the details of its ERP system. In fact, when some large modification

must be made to the system, it often requires the help from the ERP vendor’s consult-

ants. This may lead the company management to feel that it is “loosing control” over

its IT system. A solution is to provide the management with a model of the system

which would fit its level of understanding and expertise. In fact, the right modeling

level rests at the business process level and should be expressed in some graphical

way. However the modeling tool and graphical language should not bring yet another

level of dependency. This is why our tool and approach use UML and its extension

mechanism to design the standard business modeling elements and semantics. In fact,

an UML extension has already been proposed by Eriksson & Penker [6] that closely

matches one of the widely used business modeling standard [4]. It complements the

Dugerdil P. and Gaillard G. (2006).

Model-Driven ERP Implementation.

In Proceedings of the 2nd International Workshop on Model-Driven Enterprise Information Systems, pages 77-87

DOI: 10.5220/0002480400770087

 SciTePress

UML Business Modeling Profile published by IBM [13]. We then used the Eriksson-

Penker profile and implemented it in a widely available and extensible modeling tool,

XDE

from IBM/Rational

. However, for this approach to be successful, one must

make sure that the model is aligned with what’s implemented. A very promising way

to do it would be to generate the parameterization elements from the model itself.

Starting from this idea we then investigated the use of the OMG’s MDA framework

[15,5] to build a semi-automatic ERP customization tool. Starting from a business

process model, the tool then gradually refines the model into increasing level of detail

down to the database elements necessary to implement the processes on the target

system.

2 Related Work

Acknowledging the fact that the mismatch between the enterprises needs and the

system customization is one of the reasons for ERP implementation failure [22] and

that the proprietary customization language is often hard to manage, some attempts

have been made to replace it by some standard graphical language. On the other hand,

the need to develop business process models for ERP implementation projects is well

known [7]. The Use-Case and Object Oriented (OO) approach to model business

processes has been advocated by Jacobson since the mid nineties [12]. Later, the use

of UML as a business process modeling language has been widely documented by

IBM/Rational consultants [16,3,10]. But the application of the OO concepts to ERP

implementation has not been proposed until recently. For example Arinze and Anan-

darajan [2] proposed an OO framework to ease the customization of an ERP system.

However, their approach does not really improve the level of modeling. It mainly

replaces the proprietary customization language by some OO representation. But the

business processes themselves are not the target of their modeling tool. The modeling

of the business processes in a ERP-independent format has been proposed by Sheer

[18] who developed the commercial product ARIS [11]. However this approach yet

reintroduces a level of dependency, not to the ERP system but to the tool vendor. The

use of the OMG’s MDA framework to model the enterprise and its processes has

been deeply investigated by Wegman [23]. But his model has not been applied to the

development or customization of IT systems. Linvald and Østerbye recently proposed

the use of UML to implement an ERP system [14]. However, it concentrates on the

visual aspects of UML and does not propose any methodology nor does it use the

MDA framework. On the other hand, Rolland and Prakash proposed to use UML to

model the functional requirement of an enterprise IT system and to compare it to

some target ERP system [17]. But this work stays at the specification level and does

not deal with the customization problems. Finally, it is worth noting that the advan-

tage of using one unique modeling language, namely UML, for business as well as

system modeling has been advocated by Heberling et al. [9]. But their work does not

mention the use of UML for ERP implementation.

3 MDA and ERP Implementation

One of the motivations behind the design of the OMG’s MDA framework is to pro-

mote platform independence when designing IT applications. In fact, the developer

will concentrate on the platform-independent features of his application and will let

the programming environment generate the details and programming elements ac-

cording to the chosen target platform. The highest conceptual model, the CIM (Com-

putation Independent Model), is targeted at domain practitioners [15]. It is some-

times called the domain model and includes the main concepts and entities of the

domain. Then, by adding the knowledge of the common business processes imple-

mented in any ERP system one gets the Platform Independent Model (PIM). Al-

though the target ERP platform should not be considered at this early stage of the

modeling process, one nevertheless knows that the target is an ERP system and not a

custom-developed application. This is consistent with the observation of Almeida et

al. [1] that the design of the PIM should know the “general capabilities of the poten-

tial target platform”. In this sense, the MDA framework resembles the best practices

in ERP implementation: first design the business process to be implemented then

proceed with parameterization [19]. All our models are based on UML and its light-

weight extension mechanism: the UML Profile. As UML is becoming standard

knowledge for IT engineers, using our technique will save them the burden to learn

some proprietary ERP implementation language. Moreover, our approach can be

implemented in any commercially available tool which supports the MDA frame-

work, such as IBM/Rational

XDE

MDA was initially intended to generate custom made applications. In this case the

last step of the process, the transformation from the PIM to the Platform Specific

Model (PSM), represents the code generation for the target platform. In the case of an

ERP, the system is already implemented. It must only be configured according to the

target business processes. This amounts usually to the generation of the parameters in

the ERP’s tables. Grossly speaking, an ERP system is like a toolbox of components

(visual and non visual) to enable/disable and tune according to the process to be im-

plemented. This is why the customization of an ERP differs from code generation: we

do not generate or remove components; we only enable/disable components and gen-

erate constraints information for the ERP parameterization engine to configure the

system. Of course, many ERP customizations include the programming of some spe-

cific function using the ERP’s integrated programming environment. This could to a

large extent be modeled as Object Constraint Language (OCL) expressions. But this

very capability is not covered in the present paper as we only target the generation of

the ERP parameters.

4 Steps of the Implementation Method

To extend the UML language to include the business process modeling we designed a

UML profile that includes some new stereotypes and tagged values [20]. Tagged

values are used to propagate the customization information among the MDA models

by the MDA transformations. For example, some of the tagged value will tell the

system if a given entity will be enabled or disabled on the target system leading to its

presence / absence on the screens.

4.1 CIM and PIM Model Elements

In the case of an ERP, the CIM and PIM models are pre-built and represent the enti-

ties of the domain model. In fact, the PIM is not generated from the CIM but it is

tuned according to the target process to implement. The elements of theses models are

business entities represented by the Resource stereotype, which is an extension of the

“Class” metaclass in the UML meta model. According to [6] a resource is an entity

which is either consumed or transformed by a process. Moreover, a Boolean tagged

value is associated to each of these entities to represent the state of the entity: ‘used’

or ‘unused’. Examples of such resources are: item, order, currency, invoice or loan.

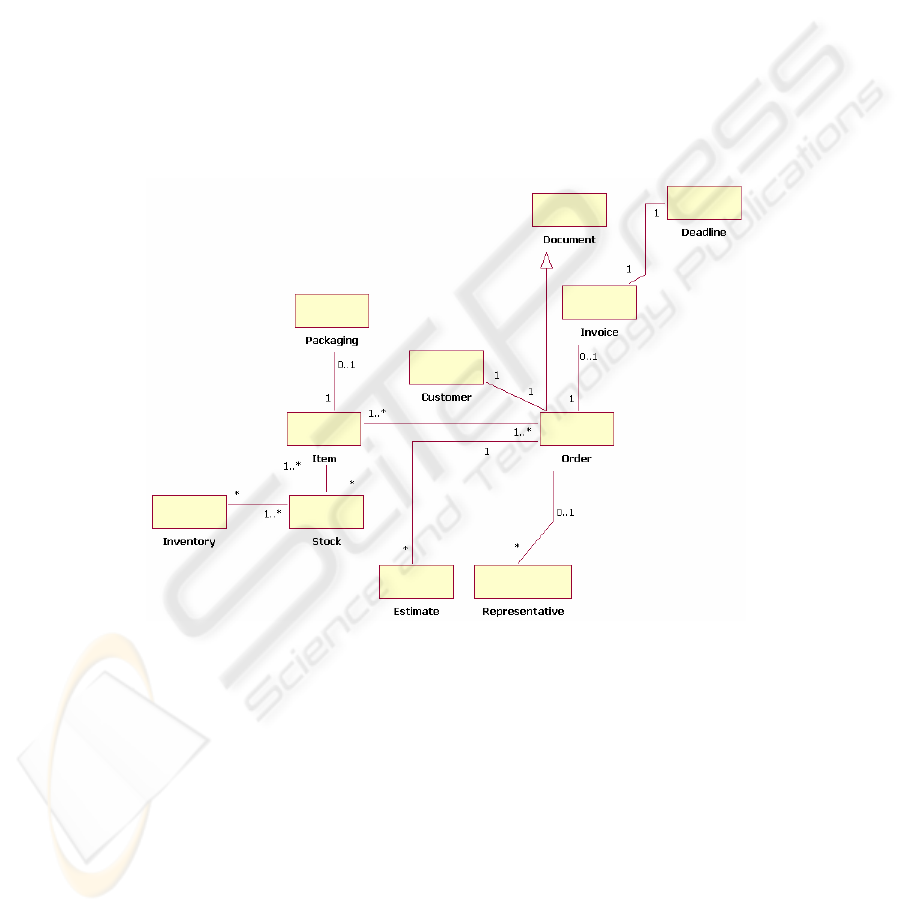

Figure 1 shows a subpart of the CIM model built in our prototype system.

Fig. 1. The CIM model.

4.2 PSM Model Elements

The elements of the PSM are specific to each target ERP system. They are imple-

mented as table rows, code units, forms, screens and reports (whose parameters are

usually represented as values in table rows). In our prototype, we targeted Adonix

one of the leader ERP system in the SMI business segment. Then, the PSM takes the

form of value of rows in the Adonix tables.

5 Transforming the CIM to the PIM

On of the key feature of our approach is that the transformation rules from CIM to

PIM and from PIM to PSM are themselves represented as models. In fact, our goal

with this approach was to make it as easy as possible for the ERP customers to use

our tool to configure their system. Then, the CIM to PIM transformation is repre-

sented by the high level model of the generic business process to be implemented in

the ERP. This model is used to propagate tagged values from the CIM to the PIM

depending on the state of each of the business process’ tasks. When an engineer must

configure a transformation, he will simply select the generic process to be imple-

mented from a library, then select the tasks that must be enabled (used) or disabled

(unused) in this process. For example, if a process is disabled, then the linked re-

sources will also be disabled. This will then further propagate to all the processes that

use or manipulate these resources. Next, if a resource represents the output of a dis-

abled process, then it is also disabled and all processes that use this resource as input

will also be disabled. At the end of this propagation step, any OCL constraints that

represent specific limitations, initial values, message or time constraints in the CIM

must be copied to the PIM. Figure 2 shows a business process model that represents

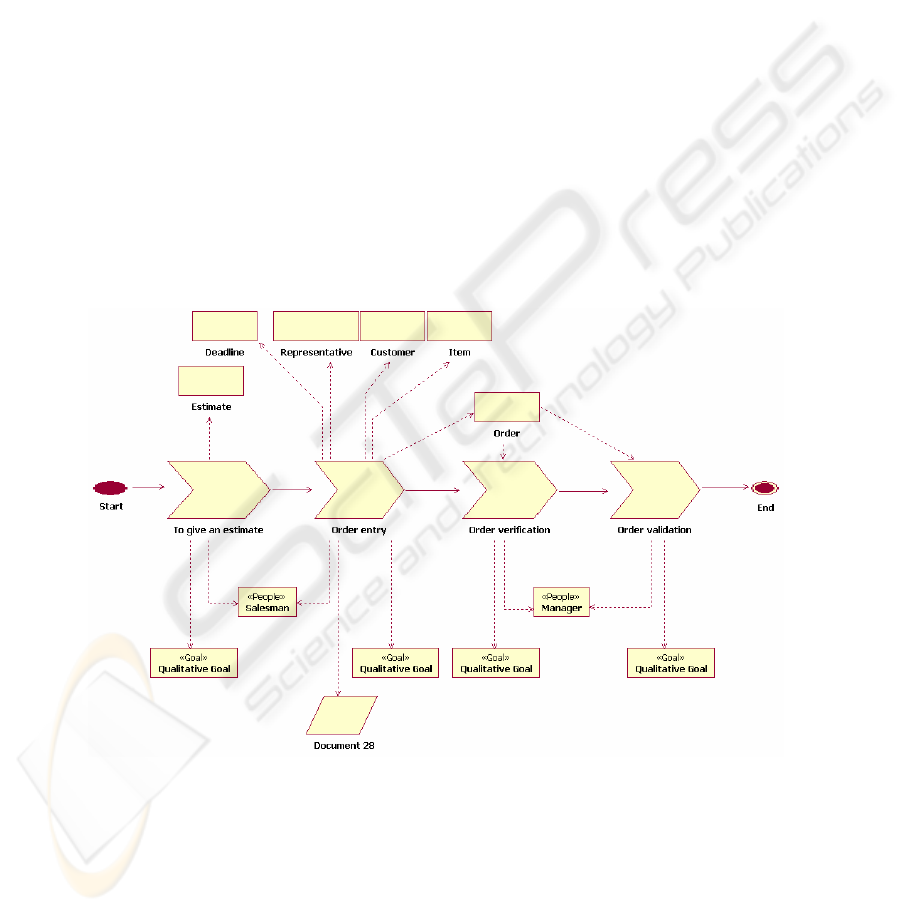

the CIM to PIM transformation rule in our prototype system, with its associated re-

sources, people, information and goals.

Fig. 2. Transformation rule: a process model.

The business model that represents the transformation rule from CIM to PIM is built

from the following elements.

Business process (stereotype): represents a set of activities to be performed by people.

It may be structured as a hierarchy of sub processes where the lowest level is the

activity. The business process is therefore an extension of the “Activity” metaclass

(fig 3). However, the activities associated to a given process are platform dependent.

Therefore they will be defined when dealing with the PIM to PSM transformation.

When building a process model, the resources must be linked to the business process

which manipulates them.

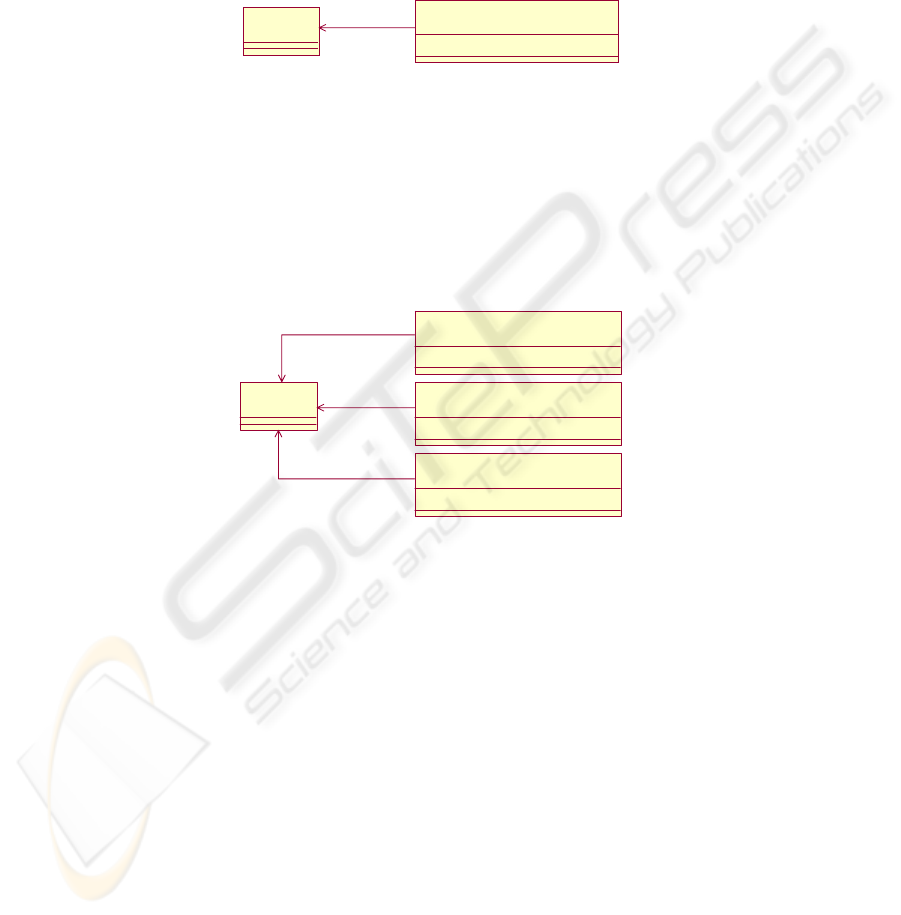

«MetaClass»

Activity

«Stereotype»

BusinessProcess

+ «TagDefinition» used : Boolean = True

Fig. 3. The Business Process metaclass.

People (stereotype): represents a “human resource” that is associated to a process. It

is an extension of the “Class” metaclass (fig 4). This element is used to define au-

thorizations profiles over the system (access rights to the ERP functions). Goal and

information (stereotypes): represent the business goal of a process and the informa-

tion required to perform a process. These elements must be linked to their business

process. For the moment, these two elements are used for documentation purpose

only. They both are extensions of the “Class” metaclass (fig 4).

«MetaClass»

Class

«Stereotype»

Go a l

+ «TagDefinition» used : Boolean = True

«Stereotype»

People

+ «TagDefinition» used : Boolean = True

«Stereotype»

Inf o r mat ion

+ «TagDefinition» used : Boolean = True

Fig. 4. The metaclasses for resources.

6 Transforming the PIM to the PSM

The PIM to PSM transformation is also represented by a model. In this case it is the

model of the actual implementation, in the target ERP system, of the generic business

process used as the CIM to PIM transformation. This implementation is represented

as a set of Business Activity diagrams, each diagram corresponding to one of the tasks

of the business process. These models are used to configure the PSM model elements

according to the tagged values of the PIM model elements and the status of each of

the activities of the activity diagrams of the tasks. In fact, when an engineer must

configure a PIM to PSM transformation, he will simply select the status of the activi-

ties in the activity diagram that represents the business task to configure. The value of

the status of an activity is dependent on the target ERP system. For example, one may

have : unused, optional, obligatory, shown,… In figure 5 we represent a business

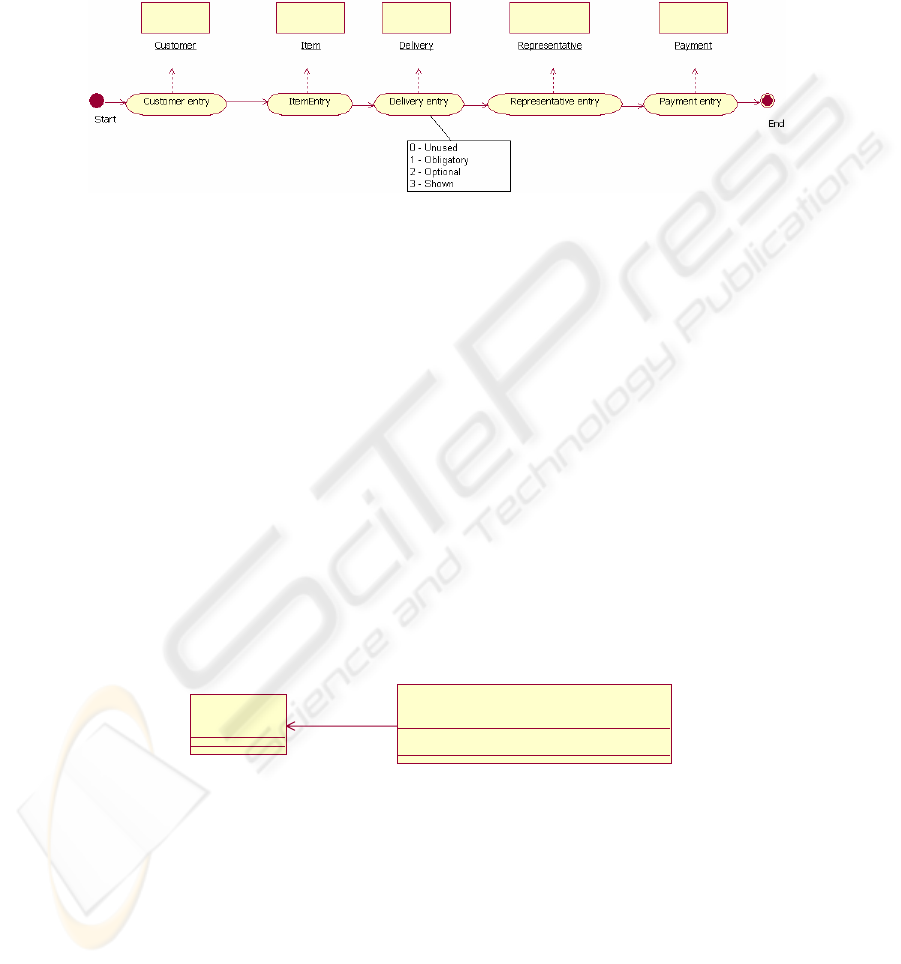

activity diagram that shows the entity linked to each of the activities. The figure also

shows a pop up menu that let the configuration engineer choose the status of one of

the activities.

Fig. 5. Business activity diagram for a business process.

The transformation process will propagate the values of the activities’ status to all the

attributes of the linked business entities, unless the latter were already disabled by the

first transformation. For example, if the status of the “Payment entry” activity is set to

“Obligatory” then all the attributes of the linked business entity “Payment” entity will

be set to “mandatory” through the addition of a new property. From the final status of

these entities, the system will generate the parameters for the target platform. Finally

any OCL constraints will be processed to generate the constraint in the appropriate

target format. For example if, as in Adonix, the target of the customization process is

a set of tables, a set of generic SQL scripts will be executed to populate these tables

using a mapping file that holds the mapping from the entities and their attributes to

the tables’ records.

The activity diagram that represents the transformation rule from the PIM to the PSM

is built from the BusinessActivity stereotype which is an extension of the “Activity”

metaclass (fig 6). A business activity may be of type data entry, data validation or

data selection. It is linked to the resources it manipulates. A tagged value “status” is

associated to each business activity to represent the user-selected status of the activ-

ity (see figure 5).

«MetaClass»

Activity

«Stereotype»

Business Activity

+ «TagDefinition» status : String = Optional

Fig. 6. Business Activity metaclass.

The business activity diagram associated to each business task is ERP dependent.

Then, it must be created for each new target ERP platform. Moreover, if the target of

the customization process is a set of tables, one must also create the mapping file

from the business entities to the tables of the target platform. In figure 7, we summa-

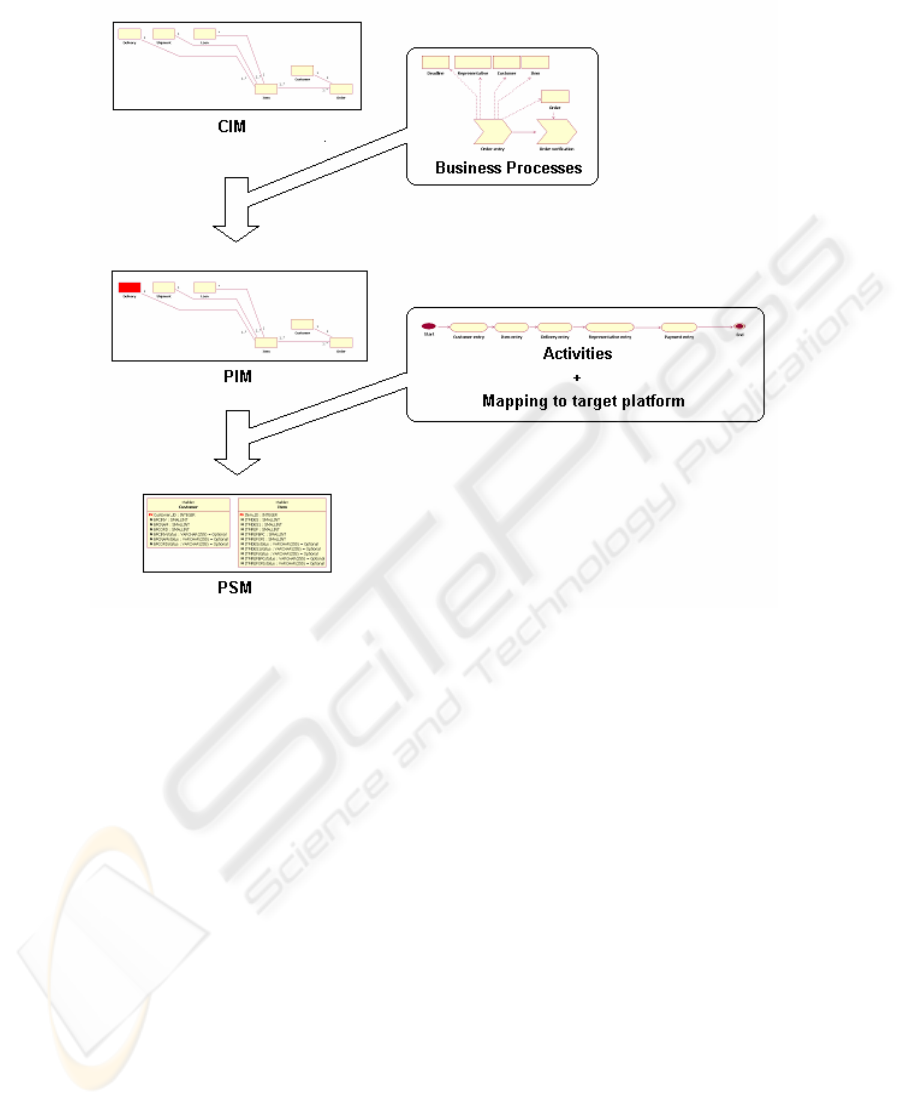

rize the steps of the transformation from CIM to PIM to PSM using the technique we

described.

Fig. 7. Summary of the model-based MDA transformations.

7 Implementation of the Prototype

The prototype of our system has been implemented in the IBM’s XDE environment

augmented with the MDA toolkit (fig 8). Our own extension is built as an eclipse

plugin written in Java. When a task of a generic business process is disabled by the

configuration engineer or if an entity gets disabled by status propagation, it is turned

to another color (red) in the diagram. Then it is easy for the configuration engineer to

see the current status of the customization (fig. 9).

8 Conclusion and Future Work

The goal of this project was to validate the applicability of the MDA framework to

the customization of an ERP. The use of an ERP system as the target platform of the

MDA approach brings some unique constraints. First, the final application is not

generated because it already exists. Rather, it must be configured or customized.

Second, the process that could be implemented are dependent on what is available on

the target platform. In other words, the spectrum of the possible business process to

implement is limited. Third, although the customization language is specific to each

ERP, the business process to be implemented can be represented by some standard

graphical notation.

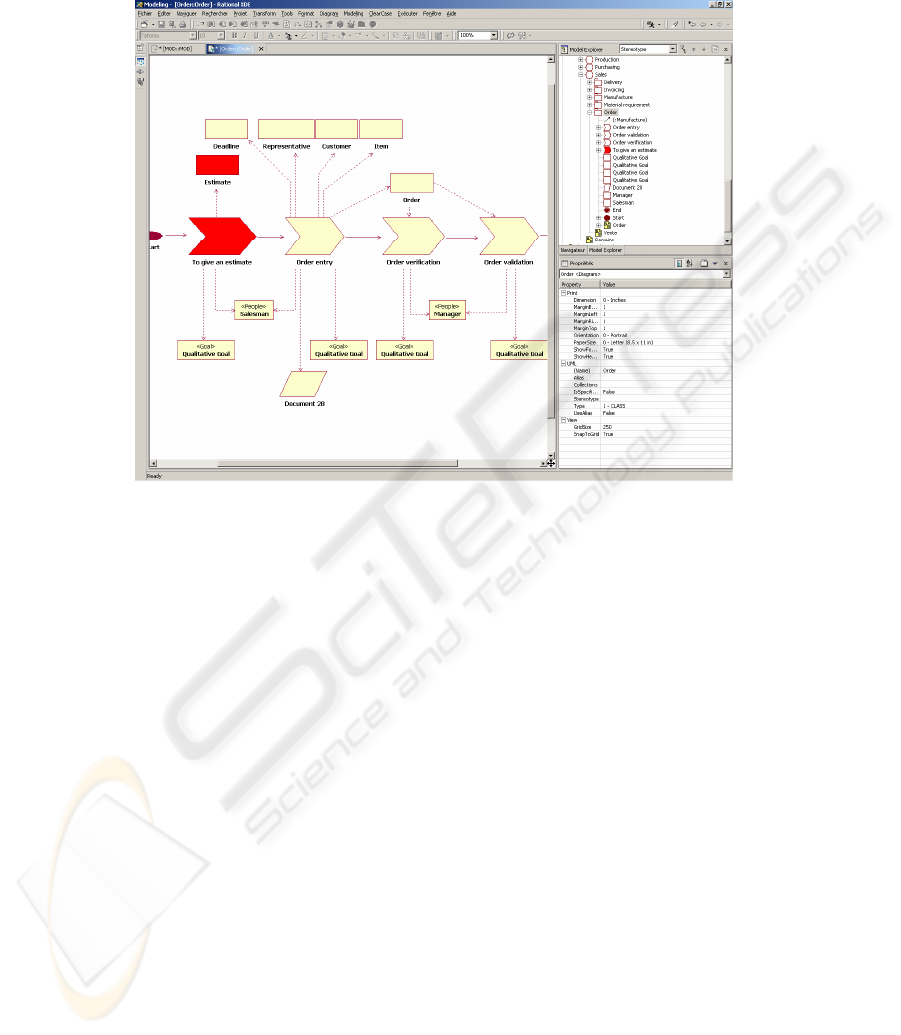

Fig. 8. Prototype in the IBM’s XDE environment.

Then we investigated the possibility to use this graphical notation to generate the

customization constraints. This lead us to define the MDA transformations them-

selves as models (business process and business activity diagrams) using a standard

notation (BPML, which has been implemented as a UML Profile). This has the

unique advantage to free the user from knowing the peculiarities of some specific

customization language or system. Using this technique, the customization is self

documenting. The impact of any subsequent change could then be easily analyzed at

a conceptual (business) level. Although our first prototype only covers a small subset

of the business processes of Adonix, we have been able to generate the parameters

down to the Adonix tables successfully, only using our graphical notation. These

parameters triggered the correct behavior on the system. The next step in this research

will be to extend the prototype to the other processes and to further validate the ap-

proach by targeting other ERP platforms (Microsoft’s Navision®). A new topic of

research would be to go the other way around: to generate the high level (business)

view from a given ERP implementation. Although one could already foresee the

many difficulties of this endeavor, the present research has shown some path toward

this goal.

Acknowledgement: this work has been supported by the HES-SO 12493 grant (IS-

Net89) from the Swiss Confederation.

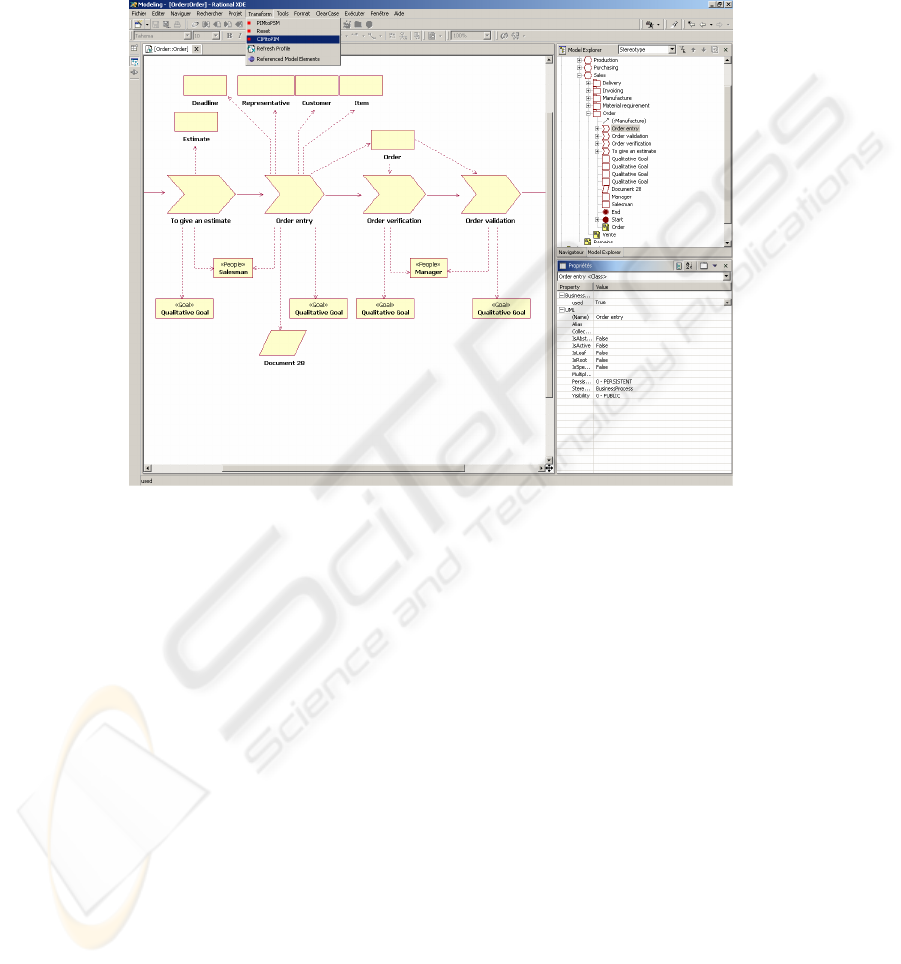

Fig. 9. Business process with disabled elements.

References

1. Almeida J.P., Dijkman R., van Sinderen M., Fereira Pires L.:On the Notion of Abstract

Platform in MDA Development. Proc IEEE EDOC (2004)

2. Arinze B. and Anandarajan M.: A Framework for Using OO Mapping Methods to Rapidly

Configure ERP Systems. Communications of the ACM Vol. 46(2) (2003)

3. Baker B.: Business Modelling with UML: The Light at the End of the Tunnel. The Rational

Edge, Rational Software, December (2001)

4. BPMI.org,: Business Process Modeling Notation - Working Draft 1.0 www.bpmi.org.

(2003)

5. Frankel D.S.: Model Driven Architecture. OMG Press. Wiley Publishing, (2003)

6. Eriksson H.-E., Penker M.: Business Modeling with UML. John Wiley & Sons, (2000)

7. Gulla J.A., Brasethvik T.:On the Challenges of Business Modeling In Large Scale Reengi-

neering Projects. 4th International Conference on Requirements Engineering (2000)

8. Harwick T.: Three Half-Truths About Custom Applications, Forrester Inc., November 27

(2002)

9. Heberling M., Maier Ch., Tensi T.: Visual Modeling and Managing the Software Architec-

ture Landscape in a large Enterprise by an Extension of the UML. Second Workshop on

Domain Specific Visual Languages, OOPSLA (2002)

10. Heumann J.: Introduction to Business Modeling Using the Unified Modeling Language.

The Rational Edge, Rational Software, March (2001)

11. IDS Sheer : From Process Models to Application, ARIS P2A. White Paper. IDS Sheer AG,

(2003)

12. Jacobson I., Ericsson M., Jacobson A.: The Object Advantage. Business Process Reengi-

neering with Object Technology. Addison-Wesley (1995)

13. Johnston S.: Rational UML Profile for business modeling. IBM Developerworks. www-

128.ibm.com/developerworks/ rational/ library/5167.html (2004)

14. Linvald J., Østerbye K.: UML tailored to an ERP framework. Second Workshop on Do-

main Specific Visual Languages, OOPSLA (2002)

15. Miller J., Mukerji J.: MDA Guide Version 1.0. omg/2003-06-0. OMG, June (2003).

16. Ng P.-W.: Effective Business Modeling with UML: Describing Business Use Cases and

Realizations. The Rational Edge, Rational Software, November (2002)

17. Rolland C., Prakash N.: Matching ERP System Functionality To Customer Requirements.

Proc. Fifth International Symposium on Requirement Engineering, (2001)

18. Scheer A.-W., Habermann F.: Making ERP a Success. Communications of the ACM, Vol

43, N°4 (2000)

19. Thomas J.L.: ERP et progiciels de gestion integrés (ERP and Packaged Business Software).

Dunod, Paris (2002)

20. UML Unified Modeling Language Specification, Version 1.5, OMG, March (2003).

21. van Everdingen Y., van Hillegersberg J., Waarts E.: ERP Adoption by European Midsize

Companies. Communication of the ACM, Vol 43, N°4 (2000)

22. Vogt Ch.: Intractable ERP. A comprehensive Analysis of Failed Enterprise Resource Plan-

ning Projects. ACM SIGSOFT, Software Engineering Notes, 27(2), March (2002)

23. Wegman A., Preiss O.: MDA in Enterprise Architecture? The Living System Theory to the

Rescue. Proc. IEEE EDOC Conference (2003)
