Based on a Security Requirements Engineering Process
Daniel Mellado
Ministry of Labour and Social Affairs, Information Technology Center of the National Social Security Institute,
Madrid, Spain
Eduardo Fernández-Medina, Mario Piattini
Alarcos Research Group, Information Systems and Technologies Department, UCLM-Soluziona Research and
Development Institute, University of Castilla-La Mancha
Paseo de la Universidad 4, 13071 Ciudad Real, Spain.
Keywords: Security Requirements, Security Requirements Engineering, Common Criteria.
Abstract: Integration of security into the early stages of the system development is necessary to build secure systems.
However, in the majority of software projects security is dealt with when the system has already been
designed and put into operation. This paper will propose an approach called SREP (Security Requirements
Engineering Process) for the development of secure software. We will present an iterative and incremental
micro-process for the security requirements analysis that is repeatedly performed at each phase. It integrates
the Common Criteria into the software lifecycle model as well as it is based on the reuse of security
requirements, by providing a security resources repository. In brief, we will present an approach which
deals with the security requirements at the early stages of software development in a systematic and
intuitive way, and which also conforms to ISO/IEC 17799:2005.
In the last years we have observed more and more
organizations becoming heavily dependent on
Information Systems (IS). However, software
applications are increasingly ubiquitous,
heterogeneous, mission-critical and vulnerable to
unintentional or intentional security incidents
(CERT; Kemmerer 2003), so that it is absolutely
vital that IS are properly ensured from the very
beginning (Baskeville 1992; McDermott and Fox
1999), due to the potential losses faced by
organizations that put their trust in all these IS.
A very important part in the software
development process for the achievement of secure
software systems is that known as Security
Requirements Engineering. Which provides
techniques, methods and norms for tackling this task
in the IS development cycle. It should involve the
use of repeatable and systematic procedures in an
effort to ensure that the set of requirements obtained
is complete, consistent and easy to understand and
analyzable by the different actors involved in the
development of the system (Kotonya and
Sommerville 1998).
After having performed a comparative analysis
of several relevant proposals of IS security
requirements, as those of (Toval, Nicolás et al.
2001), (Popp, Jürjens et al. 2003), (Firesmith 2003),
(Breu, Burger et al. 2004), etc., in (Mellado,
Fernández-Medina et al. 2006), we concluded that
those proposals did not reach the desired level of
integration into the development of IS, nor are
specific enough for a systematic and intuitive
treatment of IS security requirements at the first
stages of software development. Therefore, in this
poster we will present the Security Requirements
Engineering Process (SREP), which describes how
to integrate security requirements into the software
engineering process in a systematic and intuitive
way. In order to achieve this goal, our approach is
based on the integration of the Common Criteria
(CC) into the software lifecycle model, because the
CC helps us deal with the security requirements
along all the IS development lifecycle, together with
Mellado D., Fernández-Medina E. and Piattini M. (2006).
SECURE INFORMATION SYSTEMS DEVELOPMENT - Based on a Security Requirements Engineering Process.
In Proceedings of the International Conference on Security and Cryptography, pages 467-470
DOI: 10.5220/0002098004670470
the reuse of security requirements which are
compatible with the CC Framework subset. In
addition, in order to support this method and make it
easy the treatment and specification of the security
requirements, assets, security objectives and threats,
we will propose the use of several concepts and
techniques: a security resources repository (with
assets, threats, requirements, etc), the use of
UMLSec (Popp, Jürjens et al. 2003), misuse cases
(Sindre, Firesmith et al. 2003), threat/attack trees,
and security uses cases (Firesmith 2003). These
latter techniques will be used following the criteria
of effectiveness, and they allow us to integrate
security aspects from the beginning into an IS
development process, for example by expressing
security-related information within the diagrams in a
UML system specification, thanks to UMLSec.
The remainder of the paper is set out as follows:
in section 2, we will outline an overview of our
Security Requirements Engineering Process. Lastly,
our conclusions and further research are set out in
section 3.
The Security Requirements Engineering Process
(SREP) is an asset-based and risk-driven method for
the establishment of security requirements in the
development of secure Information Systems.
Basically, this process describes how to integrate the
CC into the software lifecycle model together with
the use of a security resources repository to support
reuse of security requirements (modelled with
UMLSec, or expressed as security use cases or as
plain text with formal specification), assets, threats
(which can be expressed as misuse cases,
threat/attack trees, UMLSec diagrams) and
countermeasures. The focus of this methodology
seeks to build security concepts at the early phases
of the development lifecycle.
As it is described in
Figure 1, the Unified Process
(UP) (Booch, Rumbaugh et al. 1999) lifecycle is
divided into a sequence of phases, and each phase
may include many iterations. Each iteration is like a
mini-project and it may contain all the core
workflows (requirements, analysis, design,
implementation, and test), but with different
emphasis depending on where the iteration is in the
lifecycle. Moreover, the core of SREP is a micro-
process, made up of nine activities which are
repeatedly performed at each iteration throughout
the iterative and incremental development, but also
with different emphasis depending on what phase of
the lifecycle the iteration is in. Thus, the model
chosen for SREP is iterative and incremental, and
the security requirements evolve along the lifecycle.
At the same time, the CC Components are
introduced into the software lifecycle, so that SREP
uses different CC Components according to the
phase, although the Software Quality Assurance
(SQA) activities are performed along all the phases
of the software development lifecycle. And it is in
these SQA activities where the CC Assurance
Requirements might be incorporated into, according
to (Kam 2005).
In addition, it facilitates the requirements
reusability. The purpose of development with
requirements reuse is to identify descriptions of
systems that could be used (either totally or
partially) with a minimal number of modifications,
thus reducing the total effort of development
(Cybulsky and Reed 2000). Moreover, reusing
security requirements helps us increase their quality:
inconsistency, errors, ambiguity and other problems
can be detected and corrected for an improved use in
subsequent projects (Toval, Nicolás et al. 2001).
Thereby, it will guarantee us the fastest possible
development cycles based on proven solutions.
Figure 1: SREP overview.

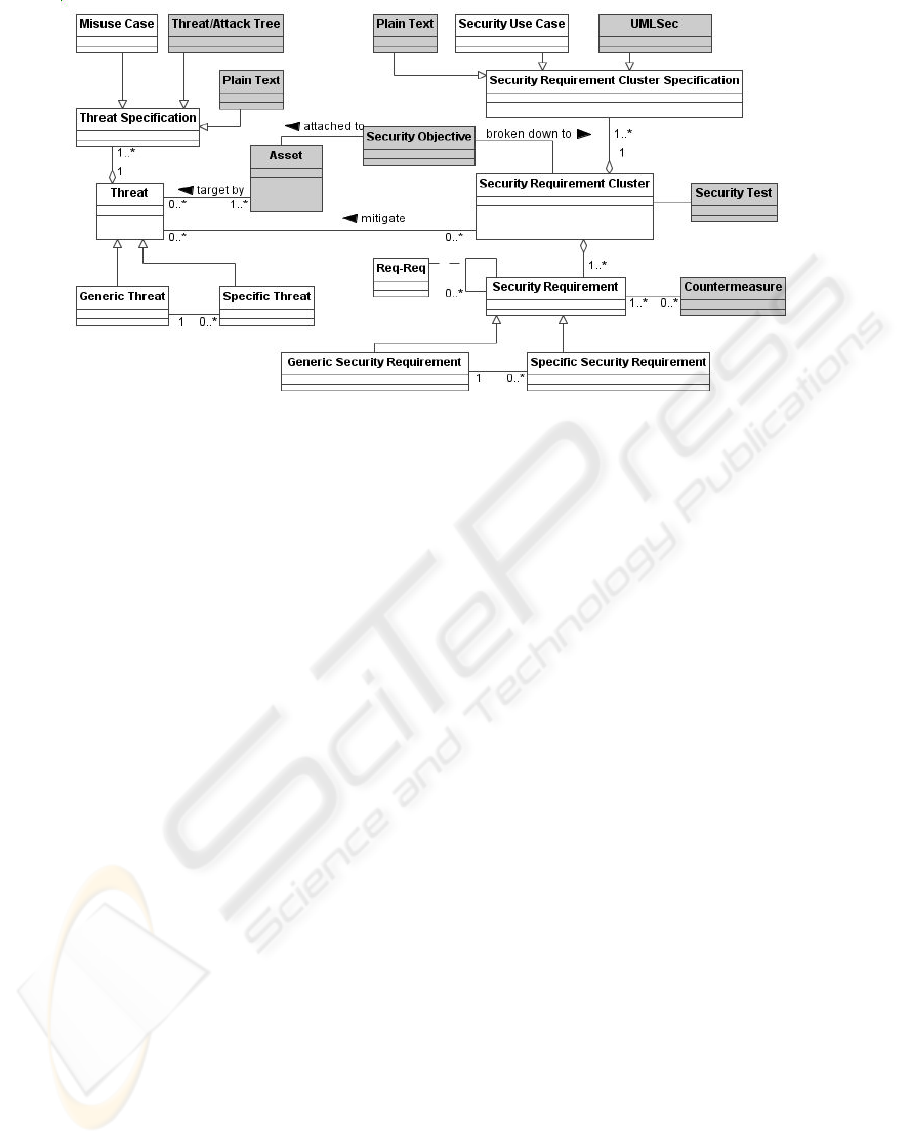

Figure 2: Meta-model for security resources repository.
2.1 The Security Resources
We propose a Security Resources Repository (SRR),
which stores all the reusable elements. The
repository, as SIREN (Toval, Nicolás et al. 2001)
approach, supports the concepts of domains and
profiles. We propose to implement the domains and
profiles by taking advantage of the CC concepts of
packages and Protection Profiles (PP). Thus, the
requirements are stored as standardized subsets of
specific security requirements together with its
related elements of the SRR (threats, etc.). In brief,
each domain or profile is a view of the global SRR.
A meta-model, which is an extension of the
meta-model for repository proposed by (Sindre,
Firesmith et al. 2003), showing the organization of
the SRR is exposed below in Fig. 2. The dark
background in the objects represents our
contribution to the meta-model.
Finally, according to ISO/IEC 17799:2005, we
propose to include legal, statutory, regulatory, and
contractual requirements that the organization, its
trading partners, contractors, and service providers
have to satisfy, and their socio-cultural environment.
After converting these requirements into software
and system requirements format, these requirements
along with the CC security functional requirements
would be the initial subset of security requirements
of the SRR.
In our present so-called Information Society the
Information Security is usually only tackled from a
technical viewpoint at the implementation stage,
even though it is an important aspect. We believe it
is fundamental to deal with security at all stages of
IS development, especially in the establishment of
security requirements, since these form the basis for
the achievement of a robust IS.
Consequently, we present an approach that deals
with the security requirements at the first stages of
software development in a systematic and intuitive
way, which is based on the reuse of security
requirements, by providing a Security Resources
Repository (SRR), together with the integration of
the Common Criteria into software lifecycle model.
Moreover, it conforms to ISO/IEC 15408 and
ISO/IEC 17799:2005. Starting from the concept of
iterative software construction, we propose a micro-
process for the security requirements analysis, made
up of nine activities, which are repeatedly performed
at each iteration throughout the iterative and
incremental development, but with different
emphasis depending on where the iteration is in the
lifecycle. Finally, one of the most relevant aspects is
the fact that this proposal integrates other
approaches, such as UMLSec (Popp, Jürjens et al.
2003), security use cases (Firesmith 2003) or misuse
cases (Sindre, Firesmith et al. 2003).
Further work is also needed to provide a CARE
(Computer-Aided Requirements Engineering) tool
which supports the process, as well as a refinement
of the theoretical approach by proving it with a real
SECURE INFORMATION SYSTEMS DEVELOPMENT - Based on a Security Requirements Engineering Process
case study in order to complete and detail more
This paper has been produced in the context of the
DIMENSIONS (PBC-05-012-2) Project of the
Consejería de Ciencia y Tecnología de la Junta de
Comunidades de Castilla- La Mancha along with
FEDER and the CALIPO (TIC2003-07804-CO5-03)
and RETISTIC (TIC2002-12487-E) projects of the
Dirección General de Investigación del Ministerio
de Ciencia y Tecnología.
Baskeville, R. (1992). "The development duality of
information systems security." Journal of
Management Systems 4(1): 1-12.
Booch, G., J. Rumbaugh and I. Jacobson (1999). The
Unified Software Development Process, Addison-
Breu, R., K. Burger, M. Hafner and G. Popp (2004).
"Towards a Systematic Development of Secure
Systems." Proceedings WOSIS 2004: 1-12.
Cybulsky, J. and K. Reed (2000). "Requirements
Classification and Reuse: Crossing Domains
Boundaries." ICSR'2000: 190-210.
Firesmith, D. G. (2003). "Security Use Cases." Journal of
Object Technology: 53-64.
Kam, S. H. (2005). "Integrating the Common Criteria Into
the Software Engineering Lifecycle." IDEAS'05: 267-
Kemmerer, R. (2003). "Cybersecurity." Proc. ICSE'03-
25th Intl. Conf. on Software engineering: 705-715.
Kotonya, G. and I. Sommerville (1998). Requirements
Engineering Process and Techniques,
McDermott, J. and C. Fox (1999). Using Abuse Case
Models for Security Requirements Analysis. Annual
Computer Security Applications Conference, Phoenix,
Mellado, D., E. Fernández-Medina and M. Piattini (2006).
"A Comparative Study of Proposals for Establishing
Security Requirements for the Development of Secure
Information Systems." The 2006 International
Conference on Computational Science and its
Applications (ICCSA 2006), Springer LNCS 3982 3:
Popp, G., J. Jürjens, G. Wimmel and R. Breu (2003).
Security-Critical System Development with Extended
Use Cases. 10th Asia-Pacific Software Engineering
Conference: 478-487.
Sindre, G., D. G. Firesmith and A. L. Opdahl (2003). A
Reuse-Based Approach to Determining Security
Requirements. Proc. 9th International Workshop on
Requirements Engineering: Foundation for Software
Quality (REFSQ'03), Austria.
Toval, A., J. Nicolás, B. Moros and F. García (2001).
Requirements Reuse for Improving Information
Systems Security: A Practitioner's Approach.
Requirements Engineering Journal. 6: 205-219.
