EXTENDING XML SIGNATURE AND APPLYING IT TO
WEB PAGE SIGNING
Takahito Tsukuba, Kenichiro Noguchi
Department of Information and Computer Science, Kanagawa University, 2946 Tsuchiya, Hiratsuka-shi 259-1293, Japan
Keywords: XML Signature, X.509 certificate, Web page signing, XML security, World Wide Web security.
Abstract: Security technologies for XML, the XML Encryption and the XML Signature developed by the World Wide
Web Consortium, will play a vital role in security on the Internet. A binary X.509 certificate encoded in
ASN.1 is included in the XML Signature. We propose to extend the XML Signature to fully represent
X.509 certificate information in XML. We developed the specifications for extensions. We implemented a
converter that transforms between the ASN.1 representation and XML representation of an X.509 certificate
that was aimed to verify the validity of our proposal. World Wide Web security is an important issue on the
Internet and trusted information is critical. We experimented with Web page signing, applying the extended
XML Signature. We propose the scheme for signed Web pages based on the XML Signature. We conducted
a test implementation of the scheme with the extended XML Signature. We verified that the proposed
scheme could easily be implemented and incorporated into the current Web environment as well as the
effectiveness of the extended XML Signature. The paper concludes by identifying necessary areas for future
standardization.
1 INTRODUCTION
Security on the Internet has become a critical issue
in today’s society. Various technologies for security
have been developed, and among them are the XML
Encryption (W3C, 2002a) and the XML Signature
(W3C, 2002b) developed by the World Wide Web
Consortium. Related data are basically represented
in XML in the XML Encryption and the XML
Signature. However, as for an X.509 certificate,
which is an important construct to convey public key
information securely, a binary X.509 certificate
encoded in ASN.1 is included as specified in XML
Signature Recommendation. In this paper, we
propose to extend the XML Signature to fully
represent X.509 certificate information in XML.
With our proposal, the general characteristic of
XML that data described in XML are machine-
processable and at the same time are human-
readable is realized for XML Signature data as well.
The characteristic is especially beneficial for
security related data, because a human can directly
read and check the raw data.
Our approach is to encode X.509 certificate data
in XML, which is different to encoding ASN.1 data
in XML as is done in ASN.1 XER (ITU, 2003). We
developed the specifications for the extensions. We
implemented a converter that transforms between
the ASN.1 representation and XML representation
of an X.509 certificate, aiming to verify the validity
of our proposal.
An important issue on the Internet is World Wide
Web security. The Web has become so extensively
used in real life that trusted information on the Web
is critical. If a Web page is digitally signed, its
authenticity is guaranteed and users can be confident
that its content has not been tampered with. We
experimented with Web page signing applying the
extended XML Signature, aiming to verify the
effectiveness of the proposed extended XML
Signature.
We propose the scheme for signed Web pages
based on the XML Signature which is applicable to
both HTML and XHTML. We conducted a test
implementation of the scheme with the extended
XML Signature. We verified that the proposed
scheme could easily be implemented and
incorporated into the current Web environment as
well as the effectiveness of the extended XML
Signature.
Areas for future standardization were identified
through our study.
407
Tsukuba T. and Noguchi K. (2006).
EXTENDING XML SIGNATURE AND APPLYING IT TO WEB PAGE SIGNING.
In Proceedings of the International Conference on Security and Cryptography, pages 407-412
DOI: 10.5220/0002096204070412
Copyright
c
SciTePress
2 PROPOSED EXTENSIONS TO
XML SIGNATURE
We propose extensions to the XML Signature to
represent X.509 certificate information in XML. We
implemented a converter that transforms a binary
X.509 certificate encoded in ASN.1 to one encoded
in the XML form we propose and vice versa, and
verified the validity of our proposal.
2.1 XML Encoding of X.509
Certificates
X.509 certificates, as specified by the ITU
Recommendation (ITU, 2000), are encoded
according to ASN.1 (Abstract Syntax Notation 1)
(ITU, 2002a) encoding rules. In the XML Signature
Recommendation, information is basically encoded
in XML. However, as for X.509 certificate related
information, which is contained in the X509Data
element, only information to identify an X.509
certificate such as the X.509 issuer serial number or
the X.509 subject name is contained in XML
elements. X.509 certificate information, if present, is
contained as a Base 64 encoded binary value
encoded in ASN.1 DER (ITU, 2002b) in the
X.509Certificte element, which is the child element
of the X.509Data element. Public key information
can be contained in XML elements, which are
separate from the X509Data element, independently
of an X.509 certificate. If all information in an
X.509 certificate is encoded systematically in XML,
all the data of XML Signature become human-
readable and a human will be able to directly read
and check the data.
We extended the XML Signature to include XML
encoding of X.509 certificates. We defined the
specifications for encoding taking the current
recommendation and ASN.1 encoding of X.509
certificates into account. We introduced ten new
elements, which are listed in Table 1. The contents
of some existing elements have been modified. The
X509Data element is a root element now having two
child elements, i.e., the X509Certificate and
X509Signature, and the X509Certificate element
now has child elements for certificate data. Our
approach is to encode X.509 certificate data in XML,
which is different from encoding ASN.1 data in
XML as is done in ASN.1 XER (ITU, 2003).
Table 1: Newly introduced elements for XML encoding of
X.509 certificates.
Element Name Explanation
X509SignatureAlgorithm
Name of algorithm used
for signature
X509Validity
Valid period of
certificate
X509notBefore Child element of
X509Validity
X509notAfter Child element of
X509Validity
X509SubjectPublicKeyInfo Subject’s public key
information
X509SubjectPublicKeyAlgorithm Child element of
SubjectPublicKeyInfo
X509SubjectPublicKeyExponent Child element of
SubjectPublicKeyInfo
X509SubjectPublicKeyModulus Child element of
SubjectPublicKeyInfo
X509Signature
Signature for certificate
X509SignatureValue Child element of
X509Signature
2.2 Experiment on Converting
Encoding for X.509 Certificates
We experimented with automatically converting the
encoding for X.509 certificates, from ASN.1
encoding to XML encoding and vice versa. The
experiment had two objectives; the first was to
verify the validity of the XML encoding we propose
and the second was to make a prototype of the
migration tool.
We introduced an intermediate format to convert
the encoding, i.e., XML encoding of ASN.1 data
similar to ASN.1 XER. ASN.1 specifies the
structure of the data in terms of types and values,
and the intermediate format is a direct representation
of that structure in XML. A type represented as
identifier octets and a value represented as content
octets in ASN.1 are represented as an XML element
with the same name and as the content of the
element in the intermediate format, respectively. The
binary value is Base 64 encoded in the intermediate
format.
The structure of the conversion tool, the X.509
Encoding Converter, is outlined in Figure 1. The
tool consists of four programs. ASN12IF transforms
an X.509 certificate encoded in ASN.1 to one in the
intermediate format. IF2XML transforms an X.509
certificate in the intermediate format to one in XML.
XML2IF and IF2ASN1 perform reverse
transformations of IF2XML and ASN12IF,
respectively.
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
408
X.509 certificate
(in ASN.1)
X.509 certificate
（in XML)
ASN12IF
X.509 certificate
(in Intermediate
format)
IF2ASN1
IF2XML
XML2IF

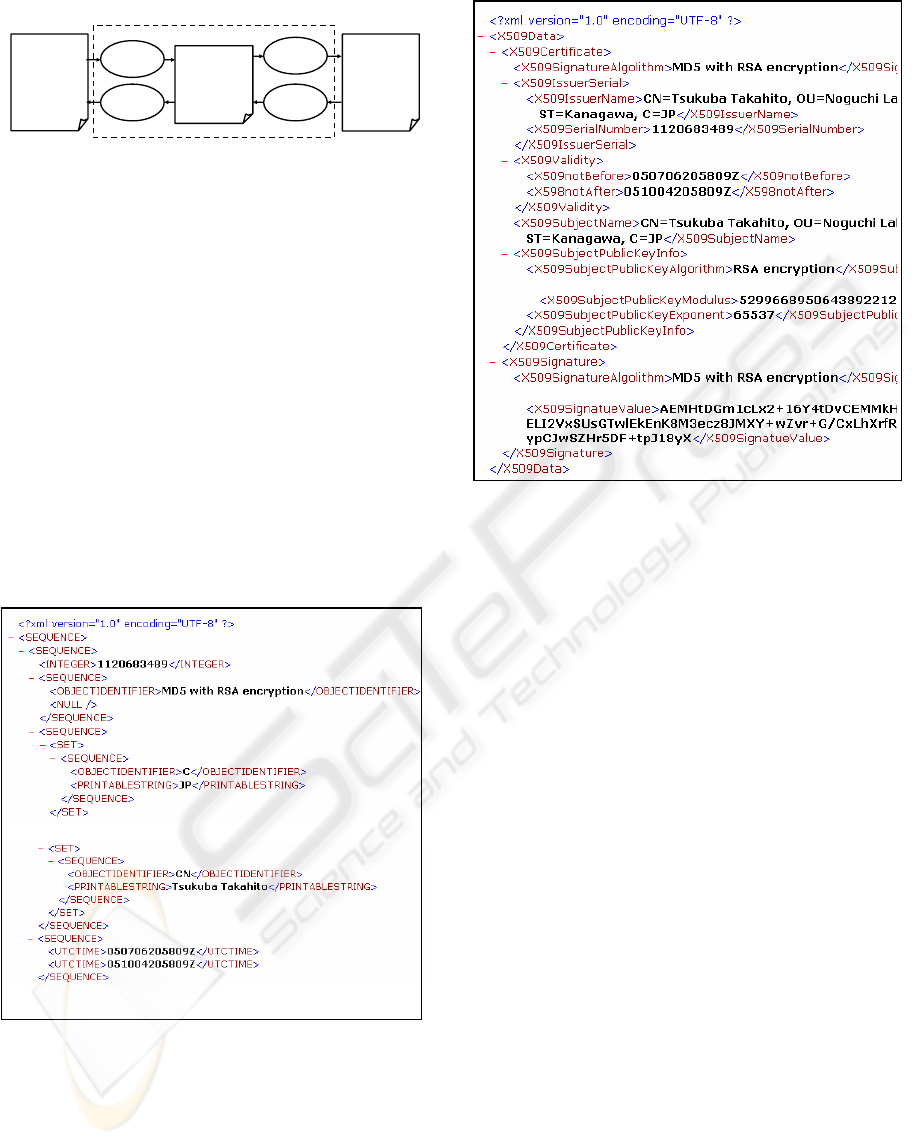

Figure 1: Structure of X.509 Encoding Converter.
The signature part of an X.509 certificate is also
transformed like the other parts. Therefore, reverse
conversion to ASN.1 encoding is necessary before
validating the signature in XML encoding.
The converter is implemented in Java and
utilizes DOM and XSLT for XML processing. The
converter can transform encoding of X.509
certificates in both directions. The reverse
transformation of an X.509 certificate in XML
encoding can completely restore the original form in
ASN.1 and the signature of the certificate can be
validated.
There are examples of transformation results in
Figure 2, which shows an X.509 certificate in the
intermediate format, and in Figure 3, which shows
one in XML encoding.
:
:
Figure 2: Transformation result example: Intermediate
format (part).
Figure 3: Transformation result example: XML encoding
(part).
3 APPLICATION OF EXTENDED
XML SIGNATURE TO WEB
PAGE SIGNING
We applied the extended XML Signature to Web
page signing. We propose the scheme for signed
Web pages based on the XML Signature which is
applicable to both HTML and XHTML. We
conducted a test implementation of the scheme with
the extended XML Signature. The experiment
served to verify the effectiveness of the extended
XML Signature.
3.1 Scheme for Signed Web Pages
We established three principles for designing the
scheme for signed Web pages:
- To comply with the XML Signature
Recommendation as extended with our proposal.
- To minimize the effect on HTML/XHTML.
- To allow a page with multiple contents to be
signed.
To position the signature information, we
selected a detached form, instead of an enveloping
or enveloped form, specified by the XML Signature
Recommendation. Signature information in this
form exists separately from the Web page to be
EXTENDING XML SIGNATURE AND APPLYING IT TO WEB PAGE SIGNING
409
signed, so its effect on the Web page format is
minimized.
A signature file is created for each Web page to
be signed, which contains signature information in
XML in accordance with the XML Signature
Recommendation. The following information is
stored in the file:
- A signed information element that contains
reference elements. Each reference element has a
reference (i.e., URI) to each file (e.g., an
HTML/XHTML file and an image file) of a Web
page, and contains the digest value of the content of
the file.
- A signature value, which is the result of signing to
the signed information element.
- Public key information, which contains an X.509
certificate in XML encoding.
We needed to establish a link between the Web
page to be signed and the corresponding signature
file. To attain this, we extended HTML/XHTML to
include a new tag, a sign tag. The tag has a reference
(i.e., URI) to the signature file and is inserted in the
head element of an HTML/XHTML file. A sign tag
for XHTML (W3C, 2002c) has the following
format:
<sign
xmlns=”http://www.nol.info.kanagawa-
u.ac.jp/sign” signref=”URI”/>
Using an XML name space prevents names from
colliding with those in XHTML.

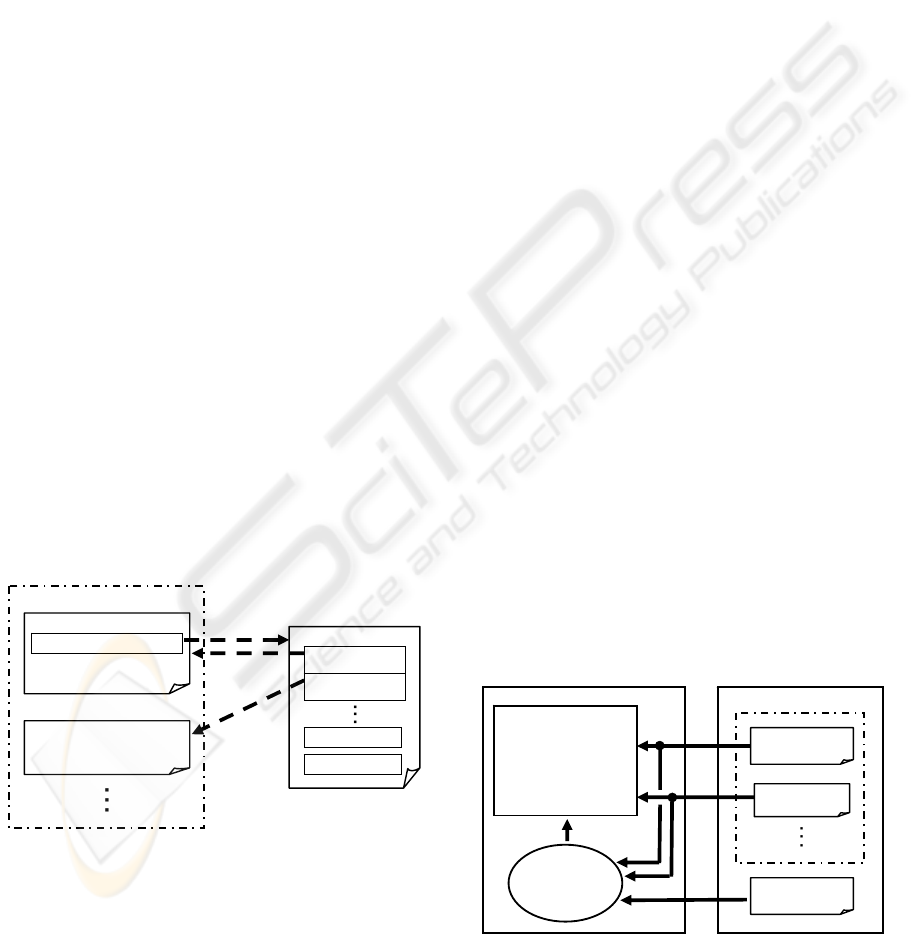

Figure 4 outlines the scheme for signed Web
pages.
File A (HTML/XHTML file)
File B (Other content file)
Reference to file A
Digest of A
Reference to file B
Digest of B
Reference elements
Signature value
Key info
Signature file
Reference to signature file
sign tag
Web page
Figure 4: Scheme for signed Web pages.
3.2 Test Implementation
We conducted a test implementation of our proposed
Web page signing, which included the signing
program and the signature validation program. The
latter was incorporated into the test browser.
The signing program accepts a list of URIs for
the content files of the Web page to be signed, an
X.509 certificate that contains the public key, and
the corresponding private key as input. The program
executes signature calculation and creates a
signature file as output. This program is to be used
on the Web server side. Because the program is
basically an implementation of the signing phase for
the extended XML Signature, it can generally be
used to sign any files.
The signature validation program accepts an
HTML/XHTML file for the Web page to be
validated as input. The program finds the sign tag
and obtains the signature file. The signature value in
the signature file, which is to the signed information
element, is next validated using the public key in the
X.509 certificate element. If this is successful, then
the digest value in each reference element is checked
for whether it matches the actual digest value of
each file of the Web page. If all checks are
successful, the program reports validation has been
successful, otherwise it reports failure.
The signature validation program was
incorporated into the test browser to see whether the
proposed Web page signing worked satisfactorily in
a real-use environment. We utilized a sample
browser described in the literature (Flanagan, 2000)
as the basis of the test browser. We added a Validate
button in the tool bar of the browser window. When
the button is pressed, the signature validation
program is internally invoked, and the signature for
the Web page currently displayed in the browser
window is validated. The validation results are
displayed as a message in the status bar of the
browser window. Figure 5 outlines the Web page
validation process.
Browser
Web server
Web page
Signature file
HTML/XHTML file
Content file
GUI part
Signature validation
program
Validation
results
Figure 5: Flow for signature validation of signed Web
page.
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
410
The test implementation is in Java. It uses RSA
as the signature algorithm and SHA-1 as the digest
algorithm. We omitted the canonicalization
processing of XML data from the test
implementation. We also omitted the validation
processing of the X.509 certificate from the
signature validation program. Because of this, all the
processing was consistently realized as XML and
HTML/XHTML processing, with no ASN.1
processing involved.
The test implementation was successful and
users could verify the authenticity of Web pages
with a simple action. Figure 6 shows an example
Web page with a sign tag inserted, Figure 7 has its
signature file created with the signing program, and
Figure 8 shows the test browser window after
successful validation.

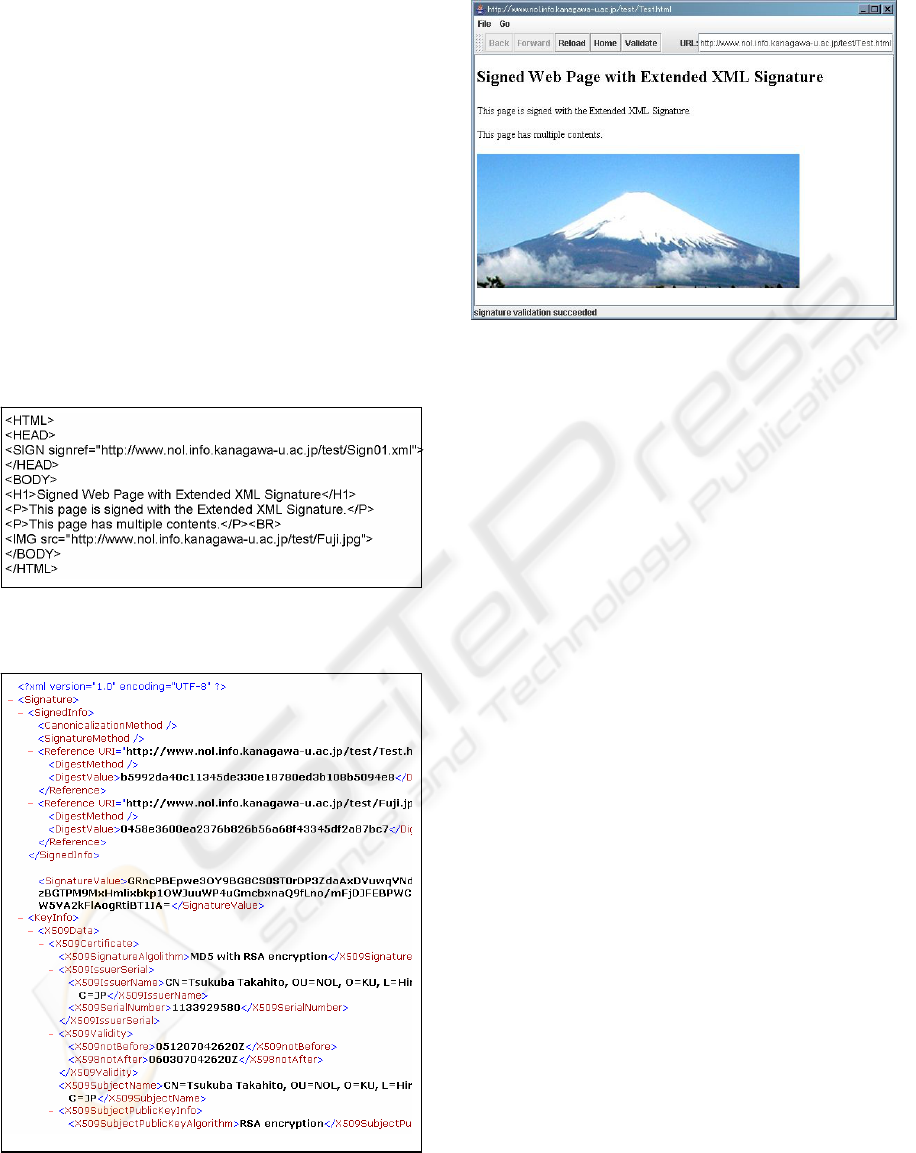

Figure 6: An example of source text for signed Web page
in HTML (sign tag format is for HTML).
Figure 7: An example of signature file of signed Web page
(part).
Figure 8: Test browser window (After successful signature
validation).
If users access the signature file with their usual
browsers, the content of the file is displayed as XML
text. It is an advantage of representing information
in XML that users can read and check the content of
the signature file including X.509 certificate
information.
4 DISCUSSION
We proposed extensions to the XML Signature to
include XML encoding of X.509 certificates. Our
proposal means all information in an X.509
certificate is encoded in XML, which simplifies the
processing of the XML Signature without involving
ASN.1 processing. One exception is the handling of
the signature of a certificate. It is strongly
recommended that the new XML based certificate
format with a signature to XML encoded
information be standardized.
Our proposal for XML encoding of X.509
certificates is for the version 1 format of X.509
certificates. Further work to cover version 2 and 3
formats is necessary.
A study to represent X.509 certificates in XML
was reported (Imamura et al., 2000). However, their
approach was to represent them in a format similar
to our intermediate format.
We proposed the scheme for signed Web pages
based on the XML Signature. The scheme has little
effect on the current Web scheme. The test
implementation revealed that the proposed scheme
could easily be implemented and incorporated into
the current Web environment. Users can verify the
authenticity of Web pages with a simple action.
The benefits of XML, whereby programs can
easily handle XML encoded information and users
EXTENDING XML SIGNATURE AND APPLYING IT TO WEB PAGE SIGNING
411
can also read the information, were attained by
applying XML encoding to X.509 certificates in the
test implementation for signing Web pages.
Current browsers such as Microsoft Internet
Explorer (Microsoft) and Mozilla Firefox (Mozilla)
have capabilities to handle signed resources.
However, they do not provide an easy way of
signing a whole Web page, and their capabilities are
browser-specific. A method of signing Web pages
using PGP was proposed (Bell, 1996) and is used on
the Web. Our proposal has advantages in that
because it is based on the XML Signature, it
matches Web technology (HTML/XHTML) and any
browser can implement it.
We tentatively proposed adding a new tag to
HTML/XHTML for a signed Web page to refer to
the signature information of the page. In the future,
such capabilities will need to be specified to
conform with the meta-information capabilities of
the Semantic Web.
5 CONCLUSION
We proposed extensions to the XML Signature
Recommendation to include XML encoding of
X.509 certificates. With our proposal, full X.509
certificate information can be represented in XML.
We implemented an encoding converter that
transforms between the ASN.1 encoding and XML
encoding of X.509 certificates and verified the
validity of our proposal.
We applied the extended XML Signature to Web
page signing. We proposed the scheme for signed
Web pages based on the XML Signature and
conducted a test implementation. We verified that
the proposed scheme could easily be implemented
and incorporated into the current Web environment,
as well as the effectiveness of the extended XML
Signature. Users can verify the authenticity of Web
pages with a simple action as we did in the test
implementation.
Areas for future standardization were identified
through our study. These are a fully XML based
digital certificate format with a signature to XML
encoded information, an enhanced XML Signature
Recommendation incorporating the fully XML
based digital certificate, and an scheme for XML
Signature based Web page signing with possible
extensions to HTML/XHTML. Another area is a
unified Web page signing scheme and the Semantic
Web scheme. We believe this study will help
accelerate standardization in these areas.
REFERENCES
W3C, 2002a. XML Encryption Syntax and Processing.
W3C Recommendation 10 December 2002.
http://www.w3.org/TR/2002/REC-xmlenc-core-
20021210/
W3C, 2002b. XML-Signature Syntax and Processing.
W3C Recommendation 12 February 2002.
http://www.w3.org/TR/2002/REC-xmldsig-core-
20020212/
W3C, 2002c. XHTML™ 1.0 The Extensible HyperText
Markup Language (Second Edition). W3C
Recommendation 26 January 2000, revised 1 August
2002.
http://www.w3.org/TR/2002/REC-xhtml1-20020801
ITU, 2000. Information technology – Open Systems
Interconnection – The Directory: Public-key and
attribute certificate frameworks. ITU-T
Recommendation X.509.
ITU, 2002a. Information technology – Abstract Syntax
Notation One (ASN.1): Specification of basic
notation. ITU-T Recommendation X.680.
ITU, 2002b. Information technology – ASN.1 encoding
rules: Specification of Basic Encoding Rules (BER),
Canonical Encoding Rules (CER) and Distinguished
Encoding Rules (DER). ITU-T Recommendation
X.690.
ITU, 2003. Information technology – ASN.1 encoding
rules: XML Encoding Rules (XER). ITU-T
Recommendation X.693.
Flanagan, D., 2000. Java Examples in a Nutshell, Second
Edition. Oreilly & Associates Inc.
Imamura, T. ， Maruyama, H., 2000. ASN.1/XML
Translator and Its Application to Certification
Authorities. In SCIS2000 (Symposium on
Cryptography and Information Security 2000) (in
Japanese)
Mozilla. Network Security Services (NSS). Mozilla org.
http://www.mozilla.org/projects/security/pki/nss/
Microsoft. ActiveX Controls. Microsoft Corporation.
http://msdn.microsoft.com/workshop/components/
activex/activex_node_entry.asp
Bell, N., 1996. PGP signed web-pages.
http:// members.aol.com/EJNBell/pgp-www.html
SECRYPT 2006 - INTERNATIONAL CONFERENCE ON SECURITY AND CRYPTOGRAPHY
412
