IMPROVED SEGMENTATION OF MR BRAIN IMAGES

INCLUDING BIAS FIELD CORRECTION BASED ON 3D-CSC*

Haojun Wang, Patrick Sturm, Frank Schmitt, Lutz Priese

Institute for Computational Visualistics, University of Koblenz-Landau, 56070 Koblenz, Germany

Keywords: Image segmentation, 3D Cell Structure Code, MRI, Brain, Classification.

Abstract: The 3D Cell Structure Code (3D-CSC) is a fast region growing technique. However, directly adapted for

segmentation of magnetic resonance (MR) brain images it has some limitations due to the variability of

brain anatomical structure and the degradation of MR images by intensity inhomogeneities and noise. In this

paper an improved approach is proposed. It starts with a preprocessing step which contains a 3D Kuwahara

filter to reduce noise and a bias correction method to compensate intensity inhomogeneities. Next the 3D-

CSC is applied, where a required similarity threshold is chosen automatically. In order to recognize gray

and white matter, a histogram-based classification is applied. Morphological operations are used to break

small bridges connecting gray value similar non-brain tissues with the gray matter. 8 real and 10 simulated

T1-weighted MR images were evaluated to validate the performance of our method.

1 INTRODUCTION

Segmentation of 3D MR brain images is an

important procedure for 3D visualization of brain

structures and quantitative analysis of differences

between normal and abnormal brain tissues. Up to

now many segmentation techniques have been

developed (Suzuk 1991,

MacDonald 2000, Zhang

2001, Stokking 2000, Schnack 2001). However,

most intensity-based schemes fail to segment MR

brain images into gray and white matter

satisfactorily due to the effect of intensity

inhomogeneities (also referred as bias field)

(Rajapakse 1998, Wells III 1996, Sled 1998)

resulting from irregularities of the scanner magnetic

fields, radio frequency, etc. The deformable-based

techniques sometimes do not converge well to the

boundary of interest due to the complicated

deformations in the anatomy (Pham 2000).

Furthermore existing fully automatic segmentation

techniques have to make a compromise between

speed and accuracy of processes in practice.

Therefore, an automatic robust and fast 3D brain

segmentation method is needed that is able to detect

gray and white matter.

*This work was supported by the BMBF under grant

01/IRC01B (research project 3D-RETISEG)

A 3D hierarchical inherently parallel region

growing method, called 3D-CSC, has recently been

developed in our group and at Research Centre

Juelich. It is an effective 3D generalization of the

2D-CSC (Priese 2005). In comparison with

traditional region growing techniques it does not

depend on the selection of seed points. It is very fast

due to its hierarchical structure. The advantages of

the technique are local simplicity and global

robustness. Therefore, we adapt the 3D-CSC for

segmentation of 3D MR brain images. In the 3D-

CSC, region growing is steered by a hierarchical

structure of overlapping cells. Overlapping and gray-

similar regions in one hierarchy level are merged to

a new region of the next level. Unfortunately some

known difficulties in MR brain images, such as

intensity inhomogeneities and the effect of noise,

degrade the performance of 3D-CSC segmentation.

This results in an over-segmentation. In order to

overcome these difficulties, a preprocessing step

which includes a 3D Kuwahara filter to reduce

random noise and a correction of intensity

inhomogeneities is applied. In addition, a

postprocessing step based on histogram-based

classification of CSC segments and morphology-

based shape constraints is integrated in our scheme.

All processing steps are fully automatic.

The paper is organized as follows: Section 2

briefly introduces 3D-CSC segmentation. Section 3

338

Wang H., Sturm P., Schmitt F. and Priese L. (2006).

IMPROVED SEGMENTATION OF MR BRAIN IMAGES INCLUDING BIAS FIELD CORRECTION BASED ON 3D-CSC.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 338-345

DOI: 10.5220/0001376503380345

 SciTePress

describes the improved segmentation scheme for

brain images. Experimental results and conclusion

are given in Section 4 and Section 5 respectively.

2 3D CELL STRUCTURE CODE

The 3D-CSC steers a hierarchical region growing on

a special 3D topology. In order to understand this

hierarchy we first introduce the hierarchical

hexagonal topology (see Figure 1(a)) of the 2D–CSC

(Rehrmann 1998). The topology is formed by so

called islands in different levels. An island of level 0

consists of a center pixel and its six neighboring

pixels. An island of level n+1 consists of a center

island of level n and its six neighboring islands of

level n. Two neighboring islands of level n overlap

in a common island of level n-1. This is repeated

until one big island covers the whole image. In order

to apply the hierarchical topology in a real image,

the hexagonal island structure is transformed

logically to an orthogonal grid as shown in Figure

1(b).

Generalizing the 2D hierarchical hexagonal

topology to 3D forms the 3D hierarchical cell

topology. It is constructed by the densest sphere

packing (see Figure 2(a)). Here we just focus on the

cell structure (see Figure 2(b) and 2(c) where

2(c) is a transformation into the orthogonal 3D

grid.). In S

a cell of level 0 consists of 15 voxels (1

center voxel and its 14 neighboring voxels).

The S

cell structure possesses the following

properties:

 14-neighborhood: each cell of level n overlaps

with 14 cells of level n.

 Plainness: two cells of level n+1 overlap each

other in at most one cell of level n.

 Coverability: each cell (except the topmost one) of

level n is a sub-cell of a parent cell of level n+1.

 Strong Saturation: all sub-cells (except the center

cell) of a cell of level n+1 are sub-cells of exactly

two different cells of level n+1. Each center cell

has exactly one parent cell.

These properties lead to a nice and efficient

implementation. Also the information about location

and neighborhood of each cell can be derived

quickly. In the 3D-CSC, region growing is done

independently in each cell of each level.

Neighboring and similar segments in lower levels

will be merged to bigger segments in a higher level.

If two neighboring segments are dissimilar they

will be split. For a deeper discussion see (Sturm

2004). Here ‘similar’ means the difference of the

mean intensity of two neighboring segments is

below a certain threshold T. The threshold T will be

chosen automatically.

(a)

(b)

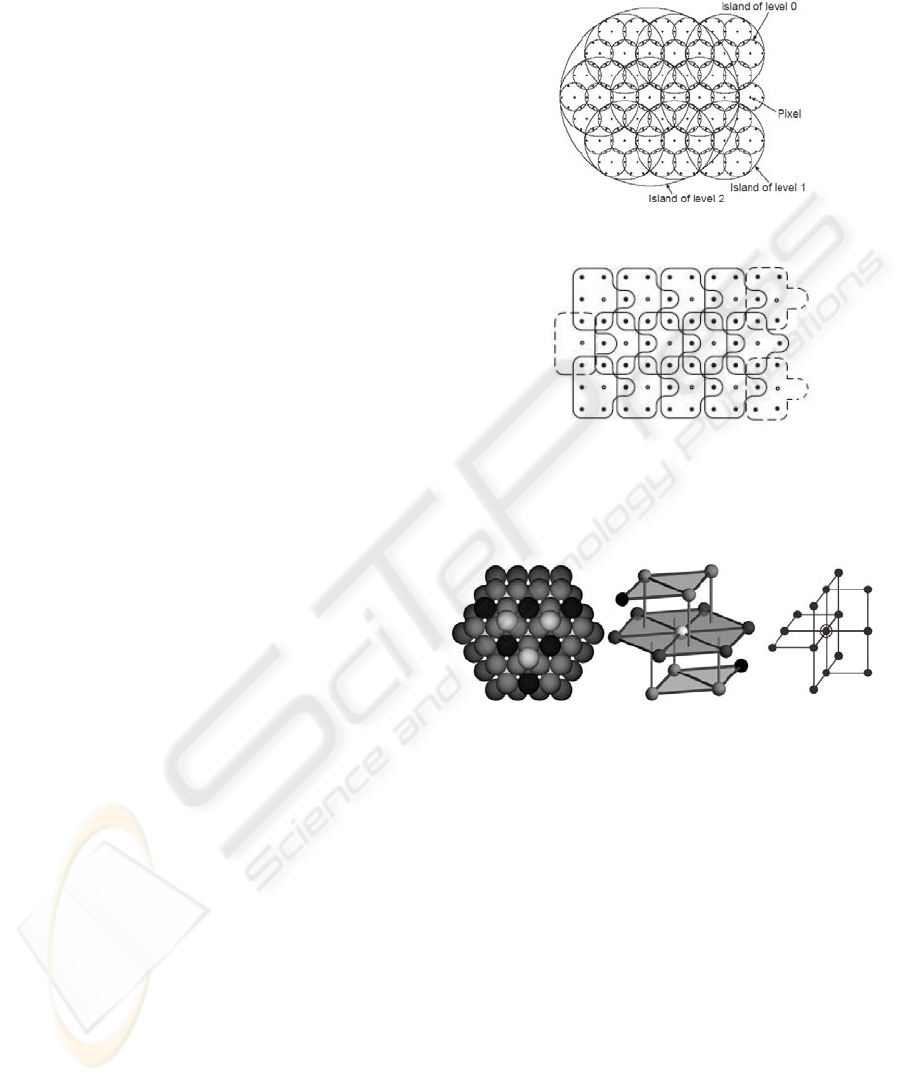

Figure 1: The hierarchical hexagonal island structure and

its deformation on the orthogonal grid.

(a) (b) (c)

Figure 2: 3D hierarchical cell topology and S

cell

structure.

3 ADAPTION TO BRAIN IMAGES

The segmentation procedure for 3D MR brain

images consists of three parts:

 Preprocessing: noise suppression and bias field

correction. (Described in section 3.1)

 3D-CSC segmentation. (General case described in

section 2, adaption to MR brain images described

in section 3.3)

 Postprocessing: classifying the primitive CSC

segments into brain and non–brain tissues, then

breaking small connections between them and

separating brain tissue into gray and white matter.

(Described in section 3.4)

IMPROVED SEGMENTATION OF MR BRAIN IMAGES INCLUDING BIAS FIELD CORRECTION BASED ON

3D-CSC

339

3.1 Preprocessing: Filter and Bias

Field Correction

To reduce noise, we apply a 3D generalization of the

Kuwahara filter as it gives a very good tradeoff

between performance and speed and has been

proved to be an ideal nonlinear filter for smoothing

regions and preserving edges (Kuwahara 1976).

Recently a successful method for dealing with

the bias field problem has been proposed (Vovk

2004). The idea behind it is to iteratively sharpen

probability distributions of image features along

intensity features by an intensity correction force.

Then the bias correction estimation is calculated.

This correction method combines intensity and

spatial information and estimates the intensity

inhomogeneity on each image point.

The following notations are given:



V is the number of voxels in an image



is the three dimensional location of a voxel



)(xu is the measured gray value at the location

in a MR image



)(xv is the ideal gray value in the absence of any

bias field



)(xn is noise at location



)(xf is the bias field at



)(uLd

= is the Laplacian (2

derivative) of u



P is the probability distribution (2 dim.

histogram) of u and

d , where nbaP

),( tells

that exactly n voxels x

…,x

have the values

axu

=)( and bxd

=)(



is the mean value of the set of the absolute

force

(Vovk 2004) considers the usual model of image

formation in MR as:

)()()()( xnxfxvxu +

⋅

= (1)

)(xn is neglectable as we have already applied a

Kuwahara filter to reduce noise. First set

then apply the following iteration (2)-(4):

)(ln

∂

⋅=

(2)

F are the correction forces and are derived by the

weighted partial derivate of logarithm of

along

the intensity value a (the first coordinate of

then are mapped to the points with corresponding

features in the image.

)(1

⋅+=

−

(3)

where G is a three dimensional Gaussian filter and

carries out a convolution with

F , k is a pre-chosen

parameter.

In the principle, the corrected image

v at iteration

i and the input image

1+i

u at iteration 1

i are

expressed as:

∏

−

⋅=⋅==

jiiii

fufuvu

(4)

However in practice, preserving the brightness of

the original input image

u must be taken into

account in each iterative correction (More details are

described in (Vovk 2004)). No automatic

termination criterion for the iterations is proposed in

(Vovk 2004). Hence we focus on this and consider

the mean of absolute variation

D (see equation (6))

which reflects the changes between the overall

estimated bias correction

−

f after iteration i and

the initial correction

−

f .

ˆˆ

−−

−

−−

⋅⋅≈⋅=

∏

ffff

(5)

ˆˆ

−−

−

(6)

In (5),

−

f will be used to correct the original

input image

u , then the corrected image

v is

derived,

is the mean value,

u is expressed by:

−−

−

⋅⋅=

iii

ffuu (7)

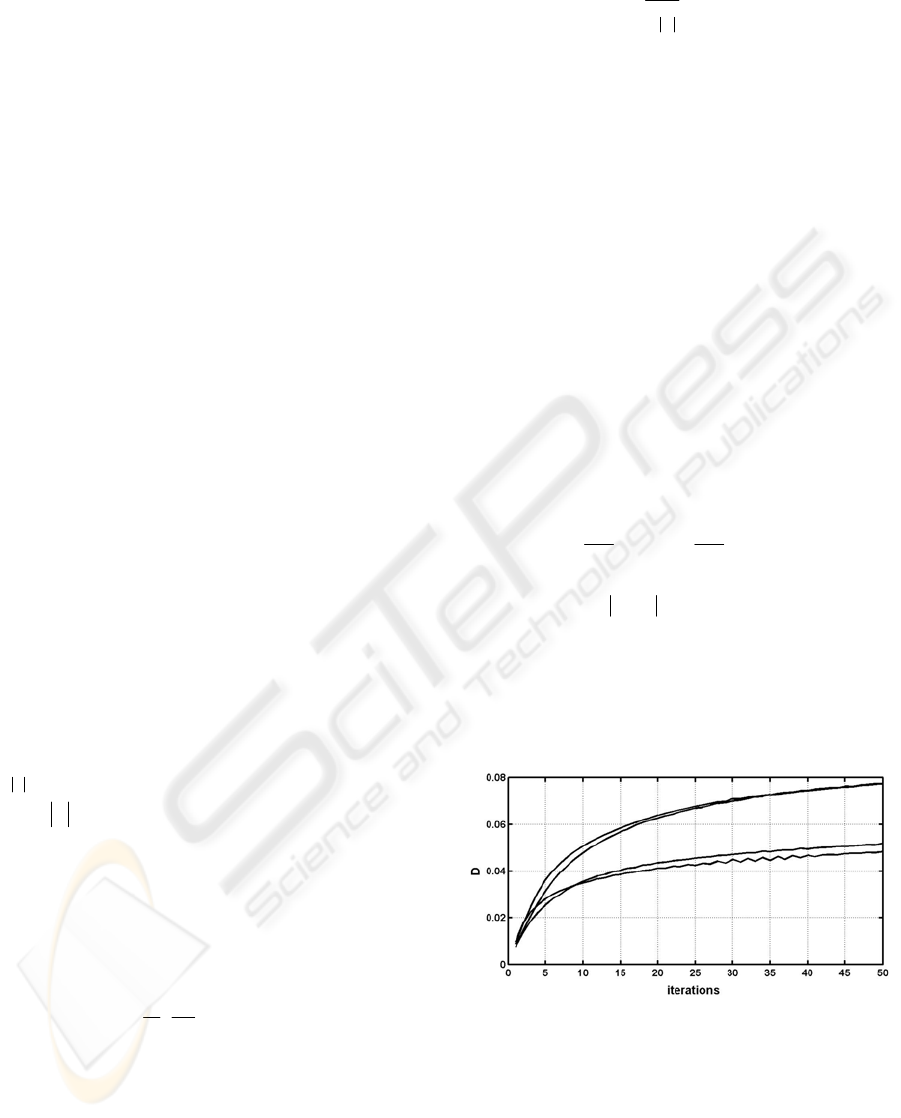

Figure 3:

fD(

curves for several tested images.

Figure 3 shows several typical curves of

D for

tested images.

D increases and tends to roughly

converge, although some small vibrations exist

locally. Images with low inhomogeneities converge

faster than those with high inhomogeneities. This

means images with low inhomogeneities need less

iterations for the correction. Thus a termination

VISAPP 2006 - IMAGE ANALYSIS

340

criterion will be derived, i.e. in each 5 iterations we

compute the regressive straight line of

D , if the

slope coefficient of the regressive straight line is

below a termination threshold E the iteration will

stop otherwise continue. The purpose of the

regressive straight line is to eliminate the effect of

small local vibrations of

D . This has been proved

to be robust in our tested images. With the same

constraint E the iterative corrections of all tested

images will stop after 10-25 steps according to their

degree of inhomogeneity .

To reduce computational cost for the Gaussian

convolution in equation (3), the MR data is down-

sampled by factor 3 in each dimension. The

degradation of performance is neglectable, because

the bias field varies just slowly across an image.

As the background is not degraded by the bias

field and could interfere with the estimation, it is

removed prior to our correction method

automatically.

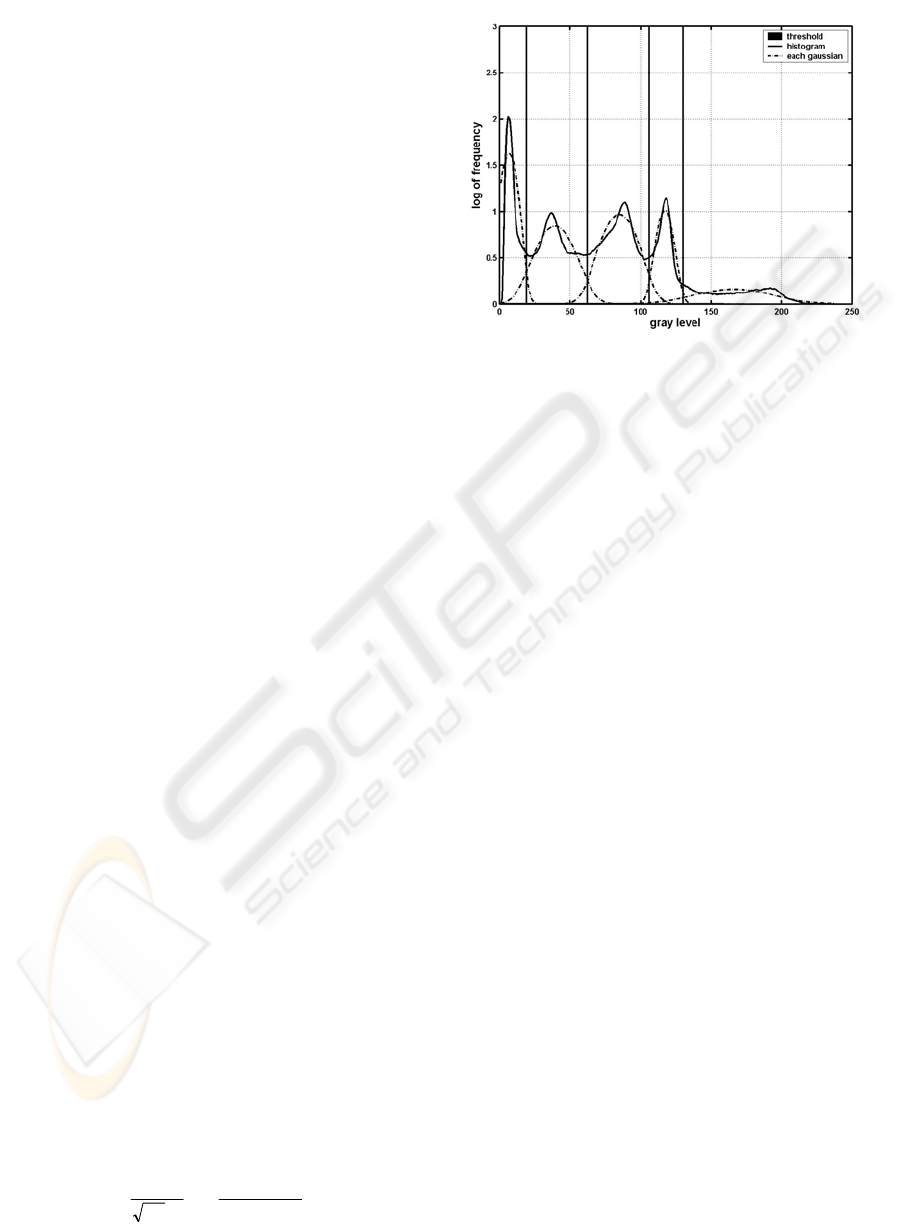

3.2 Histogram Analysis

Histogram analysis plays an important role in our

method: We use it to detect the similarity threshold

for 3D-CSC segmentation and for classification after

the CSC. Image histograms contain information

about intensity distributions of tissues in MR

images. We here only consider T1 weighted MR

brain images. The histograms of those images

normally contain five modes, listed from dark to

bright: background, cerebrospinal fluid (CSF), gray

matter (GM), white matter (WM) and fat. The

spatial variations of the same tissue class and the

effect of bias field make them overlap each other.

After bias field correction the overlapping between

classes is reduced. This enables us to recognize them

in intensity space, i.e. to find thresholds that separate

those classes by their intensities.

First we consider the intensity histogram

h of

the preprocessed image as a Gaussian mixture model

(GMM) (see (8)-(9)), where each Gaussian

represents the intensity distribution of each tissue

class in an MR image. The approximated normalized

histogram

is expressed by:

∑

⋅=

Gah

σµ

(8)

C is the number of Gaussians,

and

are the

estimated mixing weight, mean and standard

deviation of the i-th Gaussian which is given by:

(9)

where

is a gray level.

Figure 4: The result of histogram analysis.

To obtain the parameters of the Gaussian mixture

model we follow the scale space filtering method of

(Carlotto 1987). This gives us a good initialization

for

, and

. With the Expectation-Maxi-

mization (EM) algorithm (Duda 2001), those

parameters are further refined.

The result of the GMM estimation for a sample

image and the thresholds separating the five classes

for later classification are shown in Figure 4 where

each Gaussian contains the mixing weight. We refer

to the threshold between background and CSF as t1,

between CSF and gray matter as t2, between gray

and white matter as t3 and between white matter and

fat as t4.

3.3 Adaption of the 3D-CSC for MR

Brain Images

As mentioned in section 2, the 3D-CSC requires a

similarity threshold T. As there is no constant value

for T applicable for all MR images, we developed an

automatic method for finding a reasonable value

based on the histogram analysis method described in

section 3.2. T is derived by computing the shortest

distance D

between the centers of two estimated

Gaussians in the histogram of the corrected image. T

is equal to D

divided by 4 which proved to result in

near-optimal values for MR brain images from

various sources.

3.4 Postprocessing

The 3D-CSC segmentation does not result in a

single segment for gray resp. white matter. Instead

gray and white matter are oversegmented and

⎥

⎦

⎤

⎢

⎣

⎡

⋅

−−

)

(

exp

)(

σπ

σµ

t3 t4

background

CSF

fat

IMPROVED SEGMENTATION OF MR BRAIN IMAGES INCLUDING BIAS FIELD CORRECTION BASED ON

3D-CSC

341

sometimes parts of gray matter and non-brain tissues

are merged to one segment due to narrow gray value

bridges. Therefore some postprocessing steps are

needed: First the CSC segments are preliminary

classified in brain and non-brain by their mean gray

value (see 3.4.1). As only the mean gray value is

considered segments containing non-brain tissues

with an intensity similar to gray or white matter are

classified always as brain. This problem is solved by

morphological operations (see 3.4.2). Finally the

brain is separated into gray and white matter.

3.4.1 Preliminary Classification

We obtain a preliminary brain mask by doing a

classification of CSC segments in which we use the

intensity thresholds (see section 3.2) to select all

segments which could belong to the brain. I.e. if the

mean intensity of a segment belongs to the range [t2,

t4] the segment should be kept in the preliminary

brain mask otherwise discarded. However, even if

optimal thresholds are used, connections between

the brain and surrounding non-brain tissues still

occur. In order to break these connections and

reduce misclassification, morphological operations

are applied.

3.4.2 Morphological Operations and Final

Classification

We apply the following morphological operations to

break up bridges between brain and non-brain

tissues:

 Select the largest connected component (LCC1) in

the preliminary brain mask and perform an erosion

with a ball structuring element with radius of 3-5

voxels (depending on the size of the input image).

This breaks connections between the brain and

non-brain tissues.



Select the largest connected component (LCC2)

after the erosion and perform a dilation with the

same size structuring element to get LCC3. This

reconstructs the eroded brain segment.

 Compute the geodesic distances to LCC3 from all

points which only belong to LCC1 but not to

LCC3 using a 1 voxel radius ball structuring

element. Then assign all points whose distances

are <= 4 voxels to LCC3 as the final segmented

brain. In this step some more detailed structures of

the segmented brain are recovered

At last, we remove all voxels not belonging to

the brain mask from the CSC segments. The

threshold t3 is then applied to classify the remaining

segments into gray matter (GM) and white matter

(WM).

4 EXPERIMENTS AND RESULTS

To assess the performance of the proposed method,

we applied it to 18 T1-weighted MR brain images

(10 simulated images and 8 real images). The

simulated images were downloaded from the

Brainweb site (http://www.bic.mni.mcgill.ca/

brainweb). These images consist of 181x217x181

voxels sized 1x1x1mm with a gray value depth of 8

bits. 1%, 3%, 5%, 7% resp. 9% noise levels have

been added and intensity inhomogeneity levels

(“RF”) are 20% and 40%. The real images were

acquired at 1.5 Tesla with an AVANTO SIEMENS

scanner from the BWZK hospital in Koblenz,

Germany. They consist of 384x512x192 voxels

with 12 bits gray value depth. The voxels are sized

0.45x0.45x0.9mm.

All processes were performed on an Intel P4

3GHz-based system. The execution time of the

complete algorithm is about 24 seconds for a

181x217x181 image.

Some parameters need to be set for the bias field

correction: The factor k in equation (3) which

controls the speed of iterative correction, was set to

0.05. The standard deviation of the Gaussian filter

determines the smoothness of correction. For the

simulated images it was set to 30 for each

dimension, but for the real images due to the

anisotropic voxel resolution to 60x60x30. The

termination threshold E of the bias field correction

was set to 0.001 which automatically determines the

iterations according to the degree of inhomogeneity

and ensures the accuracy of correction. Figure 5

shows a correction example of a simulated image.

The intensities of voxels belonging to the same

tissue become relatively homogeneous in the

corrected image (see Figure 5(b)). The misclassified

part of the white matter (see Figure 5(e)) in the

segmentation without bias field correction is

recovered in the segmentation with bias field

correction (see Figure 5(f)).

The Brainweb site provides the “ground truth”

for the simulated images that enables us to evaluate

the proposed method quantitatively. We use the

following evaluation measures:

 Coverability Rate (CR) is the number of voxels in

the segmented object (S) that belong to the same

object (O) in the ”ground truth”, divided by the

number of voxels in O.

 Error Rate (ER) is the number of voxels in S that

do not belong to O, divided by the number of

voxels in S.

 Similarity Index (SI) (Stokking 2000) is two times

the number of voxels in the segmented object (S)

VISAPP 2006 - IMAGE ANALYSIS

342

that belong to the same object (O) in the ”ground

truth”, divided by the number of voxels both in S

and O. SI is 1 for a perfect segmentation.

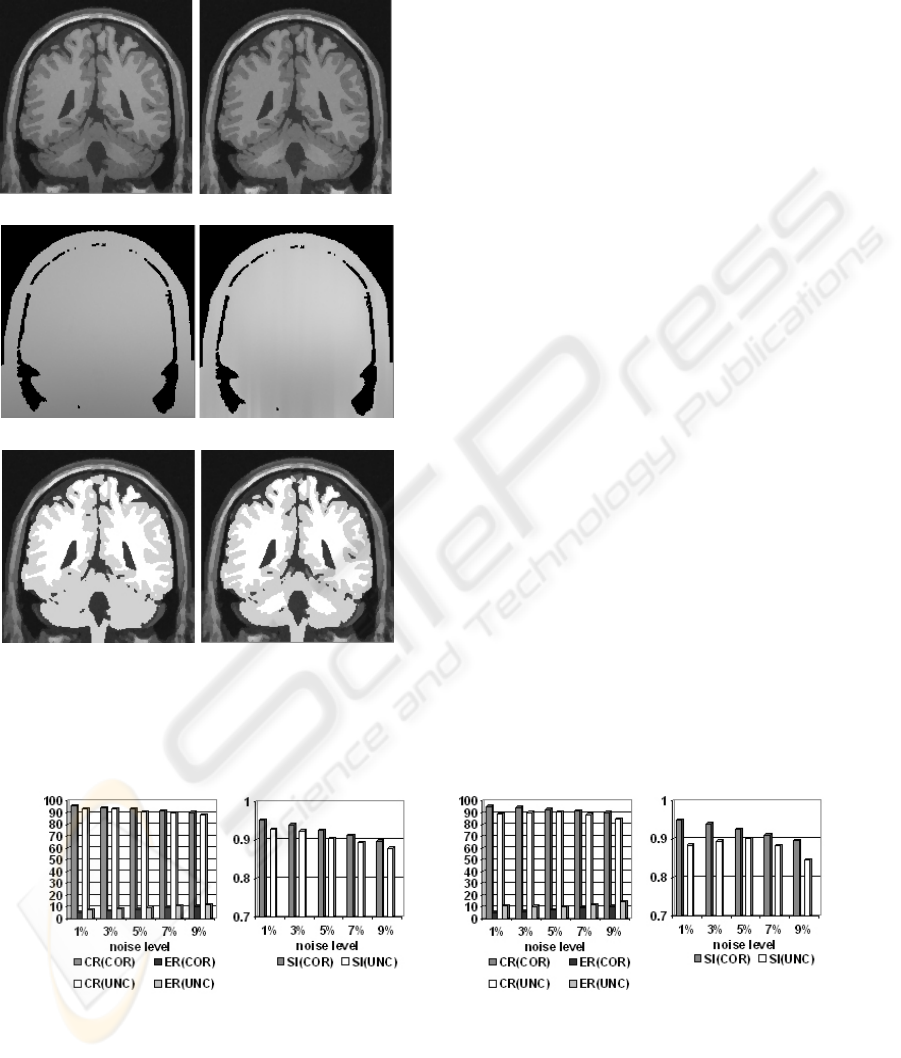

(a) uncorrected (b) corrected

(e) uncorrected segmentation (f) corrected segmentation

Figure 5: Comparison of the results of uncorrected and

corrected simulated images (noise level=3%, RF=40%,

filtered).

The evaluations of the uncorrected (UNC) and

corrected (COR) simulated images with RF=20%

and with RF=40% are shown in Figure 6, where CR,

ER and SI are the average of GM and WM

respectively. They show that the bias correction

improved the performance of segmentation. After

bias correction the intensity inhomogeneities in the

images are compensated effectively both in RF=20%

and RF=40%. In addition, the results of our method

are compared with those from a popular brain

analysis technique called Statistical Parametric

Mapping (SPM) (Ashburner 2000). The software

package SPM2 was released in 2003

(http://www.fil.ion.ucl.ac.uk /spm/) and a procedure

for bias correction has been included. The

comparison (see Figure 7) indicates that our method

is comparable with SPM2. SPM2 uses an anatomical

atlas. Our method does not depend on such an atlas

and overcomes SPM2 for the noise levels 1%, 7%

and 9%. For the noise levels 3% and 5% SPM2

shows only slightly better results.

Unfortunately for real images the ‘ground truth’

is not available, so the same quantitative

measurement can not be conducted on them.

Therefore we only visually evaluated them. The

results with bias correction and without bias

correction are compared. There are no big

differences between them except for detailed

structures which can be detected by using bias

correction. In this paper we provide a segmentation

example of a real image with and without bias

correction (see Figure 8). The result with bias

correction seems to be appreciably better on some

detailed structures which are sketched out by circles.

Its 3D visualization result is also shown in Figure 8.

(a) RF=20% (b) RF=40%

Figure 6: Quantitive evaluation for the segmentation results of uncorrected and corrected simulated images.

IMPROVED SEGMENTATION OF MR BRAIN IMAGES INCLUDING BIAS FIELD CORRECTION BASED ON

3D-CSC

343

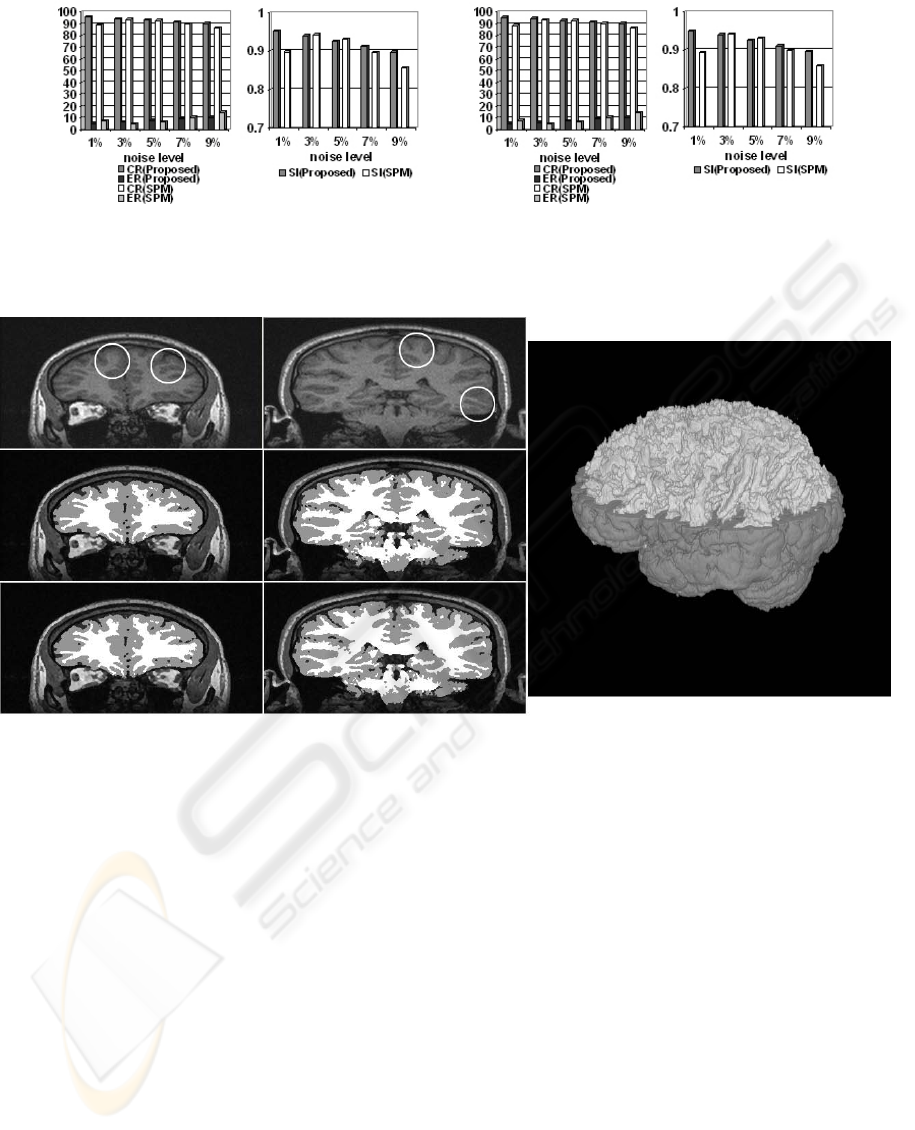

(a) RF=20% (b) RF=40%

Figure 7: Quantitative evaluation for the segmentation results of simulated images comparing the proposed method with

SPM2.

Figure 8: Comparison of the segmentation results of a real image with bias correction and without bias correction and its 3D

visualization. The original slices are in the first row. The segmentation results without bias correction are shown in the

second row. The third row shows the results with bias correction. Its 3D visualization is in the right column where the gray

matter is partially removed.

5 CONCLUSION

A fully automated, improved segmentation based on

the 3D-CSC for MR brain images is proposed in this

paper. In contrast to most existing methods, it is fast

with a satisfactory accuracy. It takes advantage of

the region- and intensity-based 3D-CSC and

combines it with further information from intensity

histograms to robustly segment MR brain images. A

bias correction is integrated into the method to

improve its performance. However, the results for

some images still indicate some problems: On the

one hand some detailed structures of the brain are

lost especially in the cerebellum, on the other hand

we sometimes are not able to remove all non-brain

tissues, i.e. sometimes small parts of non-brain

tissue around the eyes is still included. Those

problems depend on the size of the structuring

element of the morphological operations. A big

structuring element can avoid including more non-

brain tissues but some detailed structures of brain

may be lost and vice versa.

In the future we have to cope with the above

problems and want to segment and recognize other

significant structures in 3D MR brain images.

Furthermore, we want to compare our method with

other state of art brain segmentation techniques, i.e.

the Hidden Markov Random Field (HMRF)-based

method (Zhang 2001), and the fuzzy C-means

clustering (FCM)-based adaptive method (Liew

2003).

VISAPP 2006 - IMAGE ANALYSIS

344

REFERENCES

Ashburner, J., Friston, K. J., 2000. Voxel-based

morphometry-the methods. NeuroImage. 11(6Pt1):

805-821.

Carlotto, M. J., 1987. Histogram analysis using a scale-

space approach, IEEE Trans on PAMI. 9(1): 121-129.

Duda. R. O., Hart, P. E., Stork, D. G., 2001. Pattern

Classificatio, Wiley&SONS Press. London. 2

edition.

Kuwahara, M., Hachimura, K., Eiho, S., 1976. Processing

of Ri-angiocardiographic images. Digital Processing

of Biomedical Images. Plenum Press. New York.

Liew, A. W., Yan, H., 2003. An adaptive spatial fuzzy

clustering algorithm for 3-D MR image segmentation.

IEEE Trans on Medical Imaging. 22(9): 1063-1075.

MacDonald, D., Kabani, N., Avis, D., 2000. Automated 3-

D extraction of inner and outer surfaces of cerebral

cortex from MRI. Neuroimage. 12(3): 340-356.

Pham, D. L., Xu, C. Y., Prince, J. L., 2000. Current

methods in medical image segmentation, Annual

Review of Biomedical Engineering. 2: 315-337.

Priese, L., Sturm, P., Wang, H. J., 2005. Hierarchical Cell

Structures for Segmentation of Voxel Images. In

SCIA2005, 14

Scandinavian Conference on Image

Analysis. Springer Press.

Rajapakse, J. C., Kruggel, F., 1998. Segmentation of MR

images with intensity inhomogeneities. Image Vision

Computing. 16(3): 165-180.

Rehrmann, V., Priese, L., 1998. Fast and robust

segmentation of natural color scenes. In ACCV98. 3

Asian Conference on Computer Vision. Springer Press.

Schnack, H. G., Hulshoff Pol, H. E., Baare, W. F., 2001.

Automated separation of gray and white matter from

MR images of the human brain, Neuroimage. 13(1):

230-237.

Sled, J. G., Zijdenbos, A. P., Evans, A. C., 1998. A

nonparametric method for automatic correction of

intensity nonuniformity in MRI data. IEEE Trans on

Medical Imaging. 17(1): 87-97.

Stokking, R., Vincken, K. L., Viergever, M. A., 2000.

Automatic morphology-based brain segmentation

(MBRASE) from MRI-T1 Data. NeuroImage. 12(6):

726-738.

Sturm, P., 2004. 3D-Color-Structure-Code. A new non-

plainness island hierarchy. In ICCSA 2004,

International Conference on Computational Science

and Its Applications. Springer Press.

Suzuk, H., Toriwak, J., 1991. Automatic segmentation of

head mri images by knowledge guided thresholding.

Computerized Medical Imaging and Graphics. 15(4):

233-240.

Vovk, U., Pernus, F., Likar, B., 2004. MRI intensity

inhomogeneity correction by combining intensity and

spatial information, Physics in Medicine and Biology.

49: 4119-4133.

Wells III, W. M., Grimson, W. E. L., Kikinis, R. Jolesz, F.

A. 1996. Adaptive segmentation of MRI data. IEEE

Trans on Medical Imaging. 15(4): 429-442.

Zhang, Y. Y., Brady, M., Smith, S., 2001. Segmentation

of brain MR images through a hidden markov random

field model and the expectation-maximization

algorithm. IEEE Trans on Medical Imaging. 20(1): 45-

57.

IMPROVED SEGMENTATION OF MR BRAIN IMAGES INCLUDING BIAS FIELD CORRECTION BASED ON

3D-CSC

345
