COGNITIVE VISION AND PECEPTUAL GROUPING BY

PRODUCTION SYSTEMS WITH BLACKBOARD CONTROL:

An example for high-resolution SAR-images

Eckart Michaelsen, Wolfgang Middelmann

FGAN-FOM, Gutleuthausstrasse 1, 76275 Ettlingen, Germany

Uwe Sörgel

Institute of Photogrammetry and GeoInformation, University of Hanover, Nienburger Satrasse 1, 30167 Hannover,

Germany

Keywords: Cognitive vision, Perceptual grouping, Production systems, Blackboard control, SAR images.

Abstract: The laws of gestalt-perception play an important role in human vision. Psychological studies identified

similarity, good continuation, proximity and symmetry as important inter-object relations that distinguish

perceptive gestalts from arbitrary sets of clutter objects. Particularly, symmetry and continuation possess a

high potential in detection, identification, and reconstruction of man-made objects. This contribution

focuses on coding this principle in a full automatic production system. Such systems capture declarative

knowledge. The procedural details are defined as control strategy for an interpreter. Often an exact solution

is not feasible while approximately correct interpretations of the data with the production system are

sufficient. Given input data and a given production system the control acts accumulative instead of

reducing. The approach is assessment driven features any-time capability and fits well into the recently

discussed paradigms of cognitive vision. An example from the automatic extraction of groupings and

symmetry in man-made structure from high resolution SAR-image data is given. The contribution also

discusses the relations of such endeavour to the “mid-level” of what is today proposed as “cognitive vision”.

1 INTRODUCTION

A human subject can recognize and distinguish

important gestalts even from pictorial data that he or

she is not familiar with. Looking e.g. at the very

high-resolution SAR-image displayed in Fig. 1

everyone will almost immediately perceive the

important building features although only a minority

of people is aware of the special properties of this

kind of imagery. Yet SAR-experts have little success

trying to code automatic building detection from

such data. Partly, this results from the sheer size of

these images – this one has decimetre resolution

with an area of several hundred meters covered –

partly from the particular nature of noise in

RADAR-data (Klausing & Holpp 2000). The

important building features that humans perceive are

of non-local nature; they disappear when only a

small window of say 49x49 pixels is shown (such as

is done in the lower part of Fig.1). Recall that most

iconic operations operate on much smaller window

sizes such as 7x7 pixels or even less. One may well

argue that before processing these data should be

scaled down. However, the antenna construction and

the SAR-processing may well resolve fine structures

of this size (Ender & Brenner 2003) and we should

not throw away possibly important information that

has been measured.

Numerous machine vision contributions rely on

scale pyramid processing instead (e.g. Laptev et al.

2000). This repeats the methods on several scale

levels of the image usually obtained by downscaling

with factor 2 at each level. However, a line structure

in these data may appear at a very fine scale –

broken by gaps and yielding only small line

segments at this scale, while it may disappear in

noise in coarser scale completely. A considerable

alternative is the large variety of Hough transform

methods (Leavers 1993).

109

Michaelsen E., Middelmann W. and Sörgel U. (2006).

COGNITIVE VISION AND PECEPTUAL GROUPING BY PRODUCTION SYSTEMS WITH BLACKBOARD CONTROL: - An example for high-resolution

SAR-images.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 109-115

DOI: 10.5220/0001368101090115

 SciTePress

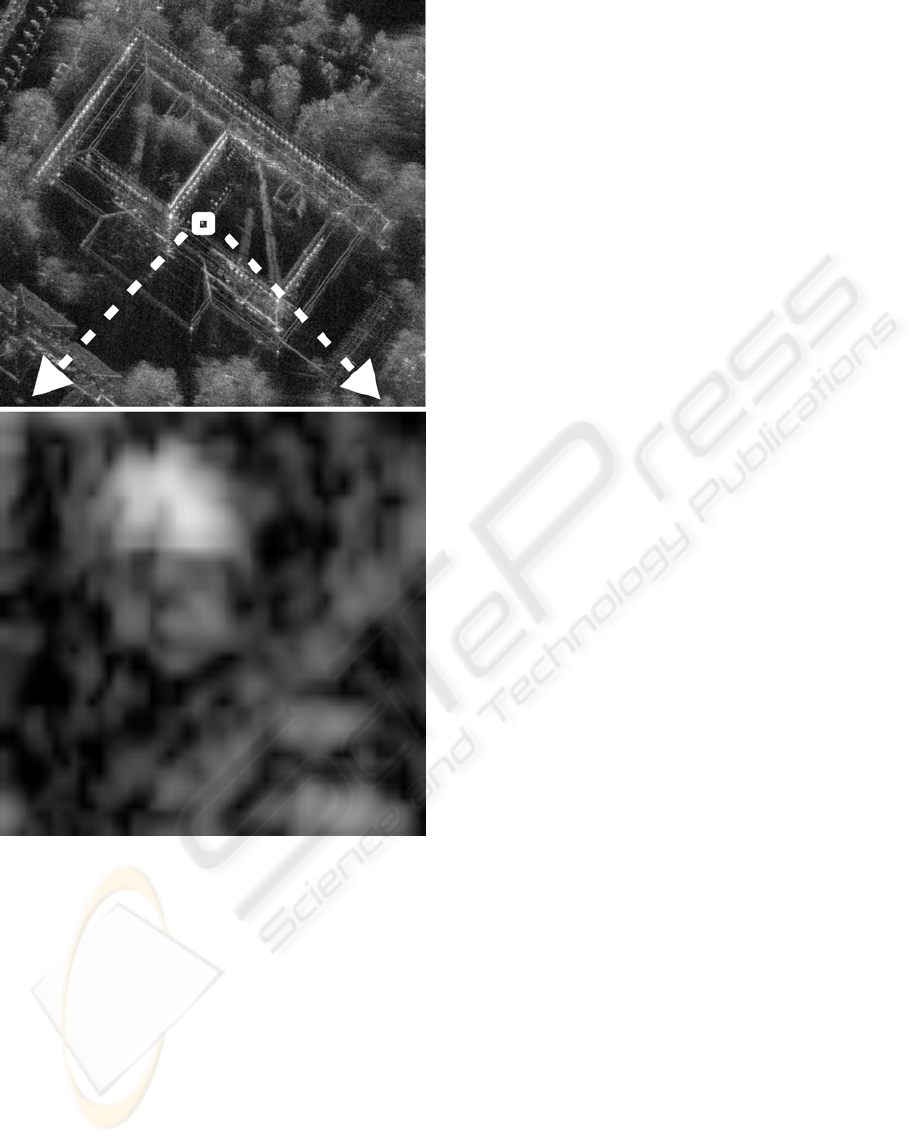

Figure 1: X-band SAR image with a building and small

section from it.

Being aware of the trouble that automatic

systems have, we find that humans perform

remarkably well. We emphasize that this holds for

almost any kind of noisy high resolution pictorial

data also including those from many kinds of e.g.

medical sensors. In the literature this striking

capabilities of human observers are known as the

“gestalt perception” borrowing the word “Gestalt”

from German language. It is now almost a hundred

years that this topic is being studied. Psychological

investigations identified the relations similarity,

good continuation, proximity and symmetry as

important inter-object relations that distinguish

perceptive gestalts from arbitrary sets of clutter

objects almost hundred years ago (Wertheimer

1927). Of these only proximity is of local nature.

Research in incorporating perceptive capabilities

based on these relations into machine vision also has

a quite remarkable history (Marr 1982, Lowe 1985)

There is joint work from psychologists, artificial-life

researchers, neurophysiologists, Darwinists and

computer vision experts to derive these principles

from co-occurrence statistics of natural images and

the principles of evolution of species (Guo et al.

2003). Yet much of the latest work on perceptive

grouping concentrates on the implementation of

local gap-filling techniques like tensor voting

(Medioni et al. 2000).

This contribution focuses on automatically

identifying symmetry and repetitive structure by a

production system. To this end a multistage

assessment driven process is set up. The first stage

described in section 2 transforms the iconic image

information into sets of structural objects like spots

and short line segments. These primitive objects are

combined to scatters, long lines, salient rows, and

angles taking the laws of gestalt-perception into

account, see section 3. The last stage of the

production system consists of identifying and

assessing the symmetry of angle pairs. Section 4

describes the methodology for efficient processing

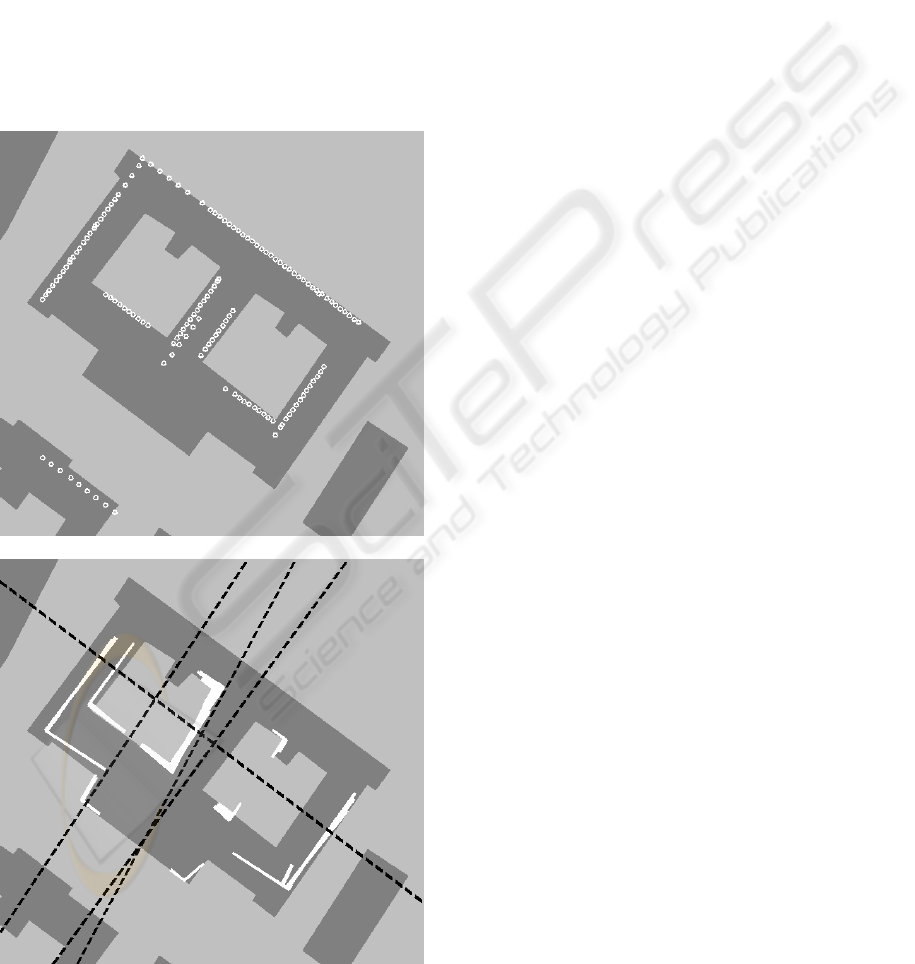

the production system. As result strong hypotheses

of symmetry axes and scatterer rows are determined

in section 5. Throughout the paper we discuss the

relation to what is recently being discussed as

“cognitive vision”. This is particularly emphasized

in the concluding section 6.

2 TRANSFORMING ICONIC

INFORMATION TO SETS OF

STRUCTURAL OBJECTS

The image neighbourhood is closely connected to

just one relation (proximity) among many others that

interest us. Large image regions may contain

nothing of interest just homogenous returns with

some noise multiplied to it. Therefore the image

matrix is not an appropriate representation. Instead

we use sets of objects that are extracted from the

image by feature extraction methods. Fig. 2 shows a

set of spot pixel objects P with 7173 elements and

Fig. 3 shows a set of short line objects L with 4404

elements. In comparison to the 2400x2300 grey

value pixels of the original image this is a significant

reduction, while the major building features remain

in this representation..

VISAPP 2006 - IMAGE UNDERSTANDING

110

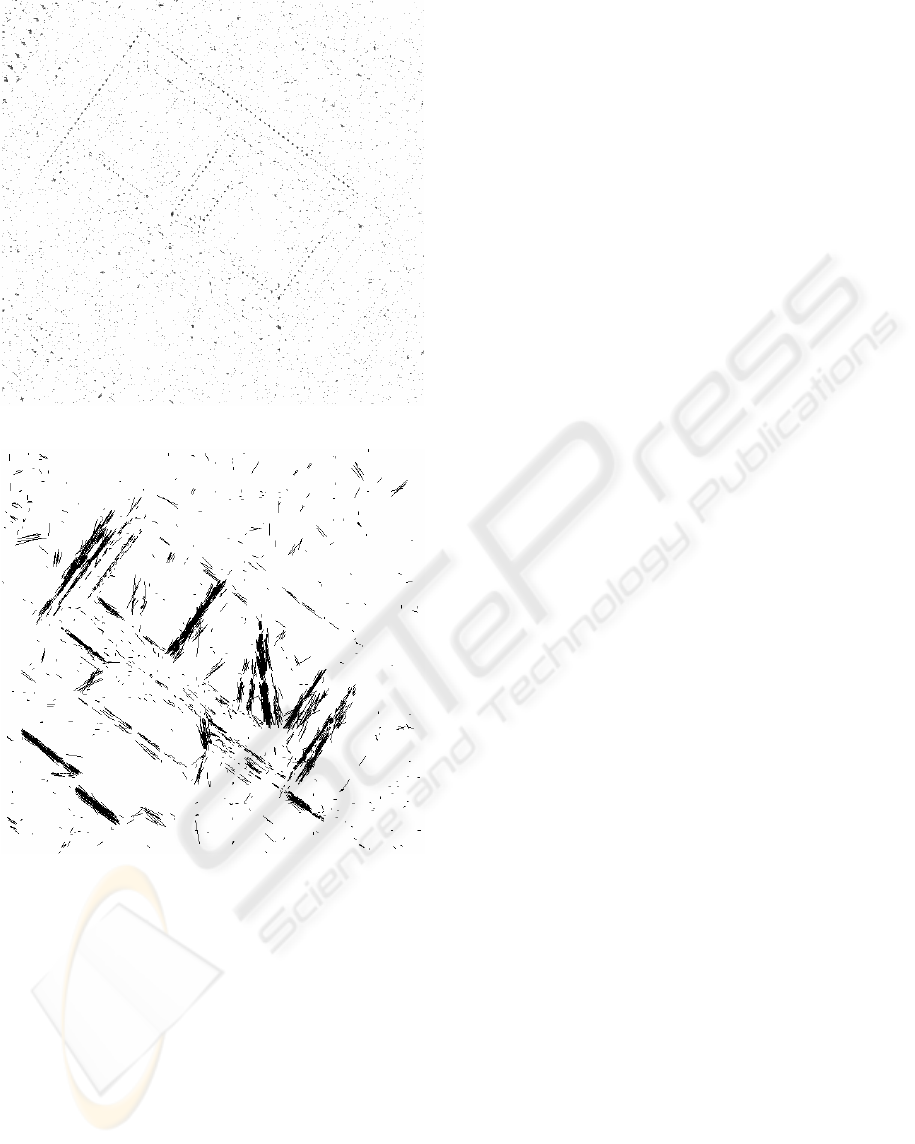

Figure 2: Set of primitive objects spot pixel – P.

Figure 3: Set of primitive objects line – L.

Objects P are constructed using a spot-filter

(Michaelsen et al. 2002) on a reduced version of the

image by factor 4. The procedure has two

parameters a window radius (set to 8 pixels) and a

decision threshold (set to 10%) which is a factor of

the maximal value found by the filter in the present

image section. They are labelled with subpixel-

accurate x- and y-coordinate and the strength above

threshold. The latter gives their assessment. It is

visualised as grey-value in Fig. 2. White means that

there is no object P in that location. Each object P

states evidence for a bright spot in that position.

Objects L are constructed using the squared

averaged gradient filter (Foerstner 1994) on versions

of the image reduced by factors 2, 4, 8 and 16. This

filter gives a symmetric 2x2 matrix for each image

position. Matrices with a big eigenvalue and a small

one indicate evidence for an edge or for a line at the

associated position. For the filter there is a radius σ

(set to 1 pixel here). It makes sense to prolong these

very short line segments in each scale version of the

image separately before joining the whole set for

subsequent processing. This is done by running a

trivial system containing only the production P

described in the next section for a fixed number of

cycles. Thus the basis objects for structural analysis

are computed.

The resulting set of primitive objects may be

significantly improved (i.e. contain less noise but the

same information) if sophisticated a iconic filter

operation precedes the extraction process

(Michaelsen et al. 2005). For simplicity we have

omitted this step for this work

3 CODING COGNITIVE VISION

AND GESTALT RELATIONS IN

PRODUCTIONS

Gestalt psychology teaches certain geometric

relations as the key to perception. A set of parts

fulfilling these constraints forms a whole that is

described more briefly and distinctively. A straight

forward way to code this for machines is to use

production rules (or short productions). Such

productions have occasionally been used for remote

sensing and computer vision (Draper et al., 1989,

Stilla et al. 1996). Main benefits from the use of

production systems are modularity of knowledge

and clear separation of the declarative knowledge –

i.e. the productions - from the procedural decisions –

i.e. the control. Each production P consists of an

input side Σ, a constraint relation π, an output side

Λ, and a function φ. The set of productions used for

a given task is called production system. Compared

to rule-based systems discussed in the AI and vision

community long time ago (e.g. Matsuyama and

Hwang, 1990) the system presented here contains

only few productions. In Fig. 4 it is presented as

production net. Circular nodes represent the

productions while elongated nodes represent object

concepts. Object names are short symbols, so there

is one or two words with each object node to explain

what kind of object it is.

The output side Λ most often only consists of a

single symbol whereas the input side Σ may consist

of a fixed tuple (P

3,…,6

) or a set of objects (P

1,2

) of

the same type. Of most interest are productions P

COGNITIVE VISION AND PECEPTUAL GROUPING BY PRODUCTION SYSTEMS WITH BLACKBOARD

CONTROL - An example for high-resolution SAR-image

111

and P

. P

consecutively adds one scatterer object

Sc after the other to row objects R. This recursive

process is initialised using the direction of a

neighbouring long line object LL. P6 constructs

symmetry axis from pairs of angle objects A. This

alone is a non-local constraint and thus may cause

excessive computational effort. For building

detection we can further restrict one leg of one angle

object A to be collinear with the other leg of the

other angle object A. This makes the search more

robust.

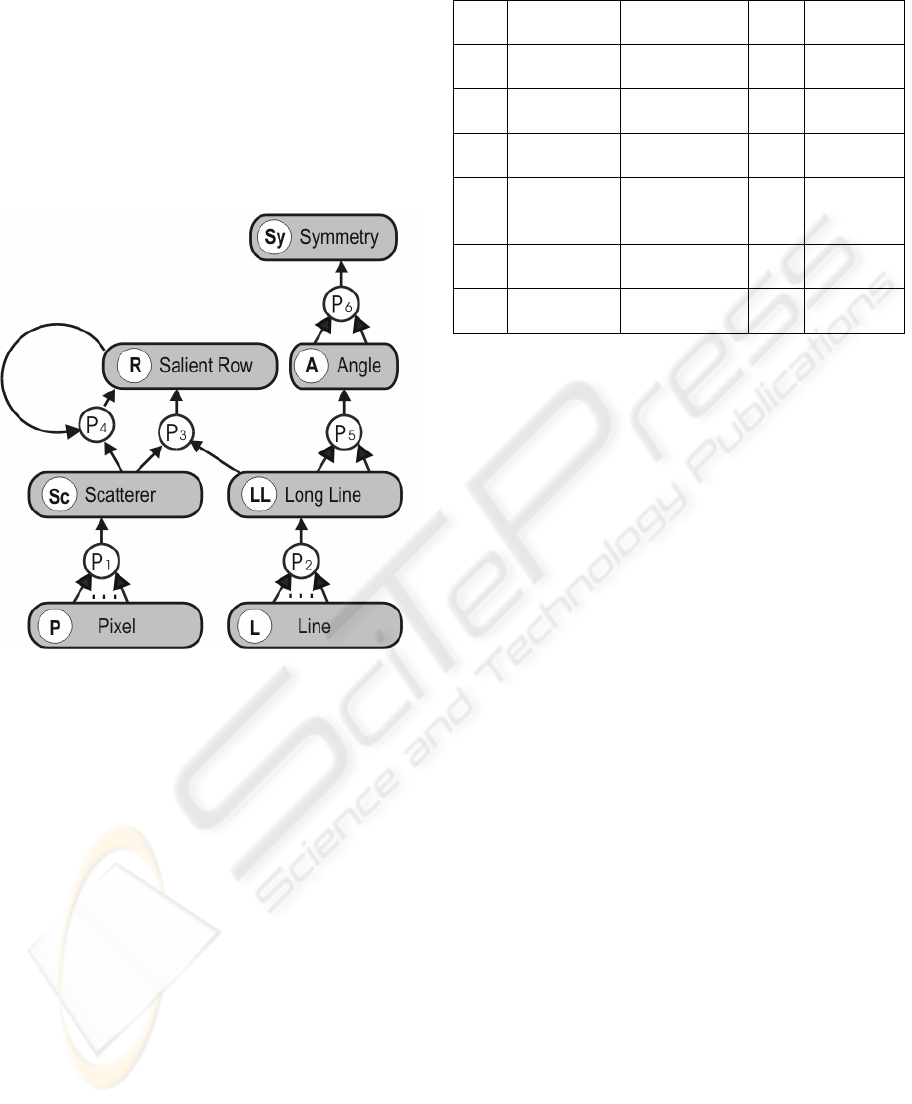

Figure 4: Production-net visualisation.

The cognitive vision paradigm – as it has been

formulated in the research roadmap (ECVision,

2005) emphasize automatic acquiring of such

knowledge from large corpi of data. However, for

many tasks – such as working towards automatic

vision for SAR-sensors of the next generation –

there are only some few sample images available.

There also is no need to (machine-) learn the

principles of perceptual grouping from large samples

of data. They are known from nearly hundred years

of psychological research. There is probably a

potential for fostering robustness through adaptation

of the thresholds and parameters inherent in the

constraint relations π. We have proposed statistical

calculus for this with models for background and

target structure (Michaelsen & Stilla 2002). This

needs a far bigger data corpus than is available now,

and it requires tremendous human labour for the

labelling of a learn set – and a test set for

verification.

Table 1: Productions listed as table.

4 THE ACCUMULATIVE

CONTROL A PARADIGM FOR

COGNITIVE PECEPTION

The objective for the control of the production

system is to handle robustly many thousand objects.

Two possibilities for the control are discussed here.

Reduction: Standard interpretation of

production systems following e.g. Matsuyama and

Hwang (1990) works reductively: Given a set of

productions and a set of data the productions are

performed serially. For a system like the one

presented above the interpreter would select a

production and a subset that symbolically fits into

the input side (e.g. a pair of objects (LL, LL) for P

)

test the constraint relation (in the example proximity)

and carry out the production in case of success.

Reduction means that the original object pair is

removed and replaced by the new object A. Since

selection of pairs is of quadratic computational

complexity it is good advice to have one element of

the input side triggering a search for partners that

fulfil the constraint without listing all objects that

are far away. We call such a pair of an object and a

production to be tested with it a “working element”.

The main problem with this reduction technique is

the administration of the control. It has to keep track

of every step it took. Recall that there may be

alternative possibilities for the selection step. The

control may have to “undo” a sequence of steps and

then try again with other selections. Thus the

computational complexity of the search is bounded

by no less than O(2

) where n is the maximal serial

Λ φ

{P,…,P} proximity Sc mean

{L,…,L} colinearity LL regres-

sion

(SC,LL) proximity R copy

(SC,R) good

continuation

∧ similarity

R mean

(LL,LL) proximity A intersect

(A,A) symmetry

∧ colinearity

Sy mid axis

VISAPP 2006 - IMAGE UNDERSTANDING

112

depth of the search. If the production net contains

cycles (like the one presented above) the serial depth

will only be bounded by the number of objects (each

reduction removes at least one object). Such control

may be semantically correct but it will not be very

robust concerning the computational effort

dependence on the data. Particularly for recognition

from image data it is necessary to trade the 100%

semantic correctness for more robustness in the

control. However, these approaches are still being

pursued today e.g. using PROLOG (Cohn et al.

2003). Of particular interest today for the cognitive

vision issue is the logical structure best suited for

vision tasks. The question is raised whether one

should utilize deductive, inductive or even abductive

logics. All of these attempts scale badly with rising

number of data instances.

The Accumulating Interpretation Cycle: This

follows the well known AI-paradigm of blackboard

architecture. Given a production system P ={S, A,

P} a working element is defined as quadruple e=(s, i,

as, pm) where s is a symbol from S, i is an object

instance index, as is an assessment and pm is a

production module index. Assessments are taken

from the continuous ordered interval [0, 1]. A

production module is always triggered by a

particular object instance. It contains code that

queries the database for partner instances which

fulfil the constraint relation π of the production

given the triggering object instance.

pm=nil

sorted queue

yes

connectivity

of prod.-net

{e,...,e}

set of

accumulated

objects

production

module

dispatcher

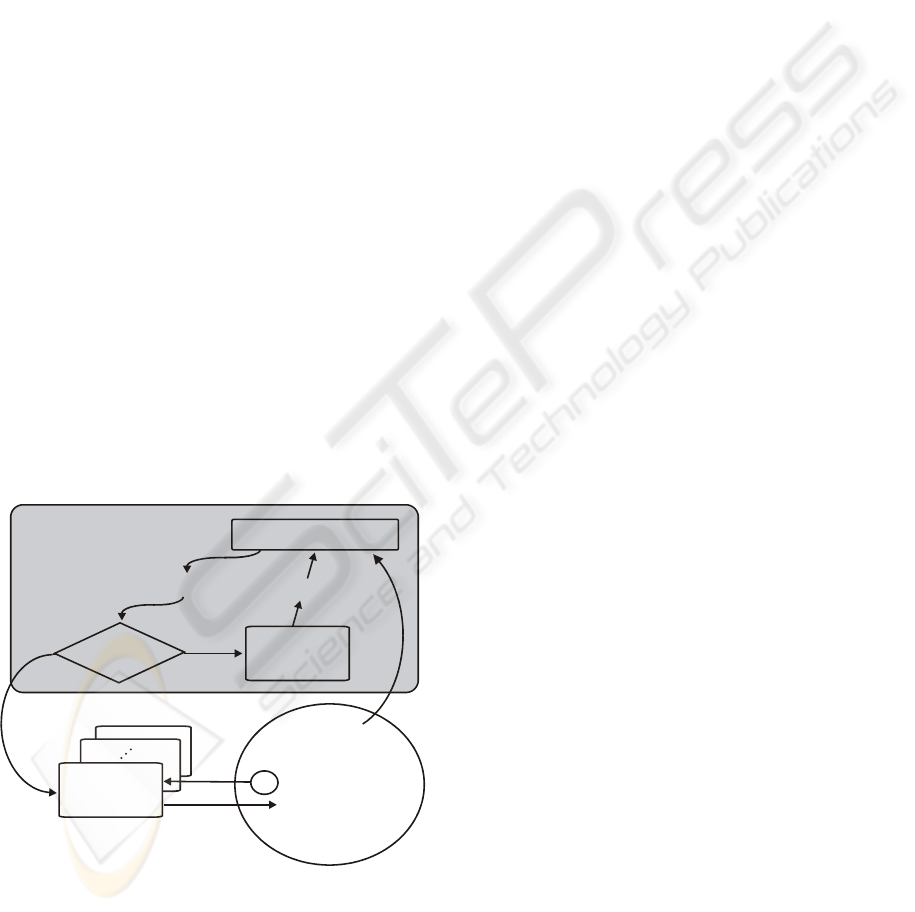

Figure 5: The accumulative interpretation cycle.

Usually search regions are constructed (e.g. a

long stripe shaped region with the triggering Line

instance in the centre for P

). If the query results in a

non-empty set the module will create new instances

according to the functional part φ of the production.

Some productions need more than one module (e.g.

p4 may be triggered by a Row instance or by a Spot

instance requiring different queries). The set of

module indices is expanded by nil. Always when a

new object instance is created – either by an external

feature-extraction process or by one of the

production modules – also a corresponding new

working element is added using this module index

nil (meaning that there is no module assigned yet).

The set of working elements is called the queue. It is

sorted occasionally (e.g. every 100 interpretation

cycles) with respect to the assessments. The central

control unit (AI-people call it dispatcher) always

picks working elements from the queue. If the

module index of an element is nil it will be replaced

by new working elements with appropriate module

indices (recall that each connection from a symbol to

a production in the production-net corresponds to a

production module, i.e. a possibility to be tested). If

there is a non-nil module index attached the

dispatcher will trigger the indicated module by the

corresponding object instances. The whole

interpretation cycle is indicated in Fig. 5.

Modules may be run in parallel on different

processors. The dispatcher can start picking

elements from the queue the moment the first

primitive instances are inserted. It terminates

inevitably when the queue happens to run empty.

But usually it will be terminated before, either by

external processes or the user, or by limiting the

number of cycles or time. Obviously the

accumulative control features any-time capability.

The advantages of the accumulating interpretation

cycle have been originally described in the context

of syntactic pattern recognition by Michaelsen

(1998a, 1998b)

There is good evidence that a large portion of the

remarkable visual capabilities of man is due to the

visual motor system and its elaborated control. For

the SAR-application we do not need to move

physical sensors during recognition. The data

provide high resolution everywhere and our control

shifts the focus of attention around freely, because

the data are organized as sets. The eye saccade

control of a human observer is replaced by the

assessment driven control of our blackboard. This

stresses the importance of further research on the

assessment functions.

COGNITIVE VISION AND PECEPTUAL GROUPING BY PRODUCTION SYSTEMS WITH BLACKBOARD

CONTROL - An example for high-resolution SAR-image

113

5 EXPERIMENTAL RESULTS

FOR STRONG BUILDING

HYPOTHESES

This is a methodological contribution meant to

stimulate discussion on how to organize

intermediate processes in computer vision. Human

subjects are usually not aware of these intermediate

processes – while performing them. This obviously

presents a remarkable cognitive achievement. The

system presented does not extract buildings from

high resolution SAR-images. These higher level

decisions are preserved for later work based on the

results presented here.

Figure 6: Results overlayed to a GIS-building layer ground

truth.

Assessments on the issue of appropriateness for

remote sensing tasks need systematic testing and

comparison with other methods on a representative

dataset and definition of goals. There simply is not

enough such high resolution SAR imagery around to

start this yet.

To demonstrate any-time capability the search

run was terminated after 40000 interpretation cycles.

At that stage the queue was still filled with many

thousand working elements and growing. Fig. 6

shows the encouraging results. These results confirm

the assessment driven ansatz as appropriate tool for

perceptive building cue detection.

For better judgement the building layer of a GIS-

base of the imaged campus area was chosen as

background for the figures. All major rows of strong

scatteres have been detected. Symmetry objects were

clustered after the search using homogenous straight

representation for the axis. The main symmetry axis

of the building are detected (dashed black lines).

Moreover, even all symmetries of the left yard are

present. Objects A participating in the objects Sy

are coloured white.

3 DISCUSSION AND

CONCLUSION

Citing form the research roadmap (ECVision, 2005)

we affirm that: “... The very essence of the

cognitivist approach is that cognition comprises

computational operations defined over symbolic

representations and these computational operations

are not tied to any given instantiation. ...” (Section

6.1.2, page 29). This is what production-nets are

about.

For next generation SAR-data an intermediate

grouping process seems appropriate between feature

extraction and final decision or description for

automatic vision. Particularly the very high

resolution devices generate imagery for which this is

essential. Standard grouping techniques like

clustering for local constraints like proximity and

Hough transform or tensor voting for good

continuation lack the flexibility and

cooperative/competitive structure of the method

presented here. On the other hand complex high-

level AI reasoning schemes may not be capable of

handling large amounts of data in a robust and quick

way. The accumulative production-net search turns

out a reasonable alternative for such tasks.

Repetitive structure and symmetry constitute

strong relations that improve building detection

VISAPP 2006 - IMAGE UNDERSTANDING

114

significantly. The proposed production system with

its accumulative control enables modular and robust

utilization of these perceptive properties. Objectives

of future work include symmetry of more complex

objects e.g. generic descriptions of building parts.

This leads also to theoretic investigations concerning

decision theoretic inference of the constraint

relations, computational complexity estimation and

stop criteria.

ACKNOWLEDGEMENTS

We thank Dr. J. H. G. Ender and Dr. A. R Brenner

from FGAN-FHR for providing us with the PAMIR

SAR-data.

REFERENCES

Cohn, A. G., Magee, D., Galata, A., Hogg, D., Hazarika,

S. 2003. Towards an architecture for cognitive vision

using qualitative spatio-temporal representations and

abduction. In: Freksa, C., Brauer, W., Habel, C.,

Wender, K. F. (eds.) Spatial Cognition III, Routes and

Navigation, Human Memory and Learning, Spatial

Representation and Spatial Learning, Springer, Berlin

pp. 232-248.

Ender, J. H. G., Brenner, A. R., 2003. PAMIR - a

wideband phased array SAR/MTI system. In: IEE

Proceedings - Radar, Sonar, Navigation, Vol. 150, no.

3, pp. 165-172.

Foerstner, W., 1994. A framework for low level feature

extraction. In: Eklundh, J.-O. (ed). Computer Vision –

ECCV 94. Vol. II, B1, pp. 383-394.

Guo, C.-E., Zhu, S.C., Wu, Y. N. 2003. Modelling visual

patterns by integrating descriptive and generative

methods, IJCV, Vol. 53, No. 1, pp. 5-29.

Draper, B., Collins, R., Brolio, J., Hanson, A., Riseman, E.

1989. The Schema System, IJCV, Vol. 2, pp. 209-250.

Klausing, H., Holpp, W., 2000. Radar mit realer und

synthetischer Apertur, Oldenburg Verlag, München.

Laptev, I., Mayer, H., Lindeberg, T., Eckstein, W., Steger,

C., Baumgartner, A., 2000. Automatic Extraction of

Roads from Aerial Images Based on Scale Space and

Snakes, Machine Vision and Applications, Vol. 12,

No. 1, pp. 22-31.

Leavers, V. F., 1993. Which Hough transform? CVGIP,

Image Understanding, Vol. 58, No. 2, pp. 250-264.

Lowe, D., G., 1985. Perceptual organization and visual

recognition, Kluwer, Boston.

Marr, D., 1982. Vision, Freeman, San Francisco.

Matsuyama, T., Hwang, V. S.-S., 1990. Sigma a

knowledge-based image understanding system,

Plenum Press, New York.

Medioni, G., Lee, M., Tang, C., 2000. A computational

framework for segmentation and grouping. Elsevier,

Amsterdam.

Michaelsen E. 1998a. Über Koordinaten Grammatiken zur

Bildverarbeitung und Szenenanalyse. Diss., Univ. of

Erlangen, available online as

www.exemichaelsen.de/Michaelsen_Diss.pdf

Michaelsen E., Stilla U. 1998b. Remark on the notation of

coordinate grammers. In: Armin A., Dori D., Pudil P.,

Freeman H. (eds.) Advances in pattern recognition,

JOINT IAPR Int. Workshop SPR-SSPR. Springer,

Berlin, pp. 421-428

Michaelsen E., Stilla U. 2002. Probabilistic Decisions in

Production Nets: An Example from Vehicle

Recognition. In: Caelli T., Amin A., Duin R. P. W.,

Kamel M., Ridder D. de (eds): Structural, Syntactic

and Statistical Pattern Recognition SSPR/SPR 2002,

LNCS 2396, Springer, Berlin, pp. 225-233.

Michaelsen, E., Soergel, U. Stilla, U., 2002. Grouping

salient scatterers in InSAR data for recognition of

industrial buildings. In: Kasturi, R., Laurendeau, D.,

Sun, C. (eds). 16th Int. Conf. on Pattern Recognition,

ICPR 2002. Vol. II, pp. 613-616.

Michaelsen, E., Middelmann, W., Sörgel, U.,

Thönnessen, U. 2005. On the improvement of

structural detection of building features in high-

resolution SAR data by edge preserving image

enhancement.

Pattern Recognition and Image

Analysis, MAIK, NAUKA, Moscow, Vol. 15, No. 4, pp.

686-689.

Stilla U., Michaelsen E., Lütjen K. 1996. Automatic

Extraction of Buildings from Aerial Images. In: F.

Leberl, R. Kalliany, M. Gruber (eds.), Mapping

Buildings, Roads and other Man-made Structures from

Images, IAPR-TC7, Wien, Oldenburg, pp. 229-244.

Wertheimer, M., 1923. Untersuchungen zur Lehre von der

Gestalt II. Psychol. Forsch., Vol. 4. Translated as

‘Principles of Perceptual Organization’ In: Beardslee,

D., Wertheimer M., 1958 (eds.), Princeton, N. J. pp

115-135.

ECVision: European research network for cognitive vision

systems, 2005. A research roadmap of cognitive

vision. www.ecvision.org.

COGNITIVE VISION AND PECEPTUAL GROUPING BY PRODUCTION SYSTEMS WITH BLACKBOARD

CONTROL - An example for high-resolution SAR-image

115
