GROWING AGGREGATION ALGORITHM FOR DENSE TWO-

FRAME STEREO CORRESPONDENCE

Elisabetta Binaghi, Ignazio Gallo , Chiara Fornasier, Mario Raspanti

Universita' degli Studi dell'Insubria, Varese, Italy

Keywords: stereo, occlusion, disparity space, neural networks.

Abstract: This work aims at defining a new method for matching correspondences in stereoscopic image analysis. The

salient aspects of the method are -an explicit representation of occlusions driving the overall matching

process and the use of neural adaptive technique in disparity computation. In particular, based on the

taxonomy proposed by Scharstein and Szelinsky, the dense stereo matching process has been divided into

three tasks: matching cost computation, aggregation of local evidence and computation of disparity values.

Within the second phase a new strategy has been introduced in an attempt to improve reliability in

computing disparity. An experiment was conducted to evaluate the solutions proposed. The experiment is

based on an analysis of test images including data with a ground truth disparity map.

1 INTRODUCTION

The reconstruction of three-dimensional shape from

two or more images is a well known and intensively

investigated research problem within the Computer

Vision community (Barnard and Fischler 1982;

Barnard and Thompson W 1980; Dhond and

Aggarwal 1989).

Major efforts have been devoted to the stereo

matching sub-task aimed at computing

correspondences in two (or more) images for

obtaining dense depth maps. A substantial amount of

work has been done on stereo matching giving rise

to a variety of novel approaches (Scharstein and

Szelisky, 2002) attempting to improve upon existing

early methods (Hannah, 1989) and satisfy the high

accuracy demand in diversified application domains

such as object recognition, robotics and virtual

reality (McMillan and Bishop 1995).

Despite important achievements, the accuracy of

most innovative stereo techniques may not be

adequate especially in those situations where even

isolated errors in the depth map create visible

undesirable artefacts. The problem originates from

the fact that most stereo algorithms ignore

occlusions analysis or address it in a post processing

stage within a more general smoothing task (Bobik

and Intille 1999).

Occlusions are widespread in stereo imagery and

even when images with small disparity jumps are

processed, they drastically affect the accuracy of the

overall reconstruction process being the major

source of errors.

Recent works on stereo matching stem from the

idea of mimicking the human visual system which

uses occlusions to reason about the spatial

relationships between objects during binocular

stereopsis. Explicit representation of occlusions and

direct processing within occlusion edges

characterizes these approaches (Bobik and Intille

1999).

This paper proposes a novel algorithm for

solving stereo correspondence based on an explicit

representation of occlusions driving the overall

matching process. In particular, based on the

taxonomy proposed by Scharstein and Szelinsky, the

dense stereo matching process has been divided into

three tasks: matching cost computation, aggregation

of local evidence and computation of disparity

values (Scharstein and Szelisky, 2002) . Within the

second phase a new strategy has been introduced in

an attempt to improve reliability in computing

disparity. An experiment was conducted to evaluate

the solution proposed. The experiment is based on

the analysis of test images including data with a

ground truth disparity map and makes use of the

quality metrics proposed by Scharstein and

Szelinsky (Scharstein and Szelisky, 2002).

326

Binaghi E., Gallo I., Fornasier C. and Raspanti M. (2006).

GROWING AGGREGATION ALGORITHM FOR DENSE TWO-FRAME STEREO CORRESPONDENCE.

In Proceedings of the First International Conference on Computer Vision Theory and Applications, pages 326-332

DOI: 10.5220/0001362203260332

Copyright

c

SciTePress

2 REPRESENTATION

This section describes a data structure called

Disparity Space Image, or DSI, already introduced

in previous works (Okutomi and Kanade 1994;

Bobik and Intille 1999). The DSI is an explicit

representation of matching space and plays an

essential role in the development of the overall

matching algorithm which makes use of occlusion

constraints.

The correspondence between pixel

()

rr

yx ,

in a

Reference Image

r

f

and a pixel

()

mm

yx ,

in a

Matching Image

m

f

is defined as

()

[]

()

rrrrrrm

rrr

yxyyxdsxf

yxf

,,,

),(

η

+⋅+

=

(1)

where

1±=s

is a sign chosen so that disparities

are always positive;

(

)

r

,y

r

xd

is the disparity function

and

(

)

r

,y

r

x

η

is the Gaussian white noise.

From equation (1) we obtain

()

rrrm

yxdsxx ,⋅+=

(2)

and from equation (2):

()( )

rmrr

xxsyxd −⋅=,

(3)

Introducing the epipolar constraint, we also

have:

mr

yy =

(4)

supposing the pixels move from right to left.

Once the disparity space has been specified, the

concept of DSI can be introduced and defined as any

image or function over the disparity space

),,( dyx

rr

. Values of DSI usually represent the cost

of a particular match implied by the particular

(

)

x,yd

considered.

Figure 2 shows a graphic representation of DSI:

each slice indicates a level of disparity varying from

0 to a value

max

d

representing the maximum

disparity for the pair of images considered.

3 GROWING TEMPLATE

ALGORITHM

According to the taxonomy proposed by Scharstein

and Szelinsky, the dense stereo matching process

can be divided into four tasks (Scharstein and

Szelisky, 2002):

1) Matching Cost Computation

2) Aggregation Cost

3) Disparity Computation and Optimization

4) Disparity Refinement

Many dense stereo matching methods have

presented several different solutions to one or more

of these tasks. The most common matching costs

include squared intensity differences (SD) and

absolute intensity differences (AD) (Cox et al., 1996;

Scharstein and Szelisky, 2002).

The actual sequence of steps in the overall

matching procedure depends on the matching

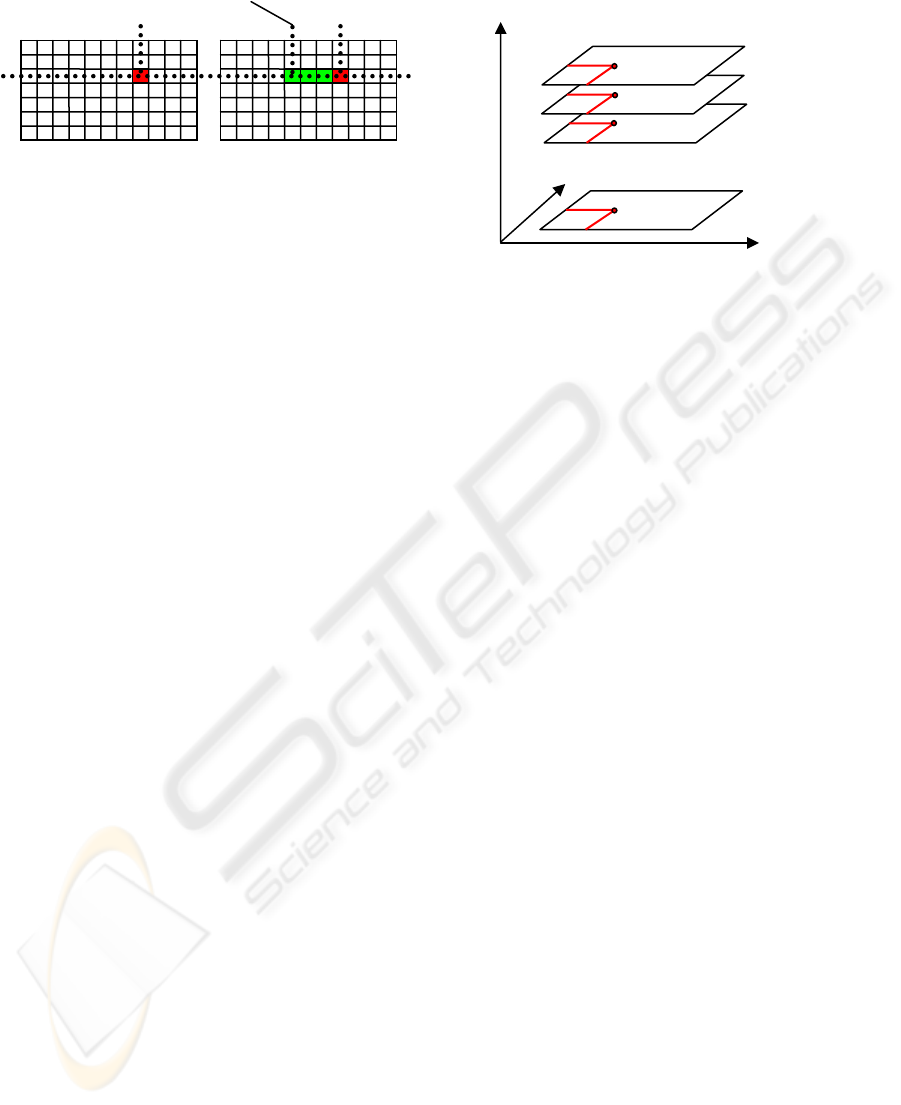

Figure 1: Correspondence between a pixel

()

rr

yx ,

in

reference image

r

f

and a pixel

()

rm

yx ,

in matching


m

f

The difference

()

rm

xxd −=

is the disparity

value.

d

x

x

r

m

+=

r

x

r

x

r

y

r

f

m

f

x

r

Disparity = d

max

-1

Disparity = 0

y

r

d

Disparity = d

max

-2

Figure 2: Graphic Representation of Disparity

Space Image (DSI).

GROWING AGGREGATION ALGORITHM FOR DENSE TWO-FRAME STEREO CORRESPONDENCE

327

algorithm and in particular, on its local or global

nature.

Our approach, which follows a local strategy,

extends the conventional Aggregation Cost phase

including two novel sub-tasks:

2.1) Growing Raw Cost

2.2) Growing Aggregation Cost

3.1 Matching Cost Computation

Assuming the use of SD as matching function, by

equation (3) the matching cost computed for a pixel

()

rr

yx ,

is defined as:

()()()

[]

2

,,,,

rmmrrrrr

yxfyxfdyxDSI −=

(5)

where d is the disparity associated with the pixel

()

rr

yx ,

and

max

0 dd ≤≤

.

3.2 Aggregation Cost

Local and window-based methods aggregate the

matching cost by summing or averaging over a

support region in the DSI. The support region we

use is a two-dimensional squared window of a fixed

dimension.

In particular, this second step is performed by

summing the calculated matching costs over a

squared window with constant disparity

d

. The

aggregation cost

d

ji

AC

,

is defined as:

()

∑∑

+

=

+

=

=

Wa

am

Wb

bn

d

ji

dnmDSIAC ,,

,

(6)

where

⎟

⎠

⎞

⎜

⎝

⎛

−=

2

W

ia

and

⎟

⎠

⎞

⎜

⎝

⎛

−=

2

W

jb

.

Considering all the aggregation values obtained

varying the disparity in the range

[]

max

0 dΚ

, we

obtain:

[]

max

,

1

,

0

,

,

,...,

d

nmnmnm

nm

ACACACAC =

(7)

A classic Stereo Matching Algorithm, at this

point, with a Winner Take All (WTA) technique for

example, decides that the disparity is computed by

selecting the minimal aggregated cost in

nm

AC

,

. The

Growing Template Algorithm adds two new steps at

the aggregation cost phase.

We now describe the two parts that characterize

the Growing Template Aggregation Cost step.

3.3 Growing Raw Cost

Unlike conventional techniques that base further

steps of matching algorithm on the minimal

aggregated cost computed in

nm

AC

,

, our approach

bases decisions on all the costs obtained. To this

purpose, we introduce a new quantity

nm

RC

,

defined

as

[

]

max

,

1

,

0

,

,

,...,,

d

nmnmnm

nm

RCRCRCRC =

(8)

where each element indicates the position in the

sorted list of the element

d

ji

AC

,

.

For example, if we have the vector

[

]

16,1,12

,

=

nm

AC

the corresponding vector of raw

cost is

[

]

3,1,2

,

=

nm

RC

.

At the end of this phase for every pixel of

coordinates

(

)

nm,

in the reference image we have

associated the

nm

RC

,

calculated.

3.4 Growing Aggregation Cost

This sub-task calculates the number of confirmations

in a given support window for a given cost l.

Formally, from equation (8) we obtain the vector:

[

]

max

,

1

,

0

,

,

,...,,

d

nmnmnm

nm

GAGAGAGA =

(9)

where

(

)

()

∑

×∈

≤=

WWnm

d

nm

d

nm

lRCGA

,

,,

(10)

The salient aspect of our strategy is that of

integrating contextual confirmation within the

matching cost aggregation phase. The aggregation

can be performed based on different cost values

varying the l parameter in equation 10.

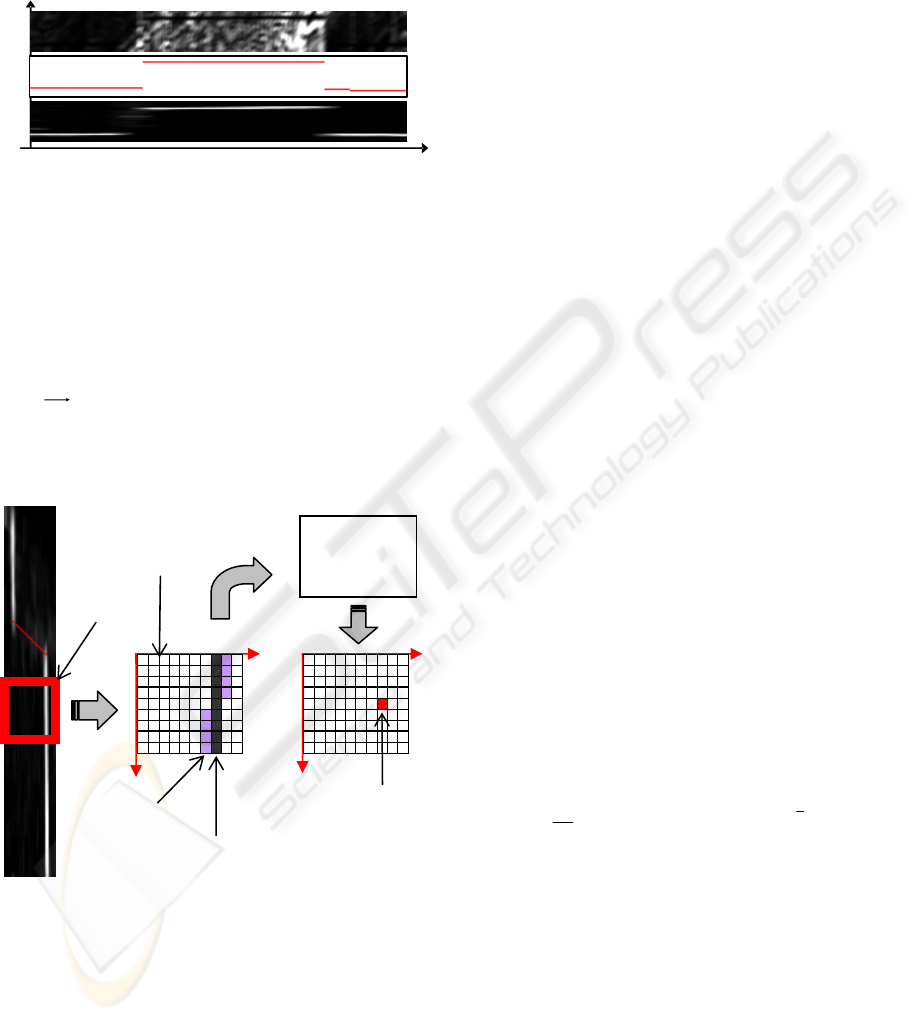

Figure 3 compares DSI’s slices for fixed y

obtained by means of a matching algorithm which

uses SD matching cost within conventional AC

computation performed with support window W=5

(a) and our algorithm which includes the GA task

performed with the following parameters(c):

growing aggregation window GW=25 and l=1.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

328

Both figures 3a and 3c highlight bands (dark

lines and white lines respectively) indicating regions

that match at a given disparity. They are more

visible in figure 3c depicting disparity and occlusion

situations without ambiguity.

3.5 Disparity Computation

The next phase in the matching algorithm consists in

the computation of the disparity map by selecting

the

nm

GA

,

components which satisfy a given

criterion. Adopting a WTA strategy, the disparity

associated with the minimum cost value is selected

at each pixel.

The present work tested an adaptive strategy

based on neural networks for disparity computation

(Rumelhart et al. 1986; Pao, 1989). A Multilayer

Perceptron neural model was adopted to compute the

disparity based on specific local information

extracted from the DSI slice.

The network is trained receiving input data from

the DSI slices. In particular, at each position of a

moving window over the DSI slice, an input pattern

is extracted and presented to the network. A training

example is constituted by a pair of elements (a,b)

where a is the input pattern collecting a set

{}

i

d

and

b corresponding disparity extracted from ground

truth image for each x within the moving window.

(Figure 4).

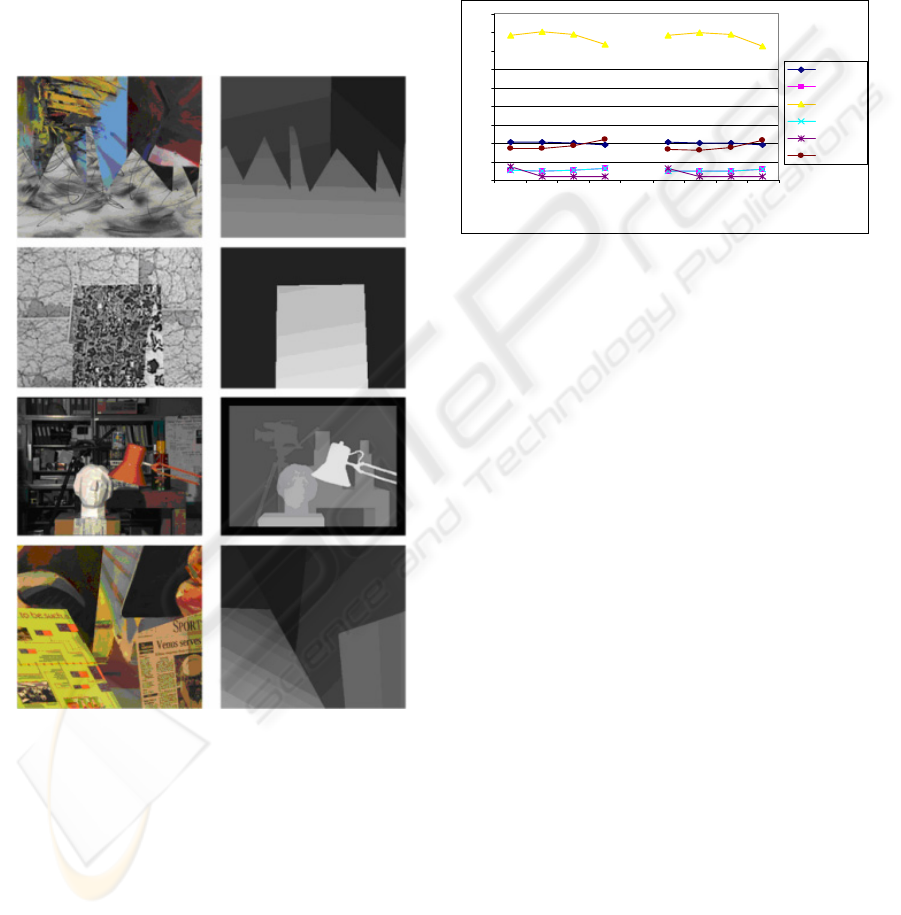

4 EXPERIMENTS

The experiments illustrated in this section addressed

the following questions:

• how did the performance depend upon their main

parameters and upon the neural refinement

stage?

• how did the Growing Template Algorithm

compare with other matching approaches?

The overall experimental activity was supported

by tools and test data available within the

implementation framework proposed by Scharstein

& Szelinski in their paper (Scharstein and Szelisky,

2002) and made available on the Web at

www.middlebury.edu/stereo. We included our stereo

correspondence algorithm in this framework, and

applied it to the test data available.

Four stereo image pairs with different types of

content are used to evaluate the performances of the

proposed algorithm (see Figure 5).

Among the quality measures available within the

framework, we adopted the RMS (root mean

squared) error (measured in disparity units) between

the computed disparity map

),( yxd

C

and the ground

truth map

),( yxd

T

2

1

2

)|),(),((|

1

(

∑

−= yxdyxd

N

R

TC

(12)

These measures are intended computed over the

whole image and five different kinds of regions in

the whole image:

y textureless regions (TEXTRD): regions where

the squared horizontal intensity gradient

averaged over a square window of a given size

(suggested value 3) is below a given threshold

(suggested value 4.0)

y textured regions (TEXTRLS): regions

complementary to the textureless regions

(c)

x

d

(a)

Figure 3: DSI’s slices obtained from the traditional AC

values for each pixel of line 100 (a), and obtained from

the GA on the same line (c). Slice (b) represents

correct dis

p

arit

y

information for line 100

(b)

Trained

Neural

Network

d

d

1

or winner= maximum value

d

2

or second

x

moving

window

input values

selection

d

x

d

x

computed

disparity

Figure 4 –Disparity computation procedure based on a

trained neural network. The process extracts patterns

from a window positioned over a DSI slice. For each x

we select two values: d

1

and d

2

. The trained neural

network calculates the disparity associated with the

center of the moving window.

GROWING AGGREGATION ALGORITHM FOR DENSE TWO-FRAME STEREO CORRESPONDENCE

329

y occluded regions (OCCL): regions that are

occluded in the matching image

y non occluded regions (NONOCCL): regions

complementary to the occluded regions

y depth discontinuity regions (DISC): pixels

whose neighboring disparity differs by more

than a given threshold (suggested value 2.0),

dilated by a window of a given width (suggested

value 9)

These regions are computed by pre-processing

reference images and ground truth disparity maps

yielding binary segmentation.

4.1 Sensitivity Analysis

We attempted to evaluate the effects of

systematically varying some of the key parameters

of our stereo algorithm to find an optimal setting for

all situations. Experiments were developed using SD

and AD matching costs and windows of size 7, 15,

21, 35 for Growing Aggregation Cost.

Results obtained demonstrate that performances

are not strongly influenced by the type of matching

costs used. A large window can help for occlusion

regions. Inversely, small windows perform better on

discontinuity regions.

Dimensions of 35X35 were selected allotting the

task of optimizing the balance between high

accuracy in occlusion and discontinuity regions to

the neural adaptive stage.

4.2 Performance Evaluation and

Comparison Analysis

At first the evaluation procedure aimed to identify

and evaluate the contribution of neural refinement

within the global matching algorithm. To this

purpose we compared the Growing Aggregation

Algorithm including the neural stage with the same

version including the WTA strategy for disparity

computation. The evaluation was based on the

monochromatic MAP pair of images. Training data

for the neural stage has been selected from the Map

image in a measure of 10% of global pixels.

As shown in Table 1, the algorithm GA presents

a competitive behaviour. However its principal merit

consists in preparing ideal conditions for the

subsequent neural stage as demonstrated by the fact

that the algorithm with neural refinement (GA+N)

strongly prevails in all regions considered.

We compared performances obtained by means

of the Growing Aggregation Algorithm including

neural refinement with those obtained by running

four algorithms implemented within the cited

framework available, selected among those with

better performances (Table 2).

Figure 5: Left image and ground truth disparity

ma

p

s of test set.

RM S

0

2

4

6

8

10

12

14

16

18

7 15 21 35 7 15 21 35

w indow size

ALL

N_OCCL

OCCL

TEXTRD

TEXTRLS

DISC

SD AD

Figure 6: Sensitivity Analysis of Growing

Aggregation Algorithm.

VISAPP 2006 - MOTION, TRACKING AND STEREO VISION

330

Table 1: Results obtained with MAP image. GA=Growing

Aggregation, GA+N=Growing Aggregation+ Neural

Network for disparity computation.

ALL

NON

OCCL

OCCL

TEXT

RD

TEXT

RLS

DISC

GA

3.85 1.31 14.88 1.32 0.40 4.69

GA+N

1.66 1.42 3.82 1.42 0.72 4.86

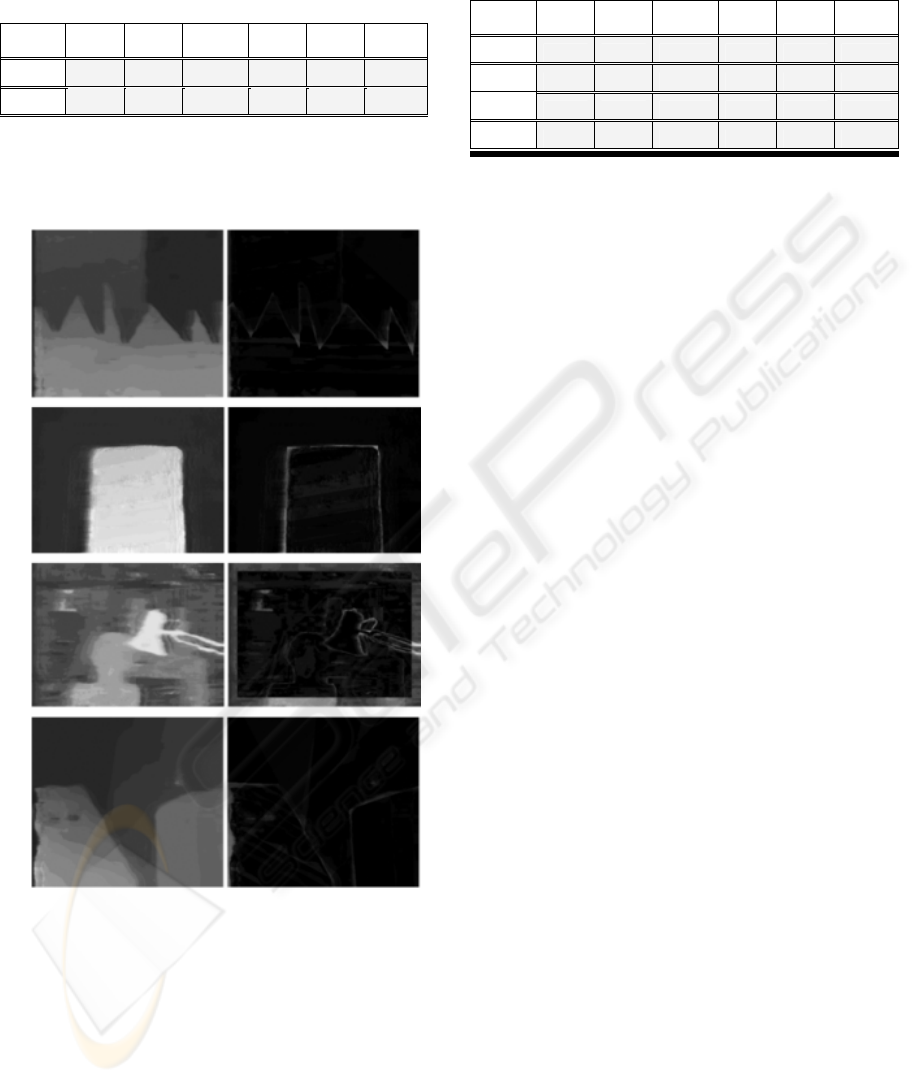

Figure 6 shows final disparity maps obtained by

processing the four stereo image pairs considered.

Table 2: Results obtained with MAP image. DP= Dynamic

Programming, SSD=Sum of Squared Difference,

SO=Scanline Optimization, BD=Bayesian Diffusion.

ALL

NON

OCCL

OCCL

TEXT

RD

TEXT

RLS

DISC

DP

3.15 2.98 5.21 2.99 1.75 5.86

SSD

3.92 1.66 14.65 1.67 0.44 6.07

SO

4.39 2.02 16.09 2.02 2.57 5.25

BD

4.66 0.93 18.74 0.94 0.43 2.95

5 CONCLUSIONS

Our objective in this study was to investigate the

potentialities of a new method aimed at solving

correspondence problem within a two-frame area

matching approach and producing dense disparity

maps.

The strategy was tested on standard data sets

available on the Web. As seen in this experimental

context the allied use of the growing aggregation

strategy and neural adaptive techniques benefits the

matching in general and in particular in occluded

regions. The use of adapting techniques allow to

process raw data directly extracted from DSI slices

without formalizing explicitly the information useful

for handling occlusions. The trained network

encodes the knowledge about occlusions and

efficiently uses it in generalization.

We consider this study preliminary to further

investigation involving both methodological and

experimental issues.In particular, the present

solutions must be reinforced implementing an

operative strategy for training neural network;

strategies will be integrated in an attempt of

improving generalization in such a way that trained

networks could be reliably applied to different kind

of images never seen during the training stage .

Further experiments dealing with Scanning

Electron Microscopy imagery are planned.
