MODEL-DRIVEN HMI DEVELOPMENT –

CAN META-CASE TOOLS RELIEVE THE PAIN?

Carsten Bock

Dr. Ing. h.c. F. Porsche AG

Stuttgart, Germany

Detlef Zuehlke

German Research Center for Artiﬁcial Intelligence DFKI GmbH

Center for Human Machine Interaction

PO Box 3049, Kaiserslautern 67653, Germany

Keywords:

Model-driven useware engineering, electronic speciﬁcation, model-driven HMI development.

Abstract:

Today metamodeling and domain-speciﬁc languages represent many promising beginnings to create non-

generic tool support for individual modelling tasks. Due to the inherent complexity and numerous variants

of human-machine interfaces (HMIs) model-driven development becomes increasingly interesting for man-

ufacturers and suppliers in the automtive industry. Particularly, the development of powerful user interfaces

requires appropriate development processes as well as easy-to-use software tools. Since suitable tool kits are

missing in the ﬁeld of HMI development this paper describes the utilization of visual domain-speciﬁc lan-

guages for model-driven useware engineering in general and model-based speciﬁcation of automotive HMIs

in special. Moreover, results from a survey among developers are presented revealing the requirements for

HMI speciﬁc tool support. Additionally, experiences with using current meta-CASE tools as well as standard

ofﬁce applications for creating a visual domain-speciﬁc language are presented. Based on these experiences

requirements for future meta-CASE tools are derived.

1 INTRODUCTION

In the past decade the ﬁeld of control systems rapidly

changed with the continuous advancement of micro-

processors and software technology. The increasing

functionality of human-machine interfaces (HMIs)

coming along with the rapid development of compu-

tational power can be perfectly retraced by the ex-

ample of the automotive industry. In the 1960s av-

erage passenger cars were equipped with an odome-

ter while upmarket cars provided a radio. Soon

tachometers, displays for cooling water temperature

as well as warning messages and further informa-

tion were established in instrument clusters and dash-

boards. Nowadays premium cars feature powerful

driver information systems including e.g. AM/FM

tuners, compact disks, iPods, mobile phones, SMS

message and e-mail support as well as navigation sys-

tems. Moreover, assistance systems can increase pas-

senger safety with the aid of lane departure warning,

blind spot detection and adaptive cruise control.

The list of available features could be easily contin-

ued. However, the central challenge becomes appar-

ent by the examples mentioned above: all function-

ality must be easily accessible for users by means of

intuitive HMIs. Especially in the automotive industry

the development of appropriate HMIs deserves spe-

cial attention since road safety must never be endan-

gered by using HMIs (Rudin-Brown, 2005). There-

fore, within the scope of operating concept develop-

ment both hard- and software engineering play a key

role for user acceptance and market success of inter-

active dialog systems.

In the following section 2 the characteristics of in-

terdisciplinary development processes are outlined.

Moreover, the beneﬁts of model-driven engineering

for complex and networked development processes

are revealed. In section 3 the demand for adequate

computer-based tool support is derived. Furthermore,

the essential requirements for tool support in the ﬁeld

of HMI development are described. Consequently, in

section 4 the development of tailored tool support is

illustrated. Experiences and lessons learned from a

pilot project as well as the results of a survey among

HMI developers are unveiled in chapter 5. Addition-

ally, the maturity of selected current meta-CASE tools

is discussed. Finally, in section 6 conclusions are

drawn from the outlined experiences.

312

Bock C. and Zuehlke D. (2006).

MODEL-DRIVEN HMI DEVELOPMENT – CAN META-CASE TOOLS RELIEVE THE PAIN?.

In Proceedings of the First International Conference on Software and Data Technologies, pages 312-319

DOI: 10.5220/0001322403120319

 SciTePress

2 EFFICIENT DEVELOPMENT

PROCESSES FOR POWERFUL

HUMAN-MACHINE-

INTERFACES

When successfully developing useware

(Oberquelle,

2002; Zuehlke, 2002a) manufacturers usually have to

face the challenges of ambitious development tasks.

So as to meet these challenges the expertise of on-site

developers as well as the competence of experienced

suppliers is essential. In such heterogeneous process

environments all members of interdisciplinary devel-

opment teams at manufacturers and suppliers must

be able to communicate in an effective as much as

efﬁcient way. Therefore, the precise documentation

of results is crucial for successful cooperation. This

challenge is especially aggravated since developers

from different ﬁelds of activity with different knowl-

edge and experience typically use different methods

and tools. Consequently, intuitive notations for all

kinds of information must be established in order to

achieve a common understanding among team mem-

bers. Furthermore, to meet the requirements of in-

terdisciplinary and networked development processes

information must be easily accessible to all develop-

ers involved.

As a result today’s development processes are pre-

dominantly paper-based. Moreover, the diversity of

tools for creating requirement speciﬁcations corre-

sponds to the number of methods and interfaces in

development processes. Hence, besides requirement

speciﬁcations regularly further documents need to be

exchanged which are created with standard ofﬁce ap-

plications or imaging software. Even though these

tools can help to increase the productivity in many

ﬁelds of application their usage is associated with sig-

niﬁcant problems. In particular such heterogeneous

tool landscapes inevitably result in myriad media dis-

ruptions. These can only be overcome by transform-

ing formats with the help of conversion tools.

Besides transformation related difﬁculties the most

important consequence is room for interpretations.

Frequently, these interpretations lead to misunder-

standings and cause unrecognized need for action in

late project phases. Moreover, signiﬁcant effort is

required for transforming paper-based speciﬁcations

into virtual prototypes or even the ﬁnal product. For

instance, the speciﬁcation of a high-end driver infor-

mation system easily comprises more than 1000 pages

and has to be implemented manually. As a result of

Useware includes all hard- and software components of

a technical system, which are required for its usage. The ex-

pression useware has been created to demonstrate the equal

importance of human-machine-systems compared to hard-

and software (Zuehlke, 2002b).

this manual work ideas and concepts can only be eval-

uated with simulations or prototypes in relatively late

project phases of the development process.

Experience shows that this is typically insufﬁcient

for an early comparison with customers’ and deci-

sion makers’ expectations (Fitton et al., 2005). More-

over, updating cycles of speciﬁcations take so much

time that adjustments to rapidly changing require-

ments can only be accomplished with great efforts.

Since changes can only be incorporated into the prod-

uct in a rush without updating the speciﬁcation paper-

based documentation typically becomes less impor-

tant in the ﬁnal phases of development projects. Fi-

nally, this leads to product features whose origin can

hardly be retraced after product launch.

One approach to overcome the above-mentioned

obstacles is a consistently tool- and model-based de-

velopment process. In the ﬁeld of HMI development

such a process can bridge the gap between require-

ment speciﬁcations and virtual prototypes and the ﬁ-

nal product as well. Simultaneously, model-based

concepts allow for increased ﬂexibility, reduced re-

action times and signiﬁcantly shorter development

times.

3 TOOL SUPPORT FOR

COMPLEX NETWORKED

DEVELOPMENT PROCESSES

Although in the 1980s and 1990s powerful Computer

Aided Software Engineering (CASE-) tools were de-

veloped for the ﬁeld of software development their

use is still limited to few application areas. This is

mainly a consequence of the UML’s ’one-size-ﬁts-

all’ approach as well as the generic graphical repre-

sentation of its modelling constructs (Schmidt, 2006).

Especially in the ﬁeld of HMI development CASE-

tools could not establish their market position because

the UML particularly lacks adequate instruments for

specifying Graphical User Interface (GUI) (Blanken-

horn and Jeckle, 2004). Obviously, sophisticated and

established tools like Simulink or LabView are avail-

able in speciﬁc ﬁelds of application like electronic

control unit (ECU) development.

However, appropriate tool support for HMI de-

velopers is still missing. This is due to the rela-

tively small market volume of this business seg-

ment (Ledeczi et al., 2001). Hence, manufactur-

ers are forced to develop non-generic computer-aided

tools – and toolchains respectively – on their own.

These software tools shall provide support for spe-

ciﬁc domains such as HMI development. By means

of non-generic CASE-tools developers shall prefer-

ably be assisted in all phases of a model-driven and

user-centered development process with using spe-

MODEL-DRIVEN HMI DEVELOPMENT - CAN META-CASE TOOLS RELIEVE THE PAIN?

313

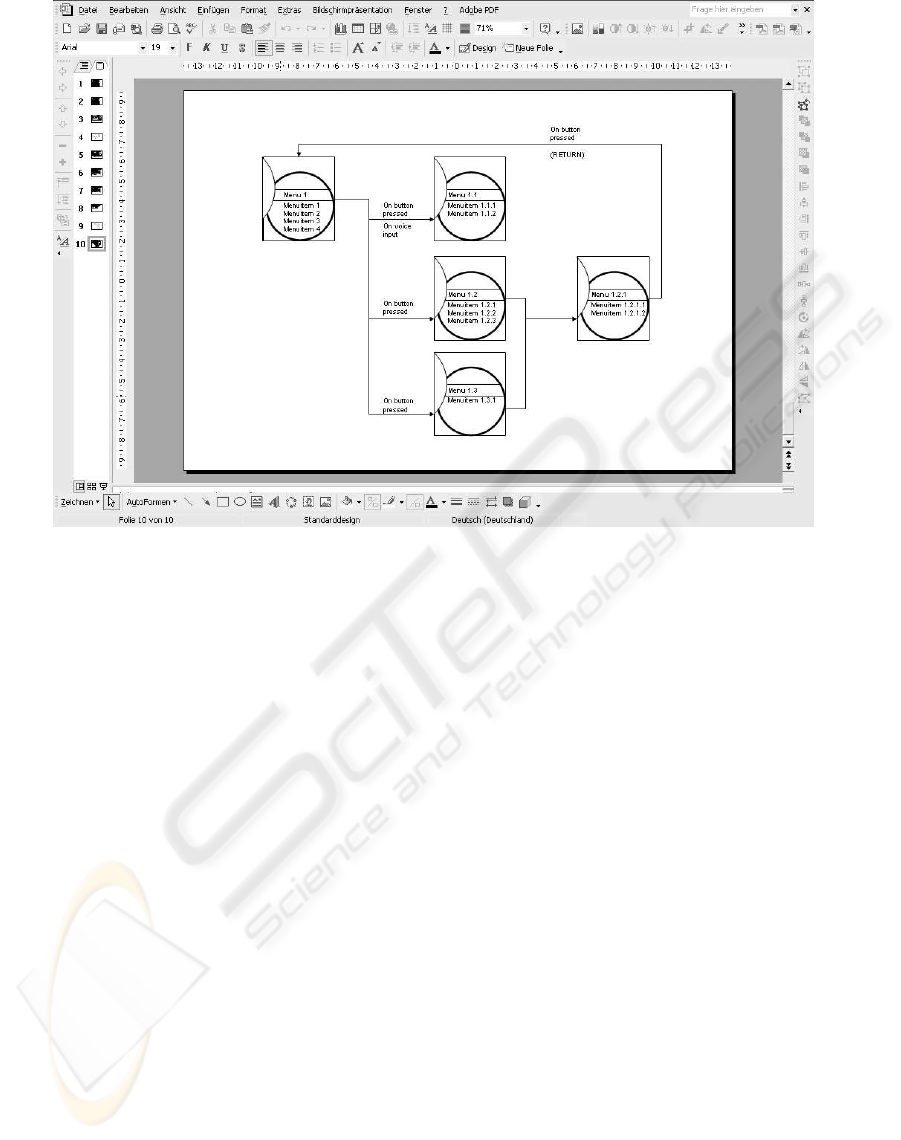

Figure 1: Illustrated state chart for HMI speciﬁcation of an automotive instrument cluster in POWERPOINT.

ciﬁc methods and tools such as illustrated state charts

(Hamberger et al., 2003) (Fig. 1).

Despite the apparent demand for domain-speciﬁc

tool support and its beneﬁts tenacious obstacles seem

to exist. Especially the high cost of proprietary soft-

ware development and a considerable development

risk hinder the broad acceptance and employment

of domain-speciﬁc CASE-tools (Spinellis, 2001).

Therefore, in the following an approach for imple-

menting a CASE-tool for model-driven HMI develop-

ment is presented. This approach shall allow for over-

coming the problem of missing tool support while si-

multaneously enabling manufacturers to face the chal-

lenges of the inherent complexity (Myers, 1993) of

user interface development. Furthermore, opportuni-

ties are provided to meet the requirements stemming

from the multidisciplinarity and the close cooperation

in networked development processes. Metamodelling

offers promising possibilities for the development of

non-generic modelling languages which are tailored

for the individual requirements of a speciﬁc problem

domain. In this way the typical problems of misusing

tools in application areas signiﬁcantly differing from

the originally intended domain can be avoided: huge

effort for adaptation and missing support for famil-

iar development methods including the corresponding

notations (Bock and Zuehlke, 2006).

4 DEVELOPING A

MODEL-DRIVEN TOOLCHAIN

FOR HMI SPECIFICATION

In order to evaluate the applicability of metamod-

elling in HMI development this approach was used

in a pilot project. The aim was to develop speciﬁc

CASE-tools supporting developers in the HMI devel-

opment process. For the development of an appro-

priate tool support the following requirements were

particularly important:

• High problem orientation: Tool support must

be extremely problem-oriented so that even non-

experts can read speciﬁcations and work with the

speciﬁc CASE-tools.

• High abstraction level: The speciﬁc CASE-tools

shall make system speciﬁcation possible on an ap-

propriate abstraction level. This should hide imple-

mentation details from developers such as the hard-

and software architecture of a target platform or the

operating system.

• Intuitive notation: The use of graphical tools shall

allow developers to specify a system by means of a

familiar graphical representation such as illustrated

state charts.

• Formal speciﬁcation: Developers shall be enabled

to create formal speciﬁcations. These shall allow

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

314

for the automated generation of simulations for in-

process evaluation.

Finally, electronic speciﬁcations shall be used as a

central communication instrument for manufacturers’

in-house developers and moreover for the communi-

cation with suppliers. The overall aim is to estab-

lish formal speciﬁcations as the central backbone of

a model-driven development process.

Define

constraints

Domain-specific

language

Identify

domain concepts

1 32

Create code

generator/framework

Add graphical

notation

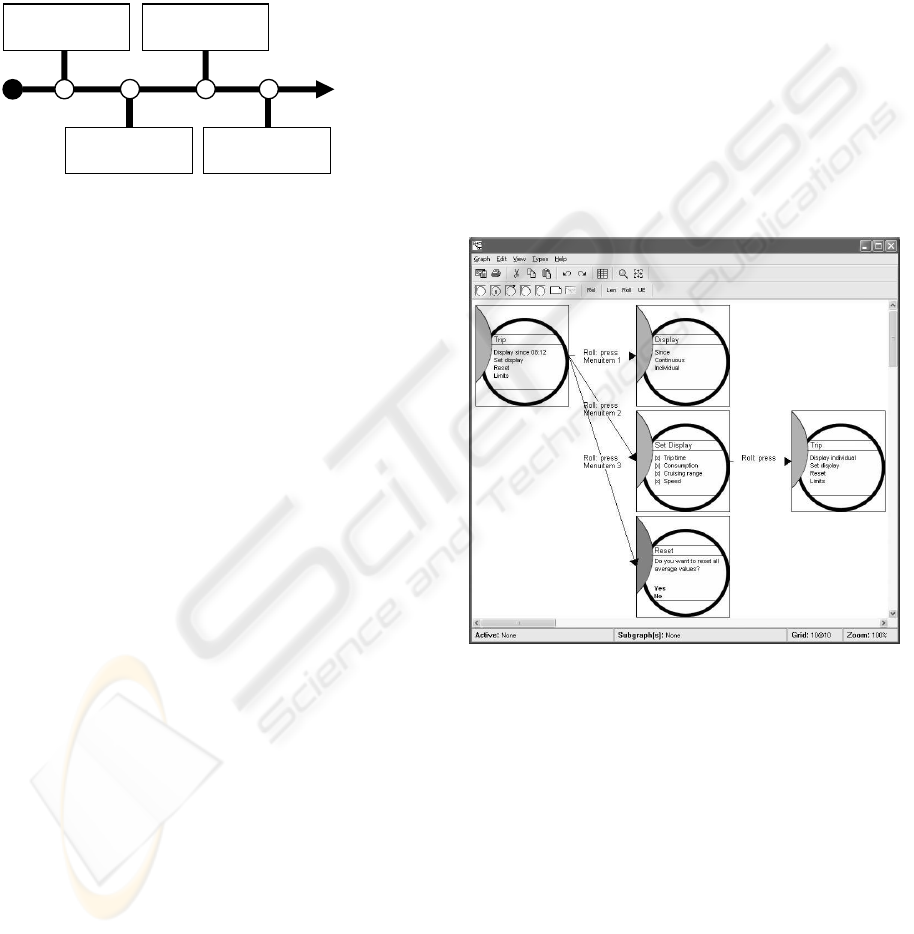

Figure 2: Development process for domain-speciﬁc lan-

guages.

At the beginning a small team of domain experts

consisting of experienced HMI developers identiﬁed

the essential concepts of the problem domain (Fig. 2).

In this step existing requirements documents such as

speciﬁcations and style guides and particularly the

terminology used in daily project work were ana-

lyzed. Thus in the case of driver information systems

single menu screens of the GUI and controls like ro-

tary knobs and pushbuttons represent main concepts

of the problem domain. These concepts could quickly

be identiﬁed by the domain experts since they are fre-

quently used for product speciﬁcation. Additionally,

the events a system should react to were included, e.g.

turning and pressing a rotary knob or pressing and

holding a pushbutton. Thereby all properties of every

single domain concept were deﬁned. Afterwards con-

straints were added to the metamodel in order to re-

strict the degrees of freedom for developers in a rea-

sonable way. Amongst others, the use of some con-

trols was limited to special conditions. For instance,

constraints were deﬁned for limiting the number of

subsequent menu screens after selecting a menu item

to at most one. Additional constraints prescribe a

ﬁxed pushbutton for return actions. In a ﬁnal step

meaningful pictograms were deﬁned for domain con-

cepts. These pictograms shall enable developers to

intuitively identify domain concepts when using the

visual DSL at model time. The speciﬁcation of tex-

tual content (e.g. menuitems) and behavior of a user

interface for an instrument cluster with the DSL is il-

lustrated in Fig. 3.

In the pilot project a simulation framework was im-

plemented in JAVA containing a state machine and

base widgets to cover the static parts of simulations.

Consequently, only the dynamic parts, i.e. textual

content and behavior, must be linked to the frame-

work to bring automatically generated simulations to

life. For transforming the platform independent mod-

els created with the visual DSL into platform speciﬁc

models or source code a code generator was built.

Thereby the gap between domain models and source

code necessary for simulations or the ﬁnal product

can be bridged. The main challenge when building

a code generator is to deﬁne how information can be

extracted from models and how domain concepts are

mapped onto code.

Consequently, careful metamodelling of domain

concepts allows for full code generation of simulation

code’s dynamic parts. Although thereby error-prone

manual programming cannot be completely elimi-

nated in any case at least a signiﬁcant reduction is

likely to be accomplished. Finally, executable simu-

lations can be created without any further activities of

developers or programmers by calling functions pro-

vided by a static domain framework.

Figure 3: Visual domain-speciﬁc language for GUI content

and behavior.

Subsequently, the potentials of metamodelling and

the efﬁciency of current meta-CASE tools are dis-

cussed. Furthermore, experiences with building a

toolchain for model-driven HMI development are pre-

sented.

5 META-CASE TOOLS VERSUS

STANDARD OFFICE

APPLICATIONS

In the pilot project the development of non-generic

CASE-tools has proven that metamodelling must be

MODEL-DRIVEN HMI DEVELOPMENT - CAN META-CASE TOOLS RELIEVE THE PAIN?

315

Table 1: Structure of questionnaire for HMI toolchain requirements.

Category Criterion Description

Functionality Flexibility Easy adaptation for other development projects

Modelling course of actions Speciﬁcation of course of action with illustrated state charts

Familiar notation Developers can specify HMIs with well-known graphical symbols

Usability Usability of modelling tool(s)

Model reuse Possibility to use models in different HMI projects

Model validation Check for deadlocks, basic rules from HMI style guide

Collaboration Developers can work simultaneously on a common database

Role concept Different view on speciﬁcation data dependent on developer’s role

Layout menu screens Possibility to chance GUI details

Automatic

processing

Speciﬁcation transformation Transform HMI speciﬁcation into supplier speciﬁc, machine-readable

format

Export standard formats Export HMI speciﬁcation to WORD, POWERPOINT, PDF etc.

Test automation Automated model-based HMI testing

Usability tests Support for usability tests (e.g. usage frequency analysis)

Simulation Easy creation of virtual prototypes

Infrastructure Process stability Maturity of tools used in toolchain

Use of standards Non-proprietary programming/scripting languages, machine-readable

export formats

Interfaces Possibility to exchange speciﬁcation data in toolchain via API

Documentation & Support Availability of documentation and support for tools used in toolchain

considered as a promising approach for building tai-

lormade tool support for model-driven development

processes at affordable cost. Therefore, HMI devel-

opers’ requirements for a toolchain were in the fo-

cus of the pilot project. The following discussion on

metamodelling tools – namely the meta-CASE tools

METAEDIT+ 4.0 (MetaCase) and GENERAL MOD-

ELLING ENVIRONMENT (GME) 5 (Vanderbilt Uni-

versity) and in addition the standard ofﬁce application

VISIO 2003 (Microsoft) – is based on the general re-

sults of a survey among HMI developers at Porsche.

Moreover, experiences with the development of vi-

sual DSLs for automotive HMI development are pre-

sented.

5.1 Survey Results

The examination of developers’ requirements was the

starting point for building a toolchain which is capa-

ble of supporting HMI developers in all phases of the

development process. In order to develop a deep un-

derstanding of developers’ demands structured inter-

views were conducted by means of a questionnaire

(Tab. 1). Developers had to assess 18 criteria on an or-

dinal scale with the attribute values ”very important”,

”important” and ”less important”. Table 2 shows the

overall result and a prioritization of the criteria.

Most notably the criterion usability was not among

developers’ top priorities. At ﬁrst glance this result

was surprising, since the development of usable au-

tomotive HMIs is the daily business for developers.

Hence, a strong demand for usable tool support was

Table 2: Prioritized requirements for HMI toolchain.

Priority Feature

Very important Model reuse

Modelling course of actions

Familiar notation

Usability tests

Simulation

Collaboration

Process stability

Important Flexibility

Usability

Model validation

Use of standards

Interfaces

Export standard formats

Less important Speciﬁcation transformation

Documentation & Support

Layout menu screens

Test automation

Role concept

expected. Nevertheless, this antilogy can be clariﬁed

by stating that developers intuitively assumed POW-

ERPOINT and VISIO as a benchmark. During the in-

terviews developers pointed out repeatedly that every

tool with POWERPOINT’s or VISIO’s look and feel

and interaction patterns would be suitable to be used

in a toolchain. Thus, it has to be concluded that us-

ability is not explicitly claimed as a desired attribute,

but nonetheless stipulated in advance as an essen-

tial and inherent feature of appropriate tool support.

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

316

Therefore, usability was explicitely chosen to derive

the taxonomy presented in the following section.

5.2 Experiences

The following discussion is split into the dimensions

expressiveness and usability. Whereas the ﬁrst di-

mension refers to the amount of problem knowledge

embodied in a domain model the latter incorporates

the effectiveness, efﬁciency, and satisfaction (Interna-

tional Organization for Standardization, 1998) with

which users can fulﬁl a task. The evaluation of the

selected meta-CASE tools shows that in general de-

signing graphical DSLs and thus developing speciﬁc

tool support is reasonably straightforward in com-

parison to building a CASE-tool from scratch. At

the beginning of this process experienced domain ex-

perts together with a programmer have to identify

and abstract the essential domain concepts result-

ing in a domain metamodel. This process is sup-

ported by the meta-CASE tools METAEDIT+ and

GME respectively. With respect to the expressive-

ness dimension both tools were comparably power-

ful within the scope of the pilot project. The tools’

meta-metamodelling languages MetaGME (Emerson,

2004) (GME) and GOPRR (Smolander et al., 1991)

(METAEDIT+) provide mechanisms for describing

entities, attributes and relationships. Moreover, con-

cepts for information reuse (e.g. modularization and

inheritance) are provided. With these mechanisms

and concepts both meta-CASE tools were capable to

create metamodels that completely reﬂect the identi-

ﬁed domain concepts. Nevertheless, there is evidence

that further reﬁnement could be advisable. For in-

stance, in METAEDIT+ the possibilities for deﬁning

complex constraints are limited. Thus it was impossi-

ble to deﬁne a minimum of connections between enti-

ties ensuring that a certain object is at least connected

with a minimal number of corresponding instances.

Furthermore, it was not possible to deﬁne constraints

prescribing that relationships between entities should

depend on speciﬁc values of particular object proper-

ties. In this respect GME offers more ﬂexibility due

to the implementation of the UML’s object constraint

language (OCL) (Alanen et al., 2005).

Regarding usability aspects the evaluated meta-

CASE tools reveal potentials for further enhance-

ments both on the metamodelling and the modelling

level. Thus in METAEDIT+ metamodelling must be

carried out textually by means of numerous dialogs.

In contrast GME allows for metamodelling via direct

manipulation of graphical objects using the drag-and-

drop paradigm. Nevertheless, constraints also have to

be deﬁned textually by specifying OCL expressions.

Therefore, integrated graphical support for building

OCL expressions as proposed in the VISUALOCL

project (Fish et al., 2005), (TFS, 2004) would be

beneﬁcial.

Concerning modelling issues – that is to say the

instantiation of metamodels – the evaluation in daily

project work has proven that the graphical represen-

tation of domain concepts was of major impact to

the decrease of HMI developers’ reservation against

the unfamiliar paradigms of DSLs and model-driven

speciﬁcations. In particular, the direct manipulation

of objects relevant to their current task context gives

developers the impression of operating with real ob-

jects. Moreover, by means of visual DSLs developers

are enabled to create speciﬁcations in an intuitive way

by using objects corresponding to their anticipated

mental model (Jacob, 1986). Consequently, due to

the close semantic distance between domain concepts

and their graphical representation in the DSL the ac-

ceptance of this new approach could signiﬁcantly be

increased.

Besides the graphical representation of a DSL the

support for established and familiar workﬂow was im-

portant for acceptance among developers. Thus it

soon became apparent that developers were hardly

willing to resign functionality of traditional speciﬁ-

cation tools. For instance, a frequently used speci-

ﬁcation instrument is the insertion of comments and

memos. While on the metamodelling level it is ob-

viously possible to provide a DSL with textual notes

and an appropriate graphical representation the eval-

uated meta-CASE tools did not possess means for

adding graphical comments such as rough sketches

which do not possess any semantic meaning. Unfor-

tunately, developers make heavy use of this feature in

current projects. Experience has shown that in daily

work such tool ﬂexibility is vitally important. There-

fore, tool ﬂexibility can hardly be offset by the indis-

putable advantages of more formal speciﬁcations, if

these have to be created with less easy-to-use tools.

Furthermore, developers strongly demanded the

implementation of the widespread operating philos-

ophy of standard ofﬁce applications. Among other

things this includes object inspectors, tree views for

object hierarchy or discretely colored grids for align-

ment. Moreover also powerful auto layout for com-

plex diagrams would be desirable. While GME meets

the two last-mentioned requirements an editor for the

deﬁnition of domain concepts’ graphical representa-

tion is missing. Although GME supports the assign-

ment of bitmap ﬁles to abstracted domain concepts

METAEDIT+ with its integrated symbol editor was

considered superior in this respect. But, the features

of this rudimental symbol editor are limited to only

elementary geometric and freeform shapes. Unfor-

tunately, this implementation appears to be too cum-

bersome at ﬁrst glance. Even at closer inspection

support for complex constraints and dependencies or

nested graphical objects is missing. Finally, besides

GUI related topics also enhanced features for model

MODEL-DRIVEN HMI DEVELOPMENT - CAN META-CASE TOOLS RELIEVE THE PAIN?

317

checking could be desirable. While METAEDIT+

validates at modelling time (online) this has to be

explicitly triggered in GME. None the less, further

features such as deadlock veriﬁcation for state ma-

chines would provide additional beneﬁts. Although

such functionality could be implemented by leverag-

ing scripting languages or application programming

interfaces integrated solutions would be more com-

fortable.

Moreover, the assessed tools offered no support

for round-trip engineering from models to source and

vice versa. The selected tools also provide only very

limited support for debugging at the model level.

This is a straightforward requirement when aiming

for increasing the abstraction level of product devel-

opment processes. Finally, for a seamless integration

of model-based approaches in real-life projects solu-

tions for version control at the model level is badly

needed.

Meta-modelling

usability

Modelling

usability

GME

MetaEdit+

Visio

appli-

cable

applicable

insufficient

satisfactory

insuffi-

cient

satis-

factory

PowerPoint

Expressiveness

applicableinsufficient satisfactory

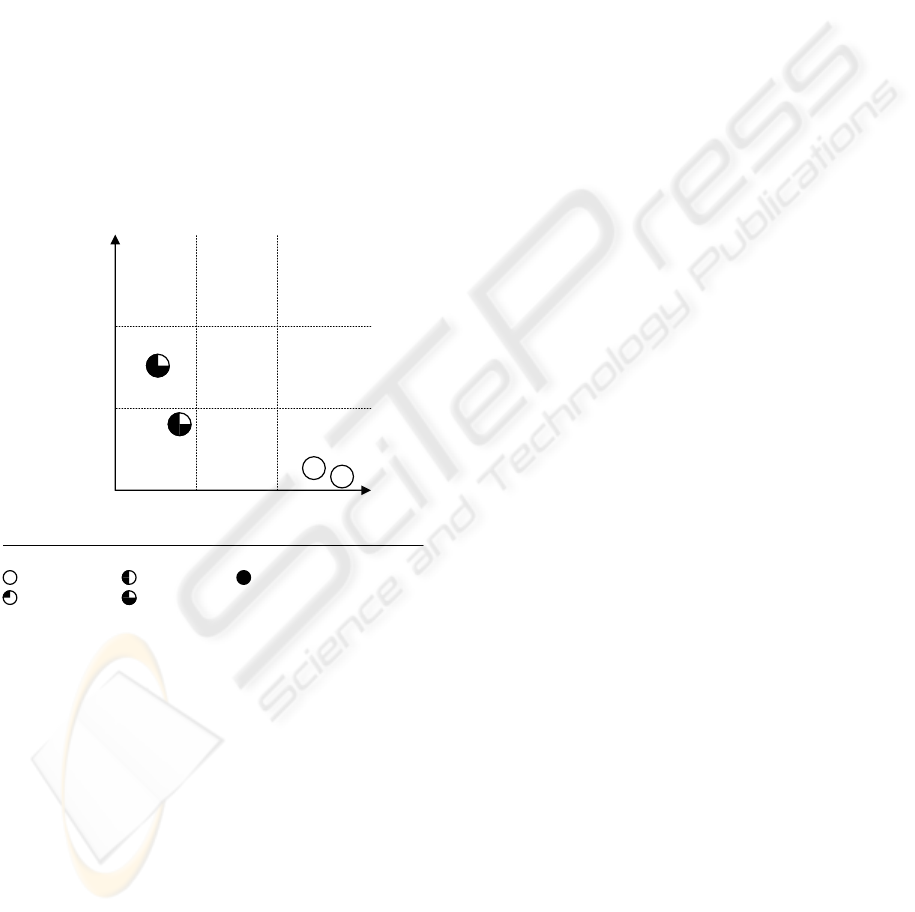

Figure 4: Evaluation of metamodelling tools by means of

expressiveness and usability.

Due to the usability restrictions mentioned above

VISIO was considered as an alternative to specialized

meta-CASE tools. This standard ofﬁce application

was chosen because its operating philosophy comes

very close to POWERPOINT’s – with its outstanding

usability as stated by HMI developers – while at the

same time offering the possibility to save diagrams

in a XML format. Since serialization is crucial for

the use of machine-readable speciﬁcations along a

model-driven development process it is also an impor-

tant criterion for the selection of a suitable modelling

environment. Although VISIO’s limited expressive-

ness began to show almost immediately on the meta-

modelling level developers nevertheless got obviously

used to this modelling tool much faster than to one of

the alternative meta-CASE tools. Figure 4 shows the

results of a survey among developers and program-

mers on the basis of the above-mentioned dimensions.

Accordingly, it must be stated that in the pilot

project none of the evaluated tools could fully meet

the requirements for tool support in our model-driven

HMI development process regarding expressiveness

and usability. While on the one hand METAEDIT+

and GME have proven to be sufﬁciently powerful for

mapping domain concepts of complex problem do-

mains limitations on the deﬁnition of constraints and

graphical representations as well as numerous usabil-

ity issues still remain. On the other hand the stan-

dard ofﬁce application VISIO fails to meet the ex-

pressiveness demands while in contrast clearly satis-

fying developers’ usability requirements. Although

these ﬁndings must be treated carefully – since partic-

ularly VISIO’s strong acceptance might be superposed

by its familiarity in consequence of frequent use in

daily work – the overall conclusion is on the horizon:

for metamodelling to gain broader acceptance meta-

CASE tools need to provide sufﬁcient expressiveness

while simultaneously offering satisfying easy-of-use.

6 CONCLUSION

The aim of the outlined pilot project was to evalu-

ate the applicability of model-based approaches for a

model-driven HMI development process. Experience

shows that metamodelling can provide valuable bene-

ﬁt for improving processes and tool support. The key

factors for possible process improvements are:

• Abstraction: The development problem has to be

solved only once on a high level of abstraction.

• Focus on problem domain: Developers can work

on the development task with the concepts of the

problem domain. Thereby, complexity can be hid-

den – although not necessarily reduced – and de-

velopers can use their familiar terminology.

• Transparency: The knowledge of domain experts

is explicitly kept in the domain-speciﬁc language.

Thus, the DSL enables new members of a develop-

ment team to become acquainted with the concepts

and constraints of a speciﬁc domain more easily.

In addition to these process-oriented improvements

metamodelling provides manufacturers opportunities

for building individual tool support at arguable cost.

Particularly, when building CASE-tools for well-

deﬁned problem domains productivity gains can be

achieved compared to conventional programming.

Despite these promising beginnings the evaluation

of the selected meta-CASE tools reveals that further

enhancements are possible. While the assessed meta-

CASE tools meet the expressiveness requirements of

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

318

the HMI problem domains better usability for meta-

modellers and modelers in particular is inevitable.

Apart from effectiveness and efﬁciency the ease-of-

use is most crucial for the acceptance of tools among

developers. Consequently, usability issues deserve

special attention. Hence, the additional incorpora-

tion of carefully selected interaction patterns and the

look-and-feel of standard ofﬁce applications could be

an important step for achieving the right balance be-

tween expressive power and usability.

Finally, such tool kits would allow developers to

utilize the obvious advantages of model-driven ap-

proaches in their daily development work. This would

enable manufacturers and suppliers to overcome to-

day’s urgent problems with complex and networked

development processes.

REFERENCES

Alanen, M., Lundkvist, T., and Porres, I. (2005). GXL

and MOF: A Comparison of XML Applications

for Information Interchange. Available from:

http://www.tucs.fi/publications/

attachment.php?fname=inpAlLuPo05a.

pdf [cited 11.7.2006].

Blankenhorn, K. and Jeckle, M. (2004). A UML proﬁle for

GUI layout. In Weske, M. and Liggesmeyer, P., ed-

itors, Object-Oriented and Internet-Based Technolo-

gies, Net.ObjectDays 2004, Erfurt, Germany, Septem-

ber 27-30, 2004, pages 110–121. Springer.

Bock, C. and Zuehlke, D. (2006). Non-generic tools support

for model-driven product development. atp – Automa-

tisierungstechnische Praxis, 48(7):42–48.

Emerson, M. (2004). GME-MOF: The MOF-

based GME Metamodeling Environment. In

Model-Integrated Computing Workshop. Avail-

able from: http://www.omg.org/news/

meetings/workshops/MIC

2004 Manual/

03-1

Emerson etal.pdf [cited 13.5.2006].

Fish, A., Howse, J., Taentzer, G., and Winkelmann, J.

(2005). Two visualizations of OCL: A comparison.

Available from: http://www.cmis.brighton.

ac.uk/research/vmg/VOCLTR.html [cited

27.6.2006].

Fitton, D., Cheverst, K., Kray, C., Dix, A., Rounceﬁeld, M.,

and Saslis-Lagoudakis, G. (2005). Rapid prototyping

and user-centered design of interactive display-based

systems. IEEE Pervasive Computing, 4(4):58–66.

Hamberger, W., Deutler, P., and Bouaziz, T. (2003). Audi

Multi Media Interface (MMI) – Von der Idee zum Pro-

dukt: Interdisziplin

ar – Prozessorientiert – Modellrei-

hen

ubergreifend, volume 1789 of VDI-Berichte, pages

1175–1191. VDI.

International Organization for Standardization (1998). ISO

9241-11:1998 : Ergonomic requirements for ofﬁce

work with visual display terminals (VDTs) – Part 11:

Guidance on usability.

Jacob, R. J. K. (1986). A speciﬁcation language for direct-

manipulation user interfaces. ACM Trans. Graph.,

5(4):283–317.

Ledeczi, A., Bakay, A., Maroti, M., Volgyesi, P., Nord-

strom, G., Sprinkle, J., and Karsai, G. (2001). Com-

posing domain-speciﬁc design environments. Com-

puter, IEEE, 34(11):44–51.

Myers, B. A. (1993). Why are human-computer inter-

faces difﬁcult to design and implement? Techni-

cal Report CMU-CS-93-183, Computer Science De-

partment, Carnegie Mellon University, Pittsburgh, PA,

USA.

Oberquelle, H. (2002). Useware Design and Evolution:

Bridging Social Thinking and Software Construction,

pages 391–408. MIT-Press, Cambridge, London.

Rudin-Brown, C. (2005). Strategies for reducing driver dis-

traction from in-vehicle telematics devices: Report on

industry and public consultations. Research Report

TP 14409 E, Transport Canada, Road Safety and Mo-

tor Vehicle Regulation Directorate.

Schmidt, D. C. (2006). Guest editor’s introduction: Model-

driven engineering. Computer, 39(2):25–31.

Smolander, K., Lyytinen, K., Tahvanainen, V.-P., and Mart-

tiin, P. (1991). MetaEdit: A ﬂexible graphical environ-

ment for methodology modelling. In CAiSE ’91: Pro-

ceedings of the third international conference on Ad-

vanced information systems engineering, pages 168–

193, New York, NY, USA. Springer.

Spinellis, D. (2001). Notable design patterns for domain-

speciﬁc languages. J. Syst. Softw., 56(1):91–99.

TFS (2004). VisualOCL – Editor plugin for Eclipse. Avail-

able from: http://tfs.cs.tu-berlin.de/

vocl/ [cited 25.7.2006].

Zuehlke, D. (2002a). USEWARE – Herausforderung der

Zukunft. atp – Automatisierungstechnische Praxis,

44(9):73–77.

Zuehlke, D. (2002b). Useware forum. Available

from: http://www.useware-forum.de [cited

13.6.2006].

MODEL-DRIVEN HMI DEVELOPMENT - CAN META-CASE TOOLS RELIEVE THE PAIN?

319
