A SYSTEMATIC REVIEW MEASUREMENT IN SOFTWARE

ENGINEERING

State-of-the-art in Measures

Oswaldo Gómez, Hanna Oktaba

Institute of Investigations in Applied Mathematics and Systems, Autonomous National University of Mexico UNAM

Scholar Circuit University City, Coyoacán 04510, Mexico City, Mexico

Mario Piattini, Félix García

Alarcos Research Group, Department of Computer Science, University of Castilla-La Mancha

Paseo de la Universidad/4,13071,Ciudad Real, Spain

Keywords: Software Measurement, Measure, Systematic Review.

Abstract: The present work provides a summary of the state of

art in software measures by means of a systematic

review on the current literature. Nowadays, many companies need to answer the following questions: How

to measure?, When to measure and What to measure?. There have been a lot of efforts made to attempt to

answer these questions, and this has resulted in a large amount of data what is sometimes confusing and

unclear information. This needs to be properly processed and classified in order to provide a better overview

of the current situation. We have used a Measurement Software Ontology to classify and put the amount of

data in this field in order. We have also analyzed the results of the systematic review, to show the trends in

the software measurement field and the software process on which the measurement efforts have focused. It

has allowed us to discover what parts of the process are not supported enough by measurements, to thus

motivate future research in those areas.

1 INTRODUCTION

It is a well-known fact nowadays that software

measurement helps us to better understand, evaluate,

and control the products, processes, and software

projects from the perspective of evaluating, tracking,

forecasting, controlling and understanding (Ebert et

al., 2004). On the one hand, software measurement

allows organizations to know, compare and improve

their software quality, performance, and processes.

On the other hand, software measurement helps

organizations to estimate and predict software

characteristics to support better decisions (Pfleeger,

1997; Florac et al., 1999). As a consequence,

software measures are proving to be very effective

for understanding and improving software

development and maintenance projects (Briand et

al., 1996), showing problematic areas in system

quality and institutionalizing software process

improvement.

It should also be noted that there is a large amount of

studies i

n software measurement, which makes it

very easy to lose information and to get confused.

For this reason, it is important to follow a specific,

strict, and very well defined method for searching in

the current literature. If we take a look at software

measurement, we realize that it is considered to be

among the youngest disciplines, and it is currently in

the phase in which terminology, principles, and

methods are still being defined and consolidated

(Briand, 2002). This means that there is not a

general agreement about the exact definitions of the

main concepts related to measurement. In addition,

no single standard contains a complete vision of

software measurements (García et al., 2004).

With respect to the issues identified above, this

article carries

out a systematic review with a

predefined search strategy, in order to summarize

and classify the current and ongoing efforts in this

field. The systematic review has been conducted

according to the (Kitchenham et al 2004) proposal,

which is very suitable for looking for information

224

Gómez O., Oktaba H., Piattini M. and García F. (2006).

A SYSTEMATIC REVIEW MEASUREMENT IN SOFTWARE ENGINEERING - State-of-the-art in Measures.

In Proceedings of the First International Conference on Software and Data Technologies, pages 224-231

DOI: 10.5220/0001317102240231

 SciTePress

about measures on different sources in a disciplined

and systematic way. Hence, Systematic review

allows us to recognize, evaluate and do even more; it

helps us to identify issues for planning future

investigation and provides us with information about

the consistency of our results (Travassos et al.,

2005). We chose systematic review because of its

scientific methodology that goes one step further

than a simple overview.

The goal of this work is to find and clarify the

answers to three different questions: What to

measure, when to measure and how to measure. This

is achieved by analyzing from the results of the

literature review, the following issues: proportion of

measured entities; measured attributes; validated

measurement; measurement focus; and measurement

in life cycle software process.

This paper is organized as follows. After this

introduction; an overview of the systematic review

process is given. In the third section, the way in

which the systematic review has been carried out on

the software measurement field is explained. Then,

an analysis of the results is provided. Finally, the

conclusions and future work are dealt with.

2 SYSTEMATIC REVIEWS

It is often recognized in Software Engineering that

different research studies are generally fragmented

and limited, not properly integrated, and without

agreed standards (Kitcheham et al., 2004). In order

to avoid those problems we chose the systematic

review to carry out this investigation on software

measures. Systematic review aims to present a fair

evaluation of a research topic by using trustworthy,

rigorous and auditable methodology, along with a

very well defined strategy that allows the

completeness of the research to be executed (in this

case on software measures). Furthermore, systematic

literature review is a formal and methodological

process that allows us to identify, evaluate, and

interpret all existing studies that are related to our

investigation on software measures based in this

case on a research question, but it could be also

based on topic area, or phenomenon of interest. This

is done in such a way that it helps us to summarize

the evidence that is currently available concerning a

treatment or technology. It also serves to identify

any gaps in the current research, and thus suggest

areas for further investigations, and finally provide a

framework/background to position new research

activities appropriately.

The review provides us with the necessary

information to properly address the software

measures

, by mapping the measure field, finding the

relevant data, ideas, techniques and their correlation

with our investigation. Besides, it can support the

planning for a new piece of research. Moreover,

with this systematic literature review we can

integrate empirical investigation, in order to find out

generalizations. We do this by establishing specific

objectives to create critical analysis. An overview of

the systematic review is provided in the next

subsection.

2.1 The Systematic Review Process

In order to address and present a fair evaluation of a

research topic, the systematic review is composed of

the following phases:

Review Planning Phase: Here the investigation’s

goals are established. The Review Protocol, which is

the most important item in this phase, is generated.

First and foremost, this protocol defines the research

question and the methods that will be executed in the

review. In a broad manner, this phase involves the

following, summarized, activities, defined by

(Travassos et al., 2005):

Question Formulization: This activity is

considered to be among the most important in the

systematic review process. Here the investigation

targets must be defined by focusing the question and

by establishing its Quality and Amplitude.

Source Selection: Primary studies from sources

are selected here, by defining a source selection

criterion, setting the studies’ languages, identifying

and selecting the sources after an assessment of

them and checking references.

Study Selection: It describes the process and

criteria for the evaluation and selection of studies.

Review Execution phase: This phase involves

identification, selection and evaluation of primary

studies, based on the inclusion and exclusion criteria

defined in the Review Protocol. It is composed of

the following steps, in summary form:

Selection Execution: This section aims to register

the selection process for primary studies by

evaluating them with quality criteria.

Information Extraction: Once primary studies are

selected, the relevant data must be extracted by

following an Information Inclusion and Exclusion

Criteria Definition, by defining Data Extraction

Forms, and by resolving divergences among

reviewers.

Result Analysis: In this phase all the information

from the different studies is analyzed. This phase

A SYSTEMATIC REVIEW MEASUREMENT IN SOFTWARE ENGINEERING - State-of-the-art in Measures

225

involves the next step: Result Summarization, which

presents the data resulting from the collected studies

by doing Calculus Statistical, Results Tables,

Sensitivity Analysis, Plotting, which will lead to the

Conclusion and Final Comments.

The whole process must be stored and the

planning and the execution have to guarantee that

the research can be done. It is worth mentioning here

that the Review Protocol must be evaluated by

experts. Finally, many of the activities of the review

process involve iteration to refine the process, and

therefore they are not necessarily sequential.

In the next section, we describe how the review

process, which was designed as appropriate to our

research goals, was performed

3 SYSTEMATIC REVIEW

ABOUT SOFTWARE

MEASURES

First of all, it must be emphasized that this paper is

an attempt to answer this fundamental question:

What are the most current and useful measures in the

literature? Since our whole protocol was produced

around this question, this is the main step in our

Review Planning Phase. Moreover, we hope that this

work will be useful for project managers and

software developers. The defined strategy was the

following: first and foremost, the large collection of

paper in current literature about software

measurements was examined. Due to the great

diversity of topics in this field, and with the aim of

clarifying and summarizing them in the best way

possible, we used the classifications of concepts

defined in the Software Measurement Ontology

proposed by (García et al., 2004). This ontology

aims at contributing to the harmonization of the

different software measurement proposals and

standards, by providing a coherent set of common

concepts used in software measurement.

In order to do the research we built the following

combinations of search strings:

“(measure OR metric OR quality OR

quantitative) AND (process OR engineering OR

maintenance OR management OR improvement OR

Software testing OR development)”.

All the possible combinations with these words

were tested in the following web search engines:

ACM Digital Library, Search IEEE magazines,

Wiley Interscience, and Science@Direct.

The results obtained on the web engines are

shown in Table 1.

Table 1: Total Search Results.

Sources

Results

Reviewed Accepted

Science@Direct

3569 78 10

ACM

950 85 28

IEEE

3740 111 32

Wiley

653 20 8

TOTAL

8912 294 78

As we can see in Table 1, search engines

provided us with 8912 papers. Nevertheless, it

should be pointed out that only 78 were accepted,

which represents about 1 % of the total articles,

hardly even that. It is apparent that many articles

were rejected. This is so because if a more limited

search had been carried out, it would certainly have

been true that we would have started with fewer

results from the search engines, but at the same time

we would have lost important articles. Therefore, a

very less restrictive search was defined: as a result of

this, we obtained too many articles, of which very

few were considered apt. Furthermore, we have

discarded those measures that were outside the scope

of our model. We have also discarded measures that

did not provide any relevant information, as well as

repeated measures proposed by more than one

author so that each measure is included only once.

Hence, our attention focused on papers where

keywords and titles included the research strings.

These strings were also searched for in the whole

document by some search engines.

Regarding the execution phase of the systematic

review, the selection and evaluation of information

was initiated using the terms of the inclusion and

exclusion criteria defined in the review protocol.

These criteria established that selected studies were

in English and that all of them showed current,

useful software measurements, basically only studies

about measures for software development, software

project administration and maintenance were

selected. All papers had to satisfy our quality criteria

and in this sense it is important to point out that all

the searched-for sources are serious and that the

quality of their papers is guaranteed. Moreover the

search engines were validated by experts. For this

reason, our quality criteria also trusted in the quality

of the sources.

Once the papers were selected, the information

was extracted by means of an extraction template for

objective results which includes study name, author,

institution, journal, date, methodology, results,

problems and subjective results which includes

information through authors, general impressions

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

226

and abstractions, according to the proposal provided

by Trassvasos et al., (2005); in particular, the aims

of this template are to store the results of the

execution phase process by extracting, not only the

objective information, but also the subjective

information from each article analyzed.

Finally, in the results analysis phase we analyzed

the measures in order to show, among other aspects,

the information about attributes, the entities

measured and their characteristics, the amount of

measures in a specific attribute or entity, etc. This

phase is described in more detail in the following

section.

4 RESULT ANALYSIS

The measures extracted from the studies were

summarized in terms of the Software Measurement

Ontology, which helped us to find out what kinds of

measures exist. More specifically, this ontology

supported us in defining a template by categorizing

the measures in the following three different ways:

What to measure? How to measure? And When to

measure?

Consequently, in order to summarize the existing

measures, the ISO 15504, CMM, and CMMI

establish a quality background for the improvement

of maturity levels defining the Project, Process and

Product

as the kind of entities that can be measured.

That is why we extracted attribute and sub-attributes

(Fenton and Pfleeger, 1997) measured of these

entities, from the articles reviewed and classified

them into internal or external. With this part of the

analysis we try to answer the question: What to

measure? This is the first way in which we

categorized the measurements. Table 3 shows these

attributes.

Table 3: Definition of entities.

What?

Entibies

Type of

Attribute

Project Process Product

Attributes

Sub-

attributes

Internal External

Once the measurements were collected and

stored in our template table, we analyzed the amount

of measures which have been defined for the

Process, Project and Product kind of entities. As we

can see in Figure 1, the most measured kind of entity

is the product, and the entities whose measurement

has been less supported by the current literature are

the project and process. The reason is that measuring

product is easier than measuring process and project,

in which we usually find ambiguous definition of

attributes. For products, quality and technical

attributes are very well defined because quality has

been strongly focused on product. Finally,

measurements on product entities help to measure

process and project ones.

Figure 1: Proportion of measured entities.

Next, we shall look at another closely-related

issue, which is the amount of measured attributes.

Figure 2 shows the proportion of measure attributes

according to our analysis of the accepted papers. As

Figure 2 shows, size is one of the most measured

attributes. The point is that the size is a base

measure, not only needed in most of the derived

measures, but the size measure is also easier to

obtain because it focuses on one of the most

“tangible” attributes which is the source code.

Moreover, size has very well defined scales, units

and methods of measurement like functions Points

(FP) (IFPUG, 2004); therefore it is very difficult to

get confused with size measurements. Furthermore,

cost estimation is derived from size and the overall

productivity, and finally the schedule is based on the

size and cost estimates (Ebert et al., 2004). Hence

size is used on most of control measures in a

software project. The arguments set out here lead to

an explanation of why size has one of the highest

values in Figure 2.

In order to show in a in a better way the information

displayed in Figure 2, Table 4 show the attributes

order by the most measured.

In connection with the most measured attributes,

the complexity attribute is used in different contexts,

for example: source code complexity, Design

complexity, UML Diagrams complexity,

Architecture complexity, etc. Hence it can be seen

that complexity has gathered many measurements

from its different applications. If we take a look at

Figure 2 in greater detail, it should be pointed out

that attributes like Activity, Role, Work products

and Accuracy are the least measured. That is due to

the fact that these attributes are mostly related with

A SYSTEMATIC REVIEW MEASUREMENT IN SOFTWARE ENGINEERING - State-of-the-art in Measures

227

Figure 2: Measured attributes.

Table 4: Measures attributes.

Complexity 19% Productivity 1%

Size 16% Testability 1%

Inheritance 8% Costumisability 1%

Defect 7% Roles 1%

Structuredness 7% Work Products 1%

Time 5% Dependencies 1%

Others 5% Reusability 1%

Activity 3% Navegation 1%

Accuracy 3% Presentation 1%

Cohesión 3% Centrality 1%

Coupling 3% Stratum 1%

Similarity 3% Links 1%

Changes 2% Search engiens 1%

Effort 2% Interaction 1%

Cost 2% Variation 0%

Relevans 2% Risk 0%

process and project kind of entities, for which there

is not a well defined basic attribute.

Once the “What to Measure?” question was

analyzed. The next step was to tackle the question:

“How to measure?” To answer this question we

gathered how the measurements of attributes in the

selected papers were made and classified them in

terms of the following characteristics:

Representation, Description, Base or Derived

Measurement, Scale

(Fenton y Pfleeger, 1997),

Empirically (Wohlin et al., 2000; Juristo and

Moreno, 2001; Basili et al., 1999; Perry et al., 2000)

or Theoretically (Weyuker, 1988; Briand et al.,

1996; Whitmire, 1997; Zuse, 1998; Poels y Dedene,

2000) validated. This analysis is summarized in

Table 5.

Let us have a look at the last characteristic,

which has as its goal to discover if a measure has

been validated empirically and/or theoretically. The

aim of theoretical validation is to check whether the

intuitive idea of the attribute being measured is

considered in the defined measure. The main goal of

empirical validation is to obtain objective

information concerning the usefulness of the

proposed metrics. Theoretical validation by itself is

not enough to guarantee the usefulness of the

measure, because it may occur that a measure is

valid from a theoretical point of view, but it has no

practical relevance in relation to a specific problem.

As a consequence, a measure which has not been

validated is not demonstrated to be useful. We

therefore classified the measures in such a way as to

know how many had been empirically and/or

theoretically validated. This is shown in Figure 3.

As can be observed in Figure 3, about half of the

measures found in the selected papers had been only

empirically validated. This leads us to the

conclusion that there is a great tendency to empirical

validation. Furthermore, we can see that (24%) of

the measurements had been validated only

theoretically, although it was recognized in the

papers that they need empirical validation. Finally

only (20%) of the measurement had been both

empirically and theoretically validated. It should be

pointed out that it is necessary to get a common

agreement to validated measures theoretically.

Moreover empirically validation needs more data

extracted from “real projects” in order to get

practical conclusions.

Regarding the measurement focus found in the

articles analysed, we have discovered the following

approaches: Structured (Briand et al., 1996a),

measurement focussing in Process, Object Oriented

(OO) (Chidamber y Kemerer., 1994; Brito e Abreu y

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

228

Table 5: Definition of measure attributes.

Figure 3: Validated measures.

Carapuca, 1994; Lorenz y Kidd, 1994; Marchesi,

1998; Bansiya et al., 1999; 2002), Quality (

Piattini y

García., 2003

). Function Points (IFPUG Release 4.2,

2004), UML (Marchesi, 1998), Complexity

(McCabe, 1976; Henry y Kafura, 1981), Project

(Putnam y Myers, 1992) and OCL (Reynoso et al.,

2004

).Figure 4 shows the amount of measurement in

each approach. It shows us that the most supported

approaches by measure are Object Oriented (OO)

ones. This is due to this kind of projects are

currently the most popular in software development.

Continue with this part of the analysis, there are

efforts to get a universal WEB measures definition,

with this review we found conceptual models and

frameworks in order to classify WEB measures.

Figure 4: Measure focus.

Finally, we analyzed the third question: When to

measure?, To classify in what parts of the lifecycle

project the measure must be taken for projects and

process entities, the PMBOK guide (ANSI/PMI,

2004) was selected. In order to group when the

measurements are taken for the product entity, the

waterfall lifecycle model was applied. We chose

these two models due to their wide acceptation and

genericity. Figure 5 shows the proportion of product

measurements in the different phases of the software

life cycle:

Figure 5: Measure in life cycle software process.

As we can see in Figure 5, most measurements

are carried out during the Design, Testing and

Development phases of the waterfall lifecycle

software process. In the Design phase, products such

as architecture, system designs, requirements

analysis, etc. are generated. Hence it is necessary to

support this phase with measurements, in order to

know characteristics of these products when

carrying out the design. Moreover, measurement in

the Design phase can support the future products to

be generated, which mean that this phase is one of

the most measured. Continue with this analysis, it

should be pointed out that the Development phase is

one of the most measured, because most of the

software products are created here, such as: manuals,

source code and, among other products, the software

itself. Therefore, it is possible to collect quantity

information about these products here. According to

PSP (Humphrey, 2005), measures about size, effort,

time, faults, defects, LOC, etc. are commonly taken

in this phase. Another factor to take into account is

that once the software system is created, it is

necessary to validate if this system fulfils the quality

requirements. The counting faults and deriving the

reliability is the most widely applied and accepted

method used to validate systems; most of this

information focuses on the product and is commonly

reported in terms of measurements. This is done in

not only in the early phases but also especially in the

testing phase, which is another of the most-measured

phases in lifecycle software process.

In addition, the PMBOK guide defines the

following general phases for project life: Initial,

intermediate, and final phases. In Figure 6 we show

the distributions of measures through these phases.

HOW?

Measure

Representation Description

Based Derived

Scale Validation Measure focus

A SYSTEMATIC REVIEW MEASUREMENT IN SOFTWARE ENGINEERING - State-of-the-art in Measures

229

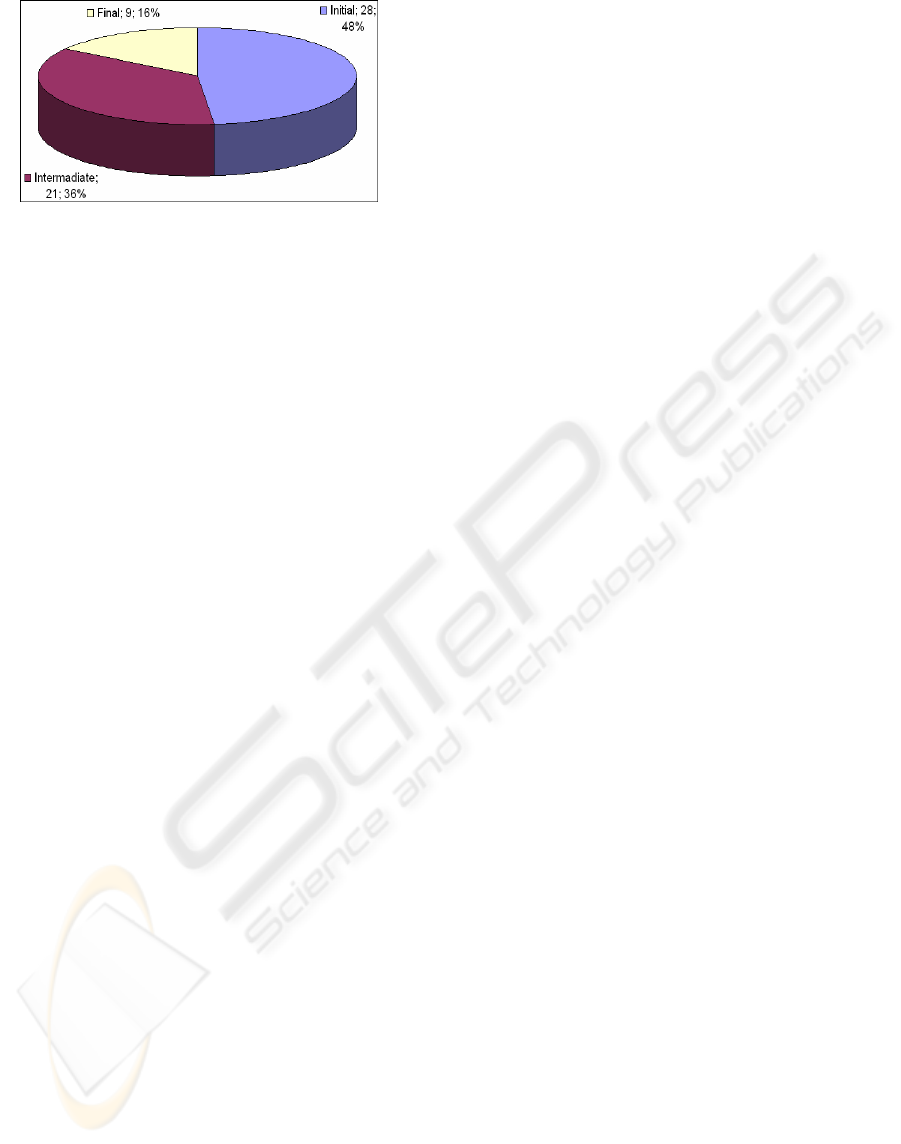

Figure 6: Measure in life cycle projects.

It is worth mentioning here that in the initial

phase there could be sub-phases with one or more

deliverables, according to the kind of project. In

these sub-phases the following are usually

measured: size, complexity, level of risk, cash, etc.

Most measurements concentrate on the Initial phase,

as in this phase the planning for the whole project is

executed- this in turn constitutes the main effort in

project management. In the Intermediate phase,

many control activities are carried out in order to

ensure the success of the project. Periodical reports

are thereby generated with quantity information

about process and project measures and indicators.

For these reasons this phase is also one of the most

measured in project lifecycle for project and process

entities.

5 CONCLUSIONS AND

FURTHER WORK

Software measurements are very important in

software development process, because they help us,

to control, estimate and improve process, projects

and products, among other things.. With that in

mind, this article attempts to provide the state of art

in software measurement, by carrying out a

systematic review whose purpose is to summarize

the most current and useful measures in the

literature.

With this systematic review, we find out the

following results:

(1) Measures are strongly aligned to product

entity. Since this kind of entity has better attribute

definition than project and product entities have,

there are large amount of measures for the product.

This leads to the conclusion that if an entity has a

few measures, it is due to the fact that it doesn’t

have specific attribute.

(2) Complexity gathered a great amount of

measures because this attribute is used in different

contexts. While size is also one of the most

measured attributes since it is used in cost and

development schedule estimation

(3) There is a great tendency to obtain empirical

validation. But it is necessary to get more data

extracted from “real projects”, in order to get

practical conclusions and to improve software

quality.

(4) Development and Design are the most

measured phases in lifecycle software process

because it is in these phases that most software

products are generated.. It should be also noted that

the testing phase is also one of the most measured

phases. This is thanks to the fact that this phase

involves quality activities for evaluating software

quality characteristics, generally reported in terms of

quantity values. But quality measures are

considering in the early software development

phases by counting faults which is the most widely

applied method to determine software quality.

(5) For projects and process entities most

measurements are concentrated in the Initial and

Intermediate phases. That is because it is here that

the project planning and control activities are

developed.

(6) There are a large number of measures for OO

projects. This is because these kinds of projects are

currently the most popular in software development.

Hence a lot of research has been done in this field.

(7) So many efforts had been made to get a

universal WEB measures definition. In this review

we found conceptual models and frameworks in

order to classify WEB measures.

Finally, we need to relate the measurements

found in this article to a specific software

development process. The aim of this is to settle

when a measure must be taken. To reach this goal, in

our specific research, further work will take in the

Process Model for the Software Industry

(MoProSoft), which focuses on small companies and

which is also the Mexican norm.

ACKNOWLEDGEMENTS

This article was supported by the Process

Improvement for Promoting Iberoamerican Software

the Competitiveness of Small and Medium

Enterprises (COMPETISOFT) and Science and

Technology for Development (CYTED).

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

230

REFERENCES

ANSI/PMI (2004), A Guide Project Management Body of

Knowledge (PMBOK Guide) an American National

Standard, ANSI/PMI 99-001-2004, Third Edition,

Project Management Institute, Inc., United Estates of

America.

Basili, V., Shull, F. y Lanubile, F., 1999, Building

knowledge through families of experiments. IEEE

Transactions on Software Engineering, 25(4), pp. 435-

437.

Bansiya J. y Davis C., 2002, A Hierarchical Model for

Object-Oriented Design Quality Assessment. IEEE

Transactions on Software Engineering, 28(1), 4-17.

Briand, L., Morasca, S. y Basili, V., 1996. Property-Based

Software Engineering Measurement. IEEE

Transactions on Software Engineering, 22(1), pp. 68-

86.

Brito e Abreu, F. y Carapuça, R., 1994, Object-Oriented

Software Engineering: Measuring and controlling the

development process. Proceedings of the 4th

International Conference on Software Quality,

McLean (USA).

Calero, C., Ruiz, J., Piattini, M., 2005, Classifying web

metrics using the web quality model. Online

Information Review. Vol 29 No 3, pp. 227-248

Chidamber, S. y Kemerer, C., 1994. A Metrics Suite for

Object Oriented Design. IEEE Transactions on

Software Engineering, 20(6), pp. 476-493.

Ebert, C., Dumke R., Bundschuh, M., Schmietendorf, A.,

2004, Best Practices in Software Measurement. How

to use metrics to improve project and process

performance, 295 Seiten-Springer. Berlin, 1

Edition.

Fenton, N. y Pfleeger, S.L., 1997, Software Metrics: A

Rigorous & Practical Approach, PWS Publishing

Company, Second Edition.

Florac, W. A., Carleton, A. D., 1999. Measuring the

Software Process. Statistical Process Control for

Software Process Improvement, Addison-Wesley.

United States of America, 1

Edition.

García, F., Bertoa, M. F., Calero, C., Vallecillo, A., Ruiz,

F., Piattini, M., Genero, M., 2005. Towards a

consistent terminology for software measurement.

Information and Software Technology. xx (2005), pp.

1-14

Henry, S. y Kafura, S., 1981, Software Structure Metrics

Based on Information Flow. IEEE Transactions on

Software Engineering, 7(5), pp. 510-518.

Humphrey, S.H., 2005, PSP A Self-Improvement Process

for Software Engineers, Addison-Wesley. United

States of America, 1

Edition.

IFPUG, (2004), IFPUG: Function Point Counting

Practices Manual, Release 4.2. International Function

Point Users Group, USA –IFPUG, Mequon,

Wisconsin, USA.

Juristo, N. y Moreno, A. (2001). Basics of Software

Engineering Experimentation. Kluwer Academic

Publishers.

Kitchenham, B., 2004. Procedures for Performing

Systematic Reviews. Joint Technical Report Software

Engineering Group, Department of Computer Science

Keele University, United King and Empirical Software

Engineering, National ICT Australia Ltd, Australia,

pp. 1-28.

Lorenz, M. y Kidd, J., 1994, Object-Oriented Software

Metrics: A Practical Guide. Prentice Hall. Englewood

Cliffs, Nueva Jersey.

McCabe, T., 1976. A Software Complexity Measure.

IEEE Transactions on Software Engineering, 2, pp.

308-320.

Marchesi, M., 1998. OOA Metrics for the Unified

Modeling Language. 2nd Euromicro Conference on

Software Maintenance and Reengineering, 1998, 67-

Perry, D., Porte, A. y Votta, L. (2000). Empirical Studies

of Software Engineering: A Roadmap. Future of

Software Engineering, Ed. Anthony Finkelstein,

ACM, pp. 345-355.

Pfleeger, S. L.,1997. Assessing Software Measurement.

IEEE Software. March/April. pp. 25-26.

Piattini, M., García, F. O., 2003. Calidad en el desarrollo

y mantenimiento de software, Ra-Ma. Spain, 1

Edition.

Poels, G. y Dedene, G. (2000). Distance-based software

measurement: necessary and sufficient properties for

software measures. Information and Software

Technology, 42(1), pp. 35-46.

Putnam, L. H. y Myers, W., 1992. Measures for

Excellence - Reliable software on time, within budget,

Prentice Hall, New Jersey.

Raynus, J., 1999. Software Process Improvement with

CMM, Artech House. United States of America, 1

Edition.

Reynoso L., Genero M. y Piattini M. Measuring OCL

Expressions: An Approach Based on Cognitive

Techniques, 2004. Chapter 5 in “Metrics for Software

Conceptual Models” (Eds. Genero M., Piattini M. and

Calero C.). Imperial College Press, UK.

Travassos G. H., Boilchi, J., Mian , P. G., Natali, A. C. C.,

2005. Systematic Review in Software Engineering.

Technical Report Programa de Engenharia de Sistemas

e Computaçâo PESC, Systems Engineering and

Computer Science Department COPPE/UFRJ, Rio de

Janerio, pp. 1-30.

Weyuker, E., 1988. Evaluating Software Complexity

Measures. IEEE Transactions on Software

Engineering, 14(9), pp. 1357-1365.

Whitmire, S., 1997. Object Oriented Design

Measurement. John Wiley & Sons, Inc.

Wohlin, C., Runeson, P., Höst, M., Ohlson, M., Regnell,

B. y Wesslén, A.,2000. Experimentation in Software

Engineering: An Introduction. Kluwer Academic

Publishers.

Zuse, H. (1998). A Framework of Software Measurement.

Berlin. Walter de Gruyter.

A SYSTEMATIC REVIEW MEASUREMENT IN SOFTWARE ENGINEERING - State-of-the-art in Measures

231
