ON ABILITY OF ORTHOGONAL GENETIC ALGORITHMS FOR

THE MIXED CHINESE POSTMAN PROBLEM

Hiroshi Masuyama

Information and knowledge Engineering, Tottori University, Koyama-cho Minami 4-101, Tottori, Japan

Tetsuo Ichimori

Information Systems, Osaka Institute of Technology, Kitayama 1-79-1, Hirakata, Japan

Toshihiko Sasama

Information and knowledge Engineering, Tottori University, Koyama-cho Minami 4-101, Tottori, Japan

Keywords: Orthogonal design, Genetic algorithm, Chin

ese postman problem, Postman’s route.

Abstract: The well known Chinese Postman Problem has many applications, and this problem has been proved to be

NP-hard in graphs where directed and non-directed edges are mixed. In this paper, in order to investigate the

salient feature of orthogonal design, we designed a genetic algorithm adopting an orthogonal crossover

seoperation to solve this (mixed Chinese Postman) problem and evaluate the salient ability. The results

indicate that for problems of small sizes, the orthogonal genetic algorithm can find near-optimal solutions

within a moderate number of generations. We confirmed that the orthogonal design shows better

performance, even for graph scales where simple genetic algorithms almost never find the solution.

However, only the introduction of orthogonal design is not yet effective for the Chinese Postman Problem

of practical size where a solution can be obtained in less than 104 generations. This paper concludes that the

optimal design scale of orthogonal array to this mixed Chinese Postman Problem does not conform to the

same scale as the multimedia multicast routing problem.

1 INTRODUCTION

The Chinese Postman Problem, as is well known, is

to find the shortest route in a graph that uses every

arc (directed or non-directed edge) and gets back to

where it started. For example in the non Eulerian

graph shown in Fig.1, since Postman’s route

traverses every arc at least once, the Postman must

passes doubly through an arc of weight 6. By

duplicating some arcs, the non Eulerian graph can

have at leaset one Postman’s route. In general, if a

given graph is a non Eulerian graph, it can be said

that the optimum solution of the Chinese Postman

Problem is a route where the total weight of

duplicated arcs is the minimum. When a given graph

is an Eulerian graph, the solution is uniquely

determined.

Though this problem has many applications,

in

cluding robot exploration and analyzing interactive

systems and web site usability (Thimbleby, 2003),

this problem has been proved to be NP-hard. The

multimedia multicast routing problem is also NP-

hard. Paper (Zhang and Leung, 1999) proposed an

orthogonal genetic algorithm for this latter problem,

and concluded on the basis of solving a benchmark

test problem, that for practical problem sizes the

orthogonal genetic algorithm can find near-optimal

solutions within a moderate number of generations.

Its salient feature is to incorporate an experimental

design method called orthogonal design into the

crossover operation. In order to further investigate

this salient feature of orthogonal design, which was

applied to the sampling of genes from the parents for

crossover, we will design a genetic algorithm

adopting an orthogonal crossover operation to solve

the mixed Chinese Postman Problem and evaluate

the salient ability.

For the problem which we treat is called the

C

hinese postman problem on mixed networks

(WCPP), heuristic solution procedures have been

proposed to solve approximately (Edmond and

Johnson, 1979)(Pearn and Liu, 1995)(Frederickson,

1979).

39

Masuyama H., Ichimori T. and Sasama T. (2006).

ON ABILITY OF ORTHOGONAL GENETIC ALGORITHMS FOR THE MIXED CHINESE POSTMAN PROBLEM.

In Proceedings of the First International Conference on Software and Data Technologies, pages 39-45

DOI: 10.5220/0001314600390045

Copyright

c

SciTePress

Figure 2: A basic process of genetic algorithm.

1. [Start] Generate random population of t

chromosomes (suitable solutions for the problem).

2. [Fitness] Evaluate the fitness f(x) of each

chromosome x in the population.

3. [New population] Create a new population by

repeating following steps until the new population

is complete.

1. [Selection] Select two parent chromosomes

from a population according to their fitness

(the better their fitness, the better their

chance of being selected).

2. [Crossover] Use crossover probability to

cross over the parents and form a new

offspring (children). If no crossover was

performed, the offspring would be an exact

copy of the parents.

3. [Mutation] Use mutation probability to

mutate new offspring at each locus (position

in the chromosome).

4. [Accepting] Place new offspring in a new

population.

4. [Replace] Use newly generated population to

continue the algorithm.

5. [Test] If the end condition is satisfied, stop, and

return the best solution in the current population.

6. [Loop] Go to step 2.

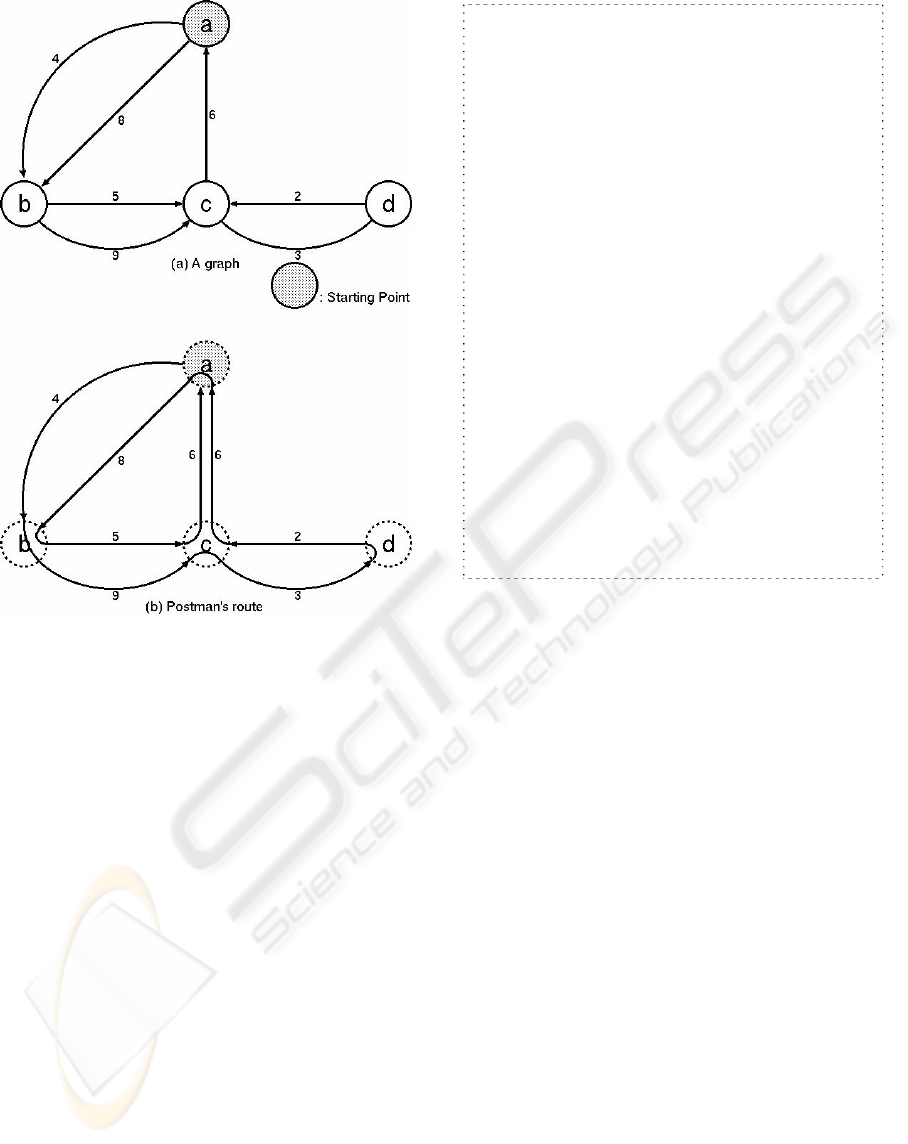

Figure 1: An example of route in Chinese postman

problem.

2 GENETIC ALGORITHM AND

ORTHOGONAL ARRAY

REPRESENTATION

A genetic algorithm (GA) is a heuristic approach

used to find approximate solutions to knotty

problems through application of the principles of

biological evolution. Genetic algorithms make the

best of biologically derived approaches such as

inheritance, mutation, natural selection, and

recombination (or crossover). Genetic algorithms are

a particular class of evolutionary algorithms where a

population of abstract representations (called

chromosomes) of candidate solutions (called

individuals) evolve into better solutions. That is,

information treated in GA can be classified into two

structures: phenotype and genotype. Phenotype

represents information in the biological world, and

genotype represents information in a population of

chromosomes. By encoding, the information in a

phenotype can be transferred into a genotype, and by

decoding the opposite occurs. We will chiefly

consider that in a genotype. Even though some

different encodings are possible, in general the

solutions are represented in binary strings of 0s and

1s.

In this mixed Chinese postman problem, we will

treat a given graph G whose every arc is a directed

edge or a non-directed edge. We will consider a

directed graph G’ where every non-directed edge in

the given graph is changed into two directed edges

with different directions each other. Then, we can

make our chromosome type as an integer string

whose element means the number of times that the

postman passes the arc. The length of a string is the

number of edges of G’. Therefore, in this mixed

Chinese postman problem, the solutions are

represented in strings of integer. The evolution starts

from a population of completely random individuals

and goes on in generations. In each generation, the

fitness of the whole population is evaluated, and

multiple individuals are stochastically selected from

the current population (by judging their fitness) and

modified (so called by mutation or recombination) to

form a new population, which becomes current in

the next iteration of the algorithm. The general

process of GA is known, and is shown in Fig.2.

Orthogonal array was developed to find the

smallest, yet most cost effective, and therefore best,

combination by which many and consumptive

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

40

combinations can be avoided (Fang and Wang,

1994). An orthogonal array is represented in

Table.1-1 by L

9

(3

4

), where 3, 4, and 9 mean the

number of kinds of entries, columns, and rows,

respectively. In general, we let L

m

(n

k

) denote an

orthogonal array for k factors, n levels, and m

combinations of level to be tested. Orthogonal arrays

can be systematically built. Label L comes

originally from a “Latin” square, which is defined as

a matrix where no two entries in a row (or a column)

have the same value. It has been proved that the

orthogonal design is optimal for use as an additive

model and a quadratic model, and that the selected

combinations are good representatives for all the

possible combinations (Wu, 1978). The problem of

building an orthogonal array is the same as the

problem of finding m nodes which are at the

maximum distance between any pair in the (k )-

dimensional hypercube. Table 1-2 shows 9 nodes

corresponding to 9 combinations (on an 8-

dimensional hypercube) in Table 1-1.

nlog

Table 1-1: A representation of orthogonal array L

9

(3

4

).

Table1-2: 9 nodes corresponding to 9 combinations on a

(k log n)-dimensional hypercube.

Combination Factor1 Factor2 Factor3 Factor4

1st 0 1 0 1 0 1 0 1

2nd 0 1 1 0 1 0 1 0

3rd 0 1 1 1 1 1 1 1

4th 1 0 0 1 1 0 1 1

5th 1 0 1 0 1 1 0 1

6th 1 0 1 1 0 1 1 0

7th 1 1 0 1 1 1 1 0

8th 1 1 1 0 0 1 1 1

9th 1 1 1 1 1 0 0 1

3 EXPERIMENTAL DESIGN

METHODS

In this section, we introduce the concept of

experimental design methods for our experiment

mentioned later.

3.1 Phenotype

Roads are modeled as a graph G = (V,E), where V is

a set of nodes and E is a set of arcs. By making

every non-directed arc express as two directed arcs,

change a given graph G into a directed graph G’. As

mentioned before, the optimum solution is a route

where the total weight of duplicated arcs is the

minimum. We number the edges in G’ from 1 to t.

We can then represent any route R of the graph G’

as an t-tuple (e

1

, e

2

, …, e

t

), where any element

(which means a gene) e

i

is defined as follows:

e

i

= The number of times that the postman passes

arc i

From the above definition, e

i

is a non negative

integer and can become 0 if e

i

is represented for one

of two directed edges changed from non-directed

edge in G. For example, assuming that edge with

weight 4 is r

4

, R in Fig.1(b) can be represented as

(e

r4

, e

r8

, e

r5

, e

r9

, e

r3

, e

r3

, e

r2

, e

r6

) =( 1, 1, 1, 1, 1, 0, 1,

2). Since R in Fig.1(b) is a Postman’s route, then this

phenotype ( 1, 1, 1, 1, 1, 0, 1, 2) is a solution.

3.2 Fitness

The Postman can return to the starting point if G is

an Eulerian graph. If G is a non Eulerian graph, in

order to return to the starting point the postman must

traverse some arcs more than once. In general, if G

is a non Eulerian graph, it can be said that the

optimum solution of the mixed Chinese Postman

Problem is a route where the total weight of

duplicated arcs is the minimum. When G is an

Eulerian graph, the solution is uniquely determined.

In order to set the fitness of the optimum solution

to maximum, we will prepare the following function

f of fitness.

⎩

⎨

⎧

=

otherwise ;0

route sPostman' hasG if arcs); gduplicatin of weight (total / 1

f

3.3 Orthogonal Crossover

In order to fit the mixed Chinese postman problem,

we interpret orthogonal array L

m

(n

k

) to be an

orthogonal array for k factors divided from n levels

(parent chromosomes), and m combinations of levels

(samplings at the time of crossover). Let orthogonal

Combination Factor1 Factor2 Factor3 Factor4

1st X X X X

2nd X Y Y Y

3rd X Z Z Z

4th Y X Y Z

5th Y Y Z X

6th Y Z X Y

7th Z X Z Y

8th Z Y X Z

9th Z Z Y X

ON ABILITY OF ORTHOGONAL GENETIC ALGORITHMS FOR THE MIXED CHINESE POSTMAN PROBLEM

41

array L

4

(2

3

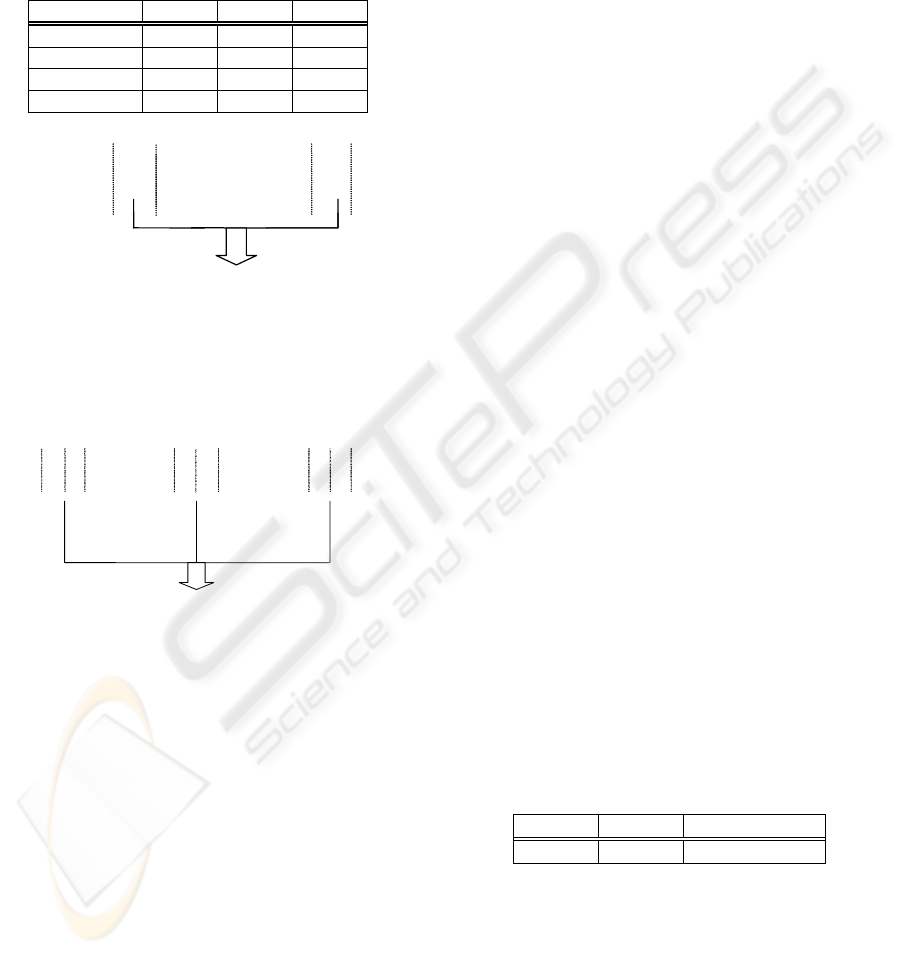

) be shown in Table 2. Obeying the above

interpretation of L

4

(2

3

), 2 parent chromosomes are

divided into 3 factors each, and we obtain 4 new

chromosomes as shown in Fig.3 In the case of

L

9

(3

4

) , we obtain 9 new chromosomes from 4 parent

chromosomes as shown in Fig.4.

Table 2: Orthogonal array L

4

(2

3

).

Combination Factor1 Factor2 Factor3

1st X X X

2nd X Y Y

3rd Y X Y

4th Y Y X

Orthogonal crossover

X

) 11

213

201 ( )

(

) 21

211

201 ( )

(

) 21

213

110 ( )

(

)

11

211

110 ( )

(

3 2 1 4

3 2 1 3

3 2 1 2

3 2 1 1

= =

= =

= =

= =

x

y

y

O

y

x

y

O

y

y

x

O

x

x

x

O

, , ,

,

4 3 2 1

O O O O

Y

X

Children:

Parents:

( 110 211 11 )

( 201 213 21)

1

x

2

x

3

x

1

y

2

y

3

y

Y

Figure 3: Orthogonal crossover for L

4

(2

3

).

Figure 4: Orthogonal crossover for L

9

(3

4

).

3.4 Creation of the Initial

Population of Chromosomes

using an Orthogonal Array

In order to create the initial population of

chromosomes which resemble closely as possible as

they can, we will present a method to use an

orthogonal array in the creation of the initial

population of chromosomes.

A chromosome is an t-tuple whose the i-th

element is the number of times passing through the

i-th arc by the Postman’ route. Let divide a

chromosome into the number of factors. The range

of the random numbers is divided into the number of

levels of orthogonal array. In addition, for each one

of the same levels in orthogonal array select, let

randomly correspond to a random number in the

same range of the random numbers.

Let us take L

4

(2

3

) shown in table 3 and t=12 as

an example. Since a t-tuple is divided into 3 factors,

then we can represent 4 chromosomes based on

L

4

(2

3

) as follows:

X X X X X X X X X X X X

X X X X Y Y Y Y Y Y Y Y

Y Y Y Y X X X X Y Y Y Y

Y Y Y Y Y Y Y Y X X X X

Each X and Y are corresponded to a random

number in the ranges 0~6 and 7~12, respectively.

Then, we obtain the following initial population of

chromosomes (4 chromosomes) as an example.

1 3 5 3 5 4 2 4 5 5 4 6

5 6 4 2 7 9 8 9 10 7 9 11

8 10 9 7 2 5 1 4 11 8 9 10

7 11 8 9 10 7 8 12 2 5 1 3

11) 11 02 (11

1

X

x

x

x

x

4 3 2

21) 13 12 (20

4 1

Y

y

y

y

y

3 2

22) 11 01 (12

432 1

Z

z

z

z

z

) 11 13 01 12 ( ) (

) 22 11 12 12 ( ) (

21) 11 02 12 ( ) (

21) 11 01 20 ( ) (

11) 11 12 20 ( ) (

22) 13 02 20 ( ) (

) 22 11 01 11 ( ) (

) 21 13 12 11 ( ) (

) 11 11 02 11 ( ) (

43 2 1 9

43 2 1 8

43 2 1 7

43 2 1 6

43 2 1 5

43 2 1 4

4 3 2 1 3

43 2 1 2

43 2 1 1

=

=

=

=

=

=

=

=

=

=

=

=

=

=

=

=

=

=

x

y

z

z

O

z

x

y

z

O

y

z

x

z

O

y

x

z

y

O

x

z

y

y

O

z

y

x

y

O

z

z

z

x

O

y

y

y

x

O

x

x

x

x

O

Orthogonal crossover

Parents: X , Y , Z

Children: O

1

, O

2

, O

3

,

…

, O

9

4 EXPERIMENT

In this section, we will explain the experiments we

performed.

4.1 Graphs

We used random graphs shown in Table 4. We

applied the Genetic algorithm 30 times to each graph

and evaluated the mean values.

Table 4: Experimental graphs.

|V| |E| Total weight

5 7 44

4.2 Orthogonal Genetic Algorithm

(OGA)

We developed the following algorithm, as shown in

Fig.5, where an initial group starts from a population

of completely randomly generated individuals, and

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

42

the probabilities of crossover and mutation are 1.0

and 0.5, respectively.

Inputs: Graph G=(V,E), edge cost C(e) and node

degree deg(v)

Output: binary strings representing the Euler route

Step1) Initialization

Randomly create an initial generation of N

binary string P

0

= { X

1

, X

2

,…, X

N

}, X = {

x

1

, x

2

,…, x

k

}

and initialize the generation number gen

to 0.

* X is a chromosome, k = |V|

Step 2) Population Evolution

WHILE ( gen < MAX_GEN )

BEGIN

4.3 Simple Genetic Algorithm (SGA)

The simple genetic algorithm adopts a one-point

crossover in Step 2.1 instead of orthogonal

crossover.

4.4 Another Orthogonal Genetic

Algorithm using Orthogonal

Array in the Creation of the

Initial Population of

Chromosomes (OGA

2

)

This algorithm uses an orthogonal array also in Step

1 in Fig.5 instead of random number, and the

utilization method is shown in 3.4.

4.5 Results

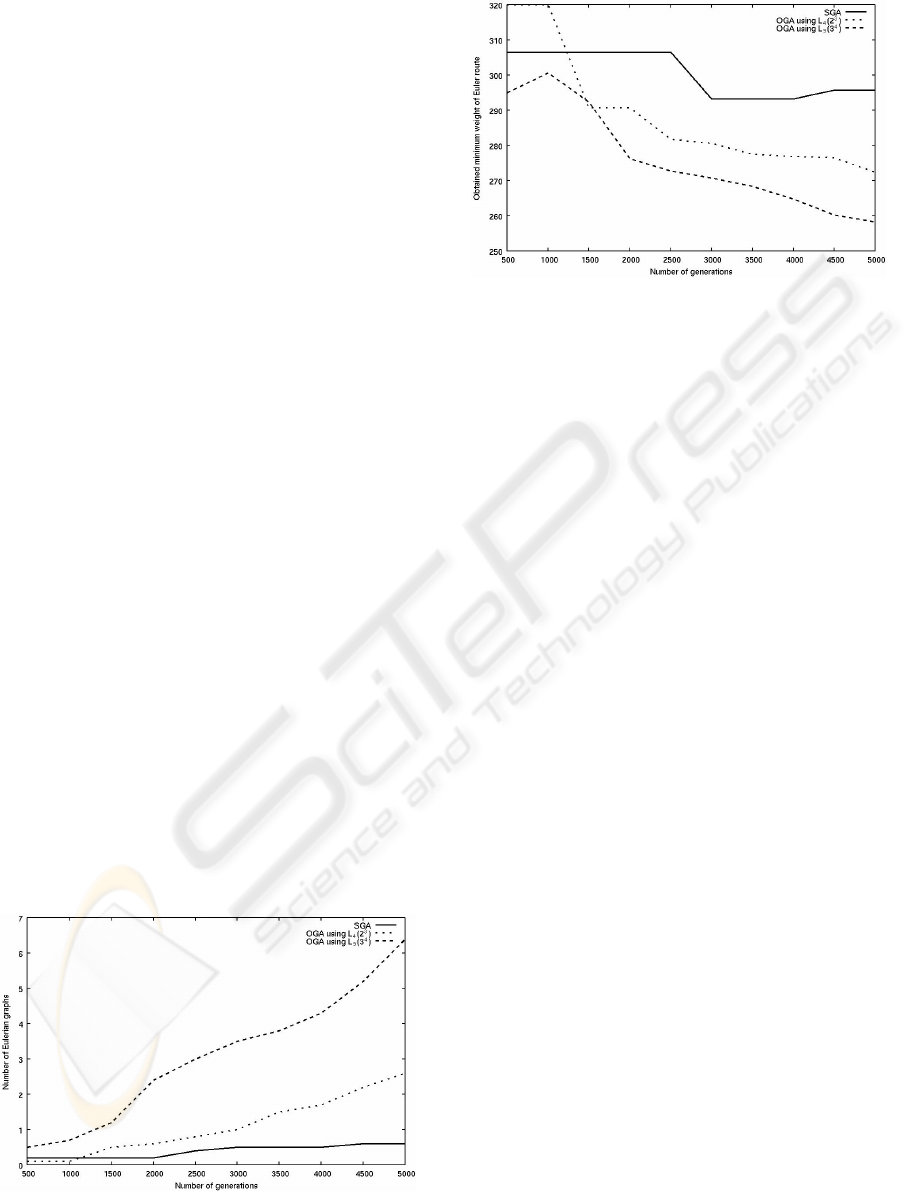

Fig.6-1 shows the relationship between the number

of obtained Eulerian graphs and the number of

generations. On the other hand, Fig.7-1 shows the

relationship in the case where orthogonal array is

used in the creation of initial population of

chromosomes. Fig.6-2 shows the relationship

between the obtained minimum weight of the

Postman route and the number of generations.

Fig.7-2 shows the relationship in the case where

orthogonal array is used in the creation of initial

population of chromosomes. These results mean that

our orthogonal genetic algorithm shows better

performance, especially in L9(3

4

). SGA almost

never finds the solutions for Problem 3 where the

number of edges is 7.

For reader’s information, we show the

relationship between the number of generations and

the computation time required in 3 algorithms ( SGA,

OGA, and OGA

2

) in Tables 5 and 6.

In this mixed Chinese postman problem we

treated, in less than 10

4

generations we can obtain a

solution in graphs with nodes of less than 11.

However, we can’t obtain a solution in 2 or 3 days

for the larger sizes.

For reference we will show the data in the case of

non directed graphs G’’=(V’’, E’’), where |V’’|= 20,

|E’’|=30, total weight=178. The Chinese Postman

problem for non directed graphs belongs in Class P.

Figs.8-1 and 8-2 show the relationship between two

numbers of obtained Eulerian graphs and

generations, and the relationship between the

obtained minimum weight of the Postman route and

the number of generations, respectively.

Figure 5: A orthogonal genetic algorithm.

5 CONCLUSION

In order to investigate the salient feature of

orthogonal design, we designed a genetic algorithm

adopting an orthogonal crossover operation in the

mixed Chinese Postman Problem and evaluated the

salient ability. The orthogonal design shows better

performance, even for graph scales where simple

genetic algorithms almost never find the solution.

The experimental results show that, for problems of

non practical sizes, the orthogonal genetic algorithm

using the orthogonal array L

9

(3

4

) can find close-to-

optimal solutions within a moderate number of

generations. This optimal scale of orthogonal array

was confirmed for the multimedia multicast routing

problem of practical size (Zhang and Leung, 1999).

However, this orthogonal design is not yet effective

for the mixed Chinese Postman Problem of practical

sizes. For more effective computation, our one

possible extension of this research can be considered

as to incorporate the orthogonal array into the

DO N/2 times

BEGIN

Step 2.1) Orthogonal Crossover

Randomly select n parents strings from

P

gem

and perform orthogonal crossover

on them to generate m offspring o

1

,

o

2

,…, o

m

.

Step 2.2) Mutation

To perform mutation of offspring, flip

every bit in this string with a small

probability p.

Step 2.3) Select

Calculate the offspring fitness f, and

sort them by f, and choose n for the

next generation.

END

Step 3) Increment the generation number gem by 1.

END

ON ABILITY OF ORTHOGONAL GENETIC ALGORITHMS FOR THE MIXED CHINESE POSTMAN PROBLEM

43

0

10

20

30

40

50

60

70

80

90

100

1000 2000 3000 4000 5000 6000 7000 8000 9000 10000

Number of

g

enerations

Number of Eulerian graphs

SGA

OGA using L4

OGA using L9

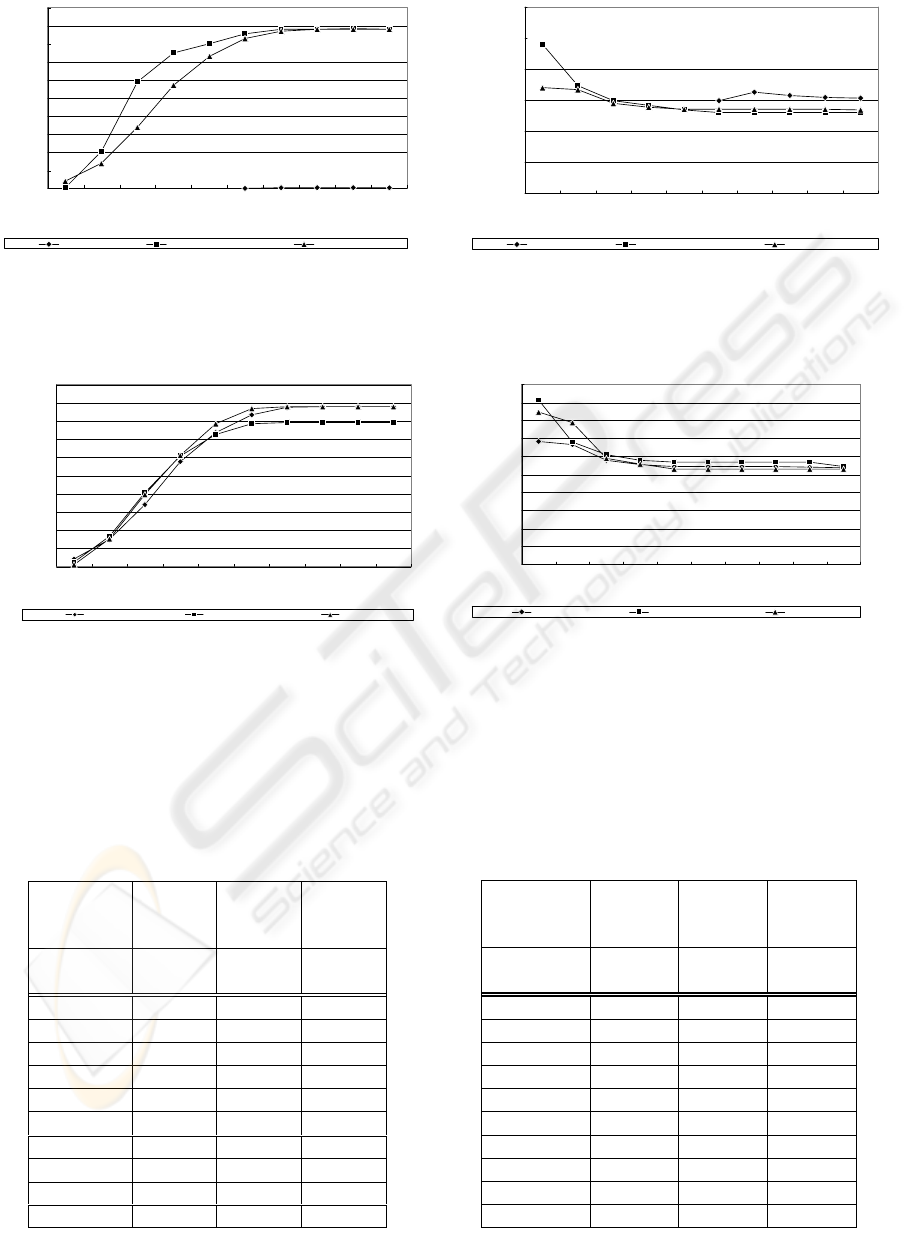

Figure 6-1: Relationship between two numbers o

f

obtained Eulerian graphs and generations.

0

20

40

60

80

100

120

1000 2000 3000 4000 5000 6000 7000 8000 9000 10000

Number of

g

enerat ions

Obt ained minimum weight o

f

Euler route

SGA

OGA using L4

OGA using L9

Figure 6-2: Relationship between the obtained minimum

weight of the Postman route and the number of

generations.

0

10

20

30

40

50

60

70

80

90

100

1000 2000 3000 4000 5000 6000 7000 8000 9000 10000

Number of

g

enerat ions

Number of Eulerian graph

s

N

o

n

Us

in

g

L4

Us

in

g

L

9

Figure 7-1: Relationship between two numbers o

f

obtained Eulerian graphs and of generations in the case

where orthogonal array is used in the creation of initial

population of chromosomes.

0

10

20

30

40

50

60

70

80

90

100

1000 2000 3000 4000 5000 6000 7000 8000 9000 10000

Number of

g

enerations

Obtained minimum weight of

Euler rout e

N

o

n

Us

in

g

L4

Us

in

g

L

9

Figure 7-2: Relationship between the obtained minimum

weight of the Postman route and the number o

f

generations in the case where orthogonal array is used in

the creation of initial population of chromosomes.

SGA

OGA

using

L

4

(2

3

)

OGA

using

L

9

(3

4

)

generation

time

(sec)

time

(sec)

time

(sec)

1000 247.1 279.8 437

2000 252.5 286.4 447

3000 257.8 292.6 456.6

4000 263.3 298.4 465.8

5000 268.3 304.4 475

6000 273.8 310.3 484.4

7000 279.1 316.2 493.6

8000 284.5 322.1 502.9

9000 289.9 328.1 512.5

10000 295.3 333.9 521.7

Table 5: Computation time required at 1000~10000

generations.

Table 6: Computation time required at 1000~10000

generations.

OGA

using

L

9

(3

4

)

OGA

2

using

L

4

(2

3

)

OGA

2

using

L

9

(3

4

)

generation

time

(sec)

time

(sec)

time

(sec)

1000 437 428.3 433.4

2000 447 437.7 443.2

3000 456.6 447.3 452.7

4000 465.8 456.4 462.3

5000 475 465.7 471.6

6000 484.4 474.7 480.9

7000 493.6 483.9 490.3

8000 502.9 493.1 499.5

9000 512.5 502.2 508.6

10000 521.7 511.4 517.9

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

44

experimental design methods of setting an initial

group of populations. We performed this extension.

The experiment results show no innovative

improvement.

REFERENCES

Thimbleby, H., 2003. The directed Chinese postman

problem. In Software - Practice & Experience, Vol.33,

No.11, pp.1081-1096.

Zhang, Q. and Leung, Y., 1999. An orthogonal genetic

algorithm for multimedia multicast routing. In IEEE

Trans. on Evolutionary Computation, Vol.3, No.1,

pp.53-62, April.

Fang, K.T. and Wang, Y., 1994, Number-Theoretic

Methods in statistics. New York, Chapman & Hall.

Wu, Q., 1978. On the optimality of orthogonal

experimental design. In Acta Mathematicae Sinica,

Vol.1, No.4, pp.283-299.

Sasama, T., Masuyama, H. and Ichimori, T., 2002. On

Fault Tolerance of Hypercubes using Subcubes. In Int.

Journal of Reliability, Quality and Safety Engineering,

Vol.9, No.2, pp.151-161.

Leung, Y., Li, G. and Xu, Z., 1998. A Genetic Algorithm

for the Multiple Destination Routing Problem. In

IEEE Trans. on Evolutionary Computation, Vol.2,

No.4.

Zhang, Q. and Leung, Y., 1999. An Orthogonal Genetic

Algorithm for Multimedia Multicast Routing. In IEEE

Trans. on Evolutionary Computation, Vol.3, No.1.

Edmond, J. and Johnson, E., 1979. Matching, Euler tours,

and the Chinese postman. In Mathematical

Programming, No.5, pp.538-554.

Pearn, W. L., and Liu, C. M., 1995. Algorithms for the

Chinese postman problem on mixed networks. In

Computers & Operations Research, Vol.22, No.5,

pp.479-489, May.

Frederickson, G.N., 1979. Approximation algorithms for

some postman problems. In J. Assoc. Comput. Mach.

Vol.26, pp.538-554.

Figure 8-1: Relationship between two numbers of obtained

Eulerian graphs and generations.

Figure 8-2: Relationship between the obtained minimum

weight of the Postman route and the number of

generations.

ON ABILITY OF ORTHOGONAL GENETIC ALGORITHMS FOR THE MIXED CHINESE POSTMAN PROBLEM

45
