USING LINGUISTIC PATTERNS FOR IMPROVING

REQUIREMENTS SPECIFICATION

Carlos Videira, David Ferreira, Alberto Rodrigues da Silva

INESC-ID, Rua Alves Redol, 9, 1000-029 Lisboa, Portugal

Keywords: Requirements, Requirements

Specification Languages, Linguistic Patterns, Parsing Techniques.

Abstract: The lack of quality results in the development of information systems is certainly a good reason to justify

the presentation of new research proposals, especially those that address the most critical areas of that

process, such as the requirements specification task. In this paper, we describe how linguistic patterns can

be used to improve the quality of requirements specifications, using them as the basis for a new

requirements specification language, called ProjectIT-RSL, and how a series of validation mechanisms can

be applied to guarantee the consistency and correctness of the written requirements with the syntactic and

semantic rules of the language.

1 INTRODUCTION

The requirements specification task is one of the

most critical steps in the development of information

systems. Not only because it encompasses the initial

activities, whose results are critical for the success of

the succeeding activities, and of the global project,

but because it deals with the identification of the

scope of the system to be developed, and the

problem to be solved. Several surveys and studies

(such as The Chaos Report, available at

http://www.standishgroup.com) have emphasized

the costs and quality problems that can result from

mistakes in the early phases of system development,

such as inadequate, inconsistent, incomplete, or

ambiguous requirements (Bell, Thayer, 1976).

The requirements concept is one of those IS/IT

conce

pts where there is no standard and widely

accepted definition. A classical definition from

Kotonya says that a “requirement is a statement

about a system service or constraint” (Kotonya,

Sommerville, 1998). The number of proposals, both

research and practical, has grown in the last decade,

but there is still not a universal or most accepted

practice. The consequence is the use of different

approaches for requirements specification, with

different levels of formality; the most adopted

solution is still the use of natural language to

elaborate requirements specification documents.

This paper describes how the identification of the

patterns m

ost frequently used in requirements

documents can be used to implement a series of

techniques to improve the requirements validation

process, using a number of parsing components.

Section 2 presents an overview of the ProjectIT

research program and describes the main features of

a new requirements specification language, called

ProjectIT-RSL. Section 3 describes the architecture

and the parsing algorithms adopted, section 4

presents related work and section 5 overviews the

paper and presents the future work.

2 PROJECTIT-RSL OVERVIEW

As a result of the experience gathered from previous

research and practical projects, the Information

Systems Group of INESC-ID (http://gsi.inesc-id.pt/),

started an initiative, called ProjectIT (Silva, 2004),

whose goal is to provide a complete software

development workbench, with support for project

management, requirements engineering, and

analysis, design and code generation activities (the

work presented in this paper is partially funded by

the Portuguese Research and Technology

Foundation, under project POSI/EIA/57642/2004 -

Requirements engineering and model-based

approaches in the ProjectIT research program).

ProjectIT-Requirements (Videira, Silva, 2004b and

145

Videira C., Ferreira D. and Rodrigues da Silva A. (2006).

USING LINGUISTIC PATTERNS FOR IMPROVING REQUIREMENTS SPECIFICATION.

In Proceedings of the First International Conference on Software and Data Technologies, pages 145-150

DOI: 10.5220/0001314301450150

 SciTePress

2004c) is the component of the ProjectIT

architecture that deals with requirements issues. The

main goal of this project is to develop a model for

requirements specification, which, by raising their

specification rigor, facilitates the reuse and

integration with development environments driven

by models. One of the results of this project is a new

requirements specification language, called

ProjectIT-RSL (Videira, Silva, 2004a and 2005).

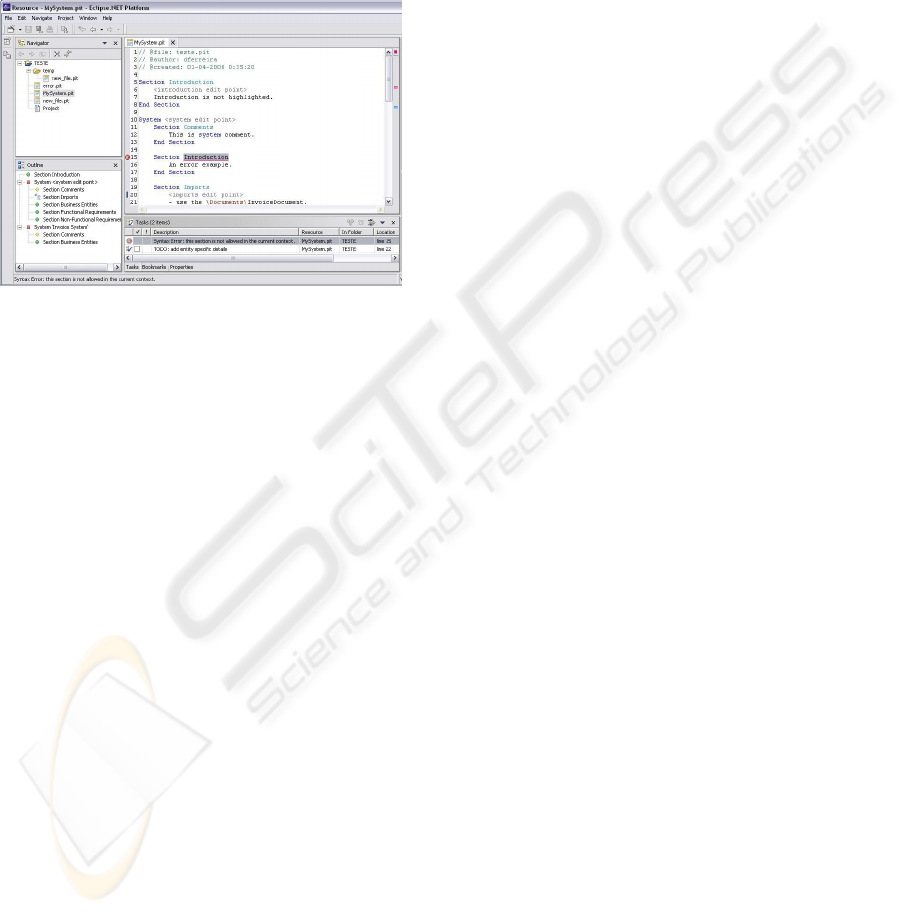

Figure 1: ProjectIT-RSL Editor.

The definition of ProjectIT-RSL took in

consideration the format and structure of the

requirements documents of the projects we have

developed, which led to the identification of a set of

linguistic patterns associated with requirements.

From these patterns we determined the main

concepts used in requirements specification, how

they are structured, organized, and combined into

wider scope blocks. We derived a metamodel of the

concepts identified, which is also the base of a

profile (called XIS - Silva, Lemos, Matias, Costa,

2003), common to all our tools. Based on the

patterns identified, we defined the syntax of

ProjectIT-RSL, which was tested in a prototype

developed using the features provided by Visual

Studio .NET and the .NET Framework (Carmo,

Videira, Silva, 2005), and is now being supported by

an integrated set of tools, called ProjectIT-Studio.

An example of the editor of ProjectIT-RSL is shown

in Figure 1.

The complete specification of all ProjectIT-RSL

rules is beyond the scope of this paper, and can is

presented in more detail in (Videira, Ferreira, Silva

2006). ProjectIT-RSL allows the definition of

different “application units”: (1) reusable

components, which can be specified independently,

and integrated in broader systems; (2) complete

executable systems, that can “include” some of the

previous ones (reusing their functionality); (3)

architectural templates and application templates,

which allow pattern reuse and instance reuse,

respectively. The rules expressed below in EBNF

notation abstract the structure of our requirements

document.

<Requirements Document>: [<Introduction Section>]

<Application Unit>*

<Application Unit>: <Section>*

<Section>: <Sentence>*

The sentences of our requirements documents are

divided in two groups, declaration and definition

sentences; the first ones just give names to concepts,

associating them with a specific type (which is what

happens in an Operation Declaration) whereas

definition sentences detail the features of a concept

(such as an Entity Definition).

<Declaration>: <Application Unit Declaration> |

Our profile identified three base concepts,

Entities, Actors and Operations, defined by the

following rules, which basically state that the

complete specification of a concept can be done by a

number of sentences.

<Operation Definition>*

<Actor Specification>: <Actor Definition>*

<Entity Specification>: < Entity Definition>*

For example, the number of rules currently used

for validating an entity specification is already very

large, as the following EBNF rules, although not

complete, show.

<Entity Definition>: <Entity Inheritance

Definition> | <Entity Property Definition> |

<Entity Equivalence Definition> | <Entity

Association Definition>

<Entity Inheritance Definition>: <Entity> is a

<Entity Equivalence Definition>: <Entity> is the

same as <Entity>

<Entity Property Definition>: <Entity> has

<Property Definition>*

<Property Definition>: [a|an|the] [<Primitive

Type>] [<Quantifier>] <Property>

<Quantifier>: <number> | at least <number> | at

most <number> | a list of | each | …

<Entity Association Definition>: <Entity Active

Association Definition> | <Entity Passive

Association Definition>

<Entity Active Association Definition>:

[<Quantifier>] <Entity> <Active Verb>

[<Quantifier>] <Entity>

<Entity Passive Association Definition>:

[<Quantifier>] <Entity> <Passive Verb>

[<Quantifier>] <Entity>

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

146

Although we want to allow the users of our tools

to use natural language, the parsing mechanisms, as

well as the integration with code generation tools,

imply that we must restrict the terms allowed to a

recognizable subset, such as the fixed terms we have

seen in the above rules. This set of rules, called the

TS rules (Template Substitution rules), which can be

defined and changed for a specific project, enables

the incremental evolution of these terms, just by

adding more rules, or by defining synonyms

between words. This approach not only supports

different writing styles and natural languages, but

also is the base for the definition of domain specific

languages. The rules are stored in groups related to

the sections they apply, and as such we have

specialized business entities, functional requirements

and non-functional requirements rules.

3 PROJECT COMPONENTS

As figure 2 shows, the architecture that supports

ProjectIT-RSL is composed by a number of different

components, from which we must emphasize the

roles of three of them: a text editor, two specialized

parsers and an inference engine.

pd PIT-RSL Component M odel Ov e rv iew

PIT-RSL Plug-in

+ RSL-EditorPlugin

+ PIT-RSL TemplatesImportView

+ PIT-RSL TextEditor

PIT-RSL Parser

+ RSL-Fuzzy Matching Parser

+ RSL-Structural Parser

PIT-RSL TextEditor

+ RSL-Editor

+ PIT-RSL Internal

(fro m PIT-RS L P l u g -i n)

«fra m ework»

CSTools

«adapter»

RSL-to-RDF/O WL

«fra m ework»

Jena .NET Port

+ Inference Engine

+ Knowledge Base

«import»

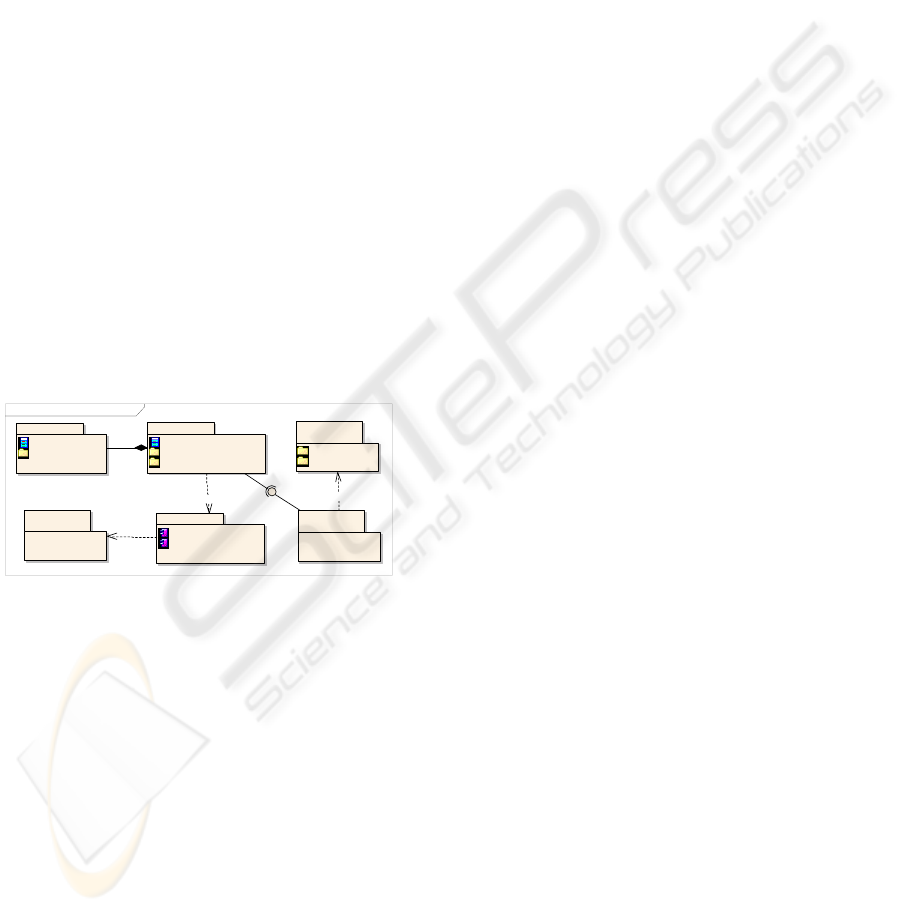

Figure 2: ProjectIT-RSL components.

3.1 The Text Editor

The text editor, represented by the package PIT-RSL

Plug-in, is a plug-in built upon the capabilities of

Eclipse.NET (a port we have performed of Eclipse

to the .NET platform), with features such as auto-

complete, auto-format, warnings and errors

annotations (text underline and vertical bars marks),

syntax-highlighting and suggestions.

When the user opens a requirements

specification document written in ProjectIT-RSL (a

.pit file) with the text editor, it performs an initial

full parsing of the document’s contents and starts a

read-evaluate-print cycle typical of event oriented

interfaces such as the one we are using. Upon

detection of a document manipulation, the plug-in

sets a timeout mechanism that triggers an event after

a configurable short time interval and, which

revaluates the whole document again, applying only

the parsing algorithms to new or modified

requirements. Therefore, this lazy document’s

evaluation mechanism avoids repetitive calls to the

parsing mechanism while the user is temporarily

typing. Consequently, having in mind the Model-

View-Controller (MVC) architecture’s analogy, all

model dependent views (subscribers) of the parsing

result (the RSL model) stay immutable until new

relevant changes occur in the document’s contents

presented in the text editor (a view-controller

component), instead of being constantly refreshed.

3.2 The Parsing Components

The analysis of the requirements sentences is

performed by two parsers, the RSL-Structural Parser

and the RSL Fuzzy Matching Parser. The first is

generated by a set of tools called CSTools (available

at http://cis.paisley.ac.uk/crow-ci0/) and performs

the initial parsing steps, validating the document’s

structure. The second is called PIT-RSL Fuzzy

Matching Parser and is responsible for processing

Natural Language (NL) text to find the optimal

parsing tree, by successive testing NL patterns

contained in the TS set of rules.

3.3 The Structural Parser

The generation of the Structural Parser is based upon

two script files, one that contains all the regular

expressions that recognize the tokens specified in the

PIT-RSL language definition, and the other that

contains all non-terminal and abstract syntax tree

nodes specifications.

One of the first steps of the Structural Parser is to

break in tokens its input (the requirements

document): it parses the file accordingly with the

semantic contexts introduced by the SYSTEM and

SECTION tokens. This enables the detection and

validation of the requirements hierarchical

numeration and enforces a predefined sentences’

structure for each of the above scopes. This step was

essential for early detection of potential problems

and inconsistencies.

For dealing with the nested structural scopes of

the requirements specification document, we

introduced a context stack mechanism. Additionally,

it was necessary to establish an error and warning

mechanism to allow the parsing process to continue

to run until the end of the requirements document

USING LINGUISTIC PATTERNS FOR IMPROVING REQUIREMENTS SPECIFICATION

147

file, even in the presence of non-critical errors,

introducing this way a certain level of robustness.

The output of the early stage transformations is

an abstract syntax tree (AST) which contains an

overall improved representation of the original free-

form document, where each requirement is

contained in a specific section of the nested

structural hierarchy and consists of a sequence of

words. Subsequent iterations over the produced AST

are used to supply information to other internal data

structures belonging to other components which are

responsible for the next parsing stages. Before

starting to examine the requirements’ semantics, the

parsing mechanism must first import all the

referenced documents/systems present in the section

type “Section Imports”. The import mechanism

follows a depth-first approach while parsing and

loading the documents/systems specified for import

but, for safety, it maintains a path trace which avoids

endless importing cycles and redundancies.

3.4 The Fuzzy Matching Parser

The second parsing component is called the Fuzzy

Matching Parser (FMP), which heuristically

analyses the semantics of each requirement through

the adherence of the statement’s semantics to its

syntactic structure, which is typical of requirements

sentences. Initially, this component performs a

morphological and syntactic analysis of each word

of every requirement statement. This categorization

analysis, based on each word definition and on the

context in the statement (relationship with adjacent

and related words in a sentence or paragraph), is

performed by an external component that

implements the Brill Tagger’s algorithm for part-of-

speech tagging (more information available at

http://www.cs.jhu.edu/~brill/code.html), which

marks each word by appending a set of grammatical

information tags, providing the required words’

classification for further appliance of the FMP

algorithm.

To avoid redundant “labelling” and parsing

information, we store a list of all distinct words used

in the requirements document, and implement a

hashing mechanism that assures words’ uniqueness

when adding new words to the list. The use of the

word list constitutes an efficient way of managing

the terms available and, simultaneously, improves

memory usage since it is based on the GIF format

compression algorithm (Sayood, 1996), where each

sentence is converted in a sequence of numbers,

each corresponding to a previously tagged word.

For each new requirement addition, the FMP

algorithm is called with the requirement statement

and a set of specific TS rules, depending on the

section where the requirement belongs, providing a

more refined parsing. The algorithm attempts to find

the optimal parsing tree by recursively trying, until

exhaustion, to match the requirements statement

information with the TS rule’s templates part and,

upon a successive match, substitutes the matched

information with the TS rule’s substitution part. This

recursive search is guided by a heuristic function,

which gives a score value for each TS rule applied.

In each step the algorithm iterates over all TS rules

and, for each, tries to find if there is a complete

match between it and the statement being parsed.

A complete match occurs when for all elements

of TS rule template part there is at least one match

between that template element and a word of the

requirement’s sentence. If a complete match occurs,

then for all valid matches, the algorithm applies a

substitution operation which replaces the matched

text fragment of the current requirement’s statement

by the template part of the TS rule under analysis

within the algorithm step. During the replacement

process, the template’s variables are bound to the

corresponding word values of the statement and this

new requirement’s statement is further used in the

next recursive step. Then, the algorithm determines

an overall score for the step with a parameterized

heuristic function which is based in the following

three aspects: (1) the “match quality”, which

includes the relative word positions, eventual words

inversions, and number of words discarded; (2) the

TS rule template length, number of variables, and

number of constants; finally (3) the length of the

requirement statement’s fragment that couldn’t be

parsed. At the end of the step, the algorithm calls

itself in a recursive manner executing the same

behaviour until it reaches a terminal case where no

more rules can be applied.

At the end, the algorithm verifies if the achieved

results demonstrate a minimal level of parsing

quality by comparing its score with a minimum

threshold value: if the attained score exceeds the

threshold, the algorithm returns the best results

found – the optimal parsing tree; otherwise it returns

the original requirement sentence. Since this

algorithm is intrinsically recursive, we have to

guarantee that it neither enters in an endless loop,

nor repetitively reapplies the same TS rule, which in

both cases mean a possible TS rules specification

error, and consequently a PIT-RSL linguistic

patterns’ constructs problem. To solve this issue we

have introduced a Background Thread Variable

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

148

Timeout Mechanism (BTVTM). Its goal is to run

this heavy-weight FMP algorithm FMP in the

background. It has an associated timer for only

letting the algorithm perform its tasks during a

previously specified period, thus assuring that the

algorithm eventually ends. This strategy also

guarantees that the tool always provides feedback to

the end user instead of blocking each time the

algorithm runs during the parsing process.

3.5 Inference Engine

Finally, and to allow further knowledge inference

capabilities, important for requirements validation,

PIT-Studio/RSL uses two other components: RSL-

to-RDF/OWL and Jena .NET Port. The former

contains the adapter pattern code that provides a

clean C# API for using the .NET ported Jena

framework without the necessary traces of java

syntax code. The Jena .NET Port package represents

a .NET port of Jena framework (available at

http://jena.sourceforge.net/), which supplies the PIT-

RSL plug-in with knowledge-base and inference-

engine capabilities

4 RELATED WORK

The use of natural language in the initial phases of

the software development process has received

attention for more than 20 years. Abbot (Abbot,

1983) proposed that nouns could be used to identify

classes, adjectives to identify attributes, and verbs to

identify methods. OICSI is a tool developed by

Rolland and Proix (Rolland, Proix, 1992), to help the

identification of requirements from natural language

text and available domain knowledge. Attempto

Controlled English (ACE), first described in (Fuchs,

Schwitter, 1996), is one of those approaches that use

a controlled natural language to write precise

specifications that, for example, enable their

translation into a first-order logic similar

representation (called DRS).

The use of parsing techniques to elaborate a

conceptual model from natural language

requirements is a common approach; in (Macias,

Pulman, 1993) we can find descriptions of proposals

to use a controlled natural language with a limited

syntax in order to specify requirements with more

quality. Some of the previous initiatives were

concerned with detecting problems in previously

written requirements documents (Fantechi, Gnesi,

Lami, Maccari, 2002), while others are concerned

with the elaboration of requirements documents

without such problems (Ben Achour, 1998, Denger,

2002). NL-OOPS (Mich, Garigliano, 1999) and

LIDA (Overmyer, Lavoie, Rambow, 2001) are

systems that process natural language requirements

to construct the corresponding object-oriented

model. A similar system is described in (Nanduri,

Rugaber, 1996). Although the number of initiatives

seems to justify the potential of natural language

requirements, there are studies reporting problems in

using natural language requirements specifications

(Berry, Kamsties, 2003).

A number of different approaches have

researched on the elaboration of requirements

specification using patterns of natural language.

Approaches such as (Ben Achour, 1998) and

(Rolland, Proix, 1992) reduce the level of

imprecision in requirements by using a limited

number of sentence patterns to specify a requirement

for a particular domain. Denger (Denger, 2002) has

also identified natural language patterns used to

specify functional requirements of embedded

systems, from which they developed a requirements

statements metamodel. Juristo and Moreno try to

formalize the analysis of natural language sentences

in order to create precise conceptual model (Juristo,

Morant, Moreno, 1999).

Ambriola and Gervasi proposed the CIRCE

project (sometimes defined as a “lightweight formal

method”) (Ambriola, Gervasi, 2003), which uses

natural language as the specification language, and

is also supported by fuzzy matching parsing

techniques to extract knowledge from requirements

documents and produce a formal validation of

requirements. Although Circe and ProjectIT-RSL

have some similarities, there are between them many

differences, namely in the architecture, concepts and

algorithms used, and above all, in the strategy: the

goal of CIRCE has initially been requirements

validation, and only recently integrated with model

driven approaches, whereas our goal with

requirements specification is to obtain a consistent

requirements document that enables the use of

model driven techniques and code generation.

5 CONCLUSIONS AND FUTURE

WORK

The importance of requirements specification led us

to propose a new specification language, closely

supported by a number of tools that cover most of

the requirements specification process, mainly the

specification and validation steps. This paper

USING LINGUISTIC PATTERNS FOR IMPROVING REQUIREMENTS SPECIFICATION

149

focused on the description of the parsing steps

algorithms, following others where we have

described the language ProjectIT-RSL in more detail

(Videira, Ferreira, Silva, 2006). The language and

the tools have already reached an important maturity

level, and the application in small examples has led

us to conclude that, although sharing points with

other initiatives, we think that our approach has a

unique combination of ideas that has not been tried.

In the near future we will concentrate in the

development of the requirements reuse mechanisms

and in advancing tool support. For example, we will

automate the generation of the TS Rules from the

ProjectIT-RSL abstract rules, and we will develop

plug-ins to show, in different formats, the

information stored in the knowledge base. When our

ProjectIT-RSL and its supporting tools reach a

sufficient maturity level, it is our intention to use

them in real projects, to better test and proof the

ideas we are proposing.

REFERENCES

Abbot, R., Program design by informal english

description, Communications of the ACM, 16(11), pp.

882-894, 1983

Ambriola, V., Gervasi, V., The Circe approach to the

systematic analysis of NL requirements, Technical

Report TR-03-05, University of Pisa, Informatics’

Department, 2003.

Bell, T., Thayer, T., Software requirements: Are they

really a problem?, Proceedings of the 2nd Int.

Conference on Software Engineering, pp. 61-68, 1976

Ben Achour, C., Guiding Scenario Authoring, Proceedings

of the 8th European-Japanese Conference on

Information Modeling and Knowledge Bases, pp.

152–171, IOS Press, Vamala, Finland, May 1998

Berry, D., Kamsties, E., Ambiguity in Requirements

Specification, Perspectives on Software Requirements,

eds. J. C. Sampaio do Prado Leite and J. H. Doorn,

Kluwer Academic, pp. 191-194, 2003

Carmo, J., Videira, C, Silva, A., Using Visual Studio

Extensibility Mechanisms for Requirements

Specification, 1st Conference on Innovative Views on

.NET Technologies, Porto, June 2005

Denger, C., High Quality Requirements Specifications for

Embedded Systems through Authoring Rules and

Language Patterns, M.Sc. Thesis, Fachbereich

Informatik, Universität Kaiserslautern, 2002

Fantechi, A., Gnesi, G., Lami, G., and Maccari, A.,

Application of Linguistic Techniques for Use Case

Analysis, Proceedings of the IEEE Joint International

Requirements Engineering Conference (RE’02), IEEE

Computer Society Press, Essen, Germany., 2002

Fuchs, N., Schwitter, R., Attempto Controlled English

(ACE), CLAW 96, First International Workshop on

Controlled Language Applications, University of

Leuven, Belgium, March 1996

Juristo, N., Morant, J., Moreno, A., A formal approach for

generating oo specifications from natural language,

The Journal of Systems and Software, Vol. 48, pp.

139-153, 1999

Kotonya, G., Sommerville, I., Requirements Engineering

Processes and Techniques, New York. Jonh Wiley &

Sons, 1998

Macias B, Pulman S., Natural language processing for

requirements specification, Safety-critical Systems, pp

57–89, Chapman and Hall: London, 1993

Mich, L., Garigliano, R., The NL-OOPS Project: OO

Modeling using the NLPS LOLITA, Proc. of the 4th

Int. Conf. Applications of Natural Language to

Information Systems, pp. 215-218, 1999

Nanduri, S., Rugaber, S., Requirements Validation via

Automated Natural Language Parsing, Journal of

Management Information Systems, 1996

Overmyer, S., Lavoie, B., Rambow, O., Conceptual

Modeling through Linguistic Analysis using LIDA,

Proc. of the 23rd Int. Conf. Software Engineering, pp.

401-410, 2001

Rolland, C., Proix, C., A Natural Language Approach for

Requirements Engineering, Proceedings of the 4th Int.

Conf. Advanced Information Systems, CAiSE 1992

Sayood, K, Introduction to Data Compression. Morgan

Kaufmann, 1996

Silva, A., O Programa de Investigação “ProjectIT”,

Technical report, V 1.0, October 2004, INESC-ID

Videira, C., Silva, A., The ProjectIT-RSL Language

Overview, UML Modeling Languages and

Applications: UML 2004 Satellite Activities, Lisbon,

Portugal, October 2004a

Videira, C., Silva, A., ProjectIT-Requirements, a Formal

and User-oriented Approach to Requirements

Specification, Actas de las IV Jornadas

Iberoamericanas en Ingeniería del Software e

Ingeniería del Conocimiento - Volumen I - pp 175-

190, Madrid, Spain, November 2004b

Videira, C., Silva, A., A broad vision of ProjectIT-

Requirements, a new approach for Requirements

Engineering, in Actas da 5ª Conferência da Associação

Portuguesa de Sistemas de Informação, Lisbon,

Portugal, November 2004c

Videira, C., Silva, A., Patterns and metamodel for a

natural-language-based requirements specification

language, CaiSE 2005 Forum, Porto, June 2005

Videira, C., Silva, A., A linguistic patterns approach for

requirements specification language, Euromicro

SEAA 2006 Conference, Dubrovnik, August 2006

ICSOFT 2006 - INTERNATIONAL CONFERENCE ON SOFTWARE AND DATA TECHNOLOGIES

150
