A MODEL FOR AUTOMATIC MATCHING OF SECURITY

REQUIREMENTS DURING SEMANTIC WEB SERVICE

DISCOVERY

Andreas Friesen, Danna Feng

SAP Research CEC Karlsruhe,SAP AG,Vincenz-Priessnitz-Str.1 ,D-76131 Karlsruhe,Germany

Keywords: Semantic Web Services, Security, Security Ontology, Security Policy, Security Requirements, Semantic

Discovery, Semantic Selection, QoS.

Abstract: This paper describes a semantic approach for modelling security requirements of requesters and providers of

Semantic Web Services. These semantic descriptions can be used either during semantic service discovery

or service selection phase for automatic compatibility verification of the security requirements of a service

requester and provider. The security requirements model, ontology classifying existing security services and

mechanisms, and a semantic matchmaking method relying on description logics are described in detail. This

work is related to several semantic and non-semantic Web Services standards. The relationship to the most

relevant of them has been worked out.

1 INTRODUCTION

Web Services enabled business systems can be used

by anyone, from anywhere, at any time, and on any

type of platform. Semantic Web Services promise a

higher degree on automation concerning discovery,

invocation, composition, and monitoring of Web

Services. Security and trust are very important

factors for the success of the Semantic Web. In this

work, the security requirements for Semantic Web

Services are described in a manner that the security

mechanisms based on the existing security standards

will be represented in formal logics (to be more

precisely in description logics (Baader, F. et al,

2003)). Description logics are directly supported by

one of the Web Ontology Language (OWL) dialects

OWL-DL (Smith, M. K. et al, 2005). This allows

taking into account the security requirements of

requesters/providers during the Semantic Web

Service discovery or selection phase, i.e., enabling

automatic compatibility verification.

For the representation of different security

mechanisms we have chosen as the basis the Web

Services Security Policy Language (Web Services

Policy Language, 2005) that has collected many

standard security mechanisms. All security

mechanisms are represented as classes in OWL-DL.

The security requirements on the security services

are described either using these classes directly or by

logical combinations of these classes.

At first, we introduce the Web Services Policy

Framework (WS-Policy) (Web Services Policy

Framework, 2005) and Web Services Security

Policy Language (WS-SecurityPolicy) (Web

Services Policy Language, 2005). Then, we describe

our basic concept for realizing security requirements

matching.

The classes of security services and the standard

security mechanisms are then formally described in

an ontology that is used in the expressions of

security requirements of communicating parties.

In order to realize automatic matching of security

requirements, they must be described in a machine

understandable language. WS Policy describes

requirements in the form of policies, policy

alternatives and assertions. We map the concepts

used in WS-Policy to OWL-DL starting from the

work described in (Kolovski, V. et al, 2005) and

extending it.

Finally, an example demonstrates how to

describe security requirements in OWL-DL at the

capability-level and how to test the compatibility

between the requirements of two communicating

parties.

387

Friesen A. and Feng D. (2006).

A MODEL FOR AUTOMATIC MATCHING OF SECURITY REQUIREMENTS DURING SEMANTIC WEB SERVICE DISCOVERY.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 387-392

DOI: 10.5220/0001253603870392

 SciTePress

2 WEB SERVICES POLICY

LANGUAGE

A Policy for a Web Service consists of facts, or

assertions, and rules that apply to a particular Web

Service. A policy would be used to describe or point

to documents describing the owning business,

associated products, keywords, taxonomies for the

service, security policies, quality of service

attributes, etc. A Policy may be used by the

overarching concerns: security, quality of service,

and management (Web Services Architecture, 2005).

Web Services Policy Framework (WS-Policy)

(Web Services Policy Framework, 2005) provides a

general purpose model and corresponding syntax to

describe the policies of a Web Service. WS-Policy

defines a base set of constructs for expressing the

capabilities, requirements and general characteristics

of entities in a Web Services based system and can

be extended by other Web Services specifications.

The requirements and capabilities of a policy subject

are specified by policy assertions. A policy subject is

an entity (e.g., service provider, service requester,

message, resource, interaction) with which a policy

can be associated. A collection of policy assertions

builds a policy alternative. WS-Policy defines a

policy as a collection of policy alternatives and

offers a normal form for policy expression which is

outlined as follows:

<wsp:Policy …>

<wsp:ExactlyOne>

[<wsp:All>

[<Assertion …> … <Assertion>]

</wsp:All>]

</wsp:ExactlyOne>

<wsp:Policy>

<wsp:Policy> indicates the beginning of a

policy expression. <wsp:ExactlyOne> defines a

collection of policy alternatives. <wsp:All> defines

a policy alternative – a collection of policy

assertions. The star character * denotes zero or more

occurrences.

WS-SecurityPolicy (Web Services Policy

Language, 2005) indicates the policy assertions with

respect to security features. It defines a base set of

assertions that describe how messages are to be

secured (e.g., Integrity Assertion, Confidentiality

Assertion) and which token types (e.g., X509Token

Assertion, KerberosToken Assertion), cryptographic

algorithms (e.g., AlgorithmSuite Assertion) and

mechanisms should be used.

WS-Policy and WS-SecurityPolicy provide us a

normal form for expressing security policies, but are

not sufficient for automatic matching because of the

lack of semantics.

3 SECURITY MODEL

In this work, we consider a simple Semantic Web

Services model with two actors: Service Requester

and Service Provider. The main focus of the

approach is to capture the security requirements of

the requesters and providers on the Semantic Web

Services at the capability level not at the message

level. We define therefore policy alternatives as

various security requirements alternatives that have

the following services: Authentication,

Authorization, Integrity, Confidentiality and Non-

repudiation. These services are chosen, because they

are most common and important for security

solutions. In the Web Services world, there are many

security standards implemented to realize these

security services. In the Semantic Web Services

world, although there are some security approaches

advertised, a conclusive solution is still expected.

Semantic Web Services are technologically seen

not totally different from Web Services. Quite the

contrary, they are an extension of Web Services. In

(Berners-Lee, T., 1998)(Dumbill, E., 2000) Tim

Berners-Lee points out that the Semantic web

extends the World Wide Web through the use of

standards, mark-up languages and related processing

tools. Figure 1 illustrates the layered architecture of

the Semantic Web.

The first two levels describe the traditional Web.

URI enables the navigation of resources, while

Unicode enables computer to “read” the content of

resources. XML provides a basic format for

structured documents but without particular

semantics. RDF can describe the resources and their

properties and make this information machine

understandable, but is very limited for logical

description of resources and their relationships (e.g.,

negation or intersection). RDF Schema declares the

existence of properties and can constrain the types of

objects they can apply to. The ontology layer offers

more meta-information such as transitive property or

cardinality of the objects. The logic layer enables

describing logic (e.g. union, intersection, predicate

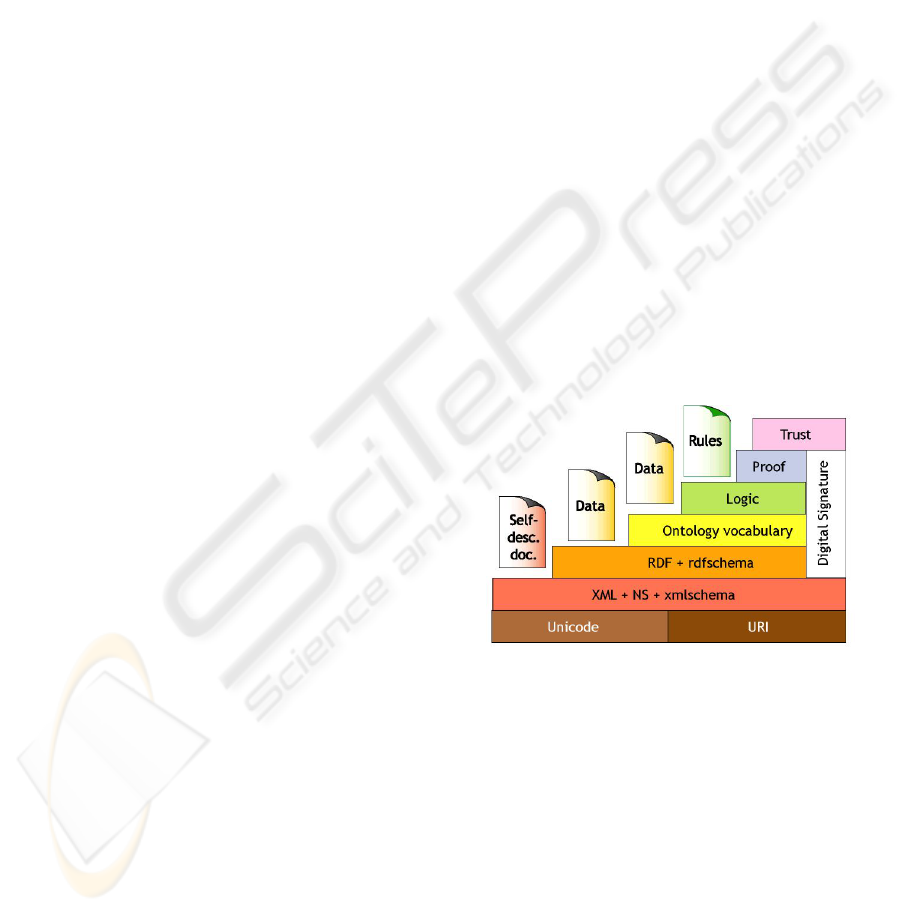

Figure 1: Architecture of Semantic Web.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

388

logic and quantification) in order to realize proof by

using the inference rules defined on the logic layer.

In the light of this architecture, our approach

reuses to a certain degree the security standards and

mechanisms of the Web Services. Based on these

standards, we define an ontology formalizing the

concepts and relationships used to describe security

services and requirements. We describe which

security standards and mechanisms can be used for

each service. These security standards and

mechanisms represent the basic components

(classes) for describing this ontology. By using the

classes defined in this ontology, a service provider

can define the security policies for a Web Service

and a service requester can also describe security

policies of its goal. Furthermore, it is important to

distinguish between supported security requirements

and necessary security requirements. A supported

requirement of an entity (a service provider or a

service requester) means that the entity supports all

mechanisms applied to realizing the services

specified in this requirement. A necessary

requirement of an entity means that the entity

requires some special mechanisms that its potential

communicating party must support. These specially

required mechanisms must be also supported by the

entity itself. Hence, necessary security requirement

is a subset of supported requirement. The policy

matching takes place between necessary

requirements on one side and supported

requirements on the other side. The following

example demonstrates the necessity of the

differentiation between supported requirements and

necessary requirements. If a service requester

supports signature algorithms RSA and DSA, while

a service provider supports signature algorithms

DSA and ECDSA. Without the differentiation

between supported requirements and necessary

requirements, their security requirements should be

compatible, because both of them support at least

one algorithm DSA. In the case that the service

provider provides a certificate with a ECDSA key,

the service requester can not verify signatures

created using this key, because it doesn’t support

ECDSA. This differentiation realizes more

granularities for expression of security requirements.

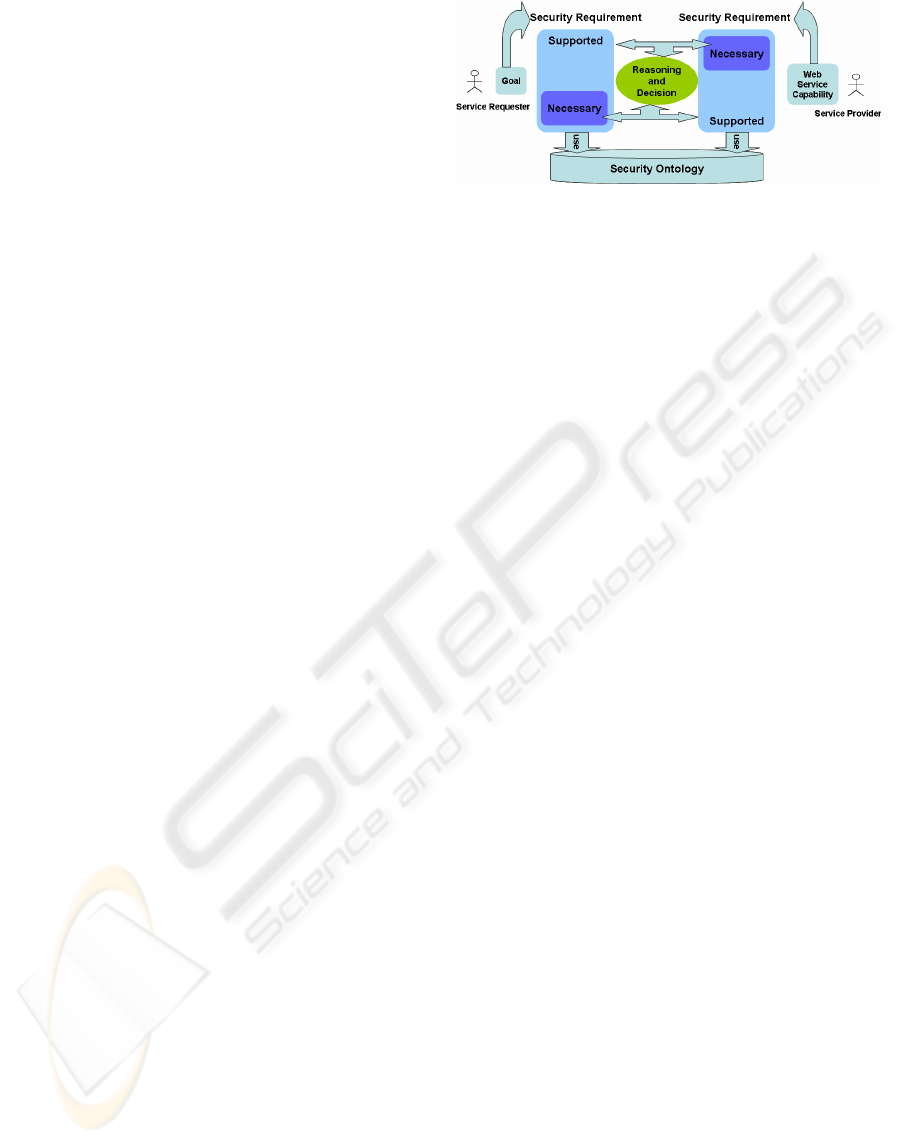

Figure 2 illustrates this idea.

In the following, it will be showed which

security standards and mechanisms can be used for

describing security services.

Authentication: Authentication can be realized

by using security token, e.g., KerberosToken or

X509Token. Furthermore, the communicating

parties can also be authenticated by using their

digital signatures or only by using a random value

depending on the used token type.

Integrity: Using KerberosToken or X509Token

combined with digital signature can provide data

integrity protection.

Confidentiality: Several Encryption algorithms

support confidentiality.

Non-Repudiation: Non-Repudiation can be

guarantied by using digital signature and timestamp

or/and a random value.

Authorization is currently a subject for further

work. There are some considerations about

authorization such as using RelToken (Rights

Expression Language) (Web Services Security,

2005), XACMLToken (eXtensible Access Control

Markup Language) (eXtensible Access Control

Markup Language, 2005), SAML (Security

Assertion Markup Language) (Web Services

Security, 2003), and the credential based access

control suggested in (Agarwal, S. et al, 2004).

Figure 3 illustrates the simplified class diagram

of the concepts (taxonomy) used to specify security

requirements in the security model.

4 REPRESENTING WEB

SERVICE SECURITY

REQUIREMENTS IN OWL-DL

The previously indicated assertions defined in WS-

SecurityPolicy are only for expressing security

constraints and capabilities and suffer from a lack of

formal semantics. The intent of this work is to

realize the automatic matching of available security

requirements between communicating parties which

must be described with machine understandable

metadata. A taxonomy describing security concepts

has been defined in the last section. By using the

basic elements – the classes defined in this

taxonomy, WS-SecurityPolicy can be described in a

machine understandable language.

An approach of mapping the WS-Policy

language into the description logic fragment of the

Web Ontology Language (OWL-DL) has been

proposed in (Kolovski, V. et al, 2005). An

investigation about ontology based specification of

Web services policies has been described in

Figure 2: The basic concept.

A MODEL FOR AUTOMATIC MATCHING OF SECURITY REQUIREMENTS DURING SEMANTIC WEB SERVICE

DISCOVERY

389

(Grimm, S. et al, 2004). We reuse parts of these

approaches and extend them in order to describe

Web Services security requirements.

WS-Policy involves policy assertions and

combinations of assertions. Therefore, by describing

the assertions as atomic propositions and the

combinations of the assertions by conjunction/

disjunction, it is possible to map the policy language

constructs into logic. This mapping defines a clear

semantics for the WS-Policy structures.

wsp:ExactlyOne means that at least one of the

alternatives in the policy must be supported by a

service requester, so that this policy can be

supported by the requester. However, the requester

can only apply exactly one valid policy alternative.

wsp:All means all of the policy assertions

mentioned in this policy alternative must be

supported by a requester. Thus, it is a logic

conjunction and can be expressed as an OWL

intersection.

The normal form of WS-Policy can be

represented in OWL as follows:

Policy ≡ UnionOf (PolicyAlternative

, …

PolicyAlternative

) (n ≥ 0)

PolicyAlternative

≡ IntersectionOf

(Assertion

, … , Assertion

) (0 ≤ i ≤ n,

m ≥ 0)

In our proposal, the mapping is extended to

supply description of security requirements as policy

alternatives. Security policy can be treated as a

policy that is represented by the union of various

security requirements. Each of them can consist of

five previously mentioned security services, which

can be described as policy assertions. However, in

the future the model can be extended to support

additional security services. A formal description of

a security requirement in DL is as follows:

SecurityRequirement ⊑

((≤1 hasAuthentication.Authentication)

⊓ (≤1 hasAuthorization.Authorization)

⊓ (≤1 hasIntegrity.Integrity)

⊓ (≤1 hasConfidentiality.

Confidentiality)

⊓ (≤1 hasNonRepudiation.

NonRepudiation))

At first, a security requirement contains each

security service exactly one time, if the requirement

supports it. The specification of a specific

requirement (specialization of SecurityRequirement)

is then represented in this case with “=1”. Each

security service described in this definition as

assertion can be represented as a logical expression

of various security means or mechanisms. How to

describe assertions in DL will be shown below.

Secondly, in the case that a party can not support

one or more of these five services, its security

requirement must not contain these services. Thus

“≤1” is applied to the common specification instead

of “=1”. In the specification of this requirement, the

unsupported security service must be represented as

“⊥” – the bottom concept. In OWL-DL this concept

is described with owl:Nothing. Finally, it is also

possible that a specialization of SecurityRequirement

can support all of the restrictions defined for a

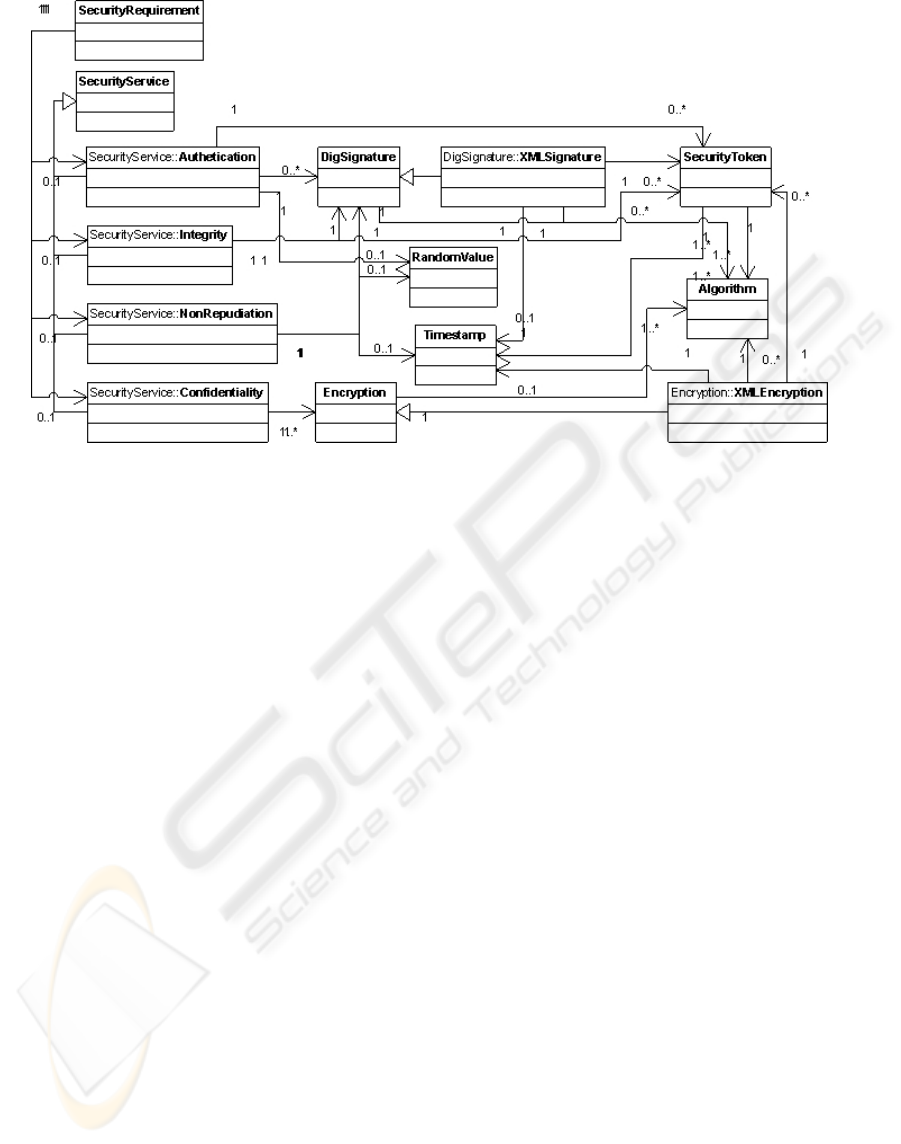

Figure 3: Class diagram of security services (simplified).

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

390

specific security service. That is, this requirement

can support all kinds of security mechanisms defined

for that security service. In this case the

specialization of the SecurityRequirement does not

define further constraints on the security service.

Each assertion can be mapped directly into a

general class of OWL-DL or a class with restriction

that is described by using object properties and other

classes.

For the matching of two policies, we define two

policies as compatible, if Policy

⊓ Policy

satisfiable.

The following example illustrates an

authentication requirement. The compatibility test of

the requirements of service requester and service

provider is also outlined.

In this example, authentication is realized by

using XML Signature (XML-Signature Syntax and

Processing, 2005). For simplified description, except

signature algorithms (only asymmetric algorithms),

the other algorithms such as digest algorithms,

canonization algorithms and transform algorithms

usually also needed for XML Signature are not

further specified.

First, we define the supported security

requirements of service requester and service

provider.

PolicyRequirementProviderSupported ⊑

((∃ hasAuthentication.AuthProvider

) ⊓

SecurityRequirement)

PolicyRequirementRequesterSupported ⊑

((∃ hasAuthentication.AuthRequester

) ⊓

SecurityRequirement)

They both support authentication services

realized by XML Signature, whereat the provider

supports XMLSig

and the requester supports

XMLSig

AuthProvider

⊑

((=1 hasDigitalSignature.XMLSig

) ⊓

Authentication)

AuthRequester

⊑

((=1 hasDigitalSignature.XMLSig

) ⊓

Authentication)

XMLSig

uses algorithms ECDSA or RSA for

ciphering, while XMLSig

supports only algorithms

RSA or DSA.

XMLSig

⊑ ((=1 hasCipher.(RSA ⊔ ECDSA))

⊓ (XMLSignature))

XMLSig

⊑ ((=1 hasCipher.(RSA ⊔ DSA) ⊓

(XMLSignature))

The service provider has a certificate signed with

DSA, while the service requester has a certificate

signed with RSA. In this case, the service provider

requires signature algorithm DSA as his necessary

requirement, while the service requester requires

RSA as his necessary requirement. The necessary

requirements must be a subset of supported

requirements.

XMLSigNecessary

⊑ ((=1 hasCipher.RSA

(XMLSignature))

XMLSigNeccessary

⊑ ((=1 hasCipher.DSA)

⊓ (XMLSignature))

Based on the definition of compatibility of

policies as indicated above and the differentiation of

supported requirement and necessary requirement,

we define two security requirements as compatible,

if:

• ProviderSupported ⊓ RequesterNecessary is

satisfiable, and

• ProviderNecessary ⊓ RequesterSupported is

satisfiable.

XMLSig

⊓ XMLSigNecessary

is not satisfiable.

Therefore, the security requirements of the provider

and the requester are not compatible.

5 CONCLUSIONS AND FUTHER

RESEARCH DIRECTIONS

In this work, a model for describing Web Services

security requirements at the capability level was

built. This model illustrates our basic idea for

realization of automatic matching of security

requirements in the Semantic Web Services world,

and has been prototypically implemented and tested

using Protégé (The Protégé Ontology Editor and

Knowledge Acquisition System, 2005) with OWL

plug-in and Racer (Racer System, 2005).

Furthermore, a user friendly interface has been

implemented, with which the security requirements

can be reasonably described and matched.

The subjects of further work are summarized as

follows:

At this time, there are no broadly-adopted

specifications for web services security. In this

work, many web services security recommendations

and standards of W3C and OASIS were treated as

basics for the ontology described in this paper.

However, it enables the developer to extend this

A MODEL FOR AUTOMATIC MATCHING OF SECURITY REQUIREMENTS DURING SEMANTIC WEB SERVICE

DISCOVERY

391

ontology with more security mechanisms according

to more security requirements.

As described previously, this model will be

extended with authorization capability.

The model described in this paper is a simplified

model that contains two communicating parties:

service requester and service provider, and the

composed services are not considered within the

scope of this paper, which can be involved in the

further implementation.

The matching of security requirements is at the

capability level of web services. Finally, we

proposed ontology for modelling security

requirements and capabilities of security services,

which can be treated as basis to describe security

services as part of QoS in OWL-S (OWL Web

Ontology Language for Services (OWL-S), 2005) in

future work.

REFERENCES

Agarwal, S., Sprick, B., and Wortmann S. (2004).

Credential Based Access Control for Semantic Web

Services. Retrieved November 20, 2005, from

University of Karlsruhe, Institute of Applied

Informatics and Formal Description Methods (AIFB)

web site: http://www.aifb.uni-karlsruhe.de/WBS/sag

/papers/Agarwal_Sprick_Wortmann-CredentialBased

AccessControlForSemanticWebServices-

AAAI_SS_SWS-04.pdf.

Baader, F., Calvanese, D., McGuinnes, D., Nardi, D., and

Patel-Schneider, P. (2003). The Description Logic

Handbook: Theory, Implementation and Applications.

Cambridge University Press.

Berners-Lee, T. (1998, September). Semantic Web Road

map. Retrieved November 25, 2005, from

http://www.w3.org/DesignIssues/Semantic.html.

Dumbill, E. (2000, December 6). Berners-Lee and the

Semantic Web Vision. Retrieved November 25, 2005,

from http://www.xml.com/pub/a/2000/12/xml2000/

timbl.html.

eXtensible Access Control Markup Language (XACML)

Version 2.0. Oasis standard. (2005, Feb. 1) Retrieved

October 12, 2005, from http://docs.oasis-

open.org/xacml/2.0/access_control-xacml-2.0-core-

spec-os.pdf.

Grimm, S., Lamparter, S., Abecker, A., Agarwal, A.,

Eberhart, A. (2004). Ontology based Specification of

Web Service Policies. Retrieved November 20, 2005,

from University of Karlsruhe, Institute of Applied

Informatics and Formal Description Methods (AIFB)

web site: http://www.aifb.uni-

karlsruhe.de/WBS/sag/papers/Grimm_Lamparter_Abe

cker_Agarwal_Eberhart-

OntologyBasedSpecificationOfWebServicePolicies-

SemanticWebServicesAndDynamicNetworks-

Informatik04-04.pdf.

Kolovski, V., Parsia, B., Katz, Y., and Hendler, J. (2005).

Representing Web Services Policies in OWL-DL.

Retrieved November 24, 2005, from

http://www.mindswap.org/papers/2005/Policy-

ISWC05.pdf.

OWL Web Ontology Language for Services (OWL-S).

November 2, 2004. Retrieved November 25, 2005,

from http://www.w3.org/Submission/2004/07/.

Racer system. Retrieved November 27, 2005, from

http://www.racer-systems.com/de/index.phtml.

Smith, M. K., Welty, C., McGuinness D. L. (Feb, 2004).

OWL Web Ontology Language Guide. W3C

Recommendation. Retrieved November 8, 2005, from

http://www.w3.org/TR/owl-guide/.

The Protégé Ontology Editor and Knowledge Acquisition

System. Retrieved October 12, 2005 from

http://protege.stanford.edu.

Web Services Architecture. November 14, 2002. W3C

working draft. Retrieved November 25, 2005, from

http://www.w3.org/TR/2002/WD-ws-arch-

20021114/id2616445.

Web Services Policy Framework (WS-policy). September,

2004. Retrieved September 4, 2005, from

http://schemas.xmlsoap.org/ws/2004/09/policy/.

Web Services Security Policy Language (WS-

SecurityPolicy).July, 2005. Retrieved September 7,

2005, from

http://specs.xmlsoap.org/ws/2005/07/securitypolicy/w

s-securitypolicy.pdf.

Web Services Security: Rights Expression Language

(REL) Token Profile. December 19, 2004. Oasis

Standard. Retrieved October 5, 2005, from

http://docs.oasis-open.org/wss/oasis-wss-rel-token-

profile-1.0.pdf.

Web Services Security: SAML Token Profile. February

21, 2003. OASIS Working Draft 06. Retrieved

November 14, 2005, from http://www.oasis-

open.org/committees/download.php/1048/WSS-

SAML-06.pdf.

XML-Signature Syntax and Processing. February, 2002.

W3C Recommendation 12. Retrieved November 16,

2005, from http://www.w3.org/TR/2002/REC-

xmldsig-core-20020212/Overview.html.

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

392
