AN ONTOLOGY-BASED SERVICES COMPOSITION

ALGORITHM

Jean-Charles Verdié

Sand Labs, Bt. 6, Parc Club du Millénaire, 1025 Rue H. Becquerel, 34000 Montpellier

Danièle Hérin, Michel Sala

Université Montpellier II, LIRMM, 161 Rue Ada, 34392 Montpellier Cedex 5

Keywords: Web Services, Composition.

Abstract: In the Semantic Web Services area, completing a complex request means calling many Web Services. They

are characterized by their heterogeneity since they are build independently from the context in which they

will be used. To compose them, we need to consider annotation and meta-data which will allow their

characterization. The goal of this paper is to propose the execution of a formal model, allowing the

automated processing of the composition of many Semantic Web Services. We define a request as a

sequence of different Web Services with the help of a formal logic. We define the paths allowing its

concrete resolution. Thanks to an abstraction of the Services whether they are viewed as physical, local or

global, we propose an automation of the building of the request resolution map.

1 INTRODUCTION

A Web service is a software component that takes

the input data and produces the output data (Rao,

2004). It usually comes with an interface

understandable by a machine, specifically WSDL

(W3C, WSDL, 2004) or an human (HTML forms).

In this paper, we focus on services without

prejudice of the way they are called. It could be via a

SOAP envelope (W3C, SOAP, 2003) providing the

information requested by the Service WSDL

interface, or through a human-machine interface

with forms. We formalize a Web Service as a

transaction, related to an ontology of concepts. This

Web Service describes how to compare, classify,

process the data of this ontology. By Transaction,

we mean a software process of data exchange and

processing on the domain ontology E, which

associates a subset E

of E to a subset E

Processing a request formulated by the user often

involves the composition of many Web Services,

and the consideration of constraints between these

Services. These Web Services and these constraints

are described in a generic way with a global

ontology, which needs to be translated to a specific

ontology to fit the description of the Service on a

specific Web site, and eventually translate to a

physical level, with the scenario of page sequencing,

or the creation of a SOAP envelope.

We propose a model to formalize this approach,

and generate a resolution map taking into account

the Services operated and the constraints expressed.

All along this paper, we will illustrate our

methodology with the following request:

: Book an hotel room and a plane seat to go

to the city where the hotel is.

Completing R

means composing two services:

• WS

: book an hotel room

• WS

: book a plane seat

• Constraint between the two transactions:

the plane must land in the destination city the

day when the hotel booking starts.

The remainder of the paper is as follow:

• In the chapter 2 we present a formal

approach of composition, with three abstraction

levels.

• Chapter 3 describes the detection of

services and their constraints.

• The resolution map generation is presented

in chapter 4.

461

Verdié J., Hérin D. and Sala M. (2006).

AN ONTOLOGY-BASED SERVICES COMPOSITION ALGORITHM.

In Proceedings of WEBIST 2006 - Second International Conference on Web Information Systems and Technologies - Internet Technology / Web

Interface and Applications, pages 461-464

DOI: 10.5220/0001240004610464

 SciTePress

2 CONCEPTUAL MODELLING

OF A COMPOSITION

According to (Payne, 2004) the Semantic Web

technologies use knowledge representation methods

in a distributed environment. Semantic Web

Services, as the new research paradigm, are usually

defined as a improvement of Web Services with

semantic annotations. But these services are based

on different ontologies. The requester agent has to

translate the description of every service from its

own ontology into the Web Service's one to produce

a valid requests.

Our approach proposes to solve this problematic.

We propose a model in three levels: global, local

and physical.

The global level sees a Service as an application

from a set of data E in itself.

At the local level, a Service is an application

which associates a data set equivalent to E

, to a

data set equivalent to E

At the physical level, a Service consists in the

sequence of pages on which we submit or retrieve

data semantically equivalent to those in the union of

and E

We will now present these three levels with more

details, then we will explain how we can translate

data or transactions from a level to another.

2.1 Global Level

Let E be the set of concepts expressed when

processing a given Web Service Abstracted, WSA.

We build an ontology for this service, that we name

global data model (GO), and which could be

described in OWL. We name it Abstracted since it is

not related to a concrete implementation of the

Service.

We use a simplified ontology based on two

relationships: generalization and aggregation.

2.2 Local Level

On every web site registered as addressing a service

WSA, we have a local ontology (LO). It is a

specialization of the OWL model described at the

global level.

A site processes a service if there is a morphism

between the global service WSA and (GO) and a

Local Web Service WSL and (LO).

2.3 Physical Level

Concretely, a Web site without SOAP/WSDL

automation completes a Service by browsing a

sequence of pages. On each of these pages, forms

(the most often) allow to express some concepts, the

actual subset of the local ontology.

We browse a sequence pages so that the

aggregation of the concepts expressed is equal to the

input data set of the transaction, then another

sequence whose concepts aggregation contains the

output data subset. We name this sequence a path.

2.4 Formalizing the Three

Abstraction Levels

We associate a table such as Table 1 to every WSA.

We identify the ontology of the service, and the

transactions needed to complete this service. This

global level is completed by local and physical

vision of each service.

For instance, for Service WS

, booking a plane

seat, each flight company may, from the concepts of

"departure city", "arrival city" and "departure date"

return the information of availability.

Depending on the concrete architecture of the

flight company site, the path allowing the realisation

of this service won't be the same. The table below

expresses two different sites performing the same

service, one through a simple request, the other

through a composite request.

3 DETECTION OF WEB

SERVICES, CONSTRAINTS,

PHYSICAL COMPOSITION

Constraints between Services are the translation,

from an event standpoint, of user constraints, i.e. the

translation of a constraint in precedence, validation

and triggering between different services. These

constraints are formalized as guards (Singh, 1996).

We propose a methodology to build the physical

resolition map, Algorithm 1:

• Step 1: Identify services to operate to

complete the composition

• Step 2: Identify constraints between these

services

• Step 3: Formalize the resolution of each

Service

WEBIST 2006 - WEB INTERFACES AND APPLICATIONS

462

Step 4: Identify web sites that are likely to address a

service: Methods such as UDDI (UDDI, 2005) allow

that kind of identification. Another method consists

in using a broker based upon the ServiceProfile of

the Web Service described in OWL-S (Paolucci,

2005), or even on using a confidence level

assessment shared by peer-to-peer.

• Step 5: For each site S, generate the path C

allowing the completion of the service (see next

chapter).

• Step 6: Calculate, using all paths and

constraints, the resolution map of the

composition (see next chapter).

4 CALCULATION OF THE

RESOLUTION MAP

(PHYSICAL LEVEL)

For each Local Web Service WSL, we associate a

path representing a sequence of pages C on a site

addressing this service.

For instance, let E

and E

be two set of data:

WSL

: E

: p

The path C

enables the service WSL

on a site

. It means that there are c

and c

, sub-path of C

so that there is an equivalence between

∪

and E

and between

∪

and E

The resolution map is build using Algorithm 2:

• For each page p

in ∪c

, union of all paths,

do:

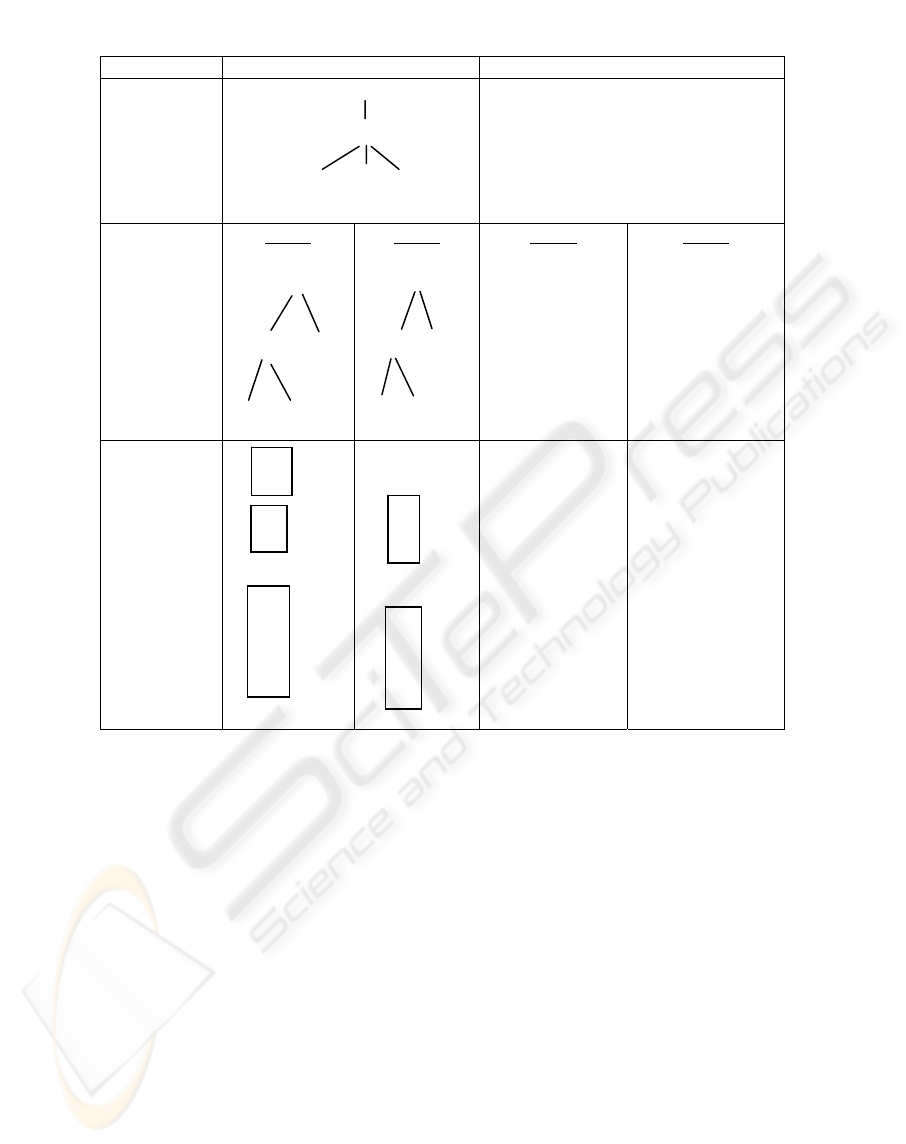

Table 1: Three-levels modelization of an ontology.
