TRACKING MULTIPLE OBJECTS USING THE VITERBI

ALGORITHM

Andreas Kr

außling, Frank E. Schneider and Stephan Sehestedt

Research Establishment for Applied Sciences (FGAN)

Neuenahrer Straße 20, 53343 Wachtberg

Keywords:

Mobile robotics, tracking, multiple targets, Viterbi algorithm, Kalman ﬁlter.

Abstract:

Tracking multiple targets is a great challenge for most tracking algorithms, since these algorithms tend to loose

some of the targets when they get close to each other. Hence, several algorithms like the MHT, the JPDAF

and the PMHT have been developed for this task. However, these algorithms are specialized on punctiform

targets, whereas in mobile robotics one has to deal with extended targets. Therefore, in this paper an algorithm

is proposed that can solve this problem. It uses the Viterbi algorithm and some geometrical characteristics of

the problem. The proposed algorithm was tested with real world data.

1 INTRODUCTION AND

RELATED WORK

For many real world applications it is essential that a

robot is able to interact with its environment. This is

true for multi–robot systems where a group of robots

has to solve a given task or where robots are supposed

to support people. For such situations, the awareness

of the position of people and other robots is a funda-

mental ability for a mobile unit to be able to interact

with its environment in an appropriate way.

This problem can be analyzed under the superordi-

nate concept of tracking. Tracking denotes the esti-

mation of the position of an object based on conse-

cutive sensor measurements. It is well studied in the

ﬁeld of aerial surveillance with radar devices (Bar-

Shalom and Fortmann, 1988). In the area of mo-

bile robots tracking is also a well established research

topic (Prassler et al., 1999; Schulz et al., 2001; Fod

et al., 2002; Fuerstenberg et al., 2002). In mobile

robotics laser range scanners are one of the preferred

sensor devices. A Sick laser range scanner for ex-

ample can measure the distance to the next reﬂect-

ing obstacle with a high angular resolution of e.g.

0.25 degree. Lasers have rapidly gained popula-

rity for mobile robotic applications such as collision

avoidance, navigation, localization and map building

(Thrun, 1998).

The problem of tracking people and other objects in

densely populated environments with a robot–borne

laser scanner can be characterized in the following

way: most of the readings are from obstacles like

walls or other objects and only a few measurements

come from the tracked object itself. The problem

of allocation of data obtained from the presently ac-

counted target is called the data association problem

(Bar-Shalom and Fortmann, 1988). As a solution to

this problem, a tracking algorithm might use a vali-

dation gate which separates the signals belonging to

the current target from other signals. A second cha-

racteristic of tracking people with laser range scan-

ners is the occurrence of several measurements from

the same object. In contrast to common radar based

tracking sensors the Sick laser scanner has a much

higher resolution and refresh rate. This leads to the

fact that the tracked object generates several measure-

ments. Therefore, we have to deal with what we call

extended objects instead of punctiform objects like in

the common radar tracking literature. Thereby, punc-

tiform targets are those ones, which are the origin of

just one measurement. A third characteristic of track-

ing in the ﬁeld of mobile robotics is the occurrence of

crossing targets. This means that two or more targets

get very close to each other, so that they cannot be

separated by common tracking algorithms (Fortmann

et al., 1983), (Kr

außling et al., 2005). This situation

can appear e.g. when two humans meet, talk to each

other and split again and is a well known problem in

mobile robotics (Prassler et al., 1999).

There are several methods for tracking punctiform

Kräußling A., E. Schneider F. and Sehestedt S. (2006).

TRACKING MULTIPLE OBJECTS USING THE VITERBI ALGORITHM.

In Proceedings of the Third Inter national Conference on Informatics in Control, Automation and Robotics, pages 18-25

DOI: 10.5220/0001215200180025

 SciTePress

crossing targets in clutter:

1. the MHT (Multi Hypothesis Tracker) introduced by

Reid in 1979 (Reid, 1979).

2. the JPDAF (Joint Probabilistic Data Association

Filter) introduced by Fortmann, Bar–Shalom and

Scheffe in 1983 (Fortmann et al., 1983).

3. the PMHT (Probabilistic Multi Hypothesis

Tracker) introduced by Streit and Luginbuhl in

1994 (Streit and Luginbuhl, 1994).

Of course, an extension of these algorithms for track-

ing extended crossing objects is straightforward. But

there are several reasons, why such approaches might

fail:

• in most cases there are several measurements from

the same target.

• the crossing can last for a longer time period.

• one of the objects might be occluded by the other

object for some time.

• the objects can accomplish very abrupt maneuvers

during the crossing or especially at the end of the

crossing.

As an example we give the results for an EM based

method (Stannus et al., 2004), which is an exten-

sion of the PMHT (Streit and Luginbuhl, 1994) to

extended targets. Figure 1 shows the results when

applying this algorithm to real data. It shows the es-

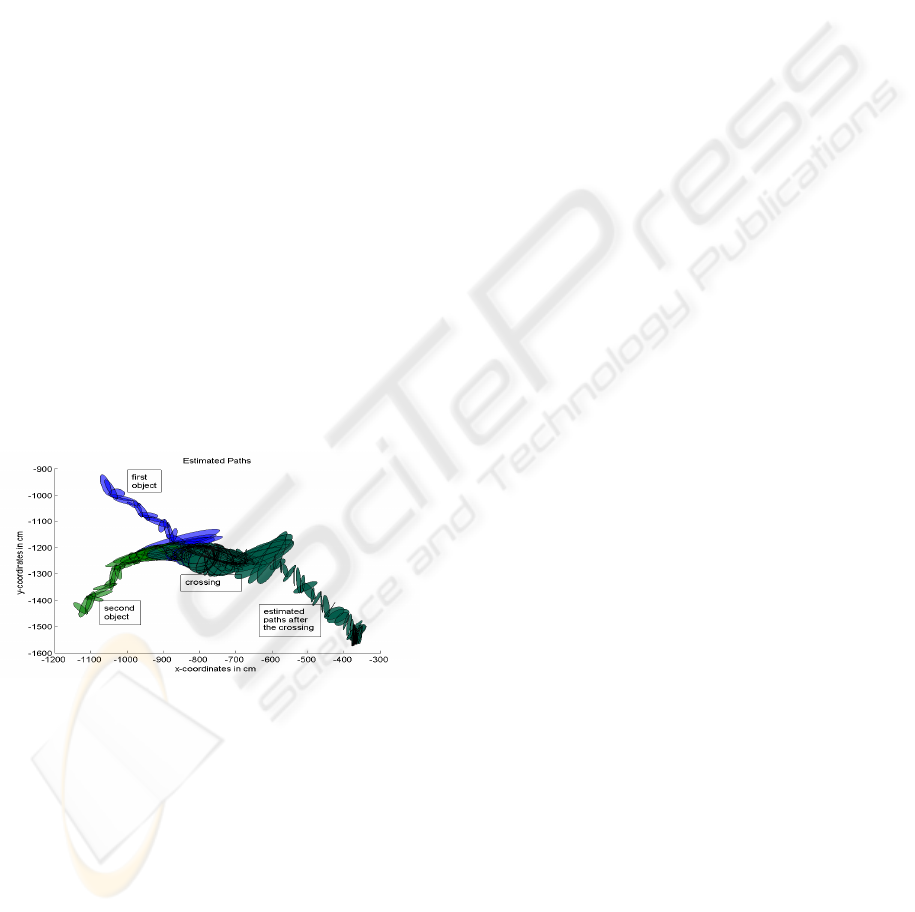

Figure 1: Crossing of two objects, real data, EM based

method.

timates for the position of the objects by use of el-

lipses. Thereby the estimated position is the centre

of the ellipse, whereas the shape of the ellipse repre-

sents the actual geometry of the tracked object. The

objects start in the left and move to the right. Ob-

viously, the algorithm looses the one of the targets,

which moves to the upper right after the crossing. See

also ﬁgure 2. Moreover, the computational burden for

applying these algorithms is very high when applied

to extended targets, since these objects can be the ori-

gin of up to ten measurements. These difﬁculties are

well known in the mobile robotics community:

• Tracking moving objects whose trajectories cross

each other is a very general problem ... Problems

of this type cannot be eliminated even by more so-

phisticated methods ... (Prassler et al., 1999).

• Tracks are lost when people walk too closely to-

gether ... (Schumitch et al., 2006).

With respect to these circumstances our research

group has developed a new method that solves the

problem of tracking two extended crossing targets

(Kr

außling et al., 2004b; Kr

außling et al., 2005). Un-

fortunately this algorithm is not able to deal with

more than two crossing objects in its current state.

Therefore, recently our research group has developed

a more general algorithm, which is able to deal with

an arbitrary number of crossing objects, i.e. objects

that get very close to each other. This algorithm is the

main contribution of this work.

The remainder of this paper is organized as follows.

In section 2 the mathematical background including

the used model, the validation gate, and two basic

tracking algorithms are given. In section 3 the new

algorithm for tracking multiple interacting objects is

introduced. Furthermore, in section 4 the experimen-

tal results are presented. Finally, section 5 contains

the conclusions.

2 THE MATHEMATICAL

BACKGROUND OF THE

ALGORITHMS

2.1 The Model

The dynamics of the objects to be observed and the

observation process itself are modeled by a hidden

Gauß–Markov chain with the equations

= Ax

k−1

+ w

k−1

(1)

and

= Bx

+ v

. (2)

is the object state vector at time k , A is the state

transition matrix, z

is the observation vector at time

k and B is the observation matrix. Furthermore, w

and v

are supposed to be uncorrelated zero mean

white Gaussian noises with covariances Q and R.

Since the motion of a target in the plane has to be

described a two dimensional kinematic model is used.

Therefore, it is

= (

˙x

)

⊤

(3)

with x

and x

the Cartesian coordinates of the tar-

get and ˙x

and ˙x

the corresponding velocities. z

just gives the Cartesian coordinates of the target. For

TRACKING MULTIPLE OBJECTS USING THE VITERBI ALGORITHM

the coordinates the equation of a movement with con-

stant velocity is holding, i.e. it is

k+1,j

= x

+ ∆T ˙x

. (4)

∆T is the time interval between two consecutive mea-

surements. For the progression of the velocities we

use the equation

˙x

k+1,j

= e

−∆T/Θ

˙x

+ Σ

1 − e

−2∆T/Θ

u(k) (5)

from (van Keuk, 1971) with the zero mean white

Gaussian noise u(k) with E[u(m)u(n)

⊤

] = δ

Thus, the velocity is supposed to decline exponen-

tially. The term

1 − e

−2∆T/Θ

u(k) (6)

models the process noise and the accelerations.

2.2 The Validation Gate

The validation gate is realized using the Kalman ﬁlter.

The Kalman ﬁlter calculates a prediction y(k + 1|k)

for the measurements z

k+1,l

from the actually hand-

led target at time step k + 1 via the formula

y(k + 1|k) = B · A · x(k|k). (7)

x(k|k) is the estimate for the position of the target at

time step k. For every sensor reading z

k+1,l

of the

time step k + 1 (l = 1, . . . 360) the Mahalanobis dis-

tance λ (Mahalanobis, 1936) with

λ = (z

k+1,l

− y(k + 1|k))

⊤

· [S(k + 1)]

−1

·(z

k+1,l

− y(k + 1|k)) (8)

is computed. Then all measurements with λ > λ

max

with a given threshold λ

max

are excluded. See (Bar-

Shalom and Fortmann, 1988) for further details. This

procedure results in a set {ˆz

k+1,i

}

k+1

i=1

of m

k+1

se-

lected measurements ˆz

k+1,i

. The matrix S(k + 1) is

the innovations covariance from the Kalman ﬁlter. In

common ﬁlter applications this matrix is calculated

from the predictions covariance P (k + 1|k) with the

equation

S(k + 1) = BP (k + 1|k)B

⊤

+ R (9)

with the given covariance matrix R of the measure-

ment noise. But for tracking extended objects this ap-

proach is not sufﬁcient, since there is an additional

inﬂuence of the extendedness of the object to the

deviation of the measurements from the prediction

y(k + 1|k). To take care of this feature an accessory

positive deﬁnite matrix E should be added in equa-

tion 9. Otherwise a lot of the measurements from the

target would be excluded by the gating process. Be-

cause the lateral dimension of people usually shows a

radius in the range of 30 cm, the entries of E should

be in the range of 900. Thus, after some optimization

process we used

E =



780 0

0 780



(10)

and

S(k + 1) = BP (k + 1|k)B

⊤

+ R + E. (11)

The values of the entries of the matrix E vastly ex-

ceed the values of the entries of the matrix R, so that

the main contribution in equation 11 comes from the

matrix E.

2.3 The Kalman Filter Algorithm

with Equal Weights

This algorithm ﬁrst calculates an unweighted mean

k+1

of the m

k+1

measurements {ˆz

k+1,l

}

k+1

l=1

, that

have been selected by the gate, i.e. it is

k+1

l=1

ˆz

k+1,l

. (12)

This mean is used as the input for the update equation

of the Kalman ﬁlter, i.e. it is

x(k+1|k+1) = x(k+1|k)+K

k+1

−y(k+1|k))

(13)

with the predictions x(k +1|k) and y(k+1|k) and the

Kalman gain K

k+1

derived from the Kalman ﬁlter.

Finally, the estimates x(k + 1|k + 1) are further im-

proved by the use of the Kalman smoother (Shumway

and Stoffer, 2000). The corresponding algorithm is

called Kalman ﬁlter algorithm (KFA). As has been

shown in (Kr

außling et al., 2005) it is very fast and

gives good information about the position of the tar-

get, but cannot reproduce multimodal probability dis-

tributions. Thus it is not able to handle multiple inter-

acting targets.

2.4 The Viterbi Based Algorithm

The Viterbi algorithm has been introduced in (Viterbi,

1967). A good description is also given in (Forney Jr.,

1973). It has been recommended for tracking puncti-

form targets in clutter in (Quach and Farooq, 1994)

and for tracking extended targets in (Kr

außling et al.,

2004a). It calculates for each selected measurement

ˆz

k+1,i

a separate estimate x(k +1|k +1)

. For the cal-

culation of the estimates x(k + 1|k +1)

in the update

equation 13 the measurement ˆz

k+1,i

and the predic-

tions x(k + 1|k)

and y(k + 1|k)

from the predeces-

sor j are used. When tracking punctiform targets in

clutter, the predecessor is determined by minimizing

the length of the paths ending in ˆz

k+1,i

. When regard-

ing extended targets in most cases all measurements

ICINCO 2006 - ROBOTICS AND AUTOMATION

in the validation gate are from the target, so that it

is not meaningful to consider the lengths of the paths

ending in the possible predecessors ˆz

k,j

when deter-

mining the predecessor. Therefore, a better choice for

the predecessor is that one for which the Mahalanobis

distance (Mahalanobis, 1936)

⊤

k+1,j,i

[S(k + 1)]

−1

k+1,j,i

(14)

is kept to a minimum. There, ν

k+1,j,i

is the innova-

tion

k+1,j,i

= z

k+1,i

− y(k + 1|k)

(15)

and S(k + 1) is the innovations covariance. This pro-

cedure is similar to a nearest neighbour algorithm.

When applying the Viterbi algorithm the application

of the validation gate is performed in the following

way. At ﬁrst for every selected measurement ˆz

k,j

the

gate is applied to the measurements at time k+1. That

results in the sets Z

k+1,j

of measurements which have

passed the particular gate for the measurement ˆz

k,j

successfully. The set of all measurements ˆz

k+1,i

, that

are associated with the target, is then just the union of

these sets. By this procedure it is ensured, that the cor-

responding tracking algorithms can deal with multi-

modal probability distributions to some extend, which

is a major improvement when dealing with multiple

interacting targets.

The estimates delivered by the Viterbi algorithm

are used as follows. One of these estimates is chosen

as an estimate of the position of a target. This estimate

is the one with index one. Again, different from track-

ing a punctiform target in clutter, it is not meaningful

to make use of the lengths of the paths corresponding

to the estimates and to choose the estimate with the

shortest corresponding path. The corresponding algo-

rithm is called Viterbi based algorithm (VBA) and has

been introduced in (Kr

außling et al., 2004a). The dis-

advantages of this algorithm are a great computational

burden and a poor information about the position of

the tracked objects (Kr

außling et al., 2005).

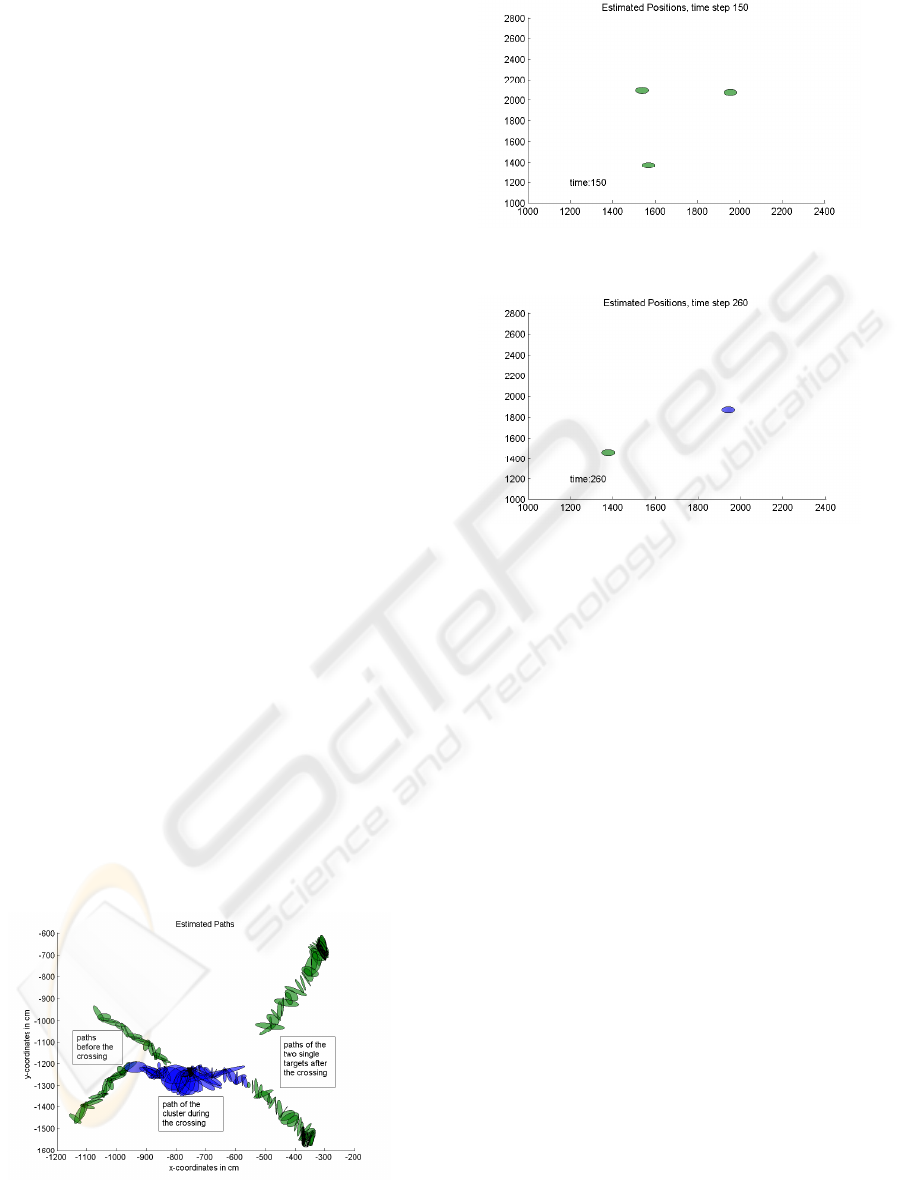

Figure 2: Two crossing targets.

(a) The algorithm tracks three distinct, moving

targets.

(b) Two of the targets get in close proximity of each

other, and are therefore represented by one cluster.

Figure 3: First Experiment.

3 AN ALGORITHM FOR

TRACKING MULTIPLE

INTERACTING OBJECTS

Our new algorithm uses two classes of objects:

• single targets.

• clusters, which represent at least two interacting

objects, i.e. objects that are moving very close to

each other.

Single targets are tracked with the KFA, since there is

no need for representing multimodal probability dis-

tributions. Furthermore, this algorithm is very fast

and gives very accurate information about the posi-

tion of the tracked object.

Clusters are tracked with the VBA, since multi-

modal distributions have to be represented. This ap-

proach guarantees that none of the objects that are

associated with the cluster is lost. This fact is im-

portant especially when the objects split and start to

move separately again.

Three different events have to be regarded when

tracking multiple interacting objects:

1. The merging of two single targets. This means that

two single targets get very close to each other. This

is the case, if at least one measurement lies in the

TRACKING MULTIPLE OBJECTS USING THE VITERBI ALGORITHM

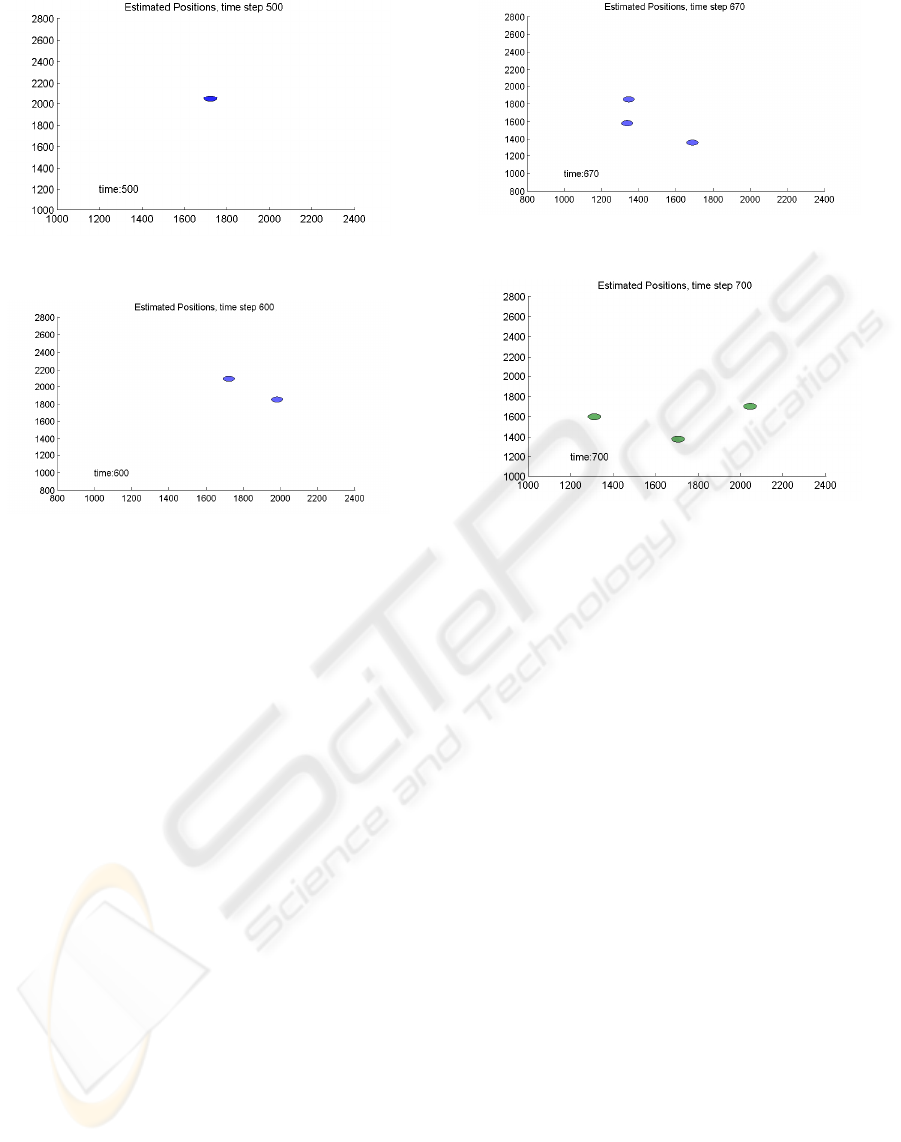

(a) The third target joins the other two and is also as-

sociated with the cluster.

(b) One of the targets separates from the others, thus

we can track subclusters.

Figure 4: First Experiment.

validation gates of both targets. Then the algorithm

stops to track the two single targets with the KFA

and starts tracking a cluster, which contains both

targets, using the VBA. Therefore, it uses the mea-

surements lying in the validation gates of both tar-

gets.

2. The merging of a single target and a cluster. This

means that a single target and a cluster get very

close to each other. This happens, if at least one

measurement lies in the validation gates of the tar-

get and the cluster. In this case the algorithm stops

to track the single target and the cluster separately.

Instead it starts tracking a combined cluster. There-

fore, it uses the measurements lying in the valida-

tion gates of both the single target and the previ-

ously considered cluster.

3. The merging of two clusters. This means that two

clusters get very close to each other. This is the

case, if at least one measurement lies in the val-

idation gates of both clusters. If this is true, the

algorithm stops to track the two clusters and starts

tracking a combined cluster. Therefore, it uses the

measurements lying in the validation gates of both

previously considered clusters.

Note, that whenever a merging takes place, the algo-

rithm remembers the single targets which correspond

to the new combined cluster.

(a) The other two targets also separate and therefore

three subclusters are tracked.

(b) Once these subclusters leave each others proxim-

ity, the single targets can be tracked.

Figure 5: First Experiment.

For each tracked cluster, we have to detect if it dis-

perses into its single targets. For this, we deﬁne three

conditions, that are checked by the algorithm:

1. The position estimates corresponding to the mea-

surements in the validation gates are separated into

subclusters. For this purpose, we select the ﬁrst es-

timate, which then is associated with the ﬁrst sub-

cluster. For all other estimates associated with the

cluster, the Euclidian distance to the ﬁrst estimate

is calculated. If this distance is below a certain

threshold, the estimate is associated with the ﬁrst

subcluster. In our experiments, we set the thresh-

old to 150 cm, which corresponds to the maximum

distance between the legs of a walking person. We

then have to consider the estimates, for which the

Euclidean distance to the ﬁrst subcluster exceeds

this manually chosen threshold. Using the same

procedure we applied for building the ﬁrst subclus-

ter, we now construct subclusters until all estimates

are associated with one of these smaller clusters. If

the number of subclusters equals the number of tar-

gets that were merged into this cluster, the ﬁrst con-

dition for the dispersion of the cluster is fulﬁlled.

Then, we proceed with step 2.

2. We now check the distance between the subclusters

pairwise. If the distance is above a manually cho-

sen bound, we regard these clusters as separated.

ICINCO 2006 - ROBOTICS AND AUTOMATION

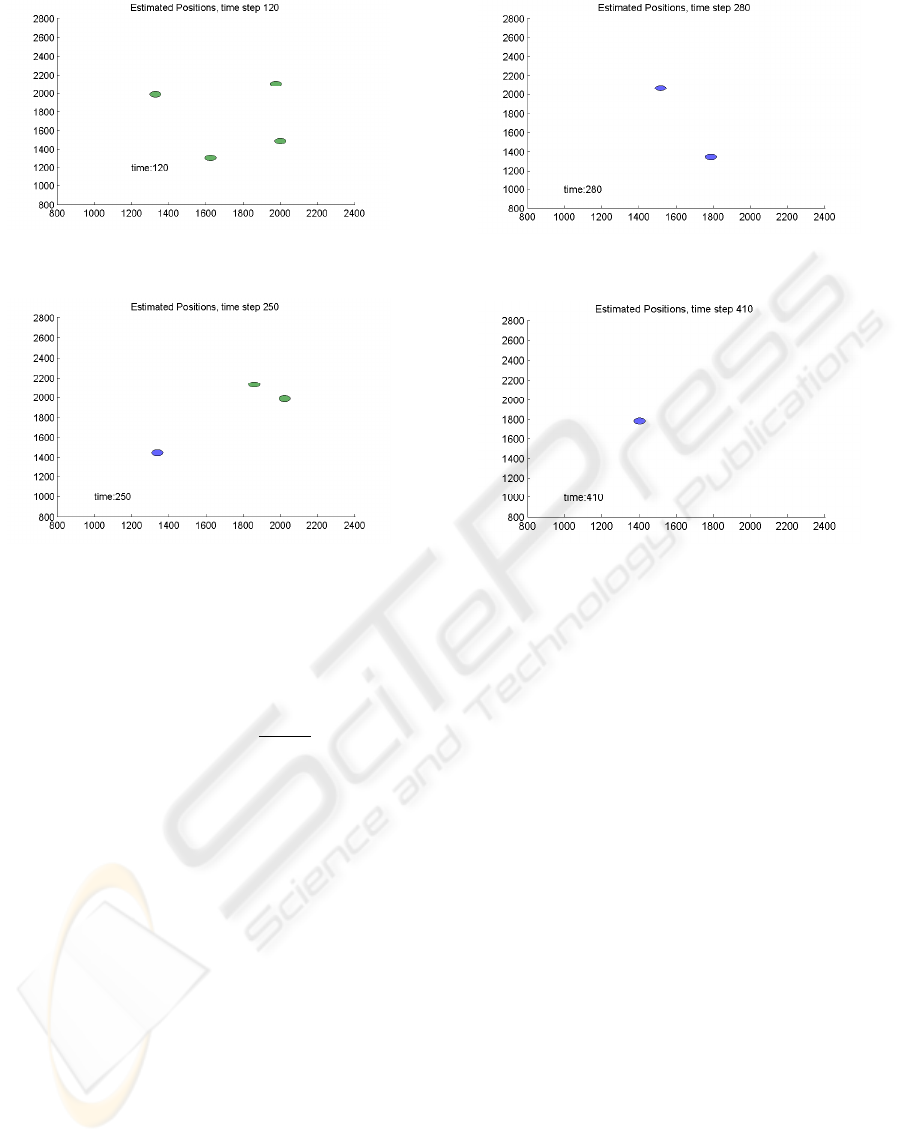

(a) The algorithm tracks four distinct, moving tar-

gets.

(b) Two of the targets get in close proximity of each

other, and are therefore represented by one cluster.

Figure 6: Second Experiment.

We chose the value of that bound to be 300 cm. The

second condition is fulﬁlled, if the number of pairs

of separated subclusters equals

n(n−1)

. Thereby, n

is the number of single targets associated with the

cluster. Hence, we are checking if all subclusters

are pairwise separated.

3. Above this, we can separate single subclusters from

the cluster. This follows the same logic as in step

1. Note, the algorithm is not able to determine, how

many targets are represented by a single subcluster.

If conditions 1 and 2 are met, the n subclusters are

associated with the n single targets, that are therefrom

tracked with the KFA. When separating targets from

clusters, we cannot guarantee if the target association

is the same as before merging the targets into the clus-

ter. We believe that there is no solution to this prob-

lem, if we exclusively use anonymous sensors like

laser range ﬁnders.

4 EXPERIMENTS

The presented algorithm was tested with real world

data, recorded in our laboratory. In this section we

show the data of two experiments. Before this, ﬁgure

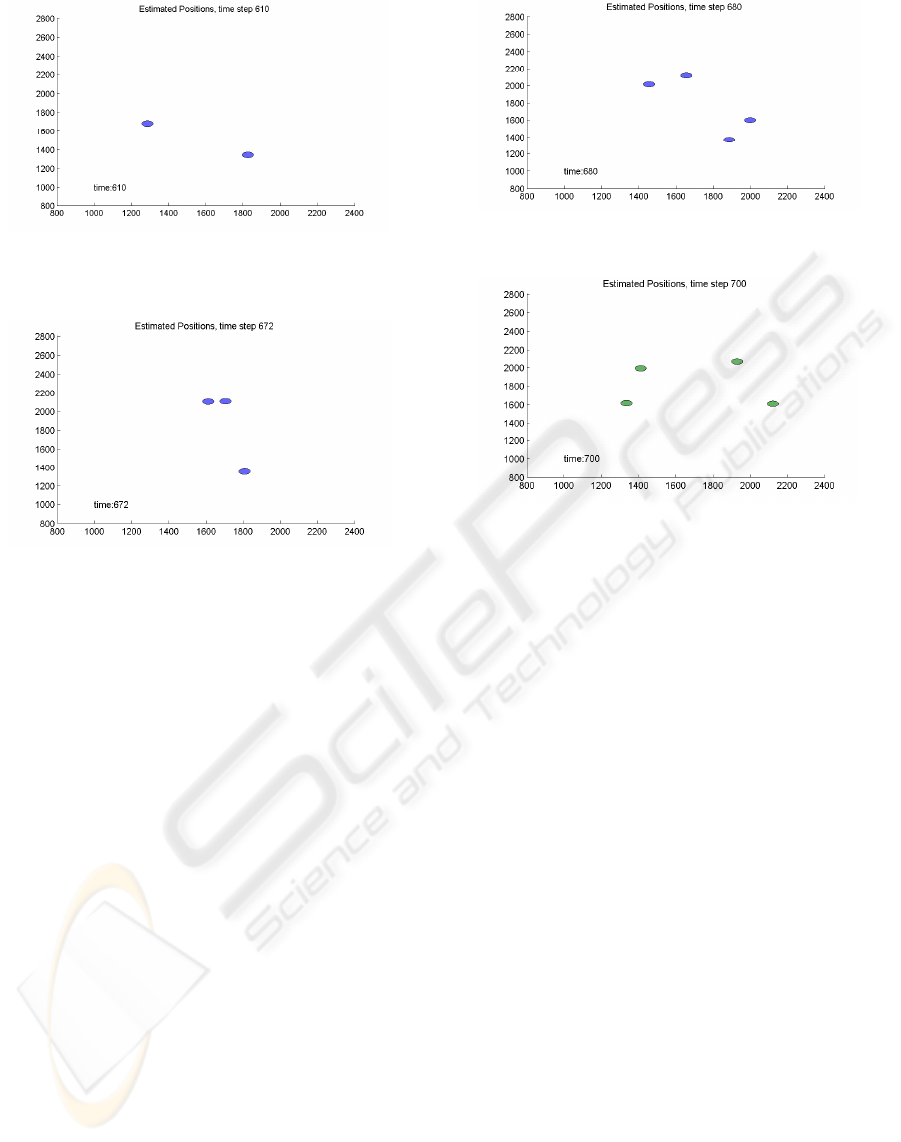

(a) The third and fourth target get close to each other

and are also represented by a cluster.

(b) The two clusters join and thus all four targets are

associated with one cluster.

Figure 7: Second Experiment.

2 illustrates how our algorithm works in the case of

two targets using the data from ﬁgure 1. In the ﬁgures

in this section single targets are indicated by a green

ellipse, whereas clusters are indicated by a blue el-

lipse. As soon as the above mentioned conditions are

met, we are able to track the two targets separately

again.

In the ﬁrst experiment, three persons moved around

the observer in counterclockwise direction. At ﬁrst,

these three persons are tracked separately and thus,

the algorithm uses the KFA (ﬁgure 3(a)). Then, two

of the single targets get into close proximity of each

other and are therefore merged into one cluster, which

is tracked using the VBA (ﬁgure 3(b)). In the next ﬁg-

ure, the third person joins the group and is also asso-

ciated with the cluster. This combined cluster is still

tracked by the VBA (ﬁgure 4(a)). Next, the combined

cluster split after a while into two subclusters which

are indicated in ﬁgure 4(b). Then, the cluster split into

three subclusters, which are indicated in ﬁgure 5(a).

At this stage of the experiment, condition one is met,

but not condition two. Finally, the three persons split

up fulﬁlling condition two and the persons are tracked

as single targets again (ﬁgure 5(b)). Since we are not

able to tell how many targets are associated with a

subcluster in general, only the total number of targets

TRACKING MULTIPLE OBJECTS USING THE VITERBI ALGORITHM

(a) The combined cluster splits after a while into two

subclusters, each of them consisting of an unknown

number of targets.

(b) One of the subclusters splits into two subclusters.

Figure 8: Second Experiment.

is known. Thus, we have to wait until all targets are

separated according to the deﬁned conditions before

the algorithm tracks the individual targets using the

KFA.

In the second experiment, we let the algorithm

track four people. All four persons started walking

alone. Consequently, they are tracked independently

using the KFA (ﬁgure 6(a)). Then two of them are

walking together and are therefore tracked in a sin-

gle cluster using the VBA (ﬁgure 6(b)), whereas the

other two people are still walking separately. In the

next step, the other two persons are also walking to-

gether. The result is that these two are also tracked

using a single cluster and thus, the algorithm tracks

two distinct clusters, each representing two persons

(ﬁgure 7(a)). Then, in ﬁgure 7(b) all four of them

are walking together, what results in the merging of

the two clusters to one combined cluster, representing

all four persons. Next, this combined cluster splits

into two subclusters, each consisting of an unknown

number of targets (ﬁgure 8(a)). In ﬁgures 8(b) and

9(a) these subclusters split up into four subclusters.

Finally, condition two is met and therefore the four

targets are tracked individually again (ﬁgure 9(b)).

In the experiments, we showed that our algorithm

is able to keep track of all targets for all situations that

can occur when tracking multiple targets:

(a) The targets split after a while and are therefrom

tracked as subclusters.

(b) Then, the targets can be tracked individually.

Figure 9: Second Experiment.

• the merging of two single targets to a cluster.

• the merging of a single target and a cluster.

• the merging of two clusters to a combined cluster.

• the splitting of a cluster into subclusters which are

indicated separately in the graphics.

• the splitting of several targets tracked in a cluster to

single targets.

5 CONCLUSIONS

In this work we presented a novel algorithm for track-

ing multiple extended interacting objects. It consists

of a Kalman ﬁlter tracking procedure for tracking sin-

gle targets with high accuracy and low computational

effort, and a Viterbi based method for tracking objects

that are close to each other. The latter part facilitates

clustering to be able to separate the targets correctly

if they split up.

In experiments we showed this algorithm to be ca-

pable of tracking multiple crossing targets without

any restriction. Of course, since we only use laser

range ﬁnders, the target association after a crossing

may be interchanged. There are several approaches

that might be investigated to eliminate this drawback:

• different colours of the pairs of trousers people

ICINCO 2006 - ROBOTICS AND AUTOMATION

wear might result in different intensities of the re-

ﬂected laser beams.

• people could wear badges sending out for instance

infrared or ultrasound signals which can be re-

ceived by speciﬁc sensors to identify the tracked

people (Schulz et al., 2003).

• usually people wear clothing with different colours.

This information could be exploited for the identiﬁ-

cation of the people using a camera network as has

been proposed in (Schumitch et al., 2006).

Since, up to our knowledge, our method is the ﬁrst

to be able to track several interacting objects without

loss of track, it might be challenging to combine our

approach with one of these attempts.

So far, we only used a non moving observer. In

principle it is possible to extend the method to be suit-

able for moving observers. This is part of the ongoing

research and will be presented in following publica-

tions.

REFERENCES

Bar-Shalom, Y. and Fortmann, T. (1988). Tracking and

Data Association. Academic Press.

Fod, A., Howard, A., and Mataric, M. J. (2002). Laser–

based people tracking. In Proceedings of the IEEE Intl.

Conf. on Robotics and Automation, pages 3024–3029.

Forney Jr., G.-D. (1973). The viterbi algorithm. Proceed-

ings of the IEEE, 61(3):268–278.

Fortmann, T. E., Bar-Shalom, Y., and Scheffe, M. (1983).

Sonar tracking of multiple targets using joint proba-

bilistic data association. IEEE Journal of Oceanic En-

gineering, OE–8(3).

Fuerstenberg, K. C., Linzmeier, D. T., and Dietmayer, K.

C. J. (2002). Pedestrian recognition and tracking of

vehicles using a vehicle based multilayer laserscanner.

In Proceedings of IV 2002, Intelligent Vehicles Sympo-

sium, volume 1, pages 31–35.

außling, A., Schneider, F. E., and Wildermuth, D.

(2004a). Tracking expanded objects using the viterbi

algorithm. In Proceedings of the IEEE Conference on

Intelligent Systems, Varna, Bulgaria.

außling, A., Schneider, F. E., and Wildermuth, D.

(2004b). Tracking of extended crossing objects using

the viterbi algorithm. In Proceedings of the 1st In-

ternational Conference on Informatics in Control, Au-

tomation and Robotics (ICINCO).

außling, A., Schneider, F. E., and Wildermuth, D. (2005).

A switching algorithm for tracking extended targets.

In Proceedings of the 2nd International Conference

on Informatics in Control, Automation and Robotics

(ICINCO), also to be published in the Springer book

of best papers of ICINCO 2005.

Mahalanobis, P. C. (1936). On the generalized distance in

statistics. Proceedings of the National Institute of Sci-

ence, 12:49–55.

Prassler, E., Scholz, J., and Elfes, E. (1999). Tracking peo-

ple in a railway station during rush–hour. In Chris-

tensen, H. I., editor, Computer Vision Systems, volume

1542, pages 162–179. Springer, lecture notes in com-

puter science edition.

Quach, T. and Farooq, M. (1994). Maximum likelihood

track formation with the viterbi algorithm. In Proceed-

ings of the 33rd Conference on Decision and Control,

Lake Buena Vista, Florida.

Reid, D. B. (1979). An algorithm for tracking multiple

targets. IEEE Trans. Automatic Control, AC–24:843–

854.

Schulz, D., Burgard, W., Fox, D., and Cremers, A. B.

(2001). Tracking multiple moving objects with a mo-

bile robot. In Proceedings of the 2001 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition (CVPR 2001).

Schulz, D., Fox, D., and Hightower, J. (2003). People

tracking with anonymous and id–sensors using rao–

blackwellised particle ﬁlters. In Proceedings of the

18th International Joint Conference on Artiﬁcial In-

telligence (IJCAI 2003), Acapulco, Mexico.

Schumitch, B., Thrun, S., Bradski, G., and Olukotun, K.

(2006). The information–form data association ﬁlter.

In Proceedings of the 2005 Conference on Neural In-

formation Processing Systems (NIPS), MIT Press.

Shumway, R. H. and Stoffer, D. S. (2000). Time Series

Analysis and Its Applications. Springer.

Stannus, W., Koch, W., and Kr

außling, A. (2004). On

robot–borne extended object tracking using the em al-

gorithm. In Proceedings of the 5th Symposium on In-

telligent Autonomous Vehicles, Lisbon, Portugal.

Streit, R. L. and Luginbuhl, T. E. (1994). Maximum like-

lihood method for multi–hypothesis tracking. Signal

and Data Processing of Small Targets, SPIE, 2335.

Thrun, S. (1998). Learning metric-topological maps for in-

door mobile robot navigation. Artiﬁcial Intelligence,

99(1):21–71.

van Keuk, G. (1971). Zielverfolgung nach kalman–

anwendung auf elektronisches radar. Technical Report

173, Forschungsinstitut f

ur Funk und Mathematik,

Wachtberg–Werthhoven, Germany.

Viterbi, A. J. (1967). Error bounds for convolutional codes

and an asymptotically optimum decoding algorithm.

IEEE Transactions On Information Theory, IT–13(2).

TRACKING MULTIPLE OBJECTS USING THE VITERBI ALGORITHM
