Towards a UML 2.0/OCL extension for designing
Secure Data Warehouses
Rodolfo Villarroel
1
, Eduardo Fernández-Medina
2
, Juan Trujillo
3
, and Mario Piattini
2
(1) Departamento de Computación e Informática. Universidad Católica del Maule (Chile)
(2) Departamento de Informática. Universida
d de Castilla-La Mancha (Spain)
(3) Departamento de Lenguajes y Sistemas Informáticos. Universidad de Alicante (Spain)
Abstract. At present, it is very difficult to develop a methodology that fulfills
all crit
eria and comprises all security constraints in terms of confidentiality,
integrity and availability, to successfully design data warehouses. If that
methodology was developed, its complexity would avoid its success. Therefore,
the solution would be an approach in which techniques and models defined by
the most accepted model standards (such as UML) were extended by
integrating the necessary security aspects that, at present, are not covered by the
existing methodologies. In this paper, we will focus on solving confidentiality
problems in data warehouses conceptual modeling by defining a profile using
the UML 2.0 extensibility mechanisms. In addition, we will define an OCL
extension that allows us to specify the static and dynamic security constraints of
the elements of data warehouses conceptual modeling, and we will show the
benefit of our approach by applying this profile to an example.
1 Introduction
Security and specifically confidentiality is a very important aspect for data
warehouses due to the fact that the constant changes of users requests and data
sources force them not only to be more flexible but also to control more effectively
information confidentiality. A very important aspect to be considered of data
warehouses that make them different from operational systems is that information is
not statically treated but the evolution of it becomes more important as time goes by,
in other words, its history [10]. For this reason, mechanisms allowing confidentiality
of such quantity of information must be established. Indeed, the very survival of the
organizations depends on the correct management, security and confidentiality of
information [5]. In fact, as some authors remarked [4, 6], information security is a
serious requirement which must be carefully considered, not as an isolated aspect, but
as an element present in all stages of the development lifecycle, from the requirement
analysis to implementation and maintenance. Chung et al. also insist on integrating
security requirements into design, by providing designers with models specifying
security aspects, but they do not deal with data warehouses issues [2].
Villarroel R., Fernández-Medina E., Trujillo J. and Piattini M. (2005).
Towards a UML 2.0/OCL extension for designing Secure Data Warehouses.
In Proceedings of the 3rd International Workshop on Security in Information Systems, pages 217-228
DOI: 10.5220/0002577302170228
Copyright
c
SciTePress
In the past few years, various approaches have been proposed to represent the main
multidimensional (MD) properties at the conceptual level [1, 8, 9, 17-19]. However,
none of these approaches for MD modeling considers security as an important issue of
their conceptual models, so they do not solve the problem of security in these kinds of
systems. Moreover, in the literature, we can find several initiatives to include security
in data warehouses [11, 12, 15, 16]. Many of them are focused on interesting aspects
related to access control, multilevel security, its applications to federated databases,
applications using commercial tools and so on. However, neither of them considers
the security aspects comprising all stages of the system development cycle nor the
introduction of security into MD conceptual design.
We think that our solution would be an approach in which techniques and models
defined by the most accepted model standards were extended by integrating the
necessary security aspects that, at present, are not covered by the existing
methodologies. Taking this viewpoint into account, the UML offers us with two
different approaches to extend its metamodel [7]. The first one provides us with the
possibility of defining a new modeling language by using MOF (Meta Object
Facility) in which there are not restrictions regarding what can be done with a
metamodel. For example, metaclasses and relationships can be added and removed
according to our needs. We have not chosen this option because the new language
will not respect the UML semantics and as a consequence, we will not be able to use
commercial tools based on UML. Moreover, the purpose of our proposal is to be able
to precisely and easily generate a secure conceptual modeling applied to a specific
dominion, in this case, to data warehouses. This fact perfectly fits with the concept of
profile.
A UML 2.0 profile is defined as a UML package stereotyped “profile”, that can
extend either a metamodel or another profile [14]. A profile is used to extend an
existing metamodel by using three basic mechanisms provided by the UML:
stereotypes, tagged values and constraints to adapt it to a dominion, platform or
specific method. In our case, we will use the indicated mechanisms to incorporate
security aspects into data warehouses conceptual modeling.
The remainder of this paper is structured as follows. Section 2 will present the
UML 2.0/OCL profile for designing secure data warehouses
. In section 3, an example
of modeling using the proposed extensibility mechanisms will be stated. Finally,
Section 4 will put forward our main conclusions and will introduce our immediate
future work.
2 UML 2.0/OCL profile for designing Secure Data Warehouses
In this section, we will present the main aspects of our profile for designing secure
data warehouses. According to [3], an extension to the UML begins with a brief
description and then lists and describes all the stereotypes, tagged values, and
constraints of this extension. Basically, we have reused the previous profile defined in
[13], which allows us to design data warehouses from a conceptual perspective, and
we have added the required elements to generate the profile (a set of tagged values,
stereotypes, and constraints), which enables us to create secure MD models.
218
Furthermore, an extension is formed by a set of well-formedness rules that will ensure
a correct static semantics of the multidimensional model.
The goal of this UML profile is to be able to design MD conceptual model, but
classifying information in order to define which properties has to own the user to be
entitled to access information. Therefore, our aim is to classify the security
information that will be used in our data warehouses conceptual modeling. We can
define, for each element of the model (fact class, dimension class, fact attribute, etc.),
its security information, specifying a sequence of security levels, a set of user
compartments, and a set of user roles. We can also specify security constraints
considering these security attributes. The security information and these constraints
indicate the security properties that users have to own to be able to access
information. We have adapted OCL [20] to be coherent with our UML 2.0 profile.
2.1 General Description
Our profile will be called SECDW (Secure Data Warehouses) and will be represented
as a UML package. This profile will not only inherit all properties from UML
metamodel but also it will incorporate new data types, stereotypes, tagged values and

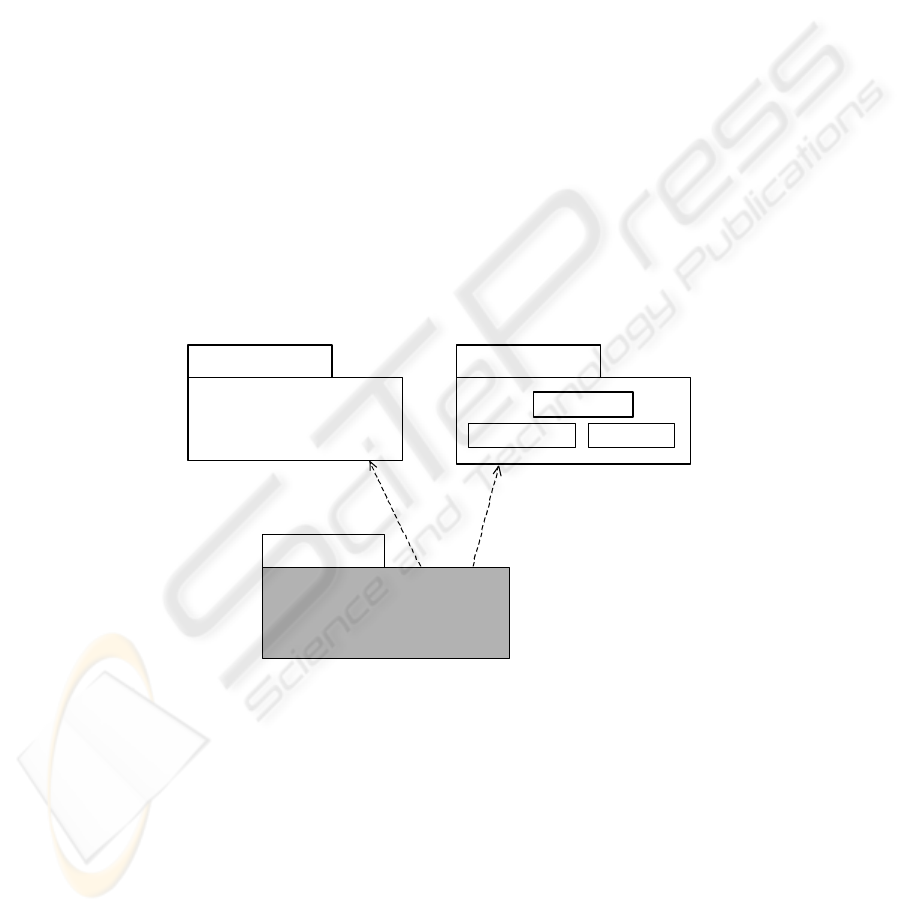

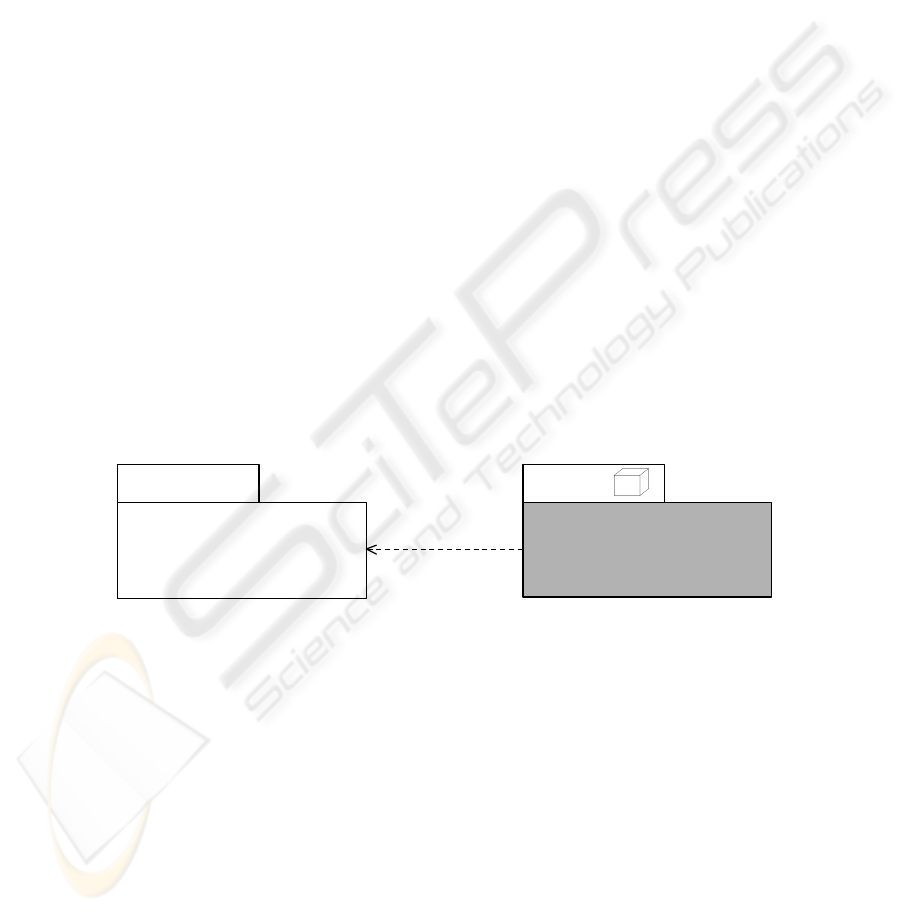

constraints. In Figure 1, a high level view of our SECDW profile is provided. The
package SECDW and OCL are imported from SECDW profile. Therefore, SECDW
data types and OCL types will be used as valid types for stereotypes of our profile.
Fig. 1. High level view of our SECDW profile
2.2 Data Types
We need the definition of some new data types to be used in the tagged values
Types SECDW Types OCL
SetType
SequenceType
«profil
SECDW
«import» «import»
OclType
definitions of the new stereotypes. In Table 1, we will provide the new data types
definitions we have specified. All the information considered in these new data types
has to be defined for each specific secure conceptual database model depending on its
confidentiality properties, and on the number of users and complexity of the
organization in which the data warehouse will be operative.
219
Table 1. New Data Types
Name Base class Description
Level Enumeration The type Level will be an ordered enumeration composed by
all security levels that have been considered.
Levels Primitive The type Levels will be an interval of levels composed by a
lower level and an upper level.
Role Primitive The type Role will represent the hierarchy of user roles that
can be defined for the organization.
Com ent E partm numeration The type Compartment is the enumeration composed by all
user compartments that have been considered for the
organization.
Privilege Enumeration The type Privilege will be an ordered enumeration composed
by all different privileges that have been considered.
Ac pt cessAttem Enumeration The type Attempt will be an ordered enumeration composed
by all different access attempts that have been considered.

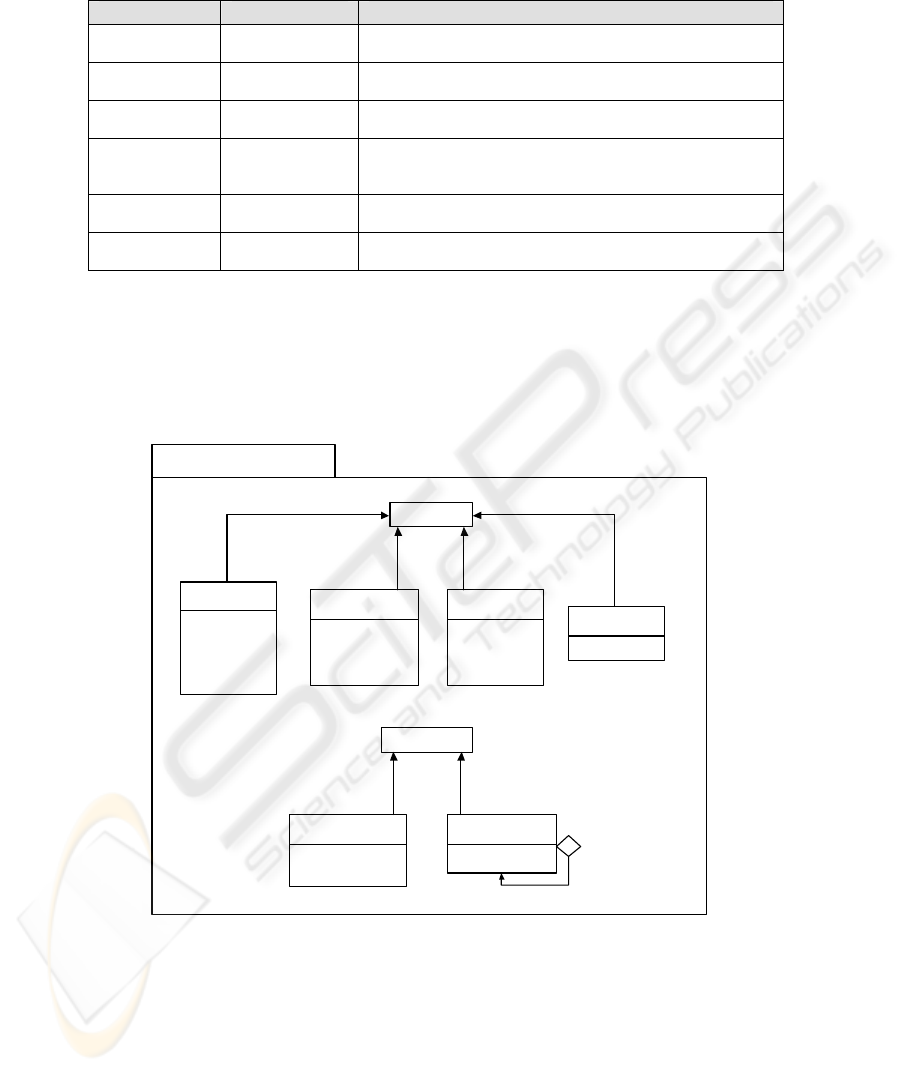

In figure 2, we can observe th ary
types. Security levels, roles and organizational compartments can be defined
ac
Fig. 2.
e values associated to each one of the necess
cording to the needs of the organization. However, for this figure to be better
understood, we have considered within the “Level” data type, the typical values
associated to security levels.
Values associated to new data types
PrimitiveT ype
Enumeration
«stereotype»
Level
unClass ifi ed
confidential
secret
topSecret
«stereotype»
Compartment
«stereotype»
Privilege
read
insert
update
delete
all
«stereotype»
AccessAttempt
none
sucessfullAccess
frus tratedAttem pt
all
«stereotyp
Levels
lowerLevel: Level
upperLevel: Level
«stereotype»
Role
roleName: String
subRoleOf
0..*
Types SECDW
220
2.3 Stereotypes
We have defined a package that includes all the stereotypes that will be necessary in
our profile (see Figure 3). This profile contains four types of stereotypes:
Secure class and secure data warehouses stereotypes (and stereotypes inheriting
information from them) that contain tagged values associated to attributes (model
or class attributes), security levels, user roles and organizational compartments.
Attribute stereotypes (and stereotypes inheriting information from attributes) and
instances, that have tagged values associated to security levels, user roles and
organizational compartments.
Stereotypes that allow us to represent security constraints, authorizations rules
and audit rules.
UserProfile stereotype, which is necessary to specify constraints depending on
particular information of a user or a group of users.

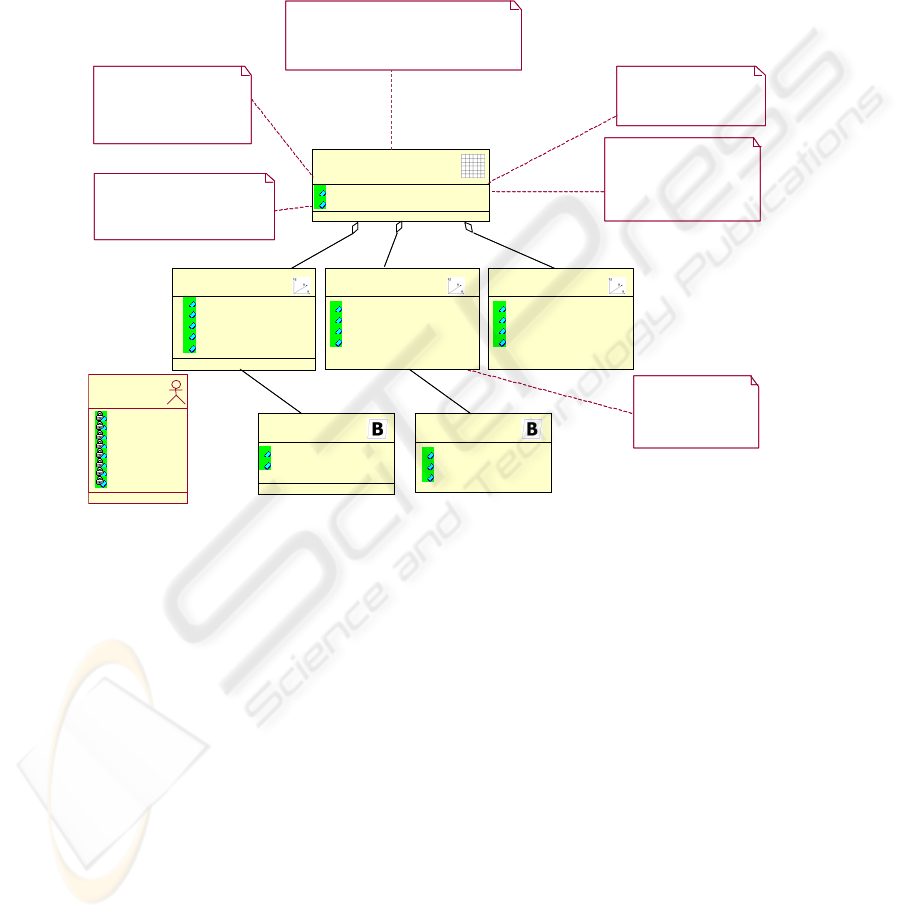

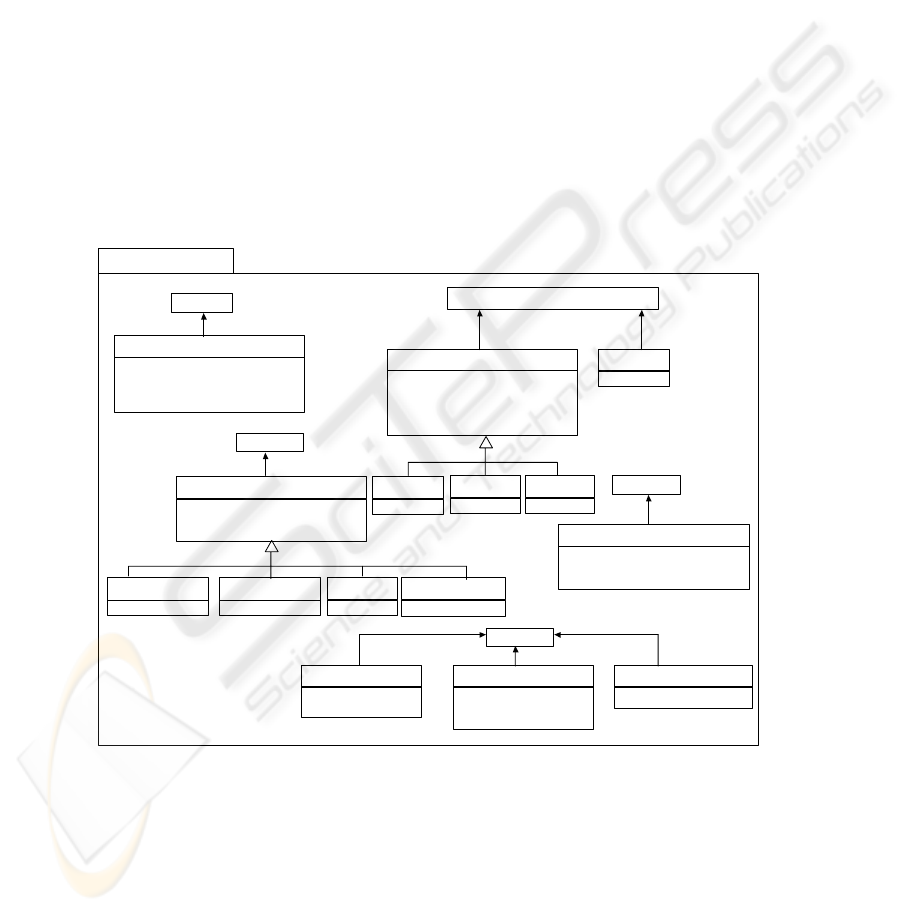

In figure 3, we can see the tagged values associated to each one of the stereotypes.
For example, ‘SecureDW’ stereotype has the following values associated: Classes,
SecurityLevels, SecurityRoles and SecurityCompartments. In Table 2, we will show
the description of each one of the stereotypes.
Cla ss
Model
«stereotype»
SecureDW
classes: Set(OclType)
securityLevels: Sequence(Level)
securityRoles : Role
securityCompartments: Set(Compartment)
«stereotype»
SecureClass
Attributes : Set(OclType)
s e cu rityL e ve ls : Leve ls
securityRoles: Set(Role)
securityCompartments: Set(Compartment)
«stereotype»
UserProfile
Property
«stereotype»
SecureAttribute
securityLevels: Levels
securityRoles: Set(Role)
securityCompartments: Set(Com partment)
Instance
«stereotype»
SecureInstance
s ecurityLevel: Level
s ecurityRoles: Set(Role)
s ecurityCompartments: Set(Compartment)
Constraint
«stereotype»
Aud itRule
logType: AccessAttempt
«stereotype»
AuthorizationRule
ExceptSign: {+,-}
ExceptPrivilege: Privilege
involvedClasses: Set(OclType)
«stereotype»
SecurityRule
involvedClasses: Set(OclType)
«profil
SECDW
«stereotype»
SFA
«stereotype»
SDA
«stereotype»
SFact
«stereotype»
SDimension
«stereotype»
SBase
isTime
derivationRule: String
derivationRule: String
«stereotype»
SOID
«stereotype»
SD
derivationRule: String
Fig. 3. New stereotypes
221
Table 2. Stereotypes
Name SecureDW Icon
Description Instances of this data warehouse model will allow us to define security information and
constraints regarding its elements.
Name UserProfile Icon
Description Classes of this stereotype contain all the properties that the systems manage from users.
Name Secure Class Icon
Description This type of class can have sensitivity information associated. We can therefore classify
these classes according to their own confidentiality properties.
Name SecureFact Icon
S
Description They represent facts within a multidimensional model. They inherit tagged values from
SecureClass.
Name SecureDimension Icon
Description They represent dimensions within a multidimensional model. They inherit tagged values
from SecureClass.
Name SecureBase Icon
Description They represent dimension hierarchy levels within a multidimensional model. They inherit
tagged values from SecureClass.
Name SecureAttribute Icon
Description This type of attributes can have sensitivity information associated. We can therefore classify
these attributes according to its own confidentiality properties.
Name SecureFactAttribute Icon
SFA
Description They represent Fact class attributes within a multidimensional model and inherit tagged
values from SecureAttribute.
Name SecureDimensionAttribute Icon
SDA
Description They represent Dimension or Base class attributes within a multidimensional model and
inherit tagged values from SecureAttribute.
Name SecureOID Icon
SOID
Description They represent OID attributes (Identifier attribute) of Fact, Dimension or Base classes
within a multidimensional model and inherit security aspects from SecureAttribute.
Name SecureDescriptor Icon
SD
Description They represent descriptor attributes of Dimension or Base classes within a multidimensional
model and inherit security aspects from SecureAttribute.
Name SecureInstance Icon
Description This type of instances can have sensitivity information associated. We can therefore classify
these instances according to their own confidentiality properties
Name AuditRule Icon
Description This type of rules can contain information to analyze the user behaviour when using the
system. Therefore, they will specify whether access must be registered.
Name AuthorizationRule Icon
Description This type of rules can contain information to permit or deny access. Therefore, they will
specify if authorization is positive or negative and the necessary privileges to access.
Name SecurityRule Icon
Description This type of rules can have sensitivity information associated. Therefore, they will specify if
security information is necessary.
SS
SS
S
222
2.4 Tagged Values
The tagged values we have defined are applied to certain components that are
especially particular to MD modeling, allowing us to represent them in the same
model and in the same diagrams that describe the rest of the system. In Table 3, the
necessary tagged values in our profile are shown. These tagged values will represent
the sensitivity information of the different elements of the MD modeling (fact class,
dimension class, base class, attributes, etc.), and they will allow us to specify security
constraints depending on this security information and on the value of attributes of the
model.
Table 3. Tagged values
Name Type Description Default Value
Classes Set(Ocltype) It specifies all classes of the model. This new
tagged value is useful in order to navigate
through all classes of the model.
Empty set
Attributes Set(OclType) It specifies all attributes of the class. This
new tagged value is useful in order to
navigate through all attributes of the model.
Empty set
SecurityLevels Levels It specifies the interval of possible security
level values that an instance of this class can
receive.
The lowest level (if
we consider
traditional levels,
should be
‘Unclassified’)
SecurityRoles Set(Role) It specifies a set of user roles. Each role is
the root of a subtree of the general user role
hierarchy defined for the organization.
The set composed
by one role that is
the role hierarchy
defined for the
model
Security-
Compartments
Set
(Compartment)
It specifies a set of compartments. All
instances of this class can have the same user
compartments, or a subset of them.
Empty set of
compartments
LogType AccessAttempt It specifies whether the access has to be
recorded: none, all access, only frustrated
accesses, or only successful accesses.
None
Involved-
Classes
Set(OclType) It specifies the classes that have to be
involved in a query to be enforced in an
exception.
Empty
ExceptSign {+,-} It specifies if an exception permits (+) or
denies (-) access to instances of this class to a
user or a group of users.
+
Except-
Privilege
Set(Privilege) It specifies the privileges the user can receive
or remove.
Read
isTime Boolean It indicates whether dimension represents a
time dimension or not.
False
derivationRule String If the attribute is derived, this tagged value
represents the derivation rule.
Empty
223
2.5 Well-Formedness Rules
A set of inherent constraints are specified in order to define well-formedness rules.
The correct use of our extension is assured by the definition of constraints in both
natural language and Object Constraint Language (OCL). We will identify and
specify some well-formedness rules needed for the correct use of the new elements
specified in this profile. These rules are grouped as follows:
- Correct value of tagged values. For example; the security levels defined for each
class of the model and for each attribute of each class has to belong to the
sequence of security levels that has been defined for the model.
- Security information of instances. For example, the security level of the instance
of a class has to be included in the ranking of security levels that has been
defined for the class.
- Relationship between security information of classes and their attributes. The
security levels defined for an attribute have to be equal or more restrictive than
the security levels defined for its class.
- Categorization of dimensions. When a dimension class is specialized in several
base classes, the security levels of the subclasses have to be equal or more
restrictive than the security levels of the superclass.
- Classification hierarchies. As a general rule, we can consider that the more
specific the information is, the more restrictive its access is.
- Derived Attribute. The security levels of a derived attribute have to be equal or
more restrictive than the attributes which this attribute is based on.
- Combination of dimensions. For example, a query that involves the combination
of several dimensions class, and the fact class, has to consider the combination of
the security information of all classes. The security levels of the combination will
be the most restrictive in the security levels of all classes.
For example, we can consider the following rule, related to the correct value of the
tagged values, and express it using OCL:The set of user roles defined for each class
and attribute of the model has to be a subtree of the roles tree that has been defined
for the model’.
context Model
inv self.classes-> forAll(c | c.Roles-> forAll( r | self.Role-
ludesAll(r)))
>inc
inv self.classes-> forAll(c | c.attributes-> forAll(a | a.Roles-> forAll
(r | self.Role-> includesAll(r))))
2.6 OCL Extension
We will need some syntactic definitions that are not considered in standard OCL.
Besides Set, OrderedSet, Bag and Sequence, we will need the Tree type. Tree type
will be defined as a collection containing a root and a tree sequence. This type will be
necessary to represent the user roles hierarchy. Consequently, the tree type will be
able to use the operations of this collection defined by OCL and also the two new
operations that are described below:
Root: It will indicate the tree root.
224
Subtree(n): It will indicate the n subtree (starting from the left side) of the
sequence of subtrees of a tree.
Trees can be described using complex OCL structures. However, we consider that
there is a simpler representation way to define a new type of data collection. The new
data type tree will not be used for modeling but it will be necessary later during the
implementation of an automated tool that allows us to check OCL sentences.
This profile provides us with a series of aspects that will facilitate the use of our
OCL extension. For example, it will be possible:
- To navigate, using the tagged values, in an intuitive way. This is possible due to
the fact that tagged values are considered as attributes.
- To establish constraints by using UserProfile stereotype attributes. In this way,
we will not only be able to refer to a contextual instance (writing “Self” first) but
also to a contextual user (writing “UserProfile” first) thus limiting information
depending on the characteristics of the user that is requesting that information.
- To model dynamic constraints, using security rules, authorization rules and audit
rules. The context keyword will introduce the context of the expression, and the
keywords secRule, auditRule and authRule denote respectively the stereotype
«securityRule», «AuditRule», and «AuthorizationRule» of the constraint.
3 An Example applying our profile
We have considered a reduced example in order to focus our attention on security
specifications. Our SecureModel, named ‘Hospital’ is based on a typical health-care
system. Given SECDW profile, Figure 4 shows us how this profile has been applied
to the package ‘Hospital’. Applying SECDW profile means that it is allowed, but not
necessarily required, to apply the stereotypes that are defined as part of the profile.
«profil
SECDW
Hosp ital
«apply»
S
Fig. 4. SECDW profile applied to a Hospital package
Figure 5 shows us the secure multidimensional model Hospital whose patients
admission is composed of a fact class named Admission, dimension classes called
Diagnosis, Patient and Time, and base classes named Diagnosis_group of Patient
Dimension. Additionally, in this modeling, an additional class called UserProfile is
considered (stereotype UserProfile), that will contain information of all users entitled
to access to this multidimensional model (that will be possible to be used as a
contextual user in the specification of our constraints with OCL).
We have used the following security levels: Confidential, Secret and topSecret. User
roles Health (including Doctor and Nurse subroles) and NonHealth (including
Maintenance and Administrative subroles) have been defined. The root of this
225
hierarchical roles tree is HospitalEmployee. In this example, we have not considered
organizational compartments.
In figure 5, we can see that, in our model, we use the classes stereotypes inherited
from the proposal stated in [13], which we have added security aspects into
(secureFact, secureDimension, secureBase representing them with the same icons but
adding them a letter “S” indicating that is a secure class). At the same time, all our
constraints (AuditRule, AuthorizationRule and SecurityRule) will be modeled using
UML notes.
City {SL=C}
SOID code
SD name
SDA population
Patient {SL=S; SR=Health,
Admin}
SOID ssn
SD name
SDA dateOfBirth
SDA address {SR = Admin}
1
1..*
Admission {SL=S..T S;
SR=Health, Admin}
SFA type
SFA cost {SR = Admin}
0..*
1
Diagnosis_group {SL=C}
SOID code
SD description
Diagnosis {SL=S; SR=He alth}
0..*
0..*
1
1
1..*
{exceptSign = +}
{s elf.name =
userProfile.name}
{involvedClasses = (Diagnosis, Diagnosis_group, Patient)}
self .SL = (If self.Diagnosis.Diagnosis_group.description =
"cancer" or self .Diagnosis.Diagnosis_group.description= "AIDS"
then TS else S )
userProfile
userCode
name
securityLevel
securityRoles
citizenship
hospital
workingArea
dateContract
{involvedClasses= (Patient)}
self .SL = (if self.cost>10000 then TS
else S)
4
1
SOID codeDiagnosis
SD description
SDA healthArea
SDA val i d Fro m
SDA val i d To
{involvedClasses= (Diagnosis,
Diagnosis_group & Patient}
{exceptSign = -}
{self.diagnosis.healthArea <>
userProfile.w orkingArea}
Ti me {SL=S; SR=Health,
Admin}
SOID, SD date
SDA Day_of_year
SDA vaca ti on
SDA big_event
2
1
6
5
{involvedClasses= (Diagnosis,
Pat ie nt , Ti me )}
{exceptSign = -}
{self.date <
userProfile.dateContract
}
«AuthorizationRule»
«Security Rule»
«Security Rule»
«AuthorizationRule»
«AuthorizationRule»
«Audit Rule»
3
{logType = frus tratedAttempts}
{self.type = ´primary_diagnosis´}
S
SS SS SS
SSSS
City {SL=C}
SOID code
SD name
SDA population
Patient {SL=S; SR=Health,
Admin}
SOID ssn
SD name
SDA dateOfBirth
SDA address {SR = Admin}
1
1..*
Admission {SL=S..T S;
SR=Health, Admin}
SFA type
SFA cost {SR = Admin}
0..*
1
Diagnosis_group {SL=C}
SOID code
SD description
Diagnosis {SL=S; SR=He alth}
0..*
0..*
1
1
1..*
{exceptSign = +}
{s elf.name =
userProfile.name}
{involvedClasses = (Diagnosis, Diagnosis_group, Patient)}
self .SL = (If self.Diagnosis.Diagnosis_group.description =
"cancer" or self .Diagnosis.Diagnosis_group.description= "AIDS"
then TS else S )
userProfile
userCode
name
securityLevel
securityRoles
citizenship
hospital
workingArea
dateContract
{involvedClasses= (Patient)}
self .SL = (if self.cost>10000 then TS
else S)
4
1
SOID codeDiagnosis
SD description
SDA healthArea
SDA val i d Fro m
SDA val i d To
{involvedClasses= (Diagnosis,
Diagnosis_group & Patient}
{exceptSign = -}
{self.diagnosis.healthArea <>
userProfile.w orkingArea}
Ti me {SL=S; SR=Health,
Admin}
SOID, SD date
SDA Day_of_year
SDA vaca ti on
SDA big_event
2
1
6
5
{involvedClasses= (Diagnosis,
Pat ie nt , Ti me )}
{exceptSign = -}
{self.date <
userProfile.dateContract
}
«AuthorizationRule»
«Security Rule»
«Security Rule»
«AuthorizationRule»
«AuthorizationRule»
«Audit Rule»
3
{logType = frus tratedAttempts}
{self.type = ´primary_diagnosis´}
S
SS SS SS
SSSS
Fig. 5. Example of secure multidimensional modeling
1. The security level of each instance of Admission is defined by a security
constraint specified in the model. If the value of the description attribute of the
Diagnosis_group to which diagnosis belongs is cancer or AIDS, the security
level –tagged value SL- of this admission will be top secret, otherwise secret.
This constraint is only applied if the user makes a query whose information
comes from Diagnosis dimension or Diagnosis_group base classes, together with
Patient dimension –tagged value involvedClasses-. Therefore, a user who has
secret security level could obtain the number of patients with cancer for each
city, but never if information of Patient dimension appears in the query.
2. For confidentiality reasons, we could deny access to admission information to
users whose working area is different than the area of a particular admission
instance. This is specified by another exception in Admission fact class,
considering a condition and the tagged values involvedClasses, exceptSign.
3. The tagged value logType has been defined for Admission class, specifying the
value frustratedAttempts. This stereotype specifies that the system has to record,
226
for future audit, the situation in which a user tries to access to information whose
type is ‘primary diagnosis’ of this fact class, and the system denies it because of
lack of permissions.
4. The security level –tagged value SL- of each instance of Admission can also
depend on the value of cost attribute, which indicates the price of the admission
service. In this case, the constraint is only applicable to queries that contain
information of the Patient dimension –tagged value involvedClasses-.
5. Users can be denied access to patients data that have been treated before the date
of contract of the staff in the health area. This stereotype is specified with an
exception in the Admission class, considering a condition and InvolvedClasses
and ExceptSign tagged values.
6. Patients could be special users of the system. In this case, it could be possible that
patients access to their own information as patients (for instance, for querying
their personal data). This constraint is specified by using the exceptSign tagged
value in the Patient class.
4 Conclusions and Future Work
In this paper, we have presented a UML 2.0/OCL profile that allows us to represent
the main security aspects in the conceptual modeling of data warehouses. This
extension contains the necessary stereotypes, tagged values and constraints for a
complete and powerful secure MD modeling. These new elements allow us to specify
security aspects such as security levels on data, compartments and user roles on the
main elements of a MD modeling such as facts, dimensions and classification
hierarchies. We have used the OCL to specify the constraints attached to these new
defined elements, thereby avoiding an arbitrary use of them.
Taking into account that data warehouses are used for discovering crucial business
information in the strategic decision making process, this proposal provides as with
interesting advances to improve security in decision support systems as well as
sensitivity information protection that these systems generally manage.
Our immediate future work consists of developing an automated tool that allows us
not only to model data warehouses in a secure way using our profile but also to
translate as well as validate all our OCL sentences specified in our modeling.
Furthermore, our proposal will be tested in a real environment in order to get
experience and get results of his efficiency.
Acknowledgements
This research is part of the RETISTIC (TIC2002-12487-E) and the MESSENGER
(PCC-03-003-1) projects, supported by the Dirección General de Investigación of the
Ministerio de Ciencia y Tecnología, and the network VII-J.RITOS2 financed by
CYTED respectively, and the METASIGN project (TIN2004-00799) supported by
the CICYT.
227
References
1. Abelló, A., Samos, J., Saltor, F.: YAM2 (Yet Another Multidimensional Model): An
Extension of UML, in International Database Engineering & Applications Symposium
(IDEAS 2002). 2002, IEEE Computer Society: Edmonton, Canada. p. 172-181.
2. Chung, L., Nixon, B., Yu, E., Mylopoulos, J.: Non-functional requirements in software
engineering. 2000, Boston/Dordrecht/London: Kluwer Academic Publishers.
3. Conallen, J.: Building Web Applications with UML. Object Technology Series. 2000:
Addison-Wesley.
4. Devanbu, P., Stubblebine, S.: Software engineering for security: a roadmap, in The Future
of Software Engineering, Finkelstein, A., Editor. 2000, ACM Press. p. 227-239.
5. Dhillon, G. Backhouse, J.: Information system security management in the new
millennium. Communications of the ACM, 2000. 43(7): p. 125-128.
6. Ferrari, E. Thuraisingham, B.: Secure Database Systems, in Advanced Databases:
Technology Design, Piattini, M. Díaz, O., Editors. 2000, Artech House: London.
7. Fuentes-Fernández, L., Vallecillo-Moreno, A.: An Introduction to UML Profiles.
UPGRADE, 2004. 2(2): p. 6-13.
8. Golfarelli, M., Maio, D., Rizzi, S.: The Dimensional Fact Model: A Conceptual Model for
Data Warehouses. International Journal of Cooperative Information Systems (IJCIS),
1998. 7(2-3): p. 215-247.
9. Husemann, B., Lechtenborger, J., Vossen, G.: Conceptual Data Warehouse Design, in
Proceedings of the 2nd. International Workshop on Design and Management of Data
Warehouses (DMDW'2000). Stockholm, Sweden. p. 3-9.
10. Inmon, H.: Building the Data Warehouse. Third Edition. 2002, USA: John Wiley & Sons.
11. Katic, N., Quirchmayr, G., Schiefer, J., Stolba, M., Min Tjoa, A.: A Prototype Model for
Data Warehouse Security Based on Metadata. in 9th International Workshop on Database
and Expert Systems Applications (DEXA'98). Vienna, Austria.: IEEE Computer Society.
12. Kirkgöze, R., Katic, N., Stolda, M., Min Tjoa, A.:A Security Concept for OLAP. in 8th
International Workshop on Database and Expert System Applications (DEXA'97). 1997.
Toulouse, France: IEEE Computer Society.
13. Luján-Mora, S., Trujillo, J., Song, I.Y.:Extending the UML for Multidimensional
Modeling. in 5th International Conference on the Unified Modeling Language (UML
2002). 2002. Dresden, Germany: Springer-Verlag. LNCS 2460.
14. OMG. UML 2.0 Infraestructure Specification, OMG Document pct/03-09-5. 2003,
http://www.uml.org
15. Priebe, T. Pernul, G.: Towards OLAP Security Design - Survey and Research Issues. in
3rd ACM International Workshop on Data Warehousing and OLAP (DOLAP'00). 2000.
Washington DC, USA.
16. Rosenthal, A. Sciore, E.: View Security as the Basic for Data Warehouse Security. in 2nd
International Workshop on Design and Management of Data Warehouse (DMDW'00).
2000. Sweden.
17. Sapia, C., Blaschka, M., Höfling, G., Dinter, B.: Extending the E/R Model for the
Multidimensional Paradigm. in 1st International Workshop on Data Warehouse and Data
Mining (DWDM'98). 1998. Singapore: Springer-Verlag.
18. Trujillo, J., Palomar, M., Gómez, J., Song, I.Y.: Designing Data Warehouses with OO
Conceptual Models. IEEE Computer, 2001(34): p. 66-75.
19. Tryfona, N., Busborg, F., Christiansen, J.: starER: A Conceptual Model for Data
Warehouse Design. in ACM 2nd International Workshop on Data Warehousing and OLAP
(DOLAP'99). 1999. Missouri, USA: ACM.
20. Warmer, J. Kleppe, A.: The Object Constraint Language Second Edition. Getting Your
Models Ready for MDA. 2003: Addison Wesley.
228
