XML Schema-driven Generation of Architecture
Components
Ali El bekai
1
, Nick Rossiter
1
1
School of Informatics, Northumbria University,
Newcastle upon Tyne, UK
Abstract. It is possible to code by hand an XSL stylesheet that validates an
XML document against some or all constraints of an XML schema. But the
main goal of this paper introduces general techniques as a technology solution
for different problems such as (a) generation of SQL schema from
XMLSchema, (b) generating XSL stylesheet from XMLSchema, and (c)
XQuery interpreter generating. Each of the techniques proposed in this paper
works by XMLSchema-driven generation of architecture components with XSL
stylesheet. As can be seen the input is XMLSchema and XSL stylesheet and the
output is generic stylesheets. These stylesheets can be used as interpreter for
generating other types of data such as SQL queries from XQueries, SQL data,
SQL schema and HTML format. Using XSL stylesheets we present algorithms
showing how we can generate these components automatically.
1 Introduction
XML is fast emerging as the dominant standard for representing and exchanging
information over the Internet [4,2]. If data is stored and represented as XML docu-
ments, then it should be possible to query the contents of these documents in order to
extract, synthesize and analyze their contents. Also, it is possible to transform theses
data to another format and to generate a component from the XML data. Originally,
XML was created to meet the challenges of data exchange in Web applications or
between applications and users, not for data presentation purposes. To deal with pres-
entation issues, XML needs to be used in conjunction with stylesheets to be easily
viewed on the web. For this reason, eXtensible Stylesheet Language was created.
XSL (Extensible Stylesheet Language) is being developed as part of the W3C
stylesheets activity [13,14]. It has evolved from the CSS language to provide even
richer stylistic control, and to ensure consistency of implementations. It also has
document manipulation capabilities beyond styling. Of course, designing “traditional”
software transformation tools for that purpose can achieve such a task. However, the
power of having a cross-platform and XML independent language would be lost.
Precisely, isolating content from formatting needs to be considered, especially when
dealing with Web based documents. Therefore, any method of transforming XML
documents into different formats such as XML, HTML, SQL, flat files or WML
needs to be tailored so that it can be used with different platforms/languages.
El bekai A. and Rossiter N. (2005).
XML Schema-driven Generation of Architecture Components.
In Proceedings of the Joint Workshop on Web Services and Model-Driven Enterprise Information Systems, pages 159-164
DOI: 10.5220/0002564601590164
Copyright
c
SciTePress
This paper introduces the technological solutions for different problems such as (a)
SQL schema generation, (b) XSL stylesheet generation, and (c) XQuery interpreter
generation automatically by transforming an XMLSchema through an XSLT.2.
2 Related Work
Bourret [2] noted that XML and its surrounding technologies have many facilities in
common with real databases such as storage (XML documents), schemas (DTDs,
XML schema languages), query languages (XQuery, XPath, XQL, XML-QL,
QUILT, etc.), and programming interfaces (SAX, DOM, JDOM). On the other hand,
XML lacks efficient storage, indexes, security, transactions and data integrity, multi-
user access, triggers, queries across multiple documents, and so on. Aboulnaga et al
[1] started a discussion in the XML community about characterizing and generating
XML data. Provost [10] considered the most common patterns for document content
constraints, and finds that XML Schema validation is only the first of several neces-
sary layers. Bourret [3] summarized two different mappings. The first part of the
process, generally known as XML data binding, maps the W3C's XML Schemas to
object schemas. The second known as object-relational mapping, maps object sche-
mas to relational database schemas. In [6,11] techniques are presented for querying
XML documents using a relational database system, which enables the same query
processor to be used with most relational schema generation techniques. Norton [8]
presents an XSL as validation to validate XML document. W3C and Peterson de-
scribe a query processor that works for different schema generation techniques [12,
9]. Their work is done in the context of data integration, and the tables generated by
each relational schema generation technique are specified as materialized views over
a virtual global schema. In [5] a translation is presented of XQuery expression drawn
from a comprehensive subset of XQuery to a single equivalent SQL query using a
novel dynamic interval encoding of a collection of XML documents. In [7] an algo-
rithm is presented that translates simple path expression queries to SQL in the pres-
ences of recursion in the schema in the context of schema-based XML storage shred-
ding of XML relations.
As a result none of the approaches described above introduce an algorithm to
generate a generic XSL stylesheet for transforming XML to SQL statements or an
XSL stylesheet for transforming XQueries to SQL queries or for generating SQL
schema by using XSL. We will next introduce general algorithms to generate these
components automatically.
3 SQL Schema Generations
Basically, the DOM [12,16] is a specification that comprises a set of interfaces that
allow XML documents to be parsed and manipulated in memory. The main interfaces
for an application with DOM are: Node: the base type, representing a node in the
DOM tree; Document: representing the entire XML document as a tree of Nodes (the
DOM parser will return Document as a result of parsing the XML); Element: to rep-
160
resent the elements of the XML document; Attribute, representing an attribute of
some XML element; Interface enabling setting/getting the value of that attribute; and
Text: representing the text content of an element (i.e. the text between tags that is not
part of any child element). The DOM tree is composed of nodes, each of which repre-
sents a parsed document. Based on these interfaces, we will use the XMLSchema
parse file (DOM) as input in our algorithm to generate the components automatically.
Now we will introduce an algorithm that can be used automatically to generate the
SQL schema as output of an arbitrary XMLSchema. In particular, we present a trans-
lation algorithm that takes as input an XMLSchema and XSL stylesheet and produces
a SQL schema as the output.

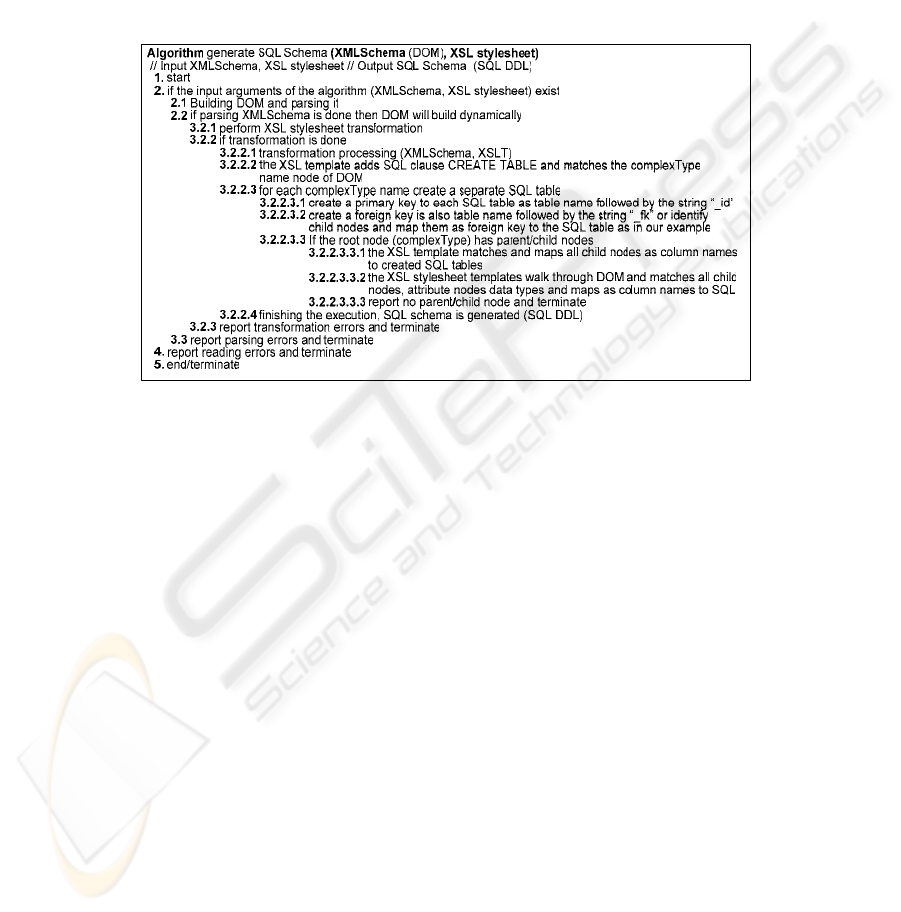

Fig.1. An algorithm for generating SQL schema from XMLSchema.
4 XSL Generations
Basically, it is possible to code by hand an XSL stylesheet that validates an XML
document against some or all constraints of an XML schema. But in this section we
introduce an algorithm as shown in Fig. 3 for generating an XSL stylesheet from an
XMLSchema parse file (DOM) and as mentioned before the DOM tree is composed
of nodes, each of which represents a parsed document. In other words this algorithm
is the technology solution to the problem of generating an XSL automatically by
transforming an XMLSchema through an XSLT. The result is a generic XSL
stylesheet providing the mechanism to transform and manipulate XML data. Also the
generated XSL stylesheet can be used to transform an XML document into another
format such as XML to SQL statements and XML to HTML document.
5 The XQuery Interpreter Generation
Basically, the XQuery [15] is a language containing one or more query expressions.
XQuery supports conditional expressions, element constructors, FOR, LET, WHERE,
161
RETURN (FLWR) expressions, expressions involving operators and function calls
and quantifiers, type checking and path expressions. Some XQuery expressions
evaluate to simple node values such as elements and attributes or atomic values such
as strings and numbers. The syntax for retrieving, filtering, and transforming records
uses
FOR, LET, WHERE and RETURN clauses. A FLWR expression creates some
bindings, applies a predicate and produces a result set. XQuery does not conform to
the same conventions as SQL. XQuery and SQL share some similar concepts. Both
languages provide keywords for projection and transformation operations (SQL
SELECT or XQuery RETURN). SQL supports joins between tables and XQuery
supports joins between multiple documents.

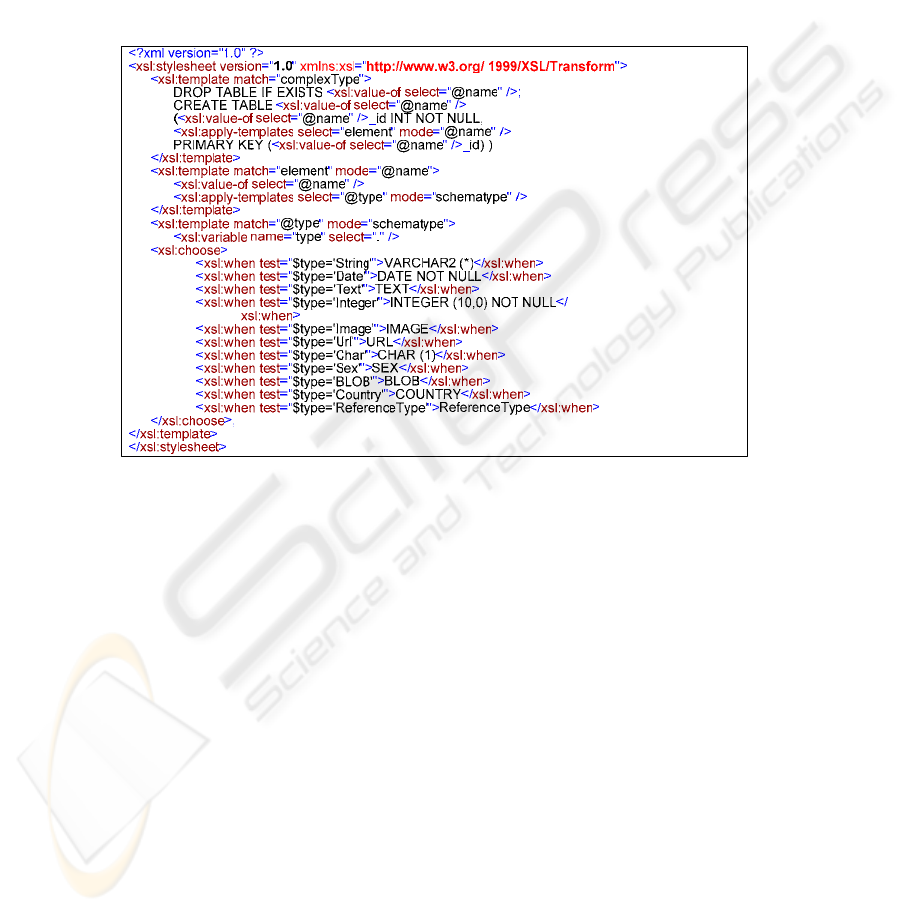

Fig. 2. The generated XSL stylesheet for generating SQL schema from XMLSchema
Here are two simple examples: one with XPath type of a query and the other with
FLWR expression. The single forward slash (/) signifies the parent-child relationship
between elements. In tracing a path through a tree the expression starts at the root
node and follows parent node and so on.
1) X / <collection>/<object>/<objectInfor>
2) For obj in <collection> do
Where obj = <object>
Return <object>
Finally in this section we introduce an algorithm for generating an XSL stylesheet
from the XMLSchema to interpret the XQuery. In other words, this is the technology
solution to the problem of generating automatically the XQuery interpreter by trans-
forming an XMLSchema through an XSLT.
162
.
// Input XMLSchema, XSL stylesheet // Output XSL stylesheet
1. start
2. if the input arguments (XMLSchema, XSL stylesheet) exist
2.1 Build DOM and parse it
2.2 if parsing XMLSchema is done DOM will build dynamically
2.2.1 perform XSL stylesheet (each XSL stylesheet contains templates and commands to
select and manipulate structure of data)
2.2.2 if transformation is ok
2.2.2.1 invoke the root node of DOM tree
2.2.2.2 compare the root node with template rules in the stylesheet, if it matches the
first one then map to the root node of an XSL stylesheet output (as new template)
2.2.2.3 If the root node has parent/child nodes
2.2.2.3.1 the XSL walks through DOM tree and pulls nodes from DOM tree and
places them with formatting as a new template to output
2.2.2.3.2 compare and match complexType nodes of the DOM tree with the and
XSL template, and for each a complexType name create a separate table
2.2.2.3.3 map the child nodes to the table as a column names, and also the
data type of XMLSchema mapped as values to the column names
2.2.2.3.4 iterate through the DOM tree nodes and set the keyword VALUES to the
output as new template in the XSL stylesheet
2.2.2.3.5 insert the required statement and then return all template (new XSL
stylesheet generated)
2.2.2.4 set null and terminate
2.2.3 report transformation errors and terminate
2.3 report parsing errors and terminate
3. report reading errors and terminate
4. terminate\end
Fig. 3. An algorithm for generating XSL from XMLSchema.
Fig. 4. Algorithm generating XSL from XMLSchema to transform XQueries to SQL queries.
6 Conclusion
The contribution of this work is that it introduces general techniques for generating
SQL schema, XSL and XQuery using XMLSchema and XSL stylesheet, which (a)
enables the use of these techniques for transforming XML data to SQL data and stor-
ing it in a relational database, (b) allows the user to present HTML format, and (c)
163
interprets XQueries (transforms XQueries to SQL queries) so that we can then re-
trieve and query data from the database. A potential cause for concern is that our
general techniques may be less overlapping in implementation thus losing some effi-
ciency.
However based on our prototype implementation in java, we have found that it is
very quick to generate XSL stylesheets as an interpreter for different types of trans-
formation such as SQL Schema and XQueries in to SQL queries. As we know it is
possible to code by hand an XSL stylesheet that validates an XML document against
some or all constraints of an XML schema and to generate an XSL stylesheet. How-
ever with our automated technique this task is easy, quick and less overlapping and
we will use these generated components to integrate the (offline and online) compo-
nents to satisfy our requirements. Also, we plan to extend these techniques to work
with Multiple XMLSchema, not just single XMLSchema.
References
1. Aboulnaga, A., Jeffrey F. Naughton, Chun Zhang. Generating Synthetic Complex-
Structured XML Data. Fourth International Workshop WebDB'2001 (2001).
2. Bourret, R, XML and Database www.rpbourret.com/xml/XMLAndDatabases.htm (2004).
3. Bourret, R, Mapping W3C Schemas to Object Schemas to Relational Schemas.,
www.rpbourret.com/xml/SchemaMap.htm March (2001).
4. Chawathe S. Describing and Manipulating XML Data, Bulletin IEEE Technical (1999).
5. DeHaan D, D. Toman, M. Consens, and M. T. Özsu, A Comprehensive XQuery to SQL
Translation using Dynamic Interval Encoding, Proc ACM Int Conf Management Data
(SIGMOD'03), San Diego, 623-634 June (2003).
6. Florescu D, D. Koaamann. Storing and Querying XML Data using an RDBMS, IEEE
Data Engineering Bulletin, 22 27-34 (1999)
7. Krishnamurthy R., Venkatesan T.Chakaravarthy, Raghav Kaushik, Jeffrey F. Naughton,
Recursive XML Schemas, Recursive XML Queries, and Relational Storage: XML-to-SQL
Query Translation, ICDE (2004)
8. Norton Francis. Generating XSL for Schema validation
http://www.redrice.com/ci/generatingXslValid, May 20, (1999)
9. Peterson David, Paul V. Biron, and Ashok Malhotra XML Schema 1.1 Part 2: Datatypes.
W3C, Working Draft WD-xmlschema11-2-20040716, July (2004)
10. Provost W, XML Validation Architecture using XML Schema, XPath, and XSLT. (2002)
11. Shanmugasundaram J., E. Shekita, J. Kiernan, R. Krishnamurthy, E. Viglas, J. Naughton
and Igor Tatarinov. A General Technique for Querying XML Documents using a Rela-
tional Database System. ACM SIGMOD Record, 30(3), (2001)
12. W3C, Document Object Model (DOM) Level 2 HTML Specification Version 1.0 W3C
Recommendation 09 January. http://www.w3.org/TR/2003/REC-DOM-Level (2003).
13. W3C. Extensible Stylesheet Language (XSL) Version 1.0, W3C Candidate Recommenda-
tion. http://www.w3.org/TR/2001/REC-xsl-20011015/ October 15, (2001)
14. W3C XSL Working Group, W3C Recommendation on XSL Transformations (XSLT)
http://www.w3.org/TR/xslt. (1999)
15. W3C.XQuery 1.0: An XML Query Language, W3C Working Draft July 23, (2004).
16. W3C.DOM Working Group, Document Object Model, http://www.w3.org/DOM/. (2004).
164
