Interacting with our Environment through Sentient

Mobile Phones

Diego López de Ipiña

, Iñaki Vázquez

and David Sainz

Faculty of Engineering, University of Deusto, Bilbao, Spain

Abstract. Th

e latest mobile phones are offering more multimedia features,

better communication capabilities (Bluetooth, GPRS, 3G) and are far more

easily programmable (extensible) than ever before. So far, the “killer apps” to

exploit these new capabilities have been presented in the form of MMS

(Multimedia Messaging), video conferencing and multimedia-on-demand

services. We deem that a new promising application domain for the latest Smart

Phones is their use as intermediaries between us and our surrounding

environment. Thus, our mobiles will behave as personal butlers who assist us in

our daily tasks, taking advantage of the computational services provided at our

working or living environments. For this to happen, a key element is to add

senses to our mobiles: capability to see (camera), hear (michrophone), notice

(Bluetooth) the objects and devices offering computational services. In this

paper, we present a solution to this issue, the MobileSense system. We illustrate

its use in two scenarios: (1) making mobiles more accessible to people with

disabilities and (2) enabling the mobiles as guiding devices within a museum.

1 Introduction

Ambient Intelligence (AmI) [1] involves the convergence of several computing areas:

Ubiquitous Computing and Communication, Context-Awareness, and Intelligent User

Interfaces. Ubiquitous Computing [2] means integration of microprocessors and

computer services into everyday objects like furniture, clothing, toys and so forth.

Ubiquitous Communication enables these objects to communicate with each other and

the user by means of ad-hoc and wireless networking. Context-Awareness implies

adding sentient capabilities both to the environment and the user mobile devices so

that they can understand the current context of the user and offer them suitable

services. An Intelligent User Interface enables the inhabitants of the AmI environment

to control and interact with it in a natural (voice, gestures) and personalised way

(based on preferences and context).

So far, a widespread adoption of Ubiquitous Computing, and as a consequence of

bient Intelligence, has not been possible. The main reason for this has been that to

make these ubiquitous environments reality is necessary to populate them with

proprietary hardware and network infrastructure only available in research and

industry labs. This hardware and network infrastructure provides access to services

and also permits capturing the context of the user, so that the environment can react

López de Ipiña D., Vázquez I. and Sainz D. (2005).

Interacting with our Environment through Sentient Mobile Phones.

In Proceedings of the 2nd International Workshop on Ubiquitous Computing, pages 19-27

DOI: 10.5220/0002564000190027

 SciTePress

sensibly to the current situation of the user. By sensing the current location, identity,

or activity of the user, the surrounding environment can give an impression of having

certain degree of intelligence, i.e. of being sentient. The inhabitants of those

intelligent spaces are often aided by electronic devices that report their identity

(presence) and enable the interaction with the environment.

A key factor to extend the adoption (deployment and use) of Ambient Intelligence

is to utilize off-the-shelf hardware. Nowadays, by far the most commonly owned

consumer device is the mobile phone. Last generation Smart Phones, converging

mobile phone and PDA capabilities all in one, are more capable than ever before.

They have the unique feature of incorporating short range (local) wireless

connectivity (e.g., Bluetooth and Infrared) and Internet (global) connectivity (e.g.,

GPRS or UMTS) in the same personal device. Most of them are Java enabled

programmable devices, and are therefore easily extensible with new applications.

They also feature significant processing power, memory and added multimedia

capabilities (camera, MP3 player). Most importantly, they are the ideal candidates to

intermediate between us and the environment, since they are with us anywhere and at

anytime.

The Bluetooth[3] sensing and communication capabilities of Smart Phones can be

complemented with the utilisation of the mobiles built-in camera and microphone to

sense the objects, devices and services available in the surroundings. So, it is possible

to turn a mobile phone into a sentient device which sees (camera) and listens to

(Bluetooth) surrounding services. The core of this paper illustrates how the Smart

Phone sentient features can be applied to sense and interact with the objects in a

Smart Environment [4], and also to enable user/mobile interaction in a more

natural/accessible way. Thus, a Smart Phone can resemble a universal personal

assistant that makes our daily life much simpler.

The structure of this paper is as follows. Section 2 describes TRIP, a 2-D barcode-

based identification and location system, aimed for PCs. In Section 3 we adapt TRIP

for mobile devices into the MobileEye system. Section 4 describes MobileSense, an

extension to MobileEye, which adds further sensing capabilities to mobile phones.

Section 5 explains how the infrastructure developed for MobileSense and MobileEye

is applied to a real case, the creation of mobile phone-based museum guiding system.

Section 6 discusses some related work and Section 7 finishes with some conclusions.

2 Sensing Context by Reading Barcodes

A sentient entity (environment or device) senses the user current context so that it can

adapt its behaviour and offer, without her explicit intervention, the most suitable

actions. A key part of every sentient system is to gather the context information of the

user such as her location, identity, current time or current activity. Several sensing

technologies [5] have been proposed in the last decade, focusing especially in the

location-sensing area, since location is considered by far the most useful attribute of

context. Previous work of one of the authors in one of those technologies, namely

TRIP, motivated our aim of making mobiles more sentient.

TRIP (Target Recognition using Image Processing) [6] is a vision-based sensor

system that uses a combination of 2-D circular barcode tags or ringcodes (see Fig. 1),

and inexpensive CCD cameras (e.g. web-cams, CCTV cameras or even camera

phones) to identify and locate tagged objects in the cameras’ field of view. Compared

with untagged vision-based location systems, the processing demands of TRIP are

low. Optimised image processing and computer vision algorithms are applied to

obtain, in real-time

, the identifier (TRIPcode) and pose (location and orientation) of a

target with respect to the viewing camera. Fig. 2 depicts the video filtering process

undertaken to a frame with a TRIPtag. For more details on the algorithms refer to [6].

sync sector

radius encoding sectors

even-parity sectors

* 10 2011 221210001

x-axis ref point

Fig. 1. TRIPcode of radius 58mm and ID 18,795. TRIP’s 2-D printable and resizable ringcodes

(TRIPtags) encode a ternary number in the range 1-19,683(3

- 1) in the two concentric rings

surrounding the bull’s-eye of a target. These two rings are divided into 16 sectors.

Stage 0: Grab Frame Stage 1: Binarisation Stage 2: Edge Detection & Thinning

Stage 3: Edge Following & Filtering

Stages 4-7: Ellipse Fitting, Ellipse Concentricity Test, Code

Deciphering and POSE_FROM_TRIPTAG method

Ellipse params:

(335.432), y

(416.361) pixel coords

a (8.9977), b (7.47734) pixel coords

θ (14.91) degrees

Bull’s-eye radius: 0120 (15 mm)

TRIPcode: 002200000 (1,944)

Translation Vector (meters):

=0.0329608, T

=0.043217, T

=3.06935)

Target Plane Orientation angles (degrees):

( α=-7.9175, β=-32.1995, γ=-8.45592)

d2Target: 3.06983 meters

Fig. 2. Identifying and Locating the TRIPtag attached to a user’s shirt in a 768x576 pixel

image. Location extraction is only possible when the camera used is calibrated.

TRIP is a cost-efficient and versatile sensor technology. Only low-cost, low-

resolution cameras are required. The spare computing resources within a LAN can be

allocated to run the TRIP image parsing software. Commonly available

monochromatic printers can be used to print out the black and white TRIPtags. Its off-

Over 20 640x480 pixel images can be processed in a Pentium IV running the C++

implementation of TRIP.

the-shelf hardware requirements and software nature (downloadable [6]) enable its

installation in any environment equipped with some PCs.

3 MobileEye: Applying TRIP to Mobiles

Most of the newest Smart Phones feature a camera and programming facilities (Java

[7] or Symbian APIs [8]) to capture images and deliver them to processing servers via

Bluetooth (local) or GPRS (global). These technological factors motivated our

adaptation of the TRIP technology to camera phones. We want to make mobile

phones reactive not only to our explicit interactions (key presses) and network events

(incoming call), but also to the objects and services at the location where the user is.

In essence, we aim to add sensing capabilities to mobile phones. As a first result of

this effort we delivered MobileEye.

The MobileEye application installed in a Smart Phone displays augmented,

enriched views of tagged objects in the user surroundings (e.g. a painting in a

museum), or alternatively renders simple forms to input parameters and issue

operations over the sighted objects (e.g. the front door of our office). In MobileEye,

every augmented object is associated to a web service. When we want to obtain extra

information about an object or issue a command to it, we are really interacting with its

web service counterpart. In fact, we are simply invoking methods on the web services

(e.g.

MuseumWebService or DoorWebService). MobileEye is downloadable

from [6].

3.1 MobileEye Implementation

The MobileEye system presents a client/server architecture. Despite the increasing

computational capabilities of mobile phones, they are still generally

unsuitable for

undertaking heavy processing tasks such as image processing. This explains why in

our system, images captured by mobiles are uploaded into processing servers. Even if

the mobiles were able of processing images, MobileEye would still need to contact a

server to obtain additional information or recover the operational interfaces.

GPRS and UMTS give global access to information and allow the offload of

images to processing servers located far away from the tagged objects. More

importantly, they enable the mobiles to access the web service counterparts of the

objects, anywhere in the Internet. On the other hand, due to performance and cost

factors, it is convenient to use within controlled environments (e.g. universities or

offices) local severs accessible through PAN networks (e.g. Wi-Fi or Bluetooth). In

consequence, the MobileEye server can be accessed by co-located users via Bluetooth

and by remote users through GPRS.

Fig. 3 shows the architecture of the MobileEye system. Every item in the

environment augmented with computational functionality is tagged with a ringcode.

Jpeg images captured from tagged objects are delivered to a server. This server

Some latest models such as the Nokia 6600 and 6630 or the Ericsson P900 have been applied

to undertake such heavy processing tasks.

delivers responses in EnvML format, which are interpreted by the player in the

MobileEye client. EnvML is a simple XML-based language we have devised.

For the case where the mobile and the server are co-located (within Bluetooth

range of each other), the MobileEye client discovers the Bluetooth-enabled server via

Bluetooth SDP (Service Discovery Protocol) and delivers the image content via

Bluetooth RFCOMM (wireless serial port). The responses are delivered from the

server using the same mechanism.

<?xml version="1.0"?>

Fig. 3. MobileEye application architecture.

There is only one core J2EE-based implementation of the MobileEye server with

two communication channels: an HTTP and a Bluetooth one. Once an image has

been posted via HTTP or Bluetooth, the server uses the TRIP software to extract the

identifier of a ringcode. A database is used to map an identifier into a MobileEye

object, which contains a name, a description, and a URL pointing to its WSDL

interface. An XSL style sheet is applied to transform the WSDL interface into

EnvML, which is delivered to the mobile. Operations issued from the MobileEye

rendered graphical interface (obtained from the EnvML) are received via HTTP or

Bluetooth, and delegated to action JavaBeans that undertake the user commands.

The MobileEye client is MIDP 2.0 application which makes use of the MMAPI and

Bluetooth API extensions of J2ME. The EnvML player uses TinyXML to transform

the XML content received into a J2ME graphical interface.

3.2 MobileEye Performance

The MobileEye system has been tested on a Nokia 6630 device which communicates

via HTTP or Bluetooth with a 3.2 GHz Bluetooth-enabled Pentium IV with 1 Gbyte

RAM, running a Tomcat 5 application server and Blue Cove[9]. The server-side Java

implementation of TRIP was able of processing 30 160x120 pixel JPEG frames per

second. On the other hand, a Nokia 6630 was capable of sending 11 of those frames

per second to the server-side. The size of the frames delivered was on average 2208

bytes. Therefore, the effective frame transfer rate through the Bluetooth channel,

taking into account the server side acknowledgments, was around 200 Kbps. The

biggest drawback we experienced while using Bluetooth was its slow service

<EnvML>

<name>Mobility book</name>

<desc>Book about Mobile Agents</desc>

<img>http://www.deusto.es/library?img=123 </img>

<action>http://www.deusto.es/library?book=123</action>

</object>

</EnvML>

MobileE

e Server

captured


Parsed image

response in EnvML

Code Æ

Web Service

discovery mechanism. Our J2ME-based Bluetooth client invested around 12 seconds

on average to discover the MobileEye Server.

4 MobileSense: Adding Senses to Mobiles

Mobile phones are turning into essential tools which assist us in our daily tasks.

Among other things, mobiles entertain us, help us to communicate with other people

and increasable serve as PDAs. Unfortunately, mobile phones are hard to use for

people with disabilities (blind, deaf) or advanced age. Thus, it is necessary to devise

solutions to offer those facilities to the people that precisely need more help.

Some companies have offered partial solutions, both software [10] and hardware

[11], to this problem. All these solutions are good but present two main problems: (1)

they are addressed to only a specific collective (blind or old people), and (2) they are

not freely available. MobileSense is a more generic solution which leverages from

open source technologies to improve the accessibility of mobile phones. It improves

MobileEye sensing capability by adding mechanisms to synthesize voice, apply OCR,

recognize colours, or even understand basic voice commands. MobileSense pursues

the following design goals: (1) be available to the widest range of currently sold

mobile phones, (2) be accessible by anybody, without focusing in a specific disability

group and (3) operate both in managed (e.g. home/office) and unmanaged

environments (street/country side).

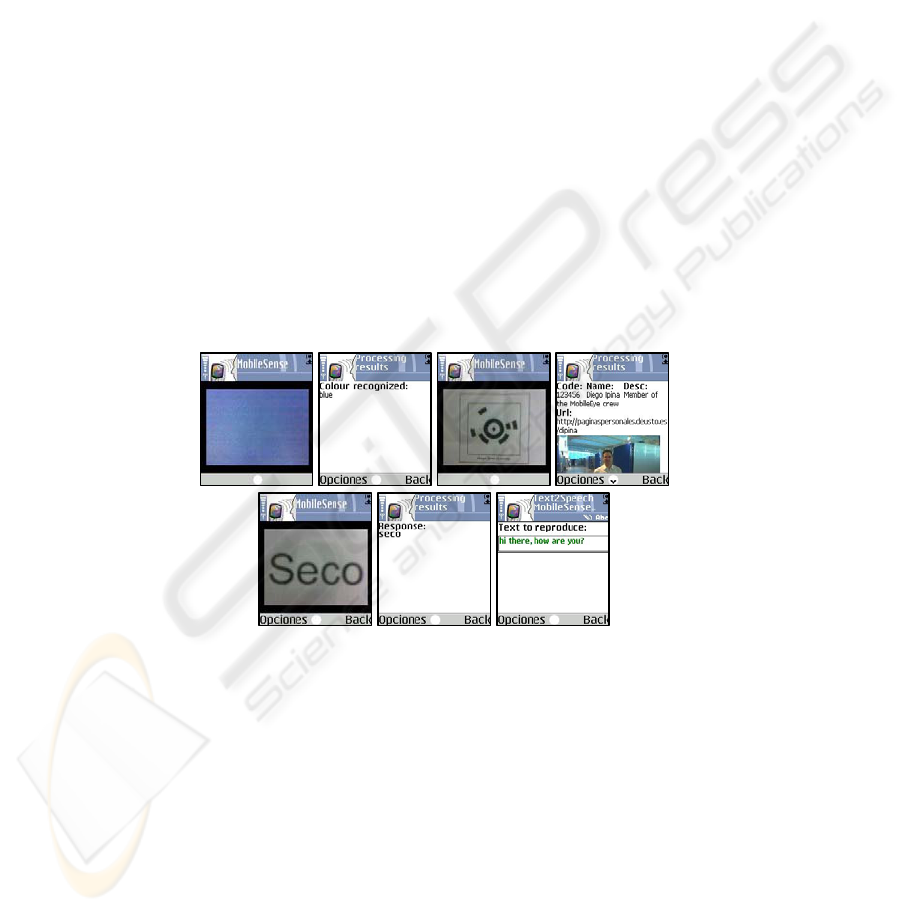

Fig. 4. MobileSense in action.

The MobileSense implementation is available at [6]. Fig. 4 shows some snapshots

of the MobileSense client. All the multimedia processing tasks (image processing,

speech recognition, speech synthesis) are delegated to a server accessible both locally

(through Bluetooth) or remotely (GPRS and UMTS). The server leverages from a

plethora of open source utilities: (1) transforms text into voice with FreeTTS [12]

generating a WAV file as response, (2) recognises TRIP ringcodes and displays an

interface or extra information about an object, by means of EnvML, (3) undertakes

text recognition using the freely available GOCR [13], (4) undertakes colour

recognition using a custom-built colour recognition algorithm and (5) processes basic

voice commands through Sphinx [14].

It is interesting to mention that the OCR process incorporated within MobileSense

demands far higher image resolution than TRIP to achieve reliable results.

MobileSense, by default, operates with 160x120 pixel images, an image size which

guarantees a good overall performance of the system, but, unfortunately, yields

frames good enough to only reliably recognize banners with big fonts (see Fig. 4).

5 MoMu: the Mobile Phone as a Guiding Device

When we visit a museum we often rent a mobile device which guides us offering

additional information about the pieces of art we observe. We usually type in a

number in the device which responds with an explanation in our own language about

the artwork referred by that code. This information complements the insufficient

details usually placed in the form of a card beside the piece of art.

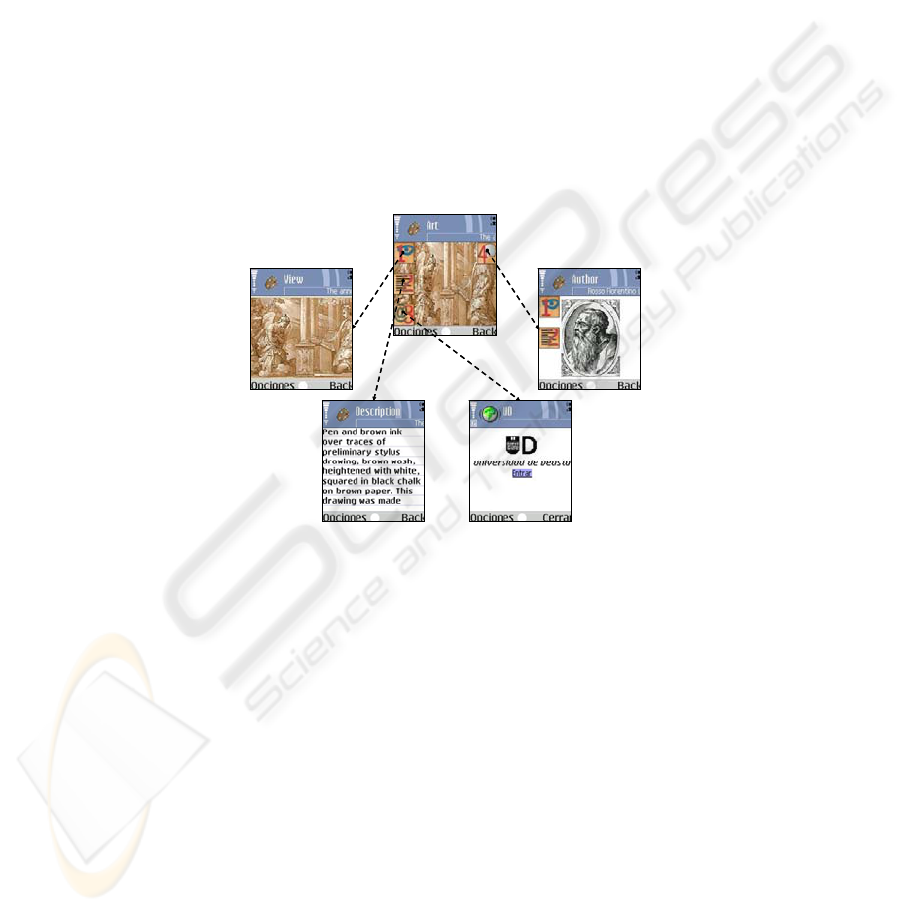

Fig. 5. MoMu portraying information about “The Annunciation” by Fiorentino

The MoMu (Mobile Museum) application transforms a mobile phone into a

guiding device. The communication (Bluetooth/GPRS) and multimedia (audio/video

playback) capabilities of mobiles are used to obtain enriching information about the

artworks in a museum. In each room within a museum, a local Bluetooth server offers

multimedia content about the art pieces in that location. The MIDP 2.0 based MoMu

application on the mobile uses Bluetooth discovery to detect the locally available

media server. Then, the user either selects an item from a list of pieces of art returned

by the server or points her mobile to a TRIP ringcode placed beside each piece of art.

The server identifies the piece of art selected and sends extra information about that

piece of art. Our current implementation, see Fig. 5, offers: information about the

author, detailed description of a work, audio or video content, or even links to

external websites providing more info or allowing the purchase of some related

merchandising. MoMu makes use of the MobileSense server-side infrastructure.

6 Related Work

Other researchers have also considered the use of Smart Phones or custom-built

wireless devices to interact with Sentient Environments. The SMILES (SMartphones

for Interacting with Local Embedded Systems) [15] project proposes the use of Smart

Phones as universal remote controllers. They define a service discovery protocol built

on top of Bluetooth SDP, an interaction mechanism to operate over the services

discovered, and a payment protocol to pay for their use. They limit to the use of

Bluetooth for service discovery and GPRS for the download of Java applications

implementing the logic that permits the interaction with the objects sensed. Our

approach can use Bluetooth, vision and even audio for sensing other devices and

services, and can operate over the services discovered via Bluetooth or GPRS.

Personal Server [16] is a small-size mobile device that stores user’s data on a

removable Compact Flash and wirelessly utilizes any I/O interface available in its

proximity (e.g., display, keyboard). Its main goal is to provide the user with a virtual

personal computer wherever the user goes. Unlike Personal Server which cannot

connect directly to the Internet, Smart Phones do not have to carry every possible data

or code that the user may need; they can obtain on demand data and interfaces from

the Internet.

CoolTown [17] proposes web presence as a basis for bridging the physical world

with the World Wide Web. For example, entities in the physical world are embedded

with URL-emitting devices (beacons) which advertise the URL for the corresponding

entities. Our model proposes web service presence and makes use of only off-the-

shelf hardware.

Rohs et al.[18] have also used the built-in cameras of consumer mobile phones as

sensors for 2-dimensional visual codes. Their matrix-shaped codes have been used to

extract the phone number from business cards on which their barcodes are printed.

They suggest to use these codes in public displays in airports or train stations so that

they can direct customers to on-line contact just by retrieving the url associated to

each code. Our solution has the same barcode recognition functionality but it also

adds other sensing capabilities and is not only a client-side solution.

7 Conclusions

This work has illustrated how the interactions with our environment can be facilitated

significantly by means of our mobile phones. Smart Phones can sense what other

devices or services are around and present us with additional information about them

or interfaces that enable us to operate over those objects. Our adaptation of a mobile

phone into a sentient device has enabled us to interact in a more natural way with

objects which otherwise we would have not considered augmenting with

computational services, such as a door or a painting. Moreover, our work permits

people with disabilities (blind, deaf) [19] to also make use of a mobile phone. The

MoMu system applies the MobileSense concept to a museum, enabling a user to

interact through her mobile with the artworks and so obtain extra information about

them. As future work we are planning to apply the MobileSense infrastructure in the

development of sentient services for outdoor environments.

Acknowledgements

This work has been partly financed by the Catedra de Telefónica Móviles at

University of Deusto, Bilbao, Spain. The work on the TRIP sensor was carried out at

the Laboratory for Communications Engineering, University of Cambridge, UK.

References

1. Shadbolt N. Ambient Intelligence. IEEE Intelligent Systems, July/August 2003 (2003) 2-3

2. Weiser M. The Computer for the 21

Century. Scientific American, (1992) vol. 265, no. 3,

pp. 94-104.

3. Bluetooth. http://www.bluetooth.org/.

4. Hopper, A. The Clifford Paterson Lecture, 1999 Sentient Computing. Philosophical

Transactions of the Royal Society London, vol. 358, no. 1773, pp. 2349-2358, August

2000.

5. Hightower J., Borriello G. Location Systems for Ubiquitous Computing. IEEE Computer

2001; 34(8): 57-66

6. López de Ipiña D., Mendonça P. and Hopper A. TRIP: a Low-Cost Vision-Based Location

System for Ubiquitous Computing.

Personal and Ubiquitous Computing, Springer, vol. 6,

no. 3, pp. 206-219, May 2002. Software downloadable at: http://www.ctme.deusto.es/trip

7. Java 2 Platform, Micro Edition (J2ME). http://java.sun.com/j2me/

8. Symbian OS: The Mobile Operating System. http://www.symbian.com/

9. Blue Cove: An open source implementation of the JSR-82 Bluetooth API for Java,

http://sourceforge.net/projects/bluecove/

10. TALKS for Series and Nokia Communicator, http://www.talx.de/index_e.shtml, 2004

11. OWASYS 22C y 112C, http://www.owasys.com/index_en.php, 2004

12. FreeTTS 1.2beta2, http://freetts.sourceforge.net/docs/index.php, 2004

13. Schulenburg J., GOCR, http://jocr.sourceforge.net, 2004

14. Walker w. et al., Sphinx-4: A Flexible Open Source Framework for Speech Recognition,

http://cmusphinx.sourceforge. net/sphinx4/doc/Sphinx4Whitepaper.pdf, 2004

15. Iftode L, Borcea C., Ravi N., Kang N., and Zhou P. Smart Phone: An Embedded System

for Universal Interactions, Proceedings of 10th International Workshop on Future Trends in

Distributed Computing Systems FTDCS (2004).

16. Want R., et al. The Personal Server: Changing the Way We Think about Ubiquitous

ComputingIn Proceedings of Ubicomp2002, pp. 194–209. Springer LNCS, September

2003.

17. Kindberg T., Baron J., et al. People, places, things: Web presence for the real world. 3

IEEE Workshop on Mobile Computing Systems and Applications, December 2000.

18. Rohs M., Gfeller B., Using Camera-Equipped Mobile Phones for Interacting with Real-

World Objects. Advances in Pervasive Computing, Austrian Computer Society (OCG),

ISBN 3-85403-176-9, pp. 265-271, Vienna, Austria, April 2004

19. López de Ipiña et al. Accesibilidad para Discapacitados a través de Teléfonos y Servicios

Móviles Adaptables. JANT 2004, Bilbao, SPAIN, Diciembre 2004.
