A Platform for Universal Access to Applications

Nuno Valero Ribeiro

and Jos

e Manuel Br

azio

Escola Superior de Tecnologia de Set

ubal, Instituto Polit

ecnico de Set

ubal, 2910-761 Set

ubal,

Portugal

Instituto de Telecomunica

oes, IST, 1049-001 Lisboa, Portugal

Abstract. This paper gives an insight on the services that are necessary for a

system capable of supporting one practical application of the concept of Ubiq-

uitous Computing. The applied scenario is an academic campus and it is pre-

tended that students may access typical computer applications ubiquitously, i. e.,

anywhere and using any computer. We call it Universal Access to Applications.

In this scenario, each user may access and use an arbitrary, and heterogeneous,

set of applications on any computer and anywhere in the campus. A survey on

technologic solutions for enabling the access to non-native applications is ﬁrstly

summarized. Then we proceed with the design of such distributed system using

MoNet methodology. Four steps are covered together with their main contribu-

tions: requirements capturing, design of a Logical Model, elaboration of a Func-

tional Model, and ﬁnally, setting of a Reference Model for implementation. The

proof-of-concept platform, developed on basis of the designed system, proved the

concept. Finally, conclusions about the work done and the concept future appli-

cations are considered.

1 Introduction

In the last decades we have been witnessing a tremendous evolution in the computer

hardware and software industry. Today we use a variety of personal computational de-

vices, ranging from desktop to mobile PC’s and PDA’s. Although the computational

autonomy, and hardware diversity, provided for the user has increased, still, one can

not arbitrarily use any of these devices for one’s computational needs: the desired user

applications and environmental settings may not be found in one particular device the

user may actually be using in one particular circumstance.

We considered this problem in the campus of an academic institution. We want to

enable the access to the execution of arbitrary computer applications to users. Inde-

pendently of the computational device they may use in a particular moment. Without

requiring additional effort to the user. The computer applications are made available

from a distributed environment by a number of application servers.

For this purpose the ﬁrst technical problem to be solved stems from the heterogene-

ity of computational platforms vs. nature of computer applications that may be found

on an academic campus. Namely, the problem is: how to give access to the execution

of applications that were compiled for other platforms. Another problem is the deﬁn-

ition of a distributed system for the support of interaction between application clients

Valero Ribeiro N. and Manuel Brázio J. (2005).

A Platform for Universal Access to Applications.

In Proceedings of the 2nd International Workshop on Ubiquitous Computing, pages 60-66

DOI: 10.5220/0002561100600066

 SciTePress

and users. This results in a typical Distributed System modelling problem and involves

the support and integration of aspects such as: data distribution and transparent access,

security aspects, fault tolerance, and name and location management. These problems

are well identiﬁed and studied in proper literature [1]. Other issues arise due to the pos-

sible use of mobile client platforms. They concern communication problems such as,

network location management or data synchronization, and have been subject of study

in the area of Mobile Computing [2][3].

In this paper a distributed system for an academic campus environment will be stud-

ied. In section 2 the issue of non-native application execution is examined, for which a

number of technological alternatives are listed and brieﬂy assessed. In section 3 the ar-

chitectural design of the system is presented, together with a brief description of MoNet

design methodology, followed by the results of its design steps. Section 4 shortly de-

scribes the developed proof-of-concept platform and subsequent lessons learned. Fi-

nally, section 5 enumerates major conclusions.

2 Using non-native applications

A survey made on the technological solutions for the execution of non-native applica-

tions shows that these solutions ﬁt in four different main approaches (more details in

chapter 3 of [4]):

1. Exporting the application user interface—which assumes running the application

on its native platform and redirecting its user interface to the client, either directly

using built-in windows systems mechanisms, or indirectly using proxy entities;

2. Running platform independent applications—developing applications in program-

ming languages that generate platform-independent code;

3. Platform emulation—running non-native applications on a emulator of the native

platform;

4. Process migration—migrating processes via speciﬁc operating system mechanisms

allowing application processes to move and run on other platforms.

Direct mechanisms for exporting the application user interface inherently restrict

themselves to a family of operating systems (and sometimes not even the entire fam-

ily). In order to support different families of operating systems indirect exporting mech-

anisms ought to be adopted. Java programming language has been widely accepted for

the development of platform-independent code. Of course, but unfortunately, Java does

not easily integrate software that is already compiled for other platforms. Emulation

technology lacks the efﬁciency and performance of the natively running application.

Plus, most of times, it is not technically possible to emulate every feature of the native

platform. Migration of application processes, between different operating system fami-

lies, is out of the question since it raises extremely complex problems due to operating

systems software complexity and architectural differences.

This leaded us to elect the indirect way of exporting the application user interface

to the client device as the most suitable technique for universal access to heterogeneous

computer applications.

3 Designing the system

For the design phase of the distributed system we adopted MoNet methodology [5], that

comprises four main steps: (1) identiﬁcation of requirements and services; (2) design

of a Logical Model, which identiﬁes the system main function modules; (3) construc-

tion of a Functional Model, deﬁning its Functional Entities, their relationships and in-

formation ﬂow; and, (4) elaboration of a Reference Model, which takes into account

implementation aspects.

In the following subsections we summarize the system design main results (from

hereon also referred as SDUA, standing for System for Universal Disponibilization of

Applications).

3.1 Requirements and services

Brieﬂy, we have identiﬁed the following requirements for each kind of user:

1. end user:

(a) universal application access — ability to access applications independently of

its physical location and terminal computer;

(b) access to the execution of heterogeneous applications — ability to use applica-

tions, which may be different in their nature and characteristics, independently

of the device being used;

ﬁle system, available for any device that may be used;

(d) session control — ability to start and terminate a session whenever the user

wishes;

2. manager: capability to manage the system, creating users, setting their proﬁles,

adding/removing applications, monitoring operation, verifying correct component

work, and auditing behavior to detect and trace wrong procedures or security at-

tacks;

On the basis of the requirements, four SDUA main services were identiﬁed, as il-

lustrated in ﬁgure 1:

1. Universal Access to Applications

2. Access to Private Data

3. SDUA Management

4. Computational Services Registry

3.2 Logical Model

The Logical Model is the collection of the business logic modules identiﬁed for each

one of the main services. Each of these services is supported by a set of functions, that

are initially identiﬁed and further reﬁned, in an iterative top-down approach, until the

elementary functions are met. Then, these are grouped in Logical Entities, when related

to each other by one determined functional criteria. If the same Logical Entity is found

SDUA

Universal

Accessto

Applications

Accessto

Private

Data

SDUA

Mangement

Computational

Services

Registry

Fig.1. SDUA main services

in more than one Logical Model (there is one Logical Model for each main service), it

is “promoted” generating one hierarchically superior Logical Entity.

As an example, ﬁgure 2 illustrates the two reﬁnement steps taken for achieving the

Logical Model of the Universal Access to Applications service. Its Logical Entities are

fully described, enumerating its functions, textual description of interfaces and behav-

ior, in [4].

3.3 Functional Model

The Functional Model decomposes, further on, the system into Functional Entities and

their relationships. It is derived from the Logical Model by taking distribution aspects

into account like physical machine allocation of functions.

Four different physical tiers were identiﬁed:

1. the client: any computational device used for accessing the execution of applica-

tions;

2. the application server: set of computers that offer the possibility of hosting the

applications execution;

3. the SDUA server: set of computers where the SDUA’s main services are allocated;

4. the Data server: set of computers, and their respective operating ﬁle systems, for

archiving user data.

Logical Entities may now be divided in disjoint sets of functions according to the

physical tier that hosts them. Each of these sets of functions represent a Functional

Entity. Additional Information Flow diagrams specify the interaction between these

Functional Entities (

3.4 Reference Model

The Reference Model deﬁnes groups of Functional Entities (Functional Groups) taking

into account criteria related to implementation aspects. These criteria are elected con-

Complete descriptions and diagrams may be found in [4]

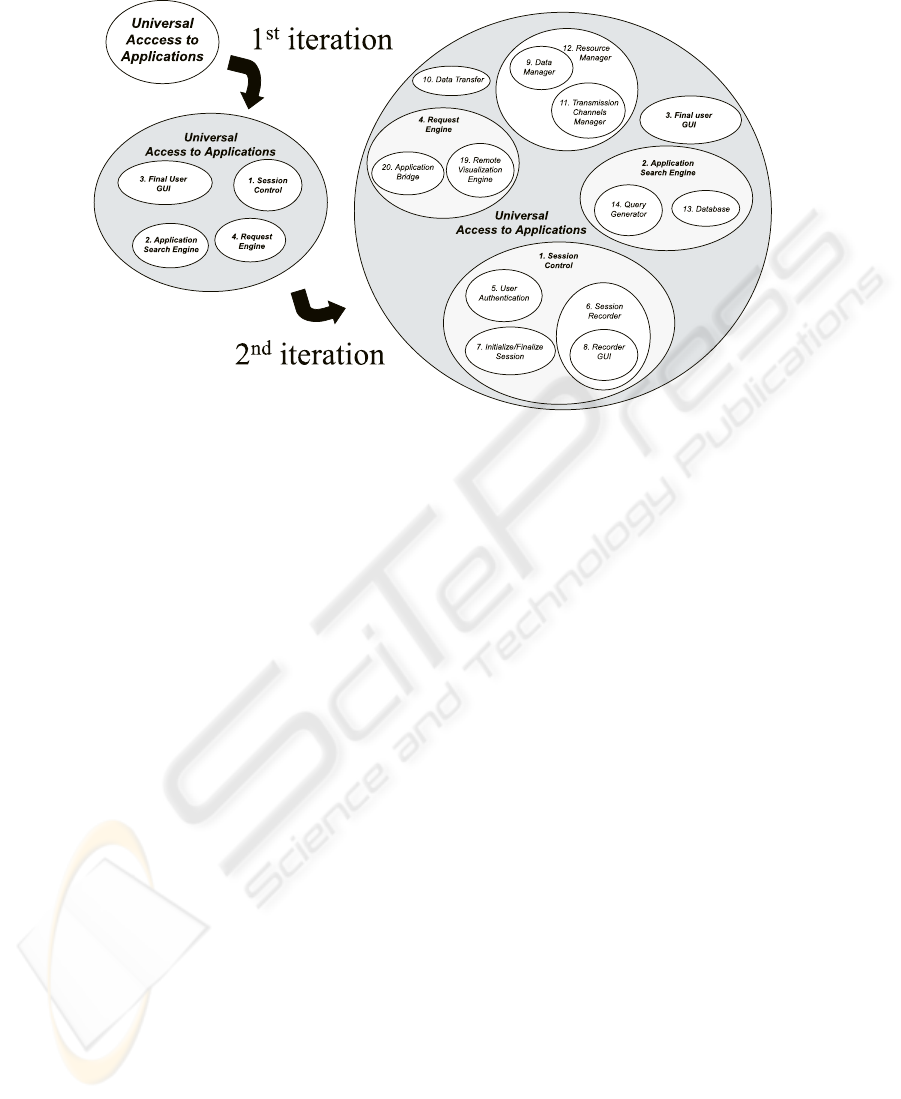

Fig.2. Reﬁnement example of Universal Access to Applications Logical Model

sidering the goal of the analysis that may be done after reaching the Reference Model.

It may take into account either technological or economical aspects.

Two technological criteria were considered. One takes into account the distribution

of Functional Entities among tiers (already identiﬁed in 3.3, namely: client, application

server, SDUA server, and Data server). The other one concerns the logical distribu-

tion of these Functional Entities. This logical distribution adopted an architectural per-

spective of the Internet proposed by Miroslav Benda in [6]. It divides the system into

ﬁve logical parts: user interface, data, business logic, delivery system, and middleware

(which “glues” all previous four).

From the analysis of the obtained Reference Model, after applying the two techno-

logical criteria previously exposed, we may state that:

1. the largest number of Functional Entities are hosted in SDUA’s server Functional

Group;

2. the most representative logic part is the middleware.

We may now state that:

1. the hardware and software platform chosen for hosting SDUA’s server Functional

Entities is fundamental for the overall system performance;

2. a careful choice of the adopted middleware is essential for development and de-

ployment of the system since it strongly affects the functioning of the whole.

4 Proof-of-concept platform

A proof-of-concept platform, based on SDUA, was developed for testing the concept

of Universal Access to Applications on an academic campuses. This platform offers

its users, on either Windows or Linux based client platforms, the use of a Microsoft

application or a X windows based application hosted on applications servers.

The implementation of this proof-of-concept platform required the development of

some key modules, from those already identiﬁed for the global system, namely:

– Initialise/Finalise Session, for being able to start and end a session;

– End User Interface, for being able to interact with the system;

– Request Engine for handling requests, Remote Visualization Engine for accessing

applications running on their servers;

– System’s Database, for archiving information about users.

We based the Remote Visualization Engine on VNC technology [7] as previously

supported in section 2. VNC system is based on a remote video frame buffer protocol

and, therefore, can be used with any operating system family.

During the development phase UML was used for object-oriented modelling. The

correspondence between MoNet and UML models was readily established by means

of:

– each Logical Entity deﬁned one, or more, object classes, and the relations between

these Entities deﬁned their class associations;

– hierarchical groups of Logical Entities were set via packages;

– Information Flow diagrams, speciﬁed with the system’s Functional Model, identi-

ﬁed method calls among objects;

– Functional Models also clariﬁed how objects were physically distributed among

different computers.

The deployed platform was tested and worked properly. End users were able to use

either a MS application or a X Windows application, as intended, simply by requesting

their remote execution through a basic system menu.

Next we intend to improve the developed platform by allowing the addition and

removal of applications in a dynamic fashion. We are considering applying Jini [8]

technology as an infra-structure for registering/unregistering applications taken as in-

coming and outgoing services. Another improvement is being considered by means of

adding functionalities for load balancing the cluster of application servers regarding

performance aspects.

5 Conclusions

We have considered the problem of using heterogeneous applications at an arbitrary

computational device. We initially surveyed the technological solutions for accessing

the execution of non-native applications. For the details of architectural development, a

system for an academic campus was considered. In the design phase of the system, we

concluded that middleware is a key factor for the development and deployment of such

a system, and, hardware and software for hosting determined functionalities are fun-

damental for the overall system performance. We also enunciated some bridge points

between MoNet’s and UML design methodologies. The developed proof-of-concept

platform used, as a solution for remotely access non-native applications, indirect mech-

anisms for exporting the user interface of the application to the end user device. It has

demonstrated the feasibility of the system.

As explained in [9], there is room in a campus environment for the advantageous use

of such system. For the same reasons, among others, certain commercial organizations

may also beneﬁt from such a computer system approach. A lease scheme of offering

computational application services on demand may be a possibility. Under this scenario

the user could get instantaneous and transparent access to any bug ﬁxes or upgrades

to applications. New services and application providers will have a potential market to

explore.

References

1. Coulouris, G., Dollimore, J., Kindberg, T.: Distributed Systems: Concepts and Design. Second

edn. Addison-Wesley (1994)

2. Rutgers, T.I., Korth, H.F.: Mobile Computing. Volume 353 of The Kluwer International Series

in Engineering and Computer Science. Kluwer Academic Publishers (1996)

3. Milojicic, D.S., Douglis, F., Wheeler, R.: Mobility : Processes, Computers, and Agents.

Addison-Wesley Publishing Company (1999)

4. Ribeiro, N.V.: Uma Plataforma para Acesso Universal a Aplicac¸

oes. Master’s thesis, In-

stituto Superior T

ecnico, Lisboa, Portugal (2000) URL, http://ltodi.est.ips.pt/nribeiro/#MSc,

accessed July 2000.

5. Katoen, J.P.: The MoNet Design Methodology. MoNet deliverable Technical Draft 3.1

MoNet/GA3/UT/006, University of Twente (1993)

6. Benda, M.: The Architecture of Global Access. IEEE Internet Computing 1 (1997) pp. 78–80

7. : VNC — Virtual Network Computing (1999)

AT&T Laboratories Cambridge, URL,

http://www.uk.research.att.com/vnc/, accessed April 2000.

8. Sun Microsystems, Inc.: Jini

Architectural Overview. (1999) URL,

http://www.sun.com/jini/specs, accessed July 2000.

9. Ribeiro, N.V., Br

azio, J.M.: Campus Personal Computing: uses, evolution, and new perspec-

tives. In: Actas da III Confer

encia de Telecomunicac¸

oes, IT (2001) 315–318
