A SECURITY ARCHITECTURE FOR INTER-

ORGANIZATIONAL WORKFLOWS

Putting Security Standards for Web Services together

Michael Hafner, Ruth Breu, Michael Breu

Institute for Computer Science, University Innsbruck, Technikerstrasse 21a, A-6020 Innsbruck, Austria

Keywords: Web Services, Security, Model driven security architecture, eGovernment, XACML

Abstract: Modern eBusiness processes are spanning over a set of public authorities and private corporations. Those

processes require high security principles, rooted on open standards. The SECTINO project follows the

paradigm of model driven security architecture: High level business-oriented security requirements for

inter-organizational workflows are translated into a configuration for a standards based target architecture.

The target architecture encapsulates a set of core web services, links them via a workflow engine, and

guards them by imposing specified security policies.

1 INTRODUCTION

The reliable implementation of security

requirements is crucial in the development of

trustworthy B2B, B2C or eGovernment-solutions.

Security issues must be carefully planned and

addressed during the development process, because

they are not isolated aspects, but relevant in all

phases of the development.

Modern B2B or eGovernment-applications use a

web se

rvice centric architecture to communicate

with each other. Web services standards, based on

SOAP, WSDL, and UDDI, have facilitated the

integration of B2B application upon platform

independent components and tools. While SOAP

(Mitra, 2003) provides the underlying mechanisms

for standardized exchange of messages between

senders, receivers and intermediaries, the security

problems are not (yet) addressed. To this end OASIS

developed an extension (Nadalin et al, 2004) of

SOAP that defines mechanisms to add security

information such as digital signatures and encryption

to the standard.

However the handling of such secure SOAP

Messag

es is quite complex, low-level and error

prone. More abstract methods and tools are needed

to disclose this complexity from the application

developer.

In Breu et al. (2004a, 2004b, 2004c) we

prese

nted an approach that extends the concepts of

model driven architecture (MDA) to a model

driven security architecture. A set of models was

proposed to model workflow and associated security

aspects on an abstract level. These models can be

classified by two orthogonal views: The interface

view specifies the interfaces of the services an

individual partner provides. The workflow view

describes the orchestration of the rendered services.

The workflow is described on the global level as a

workflow of cooperating partners and on the local

level to describes the behaviour of each partner’s

node. These models are specified using UML

models (mainly by class and activity diagrams).

The UML models are extended by specific

stereo

types to enable the specification of security

requirements, such as confidentiality, integrity, or

non repudiation.

The guiding idea of the SECTINO project is to

lin

k these models to the configuration of a

predefined target architecture. The target

architecture defines the structure, the components

and the services, needed to build an implementation

on. The functionality is then generated from the

UML-based specification.

We will concentrate here on the security aspects.

e workflow aspects will be defined in a separate

document. For an overview see (Breu et al., 2004a).

The document is organized as follows: To make

is paper self-contained, the next chapter gives an

overview of the techniques and artefacts for

modelling inter-organizational workflows and

security requirements. We do this by presenting a

running example taken from an ongoing case study

taken from the field of eGovernment. Then we give

an overview to security standards for web services

128

Hafner M., Breu R. and Breu M. (2005).

A SECURITY ARCHITECTURE FOR INTER- ORGANIZATIONAL WORKFLOWS - Putting Security Standards for Web Services together.

In Proceedings of the Seventh International Conference on Enterprise Information Systems - DISI, pages 128-135

 SciTePress

TaxAdvisor

<<receive>>

receiveAnnualStatement

<<invoke>>

forwardAnnualStatement

<<reply>>

sendConfirmation

Municipality

<<receive>>

receiveProcessedAS

<<reply>>

sendNotification

annualStatment

confirmation

processedAS

notification

context processedAS: ProcessedAS:

self.Confidentiality = { (self.annualIncome, Municipality),

(self.clientID, Municipality) }

self.Integrity = {(self)}

self.NonRepudiation = {(self)}

context notification: Notification:

self.Confidentiality = { (self, TaxAdvisor) }

self.Integrity = {(self)}

self.NonRepudiation = {(self)}

and related technologies. In the following two

sections we show how the target architecture,

developed in the SECTINO project, is structured and

the standards are employed. Finally we compare the

chosen architecture with other approaches.

2 MODEL DRIVEN SECURITY

FOR INTER-ORGANIZATIONAL

WORKFLOWS

This section briefly sketches our approach for the

systematic design and realization of security-critical

inter-organizational workflows.

2.1 Case Study

Our research efforts are based on a real life use case

that was elaborated within the project SECTINO, a

joint research effort between the research group of

Quality Engineering at the University of Innsbruck

and the Austrian Research Center Seibersdorf, and is

based on a case study involving a major Austrian

municipality.

Our methodology for the systematic design and

realization of security-critical inter-organizational

workflows is illustrated by a portion of a workflow

drawn from the use case “Processing of an Annual

Statement” which describes the interaction between

a business agent (the Tax Advisor) and a public

service provider (the Municipality).

In Austria, all wages paid to employees of an

enterprise are subject to the municipal tax.

Corporations have to send the annual tax statement

via their tax advisor to the municipality which is

responsible for collecting the tax by the end of

March of the following year. The municipality

checks the declaration of the annual statement and

calculates the tax duties. As a result, a notification

with the amount of tax duties is sent to the tax

advisor by mail.

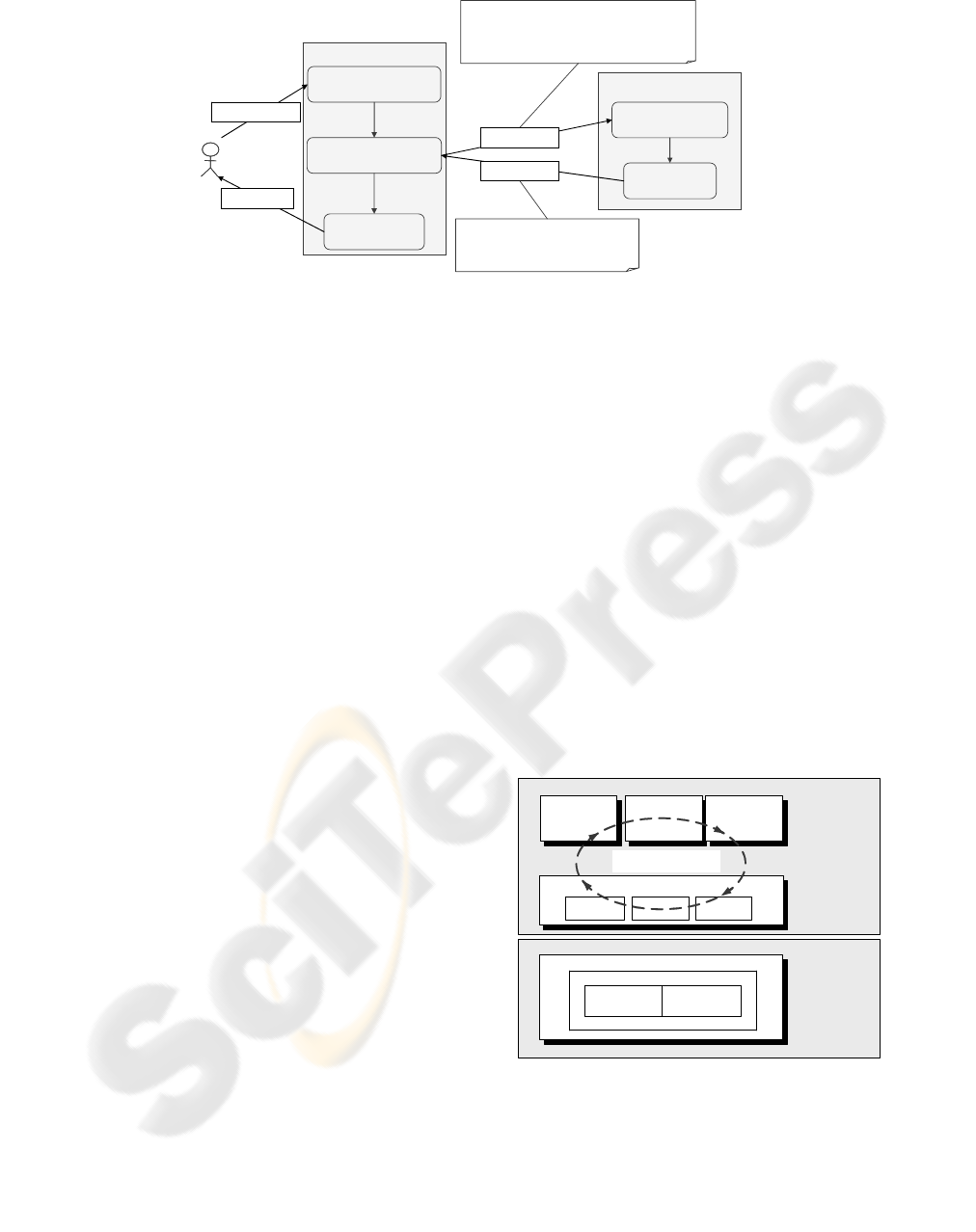

Figure 1: A Sample Document Flow with Security Requirements

(Global Workflow Model)

One of the project goals is to analyze security

issues that may stem from the migration of the

workflow to an e-government based solution and

create the necessary run-time artefacts for the target

architecture through model transformation.

Ultimately, the workflow should allow the

declaration of the municipal tax via the internet.

2.2 Security Engineering

The development of a security-critical inter-

organizational workflow starts with the analysis and

the design of the workflow, followed by a risk and

threats analysis, and the security requirements

specification. Security requirements are then

modelled in a platform-independent way at different

levels of abstraction.

Target Architecture

Platform Independent Model

Platform Specific Model

Workflow

Components

Security Components

Business Logic

Components

System Analysis

& Design

UML – Model View

Security

Requirements

Specification

Risk & Threats

Analysis

Micro Process for

Security Engineering

Global Workflow

Model

Local Workflow

Model

lnterface Model

Figure 2: Model Driven Security for Inter-Organizational

Workflows

These steps are executed iteratively, following a

five step approach for security analysis – also called

Micro Process for Security Engineering (Breu et al.

2004a). The artefacts produced in this process range

from informal textual descriptions (e.g. covering

legal requirements) until graphical and formal

A SECURITY ARCHITECTURE FOR INTER-ORGANIZATIONAL WORKFLOWS: Putting Security Standards for

Web Services together

129

descriptions that can be transformed into runtime

artefacts for the target architecture.

For a detailed description of the approach for the

management of security related aspects within the

development process (figure 2) please refer to (Breu

et al. 2004a, 2004b).

2.3 Model Views

In the context of this paper a workflow describes a

network of partners cooperating in a controlled way

by calling services and exchanging documents. Our

method of designing security-critical inter-organiza-

tional workflows is based on two orthogonal views:

the

interface view and the workflow view. The work-

flow view is further divided into the

global workflow

model

describing the message exchange between

cooperating partners, and the

local workflow model

describing the behaviour of each partner.

In our approach workflows are specified by class

and activity diagrams as defined in (Amsden, et al.,

2004). We mainly use UML class diagrams for

modelling the structure of exchanged documents (as

XML messages) and UML activity diagrams to

describe the flow of service calls. In this paper we

only sketch the diagrams that are relevant to security

modelling.

The global workflow describes the interaction of

partners abstracting from internal processing steps

and does not contain any connection to the business

logic. Activities are qualified by BPEL stereotypes

(Andrew et al., 2003). Security requirements in the

global workflow model refer to the exchange of

(XML) data among the partners involved. In the

current version we consider the confidentiality and

integrity of the messages (leading to the encryption

and signing of the data exchanged) and non-

repudiation of the message exchange. Both

confidentiality and integrity may refer to the whole

message or only to parts of it.

Figure 1 depicts as example security require-

ments a qualification of the document exchange. The

security requirements Integrity and Non-Repudiation

are assigned a set of document nodes in the form of

an OCL navigation expression. The requirement of

Confidentiality is assigned one or more pairs -

consisting of document nodes and optionally actor

roles. The latter implicitly carries information about

permissions to view the information, as the security

gateway signs the node with the corresponding

public key of the referenced actor.

The local workflow models define the portion of

the global workflow each partner is responsible for

and therefore they are designed for each partner

type. The local workflow corresponding to a swim

lane in the global model is an executable process

description that considers service calls from the

outside, and contains internal actions as well as

connections to the business logic. It is a direct input

for a local workflow management system and is

typically developed internally by partners.

The interface model describes a component

offering a set of services with given properties and

permissions. Usually, partners map the interfaces of

the operations of their local business logic to web

services operations in the interface model. Internal

interfaces remain hidden to the other partners. Thus,

the interface model of every partner’s node describes

the public part of the local application logic, which

is accessible to the inter-organizational workflow

and conforms to a uniform technical, syntactical and

semantic specification the partners agreed upon -

information typically published in WSDL files and

technical Models (tModels) of UDDI registries.

Security requirements at this level of abstraction

involve the support of a role model and the

specification of access rights for particular web

service operations. We describe access rights

formally and platform-independently using an OCL

dialect, a predicative sublanguage of UML (OMG,

2004). The predicative specification is then

transformed into an XACML-policy file (see section

4.3) via automatic generation. A more detailed

description of the interface model can be found in

Breu et al. 2004a.

The application of these orthogonal perspectives

allows us to combine the design of components

offering services that may be called in different

contexts by different partners with the design of

workflows that focus on particular usage scenarios.

Please refer to Breu et al. 2004b for a detailed

description of the model dependencies.

Formal approaches based on Petri Nets (Van der

Aalst, 2000) for the design of inter-organizational

workflows guarantee local autonomy (at the partner

level) without compromising the consistency of the

global process. In our terms, this means that –

through peer-to-peer interaction – the local

workflows should exactly realize the behaviour as

specified in the global workflow.

Security requirements specified in the global

workflow model have to be mapped in a consistent

way to security requirements of the local workflows

of all cooperating partners, which reflect the

business logic in their local environment.

All three model types together carry all the

information that is needed by the Security

Components in the Reference Architecture to

implement the secure distributed workflow. The

models are exported into XMI files and security

relevant information is extracted and mapped into a

table that directly configures the security com-

ponents of the target architecture (see section 4.3).

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

130

3 RELATED SECURITY

STANDARDS

The world of web service standards,

recommendations and drafts is quite complex and

has grown considerably in the last years. IBM and

Microsoft have published a roadmap (2002) for the

further evolution of the web service security

standards, comprising mechanisms for trust, policy

definition, authorization, etc. Although these

specifications are still under development, we have

designed a target architecture that adheres to these

standards.

For a basic overview to security standards see

e.g. (Gutiérez, 2004). We just introduce the most

important ones, used in context of the target

architecture.

The basic web services standards are SOAP

(Mitra 2003) for basic message transfer and WSDL

(Christensen et al., 2001) for the definition the

abstract functionality of a web service.

OASIS has proposed an extension of SOAP to

enable the addition of security features to Web

Service Messaging (Nadalin et al., 2004): It allows

the definition of (signed) security tokens in the

header of SOAP messages and to digitally sign and

encrypt the message content with these security

tokens. The WS-Security standard in turn relies

heavily on the underlying standards for signing and

encryption of XML documents (Eastlake, 2002a,

2002b). There is a prototypic extension of Axis for

web service security which we use in the reference

implementation.

The XACML is another OASIS standard

(Moses, 2004) that allows for the specification of

access policies to (web) services. The standard

defines a language for the formulation of policies

and related queries. The XACML standard also

identifies specific functionalities in the process of

access control and defines an abstract data flow

model between dedicated functional components.

XACML is closely related to the Security Assertion

Markup Language (SAML) (Mishra et al., 2004),

which is an XML-based framework for exchanging

security information.

We are using web services policies to achieve

two different purposes. Web services endpoints

have to negotiate the parameters and advertise the

set of requirements potential service requesters have

to comply with when consuming the service (like

authorization, quality-of -service, privacy, etc.).

Web services policy standards

(Bajaj et al, 2004,

Moses, 2004))

allow the expression of requirements

for web services in their interaction with other

services in a standardized way. On the other hand,

these wide spread XML-based standards are well

suited for a platform independent configuration of

the security components. We are currently working

on a declarative security model based on XACML

and the WSPL-profile for the configuration of the

security components of the reference architecture.

4 A SECURE TARGET

ARCHITECTURE

The SECTINO target architecture is defined to

provide a configurable framework to implement the

requirements specified through the artefacts

presented in section 2. Much care was taken to base

the architecture on open web service and security

standards.

In this section we first discuss the basic

requirements and assumptions on which the

architecture is built and then we present the

components in more detail. In the following section

we will show how security standards are used to

interface these components.

4.1 General Requirements

We assume that the target architecture is built

around a given core of atomic web services, that

implement the internal steps of an overall business

process. This is e.g. the view taken by Microsoft

Biztalk. These core web services must apply the

internal role model and are therefore guarded by

internal access policies.

Core Web Services

Web Service

internal

PEP

internal

PDP

...

Policy

Repository

Policy

Repository

Policy

Repository

Policy

Repository

Policy

Repository

Policy

Repository

Sectino

Target

Architecture

external

Requests/

Responses

Figure 3: Access Control with XACML in the Application

Core, Secured by the Target Architecture

As a backbone for our security architecture we

use the workflow architecture introduced by the

XACML standard. This workflow consists of a so-

called Policy Enforcement Point (PEP) that acts as a

gatekeeper for accessing the resources. The PEP

queries a Policy Decision Point (PDP) to allow (or

deny) access to web services. The PDP in turn can

select the applicable policy from a Policy

A SECURITY ARCHITECTURE FOR INTER-ORGANIZATIONAL WORKFLOWS: Putting Security Standards for

Web Services together

131

Repository, decides the access query and returns

either the result

permit, deny or not applicable.

The target architecture encapsulates this internal

core by a layer that realizes the interface to the

external partners.

Hence the major requirements to the target

architecture are

1. to provide functionality wrt. the policy enforce-

ment for the encryption and signing of SOAP

messages and interfaces for non-repudiation

protocols (e.g. logging and timestamp facilities),

2. to map external roles and entities onto internal

roles and entities,

3. to implement the internal workflow model on

top of the atomic web services,

4. to map external web service interfaces to entry

points of corresponding workflow processes

that implement the interfaces on top of the

atomic web services.

The first two requirements are implemented in a

Security Gateway, the latter two requirements are

implemented by a Work Flow Engine.

The Security Gateway has to take over two

responsibilities: First it has to enforce access

policies, i.e. who is allowed to access the called web

service. Second it has to enforce that encryption and

signing requirements are handled adequately by the

partners, e.g. rejecting non-encrypted messages,

signing outgoing messages or handling non-

repudiation requirements.

In detail the Security Gateway has to check

incoming secured requests for

• the correct signature of the message (or of parts

of the message),

• the encryption of the message (or of parts of the

message),

• generating return receipts if necessary to

implement a non-repudiation requirement.

It thus acts in the same way as a

Policy

Enforcement Point

(PEP) in the sense of the

XACML standard, which passes the signature and

encryption information to a

Policy Decision Point to

look up the applicable policy and to decide to grant

the web service access.

Further the Security Gateway has to manipulate

outgoing (yet unsecured) responses. According to

the specification of the PEP Configuration the

message (or parts of it) have to be signed and

encrypted.

Signature and encryption used in a public

environment usually need also a public key

infrastructure to manage security certificates.

The Workflow Engine manages the mapping of

the local workflow to the web services and the

appropriate local roles. As workflow choreography

language we choose BPEL (and as its

implementation e.g. Biztalk, or the BPEL4WS

Engine provided by IBM) . However the workflow

engine will not be in the focus of this presentation.

We also assume that there are given services that

provide

• access to a PKI infrastructure, in order to

validate signatures, and to encrypt messages for

respective recipients,

• logging functionality, i.e. a service that

implements non-repudiation facilities.

We consider them as external services, because

these services are typically implemented by some

other service provider.

Web Service Application

(external) Services

Work

Flow

Engine

Security

Gateway

secured Request

(encrypted and/or signed)

secured Response

(encrypted and/or signed)

decrypted

Request

unsecured

Response

Policy

Decision

Point (PDP)

Authentication

Message

signing and

encryption

Policy

Configuration

Engine

PKI Provider

Service Interface

Logging Unit

WS-

Security Policy

Core Web Services

Web Service

internal

Requests

internal

PEP

internal

PDP

...

Policy

Repository

Policy

Repository

Policy

Repository

Policy

Repository

Policy

Repository

Policy

Repository

Msg. Decryption

Authorisation

Role

Mapping

Unit

SOAP

XACML

SAML

XML-Sig

XML-Enc

SOAP Message Security

Axis-Handler

BPEL4WS

Engine

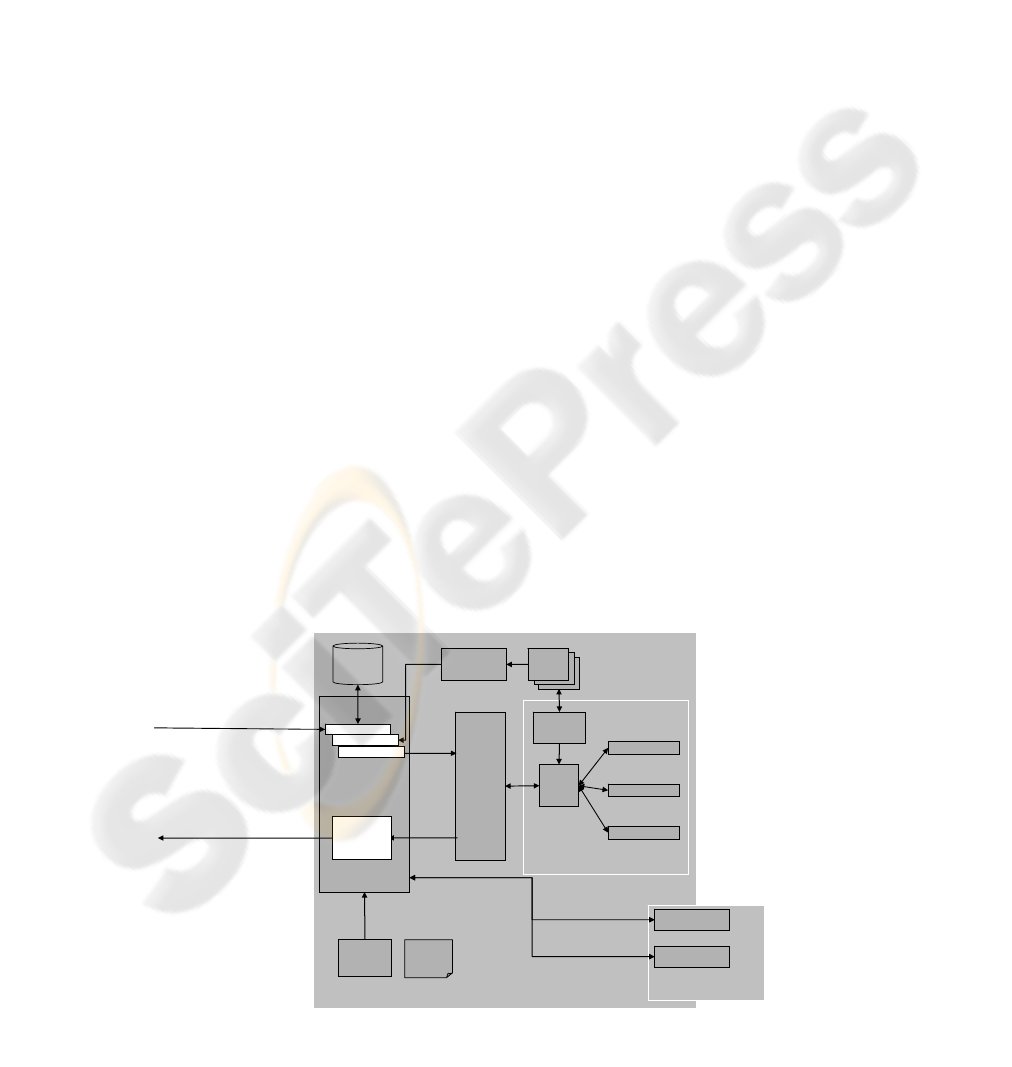

Figure 4: Reference Architecture

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

132

4.2 Components and Interfaces of the

Target Architecture

Figure 4 gives an overview to the components and

their interfaces. These components are explained in

the following subsections.

The security gateway implements the functionality

of policy enforcement, user authentication and secu-

rity treatment of messages. It not only handles

incoming requests and outgoing responses as illu-

strated in figure 4, but also outgoing requests and

incoming responses initiated by the internal core

web services (which was left out for simplicity)

For inbound messages handling the security gateway

has to carry out the following tasks:

• Caller authentication by investigation of the

provided signatures, or other credentials

included in the inbound message.

• Caller Authorization: A role mapping unit maps

the user internally to a set of roles. These roles

define the permissions of the caller according to

a given policy. To this end a PDP is queried for

an appropriate policy that gives (or denies)

access. Thus we follow a role based access

control approach (Sandhu, et al., 1996) for

permission control.

• Finally the gateway checks the compliance of

the message with the security requirements as

specified by the policy configuration engine.

This comprises the check of required signatures

of parts of the message, and the decryption.

For the handling of outbound messages the security

gateway has to enforce the security requirements, as

e.g. the signing and encryption of the complete

outgoing message or parts of it.

4.3 Security Gateway Configuration

The global workflow model and the interface model

define two types of security requirements.

Access restrictions, expressed in an OCL style,

can be translated into XACML rules (Alam, et al.

2004), which can be stored in the policy repository.

Security requirements as e.g. mandatory

signatures or encryption requirements have no direct

correspondence in XACML. However XACML

supports so-called obligations which are forwarded

to the PEP as a part of the query result. We have

chosen to model those security requirements as

additional obligations for the security gateway.

Since XACML policies are quite flexible, but ra-

ther hard to read, we use here a more user friendly

presentation of the obligations presented in table 1.

This table shows all security requirements for the

security gateway at the domain boundaries of the

Actor “Tax Advisor”. As specified in the global

workflow model (figure 1) the Tax Advisor sends a

document called

ProcessedAS to the Municipality

qualified as partially encrypted (Node:

processed-

AS/annualIncome

) and signed (Documentroot:

processedAS) by calling the outbound operation

sendProcessedAS of the interface AS_Service,

which is implemented by the Municipality taking the

role of

Municipality_AS_Provider.

Both the permissions and the configuration file

are stored in (separate) XACML policies as rules

and obligations, respectively. We are currently

evaluating whether the WS-PL profile for XACML

(Moses, et al., 2003) is even better suited to store the

requirements.

One major advantage of WS-PL is that it is

planned to integrate it with WSDL-files that are

distributed as the description of a web services port.

Thus it would allow to share the access and security

requirements between partners.

4.4 Reference Implementation

The target architecture is currently implemented by a

conceptual prototype in order to study the details of

the transformation process and configuration

requirements. The intention was to base the

architecture as near as possible on available or

emerging non-proprietary security standards for web

services. In figure 4 we also present the involved

standards (noted in italics).

The reference implementation is based on Axis

which is a basic middleware to implement web

services. Axis implements an engine that provides

mechanisms to define handlers for inbound and

outbound messages. We use axis handlers to

integrate security handling. The handlers employ

XML-Sig and XML-Enc and are based on the

WSS4J package that extends Axis to implement

WS-Security. The involved handling of XACML

requests is based on sun’s XACML implementation.

The workflow engine is based on a BPEL4WS

Engine. Finally the PKI Provider Service Interface is

based on SAML. However we need only a small

subset for X.509 certificate lookup.

5 CONCLUSIONS

5.1 Results

This article outlined the SECTINO approach for

model driven security and the underlying target

A SECURITY ARCHITECTURE FOR INTER-ORGANIZATIONAL WORKFLOWS: Putting Security Standards for

Web Services together

133

architecture of the SECTINO project. It is based on

open standards such as WS security and XACML,

which are currently starting to penetrate the market

of application servers. The reference implementation

shows the applicability of the approach and serves as

an object to study the architecture in detail.

The guiding paradigm was to specify security

requirements adequately all the way along the

development process. Building on established (or at

least most probably upcoming) standards is a major

prerequisite when defining inter-organizational

processes. However it turned out during the project

that there is a universe of complimentary XML-

based security standards. Also the standards them-

selves are quite hard to understand, and even harder

to apply directly. This confirms our opinion that the

model driven approach is the right way to go, in

order to provide more understandable and thus more

secure applications.

5.2 Other Approaches

Lodderstedt et al. 2002 originally inspired the

paradigm of

model driven security architecture.

They proposed SecureUML as s special profile of

UML to specify role based access control (Sandhu,

et al., 1996) rules in UML with the help of OCL.

They demonstrated their ideas in a J2EE prototype.

Access constraints are translated into deployment

descriptors and java assertion code of enterprise java

beans (EJBs).

Besides access control rules our approach also

integrates the specification of confidentiality,

integrity and non-repudiation on UML level. Since

we translate these requirements into XACML, these

access and security constraints are exchangeable

between partners working with different middleware

architectures such as .NET or J2EE, but with the

same open standard to defines security requirements.

The idea of a web service security architecture

was also pursued by Vasiu and Donciulescu (2004).

They propose a web service management archi-

tecture (WSMA) which covers among others the

aspects of trust management in a web services

landscape. The basic idea is that WSMA “creates a

sort of ‘bubble’ around the XML Web Services

managed.” The requirements that are addressed, are

(among others), the control of authorizations, main-

tenance of access rights, and the verification of

client identity. The authors concentrate to demon-

strate how to manage and combine hierarchical trust

contexts. However the authors do not give details,

how such an WSMA is structured, nor how it could

be implemented. Indeed, the architecture we pre-

sented in section 4 could be considered as an imple-

mentation of a WSMA (or at least of a part of it).

The SECTINO architecture is comparable to the

virtual mail office architecture, for centralized

signing and encryption, proposed by the BSI (2003),

since it also allows the central management of

security policies. However the major focus of our

architecture is to implement inter-organizational

security policies.

5.3 Future Work

As presented in section 4.4 there exists up to now a

first architectural prototype to study all the aspects

of the proposed architecture. This prototype will be

extended gradually to a fully functionally reference

architecture.

In this presentation we have discussed exchanges

of messages between systems as “Tax Advisor” and

“Municipality”, that sign and encrypt messages.

However in many eGovernment processes real

persons are signing (and potentially receiving

encrypted) messages, as e.g. an employee of the tax

advisor, or an officer in the municipality. To address

this aspect the modelling has to require principles of

delegation and authorization. The basic principles of

our approach should remain stable, however this

point needs major consideration.

A final point is the automatic transformation of

security requirements in UML as they are presented

in section 2.3 to a configuration as presented in

section 4.3. For the time being this transformation is

defined, however the ultimate goal is to provide tool

support for an fully automatic generation of the

Inbound

Interface Operation Parameters Calling Role SignedNodes EncryptedNodes

TA_Service

sendAnnualStatement in: AnnualStatement:

annualStatement

TA_Service_Requester

annualStatement annualStatement/annualIncome

out: Confirmation:

confirmation

confirmation confirmation/taxDutiesAmount

AS_Callback

sendNotification in:Notification:

notification

Process_AS_Provider

notification notification

Outbound

Interface Called Operation Parameters Receiving Role SignedNodes EncryptedNodes

AS_Service

sendProcessedAS ProcessedAS:

processedAS

Process_AS_Provider

processedAS processedAS/annualIncome

Internal WS Calls

Interface Operations Parameters

Internal_Proces

checkMandate Result:

result

Internal_Proces

processASDocument ProcessedAS:

processedAS

Internal_Proces

processNotification Confirmation:

confirmation

Table 1: Tax Advisor Security Gateway Configuration File

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

134

configuration artefacts for the target architecture.

REFERENCES

Alam, M., Breu, M., Breu, R. 2004. Model Driven

Security for Web Services, INMIC 04, 8th

International Multitopic Conference, Lahore, Pakistan

Amsden, J., Gardner, T., Griffin, C. 2004.

Draft UML 1.4

profile for automated business processes with a

mapping to BPEL 1.0. See http://www-128.

ibm.com/developerworks/rational/library/4593.html

Andrews, T., et al. 2003. Specification: Business Process

Execution Language for Web Services V. 1.1. See

http://www-128.ibm.com/developerworks/library/ws-

bpel/

Apache <Web Services/> Project, http://ws.apache.org/

Bajaj, S., et al. 2004. Web Services Policy Framework

(WS-Policy) September 2004. See:

ftp://www6.software.ibm.com/software/developer/libr

ary/ws-policy.pdf

Breu, R., Hafner, M., Weber, B., Alam, M. Breu, M.

2004a. Towards Model Driven Security of Inter-Orga-

nizational Workflows. In: Proceedings of the Work-

shops on Specification and Automated Processing of

Security Requirements (SAPS2004), pp. 255-267.

Breu, R., Hafner, M., Weber, B., Novak, A. 2004b. Model

Driven Security for Inter-Organizational Workflows in

e-Government. TED Conference on e-Government,

Bozen, 2005.

Breu, R., Hafner, M., Weber, B. 2004c. Modeling and

Realizing Security-Critical Inter-Organizational Work-

flows. In: W. Dosch, N. Debnath (Eds.), Proceedings

IASSE 2004, ISCA, ISBN 1-880843-52-X.

BSI, Bundesamt für Sicherheit in der Informationstechnik,

Fachkonzept für die virtuelle Poststelle, 30. May 2003,

See: http://www.bsi.de/fachthem/egov/download

/6_VPS_FKP.pdf

Christensen, E., Curbera, F., Meredith, G., Weerawarana,

S. 2001. Web Services Description Language (WSDL)

1.1. See: http://www.w3.org/TR/wsdl

Eastlake, D. (ed.), et al. 2002a. XML-Signature Syntax

and Processing. W3C Recommendation 12 February

2002. See: http://www.w3.org/TR/xmldsig-core/

Eastlake, D. (ed.), et al. 2002b. XML Encryption Syntax

and Processing. W3C Recommendation 10 December

2002. See: http://www.w3.org/TR/2002/REC-xmlenc-

core-20021210/

E-Government Gesetz der Bundesrepublik Österreich, See

http://www.parlament.gv.at/portal/page? pageid=908,

145843&_dad=portal&_schema=PORTAL

Gutiérez, C., Fernández-Medina, E., Piattini, M. 2004.

Web Service Security: is the Problem solved? In

Proceedings of the 2nd International Workshop on

Security In Information Systems, WOSIS 2004, In

conjunction with ICEIS 2004, Porto, Portugal.

IBM and Microsoft. 2002. Security in a Web Services

World: A Proposed Architecture and Roadmap.

A joint

security whitepaper from IBM Corporation and

Microsoft Corporation. April 7, 2002, Version 1.0.

See: http://www-106.ibm.com/developerworks/

webservices/library/ws-secmap/

Lodderstedt, T., Basin, D., Doser, J. 2002. SecureUML: A

UML-Based Modeling Language for Model-Driven

Security, in LNCS 2460,

Jezequel, J.M.; Hussman, H.;

Cook, S. (eds.)

Proceedings of the 5th International

Conference on The Unified Modeling Language, pp.

426-441.

Microsoft, Biztalk, http://www.microsoft.com/biztalk/

Mishra, P. (ed.), et al. 2004. Conformance Requirements

for the OASIS Security Assertion Markup Language

(SAML) V2.0 Committee Draft 02, 24 September 2.

See: http://www.oasis-open.org/committees/download

.php/9452/sstc-saml-conformance-2.0-cd-02.pdf

Mitra, N., 2003. SOAP Version 1.2 Part 1: Messaging

Framework, W3C Recommendation 24 June 2003.

See http://www.w3.org/TR/2003/REC-soap12-part1-

20030624

Moses, T. (ed.), et. al. 2003.

XACML Profile for Web-

Services.

XACML TC Working draft, Version 04.

September 29, 2003. See: http://www.oasis-open.org

/committees/download.php/3661/draft-xacml-wspl-04-

1.pdf

Moses, T. (ed.). 2004. eXtensible Access Control Markup

Language (XACML) Version 2.0. Committee draft 02,

30 Sep 2004. See: http://docs.oasis-open.org/

xacml/access_control-xacml-2_0-core-spec-cd-02.pdf

Nadalin, A., Kaler, C., Hallam-Baker, P, Monzillo, R.,

2004. Web Services Security: SOAP Message Security

1.0 (WS Security 2004), OASIS Standard 200401,

March 2004. See http://docs.oasis-open.org/wss/-

2004/01/oasis-200401-wss-soap-message-security-

1.0.pdf

Apache WSS4J. See: http://ws.apache.org/ws-fx/wss4j/

OMG. 2004. UML 2.0 OCL Specification. See:

http://www.omg.org/docs/ptc/03-10-14.pdf

Sandhu, E.S., Coyne, E.J., Feinstein, H.L., Youman, C.E.

1996. Role-based access control models, IEEE

Computer, 29(2):38-47.

Van der Aalst, W.M.P. 2000.

Loosely Coupled Inter-

organizational Workflows: Modeling and Analyzing

Workflows Crossing Organizational Boundaries.

In:

Information and Management 37 (2000) 2, pp. 67-75.

Vasiu, L., Donciulescu, C. 2004. A Requirement for a

XML Web Services Security Architecture, in ICEIS

2004, Proceedings of the 6th International Conference

on Enterprise Information Systems, Porto.

A SECURITY ARCHITECTURE FOR INTER-ORGANIZATIONAL WORKFLOWS: Putting Security Standards for

Web Services together

135
