AN ARCHITECTURE FOR INTRUSION DETECTION AND

ACTIVE RESPONSE USING AUTONOMOUS AGENTS IN

MOBILE AD HOC NETWORKS

Ping yi, Shiyong Zhang, Yiping Zhong

Department of Computing and Information Technology, Fudan University, Shanghai, 200433, China

Keywords: Immune system, Intrusion detection, Mobile agent, Mobile ad hoc network, Network security

Abstract: This paper focuses on invest

igating immunological principles in designing the multi-agent security

architecture for intrusion detection and response in mobile ad hoc networks. In this approach, the immunity-

based agents monitor the situation in the network. These agents can take appropriate actions according to

the underlying security policies. Specifically, their activities are coordinated in a hierarchical fashion while

sensing, communicating, decision and generating responses. Such an agent can learn and adapt to its

environment dynamically and can detect both known and unknown intrusions. The proposed intrusion

detection architecture is designed to be flexible, extendible, and adaptable that can perform real-time

monitoring. This paper provides the conceptual view and a general framework of the proposed system. In

the end, the architecture is illustrated by an example to show it can prevent the attack efficiently.

1 INTRODUCTION

A mobile ad hoc network consists of a group of

mobile nodes that communicate with each other via

wireless Radio Frequency(RF) links without help of

a fixed infrastructure. The mobile ad hoc network

have several salient characteristics: dynamic

topologies, bandwidth-constrained, variable capacity

links, energy-constrained operation, limited physical

security(S. Corson, 1999). Wireless ad hoc networks

have applications in military tactical operations,

emergency scenarios, law enforcement and rescue

missions, due to easier deploying. Many of these

applications are security-sensitive. But traditional

security systems can not do well in mobile ad hoc

networks for above properties.

The immune system is to protect the body from

reats posed by toxic substances and pathogens, and

to do so in a way that minimizes harm to the body

and ensures its continued functioning. The immune

system is highly complicated and appears to be

precisely tuned to the problem of detecting and

eliminating infections. The immune system has

some features. Firstly, it is distributed, consisting of

many components that interact locally to provide

global protection, so there is no central control and

hence no single point of failure. Secondly it is

dynamic, i.e. individual components are continually

created, destroyed, and circulated throughout the

body, which increases the temporal and spatial

diversity of the immune system allowing it to

discard components that are useless or dangerous

and improve on existing components. Thirdly it is

adaptable, i.e. it can learn to recognize and respond

to new microbes, and retain a memory of those

microbes to facilitate future responses and so on. We

believe that it also provides a compelling example of

a distributed information-processing system, one

which we can study for the purpose of designing a

robust distributed adaptive security system for

mobile ad hoc networks.

In the paper, the authors propose the security

chitecture, based on the framework of the immune

system, which is capable of detecting and

identifying an attack, elaborating a specialized

response measure to isolate the invader, and

recovering form the attack. In addition, the proposed

model has the same learning and adaptive capability

of the human immune system, and so it is able to

react to unknown attacks and to improve the

response under subsequent exposures to the same

attack.

The rest of the paper is organized as follows.

Sectio

n 2 gives the related work. The proposed

architecture is described in section 3. In section 4,

we describe how our architecture detects intrusion

and responds by an example. We address some

220

yi P., Zhang S. and Zhong Y. (2005).

AN ARCHITECTURE FOR INTRUSION DETECTION AND ACTIVE RESPONSE USING AUTONOMOUS AGENTS IN MOBILE AD HOC NETWORKS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems - DISI, pages 220-226

 SciTePress

features of the security architecture in section 5.

Finally, we conclude the paper and elaborate on how

we exploit it in the future.

2 RELATED WORK

The papers of mobile ad hoc networks security can

be classified in three categories: Key management,

secure network routing, and intrusion detection.

Capkun, Buttyan and Hubaux propose a fully

self-organized public key management system that

can be used to support security of ad hoc network

routing protocols(Srdjan Capkun, 2003). Zhou and

Hass first proposed to use threshold cryptography to

securely distribute the Certificate Authority (CA)

private key over multiple nodes to form a collective

CA service(Lidong Zhou,1999). Routing security

has been most noted by its absence early in the

discussion and research on ad hoc routing protocols.

Since then several ad hoc routing protocols that

include some security services have been proposed:

SRP(P.Papadimitratos,2002), Ariadne(Yih-Chun

Hu, 2002), ARAN(Kimaya Sanzgiri, 2002),

SEAD(Yih-Chun Hu, 2002). SRP assumes the

existence of shared secrets between all pairs of

communicating nodes and leverages this for MAC

authentication, such that fake route requests are not

accepted at the destination and routes set in route

replies cannot be modified. In Ariadne, end-to-end

authentications are got by one-way hash chain and

MAC(Message Authentication Code) authentication.

ARAN relies on public key certificates to retain hop-

by-hop authentications. SEAD uses elements from a

one-way hash chain to provide authentication for

both the sequence number and the metric in each

entry. Yongguang Zhang developed an intrusion

detection architecture and evaluated a key

mechanism in this architecture, anomaly detection

for mobile ad-hoc networks(Yongguang Zhang,

2003). These above security systems have not any

idea of immune system.

S. Forrest, S. Hofmeyr, and A. Somayaji(S.

Forrest, 1997) and Hofmeyr and Forrest(S.Hofmeyr ,

1999)( S. Hofmeyr, 2000) have been pursuing the

problem of developing an artificial immune system

that is distributed, robust, dynamic, diverse and

adaptive, with applications to computer network

security. In their system, the several immune system

cells and molecules were simplified by the definition

of a basic type of detector that combined useful

properties from these elements. The detector cell had

several different possible states, roughly

corresponding to lymphocytes, naive B-lymphocytes

and memory B-lymphocytes. The detectors were

represented by bit strings of a given length, and a

small amount of state. Detection was performed by a

string match process that took into account the

number of r-contiguous bits between two strings.

The definition of self was performed by the negative

selection algorithm described in Forrest, et al. The

maturation of naive detectors into memory detectors,

together with the negative selection, is responsible

for the learning part of the system. The authors used

permutation masks to achieve diversity of detectors.

Kim and Bentley(J.Kim, 1999) are working on

the development of a network intrusion detection

system inspired in the immune system. The authors

proposed a Negative Selection Algorithm(NSA)

with niching for network intrusion detection. They

also suggested that an overall artificial immune

model for network intrusion detection would be

comprised by three distinct evolutionary stages: (1)

Negative selection, (2) clonal selection; and (3) gene

library evolution.

Dasgupta(Dipankar Dasgupta, 1999) proposed

an agent-based system for intrusion/anomaly

detection and response in networked computers. In

his approach, the immunity-based agents roamed

around the nodes and routers monitoring the

situation of the network. The most appealing

properties of this system were: Mobility, adaptability

and collaboration. The immune agents were able to

interact freely and dynamically with the

environment and each other.

3 SYSTEM ARCHITECTURE

3.1 Overview

The immune system is a complex system composed

by all kind Lymphocytes, such as B-cell, T-cell. An

agent is a small intelligent active object which is

able to carry out activities continuously and

autonomously in a particular environment. Agent is

autonomous, lightweight, adaptive, mobile. Multi-

agent can communicate and cooperate with each

other. These qualities make agent a choice for

security architecture in bandwidth and computation-

sensitive mobile ad hoc networks.

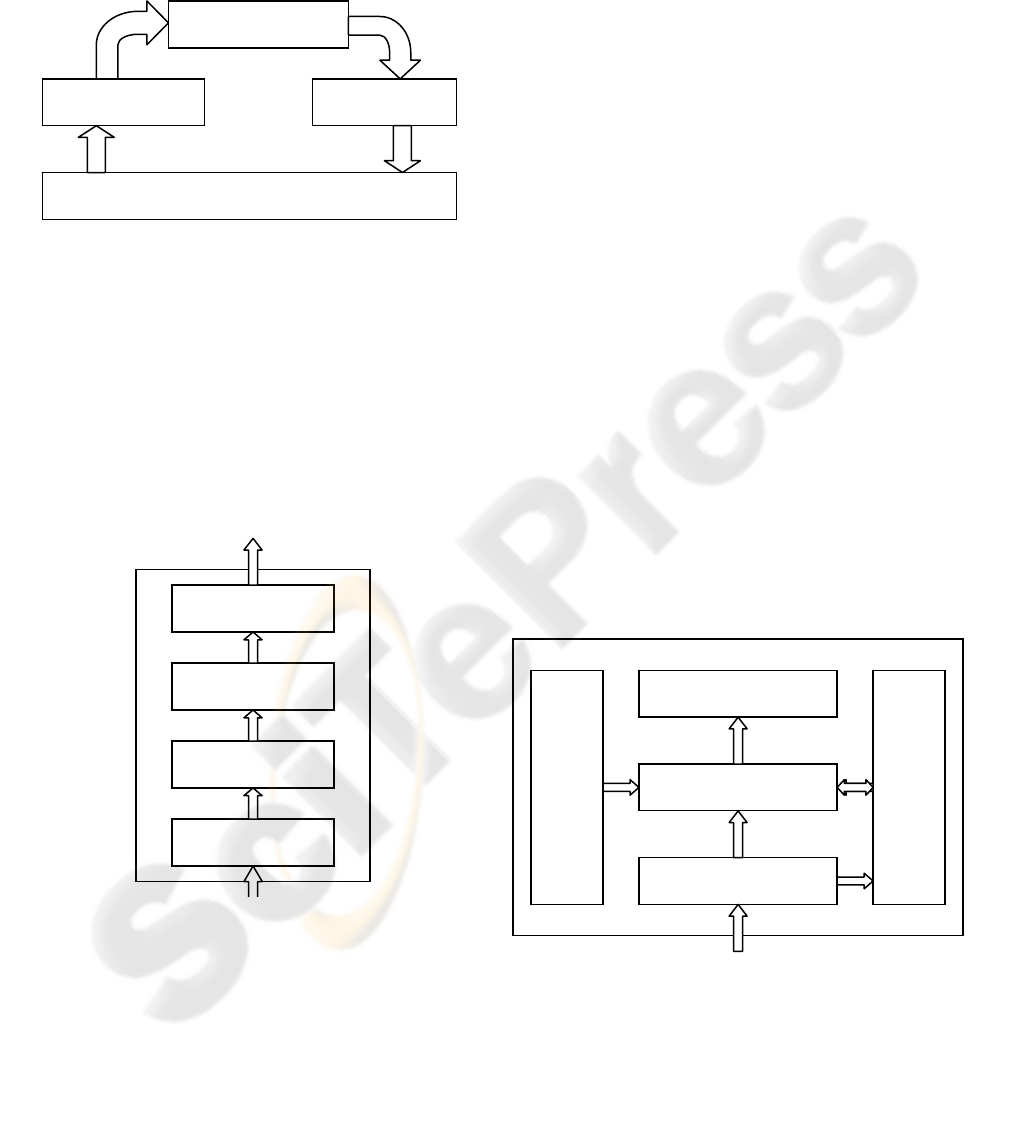

Fig.1 shows the three essential components of

the architecture: Monitor agent, decision agent and

killer agent. Monitor agent resides on each node and

monitors the neighbor nodes by collecting all

packets with its communication range. Monitor

agent codes behavior information of its neighbor

nodes and sends them to decision agent. Decision

agents collect the information from the monitor

agent, and make a judgment by security policies and

its immune memory. If the decision agent can judge

that some node is invader, it will produce killer

AN ARCHITECTURE FOR INTRUSION DETECTION AND ACTIVE RESPONSE USING AUTONOMOUS AGENTS

IN MOBILE AD HOC NETWORKS

221

agent to surround the invader and isolate it in the

end. Three agents may view as T-cell, B-cell and

antibody. When T-cell finds an invader, it activates

B-cell to produce a lot of antibodies. These

antibodies will bind the invader.

3.2 Monitor agent

Monitor agent may be regarded as T-cell and resides

on each node in mobile ad hoc networks. It monitor

neighbor node and sends these information to

decision agent. There are four components in

monitor agent which are communication, coding,

filter, collection. Fig.2 shows the components of

monitor agent.

The collection component is responsible for

collecting information of its neighbor node behavior

and hand in filter component. The information of

neighbor node may be too many to send decision

agent. Firstly, in order to reduce the amount of

information, filter component filters unnecessary

information, such as the routine packet to keep alive

between neighbors. Secondly, the code component

analyzes the information and codes them by number.

For example, we may represent node behavior by the

following number.

1—Route Request sent 2—Route Request received

3—Route Reply sent 4—Route Reply received

5—Route Error sent 6—Route Error received

7—data packet sent 8—data packet received

A monitor agent listen its neighbor A, B, C

and store the dataset: A—21214343, B—87878787,

C—2244688. Communication component passes

theses messages to the decision agent.

3.3 Decision agent

The core of the security architecture is decision

agent. It collects the information from monitor

agents. Then it finds the invader through the

information. Finally, decision agent may produce a

lot of killer agents to isolate the invader. To save

network resource, decision agents do not reside on

all nodes in mobile ad hoc networks, they are only

distributed over the whole network. Just as B-cell

circulates in the body, they move in the network

with the node moving or they move by themselves.

Every agent monitors the nodes in a zone by monitor

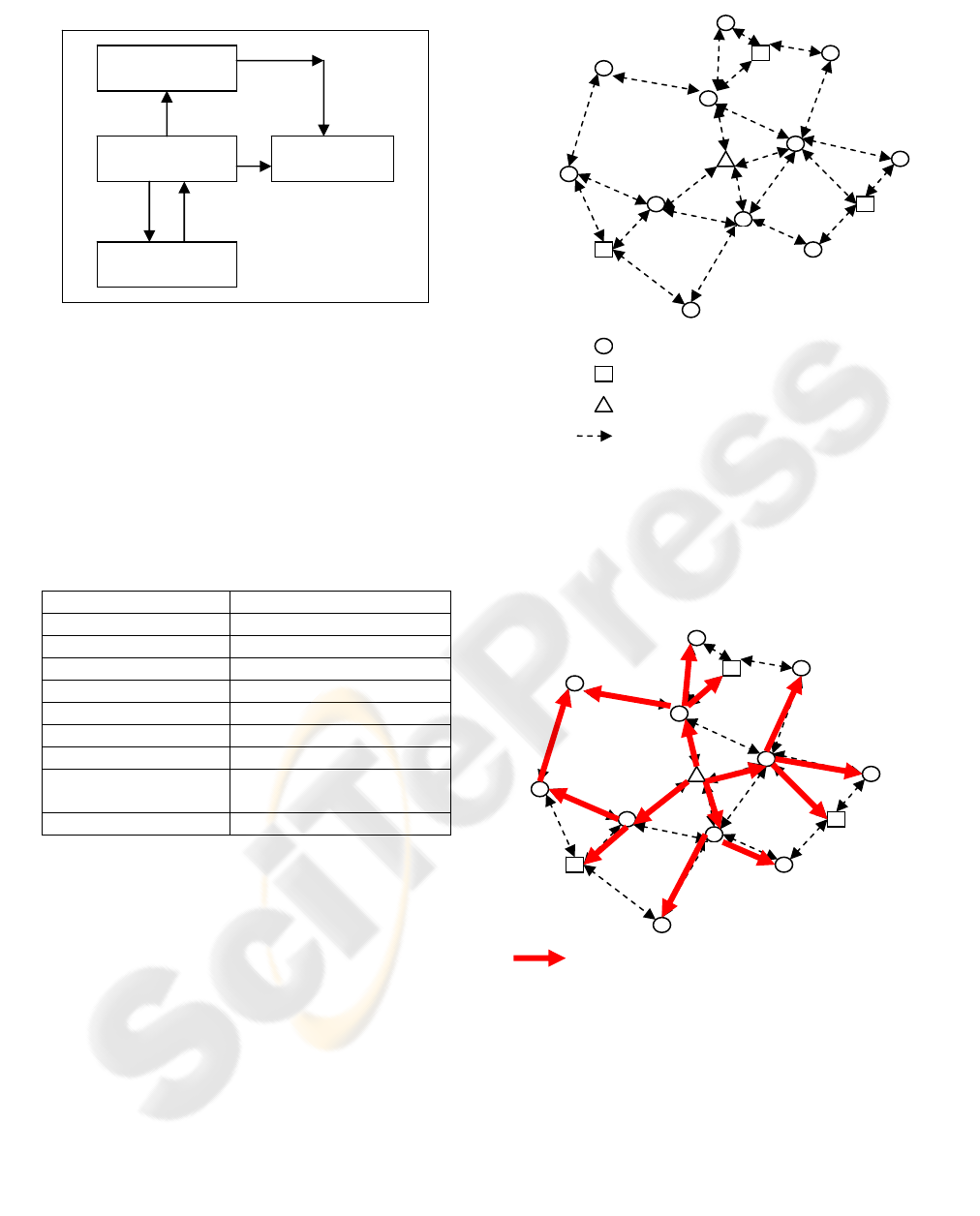

agents. Fig.3 shows its components of decision

agent. There are three function components which

are communication, analysis and response

components and two databases which are security

policy and immune memory databases.

The communication component of decision

agent collects information from the monitor agents.

When two decision agents move closely, they can

exchange their immune memory by communication

Communication

Analysis

Response

Immune memory

Security policy

Monitor agent or decision agen

ure 3: Com

onents of decision a

ent

Communication

Code

Filte

eighbor node behavio

Decision agen

Collection

Figure 2: Components of monitor agent

Mobile ad hoc networ

Monitor agen

Decision agen

Killer agen

Figure 1: System agent architecture

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

222

component. The analyze component firstly compare

information from monitor agents with the immune

memory. The memory of previously seen invader

allows the decision agent to mount much faster

secondary responses. Secondly, it compares

information with protocol form security policy

database. It mainly depends on routing protocol. For

example, when it receives a data packet, a node

should forward it soon. In above subsection, the

information of B’s behavior is “87878787”. It

implies that node B can forward packets when it

received packets. And node C’s behavior is

“2244688”, which infers that node C only receives

packets, but it does not forward data. If a node

sometimes violates normal behavior, there may be

some link errors. But if the number of abnormal

behavior is over the threshold, the node can be an

invader, just as a lymphocyte will only be activated

when the number of receptors bound exceeds some

threshold. Finally, when an invader is found,

response component produces killer agents to

surround the invader. The features of the node

behavior will be save the immune memory and it

will accelerate the process of intrusion detection

when the same intrusion takes place next time. The

process is show in Fig.4.

Because of dynamic topology of mobile ad hoc

networks, it is difficult to keep up the relationship

between monitor agent and decision agent. And

monitor agent can not flood the massages all over

the networks for the limited wireless channel.

Instead, we present a query-and-answer way.

Decision agent broadcasts the query packet

periodically. Monitor agents can send massages to

decision agent until it receives a query packet. The

decision agent in some zone may lose because the

node which has decision agent moves out of the

zone or the other reasons. If monitor agents in the

zone have not received the query packet for a long

time, they will select a new node to resident the

decision agent. The approach to select a node may

be competitive or negotiated.

3.4 Killer agent

When pathogen enters the body, the lymphocytes

produce a lot of cells to bind and the efficient

elimination of these pathogens while minimizing

harm to the body. Killer agent is responsible for

eliminating the invader.

A node has to depend on neighbor node’s relay

in mobile ad hoc network, if it joins in the network.

Killer agents can get to the neighbor node of the

invader and surround the invader. Killer agents may

cut off the routing request of the invader and drop

packets form the invader. At that time, the invader is

in the network, but it has been isolated form the

other nodes. As a result, the invader can not do some

damage on the network any more, just as antibodies

block binding between pathogens and self cells.

When a B-cell is activated, it migrates to a

lymph node. In the lymph node, the B-cell produces

many short-lived clones through cell division. The

new B-cell clones have the opportunity to bind to

pathogen captured within the lymph node. If they do

not bind, they will die after a short time. If they

succeed in binding, they will leave the lymph node

and differentiate into plasma or memory B-cells.

Similarly, when a invader is found, decision agent

go into killing mode. It produces a lot of killer

agents which have limited lived period. These killers

try to move and surround the invader. Those agents

who succeed in get to the neighbor node of the

invader will live for long until the invader die. The

agents who can not bind with the invader will die

out after a short time.

There are four components in killer agent which

are move, locate, isolate, suicide. Fig.5 shows its

components of killer agent. The invader is near to

decision agent, when decision agent produces killer

agents. But the invader may not adjoin to killer

agent. Therefore, the killer agents have to move to

the neighbor of the invader. Locating components

search the location of the invader and tell moving

component how to move. When killer agent get to

the neighbor of the invader, isolating component

takes action to drop all packets from the invader.

When killer agent can not get to the neighbor of the

invader within a period of time or the invader die,

killer agent will commit suicide by suicide

component. The suicide component prevent killer

agent from occupying a lot of resource.

Have

Abnormal

ormal

Receive monitor agent packet

Compare with immune memory

Compare with routing protocol

Produce killer agen

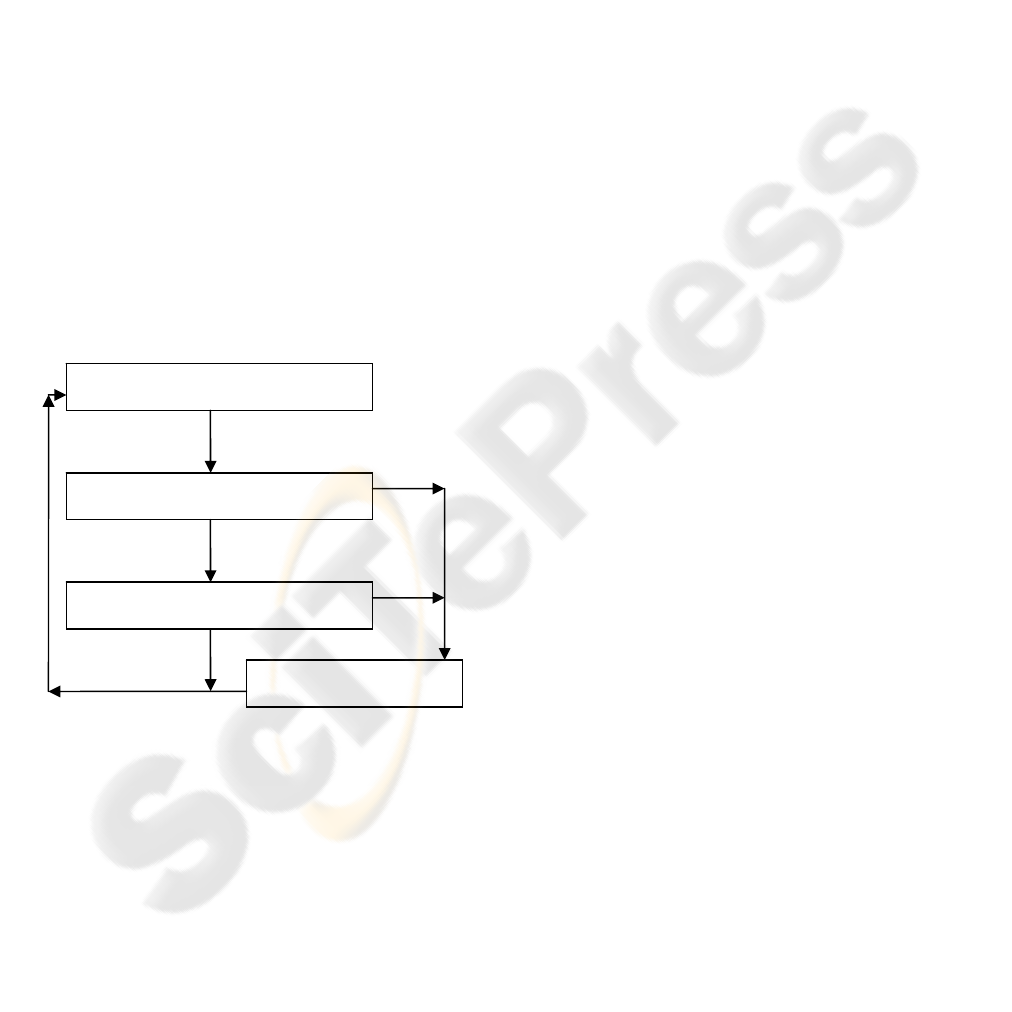

Figure 4: The process of decision agent

AN ARCHITECTURE FOR INTRUSION DETECTION AND ACTIVE RESPONSE USING AUTONOMOUS AGENTS

IN MOBILE AD HOC NETWORKS

223

3.5 Mapping the immune system to

security architecture

We compare mobile ad hoc networks to body and

carry out the function of all kinds of lymphocytes by

the special agent. Tab.1 shows the map between the

immune system and the security architecture.

Table 1: The map between immune system and

architecture

Immune system Security architecture

Body Mobile ad hoc networks

Self-cells Normal nodes

Pathogen Invader

Lymphocytes Mobile agents

Antibody Killer agent

B-cell Decision agent

T-cell Monitor agent

Bind Killer agents surround and

isolate the invader

Memory cell Immune memory database

4 EXAMPLE

In order to discuss how to work in the security

architecture further, we bring forward an example to

explain the process of intrusion detection and

intrusion response. Fig.6 is the topology structure of

mobile ad hoc networks. There are 15 nodes in the

networks and the neighbor nodes communicate by

bi-direction link. There are three decision agents

who reside on nodes C, L, O respectively and each

node has monitor agent which monitors its neighbor

node’s behavior. Node H is the intruder.

Fig.7 shows how the intruder attacks the mobile

ad hoc networks. The node H broadcast a lot of

useless packets by the neighbor nodes. The packets

flood all over the networks and consume most of

network’s resource so that the other nodes can not

send and receive the packet normally.

Fig.8 shows the process which killer agents

surround and isolate the intruder. The process of

response may be composed of intrusion detection

and intrusion response when the intruder attacks the

networks. Firstly, the intruder must be found and

located. When node H floods a lot of useless packets,

the monitor agents in the neighbor node of H will

monitor node H and code the behavior of H. If node

H broadcasts Route Request packets, its behavior

Node

Node which has decision agent

Intruder

Bidirection link

ure 6: the to

olo

of ad hoc networ

Figure 7: The attack of the intruder

link which attack

acket

oes throu

Isolate

Locate

Move

Suicide

Figure 5: Components of killer agent

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

224

will be coded as “666666” according to the rule of

Section Ⅲ . The monitor agent in node F sends the

message to the decision agent in node C. The

monitor agent in node D sends the message to the

decision agent in node L. The monitor data in node I,

G will be sent to node O. When decision agent

receives these monitor data, it matches the data with

immune memory. If the kind of attack has been

recognized once and its signature has been stored in

immune memory database, the decision agent will

recognize the attack by immune memory at once.

Otherwise, decision agent will make a judge by

security policy. By the above way, the attack is

recognized and the intruder is identified. Then the

decision agent produces killer agents to isolate the

intruder. The kill agent, who is produced by decision

agent in node C, gets to node F by link CF and then

breaks the link FH. Likewise, killer agents from

node L, O get to the other neighbor node of H and

meantime break the links DH, IH, GH. In the end,

the intruder is surrounded by the killer agents in

neighbor node and isolated because all links is

broken. Just as Fig.8, the killer agents surround the

intruder and construct a mobile firewall. The mobile

firewall can isolate the intruder and moves with the

intruder.

5 PROPERTIES OF SECURITY

ARCHITECTURE

As a consequence of the immune analogy, there are

many important properties that our architecture

exhibits.

5.1 Distributability

Lymphocytes in immune system are able to

determine locally the presence of an infection. No

central coordination takes place, which means there

is no single point of failure. Mobile agents regard as

lymphocytes in our architecture. Monitor agent can

collect information independently; Decision agent

can independently analyze, judge and respond. And

killer agent can move and surround the invader

independently. They all can work without central

management. This may be a distinct feature between

our security architecture and the traditional security

system.

5.2 Autonomy

The immune system does not require outside

management or maintenance. It autonomously

classifies and eliminates pathogens. Our decision

agents also make a judge who is an invader by it

collected information and its policies without

outside intervention.

5.3 Adaptability

The immune system learns to detect new pathogens,

and retains the ability to recognize previously seen

pathogens through immune memory. In our

architecture, if a new invader is found, its behavior

signatures are extracted. These signatures will store

into immune memory database for secondary

response. When two decision agents move closely,

they can exchange their data in immune memory

database. By the way, the signature of the kind of

invaders will spread over the whole network,

wherever the invader goes, it will be found at once.

5.4 Identity via behavior

In many security systems, the node is differentiated

by ID, such as IP address. As a result, an invader

may change its ID and become a well behavior node.

Our security architecture, in contrast, does depend

on ID. Instead, we identify an invader by its

behavior without its ID. Therefore, whatever it

changes its ID into. it will be found as long as it does

not change its behavior.

5.5 Scalability

Our architecture is scalable in that adding more

nodes will not increase the computational

requirements of any existing node, because detection

and response is local and distributed. Monitor agent

only communicate with local decision agent and

Node which has killer

Route which killer agent pass

Break link

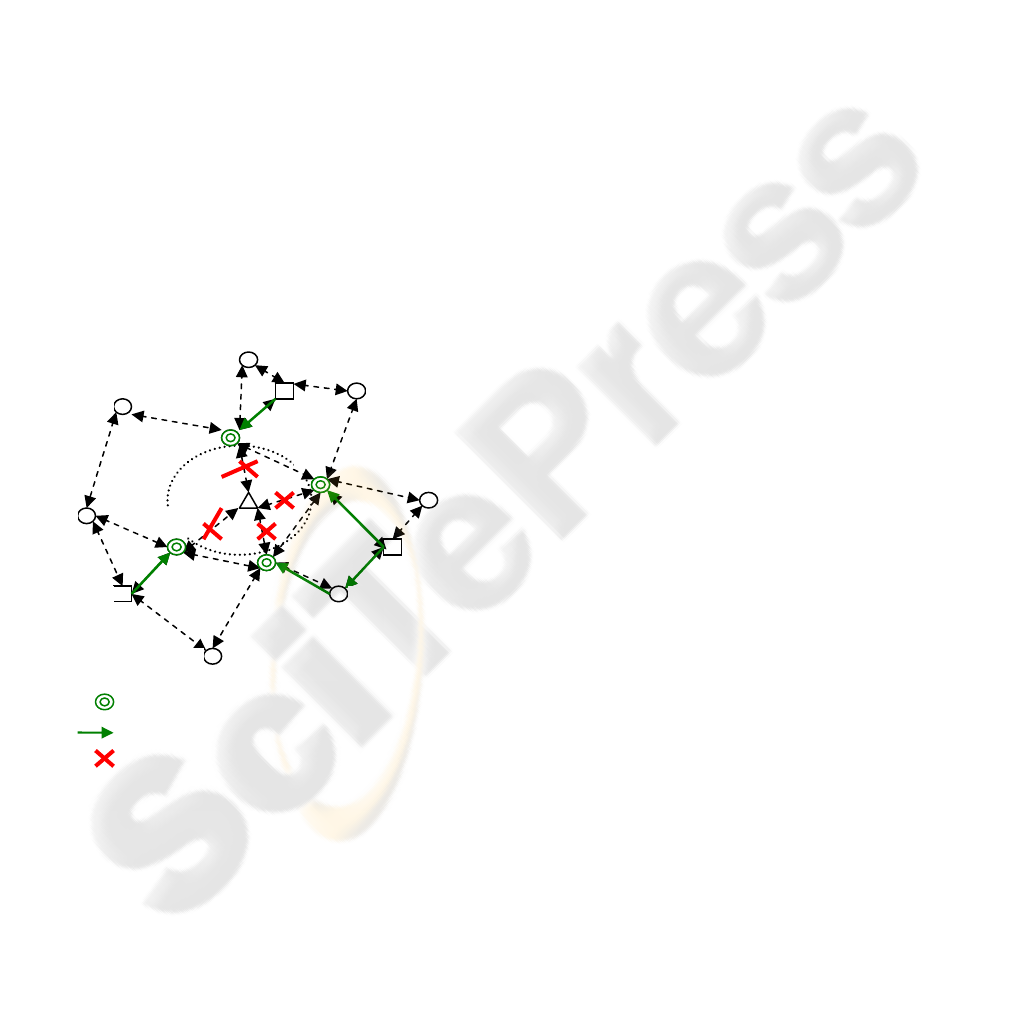

Figure 8: Killer agents surround and isolate intruder

AN ARCHITECTURE FOR INTRUSION DETECTION AND ACTIVE RESPONSE USING AUTONOMOUS AGENTS

IN MOBILE AD HOC NETWORKS

225

each decision agent can make a judge independently.

This is desirable because the system should be

scalable to very large networks.

6 CONCLUSIONS AND FUTURE

DIRECTIONS

We propose the immunity-based security

architecture for mobile ad hoc networks. Inspired by

immune system, we compare mobile ad hoc

networks to body and invaders as pathogens. Mobile

agents corresponded to lymphocytes detect and

isolate the invader. Just as immune system, our

architecture owns some advantages, such as

distributability, autonomy, adaptability and so on.

In future, we will develop the architecture in two

directions. Firstly, we have designed an efficient

algorithm to find the invader behaviour(Ping Yi,

2005). Secondly when an invader is found, killer

agents want to surround and isolated it. How killer

agents quickly move to the neighbour node of the

invader and surround it is also our further work.

REFERENCES

S. Corson, J. Macker, 1999, Mobile ad hoc networking

(MANET): Routing protocol performance issues and

evaluation considerations, RFC 2501, January 1999

Srdjan Capkun, Levente Nuttyan, Jean-Pierre Hubaux,

2003, Self-organized public-key management for

mobile ad hoc networks, IEEE Transactions on Mobile

Computing, 2(2003)1, 52-64

Lidong Zhou, Zygmunt J. Haas, 1999,

Securing ad hoc

networks

, IEEE Networks Special Issue on Network

Security, 13(1999)6, 24-30

P.Papadimitratos, Z.Haas, 2002, Secure routing for mobile

ad hoc networks, in Proceedings of the SCS

communication Networks and Distributed Systems

Modeling and Simulation Conference, San Antonio,

TX, January 27-31,2002

Yih-Chun Hu, Adrian Perrig, David B. Johnson, 2002,

Ariadne: A secure on-demand routing protocol for ad

hoc networks

, in Proceedings of the MobiCom 2002,

Atlanta, Georgia, USA, September 23-28, 2002, 12-23

Kimaya Sanzgiri, Bridget Dahill, Brian Neil Levine, Clay

Shields, Elizabeth M. Belding-Royer, 2002,

A secure

routing protocol for ad hoc networks, in Proceedings

of 2002 IEEE International Conference on Network

Protocols (ICNP), Paris, France, November 12-15,

2002, 78-86

Yih-Chun Hu, David B. Johnson, and Adrian Perrig, 2002,

SEAD: Secure efficient distance vector routing for

mobile wireless ad hoc networks

, in Proceedings of

the 4th IEEE Workshop on Mobile Computing

Systems & Applications (WMCSA 2002), Calicoon,

NY, June 2002, 3-13

Yongguang Zhang, Wenke Lee, 2003, Intrusion Detection

Techniques for Mobile Wireless Networks, Wireless

Networks, 9(2003)5, 545-556

S. Forrest, S. Hofmeyr, and A. Somayaji, 1997, Computer

Immunology, Communications of the ACM,

40(1997)10, 88-96

S.Hofmeyr , S.Forrest , 1999, Immunity by design: An

artificial immune system, In Proceedings of the

Genetic and Evolutionary Computation Conference

(GECCO), Morgan-Kaufmann, San Francisco, CA,

1999, 1289-1296

S. Hofmeyr, S. Forrest, 2000, Architecture for an artificial

immune system, Evolutionary Computation Journal

8(2000)4, 443-473

S. Forrest, A.S. Perelson, L. Allen, R. Cherukuri, 1994,

Self-nonself discrimination in a computer, In

Proceedings of the 1994 IEEE Symposium on

Security and Privacy, Oakland, CA, May 16 - 18,

1994, 202-214

J.Kim, P. J.Bentley, 1999,

Negative selection and niching

by an artificial immune system for network intrusion

detection

, Genetic and Evolutionary Computation

Conference (GECCO '99), Orlando, Florida, July 13-

17,1999,149-158

Dipankar Dasgupta, 1999, Immunity-based intrusion

detection systems: A general framework, In the

proceedings of the 22nd National Information Systems

Security Conference (NISSC), Arlington, Virginia,

USA, October 18-21, 1999,147-160

Ping Yi, Yichuan Jiang , Yiping Zhong, Shiyong Zhang,

2005, Distributed Intrusion Detection for mobile ad

hoc networks, The 2005 International Symposium on

Applications and the Internet (SAINT2005), Trento,

Italy, January 31 - February 4, 2005

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

226
