A FORMAL DEFINITION FOR OBJECT-RELATIONAL

DATABASE METRICS

Aline Lúcia Baroni

, Coral Calero

, Mario Piattini

, Fernando Brito e Abreu

QUASAR Research Group. Faculty of Sciences and Technology. Universidade Nova de Lisboa. Portugal

ALARCOS Research Group. Department of Compuer Science. Universirt of Castilla-La Mancha. Spain

Keywords: Databases, metrics, SQL:2003.

Abstract: Relational databases are the most important in the database world and are evolving to object-relational databases

order to allow the possibility of working with new and complex data and applications. One widely accepted

mechanism for assuring the quality of an object-relational database is the use of metrics formally and empirically

validated. Also it is important to formalize the metrics for having a better understanding of their definitions.

Metrics formalization assures the reliable repetition of their computation and facilitates the automation of metrics

collection. In this paper we present the formalization of a set of metrics defined for object-relational databases

described using SQL:2003. For doing the formalization we have produced the ontology of the SQL:2003 as a

framework for representing the SQL schema definitions. The ontology has been represented using UML and the

definition of the metrics has been done using OCL (Object-Constraint Language) which is part of the UML 2.0

standard

1 INTRODUCTION

The history of databases last since mid-sixties and it

has been characterised by its extraordinary

productivity and its impressive economic impact.

This is because databases have become a strategic

product, being the basis of all information systems

and supporting organizational decisions.

Relational databases are the most important ones

n the database world. This success can be explained

because they are not too difficult to understand and

also because there is a widespread standard (SQL)

for them. Another key success factor is that the

relational industry has reacted and has evolved to

object-relational databases in order to allow the

possibility of working with new and complex data

and applications without a revolutionary change in

the market. So, these databases have all the elements

of the relational model (relations connected by

referential integrity relationships) but with the

particularity that the columns of a relation can be

defined over a UDT (User Defined Type).

Some studies predict that object-relational

atabases will substitute the relational ones

(Stonebraker and Brown, 1999, Leavitt, 2000) and,

very recently, the new SQL:2003 standard (ISO/IEC

9075, 2003) that integrates additional OR features, has

been published.

Taking into account the brilliant

predicted

diffusion of object-relational databases it is essential

to assure their quality. One widely accepted

mechanism for assuring the quality of a software

product in general and of object-relational database

designs in particular, is the use of metrics.

However, it is also important to formalize the

metrics. Fo

rmality allows clear understanding of

metrics definitions, which in turn assures that their

computation can be repeated in a reliable fashion.

Furthermore, the formalization itself may facilitate

the automation of metrics collection.

In this paper we present the formalization we

have

performed upon a set of metrics defined for

assessing the complexity of OR database schemata.

For performing this formalization we have produced

an ontology of the SQL:2003 (the last version of the

object-relational database standard), as a framework

for representing the SQL schema definitions. The

ontology was represented using UML and the

metrics have been defined with OCL -Object-

Constraint Language (OMG, 2003). OCL allows

express invariants, pre and post conditions, as well

as operations semantics and is part of the UML 2.0

standard.

334

Lúcia Baroni A., Calero C., Piattini M. and Brito e Abreu F. (2005).

A FORMAL DEFINITION FOR OBJECT-RELATIONAL DATABASE METRICS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 334-339

DOI: 10.5220/0002510503340339

 SciTePress

Section two presents the ontology we have

defined for the new SQL:2003. Section three

presents an example of a database definition using

the new SQL:2003 which is represented using the

ontology. In section four the metrics definition and

formalization using OCL is shown. Finally, the last

section presents the conclusions and future work.

2 SQL:2003 ONTOLOGY

Among the different languages present in the earliest

DBMS, SQL has imposed itself as a “de iure” and

“de facto” database standard.

Recently, the last version of the standard has been

published, SQL:2003 (ISO/IEC 9075, 2003) which

makes revisions to all parts of SQL:1999 and

includes some new issues (Eisenberg et al., 2004).

The fact of having a standard is fundamental.

However, sometimes standards are hard to

understand and it is difficult to extract all the

information contained. It usually happens that

standards are not free of inconsistencies due to the

big amount of information that they try to cover. In

that case, most of the advantages derived of the

disposal of a standard disappear.

For avoiding most of these problems, the

standard can be complemented by its ontology. In

such a manner the ontology helps in finding the

information and detecting inconsistencies which is

essential in order to define the metrics based on the

concepts of the standard.

An ontology is a specification of a

conceptualization. This means that, through the

definition of an ontology, we try to formalize and

recover the knowledge of a given domain.

So, we developed an ontology for the SQL:2003.

For doing it, we have used several parts of the

standard. We have worked mainly with the

information of the part 1 (Framework) but basically

with the one of part 2 (Foundation) of the standard.

In the other hand, we also reengineered the Part 11

(Information and Definition Schema) considering

those schemata as metamodels of the SQL:2003

which represent in their tables all the concepts of the

language.

The ontology was thought for the object-

relational aspects of a database schema, discarding

elements such as triggers and stored procedures, as

they are not needed for the metrics we consider in

this work. The inclusion of these elements can be

easily done because the main components are

included in this version and the discarded ones are

related to them.

The ontology has been divided into two. One

contains all the aspects related to data types (figure

1) and the other all the information about the SQL

schema objects (figure 2).

Figure 1 shows three different kinds of Data

Types: Predefined, Constructed and User Defined

Types. Constructed Types can be Composite or

Reference Types. Composite Types can be

Collections (Arrays or Multiset – a new type of the

SQL:2003 standard) composed by Elements, or Row

Types, which in turn are composed by Fields. Each

Element or Field has one Data Type.

The User Defined Types can be either Distinct

Types (which are defined over one Predefined Data

Type) or Structured Types

. Structured Types are

composed by Attributes and by one or more Method

Specifications. Inheritance is allowed among

Structured Types, Row Types and Reference Types.

Figure 2 illustrates four different SQL schema

objects: Constraints, Domains, User Defined Types

and Tables.

Constraints can be Assertions, Domain

Constraints or Table Constraints (Unique

Constraints including Primary Keys, Table Check

Constraints and Referential Constraints – the latter

for representing the foreign keys).

Domains are used by Columns and can include a

Domain Constraint.

Tables can be Derived Tables – and particularly

Views, Transient Tables or Base Tables. They are

composed by Columns that can be defined as

Identity Columns or Generated Columns. Columns

can be defined over a Domain and they can have

Referential Constraints or Unique Constraints (or

Primary Keys) defined.

Base Tables can also be part of an inheritance

hierarchy. They are defined over a Data Type

(through a Reference Type) and they can have

Candidate Keys.

Structured types are entities corresponding to classes in

object-oriented notations. Thus, when we use the word

“class” in this document, we refer to the ontology

entity StructuredType.

A FORMAL DEFINITION FOR OBJECT-RELATIONAL DATABASE METRICS

335

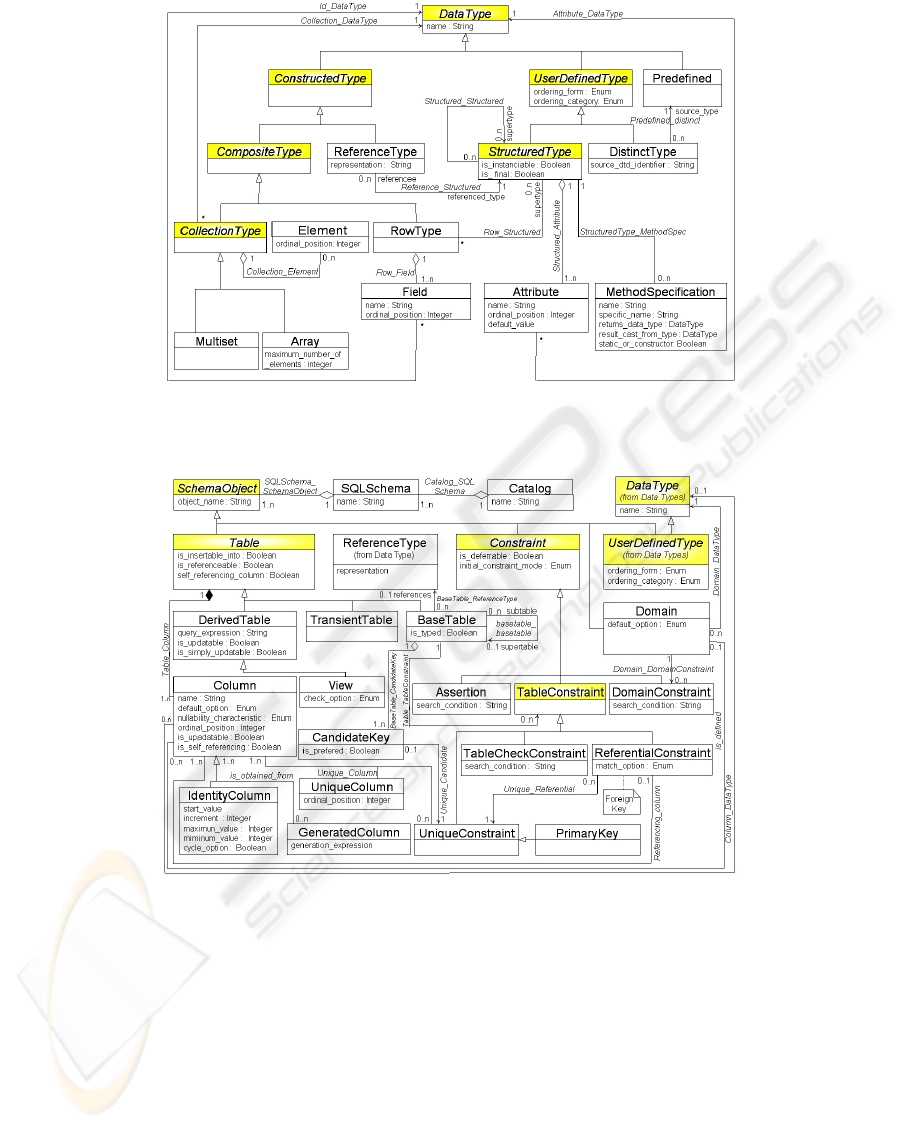

Figure 1: SQL:2003 Data types sub-ontology

Figure 2: SQL:2003 Schema objects sub-ontology

3 METRICS FOR OBJECT-

RELATIONAL DATABASES

One widely accepted mechanism for evaluating the

quality of a software product in general and of

object-relational database designs in particular, is the

use of metrics (Briand et al. 1996; Pfleeger, 1997;

Fenton y Pfleeger, 1997; Chidamber y Kemerer,

1994; Zuse, 1998; Sneed and Foshag, 1998; Basili et

al, 1996)

Metrics must be defined for capturing a specific

characteristic of a product (in our case object-

relational databases). One of the most important

characteristic to be captured is complexity. With a

set of metrics for measuring the complexity, we will

be able to estimate understandability and

maintainability (Li and Henry, 1993; Briand et al.

1995; Briand et al. 1999), two important dimensions

in software product quality (ISO9126, 2001).

In the work of Piattini (Piattini et al., 2001) a set

of metrics for object-relational database complexity

are defined. These metrics have been formalized

using the approach presented in (Baroni, 2002;

Baroni and Brito e Abreu, 2002). In the next sub-

sections, each informal definition is presented

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

336

together with its formal one (some auxiliary

functions, were used in the formalization process but

are not presented due to space restrictions)

3.1 Metrics concerning table

properties

3.1.1 Table Size Metric

The size of a table (TS) is defined as the sum of the

size of the simple columns (TSSC) and the size of

the complex columns (TSCC). The TSCC is

calculated as the sum of the size of each complex

column (CCS).

BaseTable:: TS(): Real

= if self.is_typed then

self.references.referenced_type.

hierarchySize()

else

self.TSCC() + self.TSSC()

endif

BaseTable:: TSSC(): Integer

= self.allSimpleColumns() -> size()

BaseTable:: TSCC(): Real

= self.allComplexColumns()

-> collect(elem: Column |

elem.CCS())

-> sum

The size of a complex column (CCS) is defined

as the size of the class hierarchy above which the

column is defined (SHC) divided by the number of

complex columns that are defined over this

hierarchy (NHC). This expression is due to the fact

that the size of the hierarchy must be considered

only once independently of the number of columns

defined above it.

Column:: CCS(): Real

= self.SHC() / self.NCU()

Column:: SHC(): Real

= self.dataType.oclAsType

(StructuredType).SC() +

self.dataType.oclAsType

(StructuredType).ascendants()

-> collect (elem: DataType |

elem.oclAsType(StructuredType).

SC())

-> sum

Column:: NCU(): Integer

=self.dataType.oclAsType

(StructuredType).

columnsNumberUsingThis()

The size of a class (SC) is calculated as the sum

of its attributes size (SAC) and its methods size

(SMC). It is necessary to take into account that a

class can have simple attributes (SAS), that we

consider with a size equal to one, and complex

attributes (CAS), which are attributes related to

other classes by an aggregation relationship. In that

case the size of a complex attribute is calculated as

the size of the aggregation hierarchy. Again in that

case, as a class can belong to more than one

hierarchy, it is necessary to divide its size into the

number of hierarchies that use the class (NHC).

StructuredType:: SC() : Real

= (self.SAC() + self.SMC()) /

self.NHC()

StructuredType:: SAC(): Real

= self.SAS() + self.CAS()

StructuredType:: SAS(): Integer

= self.allSimpleAttributes() ->

size()

StructuredType:: CAS(): Real

= self.allComplexAttributes()

-> collect(elem: Attribute |

elem.dataType.oclAsType

(StructuredType).SC())

-> sum

StructuredType:: SMC(): Integer

= self.NMC()

StructuredType:: NMC(): Integer

= self.allMethods() -> size()

StructuredType:: NHC(): Integer

= if self.hasChildren() then

self.childrenNumber()

else

endif

3.1.2 Coupling Metrics

NIC (Number of Involved Classes): Number of

classes needed for defining all the columns of a

table.

BaseTable:: NIC(): Integer

= self.involvedClasses() -> size

NSC (Number of Shared Classes): Number of

classes used by a table, for defining its complex

columns, which are also used by other tables of the

schema.

BaseTable:: NSC(): Integer

= self.involvedClasses()

-> select(elem: StructuredType |

A FORMAL DEFINITION FOR OBJECT-RELATIONAL DATABASE METRICS

337

elem.isShared())

-> size

3.1.3 Complexity Metrics

PCC (Percentage of Complex Columns): Number of

the complex columns of a table (NCC) divided by

the total number of columns of the same table.

BaseTable:: PCC(): Percentage

= self.NCC() /

(self.allColumns() -> size())

BaseTable:: NCC(): Integer

= self.allComplexColumns() -> size()

3.1.4 Referential Integrity Metrics

NFK (Number of Foreign Keys): Number of

foreign keys defined in a table.

BaseTable:: NFK(): Integer

= self.foreignKeyNumber()

RD (Referential Degree): Number of foreign

keys in a table divided by the number of attributes of

the same table.

BaseTable:: RD(): Real

= self.NFK() /

(self.allColumns() -> size())

DRT (Depth of Referential Tree): The longest

path between a table and the remaining tables in the

schema database, considering the schema as a graph

where nodes are tables and arcs are referential

integrity relations between tables (Foreign key to

Primary key links).

BaseTable:: DRT(): Integer

= self.longestPath() -> size

3.2 Metrics concerning schema

properties

All the metrics applied over tables can also be

applied at the schema level, iterating over the

BaseTables in the SQLSchema. These are the

coupling, complexity and referential integrity

metrics.

Additionaly, a new size metric for the schema

(SS) can also be defined as the sum of the sizes of

each table in the schema.

SQLSchema:: SS(): Real

= self.allBaseTables()

-> collect (elem: BaseTable |

elem.TS()) -> sum

4 CONCLUSIONS AND FUTURE

WORK

Our current work direction addresses the solution of

two main problems: the lack of metrics for

evaluating the quality of databases and the lack of

formalization of the existing metrics definitions.

The first problem was treated with the proposal

of some metrics for object-relational databases

(Piattini, 2001), in some of our previous work.

However, metrics for other aspects, not covered by

our work, are still necessary.

This paper presented an approach to solve the

second problem, using UML and OCL (OMG,

2003). The original approach was proposed in

(Baroni, 2002; Baroni and Brito e Abreu, 2002), and

it was successfully applied here.

Besides formalizing some metrics definitions, we

created an ontology for the new SQL:2003 standard

(ISO/IEC 9075, 2003), which tries not only to

reduce the inconsistencies in the textual version of

the standard, but also to make the standard easier to

grasp.

The ontology definition is an on-going work, and

it can be seen more as a proposal than as a complete

version. It requires some extensions for treating of

other aspects in the standard, such as triggers, stored

procedures, parameters in methods, etc.

Notwithstanding, the ontology as shown in this

paper has enough features for the formalization we

addressed.

The formalized metrics definitions and a

database representation mapped to ontology meta-

objects served as input to an OCL evaluator tool

(there are several tools able to work with OCL, and

more are emerging to work with its newer version,

i.e., OCL 2). With these two inputs, and also with

the ontology as background, we could extract real

metric values from database representations. One

simple example was illustrated here.

As future work, there are many possible

directions to explore varying from the proposition of

new metrics and their validation, including their

formal definitions, until the use of these metrics to

perform refactorings on database schemata.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

338

REFERENCES

Baroni A. L., 2002. Formal Definition of Object-Oriented

Design Metrics. Master Thesis. Vrije Universiteit

Brussel - Belgium, in collaboration with Ecole des

Mines de Nantes - France and New University of

Lisbon - Portugal. August.

Baroni A. L., Brito e Abreu F., 2002. Formalizing Object-

Oriented Design Metrics upon the UML Meta-Model.

In Proceedings of the 16

Brazilian Symposium on

Software Engineering, Gramado - RS, Brazil. October.

Basili V., Briand L., Melo W. L., 1996. A Validation of

Object-Oriented Design Metrics as Quality Indicators.

IEEE Transactions on Software Engineering, vol. 22,

pp. 751-760.

Briand L., Arisholm S., Counsell F., Houdek F.,

Thévenod-Fosse P., 1999. Empirical Studies of

Object-Oriented Artifacts, Methods, and Processes:

State of the Art and Future Directions. Empirical

Software Engineering, 4 (4), 387-404.

Briand L., El Emam K., Morasca, S., 1995. Theoretical

and Empirical Validation of Software Product

Measures. International Software Engineering

Research Network, Technical Report ISERN-95-03.

Briand L., Morasca S., Basili, V., 1996. Property-Based

Software Engineering Measurement. IEEE Transactions

on Software Engineering. 22 (1). pp.68-85.

Chidamber S., Kemerer C., 1994. A Metrics Suite for

Object-Oriented Design. IEEE Transactions on

Software Engineering. 20 (6). pp.476-493. June.

Fenton N., Pfleeger S. L., 1997. Software Metrics: A

Rigorous Approach 2

. edition. London. Chapman &

Hall.

ISO/IEC 9075 Standard, 2003. Information Technology -

Database Languages - SQL, International

Organization for Standardization.

ISO/IEC 9126 Standard, 2001. Software Product

Evaluation-Quality Characteristics and Guidelines for

Their Use, International Organization for

Standardization.

Leavitt N., 2000. Whatever Happened to Object-Oriented

Databases?. IEEE Computer Society. pp. 16-19.

Li W., Henry S., 1993. Object-Oriented Metrics that

Predicts Maintainability, Journal of Systems and

Software, 23, 111-122.

Melton, J., 2003. Advanced SQL:2003. Understanding

object-relational and other features. Morgan Kauffman

Publishers. Elsevier Science. USA

OMG, 2003. UML 2 Object Constraint Language

Specification (version 2.0)”, Object Management

Group, October.

OMG, 2003. Unified Modeling Language Specification

(version 1.5), Object Management Group, March.

Pfleeger, S. L., 1997. Assessing Software Measurement.

IEEE Software. March/April. pp. 25-26.

Piattini M., Calero C., Sahraoui H., Lounis H., 2001.

Object-Relational Database Metrics. L'Object, vol.

March.

Sneed H. M., Foshag O., 1998. Measuring Legacy Database

Structures. Proceedings of the European Software

Measurement Conference (FESMA 98). Antwerp. May

6-8. Coombes. Van Huysduynen and Peeters (eds.).

pp.199-211.

Stonebraker M., Brown P., 1999. Object-Relational

DBMSs Tracking the Next Great Wave, California,

Morgan Kauffman Publishers.

Zuse H., 1998. A Framework of Software Measurement.

Berlin. Walter de Gruyter.

A FORMAL DEFINITION FOR OBJECT-RELATIONAL DATABASE METRICS

339
