A SIGNALING ARCHITECTURE AGAINST DOS ATTACKS
Ahmad Fadlallah, Ahmed Serhrouchni
Ecole Nationale Supérieure des Télécommunications, GET - CNRS UMR 5141 – LTCI
Departement Informatique et Reseaux (InfRes)
46, rue Barrault - 75 634 Paris Cedex 13 – France
Keywords: Network Security, Denial of service, signaling protocols.
Abstract: Denial of service (DoS) attacks figure highly among the dangers that face the Internet. Many research
studies deal with DoS, proposing models and/or architectures to stop this threat. The proposed solutions
vary between prevention, detection, filtering and traceback of the attack. The latter (attack traceback)
constitutes an important part of the DoS defense. The most complex issue it has to face is related to the fact
that attackers often used spoofed or incorrect IP addresses, thus disguising the true origin. In this work, we
propose a signaling architecture and a security-oriented signaling protocol named 3SP (Simple Security
Signaling Protocol). This solution makes it easier to trace both the DoS and other types of attack back to
their sources; it is simple, robust and efficient against IP spoofing, and thus constitutes a novel and efficient
approach to deal with the attack traceback problem.
1 INTRODUCTION
The Internet is on track to becoming the backbone
network for all telecommunication. Internet security
is of critical importance in today’s computing
environment, given that our society, government,
and economy are increasingly relying on the
Internet. Denial of service attacks are considered
among the hardest security problems that threaten
the “Digital society”; according to the CST/FBI
2004 computer crime and security survey, denial of
service attacks occupied the second position (behind
virus attacks) on the attack list in terms of the caused
losses.
According to the CERT (CERT, 1997), “a denial
of service attack is characterized by an explicit
attempt by attackers to prevent legitimate users of a
service from using that service”. Its distributed form:
the distributed denial of service (DDoS) attack is
one in which a multitude of compromised systems
attack a single target thereby causing denial of
service.
Many solutions have been proposed to stop such
type of attacks, which can be classified into three
categories: attack prevention, detection, and
response. The latter can be mainly split into filtering
attack packets and tracing back to the attack
source(s).
In this paper, we propose a signaling architecture,
which facilitates the attack traceback and filtering
processes.
Our contribution is three-fold. First, our scheme
is efficient in defending against denial of service
attacks (even when they use concealment techniques
such as IP spoofing). Second, this mechanism does
not need the global cooperation of the whole Internet
community but an increase in deployment increases
its benefit. Third, our scheme is applicable to all
traffic types, and thus can be used to traceback other
attack types.
The remainder of this paper is organized as
follows. Section 2 presents the denial of service
attacks. Section 3 reviews the related work in this
field with special regard to the main techniques
proposed for attack traceback. Section 4 explains the
reasoning behind our proposal, describes the
architecture and the 3SP protocol. Section 5
discusses the advantages of our solution and some
open issues. Finally, section 6 concludes the paper.
216
Fadlallah A. and Serhrouchni A. (2005).
A SIGNALING ARCHITECTURE AGAINST DOS ATTACKS.
In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 216-221
DOI: 10.5220/0001415702160221
Copyright
c
SciTePress
2 DENIAL OF SERVICE
ATTACKS
Denial of Service (DoS) is an attack designed to
render a computer or network incapable of providing
normal services (Stein, 2003). The attack may
exhaust a key resource by exploiting software
vulnerability (vulnerability attacks) or by simply
sending – by an attacker – a higher volume of traffic
than the victim is provisioned to handle (flooding
attacks). This kind of attack is possible to defend by
installing patches provided by operating system or
software manufacturers, or by simple configuration
of network equipment (routers, firewalls, IDS…).
In the summer of 1999, a new breed of attack has
been developed called distributed denial of service
(DDoS) attack. Simply put, a DDoS attack saturates
a network. It simply overwhelms the target server
with an immense volume of traffic that prevents
normal users from accessing the server. These
distributed attacks rely on recruiting a fleet of
compromised “zombie” computers (also named
agents) that unwittingly join forces to flood the
victim server.
Moreover, attackers can render distributed
denial-of service attacks more difficult to defend
against by bouncing their flooding traffic off
reflectors; that is, by leading zombies to spoof
requests from the victim to a large set of Internet
servers that will in turn send their combined replies
to the victim. This type of attacks is known as
distributed reflector denial of service (DRDoS)
(Paxon, 2001).
3 DENIAL OF SERVICE
DEFENSE
Because of the seriousness of the problem many
defense mechanisms have been proposed to combat
these attacks. There are three lines of defense against
the attack: attack prevention and preemption (before
the attack), attack detection (during the attack), and
attack response (during and after the attack).
The first line of defense is obviously to prevent
DDoS attacks from taking place. The detection of an
attack is responsible for identifying DDoS attacks or
attack packets. Once an attack has been detected, an
ideal response is to filter attack traffic and identify
attack source.
Traceback and filtering can be complementary
tasks; since traceback allows us to go nearer to the
attack source(s), where filtering is easier.
Filtering attack traffic is implicit in most
detection solutions like (Mirkovic & al., 2002) and
(Gil & al., 2001); still there is the problem of
eliminating false positives that usually lead to
collateral damage. Unfortunately, there is no easy
way to track IP traffic to its source due to the
statelessness of the IP protocol, and to IP spoofing.
In order to address this limitation, several
approaches have been proposed.
The IP marking approaches (Savage & al., 2000)
(Song & al., 2001) (Park & al.-1, 2001) enable
routers to mark packets with partial path information
and try to reconstruct the complete path from the
packets that contain the marking.
ICMP traceback (iTrace) (Bellovin, 2001)
proposes to introduce a new message “ICMP trace
back” (or an iTrace message) so that routers can
generate iTrace messages to help the victim or its
upstream ISP to identify the source of spoofed IP
packets. An intention-driven iTrace is also
introduced to reduce unnecessary iTrace messages
and thus improve the performance of iTrace systems
(Mankin & al., 2001).
(Dean & al., 2001) proposes an algebraic
approach to transform the IP traceback problem into
a polynomial reconstruction problem, and uses
techniques from algebraic coding theory to recover
the true origin of spoofed IP packets.
CenterTrack (Stone, 2000) is an IP overlay
network that selectively reroutes suspect IP packets
directly from edge routers to special tracing routers,
which can easily determine the ingress edge router
by observing from which tunnel the packets arrive.
(Sanchez & al., 2001) develop another traceback
solution named Source Path Isolation Engine
(SPIE); it stores the message digests of recently
received IP packets and can reconstruct the attack
paths of given spoofed IP packets. There are also
many other techniques and issues related to IP
traceback (e.g., approximate traceback (Burch & al.,
2000), legal and societal issues (Lee & al., 2001),
and vendors’ solutions (Cisco, 1999).
There are – in general – two main limitations of
existing traceback solutions; first, the need for more
complex algorithms for path reconstruction, and
second the need for a global deployment – of some
mechanisms – in order to be efficient.
A SIGNALING ARCHITECTURE AGAINST DOS ATTACKS
217
4 SIGNALING ARCHITECTURE
FOR DOS ATTACKS
In this section, we present a signaling architecture,
which can be situated as a response mechanism that
makes it easier to traceback and filter a DDoS
attack. While designing this solution, we tried to
keep in mind all the lessons learned from existing
proposals, trying to re-use their strong points as
much as possible and avoid their weaknesses.
The first question to answer is why using a
signaling approach? or to put it in another way: how
can signaling facilitate the difficult tasks of
traceback and filtering?
In fact, signaling is the best solution to identify
the source of a given traffic; a reliable signaling
mechanism is also very efficient against
concealment techniques – such as IP spoofing – used
by attackers. A typical example is in telephone
networks where one of the main reasons for the
absence of DoS is that each call can be traced back –
through signaling – and the caller identified.
Moreover – as previously stated – the ability to
identify the source of the attack (or at least to go the
nearest possible) will make it easy to filter attack
packets.
4.1 Architecture
In the signaling architecture, signaling messages are
only received, processed and sent by traceback
signaling entities (TSE). These entities can be placed
in the network devices. Depending on their
functionalities, we differentiate between two types
of TSE:
Light traceback signaling entities (LTSE): It
processes and forwards signaling messages. It is
stateless in a sense that it does not maintain any
information about a signaled flow.
Full traceback signaling entities (FTSE): In
addition to the LTSE functionalities, an FTSE
monitors internet traffic, and may initiate a
signaling session (generate signaling messages)
for a given flow. It also maintains per-flow state
information (statefull).
Filtering functions can also be added to both
signaling entities, in order to filter/rate-limit attack
packets when detected.
4.2 Simple Security Signaling
Protocol (3SP)
The signaling entities communicates through the
simple security signaling protocol (3SP), which – as
its name indicates – is a simple protocol that
provides a traceback-oriented signaling. To this
purpose, it provides a set of messages enabling
signaling between signaling entities before and
during the transmission of a given flow.
We first present the general behavior of the
protocol in a traceback scenario, and then describe
the messages used in the different protocol
exchanges.
4.2.1 Traceback scenario
In the following, the source TSE designates the TSE
that initiates the signaling session. The destination
TSE is the signaling entity that ends the signaling
session, while the forwarder TSE represents an
intermediate TSE (between source and destination).
The behavior of the 3SP protocol is presented
under simplifying assumptions; we consider an
attack with one attacker and one target host. The
same mechanism can work in the case of multiple
attackers.

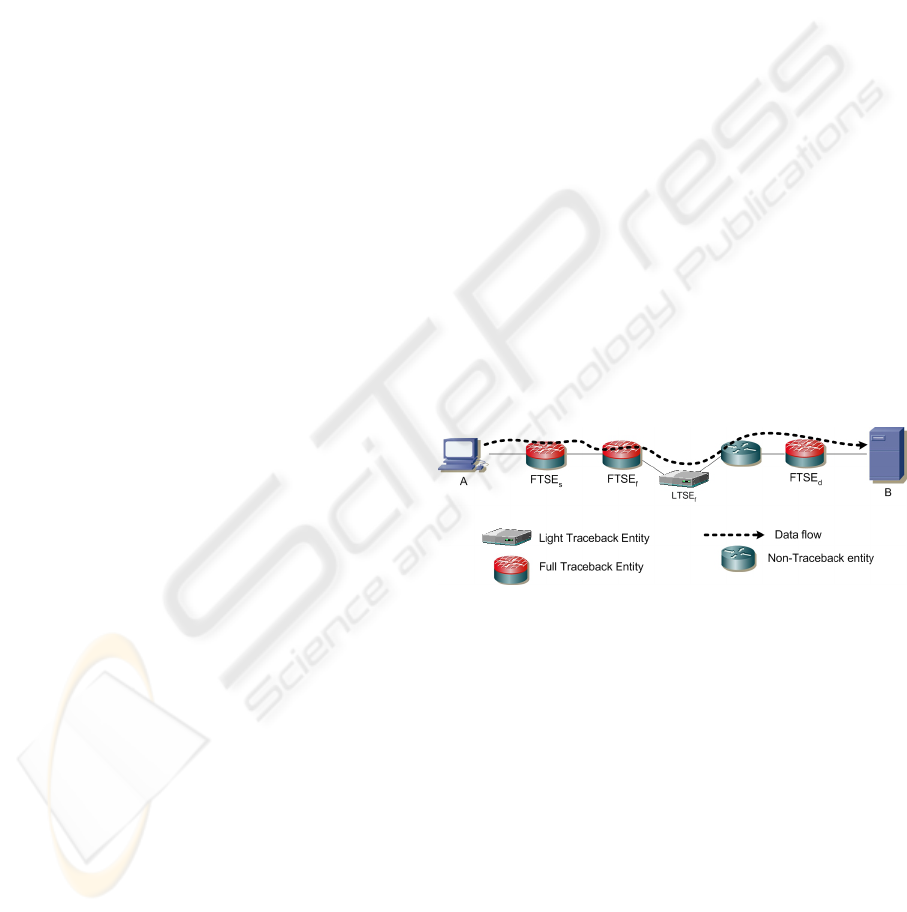

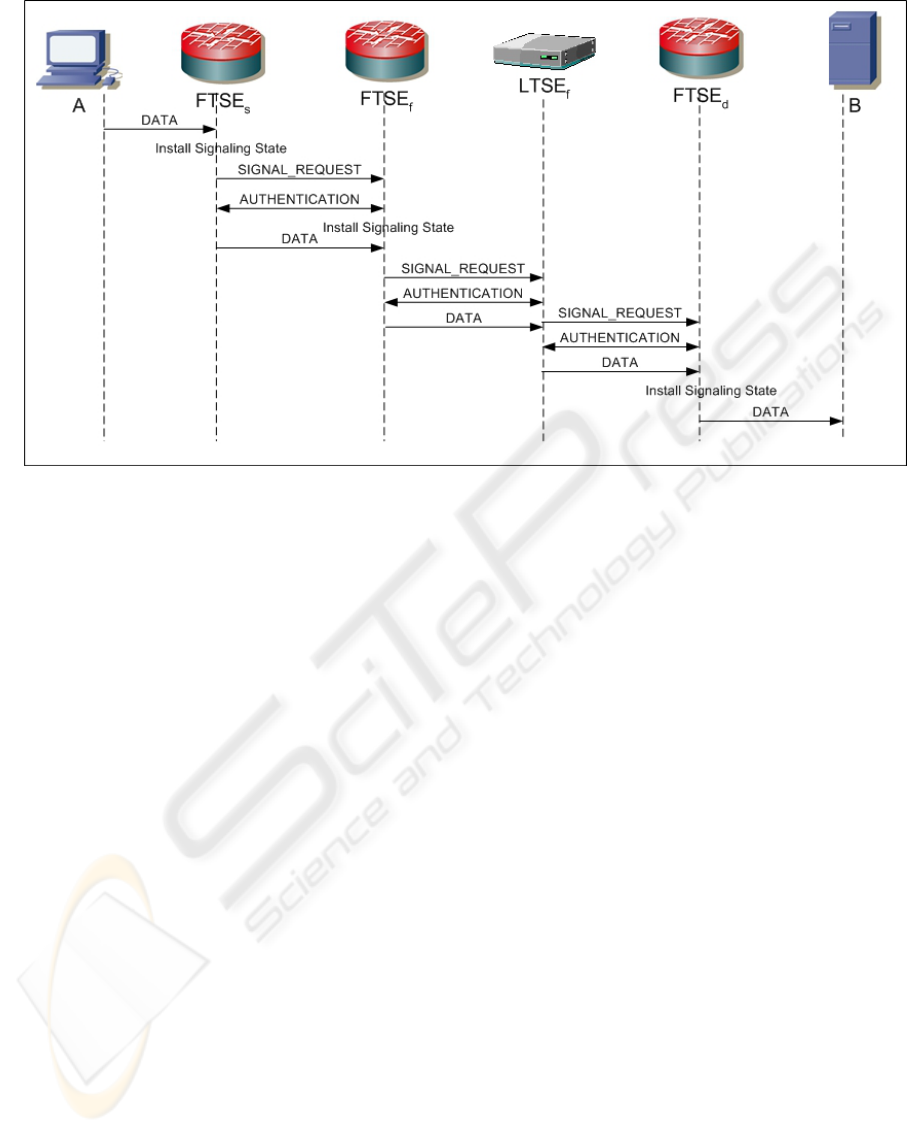

The figure above illustrates a traceback scenario
in which appear the different TSEs.
A user (A) (that might be an attacker) sends
traffic with destination to (B). The source FTSE
(the first one along the data path) (FTSE
s
) sends a
signaling request towards (B). This message
contains the description of the signaled flow.
When a forwarder FTSE (FTSE
f
) receives the
signaling request, an authentication process is
performed with the previous TSE, and if successful,
the forwarder adds it address in the router address
list (contained in the request), installs a signaling
state and forwards the request towards (B).
An LTSE acts similarly to a forwarder FTSE but
without maintaining a signaling state. The non-
signaling routers simply forward messages as
normal packets based on the destination IP address.
Figure 1: Traceback scenario
ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS
218
When the signaling request reaches the
destination FTSE (FTSE
d
), an authentication process
is performed with the last TSE, and if successful, a
signaling state is installed.
A signaling state contains information about the
signaled flow (sender/receiver IP address/port,
higher level protocols); it also contains a session
identifier that uniquely identify a signaled flow
(used also for refresh mechanism), the router list and
some authentication information.
When receiving a signaling request, an FTSE
acts as a forwarder or a destination depending on the
destination of the request; if the request is intended
to a host which is out of its “protection scope”, the
FTSE forwards the message (forwarder), otherwise
it acts as a destination FTSE.
It is important to note that the “state” term is
somehow different from the same term used in
reservation signaling protocols; a state – here – is
used to avoid redundancies in signaling information
and especially for long-period flows. In this context,
3SP takes a “soft state” approach (control states in
hosts and routers will expire if not refreshed within a
specified amount of time) to managing the state in
routers; all the information is – no doubt – logged
before their deletion. Note that a 3SP state is
refreshed by repeating the same first signaling
process. Figure 3 illustrates the different 3SP
exchanges between the signaling entities.
The traceback mechanism is simple; once attack
traffic is detected, a simple search based on the
traffic description allows the detection of the
signaling entities (router list) along the attack path.
This search can be carried out either in the existing
signaling states in the case of an ongoing attack or in
the logged signaling states in the case of a traceback
after an attack.
It is essential to have a fast lookup process.
There are many solutions; for example one solution
may be to use an appropriate hash function to build a
single hash table. Another solution is to use a Bloom
filter (Bloom, 1970), etc.
4.2.2 3SP messages
The table below describes the different messages
used for router communication.
N Message Name Description
1 SIGNAL_REQUEST sent by source
FTSE to “signal”
a given flow
2 SIGNAL_AUTHENTICATION contains the
information
needed to
perform the
authentication
process
3 SIGNAL_ERROR used to signal an
occurred error
Each 3SP message is composed of a “common”
header and a payload consisting of variable length,
typed objects. In the following, we define the format
of the common header and each of the 3SP message
types.
The 3SP common header includes the following
fields:
Vers: 4 bits
Protocol version
Flags: 8 bits
Reserved for future enhancements
Msg Type: 4 bits
Indicates the message type.
1 = SIGNAL_REQUEST
2 = SIGNAL_AUTHENTICATION
3 = SIGNAL_ERROR
3SP checksum: 16 bits
Contains the checksum, computed on the
entire message.
3SP length: 16 bits
The total length of the 3SP message in bytes,
including the common header and the
variable-length objects that follow.
Each 3SP message has to satisfy a number of
Table 1: 3SP
p
rotocol messages
Figure 2: 3SP packet
A SIGNALING ARCHITECTURE AGAINST DOS ATTACKS
219
syntax rules. These rules are specified using Backus-
Naur Form (BNF). The BNF implies an order for the
objects in a message. However, in our case, object
order makes no logical difference.
<SIGNAL_REQUEST Message> ::=
<3SP header> <ID_SESSION> <Traffic Descriptor>
<SIGNAL_AUTHENTICATION Message>::=
<3SP header><ID_SESSION> <AUTH_INFO>
<SIGNAL_ERROR> ::= <3SP header>
<ID_SESSION><Error Descriptor><AUTH_INFO>
5 DISCUSSION
5.1 Advantages
Compared with other traceback solutions, the
proposed architecture presents several advantages:
- As its name indicates, 3SP is simple in terms of
design and implementation. Moreover, this
simplicity is also reflected in the attack path
computation process which is a very important
criterion for traceback mechanisms. 3SP makes
this easy to achieve; there is no need for
complex path reconstitution algorithms such
those used in packet marking based traceback
solutions.
- The traceback mechanism is efficient, even
when attackers use concealment techniques
such as IP spoofing. It is also able to trace a
single packet back to its source.
- The solution is robust in a sense that it does not
generate any false positive path.
- 3SP can be easily extended and coupled with
other defense mechanisms such as detection and
filtering mechanisms, within the framework of a
global defense solution. 3SP facilitates – in this
way – the interoperation between heterogeneous
defense systems.
- The traceback mechanism is able to work
properly even in the case where some of the
routers does not support it. In the presence of an
edge-backbone-edge network infrastructure
(which is the most common nowadays), just two
3SP-capable routers are enough for the protocol
to function. The 3SP benefits grow
incrementally as number of deployment points
increases.
- 3SP can be useful for other purposes than the
DoS attack traceback; in fact, 3SP signaling can
be associated with specific flows and thus used
to traceback them. In this context 3SP can be
useful for other attack types, such as spam.
- 3SP is a network signaling protocol, so there is
no need for any modifications from the client
side.
Figure 3: 3SP message flow
ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS
220
5.2 Open issues
While this scheme appears to be a promising
direction, we recognize that there are some issues to
be further addressed in the future. First, the 3SP is
not able to efficiently handle transformed attack
packets, second the authentication scheme must be
carefully chosen in order to maintain a good
performance while preserving a high level of
security for the overall signaling mechanism.
6 CONCLUSION
Denial of service attacks are a great threat that faces
the Internet today. Many solutions were proposed to
combat these attacks, including prevention,
detection, filtering and traceback solutions.
In this paper, we presented a signaling
architecture, which facilitates the traceback of
Internet attacks and in particular DDoS attacks, even
with concealment techniques such as IP spoofing.
The traceback mechanism can be easily coupled
with other defense mechanisms such as attack
detection and filtering, and thus constitutes a
fundamental part of global defense architecture.
The signaling protocol 3SP has the capability of
functioning properly even in the presence of non
3SP-capable routers, thus enabling incremental
deployment of the protocol itself.
An experimental implementation of the 3SP
protocol is currently in progress, in order to evaluate
its performances and test the different possible
authentication mechanisms.
REFERENCES
Bellovin, S.M., 2001. ICMP traceback messages, Internet
draft.
Bloom, B. H., 1970. Space/time tradeoffs in hash coding
with allowable errors. Communications of the ACM,
13(7):422– 426.
Burch, H., Cheswick, B., 2000. Tracing Anonymous
Packets to Their Approximate Source, in Proceedings
of the 14
th
USENIX Systems Administration
Conference.
CERT® Coordination Center, 1997. “Denial of Service
Attacks”. Available from:
http://www.cert.org/tech_tips/denial_of_service.html
Cisco Systems, 1999. Characterizing and Tracing Packet
Floods Using Cisco Routers.
Dean, D., Franklin, M., Stubblefield, A., 2001. An
algebraic approach to IP Traceback. In Proceedings of
the 2001 Network and Distributed System Security
Symposium.
Gil, T.M., Poleto, M., 2001. MULTOPS: a data-structure
for bandwidth attack detection, in Proceedings of 10th
Usenix Security Symposium.
Lee, S. C., Shields, C., 2001. Tracing the Source of
Network Attack: A Technical, Legal and Societal
Problem, in proceedings of the 2001 IEEE Workshop
on Information Assurance and Security.
Mankin, A., Massey, D., Wu, C., Wu, S. F., Zhang, L.,
2001. On Design and Evaluation of Intention-Driven
ICMP Traceback, In Proceedings of IEEE
International Conference on Computer
Communications and Networks.
Mirkovic, J., Prier, G., Reiher, P., 2002. Attacking DDoS
at the source. In Proceedings of ICNP 2002, pp. 312–
321
Park, K., Lee, H., 2001. On the Effectiveness of
Probabilistic Packet Marking for IP Traceback, In
Proceedings of IEEE INFOCOM 2001.
Paxon, V., 2001. An analysis of using reflectors for
distributed denial-of-service attacks. Computer
Communication Review.
Sanchez, L.A., Milliken, W.C., Snoeren, A.C.,
Tchakountio, F., Jones, C.E,. Kent, S.T., Partridge, C.,
Strayer, W.T., 2001. Hardware Support for a Hash-
Based IP Traceback, in Proceedings of DARPA
Information Survivability Conference & Exposition.
Savage, S., Wetherall, D., Karlin, A., Anderson, T., 2000.
Practical network support for IP Traceback, In
Proceedings of 2000 ACM SIGCOMM Conference.
Song, D. X., Perrig, A., 2001. Advanced and authenticated
marking schemes for IP Traceback, IEEE INFOCOM
2001.
Stein, L.D., Stewart, J.N., 2003. The World Wide Web
Security FAQ, v 1.7.
Stone, R., 2000. CenterTrack: An IP Overlay Network for
Tracking DoS Floods, In Proceedings of 9th Usenix
Security Symposium.
A SIGNALING ARCHITECTURE AGAINST DOS ATTACKS
221
