THE USE OF DATA MINING IN THE IMPLEMENTATION OF A

NETWORK INTRUSION DETECTION SYSTEM

John Sheppard, Joe Carthy, John Dunnion

University College Dublin

Ireland

Keywords:

Data Mining, Network Intrusion Detection Systems, anomolies, network attack, decision trees.

Abstract:

This paper focuses on the domain of Network Intrusion Detection Systems, an area where the goal is to detect

security violations by passively monitoring network trafﬁc and raising an alarm when an attack occurs. But

the problem is that new attacks are being deployed all the time. This particular system has been developed

using a range of data mining techniques so as to automatically be able to classify network tracfﬁc as normal

or intrusive. Here we evaluate decision trees and their performance based on a large data set used in the 1999

KDD cup contest.

1 INTRODUCTION

Over the past ﬁfteen years, intrusion detection and

other security technologies such as cryptography, au-

thentication and ﬁrewalls have increasingly gained

in importance (Allen et al., 2000). This is reﬂected

by the amount of so called CERTs, Computer Emer-

gency Response Teams that have arisen since the early

nineties. Before these, reactions to attacks were iso-

lated and uncordinated resulting in much duplicated

effort and in conﬂicting solutions (First, ). These

CERTs worked together through organisation such as

FIRST,the Forum of Incident Response and Security

Teams, to prevent, detect and recover from computer

security incidents by sharing alert and advisory infor-

mation on potential threats and emerging security sit-

uations.

The impact of these attacks can be extreme. In

some cases corporations have lost millions in loss of

revenue or knowledge they were hiding from com-

petitors. On other occasions universities or individ-

uals have been hacked and used as middlemen for

causing damage to others. The victim is then held re-

sponsible for any damage caused by not ensuring the

security of their machine. Some experts believe that

one day insurance for computer networks will be as

common as ﬁre and theft poliies. Detecting such vio-

lations is a necessary step in taking corrective action

such as blocking the offender, reporting them or tak-

ing legeal action against them. Alternatively it allows

administrators to identify those areas whose defences

need improving such as the identiﬁcation of a pre-

viously unknown vulnerability, a system that wasn’t

properly patched or a user that needs further educa-

tion against social engineering attacks.

A good security model should be built upon several

layers including:

• A good security policy for the organization

• Host system security

• Auditing

• Router Security

• Firewalls

• Intrusion Detection Systems

• Incident response Plan

(SANS, )

Using multiple layers strength ens deterrence of

unauthorized use of computer systems and network

services. As each layer provides some form of pro-

tection against an attack, the security breach of one

layer does not leave the whole system open to attack.

The layer focused on in this paper is Intrusion Detec-

tion Systems.

1.1 Intrusion Detection

An intrusion can be deﬁned as any set of actions that

attempt to compromise the integrity, conﬁdentiality or

399

Sheppard J., Carthy J. and Dunnion J. (2005).

THE USE OF DATA MINING IN THE IMPLEMENTATION OF A NETWORK INTRUSION DETECTION SYSTEM.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 399-404

DOI: 10.5220/0001231403990404

 SciTePress

availability of a resource (Heady et al., 1990). Intru-

sion detection is the process of monitoring and ana-

lyzing the events occurring in a computer system in

order to detect signs of security problems.

Traditionally, both in a commercial and research

sense, these systems have been based on the idea of

attack signatures provided by humans. Signatures

were stored in a database and manually revised with

the emergence of new attacks. Systems were unable

to detect these new attacks, and it often took a sub-

stantial amount of time before the latest signatures

were created and deployed. Attempts to detect attacks

beyond this limited realm typically results in an unac-

ceptable level of false positives.

In recent years the focus has turned to Data Mining

as an alternative approach. Data mining techniques

are used in two ways, Misuse Detection and Anom-

aly Detection. In misuse detection each instance is

labeled as ’Normal’ or ’Intrusive’. Then learning al-

gorithms are trained on this data. Models created au-

tomatically are more precise and sophisticated than

those that are manually created leading to high accu-

racy and low false alarm rates, but are unable to detect

attacks whose instances have not yet been observed.

Anomaly detection algorithms build models of nor-

mal behavior and automatically detect any deviation

from it which may result in unforeseen attacks. This

is also known as the ’Paranoid Approach’ as any-

thing not seen before may be dangerous. Bearing

in mind that ”just because you’re paranoid, doesn’t

mean they’re not out to get you”, this outlook can

be seen as advantagous especially in a securitycon-

text. This gives the ability to detect attempts to exploit

novel or unforeseen vulnerabilities. The high false

alarm rate is generally seen as the major drawback.

The architecture of these systems can be host based

or network based. Host based systems reside on an

individual computer monitoring that particular ma-

chines log ﬁles. Network based systems monitor the

network trafﬁc analysing packets. In the Intrusion De-

tection domain data is so volumous and the analysis

process so time consuming that administrators dont

have the resources to examine and extract all the rele-

vant knowledge except in rare circumstances such as

a legal investigation following an attack. Some of the

challenges being faced are

• large data sizes,

• high dimensionality,

• temporal nature of the data,

• skewed class distribution,

• data preprocessing and high performance comput-

ing.

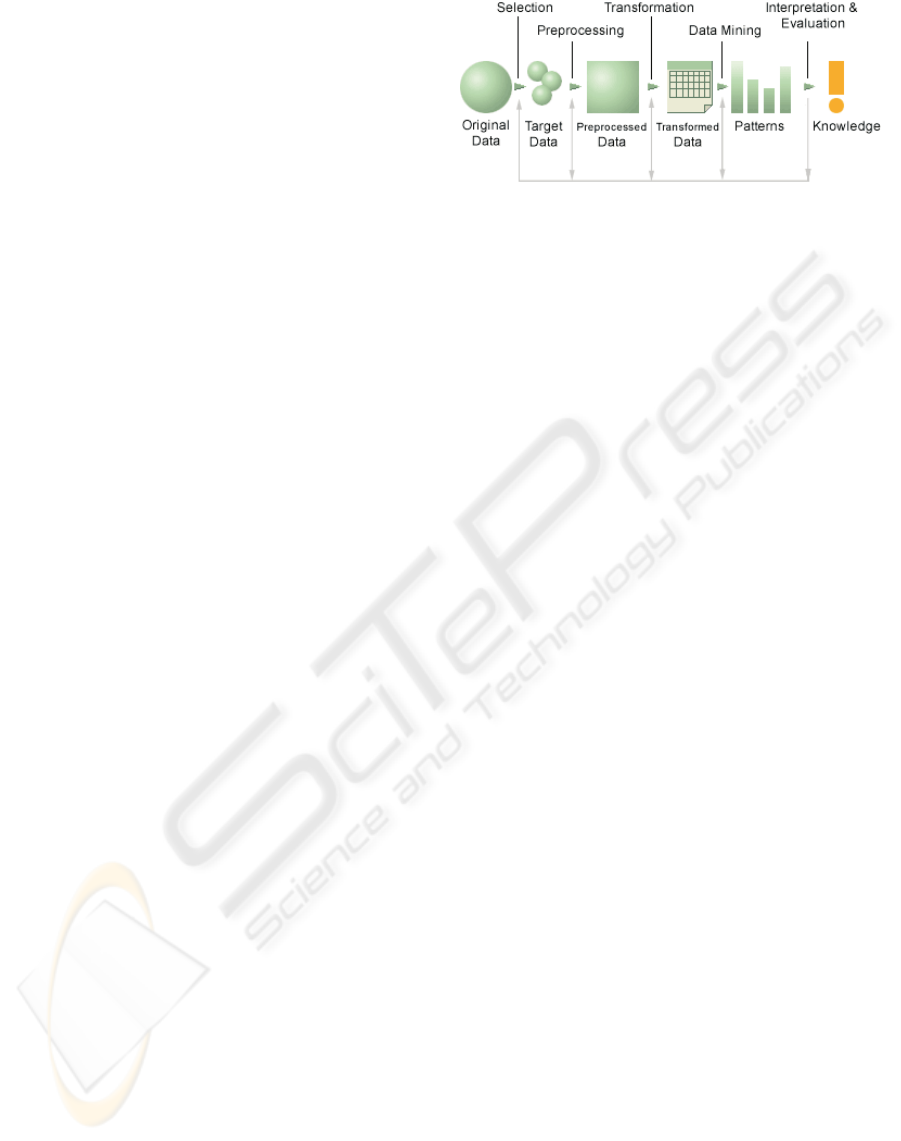

Figure 1: The KDD process

1.2 Data Mining

Data Mining is the process of extracting useful and

previously unnoticed models or patterns from large

datastores. (Bass, 2000; Manilla, 2002; Fayyad et al.,

1996). Data mining is a component of the Knowl-

edge Discovery in Databases (KDD) process (Car-

bone, 1997; Fayyad et al., 1996). There are several

steps to the KDD process. These can be seen in ﬁgure

• Selection, obataining the data from a source.

• Preprocessing, correcting any incorrect or missing

data.

• Transformation, converting all data into a comm-

mon format.

• Data Mining, using algorithms to extract the infor-

mation and patterns derived from the kdd process.

• Interpretation/evaluation, how to present the re-

sults.

Data mining techniques can be differentiated by

their model functions and representation, preference

criterion, and algorithms (Fayyad et al., 1996). The

function model in question here is classiﬁcation.

Common representations for data mining techniques

include rules, decision trees, linear and non-linear

functions, instance based examples and probability

models.

2 DATA

The data set used here was the same as the data set

used for the 1999 KDD intrusion detection contest. It

is a version of the 1998 DARPA Intrusion Detection

Evaluation Program which was prepared and man-

aged by MIT Lincoln Labs. Lincoln labs set up an

environment to acquire nine weeks of raw TCP dump

data for a LAN simulating a typical US Air Force

LAN. The raw training data was about 4 gigabytes of

compressed binary TCP dump data from seven weeks

of network trafﬁc. This was processed into about 5

WEBIST 2005 - WEB SECURITY

400

million connection records. Another two weeks of

test data yielded approximately two million more con-

nection records.

Each connection record consists of about 100

bytes. A connection is a sequence of TCP packets

starting and ending at some well deﬁned times be-

tween which data ﬂows to and from a source IP ad-

dress number under some well deﬁned protocol. Each

connection in the training set is labelled either as nor-

mal or as an attack.

The training data contains twenty four attacks,

while the test data contains an additional fourteen at-

tacks. These thirty eight attack types can be catego-

rized into one of following four categories

DOS, a denial of service attack is an attack

where the assailant makes some computing or mem-

ory resource too busy or too full to handle legitimate

requests, or denies legitimate users access to a ma-

chine. An example of a DOS attack would be a Back

Attack. This strike attacks the Apache web server by

submitting requests with many frontslashes. As the

server tries to process these frontslashes it consumes

excessive CPU time slowing down and becoming un-

able to process other network requests.

R2L, a remote to local attack takes place when

an attacker manages to send packets across a network

targetting a machine the attacker does not have access

to. There are many ways to do this varying from a

dictionary attack on the users password to exploiting

buffer overﬂow vunerabilities.

U2R, a user to root attack occurs when a normal

user, (or possibly an unauthorized user who has al-

ready gained access to a normal user account through

social engineering or snifﬁng passwords), is able to

exploit some vulnerability in order to gain root access

to the system. A common means to carrying out many

U2R attacks is buffer overﬂow. When a programmer

writes a program to recieve some input the size of the

buffer in which it will be stored needs to be decided.

An intruder will proﬁt from this opportunity by ﬁlling

the buffer and then including some extra commands to

be submitted and understood by the operating system.

PROBE, a probe atack is a surveillance proce-

dure where an attacker can quickly scan a network

in order to gain information on the network and the

machines for a possible attack in the future. (Kendall,

1999)

Each connection record is made up of forty two

features in the training data and forty one in the test

data. These features are divided into three categories.

The ﬁrst set is basic features of individual TCP

connection such as the length of the connection,

the type of protocol, the network service and the

number of bytes from source to destination and vise

versa. The second set are content features within

a connection suggested by a domain knowledge

including the number of failed login attempts,

whether the attacker gained access, whether the

attacker attempted to gain root access, whether the

attacker was successful in gaining root acces, the

number of ﬁle creation operations and the number

of outbound commands in an ftp session. The ﬁnal

set of features are Trafﬁc features. These were com-

puted using a two second time window and resulted in

• Number of connections to the same host as the cur-

rent connection

• Percentage of connections that have ”SYN” errors

• Percentage of connections that have ”REJ” errors

• Percentage of connections to the same service

• Percentage of connections to different services

• Number of connections to the same service as the

current connection

Several categories of higher level features were de-

ﬁned including same host and same service features.

The same host features study the connections in the

past two seconds that have the same destination host

as the the current connection while the same service

features inspect the connections in the past two sec-

onds that have the same service as the current con-

nection. These features together are called time based

features and it is from these that statistics relating to

service and protocol behaviour are derived.

3 ARCHITECTURE

The architecture of the system can be seen in ﬁgure

1. It is a distributed system, a computer architec-

ture consisting of interconnected processors. With

distributed systems each processor has its own local

memory. Processors communicate by message pass-

ing over the network. For any particular processor its

own resources are local whereas the other processors

and resources are remote. Together a processor and

its resources are called a node.

The distributed architecture of this system allows

for a shorter response time in analysing incoming net-

work trafﬁc and higher reliability due to various data

mining algorithms performing differently depending

on the attack.

The system works as follows,

THE USE OF DATA MINING IN THE IMPLEMENTATION OF A NETWORK INTRUSION DETECTION SYSTEM

401

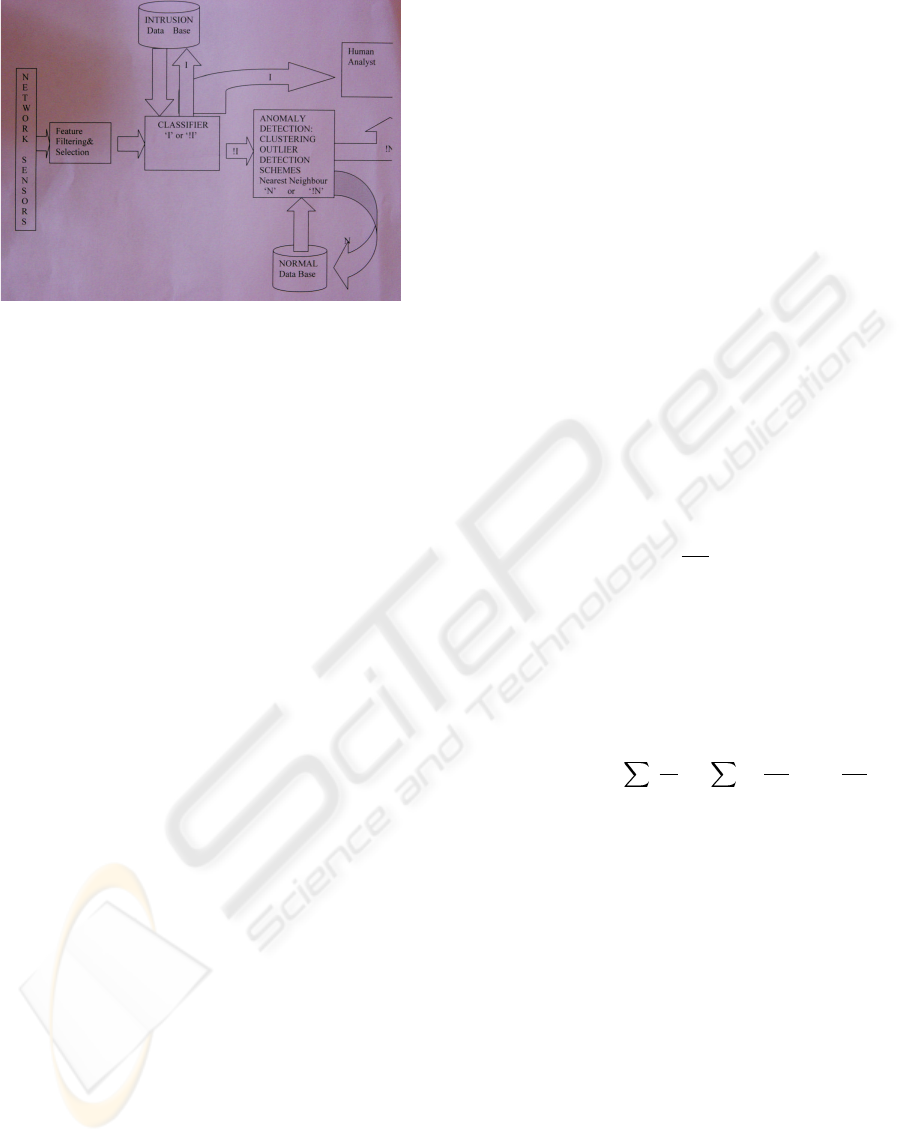

Figure 2: System Architecture.

• 1 TCP dump data is gathered from the network.

The data is then ﬁltered and the required features

are extracted.

• 2 Each incident is classiﬁed as either an ’Intrusion’

or ’not deﬁnitely an intrusion’.

• 3 If the incident is an intrusion the human analyst

is alerted and takes appropriate action and the new

incident is added to the data base of known intru-

sions.

If the incident is classed as ’not deﬁnitely an intru-

sion’ it goes through to be checked for anomalous

behaviour.

• 4 In the anomaly detection phase the incidents are

compared to the data base of normal incidents us-

ing a range of data mining techniques. Incidents

that exceed a certain threshold are labeled ’Nor-

mal’ and added to the Normal data base. Those

that aren’t similar enough are labeled as ’Not deﬁ-

nitely Normal’ and the human analyst is alerted to

investigate the incident further.

4 METHOD

There are many different data mining techniques

available such as clustering, summarization, regres-

sion, association rules and classiﬁcation to name a

few. The subsystem looked at in detail here is the

classifer. A classiﬁcation problem is when given a

databse D={t1,t2,...,tn} of records and a set of classes

C={c1,c2...,cm}, the problem is to deﬁne a mapping

f:D->C where each ti is assigned to one class. A

class cj contains precisely those tuples mapped to

it.(Dunham, 2003)

The classiﬁcation technique used in this instance is

a decision tree. Decision trees are a predicitve mod-

elling technique. A decision tree is a tree where the

root and each internal node is labelled with a ques-

tion. The arcs emenating from each node represent

each possible answer to that particular question. Each

leaf node represents a solution to the classiﬁcation

problem. Hence decision trees adopt a disjunctive

normal form representation. The important difference

between decision trees is to be found in their splitting

criterion, how best to split the sample.

Quinlans C5.0 algorithm was used here. It is an

extension from C4.5, which itself was an extension

from Quinlan’s earlier ID3 algorithm for constructing

trees. In these algorithms the splitting criterion used

have their origins in information theory.

The basic procedure followed by them is

• 1 See how the attributes distribute the instances.

• 2 Minimize the average entropy; Calculate the av-

erage entropy of each test attribute and select the

one with the lowest degree of entropy.

Entropy is a measure of the impurity or uncertain-

ity of the data. It is based on the probability of an in-

stance on a branch being positive, where homogenous

positive means Pb = 1, and homogenous negative oc-

curs where Pb = 0. The equation for this probability

meausre is shown in equation 1.

(1)

where

n b, is the number of instances in branch b

n bc, is the number of instances in branch b of class c

n t, is the total number of instances in all branches

The information gained over an attribute is a mea-

sure in the reduction of entropy.

AverageEntropy =

(

) ∗ [

−(

)log2(

)]

(2)

The entropy value is normalised between 0 and 1.

The lower the entropy value the purer the set. C4.5

and C5 are based on ID3 but have added functionality

with C5 being much faster and a lot more memory

efﬁcient.

5 RESULTS

The system was trained on the learning dataset com-

prising of over 5 million records. It was then tested

with the test data set containing 311029 records. In

the test dataset we know what classes should be given

by the tree. From this the system is able to produce

a decision tree and a confusion matrix which can be

seen in ﬁgure 3 and table 1 respectively. The decision

tree consists of a series of quesitions at points called

nodes. Following these decisions should lead to the

conclusion as to whether this is normal behaviour.

WEBIST 2005 - WEB SECURITY

402

count > 80

:....dst

bytes <= 1

: :....diff

srv rate <= 0.23: DOS

: : diff

srv rate > 0.23: PROBE

: dst

bytes > 1:

: :....diff

srv rate <= 0.53: normal

: diff

srv rate > 0.53: PROBE

:count <= 80

.....

Figure 3: Example of branaches on the tree

• The confusion matrix in table 1 shows us that

60302 test incidents were correctly identiﬁed by the

system to be deemed as normal behaviour. These

are known as true positives, the tree outputs the

class correctly. These true positives follow the di-

agonal through the matrix with respect to each at-

tack.

• The righthand column labelled (b) indicates that

232 normal test incidents were thought to be probe

attacks. These are known as false negeatives indi-

cating that the tree has output class normal falsely.

• The values diagonally through the matrix are

known as true negatives when we are looking to

the normal ﬁgures as our true positives. This show

us that 3572 PROBE attacks, 223687 DOS attacks,

4 user to root and 28 remote to local attacks were

correctly identiﬁed.

• All the values listed in column (a) other than the

number of true positives are called false positives,

that is to say the tree incorrectly classiﬁed them as

not normal.

The metrics of precision and recall were calculated

according to equations 3 and 4. Both a high recall and

precision rate are desired. However generally as pre-

cision increases recall decreases and vice versa. From

the graph in ﬁgure 4 we see a varied set of results.

U2R, user to root attacks, and R2L, remote to local

attacks, perform very poorly with only a few being

correctly classiﬁed. Despite the fact the corpus con-

tained many more instances of R2L attacks than it did

PROBE attacks PROBE performed a lot better. Nor-

mal cases scored similarly to PROBE attacks but had

a higher recall rate. DOS attacks scored excelentally

almost with maximum precision and maximum recall.

P recision =

relevantnumberretrieved

totalnumberretrieved

(3)

Recall =

relevantnumberretrieved

totalnumberrelevant

(4)

Table 1: Precision Vs Recall

Precision Recall

normal 0.7347823 0.9951975

PROBE 0.7387797 0.8574172

DOS 0.9989915 0.9664384

U2R 0.0952381 0.0175439

R2L 0.2568807 0.0019195

5.1 Accuracy

The accuracy of the system is the proportion of the

total number of predictions that were correct. From

equation 5 the system evaluation resulted in 92.5%

accuracy based on the confusion matrix in table 1.

accuracy =

correctpredictions

allpredictions

(5)

6 CONCLUSION & FUTURE

WORK

Various data mining techniques score differently de-

pending upon which type of attack they are trying to

detect. Some learning algorithms do well on one part

of the dataset where others fail and this clearly indi-

cates the need for hybrid learning.

This is hybrid system and holds true on this fact.

The C5 algorithm produced a decision tree that is very

valuable in certain attacks but not others. DOS and

PROBE attacks have both scored highly. The fact

that decision trees perform well with PROBE attacks

means that they will play a valuable role in this hy-

brid system. By uncovering a probe attack early on

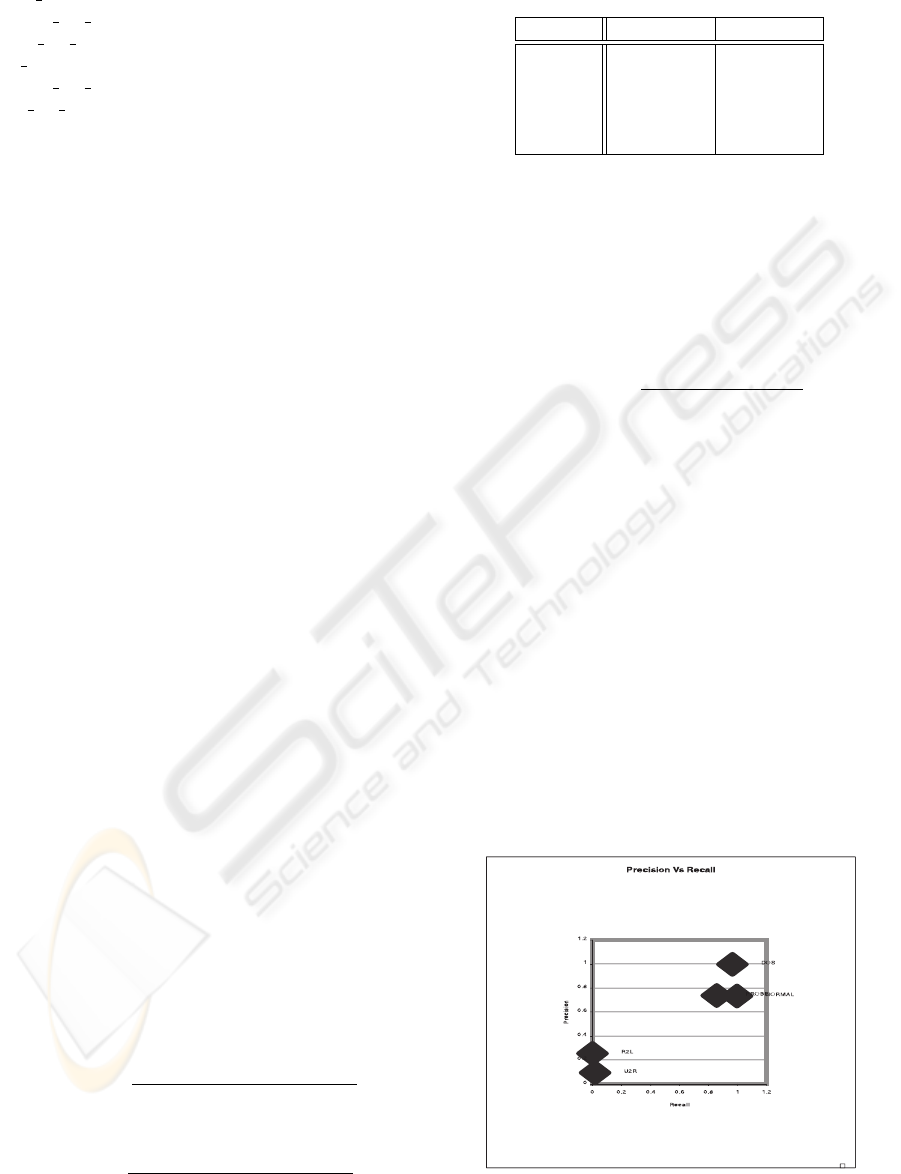

Figure 4: Preecision Vs Recall Graph.

THE USE OF DATA MINING IN THE IMPLEMENTATION OF A NETWORK INTRUSION DETECTION SYSTEM

403

we can prevent it from becoming anythig more than

just a PROBE attack. DOS attacks should be discov-

ered with high accuracy and a low false alarm rate.

U2R and R2L attacks however have high miss rates

and these instances will need to be evaluated with

other algorithms. Work is already underway with the

implementaion of alternative data mining techniques

such as clustering and outlier detection schemes in

other parts of the system. Preliminary results of these

alternatives are proving better at detecting U2R and

R2L than decision trees.

Table 2: Confusion Matrix

Classiﬁed as -> (a) (b) (c) (d) (e) correct

normal (a) 60302 232 57 1 1 73.4

PROBE (b) 410 3572 184 73.9

DOS (c) 7630 28 223687 36 74 99.9

U2R (d) 213 4 1 4 6 9.5

R2L (e) 13558 999 1 1 28 25.7

correct 99.5 85.7 96.6 1.8 0.2

REFERENCES

Allen, J., Christie, A., Fithen, W., McHugh, J., Pickel, J.,

and E., S. (2000). State of the practice of intrusion

technologies. www.cert.org.

Bass, T. (2000). Intrusion detection systems and multisen-

sor data fusion. Communications of the ACM 43(4)

99-105).

Carbone, P. (1997). Data mining or knowledge discovery in

databases, an overview. Auerbach Publications.

Dunham, M. (2003). Data Mining, Introductory & Ad-

vanced Topics. Prentice Hall.

Fayyad, U. M., Piatetsky-Shapiro, and Symth, P. (1996).

The kdd process for extracting useful knowledge from

volumes of data. Communications of the ACM 39 (11)

27-34.

First. www.ﬁrst.org.

Heady, R., Luger, G., Maccabe, A., and Servilla, M. (1990).

The architecture of a network level intrusion detection

system. Technical report, Computer Science Depart-

ment, University of New Mexico.

Kendall, K. (1999). A database of computer attacks for

the evaluation of intrusion detection systems. In

ICEIS’99, 1st International Conference on Enterprise

Information Systems. MIT.

Manilla, H. (2002). Local and global methods in data min-

ing. ICALP 2002, The 29th International Colloquim

on Automata, Languages, and Programming, Malaga,

Spain.

SANS. www.SANS.org.

WEBIST 2005 - WEB SECURITY

404
