SEAMLESS AND SECURE AUTHENTICATION FOR GRID

PORTALS

Jean-Claude Côte, Mohamed Ahmed, Gabriel Mateescu, Roger Impey

National Research Council, 1200 Montreal Rd, M50, HPC, Ottawa ON, K1A 0R6 Canada

Darcy Quesnel

Canarie Inc., 110 O’Connor St., Ottawa, ON, K1P 5M9 Canada

Keywords: grid portal, security, web services, single sign-on, digital certificates, secure shell

Abstract: Grid portals typically store user grid credentials in a credential repository. Credential repositories allow

users to access Grid portals from any machine having a Web browser, but their usage requires several

authentication steps. Current portals require users to explicitly go through these steps, thereby hindering

their usability. In this paper we present intuitive and easy to use tools to manage certificates. We also

describe the integration of Grid Security Infrastructure authentication into a Java-based SSH terminal tool.

Based on these tools, we build an innovative portal authentication mechanism that enables transparent

delegation of credentials between clients, grid portal and the credential repository.

1 INTRODUCTION

Grid computing (Foster, 1997] supports sharing of

distributed resources across authorization domains.

A portal to such a grid allows scientists to securely

and easily access grid resources at various locations

by using a web browser. For example, users can

execute an application, download or upload data and

monitor the status of a computing job (Grimshaw,

1997] through a browser. In addition to user

mobility, browser-based access provides an easy-to

use interface to the grid. Some available grid portal

frameworks are GridPort (GridPort], GridSphere

(GridSphere] and Unicore (UNICORE]. In this

paper, we discuss ways to extend and enhance Grid

portals by using client side Java applications (Joy,

2000] that facilitate credential management. These

mechanisms were developed in the context of a Grid

Infrastructure project in National Research Council

Canada.

Typically, grid portals do not run on the client’s

system. For example, in a Globus Toolkit grid

infrastructure based on C-language components,

users have to rely on Unix-like platforms to generate

certificate requests and do certificate housekeeping

by way of command-line tools. The Globus

Commodity Grid (CoG) CoG kit (COG] provides

Java version of most command-line tools, thereby

enabling credential management on all Java

platforms. However, the (CoG) kit needs to be

downloaded and deployed by the user. It is also

missing some functionality present in the command-

line tools and does not provide a graphical user

interface, as a grid portal user would expect. In this

paper we will discuss the design and implementation

of some of the missing tools and the deployment of

the Java applications using Java Plugin and Web

Start technologies. Henceforth, we call the tools that

we contribute the Credential Management Tools.

Another contribution described here deals with

providing a way for grid portal users to open a shell

at runtime to a grid resource, which is sometimes

required for debugging/inspection of processes on

remote resources but is not typically supported by

grid portals.

The work presented in this paper is related to the

Grid Canada project. The paper is organized as

follows. In section 2, we present the architecture of

an open-source grid portal with improved

authentication and interactive execution services. In

Section 3, we describe the certificate management

tools, followed by the description of the GSI-based

SSH java client in Section 4. Section 5 explains the

components and usage scenario of our grid logon

client applet and web service. Section 6 contains

concluding remarks.

140

Côte J., Ahmed M., Mateescu G., Impey R. and Quesnel D. (2005).

SEAMLESS AND SECURE AUTHENTICATION FOR GRID PORTALS.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 140-145

DOI: 10.5220/0001229501400145

 SciTePress

2 GSI-BASED GRID PORTAL

SERVICES

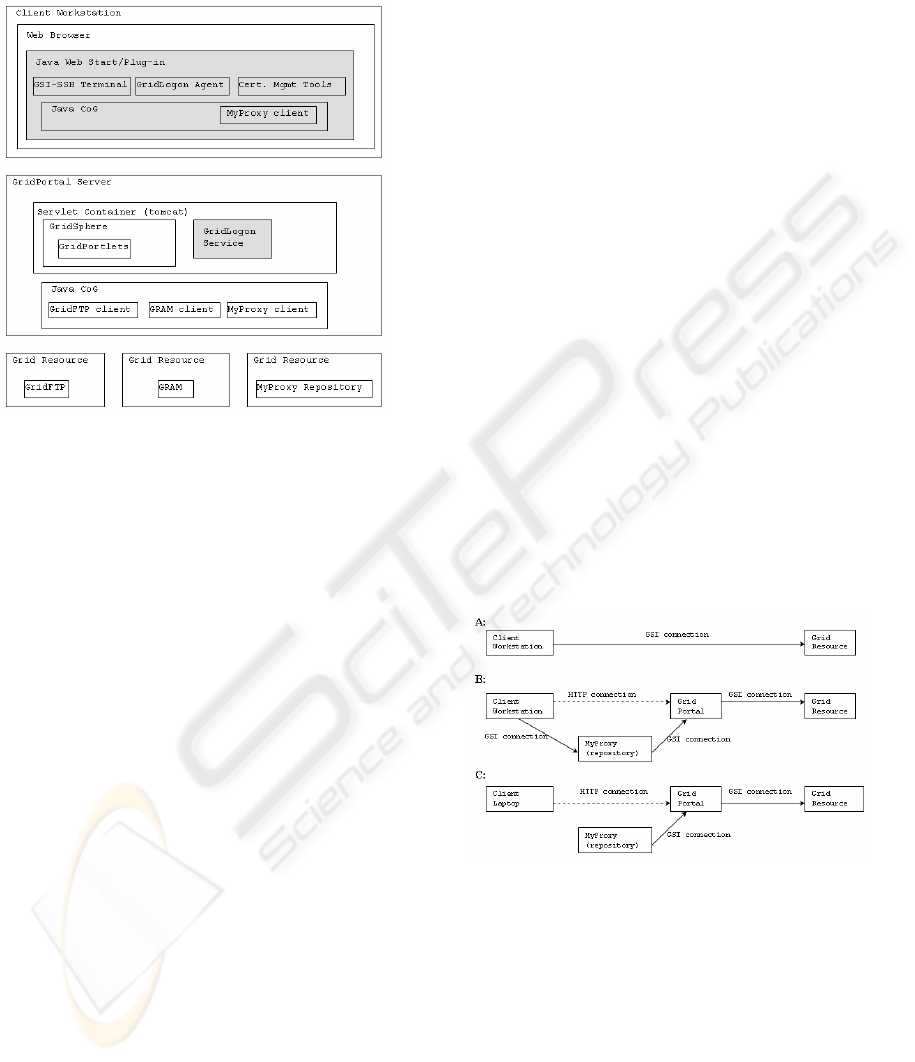

Figure 1: Grid Portal Architecture and Components

The problem with grid portals that we tackle in this

paper is that the client needs to be aware to certain

extent with the grid authentication mechanisms and

operations. Even with the use of grid MyProxy

server as a third entity for maintaining proxy

certificates, the user should go through several steps

to upload his credentials, renewing it if necessary

and destroying it when he opts to. This hinders the

usability of the use of credential repositories and

making them harder to use for novice and non-

computer savvy users. We try to solve those issues

through the addition of new and useful automatic

tools (we called them grid-logon services and

protocols) to manage certificates more easily and

transparently especially against grid portals.

Moreover, we integrated these new modules and

protocols as a new useful feature to other client tools

such as Java-based SSH terminal clients. This would

provide very powerful portable service for end-user

during the grid portal session.

In this section we show the design of the

Credential Management Tools, and then we show

how we added a GSI Authentication module to the

SSHTerm Java application. Finally, we present a

novel Grid Portal Logon Mechanism that enables

transparent single sign-on. Figure 1 depicts an

overview diagram of typical Grid Portal layout. Our

new modules, which we will discuss later in this

paper, are highlighted in grey. We based our portal

implementation and protocols on GridSphere grid

portal (GridSphere].

3 CERTIFICATE MANAGEMENT

AND AUTHENTICATION

MECHANISMS

The Public Key Infrastructure (PKI) is used by most

grid middleware. For example Globus uses GSI

which in turn is based on PKI. Under PKI, a user

generates a private/public key pair using a certificate

request tool; then the user sends his/her public key to

a certificate authority (CA). The CA verifies the

user’s information and provenance. The CA uses its

private key to sign the user’s public key and grants

the user a digital security certificate. The user

receives this certificate from the CA. The private

key along with the signed certificate are the user’s

credentials, which can be used to authenticate and

authorize access to grid resources. Similarly, an

administrator requests a certificate on behalf of the

grid portal entity and for every grid resource in

general.

A grid user could access grid resources using

his/her credentials by way of the portal. Thus, user’s

credentials must be delegated to the portal since it is

the portal that accesses the grid resources on behalf

of the user. This delegation is typically done using a

credential repository (for example, a MyProxy

(Novotny, 2001] repository). Here’s a diagram

(Figure 2) showing several ways of GSI

authentication between a grid client and a grid

resource.

Figure 2: Typical usage of MyProxy repository by grid

portals.

-Scenario A: A command line tool is employed by

the user to send a job request to a grid resource.

Delegation is done using the GSI mechanism.

-Scenario B: A command line tool is used to

delegate his/her credential to a credential repository,

using the GSI mechanism. The user then uses the

portal to send the job request over plain HTTP or

HTTPS. The portal retrieves the user’s credentials

from the repository on behalf of the user and sends

the job request to the grid resource over GSI

connections.

SEAMLESS AND SECURE AUTHENTICATION FOR GRID PORTALS

141

-Scenario C: Assuming valid credentials are already

stored in the MyProxy repository, a grid portal user

simply uses a browser to send a job request from any

location.

During development of our Grid Canada portal

(GridCanada] we followed this approach but quickly

found that pieces were missing to make this process

intuitive and easy to use. In addition, there were no

tools available to Windows and Mac users to

generate certificate requests and renewals. So these

users had to first find a Linux machine with Globus

installed on it to generate their certificate requests

and move their private keys and certificates back to

their favourite operating system, a major security

faux pas. Hence we implemented both of these

command line tools in Java and thus could be run by

any Java-enabled browsers. We have contributed

them to the Globus Java CoG kit. While this Globus

COG kit provided portable certificate management,

users were still required to install the Java CoG kit

and execute command line tools. So the logical next

step was to make this process truly transparent by (i)

providing a graphical user interface; (ii) supporting

“point-and-click” installation of the Java code. So

we developed our credential management tools; a set

of Java applications deployed using Web Start and

Java Plug-in technologies.

Both the Java Plug-in and Web Start technologies

employ code-signing; and PKI to ascertain the

provenance and integrity of the application being

installed. The code is bundled into Jar files and

signed using the Grid portal’s private key. The Jar

files contain a digital signature (an encrypted hash of

the Jar file itself) and a certificate chain. A

certificate chain is a list of hierarchically ordered

public-key certificates and it is used to determine the

ultimate signing authority of a certificate.

Web Start technology can verify the certificate

chain all the ways up to its root CA certificate. It

checks if the root CA certificate is contained in the

database of trusted root CA certificates. Web Start

comes already installed with well-known root CA’s

such as VeriSign Inc. and Entrust Inc. Since our

Grid Canada root CA is not contained in the

database it needs to be manually installed once by

the user.

The certificate management tools described in

this paper support a comprehensive set of

operations: generating a certificate request, a host

certificate request, and a certificate renewal; viewing

a local certificate; revoking a certificate; delegating

credentials to a MyProxy repository. All these tools

are intuitive, easy to use and self-installed using Java

deployment technologies.

4 GSI-SSHTERM

AUTHENTICATION MODULE

This section describes GSI-SSHTerm, a pure

portable Java application (as shown in figure 3) that

enables users to open remote shells on grid

resources. Shell access to grid resources is

sometimes required to debug and inspect remote

processes running on grid resources. As mentioned

in the introduction, we did not find any Java SSH

terminal able to authenticate using the GSI

authentication mechanism. So we designed and

implemented our own GSI authentication module

and integrated it into the SSHTerm tools from the

SSHTools project (SSHTools].

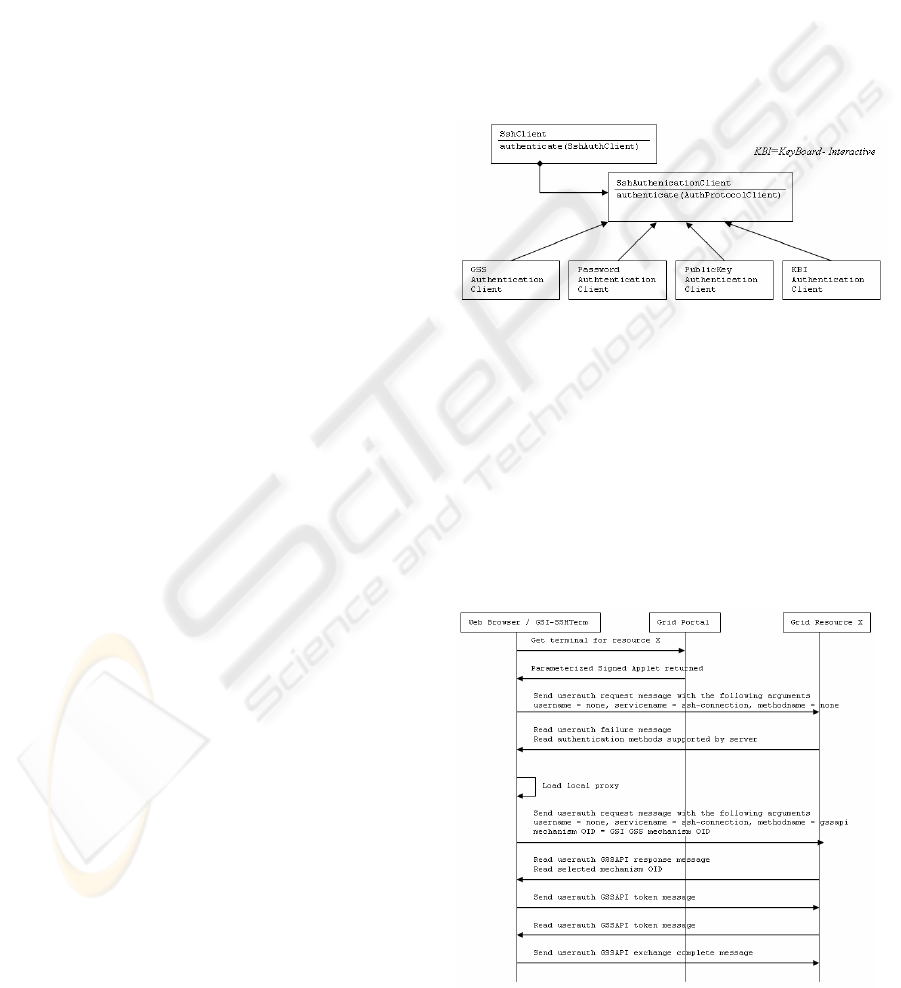

Figure 3: SshAuthentication class hierarchy diagram.

Until now, the Globus Toolkit uses the GSI to

enable secure authentication and communication

over an open network. GSI provides a number of

useful services for Grids, including mutual

authentication and single sign-on. GSI is based on

public key encryption, X.509 certificates, and the

Secure Sockets Layer (SSL) communication

protocol. Extensions to these standards have been

added for single sign-on and delegation. The Globus

Toolkit's implementation of the GSI adheres to the

GSSAPI (RFC2078].

Figure 4: GSI-SSHTerm Interaction diagram.

WEBIST 2005 - INTERNET COMPUTING

142

Our GSI authentication implementation conforms

to the architecture of SSHTools’ SSHTerm

application and to the IETF specification “GSSAPI

Authentication and Key Exchange for the Secure

Shell Protocol” (GSSAPI]. The SSHTerm

application provides password, public key and

keyboard interactive authentication mechanisms. We

have added a GSI authentication module to it.

Now we will describe a grid portal session, which

is shown in figure 4. This scenario is for a user that

connects to the portal from an arbitrary machine

(e.g., a laptop) on which the user’s credentials are

not installed.

The user logs into the Grid Canada Portal, which

brings up a list of grid resources in the

infrastructure. The user could select to login any one

resource of the list. A GSI-SSHTerm application, as

shown in figure 5, is automatically downloaded and

deployed on the client (if necessary) and then starts

automatically. The application starts having the grid

resource’s URL as an input parameter. When the

application starts, the authentication process would

automatically detect that the user is using a terminal

device with no local credentials and thus it prompts

the user for his/her MyProxy account name and

password to retrieve a proxy credential. The

retrieved delegated proxy will be used to mutually

authenticate with the grid resource using the GSI

authentication protocol, which implies credential

delegation.

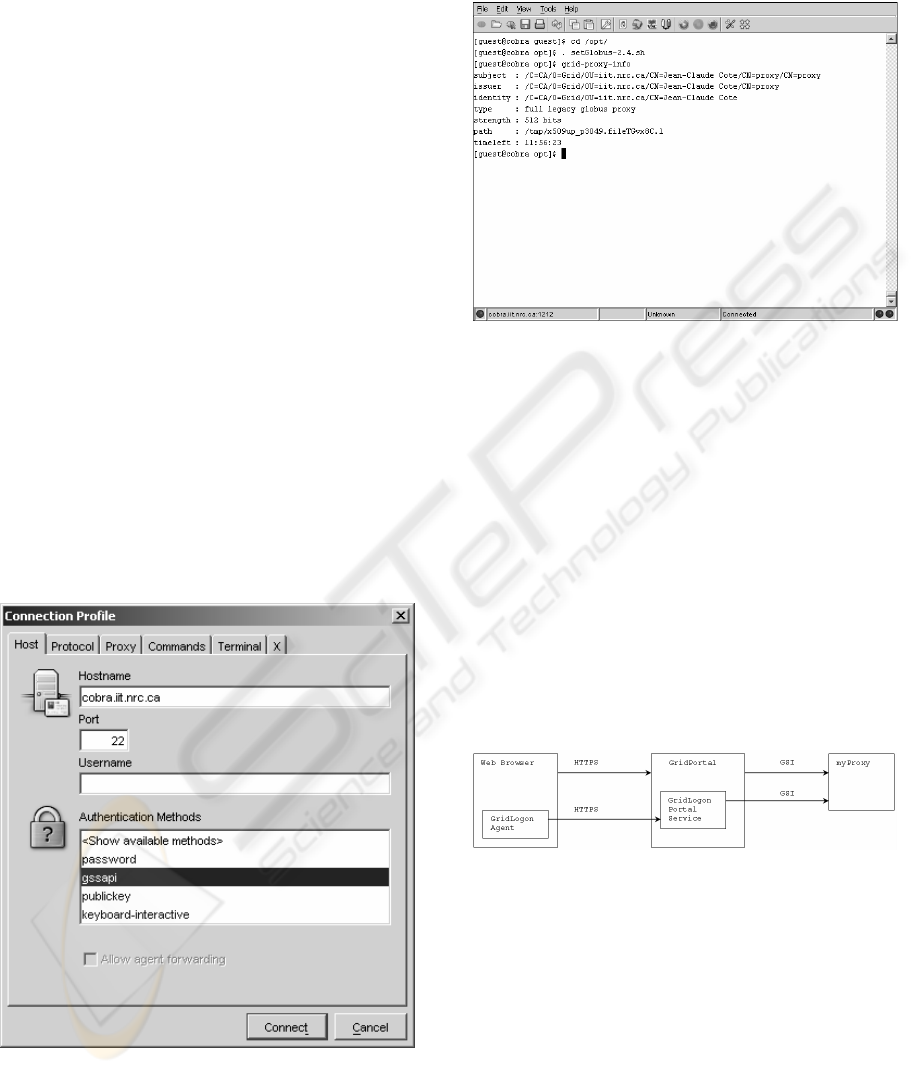

Figure 5: Connection profile dialog of the SSHTerm.

Therefore, the user can use shell commands to the

remote resource if needed, as shown in figure 6. He

is also able to access other grid resources using the

same terminal session since he/she has delegated his

credentials on this resource.

Figure 6: Java GSI-SSHTerm showing delegated

credentials.

5 GRID PORTAL LOGON

MECHANISM

In order for the GSI-SSHTerm to be able to retrieve

a credential from a MyProxy server, it needs to

establish a GSI connection to the server. However,

because GSI implies mutual authentication, the

client needs to possess a credential. To break this

circular dependency, an anonymous credential (i.e.,

a credential with no distinguish name) can be used.

For this approach to work, the MyProxy server

needs to be configured to allow anonymous

connections. However, administrators may not allow

this type of identification

Figure 7: GridLogon Agent/Service interaction diagram.

Another solution would be to delegate the

credentials to an application running on the user’s

local machine through a signed Jar file. The Grid

portal already has the user’s credentials delegated

from a MyProxy server, which it uses to submit jobs

on the user’s behalf. So one could bundle the user’s

credentials into a signed Jar file downloaded over an

HTTPS connection (HTTPS is HTTP combined with

transport layer security (TLS)). This technique

should be used cautiously since it involves

transmitting the user’s private key (via TLS) across

the network.

SEAMLESS AND SECURE AUTHENTICATION FOR GRID PORTALS

143

A GSI-SSHTerm application deployed through

Web Start is very easy to use however it does

require that a user provide his/her MyProxy account

name and password. It also assumes that a MyProxy

server with anonymous GSI authentication enabled

is available and reachable by the client. Getting rid

of this extra step altogether would be ideal. The user

would simply click on a resource link and a shell

would open. To satisfy all of these constraints a new

grid logon mechanism is presented. This mechanism

involves a “grid logon agent” and “grid portal logon

service” pair.

The grid logon agent is an applet that simplifies

the grid portal logon process. This applet works in

concert with the grid portal logon service as shown

in figure 7. The service retrieves a credential and

stores it locally. Simultaneously, it would log the

user into the portal in the usual way. Then when the

user selects a grid resource, the SSHTerm

application will load the local credential from the

location, which the logon applet saved it.

The grid portal logon service is a secure Web

Service hosted by the Grid portal. This service

serves as a front end to the MyProxy server and thus

only the Grid portal (using its portal credentials)

would communicate with the MyProxy server. Since

a secure web service is exposed through the well-

known HTTPS port it ensures that all users will be

able to use it. A grid portal logon service also offers

other benefits like constricting the access to the

MyProxy server and thus gives the grid portal more

control over the use of the MyProxy server. For

instance, users would only be able to log into the

grid portal logon service using their portal account

name. The portal could validate the account name

and the Distinguished Name (DN) of the user’s

certificate. The grid portal logon service could also

poll the MyProxy server and detect when a user’s

delegated proxy is about to expire and notify the

user using his email address retrieved from the

portal database.

We describe the usage scenario between the grid

logon agent and logon service as follows:

1. The user points a web browser at the grid portal

welcome page and clicks on the grid logon agent

applet. Using the applet, the user enters his/her

portal account name and a MyProxy password

(should be different from the portal’s password).

The grid logon agent sends this information to the

grid portal logon service over HTTPS.

2. The grid portal logon service checks if there are

already deployed credentials for this user on the

MyProxy server and if it should be refreshed. In case

of success, the grid portal logon service sends back a

status indicating success and delegates those

credentials to the grid logon agent. In case of failure,

the applet is notified that “credentials/refresh is

required”.

3. If the grid logon agent receives a failed message it

tries to locate credentials on the client machine.

3.1. If a local credential exists it prompts the user

for the private key password, delegates credentials to

the grid portal logon service using a GSSContext

(RFC2078] and sends the portal account name.

3.1.1. The grid portal logon service then

creates a portal account name and certificate’s

distinguish name mapping and asks the portal to

validate this mapping thus insuring that only the

proper user can do MyProxy “put” operation

using this portal account name. If all is ok the

grid portal logon service then puts those

credentials on the MyProxy server and the

process goes to step 5.

3.2. If no local credentials can be found, the user

is in a situation where he/she will be unable to

access grid resources, having no credentials locally

and no credentials on the MyProxy server. The user

should then be notified of the situation and be

invited to log into the grid portal service from a

machine with credentials. The user should also be

reminded that he/she can simply log into the portal

using the portal account name and portal password

but be warned that he/she will not be able to access

any grid resources.

4. If the grid logon agent applet receives an “ok” it

stores the delegated credentials

5. The grid logon agent then generates a URL with

the user’s portal account name and the MyProxy

password as parameters and then tells its parent

browser (the browser that started the grid logon

agent applet in the first place) to load the URL.

6. The portal uses its Single Sign-on mechanism to

authenticate the user using the portal account name

and MyProxy password. Simultaneously it retrieves

the user’s credentials from the MyProxy server.

This grid logon mechanism enables ubiquitous

credential delegation in the sense that credentials are

delegated between the client with or without

certificates and the Grid portal. This mechanism is

also transparent to the user. It does not put any

restrictions on the MyProxy server configuration. It

also uses the well-known and usually permitted

HTTPS port. It gives the portal more control over

what MyProxy account names are used by users.

Finally this mechanism extends the existing

portal authentication mechanism and thus does not

restrict users from using the conventional form-

based portal authentication. Meanwhile the state

during the session between the client browser and

the GridSphere-based grid portal are maintained

through the use of cookies.

WEBIST 2005 - INTERNET COMPUTING

144

6 CONCLUSION

In this paper, we described extensions to the Globus

Toolkit and SSHTerm that support seamless

credential management for accessing grid resources

and support portable secure shell access to grid

resources (GSI-SSH terminal). We also introduced

an innovative portal authentication mechanism using

a grid logon signed applet that would enable client-

side Java code to authenticate to grid resources

directly using GSI mechanisms. The functionality

has been implemented as Java applications that

could be deployed with the Web Start and Java

Plugin technologies. In future, we expect to do some

tests to evaluate the scalability and performance of

our solutions against multiple users and resources.

ACKNOWLEDGEMENTS

We would like to thank Michael Russell of the

GridSphere project at Albert Einstein Institute for

his co-operation in verifying the design of the

GridLogon mechanism. His knowledge of Grid

portals was valuable. We are also grateful to Jim

Basney of the National Center for Supercomputing

Applications for his help in debugging the GSI-

SSHTerm authentication module. His knowledge of

inner workings of the GSI enabled OpenSSH server

was very useful

REFERENCES

COG: Commodity Grid Kits, http://www-

unix.globus.org/cog/

Foster, I. and Kesselman, C., 1997. Globus: A

metacomputing infrastructure toolkit. The

International Journal of Supercomputer Applications

and High Performance Computing, 11(2), pp. 115–

128.

GridCanada, http://www.gridcanada.ca

GridPort, http://gridport.net

GridSphere project, http://www.gridsphere.org

Grimshaw, A., Wulf, W., and the Legion team, 1997. The

legion vision of a worldwide virtual computer.

Communications of the ACM, 40(1), pp. 39–45.

GSI: Grid Security Infrastructure,

http://www.globus.org/security/

GSSAPI IETF specification “GSSAPI Authentication and

Key Exchange for the Secure Shell Protocol”

http://www.ietf.org/proceedings/01dec/I-D/draft-ietf-

secsh-gsskeyex-02.txt

JGSS: The org.ietf.jgss package,

http://java.sun.com/j2se/1.4.2/docs/api/org/ietf/jgss/pa

ckage-summary.html

Joy, B., Steele, G., Gosling, J., and Bracha, G., 2000. The

Java language specification. Addison-Wesley, second

edition.

Novotny, J., Tuecke, S. and Welch, V., 2001. An Online

Credential Repository for the Grid: MyProxy. 10th

IEEE International Symposium on High Performance

Distributed Computing, San Francisco CA.

RFC2078: IETF specification Generic Security Service

Application Program Interface, Version 2,

http://www.ietf.org/rfc/rfc2078.txt

SSHTools project, http://sourceforge.net/projects/sshtools/

UNICORE project, http://www.unicore.org/

SEAMLESS AND SECURE AUTHENTICATION FOR GRID PORTALS

145
