APPLICABILITY OF FACIAL EMG IN HCI AND VOICELESS
COMMUNICATION
Sanjay Kumar, Dinesh Kant Kumar, Melaku Alemu
School of Electrical and Computer Engineering
RMIT University GPO BOX 2476 Melbourne VIC 3001
Keywords: Facial EMG, HCI, Voiceless Speech.
Abstract: This paper discusses the speech related information in the facial EMG for applications such as human
computer interface. The primary objective of this work is to investigate the use of facial EMG as a voiceless
communication medium or to drive computer based equipment by people who are unable to speak. Subjects
were asked to pronounce the five English vowels with no acoustic output (voiceless). Three independent
EMG signals were acquired from three facial muscles as ‘voiceless’ EMG activations. In order to classify
and recognize each vowels based on EMG, RMS of the recorded signals were estimated and used as
parametric/feature inputs to a neural network.
1 INTRODUCTION
Electromyogram (EMG) is the recording of the
electrical activity of muscles. It is a result of the
combination of action potentials during contracting
muscle fibers. EMG can be recorded using invasive
or non-invasive electrodes. Surface EMG (SEMG) is
non-invasive recording from the surface and is used
to identify the overall strength of contraction of
muscles and root mean square (RMS) of SEMG is a
good indicator of the strength Besides its clinical
applications, EMG has been used as a control signal
in prosthetic devices dating back in the 1970 (Morse
et al., 1991).
Speech has been modelled by the source and
filter. The filter of sound is a result of the mouth
cavity and lips and results in giving the spectral
content to the sound. Vowels are sounds that are
relatively stationary while consonants are produced
by dynamic variation of the filter characteristics.
The shape of the lips and mouth cavity is controlled
by the contraction of the corresponding muscles.
Based on the above, it is stated that speech
produced by any person is dependent on the muscle
activity of the facial muscles controlling the shape of
the mouth and lips. However, very little work is
reported in literature where this relationship has
been investigated for speech recognition or other
related applications. Morse et al (Morse et al., 1991),
are one such group who report the use of EMG
recorded from the neck and temple to analyse
feasibility of using neural networks to recognize
speech. Their parametric input to the neural network
was the power spectral density of the EMG activated
and recorded while subjects quasi-randomly spoke
words. They report a very low overall accuracy of
approximately 60% for the recognition of the signal
(Morse et al., 1991). A.D.C. Chan et al., report the
use of facial EMG with linear discriminate analysis
to recognize 10 separate numbers with a recognition
accuracy of over 90% (Chan et al., 2001). However
H. Manabe et al (Manabe, 2003), have observed
language dependent nature of the Chan et al’s work
as a drawback and suggested the use of phonemes
based recognition method (Manabe, 2003). Sugie et
al (Sugie et al., 1985) report the use of EMG for
identifying the phonemes during the subject
speaking five Japanese vowels but report a low
accuracy of 60%. Other researchers such as C
Jorgensen et al (Jorgensen et al.) have demonstrated
possible application of EMG signal recorded from
the Larynx and sublingual areas from below the jaw
in speech recognition particularly for silent or sub-
auditory speech. Using neural networks with a
combination of feature sets, they have shown the
potential of sub-acoustic speech recognition based
on EMG with up to 92% accuracy. From the
literature reported, there appears to be a discrepancy
379
Kumar S., Kant Kumar D. and Alemu M. (2005).
APPLICABILITY OF FACIAL EMG IN HCI AND VOICELESS COMMUNICATION.
In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics - Robotics and Automation, pages 379-382
DOI: 10.5220/0001155003790382
Copyright
c
SciTePress
of the reliability of EMG of the facial muscles to
identify speech. Thus, there is a need to determine if
the use of EMG to identify simple sounds is reliable
and reproducible which would then be the basis for a
more complex study. With that aim, this paper
reports our work conducted to identify certain
common sounds using surface EMG under
controlled conditions.
2 BACKGROUND
2.1 English Vowels
English vowels are speech gestures that represent
stationary filter characteristics with no nasal
involvement. Based on this, it is argued that the
mouth and lips shape would remain stationary
during the pronunciation of the vowels and hence
the muscle contraction during the utterance of the
vowels would remain stationary. Utterance of
consonants would result in temporal variation of
shape and thus changing muscle contraction for the
duration of the utterance. For this reason, this
research has considered five English vowels. This is
also important because English vowels are an
important building stone in modern speech. By
including temporal variation, this can then be
extended to consonants.
2.2 Speech Production and Facial
Muscles
Various facial muscles involve during speech
production in pursing the lips, lifting the corners of
the mouth, opening the jaw etc. In this trial study,
only three facial muscles were selected (Mentalis,
Depressor Anguli Oris and Massetter). The Mentalis
originates from the mandible and inserts into the
skin of the chin to elevate and protrude lower lip,
pull chin skin into a pout. The Depressor anguli oris
originates from the mandible and inserts skin at
angle of mouth pulls corner of mouth downward
while Masseter originates from maxilla and
zygomatic arch and inserts to ramus of mandible to
elevate and protrude, assists in side-to-side
movements of mandible.
It is impractical to consider all the facial muscles
and record their electrical activity. To determine the
best choice of muscles, authors are aware that the
role of each individual muscle has to be identified
and examined objectively. As a short cut,
preliminary experiments were undertaken and it was
observed that the above-mentioned three facial
muscles relatively more active when subjects
attempt to pronounce the five vowels. It has been
also noticed that Massetter muscle tends to be
electrically less active compare with Depressor
Anguli Oris and the Mentalis muscle.
3 METHODOLOGY
3.1 EMG Recording and Processing
Three male subjects participated in the investigation.
The AMLAB workstation was used for EMG
recording. The experiment used a 3-channel EMG
configuration according to recommended recording
guidelines (Fridlund, 1986). Ag/AgCl electrodes
(AMBU blue sensors from MEDICOTEST
Denmark) were mounted on three selected facial
muscles (Mentalis, Depressor Anguli Oris and
Massetter) on the right side of the face. Inter
electrode distance was arranged to be 1cm. Before
the recording commences, EMG target sites were
cleaned with alcohol wet swabs. Inter-electrode
impendence was checked using a multimeter.
A pre-amplifier (with a Gain of 1000) was placed

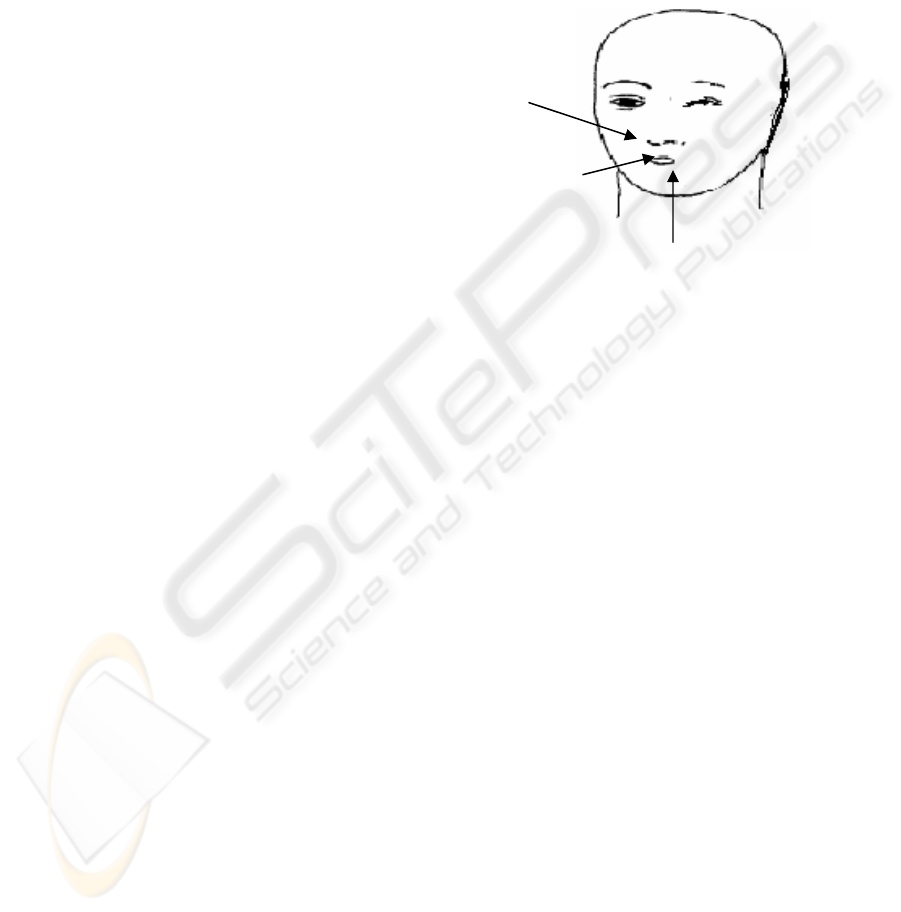

for each EMG channels. A sample schematic of the
recording is shown in figure 2. To minimise
movement artifacts and aliasing, a band-pass filter
(with low corner (-3dB) 8Hz and with high corner (-
3dB) frequency of 79Hz) was implemented. A notch
filter, to remove a 50Hz line noise, was also
included. The EMG signal was amplified and
sampled with a rate of 250Hz.
Three facial EMG simultaneously were recorded
and observed while subjects spoke (‘voicelessly’)
the five English vowels (/a/, /e/, /i/, /o/, /u/) for three
times. Enough resting time was given in between the
three activations. Overall fifteen data sessions were
M
assette
r
Depressor Anguli Oris
M
entalis
ICINCO 2005 - ROBOTICS AND AUTOMATION
380
performed for each subject. To observe any changes
in muscle activity, the recorded raw EMG signal was
further processed.
After the recording process was completed, the
raw EMG was transferred to Matlab for further
analysis. Using averaging filter, thresholding was
done to remove the noise. The RMS (Root Mean
Square) values of each signal was estimated with ‘s
the window length being 1.5 s. This window size
was selected as it represented the maximum size of
the envelope for the vowels spoken by the subjects.
4 TESTING
Recognition of EMG based speech features may be
achieved by applying a supervised artificial neural
network. The artificial neural network is efficient
regardless of data quality. Neural networks can learn
from examples and once trained, are extremely fast
making them suitable for real time applications
(Freeman and Skapura, 1991) (Haung, 2001). The
classification by ANN does not require any
statistical assumptions of the data. ANNs learns to
recognize the characteristic features of the data to
classify the data efficiently and accurately.
Back Propagation (BPN) type Artificial Neural
Network has been designed and implemented. The
advantage of choosing Feed Forward (FF) and BPN
learning algorithm architecture is to overcome the
drawback of the standard ANN architecture.
Augmenting the input by hidden context units,
which give feedback to the hidden layer, thus giving
the network an ability of extracting features of the
data from the training events is one advantage. The
size of the hidden layer and other parameters of the
network were chosen iteratively after
experimentation with the back-propagation
algorithm. There is an inherent trade off to be made
more hidden units results in more time required for
each iteration of training; fewer hidden units results
in faster update rate. For this study, two hidden layer
structure were found sufficiently suitable for good
performance but not prohibitive in terms of training
time. Sigmoid has been used as the threshold
function and gradient desent and adaptive learning
with momentum as training algorithm. A learning
rate of 0.02 and the default momentum rate was
found to be suitable for stable learning of the
network. The training stopped when the network
converged and the network error is less than the
target error. The weights and biases of the network
were saved and used for testing the network. The
data was divided into subsets of training, validation,
and test subsets data. One fourth of the data was
used for the validation set, one-fourth for the test set,
and one half for the training set. Three RMS values
of EMG captured during the subject pronounce the
vowels were defined as inputs to the ANN. The
output of the ANN was one of the five vowels.
5 RESULTS AND DISCUSSION
Table 1: Accuracy of recognition of vowel from EMG
/a/ /e/ /i/ /o/ /u/ Average
Subject 1 97 94 98 93 85 93.4
Subject 2 91 86 90 85 93 89
Subject 3 88 89 86 97 95 91
Table 1 shows the experimental results. The results
of the testing show that with the system described
can classify the five vowels with an accuracy of up
to 91%. The higher classification accuracy is due to
better discriminating ability of neural network
architecture and RMS of EMG as the features. At
the present stage, the method has been tested
successfully with only three subjects. In order to
evaluate the intra and inter variability of the method,
a study on a larger experimental population is
required.
6 CONCLUSIONS
This paper describes a study to recognise human
speech signal based on the EMG data extracted from
the three articulatory facial muscles coupled with
neural networks. Test results show recognition
accuracy of 91 %. The system is accurate when
compared to other attempts for EMG based speech
recognition systems. These preliminary results
suggest that the study is suitable to develop a real-
time EMG based speech recognition system. This
would have number of applications such as for voice
control of machines and toys in noisy environment
and for people who do not have the gift of speech. It
would also find other applications such as for noise
reduction for telephonic conversations in noisy
environments.
7 FURTHER WORK
Authors are currently working with a larger
population of subjects to determine the inter and
APPLICABILITY OF FACIAL EMG IN HCI AND VOICELESS COMMUNICATION
381
intra subject variability. Authors are also conducting
experiments for consonants and other sounds and
observing the temporal variation of the data.
REFERENCES
M.S. Morse, Y.N. Gopalan, M. Wright: Speech
recognition using myoelectric signals with neural
network, Annual International Conference of the IEEE
Engineering in Medicine and Biology Society,
Vol.13, No.4, pp.1977-1878, 1991.
A.D.C. Chan, K.E., B. Hudgins, D.F. Lovely, Myo-
electric signals to augment speech recognition.
Medical & Biological Engineering & Computing,
2001. 39: p. 500-504.
“Unvoiced Speech Recognition using EMG - Mime
Speech Recognition –“ Short Talks: Specialized
Section CHI 2003: NEW HORIZONS Short Talk:
Brains, Eyes and Ears CHI 2003: NEW HORIZONS
Hiroyuki Manabe NTT DoCoMo
MultimediaLaboratories†manabe@mml.yrp.nttdocom
o.co.jp
N. Sugie, K. Tsunoda,: A speech prosthesis employing a
speech synthesizer. IEEE Transaction on Biomedical
Engineering, Vol.BME-32, No.7, pp.485- 490, 1985.
Sub Auditory Speech Recognition Based on EMG
Signals” Chuck Jorgensen, Diana D Lee & Shane
Agabon.
Akira Hiraiwa NTT DoCoMo Multimedia Laboratories
hiraiwa@mml.yrp.nttdocomo.co.jp Toshiaki Sugimura
NTT DoCoMo Multimedia Laboratories
sugi@mml.yrp.nttdocomo.co.jp
A J Fridlund, J.T.C., Guidelines for human electrographic
research. Psycholphysiology, 1986. 23: p. 567-589.
A. Freeman and M. Skapura, Neural Networks:
Algorithms, Applications, and Programming
Techniques, Addison-Wesley, Mass., 1991.
Haung, K.-Y., "Neural networks for robust recognition of
seismic patterns,". IEEE Transactions on Geoscience
and Remote sensing 2001
ICINCO 2005 - ROBOTICS AND AUTOMATION
382
